Toward a QoS Based Run-time Reconﬁguration in Service-oriented

Dynamic Software Product Lines

Jackson Raniel Florencio da Silva, Aloisio Soares de Melo Filho and Vinicius Cardoso Garcia

Center of Informatics, Federal University of Pernambuco, Recife, Pernambuco, Brazil

Keywords:

SPL, DSPL, SOA, Software Product Line, Dynamic Software Product Line.

Abstract:

Ford invented the product line that makes possible to mass produce by reducing the delivery time and produc-

tion costs. Regarding the software industry, this, roughly presents both a manufacturing and mass production

that generates products that are denoted as individual software and standard software (Pohl et al., 2005): a clear

inﬂuence of Fordism in the development paradigm of Software Product Lines (SPL). However, this develop-

ment paradigm was not designed to support user requirements changes at run-time. Faced with this problem,

the academy has developed and proposed the Dynamic Software Product Lines (DSPL) (Hallsteinsen et al.,

2008) paradigm. Considering this scenario, we objective contribute to DSPL ﬁeld presenting a new way of

thinking which DSPL features should be connected at run-time to a product based on an analysis of quality

attributes in service levels speciﬁed by the user. In order to validate the proposed approach we tested it on a

context-aware DSPL. At the end of the exploratory validation we can observe the effectiveness of the proposed

approach in the DSPL which it was applied. However, it is necessary to perform another studies in order to

achieve statistical evidences of this effectiveness.

1 INTRODUCTION

Cost, reusability and ”time-to-marketing” are aspects

of productivity that concern software manufactur-

ers. Moreover, the software conﬁguration manage-

ment becomes increasingly more complex as they in-

crease the possible combinations of software features.

The paradigm of Software Product Lines (SPL) ad-

dress this problem by creating software products from

a common set of characteristics. The management

of the conﬁguration occurs with the variabilities and

commonalities between members of the SPL.

According to the Software Engineering Institute

(SEI)

, a SPL is a set of software-intensive systems

that share a common, managed set of features, sat-

isfying the speciﬁc needs of a particular market seg-

ment or mission. The features are developed from a

common set of core assets in a prescribed way. The

beneﬁts of adopting the SPL paradigm depend on the

context in which it is applied. Some of the most com-

mon beneﬁts are the reduction of cost and “time-to-

marketing” promoted by reusing the SPL core assets.

However, dynamic changes in user requirements

and the environment in which the software is housed

at run-time are becoming increasingly frequent, so

http://www.sei.cmu.edu/productlines/tools/framework/

there is an increasing demand for systems that can

automatically adapt. In 2008, Hallsteinsen (Hallstein-

sen et al., 2008) published a study that described the

concept of Dynamic Software Product Lines (DSPL).

These product lines differ from others by not man-

aging the variability during the design phase of the

software. Instead, it is managed, later at run-time.

The DSPL have ﬁve principal characteristics: a)

dynamic variability, b) biding of the elements of

DSPL changes during the life cycle of the application,

c) variation points change at runtime, d) unexpected

changes in the context, and e) development for one

speciﬁc context or environment in place of a market

segment (Hallsteinsen et al., 2008).

Optionally, DSPLs may be aware to the context

around them (Parra et al., 2009; Ali et al., 2009;

Alferez and Pelechano, 2011), have autonomic prop-

erties or have self-adaptation (Abbas et al., 2011;

Cetina et al., 2008), and have automatic decision mak-

ing. These characteristics are a challenge to a devel-

opment model of SPLs that manages the variability

out of the design phase.

We propose in this study an approach for analyze

which DSPL features should be connected at run-time

to a product based on an analysis of quality attributes

in service levels speciﬁed by the user. The Section

460

Florencio da Silva J., Soares de Melo Filho A. and Cardoso Garcia V..

Toward a QoS Based Run-time Reconﬁguration in Service-oriented Dynamic Software Product Lines.

DOI: 10.5220/0004973404600465

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 460-465

ISBN: 978-989-758-028-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

2 presents in details the problem addressed, Section

3 presents an overview of the literature about DSPL,

the Section 4 presents the proposed approach that are

evaluated in Section 5.

2 PROBLEM STATEMENT

This study is under the MobiLine

project, which is a

DSPL for context-aware mobile applications divided

into two abstraction levels: base and speciﬁc levels.

The base level has common features to the mobile

context-aware domain applications and the speciﬁc

level that consists of features that belongs to a par-

ticular business domain (Marinho et al., 2012).

Their applications use contextual information,

such as location, proﬁle, visitor user preferences, and

requests to adapt their own behavior at run time. The

adaptation occurs while connecting features which

are Web services to the product on the mobile device.

The MobiLine project objectives the creation of

a mechanism for automatic adaptation at run-time,

choosing features of the application that will be en-

abled for the user and adapting them according to the

context in which the application operates. The oper-

ation of this mechanism may vary based on rules of

action or condition, may even be modeled by an opti-

mization problem.

The study by Martins (de Oliveira Martins, 2013)

talks about the mechanism of reconﬁguration and ser-

vice discovery framework called DYMOS. In this

approach, whenever a reconﬁguration occurs on the

client side, a reconﬁguration happens on the server

side. However, this study selects what services are on

the server side in an arbitrary manner without making

any analysis of services that will compose the DSPL.

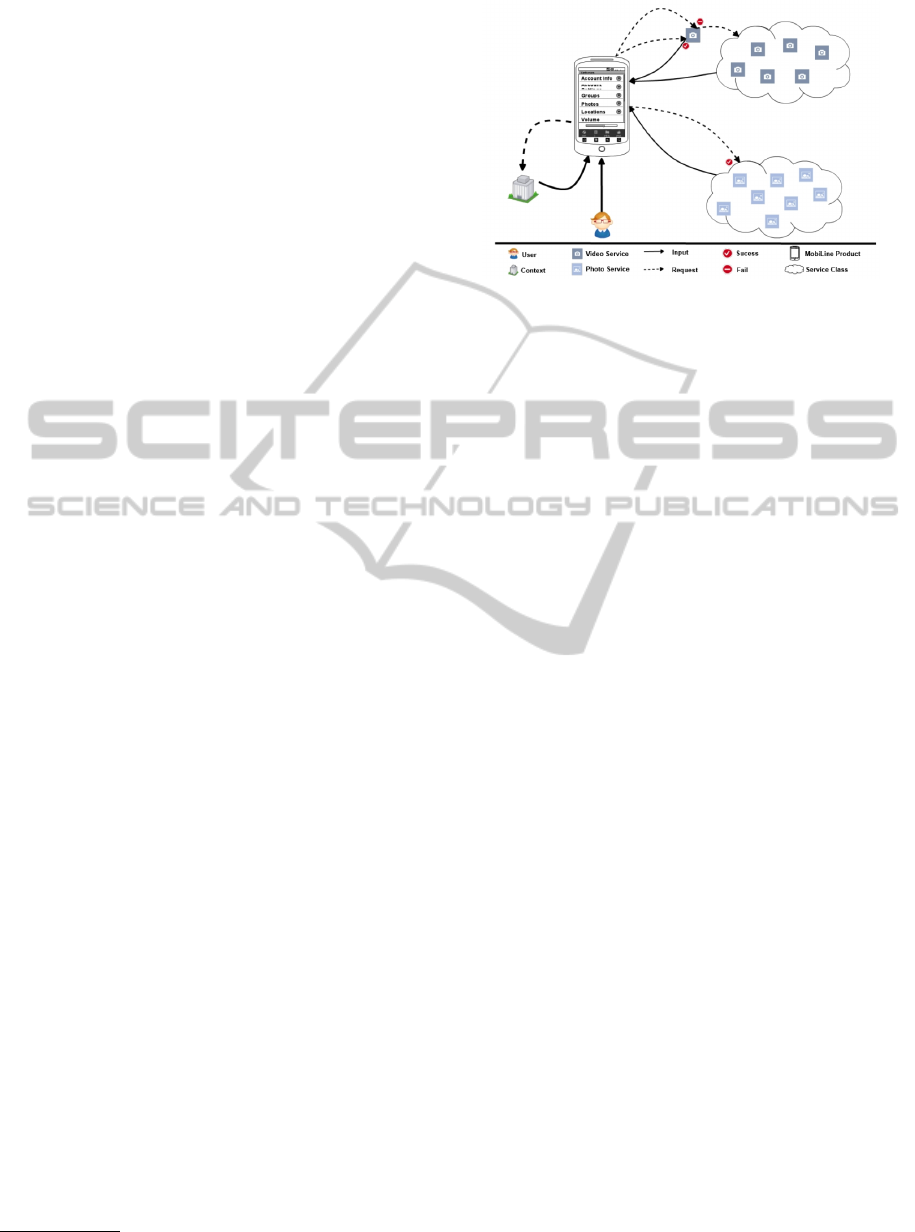

Figure 1 represents the hypothetical scenario that

exempliﬁes the problems addressed in this study. As

previously reported, the MobiLine product, in run-

time execution, collects contextual information (col-

lected by sensors or device status) and receives stim-

ulus from the user with the information which deﬁne

run time adaptations must occur.

When a mobile device adaptation happens, two

situations can occur: a) the request to a Web service

present and active on the server side or b) the request

of a missing or inactive Web service on the server

side.

For situation a), when the service of MobiLine

products are found they are consumed as expected.

In situation b), after the creation of DYMOS when

the service is not found, the framework is responsible

http://mobiline.great.ufc.br/index.php

Figure 1: Problem Scenario.

for ﬁnding a service to replace what is available, in

accordance with an order of priority. If none of the

services organized by priority are available, any ser-

vice that meets the interface required by the mobile

application, is now available.

However, Alferez (Alferez and Pelechano, 2011)

argue that Web services are implemented in com-

plex and heterogeneous environments, and it is ap-

propriate adaptation mechanisms according to con-

textual changes affecting reconﬁguration and increas-

ing quality of the service provided. According to Lin

(Lin et al., 2010), from a business perspective, it is

strongly desirable to maximize the quality of a ser-

vice provided given different understandings of what

quality is from different customers’ perspectives.

Hence, the aim of this article is to propose an ap-

proach for selection of features that will compose a

DSPL at run time based on an analysis of the respec-

tive quality attributes.

3 LITERATURE REVIEW AND

RELATED WORK

The aspects related to the reconﬁguration in real time

in SPL is a study extensively explored by researchers,

which is treated as part of the derivation of the DSPL

called dynamic derivation (Parra et al., 2009).

In a systematic way of developing dynamically

conﬁgurable core assets in a feature oriented approach

Lee (Lee, 2006) developed a reconﬁgurator that accu-

mulates functions to monitor and manage the conﬁg-

uration of a product at run time. The authors believe

that the dynamic derivation can be accomplished by

grouping features in bind units and using a reconﬁgu-

rator that considers contexts (when to conﬁgure), re-

conﬁguration strategies (how to reconﬁgure) and re-

conﬁguration actions (what to reconﬁgure). Latter, in

a continuation of the study carried out by the same au-

thor (Lee and Kotonya, 2010) a possible solution for

TowardaQoSBasedRun-timeReconfigurationinService-orientedDynamicSoftwareProductLines

461

dynamic reconﬁguration was described that combines

a feature-oriented analysis and a framework sensible

to the quality of services of an SPL.

Gomaa (Gomaa and Hashimoto, 2011) describes

an architecture for dynamic adaptation of SPL prod-

ucts based in Service-Oriented Architecture (SOA).

This architecture contains a monitoring service that

continuously checks the status of the running system

and forwards it to the calibration service that, perceiv-

ing a situation in the context that requires an action,

sends a request of feature selections to a dynamic de-

vice. This device determines if there is a need for

conﬁguration changes in the running conﬁguration.

It dynamically determines necessary changes for the

feature model of the application and sends the new set

of features for the change management service. It is

in charge of change management service and deter-

mines the difference between the new and actual fea-

tures selection, determines the components and con-

nectors need to be added or removed and generate a

sequence of commands that correspond to adapting to

the changes that need to be made.

Alferez (Alferez and Pelechano, 2011) developed

a method to design and implement autonomous and

context-aware Web services in SPL. The authors ar-

gue that Web services are characterized by features,

and that then the activation and deactivation of fea-

tures at run-time can guide the autonomic reconﬁg-

uration of services composition according to changes

in context. In this case, the products are a composition

of services. To make it possible for a service com-

position, the authors suggest the creation of a com-

position model made from a UML activity diagram.

This model illustrates the Web services and the ﬂow

sequence between them that determines the order in

which each Web service must be activated.

The relationship between SPL and service-

oriented computing has clearly used by Yu (Yu et al.,

2010) by presenting a methodology for building-

based services for heterogeneous and dynamic envi-

ronments applications. The methodology is divided in

phases of domain engineering, application engineer-

ing and run-time. A development process focused on

domains and inspired by SPL-oriented architecture is

proposed. It is during run-time that, through dynamic

service composition, the reconﬁguration happens.

It is interesting to note that SOA follows an ap-

proach of reuse and composition of services whereas

SPL corresponds to an approach by building and de-

composition (Parra et al., 2009). However, the char-

acteristics of these opposing paradigms (composition

and decomposition) are not conﬂicting since service

composition in a traditional SPL comes at a pre-

derivation time, and decomposition occurs at the the

product derivation moment.

Traditional DSPLs may also not present difﬁcul-

ties for this antagonism. Nevertheless, this problem

certainly affects service-oriented DSPLs thats needs

to decides based on some analysis (e.g., priority, re-

sponse to context, and QoS), which services should be

plugged into at run-time, because derivation (decom-

position) and composition are occurring at the same

time.

About this question, we have examples as treated

by Yu (Yu et al., 2010) in which the service-oriented

DSPL makes the analysis of which services com-

pose the product only checking the availability of

services. Additionally, Lee (Lee, 2006) presents a

service-oriented DSPL where the features are mapped

to services. This DSPL performs an analysis and

planning at run time based on contextual changes to

deﬁne which features and, consequently, what ser-

vices should compose the product.

In a later study Lee (Lee and Kotonya, 2010) mod-

iﬁed their approach. In the modiﬁed approach, the run

time analysis is made based on service level agree-

ments imposed by product line. In the same manner

as in the studies of Alferez (Alferez and Pelechano,

2011) and Gomaa (Gomaa and Hashimoto, 2011),

where when a break occurs in the service level agree-

ment the framework looks for another service that

satisﬁes the desired conditions. No details were ex-

pressed in the study about what those conditions (QoS

attributes) or how the trading is done.

The deﬁnition of the services that will compose

the service-oriented DSPL based on an analysis of

QoS attributes held for each user request is not present

in the literature studies. This is the objective of the

present study.

4 DYMOS QoS APPROACH

To achieve the objective of this study, we proposed ex-

tending the DYMOS (de Oliveira Martins, 2013) ap-

proach, which is starting to be called DYMOS QoS.

This proposed solution consists of an application de-

veloped in JAVA language and Open Services Gate-

way Initiative (OSGi) and that assesses individual and

collectively attributes of service quality available for

the reconﬁguration of the SPL at run time.

Using DYMOS QoS, it is possible to change the

situation b) presented in Figure 1. In this situation,

the service selection to replace the unavailable ser-

vice occur according to the priority arbitrated. With

our proposed approach, the services selection occur

according to the quality of the services available upon

request. It selects the service that has the highest score

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

462

provided by the framework. Although this frame-

work, makes possible to occur a third scenario where

the request for a service ever return a great service for

a certain level of service required.

The framework is structured as shown in the

Figure 2. This architecture presents three descrip-

tor elements: the ServiceDescriptor that describes

what can be binded at run-time in the SPL product;

the VariabilityDescriptor that describes the variation

points; and ﬁnally the WSDescriptor that describes

the WSDL of each Web service.

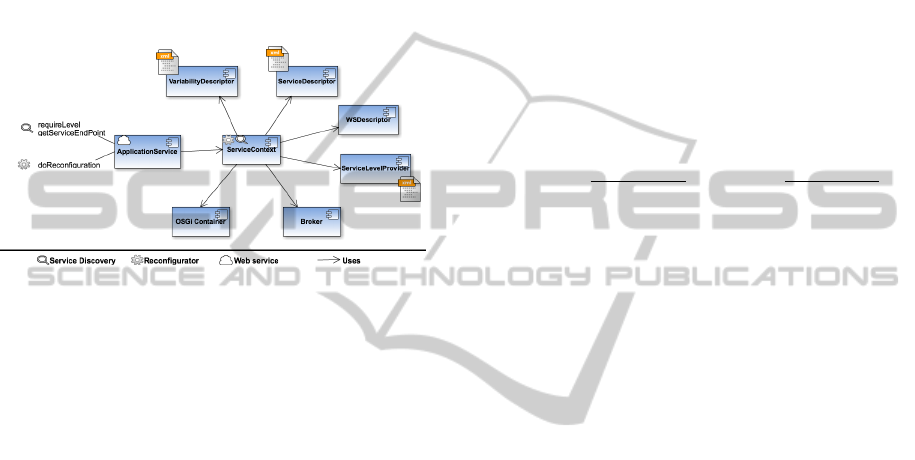

Figure 2: DYMOS QoS Package Diagram.

The ServiceDescriptor uses an XML ﬁle to de-

scribe the services. This XML contains a list of struc-

tured ﬁelds for each Web service such as a “Id” ﬁeld

to uniquely identify a Web service, a “serviceSpec”

and “serviceImpl” ﬁelds that contains the values that

identify the interface, and an implementation for the

service. Each service description has, optionally, a list

of alternative services that contains a reference for an-

other Web service.

The variability meta data structure utilized by

the VariabilityDescriptor deﬁnes a list of variabili-

ties with an identiﬁcation (ID) by the “id” attribute,

a name via the “name” attribute, and a set of variants.

A variant consists of an ID, a name and a set of service

references.

The WSDescriptor is used for service discovery

operations, and its main function, according to a par-

ticular service provided, is describe attributes that are

not described in the ServiceDescriptor and are spe-

ciﬁc to each implementation of a service as “Service-

Name”, “PortType”, or “Target Namespace”. Thus,

WSDescriptor allows greater ﬂexibility to the frame-

work, adding dynamic and loosely coupled character-

istics.

The components responsible for the QoS analysis

are the ServiceLevelProvider and the Broker. The ﬁrst

one stores contextual information about the Web ser-

vices stored in a structured way in an XML ﬁle and

update this information according to changes in the

context. The Broker component is in charge of ana-

lyzing the quality attributes of each service in run time

during the service discovery.

In order to be possible to the Broker perform that

analysis the ServiceLevelProvider XML stores some

quality attributes, such as service level, maximum

capacity, current capacity, response time, and cost.

The broker analysis calculates the utility (Yu and Lin,

2005) of each service at the chosen service level and

sends to the ServiceContex component.

The utility function can be seen in the Equation 1,

where w

and w

are the weights of the beneﬁt an the

cost, b(s, l) and c(s, l) are the beneﬁt and the cost by

choosing service s in the level l, avg

and avg

are the

average beneﬁt and the average cost for the available

services in the chosen service level, and ﬁnally std

and std

are the standard deviation of beneﬁt and cost.

F(s, l) = w

∗ (

b(s, l)− avg

std

) + w

∗ (1 −

c(s, l)− avg

std

)

(1)

This equation uses the results of the beneﬁt func-

tion that are calculated by subtracting the current ca-

pacity of a service from their max capacity on a ser-

vice level and dividing the result by the max capacity

in the chosen service level. That means that the bene-

ﬁt is a rate of the Web service load.

The ServiceContext component makes use of all

descriptors components. The use of these components

allows the ServiceContext to get all the information

described in the form of Java objects, allowing man-

agement of variability and services described. This

management is to use the information on Variability

and services for manipulating the OSGi container.

The component ApplicationService was imple-

mented to act as a facade, creating an isolation be-

tween the client and the other framework components.

Thus, it reduced the number of objects that clients

needed to deal with. The main objective of the com-

ponent is to expose operations, thus allowing the ser-

vice discovery and the variability management.

These operations are provided by means of Web

services, so that all incoming requests should be dele-

gated to the ServiceContext component so that they

can be treated. This component was implemented

using iPOJO to get it in the form of OSGi bundle

and DOSGi CXF to expose their functionality through

Web services.

5 PRELIMINARY VALIDATION

CASE

In order to validate the proposed approach, we then

applies it in the products of the MobiLine. To do

TowardaQoSBasedRun-timeReconfigurationinService-orientedDynamicSoftwareProductLines

463

so, ﬁrst it was necessary adequate the client side of

the DSPL and before conﬁgure the DYMOS QoS by

making the XML ﬁles necessary for the descriptors

and ServiceLevelProvider components.

To the DYMOS QoS approach to be fully func-

tional, each time a service will be called in the client

side the wanted service level and the end point of this

service need to be refreshed. This is done by making

a call to the requireLevel() and getServiceEndPoint()

methods of the ApplicationService Web service from

the framework.

The variabilities XML handled by the Variability-

Descriptor maps the variants to their respective vari-

abilities. Thus, to the framework a variant can be ac-

tivated by the client just when the variability is ac-

tivated. This is part of the static derivation process

of the MobiLine and is well described by Martins

(de Oliveira Martins, 2013).

Listing 1: Services XML File.

<?xml version="1.0"?>

...

<service id="imageService"

service-impl="com.assertLab.imageServiceImpl">

<service-spec>

com.assertLab.imageService

</service-spec>

<alternative-service ref="imageService1" />

<alternative-service ref="imageService2" />

<alternative-service ref="imageService3" />

<alternative-service ref="imageService4" />

<alternative-service ref="imageService5" />

</service>

<service id="imageService1"

service-impl="com.assertLab.imageService1">

<service-spec>

com.assertLab.imageService

</service-spec>

</service>

<service id="imageService2"

service-impl="com.assertLab.imageService2">

<service-spec>

com.assertLab.imageService

</service-spec>

</service>

<service id="imageService3"

service-impl="com.assertLab.imageService3">

<service-spec>

com.assertLab.imageService

</service-spec>

</service>

<service id="imageService4"

service-impl="com.assertLab.imageService4">

<service-spec>

com.assertLab.imageService

</service-spec>

</service>

<service id="imageService5"

service-impl="com.assertLab.imageService5">

<service-spec>

com.assertLab.imageService

</service-spec>

</service>

...

</services>

</variabilities>

Listing 2: QoS Attributes XML File.

...

<name>imageService1</name>

com.assertLab.imageService

</serviceSpec>

</serviceLevel>

<name>imageService1</name>

com.assertLab.imageService

</serviceSpec>

</serviceLevel>

...

Each variant in the DYMOS QoS framework can

be implemented by a class of Web services that are

bound dynamically in run-time to the DSPL. Each

Web service in the class implements the same service

interface. The services XML, shown in Listing 1, is

responsible to describing the services interfaces and

implementations. Also, each service implementation

has a set of QoS attributes, as shown in Listing 2.

To exemplify the operation of the DYMOS QoS

in a real situation we activated the variant “image-

Service” and all their alternative services described in

the Listing 1 with the cost, max capacity (cMax), cur-

rent capacity (cCurr), and utility function value (UF)

shown in the Table 1. We experimented with the three

situations described in Section 2.

Table 1: QoS Values.

Service cMax cCurr Cost UF

imageService1 42 0 2,07 0,82

imageService2 39 9 6,86 -0,58

imageService3 30 17 0,56 0,18

imageService4 23 22 6,97 -1,83

imageService5 43 26 9,69 -1,82

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

464

In the ﬁrst situation the a request for the end point

of the variant “imageService” is made in the Mobi-

Line Product. The ServiceContext uses the descriptor

components of the framework to identify the imple-

mentation and the speciﬁcation of the variant. Thus,

the service context veriﬁes the availability of the ser-

vice in the OSGi container and sends the end point to

the mobile device.

For testing the second situation, we turned the ser-

vice “imageService” inactive in the OSGi Container

and maintained all the alternative services activated.

When a request for the end point of this variant is

made the ServiceContext requests from the Broker a

list of alternative services and their respective punctu-

ation for the utility function. Thus, the ServiceContext

will return the end point for the required variation by

considering the service active with the highest score

in the utility function in the OSGi container.

6 CONCLUSIONS

This paper presents an approach to performing the

dynamic derivation in service-oriented DSPLs based

on a run time QoS analysis. The approach was de-

scribed and evaluated in a context-aware service ori-

ented DSPL called MobiLine.

We consider, according to our evaluation, that

the approach is functional and addresses the prob-

lem speciﬁed in Section 2. Moreover, interesting next

steps are the evaluation of the proposed approach be-

havior with a large number of services and variabili-

ties. It would be interesting for future investigations

too verify the performance of the proposed approach

and empirically compares the results with another ap-

proaches or with others DSPLs.

ACKNOWLEDGEMENTS

This research is sponsored by the Brazilian National

Council for Scientiﬁc and Technological Develop-

ment (CNPq) grants in the process 381305/2011-2.

It was also partially supported by the National In-

stitute of Science and Technology for Software En-

gineering (INES

) , funded by CNPq and FACEPE,

grants 573964/2008-4 and APQ-1037-1.03/08. It is

also part of UbiStructure - An infrastructure for devel-

oping and executing ubiquitous applications - CNPq

14/2011, process number 481417/2011-7.

www.ines.org.br

REFERENCES

Abbas, N., Andersson, J., and Weyns, D. (2011). Knowl-

edge evolution in autonomic software product lines.

page 1, New York, New York, USA. ACM Press.

Alferez, G. H. and Pelechano, V. (2011). Context-Aware

Autonomous Web Services in Software Product Lines.

pages 100–109. Ieee.

Ali, R., Chitchyan, R., and Giorgini, P. (2009). Context for

goal-level product line derivation.

Cetina, C., Fons, J., and Pelechano, V. (2008). Applying

Software Product Lines to Build Autonomic Pervasive

Systems. Number ii, pages 117–126. Ieee.

de Oliveira Martins, D. A. (2013). DYMOS: Uma abor-

dagem para suporte a variabilidades din

amicas em

Linhas de Produto de Software Orientado a Servic¸os

e Sens

ıvel ao Contexto. Master’s thesis, Universidade

Federal de Pernambuco, Recife, Pernambuco, Brazil.

Gomaa, H. and Hashimoto, K. (2011). Dynamic software

adaptation for service-oriented product lines. page 1,

New York, New York, USA. ACM Press.

Hallsteinsen, S., Hinchey, M., Park, S., and Schmid, K.

(2008). Dynamic software product lines. Computer,

(April):93–95.

Lee, J. (2006). A Feature-Oriented Approach to Developing

Dynamically Reconﬁgurable Products in Product Line

Engineering. pages 131–140. Ieee.

Lee, J. and Kotonya, G. (2010). Combining service-

orientation with product line engineering. Number

June, pages 35–41.

Lin, K.-J., Zhang, J., Zhai, Y., and Xu, B. (2010). The de-

sign and implementation of service process reconﬁg-

uration with end-to-end QoS constraints in SOA. Ser-

vice Oriented Computing and Applications, 4(3):157–

168.

Marinho, F. G., Andrade, R. M., Werner, C., Viana, W.,

Maia, M. E., Rocha, L. S., Teixeira, E., Filho, J. a.

B. F., Dantas, V. L., Lima, F., and Aguiar, S. (2012).

MobiLine: A Nested Software Product Line for the

domain of mobile and context-aware applications.

Science of Computer Programming.

Parra, C., Blanc, X., and Duchien, L. (2009). Context

awareness for dynamic service-oriented product lines.

pages 131–140.

Pohl, K., B

ockle, G., and van der Linden, F. (2005). Soft-

ware Product Line Engineering: Foundations, Princi-

ples, and Techniques.

Yu, J., Lalanda, P., and Bourret, P. (2010). An Approach for

Dynamically Building and Managing Service-Based

Applications. pages 51–58. Ieee.

Yu, T. and Lin, K.-J. (2005). Service selection algo-

rithms for Web services with end-to-end QoS con-

straints. Information Systems and e-Business Manage-

ment, 3(2):103–126.

TowardaQoSBasedRun-timeReconfigurationinService-orientedDynamicSoftwareProductLines

465
