Towards Bridging the Gap Between Scalability and Elasticity

Nicolas Ferry

, Gunnar Brataas

, Alessandro Rossini

, Franck Chauvel

and Arnor Solberg

Department of Networked Systems and Services, SINTEF, Oslo, Norway

Department of Software Engineering, Safety and Security, SINTEF, Trondheim, Norway

Keywords:

Scalability, Elasticity, Cloud Computing, Multi-cloud, Self-adaptation, ScaleDL, CloudML.

Abstract:

Scalability and elasticity are key capabilities to tackle the variable workload of a service. Cloud elasticity

offers opportunities to manage dynamically the underlying resources of a service and improve its scalability.

However, managing scalability of cloud-based systems may lead to a management overhead. Self-adaptive

systems are a well-known approach to tame this complexity. In this position paper, we propose an approach

for the continuous design and management of scalability in multi-cloud systems. Our approach is based on a

three-layer architecture and relies on two existing frameworks, namely SCALEDL and CLOUDMF.

1 INTRODUCTION

Scalability and elasticity are key capabilities required

to tackle the variable workload of a service. In par-

ticular, scalability is the ability of a service to sustain

variable workload while fulﬁlling quality of service

(QoS) requirements, possibly by consuming a vari-

able amount of underlying resources. By contrast,

elasticity is the ability of a service to rapidly provi-

sion and deprovision underlying resources on the ﬂy.

Note that both scalability and elasticity are required

because one does not guarantee the other.

Cloud computing offers opportunities to improve

the scalability of services by enabling the dynamic

management of platform and infrastructure resources.

Within the scope of the CloudScale

, MODAClouds

and PaaSage

projects on cloud computing, speciﬁc

work has been done to address long-term workload

variations (e.g., the workload increases linearly over

a year) as well as short-term ones (e.g., the work-

load has a sudden peak). The CloudScale’s Scal-

ability Description Language (SCALEDL) (Brataas

et al., 2013) is a language for characterising scala-

bility aspects of cloud-based systems in a provider-

independent way. SCALEDL facilitates reasoning

about long-term workload evolution in a proactive

way. The MODAClouds’ and PaaSage’s Cloud Mod-

elling Framework (CLOUDMF) (Ferry et al., 2013b;

Ferry et al., 2013a) consists of the Cloud Modelling

http://www.cloudscale-project.eu

http://www.modaclouds.eu

http://www.paasage.eu

Language (CLOUDML) for specifying the provision-

ing and deployment of multi-cloud systems at design-

time, as well as a models@run-time engine for en-

acting the provisioning, deployment, and adaptation

of these systems at run-time. CLOUDMF facilitates

handling short-term workload evolution in a reactive

way.

Reasoning about long-term workload evolution

proactively and handling short-term workload evolu-

tion reactively are typically treated as two indepen-

dent activities. In order to improve management of

workload evolution, these two activities must be com-

bined. This position paper proposes an architecture

inspired by self-adaptive systems for self-managing

scalability of multi-cloud systems. This architecture

consists of three layers: a layer for long-term adapta-

tions that leverages upon SCALEDL, a layer for short-

term adaptations that leverages upon CLOUDMF, and

an intermediary layer for handling mid-term adapta-

tions that bridges the gap between the other two lay-

ers. The proposed approach spurs to a new separa-

tion of concerns between mechanisms to handle short-

, mid- and long-term scalability, enabling the contin-

uous design and management of scalable cloud-based

systems.

The remainder of the paper is organised as fol-

lows. Section 2 outlines a motivating example which

is used throughout the paper. Section 3 introduces

the three-layer architecture for self-managing scala-

bility of multi-cloud systems. Section 4 and 6 outline

SCALEDL and CLOUDMF as the foundation for the

long-term and short-term adaptations, respectively.

746

Ferry N., Brataas G., Rossini A., Chauvel F. and Solberg A..

Towards Bridging the Gap Between Scalability and Elasticity.

DOI: 10.5220/0004975307460751

In Proceedings of the 4th International Conference on Cloud Computing and Services Science (MultiCloud-2014), pages 746-751

ISBN: 978-989-758-019-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Section 5 presents the new, intermediary layer for

handling mid-term adaptations that bridges the gap

between SCALEDL and CLOUDMF. Section 7 com-

pares the proposed approach with related works be-

fore Section 8 draws some conclusions.

2 MOTIVATING EXAMPLE

SENSAPP

is an open-source, service-oriented appli-

cation for registering sensors, storing their data, and

notifying clients when new data are pushed (Mosser

et al., 2012).

SENSAPP is currently employed in the CITI-

SENSE

EU project, which aims at providing a

community-based environmental monitoring and in-

formation system. In particular, SENSAPP is adopted

for collecting environmental monitoring data (air

quality, noise level, etc.) in public spaces where

the workload of SENSAPP may vary signiﬁcantly

throughout a year. In particular, we assume the fol-

lowing predicable variations at various time scales:

Daily The workload has regular peaks at mornings

and evenings, when people commute daily.

Weekly The workload has regular peaks on Friday

evenings, Sunday nights, and Monday mornings,

when people commute for the weekend.

Yearly The workload has gradual increase and de-

crease before and after Summer and Christmas

holiday seasons.

We also assume the following unpredictable vari-

ations:

Snow storm and cold wave The workload has an ir-

regular peak due to a snow storm and cold wave,

such as the one in Europe on 27 January 2012,

which led to the disruption of European air and

surface trafﬁc for two weeks.

Volcanic eruption The workload has an irregular

peak due to a volcanic eruption, such as the one

of the Eyjafjallajkull volcano on 14 April 2010,

which led to the stop of all European air trafﬁc

and increase of surface trafﬁc for one week.

This scenario is going to be used as a running ex-

ample throughout the paper in order to illustrate how

the proposed approach handles these predictable and

unpredictable variations.

http://sensapp.org

http://www.citi-sense.eu

3 ARCHITECTURE

The proposed architecture for self-managing scala-

bility of cloud-based systems is based on the ref-

erence three-layer architecture for self-adaptive sys-

tems (Kramer and Magee, 2007). This architecture is

organised as a three-layer stack, where each layer de-

notes a particular level of abstraction, complexity, and

dynamic, i.e., how fast the layer can react to a varia-

tion. Note that these layers retain a certain degree of

independence so that each of them can pursue its own

dynamic.

Long%term*layer*

Specify(the(architectural(model(and(workload(evolu6on(proﬁles(

Mid%term*layer*

Select(the(appropriate(usage(evolu6on(proﬁle(and(deployment(model(

Short%term*layer*

Monitor(and(manage(the(deployment(of(the(running(system(

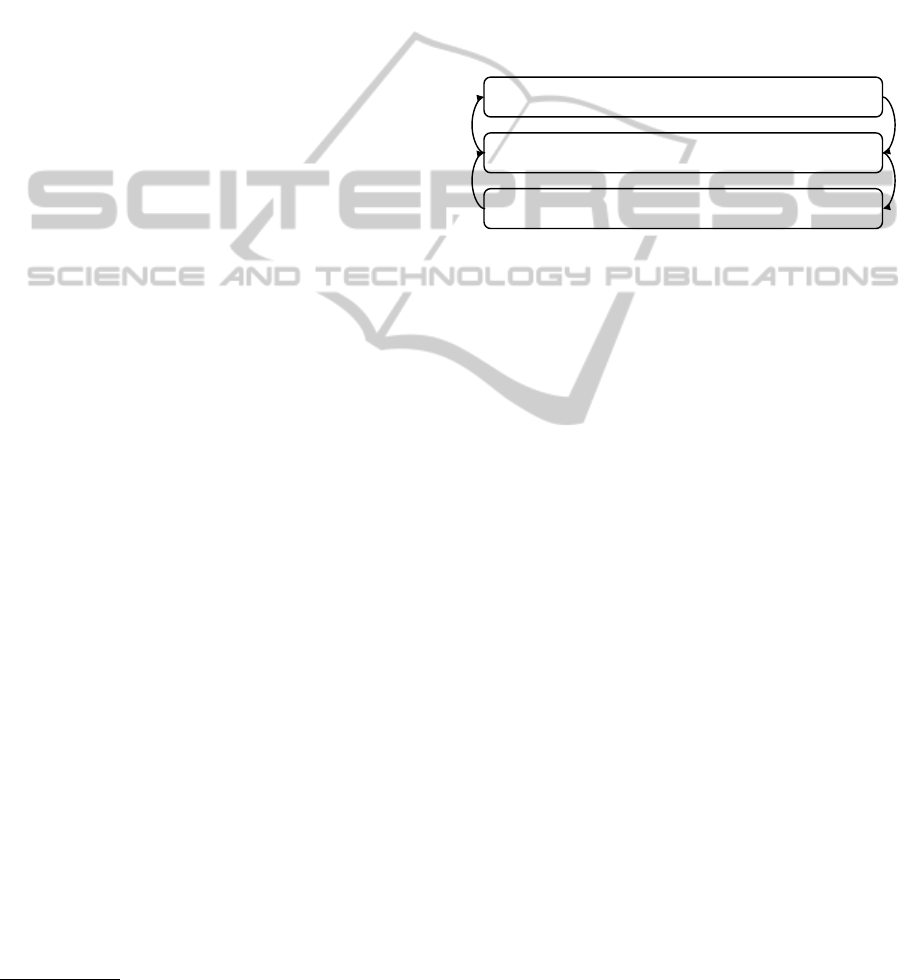

Figure 1: A three-layer architecture for self-managing scal-

ability of multi-cloud systems.

Figure 1 outlines the proposed architecture. From

the most abstract to the most concrete (i.e., from the

farthest to the closest to the running system), the three

layers are described as follows:

Long-term layer. The designer speciﬁes the archi-

tectural model of the system as well as usage evo-

lution proﬁles within different time frames: day

(e.g., rush hour), week (e.g., weekend), and year

(e.g., holiday season).

Mid-term layer. The mechanisms of this layer se-

lect the appropriate usage evolution proﬁle and

deployment model based on the current workload

and context of the running system.

Short-term layer. The mechanisms of this layer

monitor and manage the deployment of the run-

ning system.

For each layer, the considered time frames are up

to the designer and may vary. However, these have to

be organized hierarchically (e.g., short-term: current,

mid-term: week, long-term: year).

The independence between the layers enables the

continuous evolution of the cloud-based system. The

design process at the long-term layer can be done

whilst the two other layers continue adapting the run-

ning system. This way, the design of the self-adaptive

system does not need to be achieved beforehand, but

can be done iteratively. Similarly, while the mid-

term layer selects a new deployment model, the short-

term layer can still manage minor workload evolution.

This feature enhances the practicality of the approach

TowardsBridgingtheGapBetweenScalabilityandElasticity

747

as well as the design and management of the self-

adaptive system.

All these layers are built upon model-driven engi-

neering (MDE) techniques and methods. MDE is a

branch of software engineering that aims at improv-

ing the productivity, quality, and cost-effectiveness

of software development by leveraging upon models

and model transformations. This approach, which is

commonly summarised as “model once, generate any-

where”, is particularly relevant when it comes to the

provisioning and deployment of applications across

multiple clouds, as well as their migration from one

cloud to another.

4 LONG-TERM LAYER: ScaleDL

The long-term layer leverages upon SCALEDL, a

family of four sub languages to characterise scalabil-

ity of cloud-based systems (Brataas et al., 2013). In

particular, this layer adopts SCALEDL USAGE EVO-

LUTION, which facilitates the speciﬁcation of scala-

bility requirements by characterising how the work-

load of a service changes over time. Note that these

models are technology- and provider-agnostic so that

they can be applied to multi-cloud systems.

As a ﬁrst task, a designer must specify initial us-

age evolution proﬁles (Brataas et al., 2013) for all the

operations provided as a service by the application.

In the motivating example (see Section 2), the follow-

ing initial usage evolution proﬁles of SENSAPP are

speciﬁed: (i) Browse, where consumers are looking

for some sensors registered in SENSAPP, (ii) Moni-

tor, where consumers request data from sensors and

(iii) Push, where sensors are pushing data into SEN-

SAPP. These speciﬁcations include:

Work. The amount of data processed by the opera-

tion; e.g., the work of the Push operation may be

100KB of data.

Load. The number of requests to the operation dur-

ing a speciﬁed time interval; e.g., the load of the

Push operation may be an average of one request

per second during regular work days, two requests

per seconds during regular weekends, and four re-

quests per seconds during snow storms and cold

waves.

Quality metric and threshold. The measure of

quality of the operation along with the corre-

sponding threshold; e.g., the quality of the Push

operation is measured in terms of the average

response time and the corresponding threshold is

100 ms.

The initial usage evolution proﬁles will then

evolve over time. SCALEDL USAGE EVOLUTION

supports three forms of usage evolution (Brataas

et al., 2013): stable and gradual changes as well as

spikes. In the motivating example (see Section 2), the

usage evolution before and after holiday seasons is

modelled using the gradual change usage evolution.

Here, both the work and load will have a gradual

change, but not necessarily with the same increase

or decrease rate; e.g., the amount of data pushed by

each sensor increase faster than the number of sensor

pushing data. Similarly, the usage evolution of a snow

storm and cold wave or volcanic eruption is modelled

with a spike. Here, the duration of the spike as well

as its impact on work and load may vary.

In addition to the three forms of usage evolution

above, it is possible to specify the expected usage evo-

lution for a particular recurring time frame; e.g., daily,

weekly, or yearly. In the motivating example (see Sec-

tion 2), the usage evolution proﬁle of a working day

speciﬁes low load during the night, high load during

rush hour, and normal load otherwise.

In addition to the usage evolution proﬁles, the

long-term layer is used to specify architectural mod-

els. These models follow a service-oriented architec-

ture where applications are deﬁned as an orchestration

of reusable services.

5 MID-TERM LAYER

The mid-term layer is responsible for bridging the gap

between reasoning about long-term workload evo-

lution proactively and handling short-term workload

evolution reactively.

The usage evolution proﬁles and architectural

models from the long-term layer are provided to

the mid-term layer, where the responsible mecha-

nisms select a usage evolution proﬁle, predict the fu-

ture workload, and evaluate if the quality metric and

threshold are fulﬁlled. In particular, the mechanisms

of this layer iterate the following process (see Fig-

ure 2):

1. The Usage Evolution Manager selects a usage

evolution proﬁle based on the current workload

and context of the running system, e.g., work-

ing day proﬁle. This selection relies on event-

condition-action rules, e.g., on Monday (event), if

this is a working day (condition), then select the

working day proﬁle (action). In case a designer

wants to extend or reﬁne the usage evolution pro-

ﬁle for a shorter time frame, she can edit it before

initiating the next task.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

748

2. The Workload Predictor predicts what the work-

load will be at the time t + 1 based on the work-

load at the current time t.

3. The Workload Comparator compares the current

workload with the predicted one.

4. The Architecture Selector selects the most suit-

able architectural model from the the set of possi-

ble architectural models based on the current and

predicted workloads.

5. The Deployment Selector selects the most suitable

deployment model based on the corresponding ar-

chitectural model.

Mid$term)layer)

Long$term)layer)

Usage)

Evolu6on)

Manager)

Workload)

Comparator)

Workload))

Predictor)

Architecture)

)Selector)

Deployment)

Selector)

Short$term)layer)

Updated

workload

Usage evolution

profiles

Architectural

models

Updated

workload

Predicted

workload

Predicted

workload

Updated

workload

Architectural

model

Status of the

running system

Deployment

model

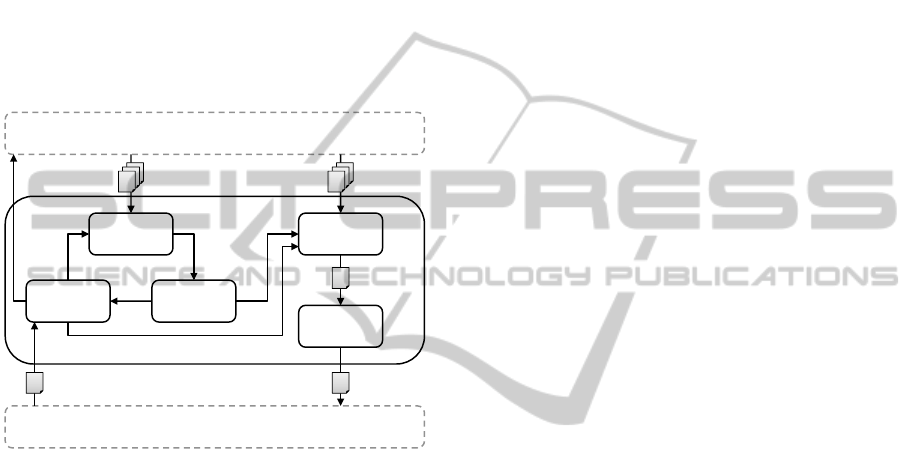

Figure 2: Architecture of the mid-term layer.

An iteration of this process can be triggered in two

cases: (i) when the Workload Predictor anticipates

that the workload is going to change; (ii) when the

Workload Comparator detects that current workload

does not correspond to the predicted one. In the lat-

ter case, a notiﬁcation is raised to the long-term layer,

which may alter the workload predictions.

In the motivating example (see Section 2), this

process handles the following mid-term adaptations:

• In the event of snow storm and cold wave, the

short-term layer reports the handling of the un-

predictable workload to the mid-term layer, which

analyses it and concludes it is an acceptable devia-

tion from the prediction and hence does not report

it to the long-term layer. This is because during

winter one can anticipate that snow storms may

occur and their average impact.

• In the event of volcanic eruption, the short-term

layer reports the handling of the unpredictable

workload to the mid-term layer, which analyses

it and concludes it is an unacceptable deviation

from the prediction and hence reports it to the

long-term layer, which in turn alters the predic-

tion. This is because, for instance, the predicted

load in the usage evolution proﬁle is two requests

per second, while the current load is four. In ad-

dition, the load has been twice the predicted also

during the two previous hours. Therefore, it may

be reasonable to assume that the load will be twice

the predicted also during the next hours, so the

usage evolution proﬁle for the next hours may be

changed accordingly.

In case the duration of the workload is expected

to be short, and considering the fact that adapting

the deployment of a multi-cloud system may take

some minutes, the deployment model may already

be able to handle a range of variations of work-

load. For instance, this may lead to the inclusion of

load-balancing mechanisms in the deployment model.

These mechanisms are managed by the short-term

layer.

6 SHORT-TERM LAYER:

CloudMF

The short-term layer leverages upon CLOUDMF,

a framework facilitating the management of multi-

cloud systems. It consists of: (i) CLOUDML, a tool-

supported, domain-speciﬁc language for specifying

the provisioning and deployment of multi-cloud sys-

tems at design-time; (ii) a models@run-time engine

for enacting the provisioning, deployment, and adap-

tation of these systems at run-time.

The deployment model from the mid-term layer is

provided to the short-term layer, where the responsi-

ble mechanisms will adapt the running system.

CloudML

The deployments models are speciﬁed with

CLOUDML. As mentioned, CLOUDML enables

modelling the provisioning and deployment of

multi-cloud systems. Note that CLOUDML is

technology-agnostic, meaning that the multi-cloud

systems can be designed and implemented based

on arbitrary paradigms and technologies. In partic-

ular, CLOUDML allows expressing the following

concepts:

Cloud Represents a collection of virtual machines on

a particular cloud provider.

Virtual machine Represents a reusable type of vir-

tual machine.

Application component Represents a reusable type

of application component to be deployed on a vir-

tual machine, or an external service. This element

TowardsBridgingtheGapBetweenScalabilityandElasticity

749

can be parameterised by elasticity requirements

(e.g., SENSAPP can be instantiated from one to

four times).

Port Represents a required or provided interface to a

feature of an application component.

Relationship Represents a communication between

ports of two application components, or the con-

tainment of an application component by another.

The interested reader may consult (Rossini et al.,

2013) for a more detailed description of CLOUDML.

In the motivating example (see Section 2), SEN-

SAPP is deployed on three different cloud providers.

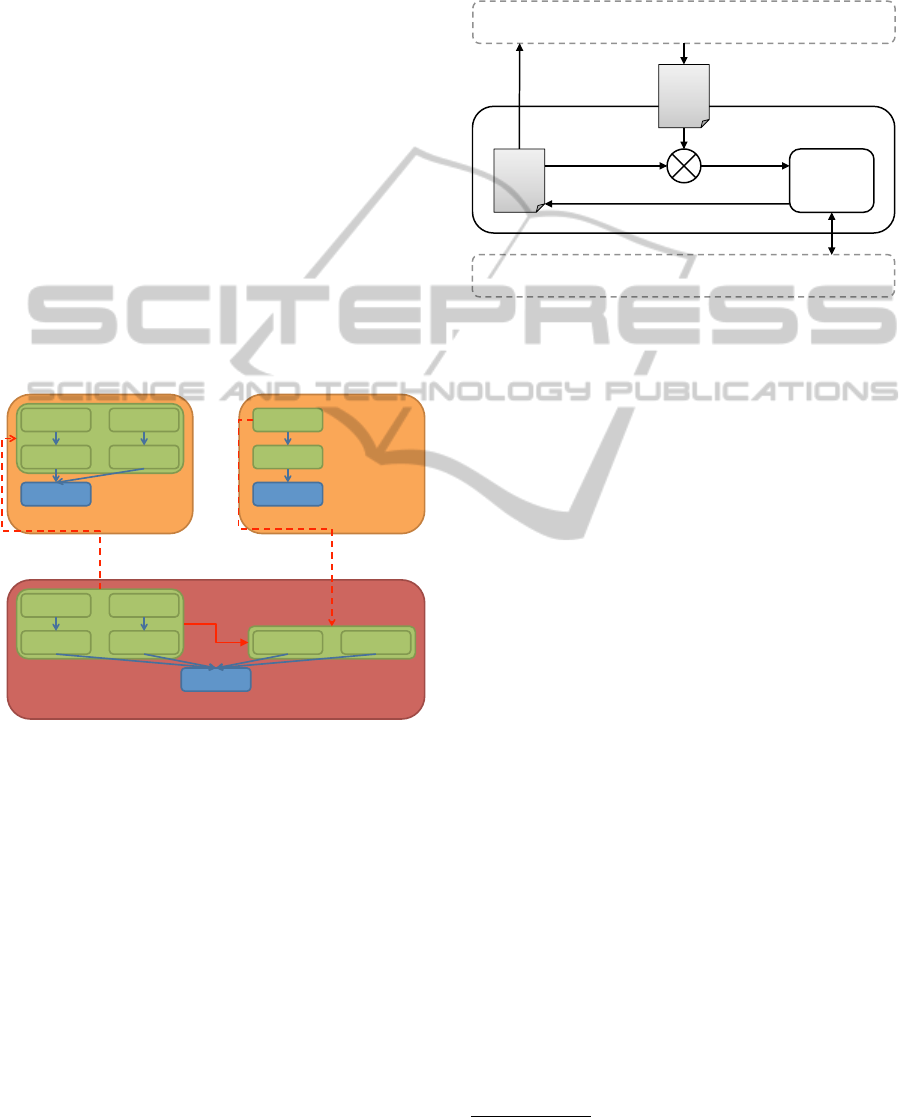

Figure 3 shows a snapshot of the deployment model

of SENSAPP to be used when the workload is low: the

MongoDB database and the Dispatcher of SENSAPP

are deployed behind the corresponding load balancers

(depicted by LB in the ﬁgure) on a private OpenStack

cloud, while the Notiﬁers (i.e., the services that no-

tify consumers about new sensor data) are deployed

on the Amazon and Flexiant public clouds.

Amazon'[loca+on:'US]' Flexiant'[loca+on:'UK]'

SINTEF'(OpenStack)'[loca+on:'NO]'

LB'

1:No+ﬁer'

2:Tomcat'

2:No+ﬁer'

4:Tomcat'

1:ML'

1:No+ﬁer'

1:JeHy'

1:SL'

1:Dispatcher'

1:Tomcat'

2:Dispatcher'

3:Tomcat'

1:LL'

1:MongoDB' 2:MongoDB'

[compute cores: 12,

memory: 24 GiB]

Figure 3: Snapshot of a SENSAPP deployment.

Models@run-time engine

The deployment models are enacted by the

CLOUDMF models@run-time engine. Models@run-

time is an architectural pattern for dynamic adaptive

systems that proposes to leverage models during

their execution (Morin et al., 2009). In particular,

models@run-time provides an abstract representation

of the underlying running system, which facilitates

reasoning, simulation, and enactment of adaptation

actions. A change in the running system is automat-

ically reﬂected in the model of the current system.

Similarly, a modiﬁcation of this model can be enacted

on the running system on demand.

Figure 4, inspired by (Morin et al., 2009), shows

a classical architecture to realise models@run-time.

The current model can be consumed by a reasoning

system (e.g., the mid-term layer) that produces a tar-

get model. The adaptation is then enacted by the

adaptation engine and the target model becomes the

current model.

Models@run+,me.

Running.system.

Current.

deployment.

model.

Adapta,on.

Target.

deployment.

model.

Mid+term.layer.

Diﬀ.

Figure 4: Models@run-time engine.

Adaptations of the model can result in: (i) modi-

ﬁcation of the provisioning and deployment topology

or (ii) modiﬁcation of the status of each element of the

system. As part of the possible adaptation, a classi-

cal solution to handle elasticity requirements is to use

load balancers. The models@run-time engine is then

responsible for deploying a load balancer and conﬁg-

uring it to manage communications to a group of ap-

plication components on a deﬁned port.

The monitoring of the running system consists in

providing the status of the current deployment to-

gether with the quality metrics (see Section 4) so

that the current workload and context can be matched

against the ones predicted in the long-term layer.

7 RELATED WORK

Elasticity is one of the key features to make cloud-

based systems scalable and has been extensively in-

vestigated over the past few years. Elastic infras-

tructure are supported either by provider-speciﬁc fea-

tures such as the Amazon Elastic Load Balancing,

or by network level’s components such as NGinx.

Map/reduce platforms form another level of elastic-

ity provided also as provider-speciﬁc services. While

these techniques are now mature, they require recur-

rent management activities through the lifespan of a

cloud-based system, as the workload evolves.

The management of cloud-based systems, includ-

ing their scalability, can be facilitated by various

tools. Industrial frameworks such as Cloudify

, pup-

http://www.cloudifysource.org

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

750

pet

, or Chef

, as well as research projects such as

Reservoir

or ARTIST

, provide capabilities for the

automatic deployment and management of cloud sys-

tems, including load-balancing mechanisms. How-

ever, such frameworks do no support the long-term

adaptation of elasticity policies, as does the proposed

long-term layer.

Scalability management can also be addressed

with performance analysis techniques. Palladio and

SimuLizar (Becker et al., 2013), for instance, capture

both the system and the scalability logics and pro-

duce performance predictions, which can be matched

against performance requirements, leading to gradual

improvements. However, this is a pure design-time

activity which does not leverage run-time informa-

tion, as does the model@run-time engine in the pro-

posed short-term layer.

The Topology and Orchestration Speciﬁcation for

Cloud Applications (TOSCA) (Palma and Spatzier,

2013) standard is a related speciﬁcation developed by

the OASIS. TOSCA provides a language for specify-

ing the components comprising the topology of cloud

applications along with the processes for their or-

chestration. However, this standard currently lacks

a models@run-time representation that enables the

continuous evolution of multi-cloud systems.

8 CONCLUSION AND FUTURE

WORK

In this position paper, we outlined an approach

to self-managing scalability of multi-cloud systems.

The proposed solution combines SCALEDL and

CLOUDML into a three-layer architecture. In the

long-term layer, the designer speciﬁes the architec-

tural model of the system as well as SCALEDL usage

evolution proﬁles. In the mid-term layer, the respon-

sible mechanisms select the appropriate usage evolu-

tion proﬁle and deployment model based on the cur-

rent workload and context of the running system. Fi-

nally, in the short-term layer, CLOUDMF monitors

and manages the deployment of the running system.

The realisation of this three-layer architecture

is an ongoing joint work between the CloudScale,

MODAClouds, and PaaSage projects. Future research

directions include: ﬁnalising the implementation and

validation of the proposed approach, and designing a

mechanism for collecting past load variations to im-

https://puppetlabs.com

http://www.opscode.com/chef

http://www.reservoir-fp7.eu/

http://www.artist-project.eu/

prove the accuracy of load predictions by means of

statistical analysis.

ACKNOWLEDGEMENT

The research leading to these results has received

funding from the European Community’s Sev-

enth Framework Programme (FP7/2007-2013) under

grant agreements number: 318484 (MODAClouds),

317715 (PaaSage), and 317704 (CloudScale).

REFERENCES

Becker, M., Becker, S., and Meyer, J. (2013). SimuLizar:

Design-Time Modeling and Performance Analysis of

Self-Adaptive Systems. In Software Engineering

2013, volume 213 of LNI, pages 71–84. GI.

Brataas, G., Becker, S., Huljenic, D., Kop

cak, G., Lehrig,

S., Stav, E., and Walderhaug, S. (2013). D1.1 – Design

support, initial version. CloudScale deliverable.

Ferry, N., Chauvel, F., Rossini, A., Morin, B., and Sol-

berg, A. (2013a). Managing multi-cloud systems with

CloudMF. In NordiCloud 2013: 2nd Nordic Sympo-

sium on Cloud Computing and Internet Technologies,

pages 38–45. ACM.

Ferry, N., Rossini, A., Chauvel, F., Morin, B., and Sol-

berg, A. (2013b). Towards model-driven provision-

ing, deployment, monitoring, and adaptation of multi-

cloud systems. In IEEE CLOUD 2013, pages 887–

894. IEEE Computer Society.

Kramer, J. and Magee, J. (2007). Self-Managed Systems:

an Architectural Challenge. In FOSE 2007, pages

259–268.

Morin, B., Barais, O., J

equel, J.-M., Fleurey, F., and Sol-

berg, A. (2009). Models@Run.time to Support Dy-

namic Adaptation. IEEE Computer, 42(10):44–51.

Mosser, S., Fleurey, F., Morin, B., Chauvel, F., Solberg, A.,

and Goutier, I. (2012). SENSAPP as a Reference Plat-

form to Support Cloud Experiments: From the Inter-

net of Things to the Internet of Services. In SYNASC

2012, pages 400–406. IEEE Computer Society.

Palma, D. and Spatzier, T. (2013). Topology and Orchestra-

tion Speciﬁcation for Cloud Applications (TOSCA).

Technical report, OASIS.

Rossini, A., Solberg, A., Romero, D., Domaschka, J.,

Magoutis, K., Schubert, L., Ferry, N., and Kirkham,

T. (2013). D2.1.1 – CloudML Guide and Assesment

Report. PaaSage deliverable.

TowardsBridgingtheGapBetweenScalabilityandElasticity

751
