Cloud Governance by a Credit Model with DIRAC

ıctor M

endez Mu

noz

, Adrian Casaj

us Ramo

, Ricardo Graciani Diaz

and Andrei Tsaregorodtsev

Computer Architecture and Operating Systems Department, Universitat Aut

onoma de Barcelona (UAB), Ediﬁci Q,

Campus UAB, ES-08193 Bellaterra, Spain

Department of Structure and Constituents of Matter, University of Barcelona, Diagonal 647, ES-08028 Barcelona, Spain

Centre de Physique des Particules de Marseille, 163 Av de Luminy Case 902 13288 Marseille, France

Keywords:

Cloud Computing, Federated Cloud, Cloud Governance.

Abstract:

Nowadays, different eScience actors are assuming the Federated Cloud as a model for the aggregation of

distributed cloud resources. In this complex environment, service delivery and resource usage is an open

problem, where multiple users and communities are committed to particular policies while using federated

resources. In the other hand, DIRAC has become a multi-community middleware fully interoperable in Dis-

tributed Computing Infrastructures (DCI), including several cloud managers. Furthermore, DIRAC is able to

federate Infrastructure as a Service (IaaS) to provide Software as a Service (SaaS) in a transparent manner to

the ﬁnal user. This paper deﬁnes a credit model for the resource usage providing automatic management in

federated cloud. It is presented a prototype of this model, which is implemented with DIRAC, describing a

test for the model assessment and drawing up conclusions for a production level federated cloud governance.

1 INTRODUCTION

The beneﬁts of cloud computing are related with a

set of key features. Cloud uses Internet access to re-

mote services or resources supported by virtual stor-

age and computing. It is provided on-demand and

depending on user workload it can scale up or down

without affecting the service level. A main asset of

these features is a virtual running environment de-

ployed for particular user requirements, instead of a

bare-metal platform under provider speciﬁcations. By

this mean Cloud is saving operational costs and sim-

plifying software maintenance. Moreover, the cloud

scaling features are of great importance for an efﬁ-

cient use of the resources.

The cloud key features can be implemented in

different ways, depending on the particular physiog-

nomy of the cloud deployment model. In this sense,

federated cloud model is the evolution of private

clouds, aggregating not only IaaS, but also additional

services for eScience communities such as monitor-

ing, authentication, authorization, marketplace and

accounting (Simon et al., 2012).

DIRAC (Tsaregorodtsev et al., 2008) has evolved

from single community to multi-community frame-

work. The cloud management of DIRAC follows

Rafhyc architecture (M

endez et al., 2013b) for clouds

of hybrid nature. DIRAC is using Cloud resources

in the LHCb production (Ubeda et al., 2014), feder-

ating private clouds supported by OpenStack (Open-

Stack, 2014) and OpenNebula (Llorente et al., 2011).

Another production level use of cloud was in Belle

Monte Carlo simulation campaign with AWS (Lerner,

2006) using Amazon EC2 interface (Graciani Diaz

et al., 2011).

This paper is focused in the next challenge of pro-

viding federating cloud in multi-community environ-

ments. For this purpose it is necessary to leverage the

use of the resources between different communities.

This is achieved by a governance between the poli-

cies of IaaS and the policies of communities. The

main idea is to assign resource credits in terms of

CPU, memory or IO usage (temporal and permanent

storage as well as network resources), to the running

campaigns of the communities. Such credits are con-

sumed on-demand, with a pay-per-use approach, but

instead of legal tender resource credits are used. This

pay-per-use concept can be transparently adopted in

the case of commercial clouds prices, where the cred-

its are simply pre-payment. Main cloud managers are

providing billing systems which can be enabled for

pricing. However, non commercial clouds are com-

ing from capital expenditure (Capex) model in the use

of the resources. In this model user invests capital

679

Méndez Muñoz V., Casajús Ramo A., Granciani Diaz R. and Tsaregorodtsev A..

Cloud Governance by a Credit Model with DIRAC.

DOI: 10.5220/0004977806790686

In Proceedings of the 4th International Conference on Cloud Computing and Services Science (FedCloudGov-2014), pages 679-686

ISBN: 978-989-758-019-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

in ownership infrastructures, or delegates invest to a

computing hosting institution. Then, resources are

allocated without a pay-per-use on-demand scheme,

just relating investment negotiations with available

power and storage capacity. A ﬁrst step to provide

an on-demand price is to have a total cost breakdown

of the resources in an updated system, then to apply

a commercial margin considering the market compe-

tence. Signiﬁcant advances in the last years (Cohen

et al., 2013) (Konstantinou et al., 2012) are targeting

a costs management level. In the meantime, the pre-

sented model based in resource credit metrics is an

affordable approach to offer on-demand resources in

non commercial IaaS sites. Furthermore, it is compat-

ible with future metrics, when price management will

reach maturity in non commercial clouds.

An additional important point of the provided gov-

ernance is about keeping the key features of cloud

computing, with elastic allocation of resources as well

as Virtual Machine (VM) conﬁguration to run any sci-

entiﬁc software.

Section 2 describes a previous approach of feder-

ated cloud with DIRAC. The contribution of the paper

is a credit model for cloud governance in Section 3.

Additional contribution in Section 4, describes a pro-

totype implementation with DIRAC and test results

for model assessment is shown in Section 5. Conclu-

sions and future work can be found in Section 6.

2 PREVIOUS APPROACH OF

FEDERATED CLOUD WITH

DIRAC

DIRAC has a cloud extension integrating different

IaaS providers which need to fulﬁl some requisites

endez et al., 2013a). In addition to the mentioned

Amazon, OpenNebula and OpenStack clouds, Cloud-

Stack (CloudStack, 2014) has also been integrated

with DIRAC (M

endez et al., 2012) (Albor et al.,

2011). Beyond providing the aggregation of different

cloud managers, DIRAC includes federated services

for eScience communities like monitoring, authoriza-

tion or image metadata catalog.

Regarding the key features of cloud computing,

DIRAC cloud extension allows VM scheduling poli-

cies for different possibilities of VM horizontal auto

scaling set-up. The scale up can be more aggressive

and scale down softer, to reach better job response

times. On the other hand, soft scale up and hard

scale down can be set-up to reduce VM overheads and

therefore a better efﬁciency, when job response time

is not a constrain.

Another key feature is the image management by

generic contextualization to conﬁgure the VMs de-

pending on the SaaS requirements and the IaaS end-

point within to be deployed. I.e. DIRAC can use a

golden image which is conﬁgured for different pur-

poses and IaaS environments. This image manage-

ment saves operational costs and minimizes com-

plexity. Two contextualization approaches are con-

templated, HEPiX contextualization for cernvm im-

ages (Bunic et al., 2011), and ssh contextualization

for generic images, which require an available pub-

lic IP and sshd service running on boot. Both of

them can be combined with cvmfs software reposi-

tory (Jakob Blomer, 2010), simplifying the software

distribution in the VMs.

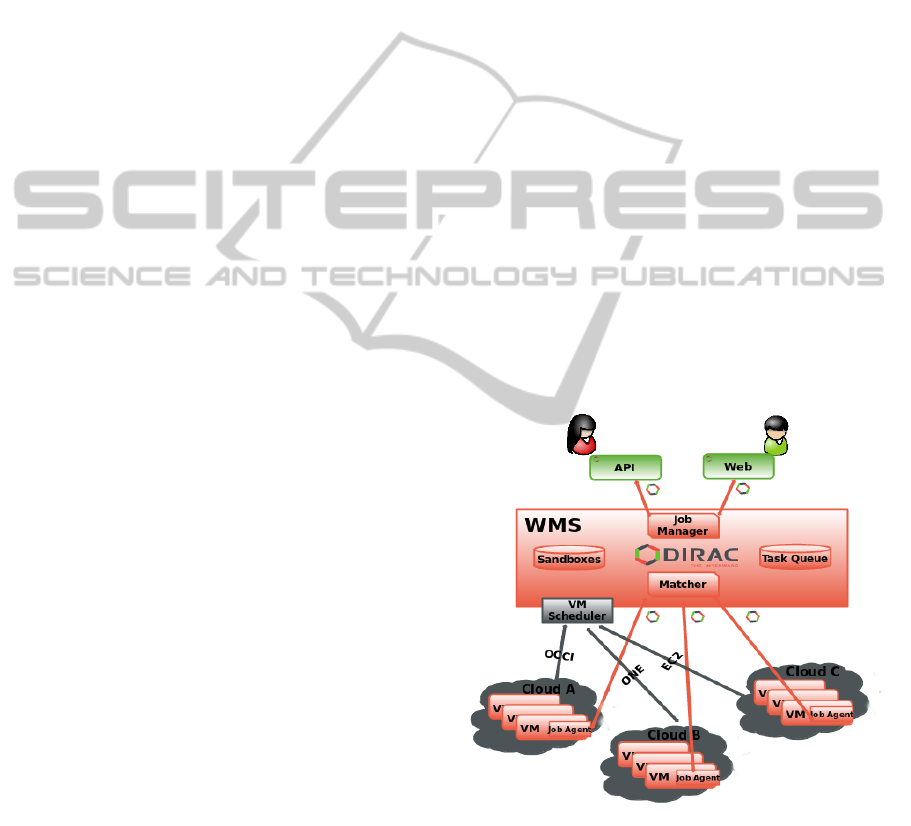

Fig. 1 shows the main part of VM allocation and

job brokering. User submits jobs to the DIRAC Work-

load Management System (WMS), which are initially

stored in the Task Queue (TQ), with an associated

SaaS workload. Then, VM Scheduler is checking

each of the queues and depending on workload it is

instantiating new VMs with speciﬁc requirements for

the queued jobs. Latter, when the VM is created, con-

textualized to run DIRAC VM agents and conﬁgured

with SaaS requirements, then, Job Agent starts and se-

cured connects to the Matcher to get the correspond-

ing SaaS payload.

Figure 1: DIRAC VM schedulig with job brokering.

For simplicity, further VM features are not drawn

in Fig. 1. It is worth to mention the VM stoppage

and status management. A VM runs many jobs un-

til some stoppage conditions are reached. VM Moni-

tor agent is in charge of VM status update, reporting

statistics to the VM Manager, as well as VM stoppage

control. VM Monitor is a client of the VM Manager

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

680

service at the DIRAC server side. Stop command can

be launched from VM when no jobs are running in the

VM for a certain period, or it can also be requested to

stop by an authorized external request from VM Man-

ager, then, VM Monitor is doing a graceful stoppage

after current job is ﬁnished.

3 CREDIT MODEL FOR CLOUD

GOVERNANCE

This section presents a credit model for cloud gover-

nance of multi-community environments for the use

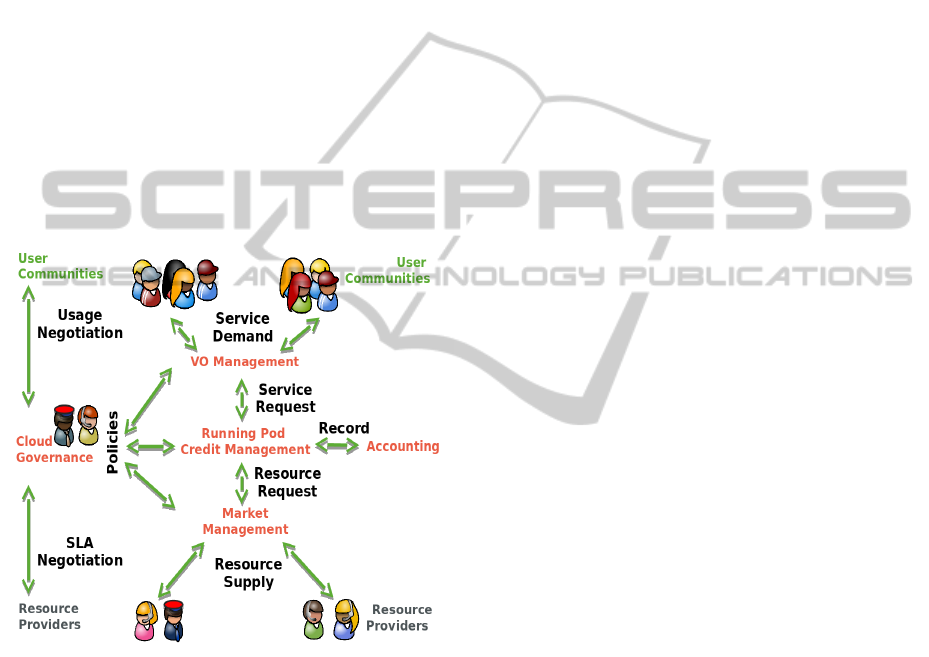

of federated cloud resources. Fig. 2 shows such

model scheme. In the bottom of the diagram supply

is supported by Resource Providers (RP). In the top

of the diagram User Communities (UC) demand ser-

vices. Cloud Governance Actors (CGA) are found in

the mediation between RP and UC.

Figure 2: Credit model for cloud governance.

Previously to matching resources and services, it

is necessary to negotiate the governance conditions.

For this purpose each actor cover basic actions. GCA

takes the central part of the governance management.

To this concern it is necessary to have an overview of

the hold production, providing scientiﬁc directions for

the UC, including technical guidance of how to run

scientiﬁc software in the Cloud. GCA also require to

have an overview of the different RP technologies as

well as a know-how in federated cloud management

technologies. Cloud governance process is starting in

the left of the diagram, from bottom-up ﬂow, Service

Level Agreements are continuously negotiated with

every RP to obtain an overall resource supply power.

Considering this power as a constrain of the model,

usage is negotiated with every UC attending to scien-

tiﬁc directions for the different use cases, as well as

the UC ﬁnancing contribution to the overall system.

Governance speciﬁcations are updated through a

continuous negotiation process. Once supply and de-

mand are identify, it is possible to deﬁne governance

policies to be apply in three levels of the credit model,

which are shown in the central part of Fig. 2. Usually,

a user community is a Virtual Organization (VO) in

terms of authorization in the use of resources. Even-

tually, if a single VO is composed of many UCs, it can

be broken down into virtual groups. VO policies de-

scribe which running pods are assigned for each UC

or virtual group, to be able to run their SaaS request.

The running pod is an abstraction of the requisites to

be included in a VM which can be submitted to cer-

tain IaaS providers. Secondary, VO policies can de-

ﬁne external links to third party VO authorization for

user and group management. Therefore, user service

requests can be matched with speciﬁc running pods.

Running pod policies deﬁne how many overall re-

source credits are assigned for an speciﬁc period of

usage. Furthermore, policies also describe which IaaS

RP can be used in the running pod, since UC can use a

subset of the federated resources to meet with particu-

lar SLA running requisites. Image requirements for a

SaaS running pod are also deﬁned, including the con-

textualization parameters for the image conﬁguration

to deploy the necessary VMs to provide the requested

SaaS. Thus, a SaaS request produces several resource

request attending to the workload.

Market management policies deﬁne maximum

available resources in each RP, including total com-

puting power, as well as the maximum VCPU, mem-

ory and disk per VM. It is a market with trades be-

tween resources and credit. In addition, it is possi-

ble to deﬁne some opportunistic use of the resources

which can be allocated for those running pods without

credit left. When the overall power demand is larger

than the power supply, then, it is required to deﬁne

overﬂow policies for the running pods, between sev-

eral options as follows:

• To increase the power supply with third party RP,

for example using cloud bursting. Another option

in hybrid clouds is to include in the federation the

use of commercial providers, delegating to such

IaaS providers the responsibility of providing as

much power as needed. This is the ideal solution

in terms of elasticity features, but it requires ﬂex-

ible budget to acquire public cloud resources on-

demand and imposes additional ﬁnancial issues.

• To enable priorities between running pods so that

whether power demand is larger than supply, run-

CloudGovernancebyaCreditModelwithDIRAC

681

ning pods with less priority will fall into larger re-

sponse times. In this manner, higher priority run-

ning pods are less affected when no more comput-

ing power is available. This option can be applied

simultaneously with the ﬁrst option.

• A variant of the priority approach is the option of

stopping VMs when demand is larger than sup-

ply. This feature can be conﬁgured for the running

pods which have non elastic requisites. This does

not resolve all the possible power requirements,

but it can be applied to ﬁrst and second option for

a sensible use of the resources.

The second and third options are constraints to the

elasticity which is one of the assets of cloud com-

puting. Furthermore, it is necessary to consider ad-

ditional stoppage policies to avoid resource blocking

of some running pods with others of the same prior-

ity. Grateful stoppage avoids the loses of the current

payload when stopping a VM to free the resource for

other running pod.

The right part of the Fig 2 is the necessary ac-

counting of the resource and credits usage. An ex-

ample of such federated cloud accounting system

could the one promoted by EGI Fedcloud (EGI-

FedCloud, 2014) using APEL (APEL-EMI, 2014)

system. APEL was originally developed for grid in-

frastructures, and currently, it has available plug-ins

for OpenStack and OpenNebula, while more cloud

managers are coming. APEL is considering the re-

source usage per VO basis, but a direct metrics on

credit accounting. Credit accounting could be sep-

arated system, but will fall into inconsistencies be-

tween the two systems. For this reason double ac-

counting is something to avoid, so it would be manda-

tory to integrate RP accounting per VO basis with

credit model accounting which is per running pod ba-

sis.

4 A PROTOTYPE OF CLOUD

GOVERNANCE WITH DIRAC

Cloud governance prototype is a modiﬁcation of pre-

vious DIRAC cloud extension, including an imple-

mentation of the credit model described in Section

3. Only VCPU hours are considered for the proto-

type metric leaving aside other metrics like memory

or IO usage. New conﬁguration sections have been

included in the DIRAC conﬁguration service (CS) to

support governance parameters. Core functionalities

has been included in the VM Manager to attend credit

status request of the VM Scheduler and credit updates

from the VM Monitor of each VM.

Governance process starts deﬁning CS parameters

to associate a running pod with a particular group of

users. A user is part of many groups corresponding to

the running pods which is able to use. The prototype

adds the running pod governance parameters:

• Maximum number of deployed VCPUs

• Running pod campaign start and end dates

• Running pod total VCPU hours of credit for the

campaign.

Deployed VCPUs are the VM which have been

submitted even if they have not reached a running sta-

tus jet. They are corresponding to VMs which are

in status of booting, contextualizing or running. So

maximum running VMs can be lower than maximum

deployed, or equal, but never greater. For governance

purposes two new parameters are included at each

IaaS conﬁguration section:

• Maximum number of deployed VCPUs

• Maximum number of opportunistic deployed VC-

PUs

VM Scheduler has a submission logic based in

previous features as well as in the credit model. For

each active running pod, VM Scheduler checks Task

Queue jobs and VM horizontal auto scaling policy.

Whether TQ and VM horizontal auto scaling policy

indicate the possibility of a new VM creation, further

governance conditions have to be checked with the

following algorithm:

If runningPod(deployed VCPUs < max VCPUs):

If there is credit left:

list = IaaS(deployed VCPUs < max VCPUs)

else:

list = IaaS(deployed VCPUs <

max oportunistic VCPUs)

if list not null:

candidate = random(list)

submit(VM, candidate)

- Algorithm: Credit checking -

Algorithm checks ﬁrst if the maximum number

of deployed VCPUs for a running pod in a particu-

lar moment has been reached. It the limit has not

been reached, then it checks if there is credit in VCPU

hours for the running pod. If there is credit left an IaaS

site candidate list is created with those sites which

have not reached the maximum number of deployed

VCPUs of each site. If there is no credit left, then

the IaaS site candidate list is created with those sites

which have not reached the maximum number of de-

ployed VCPU for opportunistic purposes of each site.

Finally, a random selection from the candidate list is

chosen to submit a new VM.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

682

In parallel to the VM Scheduler process there is a

continuous credit update. Each VM is running a VM

Monitoring agent, which is reporting periodical heart

beats with statistical information to the VM Man-

ager. For governance purposes, heart beat includes

a parameter of the number of VCPUs of the VM. On

the server side, the VM Manger sets instance history

record in a database, calculates the gap between the

last heart beat of the instance and the current one, and

adds the VCPU hours to the used VCPU hours in the

running pod database. The VCPU is wall-time since

the resource is allocated even if not real CPU is used,

same as commercial clouds scheme.

5 PROTOTYPE TEST

This section presents a test designed in order to eval-

uate elasticity key feature, including scale-up and

down. It also evaluates the overall system response

when some of the running pod is active but without

credit left, so it has to run the payload using oppor-

tunistic resources. The test is not aiming a stage with

a power demand larger than power supply. In this

sense it is a test with no job response time constrains,

the target is to validate the core features of the credit

model for cloud governance, particularly about elas-

ticity.

5.1 Test Set-up

Test set-up top down description deﬁnes two user

groups: A and B. Each group has two running pod

because it is uses different instance types, m1.small

ﬂavour with 1 VCPU, 2GB of memory and 20 GB of

disk, and small instance type with 1VCPU, 1GB of

memory and 10 GB of disk. The job submissions of a

group can run in both instance type running pods, but

these jobs can not match with the VMs submitted by

the other running pod.

The RP of the test are part of the EGI Fedcloud.

CESGA cloud with OpenNebula and BIFI cloud with

OpenStack. Maximum number of VCPUs by each

IaaS provider is 25 VCPUs, with small instances for

CESGA and m1.small for BIFI. Both of them have a

maximum of 5 VCPUs for opportunistic use.

Submission pattern is composed by 10 series of

100 jobs each. The jobs of a single series are submit-

ted about the same moment using DIRAC parametric

jobs. The sequence is to start to submit the 100 jobs

series of a group, then the other group series, and re-

peating the period up to 10 series. Using this pattern it

is possible to evaluate the adaptability of the resources

for VMs which can be used by a particular group.

Job workload is running a fractal plotting software

(mandelbrot), with high CPU/IO ratio. The binary

is allocated in the VMs using the job input sandbox

and the fractal plot is put in the output sandbox. A

single job process has been previously tested in the

clouds, with very similar execution time between dif-

ferent providers. Group B has been conﬁgured with

a maximum VCPU hours to run 3 series of 100 jobs,

then opportunistic use of resources will apply.

VM horizontal auto scale policy is conﬁgured for

a compromise between VM efﬁciency and total wall

time. The VM is conﬁgured with 5 minutes of margin

time before halt. I.e. previously to stop a VM is nec-

essary a margin time without any workload running.

If more workload of the next series is matched within

this halting margin time, then the VM is not stopped.

Only jobs of the same group can match the payload of

a VM. Series pattern time gaps are taken as reference

a normal distribution with average in the half of the

time of the larger job response time, obtained from

a previous processing of 100 jobs from cold system.

The idea is not to simulate real user behaviour, but to

test the elastic scale up and down of the system, pro-

ducing series which uses previous VMs of the same

group, as well as new VMs, depending on the work-

load gap times and the available power for a group in

a speciﬁc moment.

The contextualization is done by ssh with an agent

is polling the VMs in waiting for context status. This

method is needing synchronization between submis-

sion time and contextualization time, which it is a

disadvantage compared with context methods inte-

grated in the cloud managers, like cloudinit or pro-

log and epilog. In the other hand ssh contextualiza-

tion is not requiring additional libraries in the images

neither particular implementations of the cloud man-

agers. With a public IP and a sshd running in the

VM, the same context scripts can be launched inde-

pendently of the IaaS site.

5.2 Test Result

This section presents different results of the test, start-

ing from general plots then breaking down in more

detailed metrics.

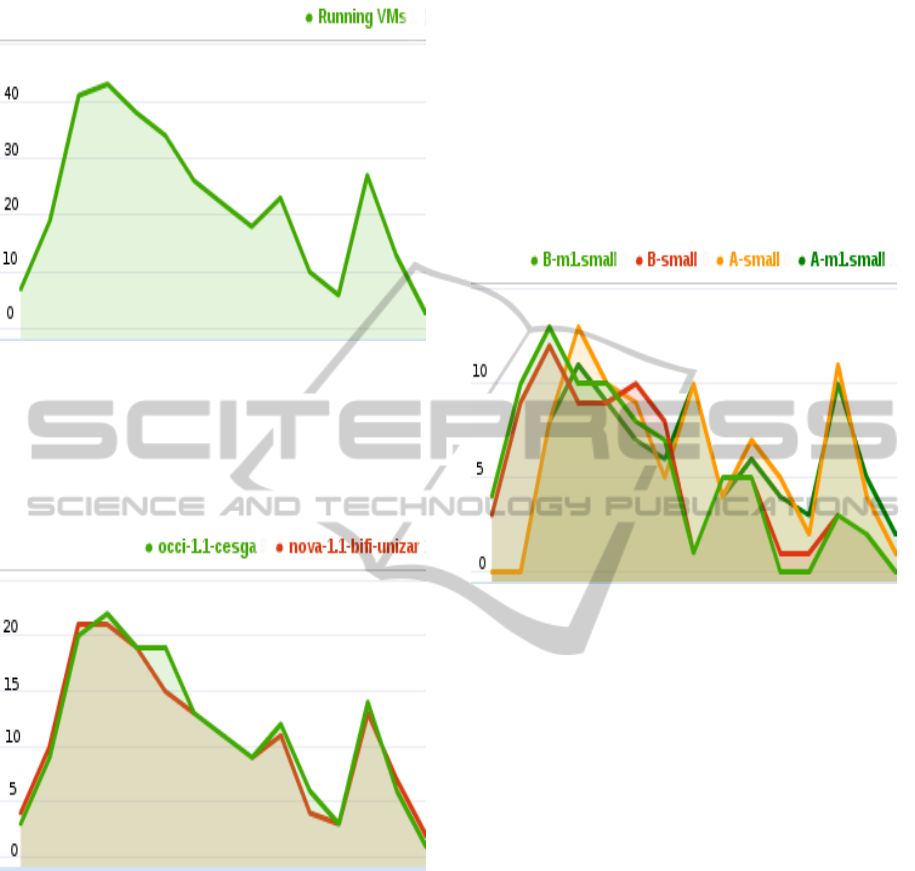

Fig. 3 shows the running VMs, those VMs which

has been submitted and booted, then contextualized

and ﬁnally declared running by the VM Monitor when

Job Agent starts to match jobs. During the VM run-

ning, the VM Monitor is sending periodical heart

beats. If a VM is not changing status or sending

running heart beat in 30 minutes then it is declared

stalled. Two VMs were stalled in the test, without

reaching the running status the VM were in error sta-

CloudGovernancebyaCreditModelwithDIRAC

683

Figure 3: Overall Running VMs.

tus in the BIFI OpenStack dashboard. Additionally,

three VMs at CESGA an other three VMs at BIFI

were booted without problem, but they were not con-

textualized because they reached the 30 minutes limit

and declared stalled by DIRAC, when actually they

were not stalled.

Figure 4: Running VMs by IaaS endpoint.

Peaks and valleys in Figs. 3, 4 and 5 are demon-

strating the ability of DIRAC to scale up and down

adapting to different workloads patterns in multi-

community environment. Let see next plots for fur-

ther details about scalability.

Running VMs by IaaS endpoint is shown in Fig. 4.

The running VMs shape is about the same than over-

all running VMs of previous plot. CESGA and BIFI

clouds, which are supported by different cloud man-

agers, with the same DIRAC conﬁguration are ob-

taining very close results in terms of running VMs.

However, a workload analysis by endpoint shows that

63.5% of the workload has run in CESGA cloud,

while BIFI has run 36.5%. This is quite signiﬁcant in

terms of power features. CESGA was providing for

this test instance types with 1VCPU, 1GB of memory

and 10GB of disk, while BIFI was giving instances

of 1VCPU, 2GB of memory and 20GB of disk. With

the same VCPU number per instance type, BIFI in-

stances provide more memory and disk, but it is able

to process about the half of the workload with near the

same running hours of VMs. Thefore VCPU provided

by CESGA have more power by near a factor two. It

is clear that VCPU/h is not an appropriate metric for

power, and therefore neither for credit.

Figure 5: Running VMs by running pod.

Fig. 5 shows running VMs by running pod. As

it was mentioned above in the test set-up, the jobs of

group A can run in A-small or A-m1.small, and equiv-

alent with group B. A group is divided in two running

pods to evaluate instance types differences and there-

fore IaaS provider differences in multi-community

stage. However, the response is equivalent in the level

of running pods of group A, and also equivalent for

group B running pods. This is demonstrating that high

level governance policies are working transparently in

multiple IaaS providers. At the same time, the scala-

bility is independent between groups, following sepa-

rated workload patterns.

Fig. 5 also shows opportunistic features. When

there is no credit is left for group B, running VMs

reach a plateau without trespassing the maximum

number of opportunistic resources per IaaS endpoint.

Fig. 6 is a job histogram which provides some in-

formation. The ﬁrst series of each group are in a cold

system, therefore, they have the ﬁrst jobs response

time near 1000 seconds, while in the rest of series the

ﬁrst jobs are below 500 seconds. The opportunistic

features are producing larger serie 4 and even larger

in serie 5 of the group B.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

684

Figure 6: Jobs histogram.

6 CONCLUSIONS

The ﬁrst conclusions are about elasticity. The

prototype result shows a good scaling features for

multi-community workloads which are using differ-

ent VMs. The credit model has been demonstrated

in the test, restricting the scale up to opportunistic re-

sources when no more credit is left, but it is not affect-

ing the scale down. Thus, the model is responding as

expected by the larger job response time for series of

the opportunistic cases.

The prototype has shown a secondary constrain

about scalability, which could be resolved in future

work. Complex scale up and down environments,

with multi-community support, are producing high

rates of creation and deletion. In this environment,

a lack of synchronization has been detected between

the submission rate and the ssh contextualization rate,

which has to be tuned in production stages to avoid

false positives in stalled machines. At the end of

the day, booting time is constrained by cloud man-

ager capabilities so there is no deﬁnitive solution from

DIRAC side. Furthermore, error status VMs are also

going to stalled as expected. Anyway, it is necessary

an additional DIRAC agent trying to halt the VMs

registered in stalled status, not only to clarify false

positives, but also to free resources when possible.

Test results have shown that VCPU is not a proper

credit metric, because it is not a power metric. For a

governance based in credit model it is important to

uses credits clearly related with the workloads. In

this sense CPU power can be calculated by bench-

marking the VMs power, as suggested in Rafhyc ar-

chitecture (M

endez et al., 2013b). At the same time

not only CPU power is consuming resources, memory

footprint requisites, permanent and temporal disk re-

quirements as well as network resources should also

be considered in the credit metric of cloud computing.

There are some conclusions about governance

policies. Notice that resource blocking stages have

not been considered in the prototype. Future work

shall consider to include a method to avoid resource

blocking for the cases of power supply lower than

demand. An tool for this method implementation

can be the VM graceful stoppage option of DIRAC.

Moreover, test has demonstrated that high level gov-

ernance policies are working transparently in multiple

IaaS providers. Further, each group workload is cor-

responding to separated elasticity pattern. Simulta-

neously, opportunistic policies are responding as ex-

pected in the credit model, not only terms of resource

use limits, but also in job response times.

ACKNOWLEDGEMENTS

This work was supported by projects FPA2007-

66437-C02-01/02 and FPA2010-21885-C02-01/02,

assigned to UB. We are greatly in debt with EGI Fed-

cloud, in particular with BIFI and CESGA for provid-

ing the cloud resources for the test.

REFERENCES

Albor, V. F., Silva, J. J. S., G

omez-Folgar, F., L

opez-

Cacheiro, J., and Diaz, R. G. (2011). Dirac integration

with cloudstack. In Proceedings of 3rd IEEE Inter-

national Conference on Cloud Computing Technology

and Science (IEEE CloudCom 2011).

APEL-EMI (2014). http://www.eu-emi.eu.

Bunic, P., Aguado-Sanches, C., Blomer, J., and Harutynun-

yan, A. (2011). Cernvm: Minimal maintenance ap-

proach to the virtualization. Journal of Physics Con-

ference Serires.

CloudStack (2014). http://www.cloud.com.

Cohen, S., Karagiannis, F., Courcoubetis, C., Iqbal, K., An-

dreozzi, S., and Heikkurinen, M. (2013). Comput-

ing einfrastructure cost estimation and analysis. pric-

ing and business models. Technical Report Deliver-

able D2.3, e FISCAL : Financial Study for Sustainable

Computing e Infrastructures.

EGI-FedCloud (2014). https://wiki.egi.eu/wiki/Fedcloud-

tf:Blueprint.

Graciani Diaz, R., Casajus Ramo, A., Carmona Aguero,

A., Fiﬁeld, T., and Sevior, M. (2011). Belle-dirac

setup for using amazon elastic compute cloud. Journal

of Grid Computing, 9:65–79. 10.1007/s10723-010-

9175-7.

Jakob Blomer, T. F. (2010). A fully decentralized ﬁle sys-

tem cache for the cernvm-fs. In Proceedings of 19th

International Conference, pages 1–6.

CloudGovernancebyaCreditModelwithDIRAC

685

Konstantinou, I., Floros, E., and Koziris, N. (2012). Pub-

lic vs private cloud usage costs: the stratuslab case.

In Proceedings of the 2nd International WorkShop on

Cloud Computing Platforms.

Lerner, R. (2006). Amazon web services. Linux journal,

143:20.

Llorente, I. M., Montero, R. S., and Milojicic, D. (2011).

Opennebula: A cloud management tool. IEEE Inter-

net Computing, 15:14.

endez, V., Albor, V. F., Diaz, R. G., Ramo, A. C., a, T.

F. P., Ar

evalo, G. M., and Silva, J. J. S. (2012). The

integration of cloudstack and occi/opennebula with

dirac. Journal of Physics Conference Serires.

endez, V., Ramo, A. C., Albor, V. F., and Diaz, R. G.

(2013a). How to run scientiﬁc applications with dirac

in federated hybrid clouds. In ADVCOMP 2013 :

The Seventh International Conference on Advanced

Engineering Computing and Applications in Sciences,

pages 73–78. IARIA. ISBN: 978-1-61208-290-5.

endez, V., Ramo, A. C., Albor, V. F., Diaz, R. G., and

evalo, G. M. (2013b). Rafhyc: an architecture

for constructing resilient services on federated hybrid

clouds. Journal of Grid Computing, 11(4):753–770.

OpenStack (2014). http://openstack.org/.

Simon, A., Freire, E., Rosende, R., Diaz, I., Rey, P., Lopez-

Cacheiro, J., and C.Fernandez (2012). Egi fedcloud

task force. In IBERGRID, 6th Iberian Grid Infras-

tructure Conference Proceedings.

Tsaregorodtsev, A., Bargiotti, M., Brook, N.,

Casajus Ramo, A., Castellani, G., Charpentier, P.,

Ciofﬁ, C., Closier, J., Graciani Diaz, R., Kuznetsov,

G., Li, Y. Y., Nandakumar, R., Paterson, S., Santinelli,

R., Smith, A. C., Miguelez, M. S., and Jimenez, S. G.

(2008). Dirac: a community grid solution. Journal of

Physics: Conference Series, 119(6):062048.

Ubeda, M., M

endez, V., andlippe Charpentier, F. S., and

closier, J. (2014). Integration of cloud resources in

the lhcb distributed computing. Journal of Physics

Conference Serires.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

686
