Verifying Cloud Systems using a Bigraphical

Maude-based Model Checker

Zakaria Benzadri, Chaﬁa Bouanaka and Faiza Belala

LIRE Laboratory, Department of Software and Information Systems Technology,

University of Constantine II, Constantine, Algeria

Abstract. Formal methods are system design techniques based on rigorous math-

ematical models to build software systems. Our aim in this paper is to deﬁne for-

mal speciﬁcations of cloud systems and offer analysis support to formally model

check their inherent properties. Hence, we deﬁne a formal semantic framework,

based on Bigraphical Reactive Systems (BRS), for specifying cloud architectures

and their shape shifting to ensure service availability and quick scalability. Then,

we propose a Bigraphical Maude-based Model Checker to formally verify some

properties.

1 Introduction

Complexity is in the core of today’s Cloud systems, since large organizations have

to manage increasingly heterogeneous cloud systems at different level: hundreds of

services, thousands of servers, hundreds of thousands of transactions, more and more

numerous and spread over the world users, whether customers or suppliers. The inex-

orable increase in the scope of cloud computing is accompanied by a concentration of

risks and brought issues.

The evolutionary pressure imposed upon organizations, and the ever-increasing in-

tegration of dematerialization only accelerate this phenomenon and give a critical role

to cloud systems. Adverse effects of such complexity are numerous, giving rise to many

obstacles [1], such as service availability, performance unpredictability, quick scalabil-

ity, bugs in large-scale distributed systems, etc., that handicap cloud computing adop-

tion and growth. In this context, formal methods are an effective approach to ensure

cloud systems reliability. Since, formal methods allow developing complex software

under a ﬁrm mathematical foundation resulting in high quality, more correct software

compared to conventional design methods. Nevertheless, some attempts have been pro-

posed but do not deal with all fundamental concepts of cloud computing. Particularly,

they focus on cloud computing technological concepts;

– Hanfei, et al. [2] and Grandison, et al. [3], gave some discussion and exploration on

establishing relationships between virtualization and cloud computing. Throughout

their work, they attempt to give out a formal deﬁnition of cloud computing from a

virtualization viewpoint using its theoretical basic concepts.

Benzadri Z., Bouanaka C. and Belala F..

Verifying Cloud Systems using a Bigraphical Maude-based Model Checker.

DOI: 10.5220/0004978800030012

In Proceedings of the International Workshop on Emerging Software as a Service and Analytics (ESaaSA-2014), pages 3-12

ISBN: 978-989-758-026-0

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

– Shi-Xin, et al. [4], propose an access control model to achieve a ﬁne-grained, data

conﬁdentiality and scalability via a formal deﬁnition of the HABAC model (Hier-

archy Attribute-Based Access Control).

– Adamov and Hahanov [5], deﬁne a security model for individual cyberspace (ICS)

protection as a means to ensure a secured user’s virtual environment, they establish

an analysis of security issues related to ICS and propose a conceptual model for

modern security environments.

– Freitas and Paul [6], present an abstract formalisation of federated cloud workﬂows

using the Z notation. They deﬁne various properties using rules restricting valid

options in two categories: security and cost.

– Binz, et al. [7], propose Enterprise Topology Graphs (ETG) as formal model to

describe an enterprise topology. Based on the established graph theory, ETG bring

formalization and provability to the cloud. Also, authors show how ETG can im-

prove the environmental impact of the enterprise IT.

Consequently, cloud computing paradigm lacks a formal and veriﬁable model of its

basic concepts: service delivery and deployment models, only some technological at-

tempts are realized; for virtualization as it has been done in [2] and [3], for security as

in [4], [5] and [6], or for enterprise IT as in [7].

In this work, we adopt, Bigraphical Reactive Systems (BRS), proposed by Milner

[8] , as a formalism to specify fundamental aspects of cloud computing. In particular,

we propose a theoretical framework based on BRS aiming to formalize relationships

between service providers and customers in different delivery and deployment models

of cloud computing. Based on a judicious coupling between bigraphs theory as a se-

mantic framework and Maude language[9] as a speciﬁcation language, we propose the

Bigraphical Maude-Based Model Checker (BMMC) that combines logical reﬂection

and hierarchical structuring of the underlying adopted theoretical framework to simply

execute and verify complex cloud systems. The proposed approach is validated through

a concrete veriﬁcation of two cloud computing inherent properties: service availability

and quick scalability.

This paper is arranged as follows. In the next section we deﬁne the bigraphical model

for cloud computing. Section 3 presents a mapping of the deﬁned model to Maude-

based speciﬁcation and exploits it to formally verify cloud systems. Finally, conclusion

and future work are addressed in section 4.

2 BRS for Cloud Computing Speciﬁcation

A BRS (Bigraphical Reactive Systems) [8] consists of a category of bigraphs and a

set of reaction rules that may be applied to transform these bigraphs. The bigraph as

an ordinary graph is composed of nodes and edges, unlike nodes in a bigraph can be

nested giving rise to hierarchical and larger bigraphs. Additionally, it is the resulting

graph of composing a link graph; representing interconnection between nodes, and a

place graph; expressing the physical locations of theses nodes; hence the preﬁx ”bi” in

bigraph.

In this work, we adopt BRS for two reasons. On the one hand, our model emphasizes

on both locality and connectivity that can be used to specify cloud elements location and

interconnection (structural aspects)[10]. And on the other hand, bigraphical reaction

rules are very useful to formalize cloud services elasticity providing them the ability to

reconﬁgure themselves (dynamic aspects).

2.1 Structural Aspects

Main elements of a cloud architecture can be divided into two essential parts: front-end

and back-end elements; that are usually connected via internet. The Front-end encloses

customer’s computer and necessary interfaces to access the cloud and the back-end

contains cloud services. So, BRS modelling of cloud elements is realized as follows:

Cloud Services. A Cloud Service represents an abstraction of three different service

delivery models that collaborate to ensure front end requests [11] Infrastructure as a Ser-

vice (IaaS), Platform as a Service (PaaS) and Software as a Service (SaaS). Albeit, all

available cloud services will be modelled by nodes, controls (kinds of node[8]) attached

to them allow us to distinguish between the three service delivery models. We suggest

that nodes of control IaaS and PaaS are active (node permitting reactions inside), and

nodes of control SaaS are atomic (empty node). To offer several access modes to cloud

services, we propose that each node or cloud service contains three different ports: Pub-

lic, Private, and Community.

Cloud Customers. A Cloud Customer represents any entity that requests a cloud ser-

vice. Two types of cloud customers are identiﬁed: End users accessing only SaaS, and

ISV (Independent Software Vendor) accessing IaaS and PaaS. Thus, we model Cloud

Customers as nodes equipped with speciﬁc controls to be able to distinguish between

both types of Cloud Customers; End user and ISV. Both are atomic nodes and have one

port to send their requests.

Cloud Architecture. Interconnecting cloud computing elements is modelled via two

distinct relations: hierarchy for cloud services imbrication (IaaS, PaaS and SaaS) and

interaction for service request. Formally, a BRS offers two types of independent graphs:

Place graph and Link graph, that will be exploited as follows:

Place Graph. formally expresses cloud services and customers location. Figure 1 rep-

resents the hierarchy of cloud services within a place graph, where a node of control

IaaS (infrastructure) can only contain nodes of control PaaS (platform), also, a node

of control PaaS can only contain nodes of control SaaS (software), ﬁnally, a node

of control SaaS do not contain any nodes.

Link Graph. is independent of locality and expresses service interactions, in terms of

service demand/response relationship between cloud services and customers. Link

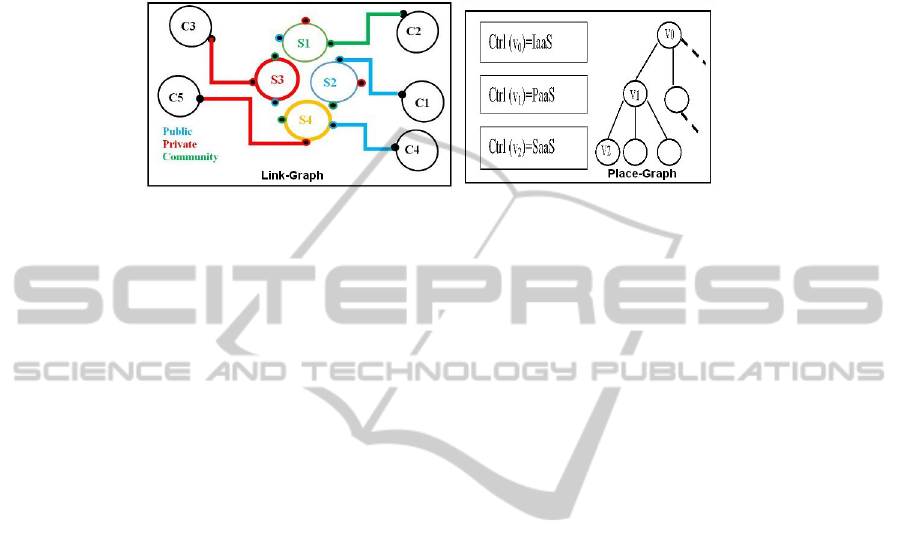

graph of Figure 1 contains ﬁve customers: C1, C2, C3, C4, C5 and four cloud

services: S1, S2, S3, S4 interconnected as follows: cloud customer C2 is relied to

cloud service S1 via its community port (green color), and cloud customers C4 and

C5 are relied to cloud service S4, the ﬁrst one with a public port (blue color) and

the second one with a private port (red color).

Fig. 1. Place and Link Graphs of a Cloud Architecture.

Composing link and place graphs gives rise to the suited bigraph as deﬁned in what

follows:

Deﬁnition 1. Cloud Architecture Bigraph takes the form:

(V c, V s, E, Ctrlc, Ctrls, GP, GL)

where: Vc represents the set of cloud customer nodes, and Vs represents all cloud ser-

vice nodes. E is a ﬁnite set of edges. Each node has a control(kinds of node), which

is an identiﬁer belonging to a set that is called a signature. Ctrlc: Vc – Sc is a control

map that assigns a control to each cloud customer where the signature Sc is deﬁned

by Sc = [EU : (1, atomic), ISV : (1, atomic)] , and Ctrls: Vs – Ss is the control

map that assigns a control to each cloud service where the signature Ss is deﬁned by

Ss = [IaaS : (3, active), P aaS : (3, active), SaaS : (3, atomic)]. GP represents the

place graph and GL represents the link graph.

2.2 Dynamic Aspects

Additionallly to cloud architecture structural aspects formalization, BRS is expressive

enough to be adopted for representing cloud dynamics. In this section, we deﬁne two

categories of reaction rules: Service Allocation Reaction Rules (SARR) and SCalability

Reaction Rules (SCRR).

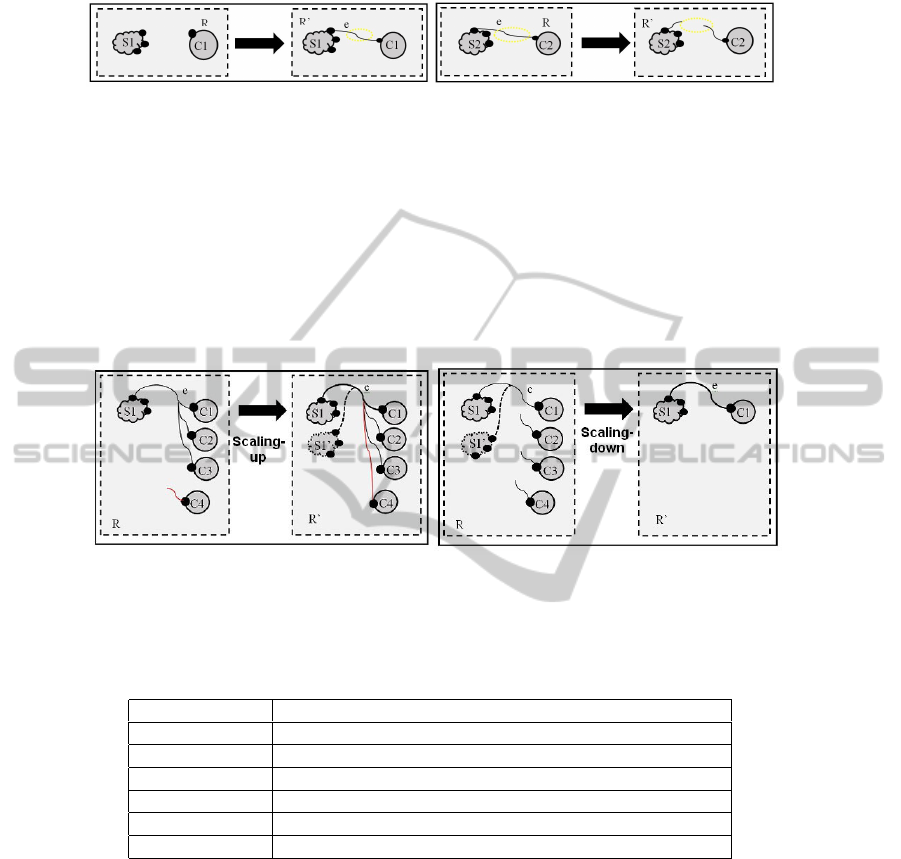

Service Allocation Reaction Rules. We propose two reaction rules, deﬁning the dy-

namics of bigraphs in terms of service allocation. This category affects bigraph linkage

only, where the redex a left hand pattern (R) of a reaction rule, can match any cloud ser-

vice (IaaS, PaaS or SaaS) and customer (EU or ISV) controls. Figure 2 shows a cloud

customer (C1) allocating a cloud service (S1) representing the ﬁrst reaction rule. Also,

it shows a cloud customer (C2) liberating a cloud service (S2) representing the second

reaction rule.

Fig. 2. Service Allocation/deallocation Reaction Rules.

SCalability Reaction Rules. The need of cloud services scalability is justiﬁed by

system surcharge with customer requests rendering system services unavailable. One

solution of cloud services unavailability is a scaling-up of the cloud system, by creating

new instances of the concerned cloud service (loaded in memory). This instance will

be responsible of taking in charge new customer demands (by doubling cloud service

initial bandwidth). Also, a garbage collector can be automatically triggered when cloud

customers liberate a cloud service. It models a scaling-down of a cloud system. Thus, we

deﬁne two reaction rules; representing cloud system scaling up and down respectively

(see Figures 3).

Fig. 3. Scaling-up/down Reaction Rules.

Table 1 bellow summarizes the correspondence between Cloud Computing elements

and BRS concepts:

Table 1. Mapping cloud computing concepts to BRS.

Cloud Computing Bigraphical Reactive Systems (BRS)

Service Node.

Customer Node.

Service models Controls.

Customer types Controls.

Cloud architecture Bigraph.

Cloud dynamics Reaction rules.

3 Verifying Cloud Systems

A set of tools is proposed for BRS edition as BigMC[12], BPLTool [13], DBtk [14],

etc. However, during their exploration, we have been confronted with several limita-

tions to verify a speciﬁc bigraph with new types of nodes (controls) adapted to the con-

text of Cloud Computing. Therefore, we propose the Bigraphical Maude-Based Model

Checker (BMMC) in which a cloud architecture can be easily executed and veriﬁed. It

confronts system model to system invariants to produce two possible results. A positive

result is returned if the bigraphical model execution satisﬁes the desired properties or a

negative result otherwise.

The use of rewriting logic via its Maude language[9], offers an executable and

analysable speciﬁcation that takes advantage of tools around Maude environment, as

the model-checker for linear temporal properties veriﬁcation[9].

3.1 BMMC Modules Description

A set of modules has been deﬁned to map cloud bigraphical concepts to Maude. The

following descriptions of modules show how the previous speciﬁcation is translated to

Maude.

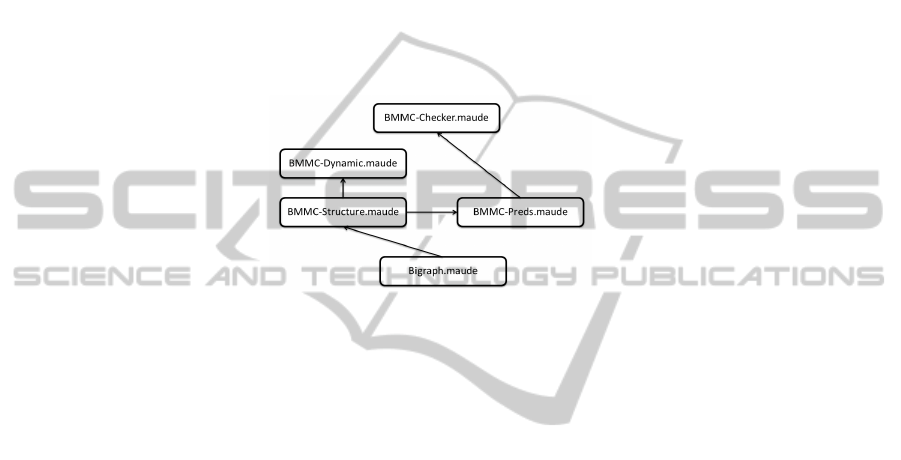

Fig. 4. Overview of BMMC modules.

Figure 4 gives a basic overview of the BMMC modules and their sub-module de-

pendencies.

– The Bigraph module includes sort and operator declarations for Bigraph theory:

mod Bigraph is

...

sorts Node Bigraph Edge Port Control .

...

op _|_ :-> Bigraph Bigraph [ctor comm assoc id: null] .

op edge_: Nat-> Edge [ctor] .

...

Prime product operator ( | ) is a juxtaposition operator of nodes or bigraphs, since

it takes as arguments two bigraphs with nodes being a sub-sort of bigraph.

– The syntax and semantics of cloud elements are deﬁned in the BMMC Structure

module:

mod BMMC-Structure is

...

op IaaS :-> Ss [ctor] .

op PaaS :-> Ss [ctor] .

op SaaS :-> Ss [ctor] .

op EU :-> Sc [ctor] .

op ISV :-> Sc [ctor] .

...

op service<_;_;_>[_].{ _ } : Qid Ss S_State Port

Bigraph -> Vs [ctor] .

op customer<_;_;_;_>[_] : Qid Sc Qid Port

Edge -> Vc [ctor] .

endm

Service operator serves to specify a cloud service, it takes as arguments:

• a Quoted Identiﬁer to specify its name;

• a Control specifying its service delivery model;

• an Attribute specifying a service state (available, unavailable, and cloned).

• a set of Edges to be connected to its predeﬁned ports;

• a set of child nodes being contained within the considered service.

Customer operator allows specifying a cloud customer, it takes as arguments:

• a Quoted Identiﬁer to specify its name;

• a Control specifying its customer type;

• a Quoted Identiﬁer to specify the requested service;

• a Port on which the requested service will be delivered;

• an Edge connected to its port.

– Cloud systems dynamics has been formalized with BMMC Dynamic module, con-

taining a set of rewrite rules corresponding to BRS reaction rules. We assume that

the term [Req] in customer operator characterizes a service requester, while the

term [Lib] represents a customer who liberates a requested service.

mod BMMC-Dynamic is

...

rl [Service-Allocation] :

service< i ; cs:Ss ; available >[ e1 , e2 , e3 ].{ b2 } |

customer< i1 ; cc1:Sc ; i ; p:Port >[ Req ] | b1

service< i ; cs:Ss ; available >[ e1 , e2 , e3 ].{ b2 } |

customer< i1 ; cc1:Sc ; i ; p:Port >[ e1 ] | b1 .

rl [Service-Liberation] :

customer< i1 ; cc:Sc ; i ; p:Port >[ edge na ] | b1

customer< i1 ; cc:Sc ; i ; p:Port >[ Lib ] | b1 .

...

Reaction rules (deﬁned in Section 2.2) will be transformed into rewrite rules. Thus,

several rewrite rules are deﬁned in terms of service allocation and system scalabil-

ity.

– The BMMC Preds module represents a system speciﬁcation property expressed in

linear temporal logic. The relevant state predicates are typically part of the property

speciﬁcation. So, we propose two state predicates to identify whether a service is

cloned or a customer is a service requester. These predicates can be parametrized

with service and customer operators; their semantics is deﬁned as follows:

mod BMMC-PREDS is

...

subsort Bigraph < State .

op requester : -> Prop .

op cloned : -> Prop .

...

eq customer< i1:Qid ; c:Sc ; i2:Qid ; p:Port >[ Req ] | b

requester = true .

eq service< i1:Qid ; c:Ss ; cloned >[e1, e2, e3].{ b1 } | b

cloned = true .

...

– Model checking LTL formula is realized using a given initial state. For this reason,

BMMC-Checker module, deﬁnes an initial state containing a service (s2) of control

IaaS that is unavailable and a customer (c4) of control ISV requesting service (s2)

via its public port. In this case and during execution, the system will automatically

(by running the scaling-up rule) add an instance (”cloned”) of service (s2) to treat

customer (c4) request.

mod BMMC-CHECKER is

...

op initial1 : -> Bigraph .

eq initial1 =

service<’s2; IaaS; unavailable>[edge 1, edge 2, edge 3].{null}

| customer< ’c4 ; ISV ; ’s2 ; PbP >[ Req ] .

endm

3.2 Services Availability and Quick Scalability Properties

The BMMC, implemented in Maude as a system module, provides an executable speci-

ﬁcation of a cloud system. It can be exploited to simulate the cloud system so speciﬁed.

But we can do more. Under appropriate conditions we can check that our bigraphical

model satisﬁes some important properties. We deal here with simpler, yet very use-

ful, properties such as service availability and quick scalability, while considering ini-

tial state speciﬁed in ”BMMC-Checker” module in this example case. Figure 5 bellow

shows model checking results of service availability and quick scalability properties

that are both veriﬁed.

The speciﬁcation of the considered properties:

– ”Services Availability is fulﬁlled if system model (in its canonical ﬁnal states) do

not contain an unsatisﬁed customer request”.

– ”Quick scalability is veriﬁed if all states, in which no more rewrites are possible,

contain at least one instance of a cloned cloud service”.

These speciﬁcations are expressed by the following LTL formulas:

– O [] not (requester) .

– O [] (cloned).

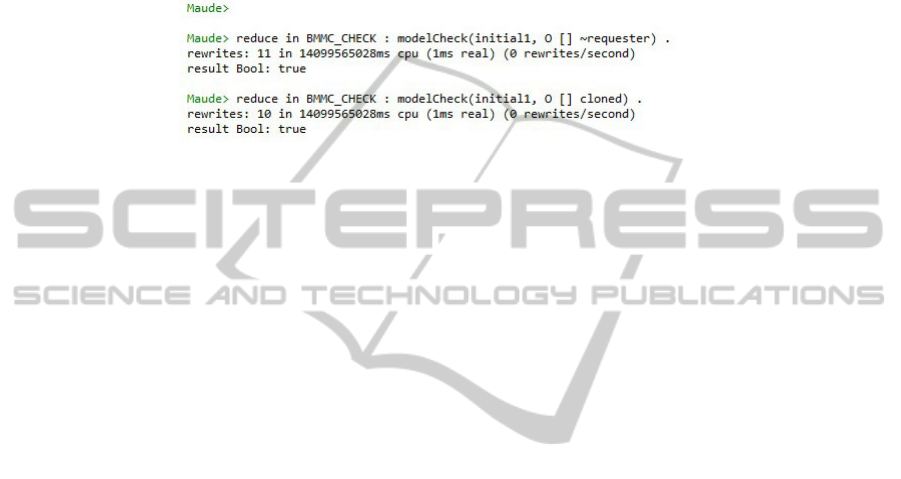

Fig. 5. Veriﬁcation of Services Availability and Quick Scalability properties.

4 Conclusion

Bigraphical Reactive Systems (BRS) have been adopted as a semantic framework for

cloud computing speciﬁcation. BRS seem adequate for two reasons. Firstly, the model

emphasizes on both locality and connectivity that can be used to specify location and in-

terconnection of cloud systems. Secondly, a set of reaction rules, providing to bigraphs

the ability to reconﬁgure themselves, are very useful to formalize cloud system dynam-

ics, especially cloud services elasticity. The deﬁned bigraphical model allows develop-

ers to correctly reason about most cloud computing features as modelling, composition

and reconﬁguration. Particularly, we have shown how this model provides a ﬂexible

theoretical framework where cloud service delivery and deployment models can be nat-

urally deﬁned. A nice consequence of this axiomatization is that relationships between

cloud services and cloud customers have been exploited to formally verify some prop-

erties. This would not have been possible without the proposal of the BMMC, which

is the mapping of bigraphical model to a Maude-based formal executable speciﬁca-

tion. Compared to existing works, the proposed approach achieves a balance between

understandability of representation and formal reasoning techniques.

As future work, we plan to exploit meta-modelling and model transformation tools

to realize a graphical interface and a BMMC speciﬁcations generator in order to facili-

tate the exploitation of our proposed approach, thereby permitting graphical edition and

automatic generation of the corresponding speciﬁcations.

References

1. Michael, A., Armando, F., et al.: Above the clouds: A berkeley view of cloud computing,

EECS Department, University of California, Berkeley (2009)

2. Dong, H., Hao, Q., Zhang, T., Zhang, B.: Formal discussion on relationship between virtu-

alization and cloud computing. In: PDCAT. (2010) 448–453

3. Grandison, T., Maximilien, E., Thorpe, S., Alba, A.: Towards a formal deﬁnition of a com-

puting cloud. In: SERVICES, 6th World Congress on. (2010) 191–192

4. Luo, S. X., Liu, F. M., Ren, C. L.: A hierarchy attribute-based access control model for cloud

storage. In: ICMLC. Volume 3. (2011) 1146–1150

5. Adamov, A., Hahanov, V.: A security model of individual cyberspace. In: EWDTS. (2011)

169–172

6. Freitas, L., Watson, P.: Formalising workﬂows partitioning over federated clouds. In: SER-

VICES, IEEE Eighth World Congress on. (2012) 219–226

7. Binz, T., Fehling, C., Leymann, F., Nowak, A., Schumm, D.: Formalizing the cloud through

enterprise topology graphs. In: Cloud Computing (CLOUD). (2012) 742–749

8. Milner, R.: The Space and Motion of Communicating Agents. Cambridge University Press

(2009)

9. Clavel, M., Durn, F., Eker, S., et al.: All about maude - a high-performance logical frame-

work. Lecture Notes in Computer Science, Springer (2007)

10. Benzadri, Z., Belala, F., Bouanaka, C.: Towards a formal model for cloud computing. In:

ICSOC 2013 Workshops. (2013)

11. Mell, P., Grance, T.: The nist deﬁnition of cloud computing, National Institute of Standards

and Technology (NIST) (2011)

12. Perrone, G., Debois, S., Hildebrandt, T. T.: A model checker for bigraphs. In Ossowski, S.,

Lecca, P., eds.: SAC, ACM (2012) 1320–1325

13. Glenstrup, A. J., Damgaard, T. C., Birkedal, L., Hjsgaard, E.: An implementation of bigraph

matching (2008)

14. Bacci, G., Grohmann, D., Miculan, M.: Dbtk: A toolkit for directed bigraphs. In: CALCO.

Volume 5728., Springer (2009) 413–422
