A Lightweight Framework for Graphical Editors on Android Devices

Thomas Buchmann and Patrick Pezoldt

Chair of Applied Computer Science I, University of Bayreuth, Universitaetsstrasse 30, 95440 Bayreuth, Germany

Keywords:

Mobile Development, Graphical Editors, Gesture Support.

Abstract:

During the last few years, mobile devices and corresponding applications gain more and more attention. The

number of users of mobile devices like phones or tablets has been increasing dramatically. Thus, software

engineering for mobile applications becomes more and more important. While development frameworks for

such devices provide rich support for sophisticated input mechanisms like gestures, etc., they lack support

for graphical editors. In this paper, we present a lightweight framework which ﬁlls this gap. As a running

example, we present editors for UML class diagrams and activity diagrams which have been built using our

framework.

1 INTRODUCTION

Over the last few years, we observe an increasing pop-

ularity of touch-enabled devices. Smart phones nowa-

days have even more processing power than desktop

computers had a couple of years ago. Many people

are now equipped with smart phones or tablets and

mobile applications which make their every day lives

easier. But not only for personal use, but also for pro-

fessionals, smart phones and tablets are very useful.

Model-driven software engineering (V

olter et al.,

2006) is a discipline which evolved during the last

decade. A wide variety of different tools exist, which

support the modeler during the development process.

Since model-driven software development is not tied

to a special software development methodology, these

tools usually can be used with any development pro-

cess.

Agile model driven development (AMDD) (Am-

bler, 2002) applies commonly known principles and

practices from traditional source code based agile

software development to model-driven development.

In his book (Ambler, 2002), Scott W. Ambler states,

that agile modeling (AM) asks to use the simplest

tools possible (e.g. papers and whiteboards). Com-

plex modeling tools should only be used, when they

provide the best value possible.

However, sketches drawn on papers or white-

boards have to be distributed to all involved team

members, e.g. by scanning or photographing the re-

sult. This raises several problems. While in source

code based approaches, where diagrams are only

used for documentation purposes, a photograph of

a whiteboard sketch might be enough, model-driven

approaches demand for models as ﬁrst class entities.

Thus, every diagram that has been sketched on a

whiteboard or on a piece of paper has to be redone

in the respective modeling tool, which results in an

additional overhead. Furthermore, sketches on white-

boards or papers are often missing some essential de-

tails like role names or cardinalities of associations

for example. Usually these errors are ﬁxed at a later

time, when the sketch is redone with the respective

modeling tool.

Modern devices are also equipped with HDMI

video output and can therefore be easily attached to

big TV screens or beamers. This motivated us to

add sketching capabilities to our UML-based model-

ing environment called Valkyrie (Buchmann, 2012b;

Buchmann, 2012a). This approach provides several

advantages: (1) a device running our tool might re-

place papers or whiteboards in agile modeling pro-

cesses as sketches directly result in corresponding

model instances. No manual redrawing of whiteboard

sketches in a modeling tool is required. (2) Since the

tool follows common UML standards, inconsistencies

like missing role names or cardinalities are immedi-

ately reported to the user and thus can be ﬁxed right

away. However, when creating the extension to our

tool, we observed that the Android SDK lacks sup-

port for creating graphical editors.

Our contribution in this paper is a lightweight

framework which aids developers in creating touch-

enabled graphical editors for Android devices. In

Buchmann T. and Pezoldt P..

A Lightweight Framework for Graphical Editors on Android Devices.

DOI: 10.5220/0004984300810089

In Proceedings of the 9th International Conference on Software Engineering and Applications (ICSOFT-EA-2014), pages 81-89

ISBN: 978-989-758-036-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

general, graphical editors are used to visualize graph-

based data structures. In software engineering pro-

cesses, graph-based structures are the underlying data

model for various use cases, e.g. petri nets, process

modeling or UML modeling just to name a few. Fur-

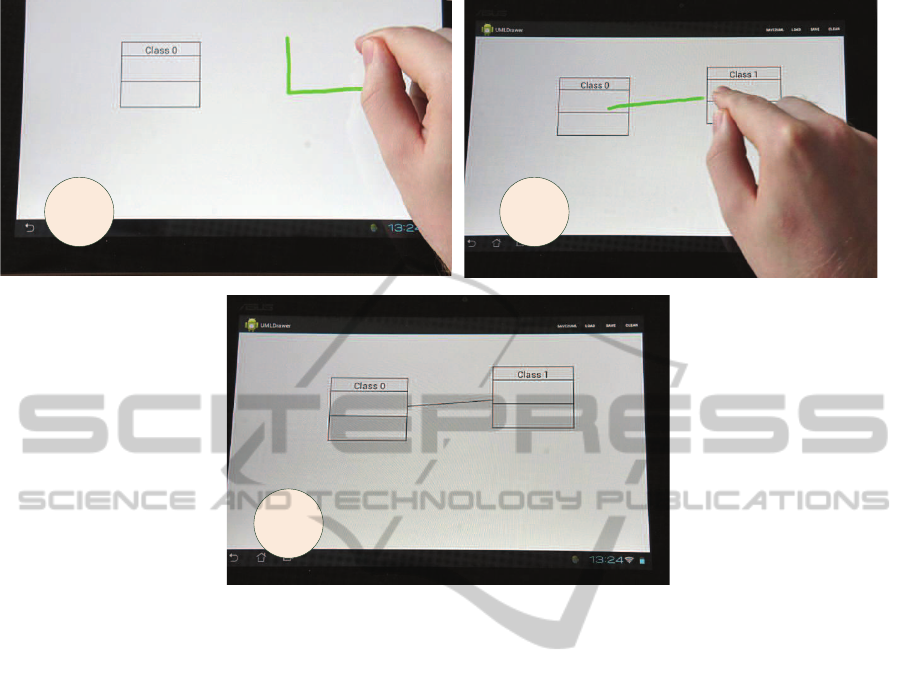

thermore, we also present a small example of how to

use our framework for a touch-enabled UML class di-

agram editor.

The paper is structured as follows: In the next sec-

tion, we discuss related work. An overview about

our framework is given in section 3. In section 4, we

demonstrate our framework by presenting cutouts of

the code of an UML class diagram editor which we

built, while section 6 concludes the paper.

2 RELATED WORK

To the best of our knowledge, there is no framework

for Android devices at the time this paper was written

which aids developers when building touch-enabled

graphical editors. Of course, there are a lot of WYSI-

WYG / Visual editors available which aid developers

in designing user interfaces for their apps, but those

tools do not provide support for building graphical ed-

itors. Thus, we decided to compare our framework to

existing ones which are designed for regular desktop

applications (without touch support).

Graphical Editing Framework (GEF). GEF

is a

framework which supports interactive diagrams and

graphs. It is directly integrated into the Eclipse plat-

form. Its core architecture strictly follows the MVC

design pattern. The graphical editing framework is a

generic framework which can be used to build graph-

ical editors for arbitrary Java models. Basically, the

framework is composed from three different build-

ing blocks: (1) Draw2D - a lightweight framework

used to display ﬁgures on SWT basis, (2) Zest - a vi-

sualization toolkit based on Draw2D which is used

to combine Java model elements and Draw2D dia-

grams and (3) GEF - a model-view-controller frame-

work which is also based on Draw2D and which pro-

vides an API for interactive functions, like Drag and

Drop, Undo/Redo capabilities, etc. While it does not

provide native support for touch-enabled devices, re-

cently two projects emerged which address input of

diagrams using sketching techniques (Sangiorgi and

Barbosa, 2010; Scharf, 2013). While (Sangiorgi and

Barbosa, 2010) and (Scharf, 2013) realize an a poste-

riori integration of sketching capabilities into an exist-

ing framework for building graphical editors (GEF),

http://www.eclipse.org/gef

our approach aims at an a priori combination of ges-

tures and such a framework.

Graphical Modeling Framework (GMF). The

Graphical Modeling Framework (GMF) (Gronback,

2009) is the model-driven extension of GEF. The

added value compared to GEF is that basic graphi-

cal editors may be created without writing a single

line of Java code. GMF uses models to describe the

graphical primitives and the tool palette of the graph-

ical editor. Another model is used to link model ele-

ments, graphical elements and their respective tools.

This model acts as a basis for the Xpand-based code

generator. While this approach works well for simple

editors, manual adjustments /extensions of the gener-

ated code are needed in many cases (Buchmann et al.,

2007; Buchmann, 2012b). Furthermore GMF is not

as generic as GEF as it requires Ecore-based (Stein-

berg et al., 2009) semantic models. While our frame-

work presented in this paper is more general, as it al-

lows for any Java-based model, we successfully ap-

plied it to Ecore-based models as well.

Graphiti. Graphiti

is another Eclipse project,

which provides a graphical tooling infrastructure.

Similar to GMF its primary purpose is to provide

graphical representations fo EMF models, but nev-

ertheless it also works for Java-based objects on the

domain side as well. In contrast to GMF, it does not

provide a model-driven approach as it comes with a

plain Java API for building graphical tools. While

both GEF and GMF are intended to be used within the

Eclipse environment, Graphiti provides the option to

support different platforms. Just like the above men-

tioned frameworks, Graphiti also does not provide na-

tive support for touch-enabled devices.

Sirius. Sirius

is another Eclipse based project,

which empowers developers to build graphical editors

for domain speciﬁc languages. Like GMF it leverages

model-based architecture engineering by providing a

generic workbench that could easily be tailored to ﬁt

speciﬁc needs. In contrast to GMF, the description

of a Sirius modeling workbench is dynamically inter-

preted by a run-time within the Eclipse IDE. Again,

also Sirius does not provide native support for touch-

enabled devices.

Upgrade. UPGRADE (B

ohlen et al., 2002b;

ohlen et al., 2002a) is another Java-based frame-

work which is used for building graph-based inter-

http://www.eclipse.org/graphiti

http://www.eclipse.org/sirius

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

active tools. Primarily it was designed to be used

as a visual front-end for PROGRES (Sch

urr, 1996)

models. It puts focus on reusability and customiz-

ability, decoupling of application logic and user in-

terface, platform independence and many more. Plat-

form independence is achieved by using the Java pro-

gramming language. While the other frameworks dis-

cussed in this section are also written in Java, they

contain a lot of dependencies to the Eclipse work-

bench and their SDKs which make it impossible to

use them on Android. UPGRADE on the other hand

is independent from any IDE, but it turned out that

the framework is outdated and development activities

have been stopped a long time ago.

Web-based Approaches. In the past few years,

web-based approaches for graphical editors have

emerged. Gordon et al. (Gordon et al., 2005) present

a framework for light-weight web-based visual

applications. However, while a web-based graphical

editor could be used on any device which is capable

of running a browser, the approach presented by

Gordon et al. also misses support for gestures.

All of the approaches mentioned above provide

ﬂexible support to create graphical editors for arbi-

trary models. The major drawback of all frameworks

in the context of this paper is, that they do not work on

Android devices and moreover, they do not provide

native support for sophisticated input mechanisms,

like gestures.

3 FRAMEWORK OVERVIEW

The basic design decision when developing a frame-

work for graphical diagram editors is which functions

should be encapsulated and which ones should be

implemented by the developers using it. The main

goal is to encapsulate as many functions as possi-

ble while providing developers with the freedom to

design corresponding editors according to their spe-

ciﬁc needs. Since the framework is targeted towards

building graphical editors for Android-powered de-

vices, they should be controlled using gestures. In

general, graphical editors are used to display nodes

and edges of a graph. The graphical representation

of those nodes and edges differs according to the ap-

plication domain and the respective visual language.

Thus, developers using our framework should be able

to specify the following:

Gestures. Specify all gestures which should be avail-

able to control the ﬁnal editor.

Actions. Which actions should be executed once a

predeﬁned gesture is performed.

Nodes. All visual elements which are used to display

different node types of the graph.

Edges. All visual elements which are used to display

the graph’s edge types.

On the other hand, certain operations which are

common for all types of graphical editors may be en-

capsulated within the framework, like e.g. moving

elements, zooming, scrolling, etc. Our framework en-

capsulates the following operations:

1. Drawing / editing nodes

2. Drawing / editing edges and their labels

3. Gesture processing

4. Zooming

5. Scrolling

6. Undo / redo of editing operations

7. Persistency mechanisms

8. Consistency with the Android SDK in terms of the

app life-cycle

In the following, we are going to discuss the major

building blocks of our framework in detail: visual el-

ements, gesture processing, undo/redo management,

and persistency.

3.1 Visual Elements

3.1.1 Shapes and Figures

Visual representation of nodes and edges is the most

important task of a graphical editor. When creating a

generic framework aiding the development of graph-

ical editors, only a few assumptions concerning the

shapes of the visual elements can be made. As a

consequence, we chose an approach which allows as

much ﬂexibility as possible. As the visual elements

are directly rendered on the visible user interface of

the app, we had to pick the appropriate rendering

technique ﬁrst. Basically, the Android SDK supports

two different approaches: (1) The graphical element

is rendered into a view which is part of the layout

(the Android run-time takes care of the rendering in

this case). (2) The graphical element is rendered di-

rectly to the UI using a canvas (manual control about

the rendering is possible here). Furthermore there are

two different ways of how to create complex visual

objects when working with the canvas: (1) Visual ele-

ments may be composed from graphical primitives or

(2) visual elements may be represented using bitmaps.

ALightweightFrameworkforGraphicalEditorsonAndroidDevices

While using elements composed from graphical prim-

itives requires less processing power and memory re-

sources, it is not feasible for complex objects. Using

bitmaps provides beneﬁts in terms of allowing trans-

parency, possibility of matrix transformations and an

easy implementation. Bitmaps may contain transpar-

ent areas and such allow to display circles for exam-

ple. As a result, creating complex visual elements is

transferred to standard bitmap processing tools, like

e.g. Gimp

, which are perfect for this task. Images

are stored in an Android resource which can easily

be loaded into a bitmap during runtime. Further-

more, bitmaps may be rendered using a transforma-

tion matrix. Thus, transformations like rotation, trans-

lation or scaling can easily be applied. The Android

SDK provides a special extension to bitmap images –

NinePatchDrawable – which allows context-sensitive

scaling, i.e. areas near the image boundaries are du-

plicated during scaling while unmarked areas are not

affected. Within the Android SDK, a NinePatchDraw-

able is used for example for buttons.

AbstractElement

matrix : Matrix

Container

npd : NinePatchDrawable

0.. *

Text

text : String

Shape

bmp : Bitmap

npd : NinePatchDrawable

Vertex

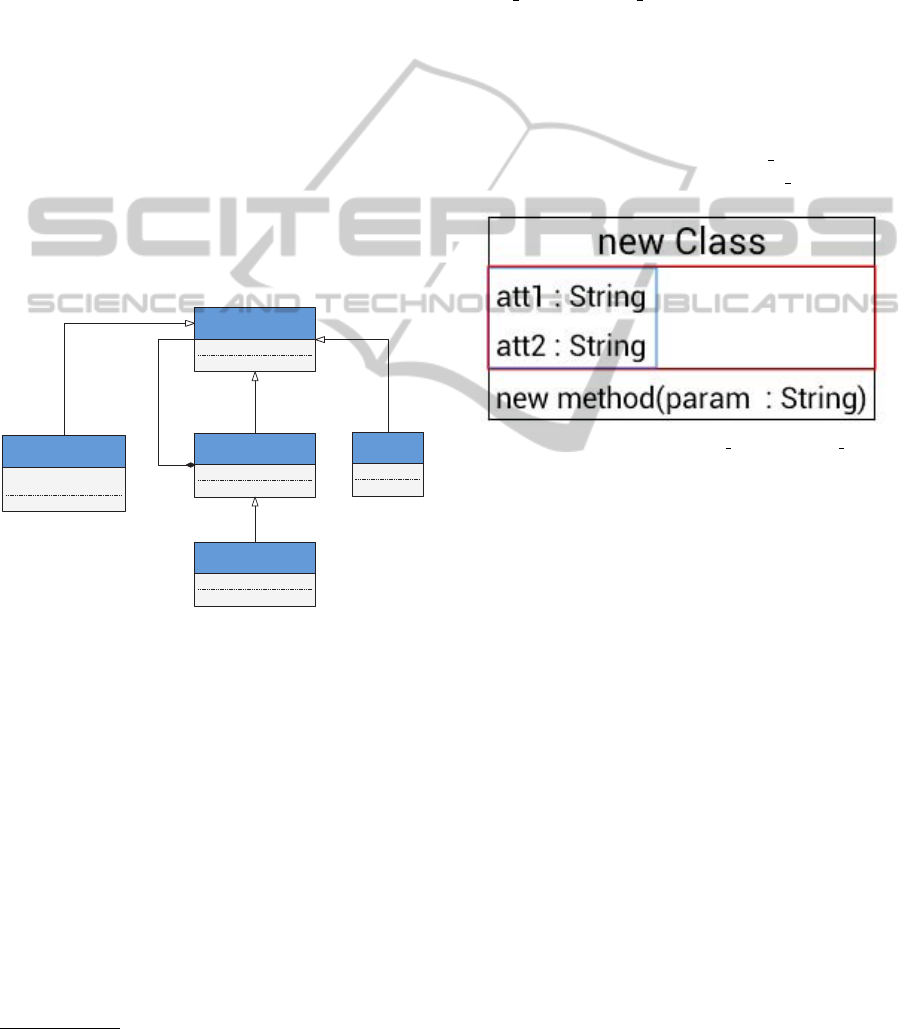

Figure 1: Cutout of the class diagram responsible for han-

dling visual elements.

Figure 1 depicts a class diagram which contains

the structure of the visual elements representing nodes

as provided by our framework. Developers working

with our framework create visual elements by creat-

ing images and loading them. Furthermore, elements

may be composed hierarchically into an arbitrary tree

structure. The alignment of elements may be speci-

ﬁed by layout information. The class diagram in Fig-

ure 1 contains a class Container which serves as a con-

tainer for child elements, while Vertex is the root el-

ement. Shape is used as a container for the (bitmap)

image and Text is the container for string literals. The

hierarchical structure of visual elements is modelled

using the composite association between Container

and AbstractElement. Vertex is a dedicated Container

http://www.gimp.org

which is the root of the containment hierarchy and

which is directly rendered onto the canvas of the app,

while Shape and Text represent the leaves.

Besides child elements, a Container may also

have a bitmap or a NinePatchDrawable as background

which are scaled to match the correct size of the vi-

sual element. The scaling behavior depends on the

layout information which offers a distinction between

wrap content and ﬁll parent when scaling along x and

y directions. While the ﬁrst one is used to match the

container’s size according to the size of its contained

children, the latter one is used to ﬁt the container’s

size to its parent Container. Figure 2 depicts the dif-

ferences of both mechanisms. While the blue box in

the attribute section of the class depicted in Figure 2

symbolizes the scaling effect of wrap content, the red

box marks the result when choosing ﬁll parent.

Figure 2: Difference between wrap content and ﬁll parent.

The alignment (either horizontally or vertically)

of the contained elements is also part of the con-

tainer’s layout information. Furthermore a container

has a minimum size which avoids the visual element

to shrink in case its content is deleted.

3.1.2 Diagram Links and Decorators

Similar to shapes that are used to visualize nodes, the

diagram links that depict edges may have a different

visual appearance – which is also deﬁned by the de-

veloper – according to the application domain. When

creating diagram links, several different aspects need

to be taken into account:

Line Properties: color and thickness of the line as

well as the visualization kind (solid, dashed, dot-

ted, etc.).

Anchor Points: An anchor point is a point which

serves as an interconnection between the visual

element representing a node and the link object.

Bend Points: A bend point of a link needs to satisfy

certain requirements, like the ability to be moved.

End Decorators: End decorators are custom shapes

which are located at the corresponding ends of the

link, e.g. arrow heads.

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

Labels: A link may contain different labels which

are used to display arbitrary string literals.

The Android Canvas object provides a native

method drawPath(), which we used to display the

links. Thus, the link and all of its bend points needs

to be transformed into a Path object. Figure 3 de-

picts a simpliﬁed class diagram which is responsible

for handling links and decorators. A Link object is al-

ways connecting two Vertex objects and may contain

an arbitrary number of BendPoints. In our case, an

end Decorator is a specialized BendPoint.

Our framework offers a set of different predeﬁned

end decorators as well as the possibility to create new

ones. As a result, the usage of elements visualizing

edges is very easy and can be achieved with only a

few lines of code.

Vertex Link

path : Path

updatePath() : void

BendPoint

Decorator

bitmapId : int

matrix : Matrix

Text

text : String

LinkText

2..2 0..* 0..1 0..*

0..1

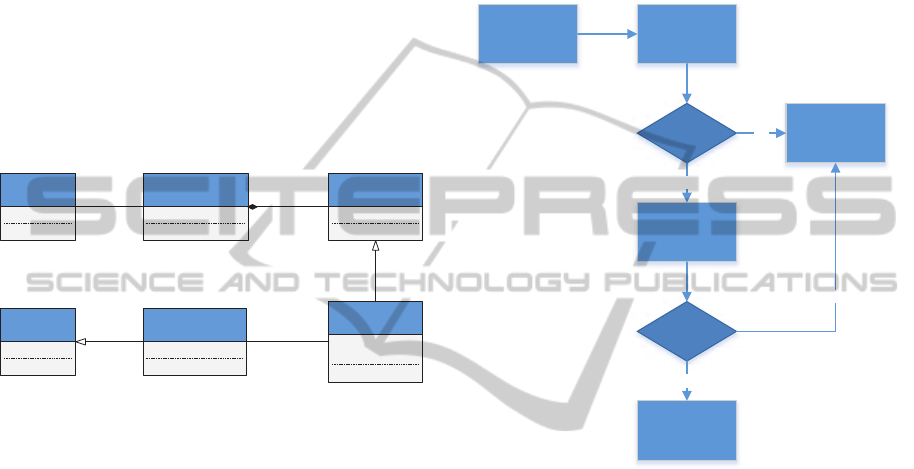

Figure 3: Simpliﬁed class diagram responsible for handling

links and decorators.

3.2 Gestures

All diagram editors which may be created using our

framework should be controlled using gestures. As

a consequence, a core requirement is that the frame-

work supports developers during this task as much as

possible. Furthermore common, predeﬁned gestures

are encapsulated within the framework and are thus

common for all editors:

• Zooming

• Reset zoom factor

• Scrolling

• Move diagram nodes and links

• Select diagram nodes and links

• Delete diagram nodes and links

• Edit diagram nodes and links

• Connect nodes using links

Basically, the Android SDK provides two differ-

ent ways how gesture recognition may be handled in

an app. It provides an app (GestureBuilder) which al-

lows to draw and save gestures which can then be used

to compare the recognition result with the currently

drawn one. The comparison is done automatically by

the framework and quickly provides a result. Alter-

natively, the developer can decide to not use the au-

tomatical recognition which requires more program-

ming effort, but is much more ﬂexible. The best ap-

proach is to use the automatic recognition whenever

possible, and to use the manual recognition only in

cases where the automatic recognition fails. This pro-

cess is sketched in ﬁgure 4.

Current Gesture

Automatic

Recognition

Possible

success Execute Gesture

Start Manual

Recognition

success

Discard Gesture

yes

Figure 4: Gesture recognition process.

While the automatic gesture recognition provided

by Android is suitable for standard apps, gestures

in diagram editors might become much more difﬁ-

cult to handle. In general, when using the automatic

recognition, only one axis (x or y direction) is use-

able for gestures as the other one is automatically re-

served for scrolling purposes. It only raises one event

OnGesturePerformedListener which indicates a com-

plete gesture. The resulting gesture object can be

passed to the recognition algorithm. The Android

SDK provides another listener (OnGestureListener)

which provides a greater ﬂexibility. It has three dif-

ferent call-backs which indicate start and stop and all

intermediate points of a gesture. The draw-back is

that composite gestures have to be assembled manu-

ally. To this end, our framework provides a listener

thread which can be conﬁgured with custom timeout

values. As long as the timeout is not raised, all ges-

tures performed are considered to be part of one sin-

gle composite gesture (c.f. Figure 5). We chose to use

the second gesture listener, since it allows to also im-

plement instant gestures, like moving, zooming etc.

which are used in resulting editors.

ALightweightFrameworkforGraphicalEditorsonAndroidDevices

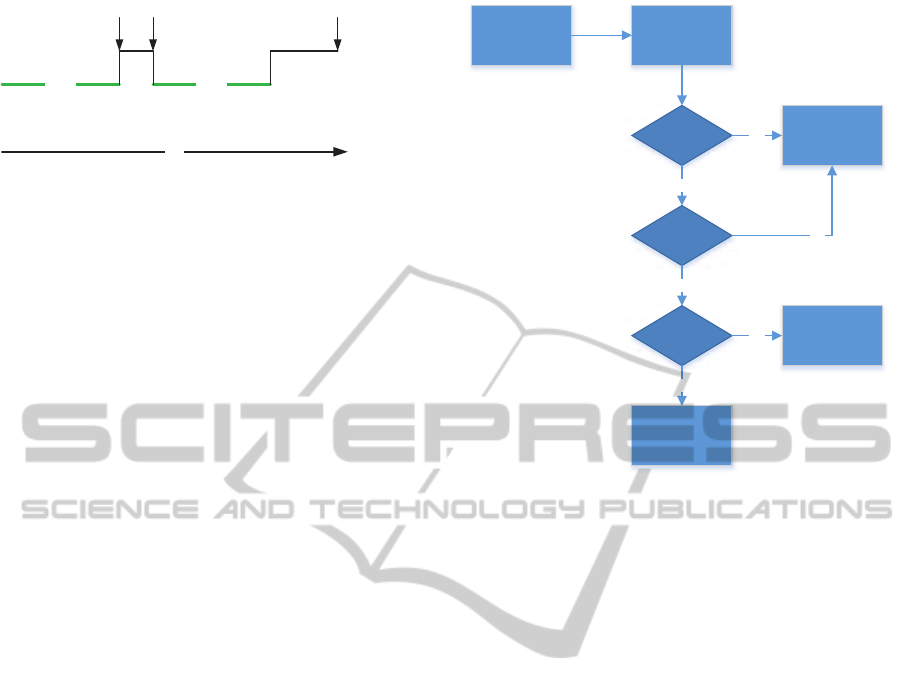

Time

Gesture

drawn

Gesture

drawn

gesture end event

event for

new gesture part

timeout – gesture

thread ends

Figure 5: Gesture recognition process.

3.2.1 Gesture Recognition

After a gesture has been recorded, it needs to be inter-

preted. In our framework, the abstract class Gestur-

eRecognizer is responsible for this task. Framework

users have to inherit from this class and put their cus-

tom behavior into the corresponding method bodies.

The standard implementation of the GestureRecog-

nizer passes gestures to the Android recognition algo-

rithm and returns corresponding results, if the predic-

tion score exceeds a predeﬁned threshold – the ges-

tures are ignored otherwise. If the GestureRecog-

nizer is not able to identify the gesture, a check is

performed, if a connection between two visual ele-

ments was made. Regarding connections, a distinc-

tion between gestures for solid and dashed connec-

tions is made and the gesture with all affected visual

elements is passed to the GestureMapping object for

further processing. In case there is no connection,

a check has to be performed if the user intended to

delete diagram elements. Figure 6 depicts the chain of

responsibility during gesture handling in our frame-

work.

3.3 Undo / Redo Management

Nowadays, almost every editor provides means for the

end users to record editing operations which can be

undone or redone. Thus, our framework incorporates

mechanisms to allow developers to build editors with

undo/redo functionality. To this end, all editing op-

erations are wrapped into actions implementing our

IAction interface. The interface provides the meth-

ods execute() and unexecute() respectively. While ex-

ecute() performs the desired action (e.g. creating a

new object), unexecute() resets the editor in its previ-

ous state. All actions are stored on an undo-stack and

thus may be undone in the correct order. Our frame-

work distinguishes between regular actions, compos-

ite actions (like moving) and actions which can not be

undone like zooming or scrolling (as these actions do

not change the state of the editor). Once a correspond-

ing action is undone, it is pushed onto the redo-stack,

while redoing an action has the opposite effect. As

soon as a new action is pushed onto the undo-stack,

Gesture Performed GestureRecognizer

recognized GestureMapping

isConnection

yes

isDeleteGesture RemoveAction

Discard Gesture

yes

Figure 6: Chain of responsibility during gesture recogni-

tion.

the redo-stack is cleared since all actions stored in the

redo-stack might not be sensible any more.

4 EXAMPLE

This section demonstrates the creation of a graphical

diagram editor using our framework. We demonstrate

that only a few steps are required to create a touch-

enabled UML class diagram editor. We use the Ges-

tureBuilder app provided by Android to record the

gestures which should be used in the class diagram

editor. The ﬁrst task is to inherit from the follow-

ing abstract classes and implement the corresponding

methods:

GestureRecognizer is responsible for recognizing

the gestures.

DrawableFactory is used to create the visual ele-

ments.

GestureMapping is used to map gestures and visual

elements and the corresponding editor actions re-

spectively.

EditorsActivity is used to assemble the other classes

and to provide the UI of the editor. Extensions of

the user interface are possible in this class.

Table 1 shows a cutout of different gestures and

their mapping to corresponding editor actions used in

our example. Please note that the drawing direction of

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

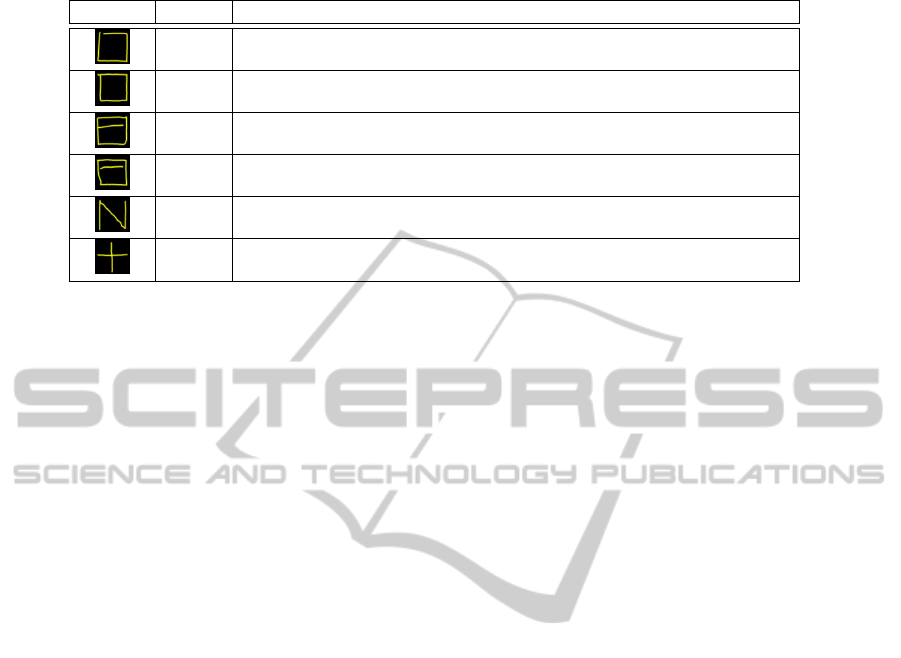

Table 1: Gestures used for the sample class diagram editor.

Gesture Name Description

square Create new class

square Create new class, gesture performed in opposite direction

square Create new class, multi-part gesture

square Create new class, multi-part gesture performed in opposite direction

n Create new interface

plus Add attributes and methods to classes / interfaces

gestures is crucial. To this end, we performed gestures

like the square both clockwise and counter-clockwise.

Our framework offers the possibility to deal with

miss-interpretations of gestures. E.g. the plus gesture

was recognized with a high probability even if only

one line was drawn with the standard gesture recog-

nition. Thus, we added a second test, if the gesture

in fact consists of two lines with an intersection. Af-

ter a positive recognition, the corresponding gesture is

handed over to the gesture mapping for interpretation.

The DrawableFactory is used to create all visual el-

ements. A new subclass ClassDiagFactory is created

for our sample editor. The new class contains factory

methods for visual elements which are called from

the corresponding GestureMapping class. E.g. to cre-

ate new classes in our class diagram editor, a method

public Vertext createClass() is added to the ClassDi-

agFactory. Each factory method, which creates visual

elements has to return a Vertex. Our framework al-

ready provides factory methods to create connections

between visual elements. This method needs the two

Vertices which are connected by the line as well as

start and end anchor points and the corresponding line

style.

The GestureMapping class is used to interpret rec-

ognized gestures and assign editor speciﬁc actions

to them. Again, we created a new subclass Class-

DiagGestureMapping and implemented the abstract

methods which are used to interpret gestures for vi-

sual elements and connections between them.

The EditorsActivity class is used to connect the

classes mentioned above and to modify the user inter-

face of our class diagram editor app. In order to use

the class diagram editor with our model-driven de-

velopment toolchain Valkyrie(Buchmann, 2012b), we

use Eclipse UML2 as data model. The corresponding

methods are also implemented in the ClassDiagEditor-

sActivity subclass. Figure 7 depicts the resulting class

diagram editor in action. In (1) the gesture (square)

for creating a new class is performed. After the ges-

ture has been recognized and interpreted, the corre-

sponding class and the visual representation is added.

In the next step (2), an association between the two

classes depicted in Fig. 7 is created by performing

the association gesture. The ﬁnal result is shown in

(3).

5 DISCUSSION

In a recent project (Buchmann, 2012a), we investi-

gated the usage of touch-enabled devices in software

engineering processes. To this end, we created a

graphical editor for UML class diagrams from scratch

on an android device. Building such editors is a te-

dious and error-prone task, especially when integrat-

ing gesture support. For this reason, we developed the

framework presented in this paper, allowing users to

abstract from lower-level implementation issues. As

a consequence, the creation of gesture-enabled graph-

ical editors on android devices is facilitated consider-

ably. While the framework is still under development,

it is evident that even in its current state it provides an

added value for developers.

Typically, mobile devices are equipped with small

screens compared to desktop computers. While they

provide similar screen resolutions, it is obvious that

the content is displayed in a much smaller size, and

thus, is harder to read. Furthermore, diagrams tend

to become very large. As a consequence, a user of a

diagram editor on a mobile device has to scroll and

zoom very often. While our framework provides na-

tive support for scrolling and zooming gestures, we

are still trying to improve the editing experience. We

are thinking of supporting different levels of detail,

where certain information may be hidden.

Modern devices do not only provide sophisticated

input mechanisms using the touch screen, they also

ALightweightFrameworkforGraphicalEditorsonAndroidDevices

1 2

Figure 7: The example class diagram editor.

have different built-in sensors, which may be used

as an additional source of input. In fact, we tried to

exploit the speech recognition capabilities of android

to assign names of graphical elements automatically.

Unfortunately, it seems that the speech recognition is

region-based. I.e. if you have a german device, the

recognition algorithm always tries to recognize ger-

man words, which of course fails if someone wants

to create an interface in an UML class diagram called

IEObjectItemProvider for example. Thus, work is cur-

rently being addressed to investigate if support for

handwritings is feasible. Furthermore, we are also in-

vestigating if other sensors, like the built-in camera,

accelerometers, etc., may further improve the editing

experience.

In its current state, our framework works very well

for diagrams of medium complexity, e.g. class di-

agrams. Typically, those diagrams consist of nodes

and edges and the nodes may contain compartments,

which are used to display child nodes. So far, we did

not try to implement highly-complex diagrams, but

since this is even painful to implement with custom

frameworks for ordinary diagram editors, like GEF,

etc., we do not expect that our light-weight framework

will perform better.

In general, our vision is not provide a complex

framework, which allows to build graphical editors

of arbitrary complexity. Instead, we are aiming at a

lightweight framework, which allows to create appli-

cations allowing users to capture information in cer-

tain situations, like e.g., in meetings or when they do

not have access to their usual modeling environments.

In contrast to plain drawing tools, this information

is persisted in the abstract syntax of tools which are

used to further process this information in later stages.

In (Buchmann, 2012a), we described an usage sce-

nario, when the android app is used in addition to the

UML modeling tool Valkyrie. A software developer

may use the app in meetings to sketch use cases or

early design decisions, which may be further reﬁned

seamlessly in a full-ﬂedged modeling environment at

a later stage of the development process.

6 CONCLUSION

In this paper, we presented a lightweight framework

which empowers the user to easily build touch-enable

graphical editors for android devices. Our contribu-

tion ﬁlls a gap which exists in the current Android

SDK. While there is rich support for sophisticated in-

put mechanisms in the Android SDK or third party

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

frameworks, like gestures for example, they do not

contain tools which allow developers to easily build

graphical editors. As graphical editors as required

for many different use cases and especially in modern

software engineering processes, our contribution pro-

vides huge improvement for developers of such tools.

Furthermore, mobile devices can now be seamlessly

integrated in agile development processes, as demon-

strated in our running example.

Future work on our framework comprises further

extensions, like layout algorithms. Currently, work is

addressed dealing with implementing different graph-

ical editors, including UML diagrams (e.g. use case

diagrams, activity diagrams, package diagrams, state-

charts) as well as others. Furthermore, we are think-

ing about designing a DSL which is targeted towards

a declarative speciﬁcation of graphical editors.

REFERENCES

Ambler, S. W. (2002). Agile modeling: Effective Practices

for Extreme Programming and the Uniﬁed Process.

John Wiley & Sons, Inc., New York.

ohlen, B., J

ager, D., Schleicher, A., and Westfechtel,

B. (2002a). UPGRADE: A framework for building

graph-based interactive tools. In Mens, T., Sch

urr,

A., and Taentzer, G., editors, Proceedings of the Inter-

national Workshop on Graph-Based Tools (GraBaTs

2002), pages 149–159, Barcelona, Spain.

ohlen, B., J

ager, D., Schleicher, A., and Westfechtel, B.

(2002b). UPGRADE: Building interactive tools for

visual languages. In Proceedings of the 6th World

Multiconference on Systemics, Cybernetics and Infor-

matics (SCI 2002), volume 1, pages 17–22, Orlando,

FL.

Buchmann, T. (2012a). Towards tool support for agile mod-

eling: Sketching equals modeling. In Proceedings

of the Extreme Modeling Workshop 2012 (co-located

with MODELS 2012), New York, NY, USA. ACM.

Buchmann, T. (2012b). Valkyrie: A UML-Based Model-

Driven Environment for Model-Driven Software En-

gineering. In Proceedings of the 7th International

Conference on Software Paradigm Trends (ICSOFT

2012). INSTICC.

Buchmann, T., Dotor, A., and Westfechtel, B. (2007).

Model-Driven Development of Graphical Tools - Fu-

jaba meets GMF. In Filipe, J., Helfert, M., and

Shishkov, B., editors, Proceedings of the Second In-

ternational Conference on Software and Data Tech-

nologies (ICSOFT 2007), pages 425–430, Barcelona,

Spain. INSTICC Press, Setubal, Portugal.

Gordon, D., Noble, J., and Biddle, R. (2005). Clicki:

A framework for light-weight web-based visual ap-

plications. In Billinghurst, M. and Cockburn, A.,

editors, Sixth Australasian User Interface Confer-

ence (AUIC2005), volume 40 of CRPIT, pages 39–45,

Newcastle, Australia. ACS.

Gronback, R. C. (2009). Eclipse Modeling Project:

A Domain-Speciﬁc Language (DSL) Toolkit. The

Eclipse Series. Boston, MA, 1st edition.

Sangiorgi, U. B. and Barbosa, S. D. (2010). SKETCH:

Modeling Using Freehand Drawing in Eclipse Graph-

ical Editors. In FlexiTools2010: ICSE 2010 Work-

shop on Flexible Modeling Tools, Cape Town, South

Africa.

Scharf, A. (2013). Scribble - a framework for integrating

intelligent input methods into graphical diagram edi-

tors. In Wagner, S. and Lichter, H., editors, Software

Engineering (Workshops), volume 215 of LNI, pages

591–596. GI.

Sch

urr, A. (1996). Introduction to the speciﬁcation lan-

guage progres. In Nagl, M., editor, IPSEN Book,

volume 1170 of Lecture Notes in Computer Science,

pages 248–279. Springer.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF Eclipse Modeling Framework. The

Eclipse Series. Boston, MA, 2nd edition.

olter, M., Stahl, T., Bettin, J., Haase, A., and Helsen, S.

(2006). Model-Driven Software Development: Tech-

nology, Engineering, Management. John Wiley &

Sons.

ALightweightFrameworkforGraphicalEditorsonAndroidDevices
