Testing the Cooperation of Autonomous Robotic Agents

Raimar Lill and Francesca Saglietti

Informatik 11 - Software Engineering, Friedrich-Alexander-Universität Erlangen-Nürnberg,

Martensstr. 3, 91058 Erlangen, Germany

Keywords: Autonomous Systems, Coloured Petri Nets, Genetic Algorithms, Optimized Test Case Generation,

Structural Testing.

Abstract: This article proposes an approach to testing the cooperative behaviour of autonomous software-based agents

with safety-relevant tasks. It includes the definition of different model-based testing criteria based on the

coverage of Coloured Petri Net entities as well as the automatic generation of appropriate test cases. The

multi-objective optimization problem considered addresses both the maximization of interaction coverage

and the minimization of the amount of test cases required. The approach developed for its solution makes

use of genetic algorithms. The resulting automatic test case generation process is presented in this article

together with the experiences gained by applying it to cooperating autonomous forklifts.

1 INTRODUCTION

1.1 Motivation

Modern software-based applications increasingly

rely on de-centralized functionalities distributed

among entities. While classical component-based

software usually involves behavioural synchronicity,

however, autonomously cooperating agents are

conceived to take individual decisions on the basis

of their local sensorial perception and reasoning

capabilities (Saglietti, Söhnlein and Lill, 2011).

Typical application domains addressed by

autonomous cooperation include mobile robots or

traffic control based on car-to-car communication.

Evidently, local decisional autonomy and shared

cooperative tasks allow for higher flexibility and

performance than central controllers; on the other

hand, the resulting global behaviour induced by

autonomous decisions involves also a much higher

variety of potential interaction scenarios. In

particular, this multiplicity poses serious challenges

to verification, as compositional testing or proving

techniques relying on separation of concerns cannot

be taken to provide adequate evidence any longer.

In fact, the potential failure behaviour of

autonomous cooperative robots goes beyond the

possibility of incorrect performance of one entity

including also inappropriate decision-making due to

inaccurate perception instruments, inadequate

interpretation of signals perceived, incorrect

identification of actions required or inconsistence

between decisions of cooperating agents.

Therefore, in order to improve the state-of-the-

art, a model-based approach for testing cooperating

autonomous systems was developed within the

European ARTEMIS project R3-COP. It aims at

capturing the inherent interaction multiplicity by an

appropriate modelling notation, from which to

derive representative test cases. In more detail, the

approach developed is based on the following steps:

 modelling of the behaviour of a cooperating

autonomous system;

 definition of adequate coverage criteria based on

the modelling elements of the notation chosen;

 automatic generation of model-based test cases

achieving given coverage criteria.

The test data generation process follows a multi-

objective optimization strategy based on genetic

algorithms (Mitchell, 1996): in fact, it aims at

maximizing test coverage while minimizing the

number of tests involved.

After addressing related work in the next section,

the rest of the article is structured as follows:

 chapter 2 briefly outlines the benefits of using

Coloured Petri Nets (CPNs) for the purpose of

modelling cooperating autonomous systems;

furthermore, objectively reproducible coverage

criteria based on CPN modelling elements are

presented and hierarchically organized;

287

Lill R. and Saglietti F..

Testing the Cooperation of Autonomous Robotic Agents.

DOI: 10.5220/0004990402870296

In Proceedings of the 9th International Conference on Software Engineering and Applications (ICSOFT-EA-2014), pages 287-296

ISBN: 978-989-758-036-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

 chapter 3 proposes an incremental testing

procedure consisting of successive testing phases

characterized by gradually increasing levels of

contextual detail;

 chapter 4 is devoted to the automatic generation

of optimized CPN-based tests by means of 2

different optimization strategies: the former

addresses conflicting objectives by pre-defined

target priorities (section 4.1), while the latter one

allows to capture varying target priorities by

moving along a whole Pareto front (section 4.2);

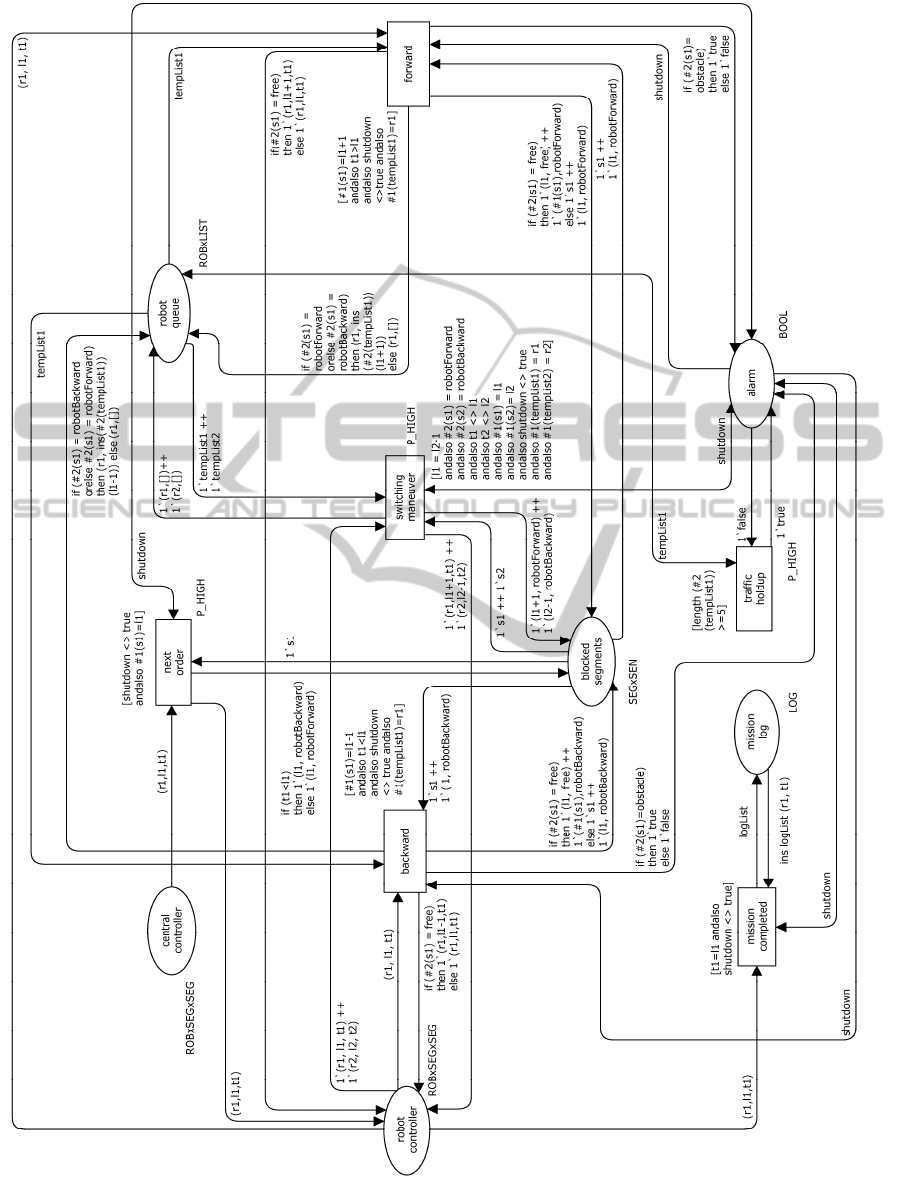

 finally, chapter 5 illustrates the practicability of

the technique developed in the light of an

example inspired by a real-world application

involving cooperating forklifts.

1.2 Related Work

The approach presented in this article is based on the

classical concept of model-based testing (e.g. Utting

and Legeard, 2007; Broy et al., 2005) allowing for

the extraction of significant test cases from

dedicated behavioural and environmental models. In

order to capture the behaviour of cooperating

autonomous systems, it makes use of the modelling

language CPNs (Jensen and Kristensen, 2009). The

coverage criteria proposed in section 2.2 were partly

inspired by already existing coverage concepts (Zhu

and He, 2002) for Predicate-Transition Petri Nets

(Genrich and Lautenbach, 1981). For the purpose of

automatic test case generation, they were transferred

to CPNs giving rise to appropriate metrics for the

evaluation of the fitness of candidate test case sets.

Alternative approaches (Nguyen et al., 2012) and

(Micskei et al., 2012) were also devoted to the

automatic generation of test cases for autonomous

software agents by means of evolutionary

techniques. They differ, however, from the target

pursued in the present article by focusing on testing

for robustness in terms of aiming at the generation of

exceptional test scenarios, e.g. involving unusually

high stress, human misuse, communication

anomalies, behavioural extremes etc. Such

approaches assume the previous identification of

anomalous behaviour; this may be hard to be

achieved in general, especially in case of numerous

interacting agents. In addition, they do neither

address the global amount of behavioural

multiplicity captured by interacting autonomous

systems, nor the amount of testing required; both

these objectives, on the other hand, are pursued by

the technique developed in this article.

2 MODEL-BASED TESTING

USING CPNS

2.1 CPNs for Modelling Autonomous

Cooperating Agents

In order to capture the high behavioural multiplicity

of interaction scenarios arising from autonomous

cooperation, an adequate modelling notation is

required. Coloured Petri Nets (Jensen and

Kristensen, 2009) have proven to be particularly

useful for this purpose thanks to their capability of

providing a compact and scalable representation

(Lill and Saglietti, 2012a).

Classical Petri Nets are well-known techniques

for modelling and analyzing concurrent processes, in

particular capturing their cooperative behaviour as

well as potential conflicts. CPNs result by enriching

the tokens of ordinary Place/Transition Petri Nets

(Murata, 1989) with type-specific data values

(colours). For this purpose, each CPN place is

assigned a colour set specifying the type of tokens

that may be allocated to that place. At any time, the

net marking defines the current state.

In order to control the production and

consumption of coloured tokens, CPN arcs are

assigned dedicated arc expressions determining a

multi-set of coloured tokens to be produced resp.

consumed during transition firings. In order for a

transition to fire, each variable occurring in its input

arc expressions has to be bound to a specific colour

such that a sufficient number of tokens of that colour

(determined by evaluating each input arc expression)

is available in the corresponding input place. The

firing of a transition w.r.t. an enabling variable

binding is denoted as an event. Each event leads first

to the consumption of tokens in each input place of

the transition in amounts and colours as indicated by

evaluating the corresponding input arc expression.

After the firing, tokens are produced in output places

in amounts and colours as indicated by evaluating

corresponding output arc expressions of the

transition. Transition guards may further restrict the

firing of a transition by requiring the fulfilment of

given conditions.

The sound mathematical basis on which CPNs

are based allows for the use of formal analysis

techniques (Jensen and Kristensen, 2009).

Furthermore, dedicated tools support step-wise

simulation and state space analysis (Jensen,

Kristensen and Wells, 2007; Westergaard and

Kristensen, 2009). While sharing with classical Petri

Nets the benefit of providing an intuitively appealing

visualization of complex processes, CPNs offer

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

288

additional advantages by supporting full expressive

power thanks to the concept of coloured tokens and

net annotations in SML (Milner et al., 1997). By

permitting to encapsulate data information within

the type-specific tokens, CPNs can be easily adapted

to meet application-specific requirements without

needing to change the underlying net layout, hereby

supporting compactness and scalability. Further

extensions of CPNs also support hierarchical design

and timely aspects (Jensen and Kristensen, 2009).

2.2 Hierarchy of CPN-based Coverage

Criteria

In the following, a CPN-based test case is defined to

be a pair consisting of an initial CPN state and of a

finite sequence of CPN events. For the purpose of

providing objectively reproducible test stopping

rules based on measurable test targets, the following

cooperation-tailored coverage criteria were

introduced in (Lill and Saglietti, 2012b) on the basis

of CPN model entities (i.e. transitions, events and

states) to be covered during testing.

Transition-based Coverage Criteria address

the verification of generic, though non-trivial system

functionality of robots (e.g. basic motor activities or

self-localization). By limiting the testing scenarios to

the mere transition level, the multiplicity of data

flow is deliberately kept out of the testing scope by

focusing on one single action instance. Testing

criteria addressing this relatively coarse level of

abstraction include the “all transitions”- criterion

demanding the activation of each single transition,

the “all transition pairs”- criterion demanding in

addition also the triggering of all possible pairs of

transitions, as well as the “all transition sequences”-

criterion extending the previous criteria to include

the firing of any possible sequence of transitions.

Event-based Coverage Criteria go beyond

single generic transitions by explicitly addressing

the whole variety of possible action instances (e.g.

varying robot movement scenarios under different

terrain conditions). By focusing on event

occurrences, the underlying data flow multiplicity -

including the amount and the colours of tokens - is

intentionally integrated into the testing scope.

Coverage criteria addressing this finer level of

abstraction include the “all events”- criterion

demanding the occurrence of every event, the “all

event pairs”- criterion demanding in addition also

the occurrence of any possible pair of events, as well

as the “all event sequences”- criterion extending the

previous criteria to include the occurrence of any

possible sequence of events.

State-based coverage criteria, on the other

hand, enrich the accuracy of test observations by

distinguishing between different operational

conditions present before and after event

occurrences, such as potential mid- or long-term

interferences with other robots or obstacles. In

terms of model entities, this is captured by

addressing different token amounts and colours

between and after action instances. Coverage criteria

at this particularly fine level of detail are the “all

states”- criterion demanding the traversal of every

state, the “all state pairs”- criterion demanding in

addition the traversal of any possible pair of

successive states, as well as the “all state

sequences”- criterion extending the previous criteria

to include the traversal of any possible sequence of

states.

As event-based and state-based coverage criteria

require the construction of the underlying CPN state

space graph, the test case generation may be limited

by state space explosion (Valmari, 1998). This

problem, however, may be partly circumvented by

the following strategies (Pelánek, 2009):

 using parallel or distributed computing for

calculating the state space graph;

 reducing the state space, e.g. by addressing a

higher degree of abstraction or by restricting the

model parameters to tractable dimensions

considered as acceptable for testing purposes;

 restricting the coverage targets to operationally

relevant portions of the state space.

Under the realistic assumption that all CPN

transitions are connected by arcs, all guards are

satisfiable and every state can be reached from

another state via at most one event, under a given

initial marking the causal implications between the

coverage criteria introduced above are illustrated by

the subsumption hierarchy shown in Figure 1 (Lill

and Saglietti, 2012b).

3 INCREMENTAL STRUCTURAL

TESTING

In analogy to conventional structural software

testing, the scope of the testing object may be step-

wise enriched by growing amounts of contextual

details. In fact, the hierarchy shown in Figure 1

highlights the increasing refinement from generic

actions (bottom level) via specific action instances

TestingtheCooperationofAutonomousRoboticAgents

289

allstate

sequences

allstate

pairs

all

states

allevent

sequences

allevent

pairs

all

events

alltransition

sequences

alltransition

pairs

all

transitions

Figure 1: Subsumption hierarchy of CPN-based coverage criteria.

(intermediate level) to action instances involving

different operational pre- and post-conditions (top

level). Based on this concept the following structural

testing phases for cooperating autonomous systems

are proposed:

1. local test of context-free actions represented by

CPN transitions, intended to verify generic, but

non-trivial robot functionalities like basic motor

activities by robots or self-localization

functionalities by sensors.

2. local test of context-specific actions

represented by CPN events; after that, the

second testing phase extends the testing scope

to the coverage of specific action instances. For

example, motor activities should be tested on

different terrain conditions (e.g. varying grip or

slope) and self-localization should take place in

different environments (e.g. outdoor or in a

closed factory room).

3. global test of contextual system behavior

represented by CPN state pairs. Therefore, a

third phase also takes into account global

system states encountered before and after event

occurrences. For example, the actions of mobile

robots could be affected by weather conditions,

battery status or the interference of other robots

or obstacles. Post-conditions encountered after

event occurrences may often lead to further

conflicts (e.g. robots blocking each other). This

may be exploited for the prolongation of test

cases in order to capture these situations.

While these structural testing phases can

systematically support preliminary verification

activities aimed at fault detection, they evidently do

not allow for the quantitative assessment of

operational reliability, as they exclusively address

structural coverage ignoring issues like frequency of

occurrence or criticality of events. Therefore, if

required, these phases should be completed by

reliability testing based on an operationally

representative usage profile.

4 OPTIMIZED TEST CASE

GENERATION

Automatic model-based test case generation pursues

two main objectives:

 a fault detection benefit achieved by maximizing

interaction coverage;

 an economic benefit achieved by minimizing the

amount of test cases.

In general, these objectives are conflicting, as

higher coverage usually demands for more test

cases. The underlying multi-objective optimization

problem is approached by evolutionary techniques

(Freitas, 2002). Inspired by Darwinian evolution

theory, they rely on the successive improvement of

solution candidates by genetic operators (s. Figure

2).

In the context of CPN-based testing, each

individual within a given population is intended to

represent a candidate set of test cases, where test

cases are referred to as genes.

After a starting population is randomly

generated, each of its individuals is evaluated in

terms of its achievement of the objectives by a so-

called fitness function. The following operators are

then applied for the purpose of generating a

subsequent population of given size.

The elitism operator transfers a fixed percentage

of the population consisting of the best-fitted

individuals unaltered to the successive population.

Furthermore, all individuals are considered for

recombination where the recombination process is

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

290

based on a selection operator repeatedly choosing

pairs of individuals according to given strategies and

on a crossover operator recombining them to build

two new individuals. In order to reduce the risk of

worsening very fit individuals by recombination, a

fixed percentage of the elite skips this phase and

directly proceeds to the successive mutation

operator. Two crossover operators were defined and

implemented:

 uniform crossover: exchange of test cases

between selected individuals; for each test case

of an individual, the probability of being

transferred to the other is decreasing with

coverage progress in order to avoid weakening

very good individuals towards the end of the

optimization procedure;

 cut & glue: recombination of two single test

cases from selected individuals by randomly

splitting each of them into two parts in such a

way that processing both initial parts results in a

common state; the sequential endings of both test

cases are then interchanged resulting in two

different and meaningful test cases.

In order to increase genetic diversity, test cases

building the new population may be successively

subject to mutation operators, at an operator-specific

probability depending on the coverage progress

currently achieved. The intention is to take into

account the varying need for further genetic material

throughout the generation process, tending to

increase this material at the beginning while

reducing it towards the end. In more detail, the

mutation operators applied are the following:

 the add operator (abbr. by a) inserts a randomly

generated new test case;

 the delete operator (abbr. by d) removes a

randomly chosen test case;

 the replace operator (abbr. by r) concatenates the

delete and add operator;

 the modification operator (abbr. by m) alters a

test case by replacing its events (starting from

randomly chosen intermediate state) with

potential randomly chosen alternative events up

to a pre-defined test case length resp. up to the

reaching of a final state.

In order to prevent the loss of precious genetic

material during evolution, for each entity a set of test

cases covering it is stored in a so-called gene pool

from which the add operator may successively

access for re-insertion.

The algorithm continues as long as no individual

candidate fulfils given stopping criteria, e.g. in case

a minimum fitness value is achieved or the number

of iterations exceeds a certain limit.

4.1 Weight-based Optimization

For calculating the fitness of each individual, a

fitness function has to be specified. One test case

generation technique involves the definition of

dedicated weights for each mission objective.

Stopping‐

criteria

fulfilled?

yes

Crossover

Populationi+1

Individual

Mutation

Populationi

Elitism

Selection +Crossover

Mutation

Outputof best result

Evaluation(Fitness)

Initialization

Figure 2: Genetic operators (left) and scheme of a genetic algorithm (right).

TestingtheCooperationofAutonomousRoboticAgents

291

The fitness of each individual ts is based on two

measures capturing the achievement of both

objectives.

The degree of fulfilment of the first objective

(coverage maximization) is evaluated by the relative

coverage c(ts) achieved by a test case set ts:

On the other hand, the degree of fulfilment of the

second objective (test number minimization) is

evaluated by the following normalized value s(ts):

where

 size

max

is the size of the largest test case set in the

current population;

 size

min

is the size of the smallest test case set in

the current population;

 size(ts) is the size of the test case set under

evaluation.

Evidently, the higher the value s(ts), the lower

the size of the corresponding test case set.

Depending on the relative priority of each

objective, the overall fitness of test case set ts is

evaluated by the following weighted sum:

where w

and w

are weights with w

+ w

= 1.

Before recombining individuals, a so-called

elitism operator transfers a fixed percentage of

individuals with best fitness values unaltered to the

following population ensuring that populations do

not degrade over time.

4.2 Pareto Optimization

Using weighted sums to determine fitness values has

the disadvantage that the tester is obliged to define

the objective weights before the optimization

procedure. An alternative solution not requiring any

a priori weights is offered by Pareto optimization

where a solution is called Pareto-optimal if no other

solution has a better rating with respect to all

objectives. A set of Pareto-optimal solutions is

referred to as a Pareto front.

In case of Pareto optimization, the generation

process no longer aims at achieving one best-fitted

solution, but rather a Pareto front offering optimal

solution alternatives. The stopping rules of genetic

evolution must be adapted accordingly: the

algorithm terminates after reaching a maximum

number of iterations or as soon as the Pareto front is

stable, i.e. it is maintained unaltered for a pre-

defined number of iterations.

For assigning fitness values, the algorithm

proceeds by repeatedly extracting sets of non-

dominated individuals from the current population.

This results in a ranked sequence of Pareto fronts; all

individuals of the same front are then assigned the

same fitness value which decreases with the rank of

the front.

The elitism operator has to be adapted such that

the best Pareto front (i.e. the first-ranked set of non-

dominated individuals) is transferred unaltered to the

following population. In order to allow for a genetic

evolution, if the elite front consists of more than half

of the original population, the size of the next

population is increased such as to contain twice as

many individuals as the elite.

5 PRACTICAL APPLICATION

The model-based test generation process proposed

was applied to a CPN modelling the cooperation of

autonomous forklifts moving within a logistic

warehouse (s. Figure 3). In more detail, an arbitrary

number of robotic agents move along a narrow lane

consisting of an arbitrary number of discrete

segments.

The robots are assigned missions (transition next

order) by a central controller and aim at

accomplishing them as autonomously as possible.

If possible, robots proceed towards their

designated target segments by moving along the lane

(transitions forward resp. backward, depending on

their direction). In case they recognize passive

obstacles, they stop in order to avoid collisions.

Robots moving in different directions and

meeting each other cooperate by switching positions

(transition switching maneuver). If unable to access

a specific segment (e.g. due to a slow preceding

robot or a passive obstacle), robots raise an alarm

(transition traffic holdup) after 5 unsuccessful

attempts to access the segment. Successfully

completed missions are logged in the order of their

accomplishment (transition mission completed).

The two optimization strategies addressed in this

article have been implemented in the Java

framework Access/CPN (Westergaard and

Kristensen, 2009).

minmax

max

size size

size(ts) size

)s(ts



entities ofnumber total

by ts covered entities ofnumber

)c(ts 

s(ts)wc(ts)w)fitness(ts



ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

292

Figure 3: CPN model of cooperating forklifts.

TestingtheCooperationofAutonomousRoboticAgents

293

Table 1: Parameterization of the genetic algorithm.

initialization

population individual

10 individuals 1 test case

stopping criteria

weight-based

optimization

Pareto optimization

≤ 1000

iterations

fitness

= 1.0

≤ 1000

iterations

stable front

for 5

iterations

gene pool

≤ 5 genes per entity

elitism

weight-based

optimization

Pareto optimization

transfer rate 0.20 Pareto front

selection

roulette wheel

crossover

(apart from

10% of the

elite)

uniform

crossover at

probability

0.90

coverage exchange probability

[0.00 ; 0.25] 0.50

]0.25 ; 0.50] 0.40

]0.50 ; 0.75] 0.30

]0.75 ; 0.90] 0.20

]0.90 ; 1.00] 0.10

cut & glue at

probability

0.10

−

mutation

probability per

test case: 0.10

coverage

mutation operators

a d r m

[0.00 ; 0.25] 1.00 0.00 0.00 0.00

]0.25 ; 0.50] 0.80 0.10 0.05 0.05

]0.50 ; 0.75] 0.70 0.20 0.05 0.05

]0.75 ; 0.90] 0.60 0.30 0.05 0.05

]0.90 ; 1.00] 0.50 0.40 0.05 0.05

Table 2: Comparison of three test case generation techniques in terms of effort required.

coverage

criterion

no optimization

weight-based

optimization

= 0.99, w

=0.01

Pareto

optimization

(from 1st Pareto front)

average

size

std.

deviation

average

size

std.

deviation

average

size

std.

deviation

all transitions 1.3 0.48 1.4 0.52 1.5 0.53

all events 25.2 1.99 24.2 1.55 17.7 1.64

all states 106.2 4.54 76.9 4.86 63.2 5.94

all state pairs 177.3 3.89 138.9 8.84 143.5 10.96

The CPN was modelled using CPN Tools (Jensen,

Kristensen and Wells, 2007). The implemented

algorithm is parameterized as shown in Table 1.

For the purpose of comparing the different test

case generation strategies considered, an initial CPN

marking involving 3 robots moving on 5 segments

was chosen. The robots were assigned the following

missions:

 Robot #1 is assigned the order of moving from

segment 1 to segment 4;

 Robot #2 is assigned the order of moving from

segment 2 to segment 5;

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

294

 Robot #3 is assigned the order of moving from

segment 5 to segment 1.

The example involves 6 transitions, 72 events,

261 states and 470 state pairs. In accordance with

the step-wise testing procedure proposed, the "all

transitions", "all events", "all states" and "all state

pairs" criteria were selected for the purpose of

capturing context-free, local context-specific and

global contextual behaviour. For each criterion 10

test case sets were generated, each achieving 100 %

coverage w.r.t. the specific underlying criterion.

Table 2 shows the average size of the test case

sets, as well as the standard deviation for each

experiment.

The results were also compared with non-

optimized test generation where test cases are

constructed such that after reaching a state all

potential events may occur at the same probability.

Although non-optimized test generation revealed to

be practicable for the weaker coverage criteria, the

stronger ones required a considerably higher amount

of test cases.

On the other hand, weight-based multi-objective

optimization was able to help save up to 28% of test

cases in comparison with non-optimized test

generation. Though practicable for complex systems,

it assumes that the objectives were prioritized in

advance. This requirement may reveal as a drawback

as the tester usually does not have any a priori

evidence about the practical implications of this

choice.

This drawback is overcome by Pareto

optimization allowing the tester to take an a

posteriori decision among a set of optimal

candidates. This may be particularly helpful when

100% coverage would require a too high amount of

test cases, such that the tester might prefer to opt for

a slightly lower coverage involving considerably

less test cases.

6 CONCLUSION

This article presented a CPN-based testing

procedure for cooperating autonomous software-

based agents. It relies on successive testing phases of

increasing contextual scope.

The testing techniques developed are considered

as particularly relevant for the purpose of verifying

and validating the cooperative behaviour of safety-

relevant controllers, each governing the behaviour of

an agent, as they allow to observe multiple scenarios

involving whole varieties of potential interactions.

For the purpose of generating optimized test case

sets evolutionary techniques revealed to be

particularly helpful in maximizing interaction

coverage while minimizing test amount. Two

optimized test generation procedures using genetic

algorithms were implemented and applied to a CPN

model of cooperating autonomous forklifts.

Compared with non-optimized test case generation

they proved to be beneficial in saving testing effort.

Furthermore, Pareto optimization allows for an a

posteriori adaptation of target priorities based on the

actual amount of test cases being required to achieve

given coverage criteria.

On the whole, the approach presented in this

article offers a systematic testing procedure for

cooperative autonomous systems intended to define

and to measure objective testing targets, as well as to

achieve them by a minimum number of

automatically generated test cases.

ACKNOWLEDGEMENTS

It is gratefully acknowledged that part of the work

reported was sponsored by the German Federal

Ministry of Education and Research BMBF

(Bundesministerium für Bildung und Forschung) in

cooperation with the European Union Research

Programme ARTEMIS (Advanced Research and

Technology for Embedded Intelligence and

Systems), project R3-COP (Resilient Reasoning

Robotic Co-operating Systems).

REFERENCES

Broy, M. et al., 2005. Model-Based Testing of Reactive

Systems - Advances Lectures. In Lecture Notes in

Computer Science, vol. 3472. Springer.

Freitas, A., 2002. Data Mining and Knowledge Discovery

with Evolutionary Algorithms. Springer.

Genrich, H. J., Lautenbach, K, 1981. System Modelling

with High-Level Petri Nets. In Theoretical Computer

Science, vol. 13(1), pp. 109-136. Elsevier.

Jensen, K., Kristensen, L. M.; Wells, L., 2007. Coloured

Petri Nets and CPN Tools for Modelling and

Validation of Concurrent Systems. In International

Journal on Software Tools for Technology Transfer,

vol. 9, no. 3-4, pp. 213-254. Springer.

Jensen, K., Kristensen, L. M., 2009. Coloured Petri Nets:

Modelling and Validation of Concurrent Systems.

Springer.

Lill, R., Saglietti, F., 2012a. Model-based Testing of

Autonomous Systems based on Coloured Petri Nets.

In ARCS 2012 Workshops Proceedings, Lecture Notes

TestingtheCooperationofAutonomousRoboticAgents

295

in Informatics, vol. 200, pp. 241-250. Gesellschaft für

Informatik.

Lill, R., Saglietti, F., 2012b. Test Coverage Criteria for

Autonomous Mobile Systems based on Coloured Petri

Nets. In FORMS/FORMAT 2012 Proceedings, 9th

Symposium on Formal Methods for Automation and

Safety in Railway and Automotive Systems, pp. 155-

162. Institut für Verkehrssicherheit und

Automatisierungstechnik, TU Braunschweig.

Micskei, Z. et al., 2012. Concept for Testing Robustness

and Safety of the Context-Aware Behaviour of

Autonomous Systems. In Proc. of the 1st Int.

Workshop on Trustworthy Multi-Agent Systems

(TruMAS), KES-AMSTA 2012, pp. 504-513.

Milner, R. et al., 1997. The Definition of Standard ML

(Revised). MIT Press.

Mitchell, M., 1996. An Introduction to Genetic

Algorithms. MIT Press.

Nguyen, C. D. et al., 2012. Evolutionary testing of

autonomous software agents. In Autonomous Agents

and Multi-Agent Systems, vol. 25(2), pp. 260-283.

Springer.

Murata, T., 1989. Petri Nets: Properties, Analysis and

Applications. In Proceedings of the IEEE, vol. 77, no.

4. pp. 542-543. IEEE.

Pelánek, R., 2009: Fighting state space explosion: Review

and evaluation; In Lecture Notes in Computer Science,

vol. 5596, pp. 37-52. Springer.

Saglietti, F., Söhnlein, S., Lill, R., 2011. Evolution of

Verification Techniques by Increasing Autonomy of

Cooperating Agents, In Autonomous Systems:

Developments and Trends, Studies in Computational

Intelligence, vol. 391, pp. 353-362. Springer.

Utting, M., Legeard, B., 2007. Practical Model-based

Testing - a Tools Approach. Elsevier.

Valmari, A., 1998. The state explosion problem. In

Lecture Notes in Computer Science, vol. 1491, pp.

429–528. Springer.

Westergaard, M., Kristensen, L. M., 2009. The

Access/CPN framework: a tool for interacting with the

CPN Tools simulator. In Applications and Theory of

Petri Nets, pp.313-322. Springer.

Zhu, H., He, X., 2002. A methodology of testing high-

level Petri nets. In Information and Software

Technology, Vol. 44, pp. 473-489. Elsevier.

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

296
