Developing User Interfaces with EMF Parsley

Lorenzo Bettini

∗

Dipartimento di Informatica, Universit

a di Torino, Torino, Italy

Keywords:

EMF, Modeling, Eclipse, User Interface, DSL.

Abstract:

In this paper we describe the main features of EMF Parsley, a new Eclipse project for implementing appli-

cations based on the Eclipse Modeling Framework (EMF). EMF Parsley aims at complementing the EMF

reﬂective mechanisms with respect to rapidly creating user interfaces based on models, without having to deal

with internal details and setup code. In particular, EMF Parsley uses injection mechanisms to easily customize

all the aspects of such applications. Moreover, it provides a set of reusable user interface components like

trees, tables and detail forms that manage the model with the introspective EMF capabilities, together with

reusable views, editors and dialogs. Besides project wizards, to easily create projects based on EMF Pars-

ley, the main developing tool is a DSL, implemented with Xtext/Xbase, that provides a rapid customization

mechanism.

1 INTRODUCTION

The Eclipse Modeling Framework (EMF) (Steinberg

et al., 2008) simpliﬁes the development of complex

software applications with its modeling mechanisms.

However, the development of user interfaces based on

EMF still requires an extensive setup and the knowl-

edge of many internal details. For these reasons, in

this paper, we present a new Eclipse framework, EMF

Parsley; this has been recently approved as an ofﬁcial

Eclipse project and it is in its incubation phase.

EMF Parsley provides a framework to easily de-

velop user interfaces based on EMF models. The

framework hides most of the complexity of internal

details. Creating a JFace viewer and connecting it

to an EMF resource, usually requires a few lines of

code. Furthermore, the customization of speciﬁc be-

haviors is also easy thanks to the use of Google Guice,

a Dependency Injection framework, and thanks to the

polymorphic method dispatch mechanism that allows

to write cleaner declarative code. This maximizes

code reuse and promotes a programming style where

the classes implemented by the programmer are usu-

ally very small and deal with only a few aspects. The

framework comes with some UI widgets to be used

out-of-the-box (including trees, tables, dialogs and

forms, and view and editor parts).

We also provide a DSL, implemented in

∗

The paper was partly supported by RCP Vision,

www.rcp-vision.com.

Xtext (Itemis, 2014; Eysholdt and Behrens, 2010;

Bettini, 2013a), for making the use of our framework

easier: customizations can be speciﬁed in a compact

form in a single ﬁle.

EMF Parsley is the evolution of EMF Compo-

nents (Bettini, 2012; Bettini, 2013b); EMF Compo-

nents was a ﬁrst experiment with building automati-

cally applications based on EMF models. EMF Pars-

ley is a huge evolution with this respect: we focused

to make the initial setup easier (using project wiz-

ards); the same holds for customizations of all the

behaviors, in particular the DSL helps a lot with this

respect.

The paper is structured as follows: in Section 2 we

introduce our motivations, while in Section 3 we de-

scribe the design choices and the main features of our

framework by examples. Section 4 describes our DSL

(and some examples) and Section 5 presents some ad-

ditional features of EMF Parsley. Section 6 concludes

the paper with related work and hints for future direc-

tions.

2 MOTIVATIONS

EMF.Edit (Steinberg et al., 2008) is an EMF frame-

work with generic reusable classes for editing EMF

models. The programmer can use these mechanisms

to implement UI parts for the EMF models. The prob-

lem is that all these mechanisms have to be setup and

Bettini L..

Developing User Interfaces with EMF Parsley.

DOI: 10.5220/0004990800580066

In Proceedings of the 9th International Conference on Software Paradigm Trends (ICSOFT-PT-2014), pages 58-66

ISBN: 978-989-758-037-6

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

1 adFact = new ComposedAdapterFactory(

ComposedAdapterFactory.Descriptor.Registry.

INSTANCE);

adFact.addAdapterFactory(new

ResourceItemProviderAdapterFactory());

3 adFact.addAdapterFactory(new

MyModelItemProviderAdapterFactory());

adFact.addAdapterFactory(new

ReﬂectiveItemProviderAdapterFactory());

BasicCommandStack cmdStack = new

BasicCommandStack();

7 cmdStack.addCommandStackListener(new

CommandStackListener(){...});

9 edDom = new AdapterFactoryEditingDomain(

adFact,cmdStack,...);

11 Tree tree = new Tree(composite, SWT.MULTI);

TreeViewer viewer = new TreeViewer(tree);

viewer.setContentProvider(new

AdapterFactoryContentProvider(adFact));

15 viewer.setLabelProvider(new

AdapterFactoryLabelProvider(adFact));

viewer.setInput(edDom.getResourceSet());

new AdapterFactoryTreeEditor(viewer.getTree(),

adFact);

Listing 1: An example of typical use of EMF.Edit.

initialized correctly in order to achieve the desired

features. This initialization phase takes many lines

of code, and usually requires some deeper knowledge

of EMF internals. In Listing 1 we show the typical

Java code one needs to write to setup a viewer with

EMF.Edit. As we will show in the next sections, our

goal is to factor out this boilerplate code in such a way

that UI components can be setup with only a few lines

of code.

EMF has some generation mechanisms for the

user interface. However, there are many problems

when using this generated code; we will detail such

problems in the following.

EMF generation mechanisms are based on

Javadoc comments @generated for ﬁelds, methods

and classes. Future generations will overwrite all the

previously generated Java code elements unless the

programmer removes that @generated from speciﬁc

declarations (or replaces it with @generated NOT).

In Listing 2 we show an example of customiza-

tion of labeling in a class generated by EMF (related

to the classic EMF Library example). In order to

specify the image for instances of Book we need to

go into the generated ItemProvider class, and spec-

ify the path of the image (note the presence of other

distracting and internal details like overlayImage,

public class BookItemProvider extends ...

2 {

/∗∗ @generated NOT ∗/

4 @Override public Object getImage(Object object)

{

return overlayImage(object,

6 getResourceLocator().getImage("mypath/

custom_book.png")); }

8 /∗∗ @generated NOT ∗/

@Override public String getText(Object object) {

10 return "Book: " + " " + ((Book)object).

getTitle();

}

Listing 2: An example of typical customization of EMF

labeling.

ResourceLocator, etc.). Furthermore, if we want

to customize the labels and images for all the ele-

ments of the model, we need to modify all generated

ItemProvider classes. With this respect, we want to

provide in EMF Parsley a much easier customization

mechanism.

A problem with the @generated and @generated

NOT mechanism is that it is difﬁcult to keep track of

custom modiﬁcations to the generated code. Indeed

generated and custom code are mixed together in the

same Java ﬁle. This makes such code much harder

to maintain. A more appealing solution is the Gen-

eration Gap (Vlissides, 1996), a pattern that solves

the problem of maintainability of coexisting gener-

ated and manual code by relying on class inheritance:

there will be a class that encapsulates generated code

and another one class that encapsulates modiﬁcations.

We will follow this pattern in the DSL (as we will

show in Section 4). By using this pattern, generated

and custom code are clearly separated in different ﬁles

and are then much easier to maintain (in our case, they

are also stored in different source folders). Keeping

generated and custom code separate also makes it eas-

ier to store them in source control systems (e.g., Git,

SVN, etc.); not to mention that when using a contin-

uous integration build system, generated code needs

not to be checked in the version control system, since

it can be generated during the build. This signiﬁcantly

reduces the size of the source control system database.

For all these reasons we felt the need of creating a

new framework built on top of EMF, to avoid all the

above issues and to make the creation, customization

and maintenance of EMF applications much easier, as

we will show in the next sections.

DevelopingUserInterfaceswithEMFParsley

3 EMF PARSLEY

In this Section we present the most relevant fea-

tures of EMF Parsley through examples; this Eclipse

project is still in the incubation phase, thus more fea-

tures will be provided in the future (see also Section 6

for future work).

3.1 Overview

Our main design choice in developing EMF Parsley

was to split responsibilities into small classes; this

way, customizing a single aspect of UI parts does not

require to subclass the parts themselves, but only to

customize the class related to that speciﬁc aspect.

In order to handle the customized behaviors in

a consistent way, we heavily use Google Guice, a

Dependency Injection framework. With respect to

manual implementation of existing patterns (Gamma

et al., 1995), with dependency injection frameworks

it is much easier to keep the desired consistency, and

the programmer needs to write less code. Custom im-

plementations of speciﬁc aspects are injected in the

framework, so that all components using that aspect

will be assured to use the custom version. Google

Guice uses Java annotations, @Inject, for specifying

the ﬁelds that will be injected, and a module is re-

sponsible for conﬁguring the bindings for the actual

implementation classes. We provide project wizards

that perform all Guice injection initial setup.

The main inspiration for dealing with cus-

tomized injected code in EMF Parsley comes from

Xtext (Itemis, 2014; Bettini, 2013a), a framework for

the development of programming languages, where

Google Guice is heavily used. EMF Parsley uses

the enhancements that Xtext added to Guice’s mod-

ule API: an abstract base class reﬂectively looks for

methods with a speciﬁc signature in order to ﬁnd

declared bindings. These methods have the shape

bind<ClassName> where ClassName is the name of

the class for which we want to specify a binding.

An example of custom bindings using this reﬂective

mechanisms is shown in Listing 3. Of course, the

programmer can also use the standard Google Guice

mechanisms for specifying the bindings, if he prefers

to. (When using the EMF Parsley DSL, all these bind-

ings will be generated automatically.)

The main steps to use EMF Parsley can be sum-

marized as follows:

1. Create an Eclipse project using our project wiz-

ards;

2. Create a standard Eclipse UI part, e.g., a view or

an editor;

1 class MyModule extends EmfParsleyGuiceModule

{

public Class<? extends ResourceLoader>

bindResourceLoader() {

3 return MyResourceLoader.class;

}

5 public Class<? extends ILabelProvider>

bindILabelProvider() {

return MyLabelProvider.class;

7 }

public Class<? extends IContentProvider>

bindIContentProvider() {

9 return MyContentProvider.class;

}

11 ...

}

Listing 3: A Guice module with bindings.

3. “Inject” one of our classes;

4. Customize speciﬁc aspects and conﬁgure the

Guice module to use the custom implementations.

In the rest of this section we will show some ex-

amples; in Section 4 we will concentrate on the use of

our DSL to easily write customizations.

3.2 UI Components

JFace provides speciﬁc viewers for trees, tables, lists,

etc. These viewer classes are not intended to be

subclassed. Indeed, they are parameterized over

providers. For example, the content provider speciﬁes

the contents based on the input; similarly, the label

provider is used for getting a textual representation of

the elements to be shown by the viewer.

In EMF Parsley we provide an ViewerInitial-

izer to initialize a viewer with all the EMF mecha-

nisms, but hiding the details from the programmer. In

Listing 4 we show an example of a view with a tree

viewer that uses an injected ViewerInitializer. It

uses such instance to initialize the tree viewer (it can

initialize it based on an EMF Resource, or an EOb-

ject). All the initialization details are carried on trans-

parently by our framework. We invite the reader to

compare this code with the one shown in Listing 1.

This can be seen as an “Hello World!” example

for EMF Parsley; with only a few instructions we cre-

ate an Eclipse view, that can be used in an existing

application.

We provide other widgets to be reused in views

and editors. We will concentrate only on some of

them. One of the most useful is the form compos-

ite FormDetailComposite that shows the details of

an EObject in a SWT form, and allows to edit such

details.

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends

public class MyView extends ViewPart {

2 @Inject ViewerInitializer initializer;

4 @Override

public void createPartControl(Composite parent)

{

6 viewer = new TreeViewer(parent, ...);

initializer.initialize(viewer, resource);

8 }

Listing 4: Initialization of a viewer with EMF Parsley.

public abstract class MyView extends ViewPart

2 implements ISelectionChangedListener {

4 @Inject EmfFormCompositeFactory factory;

FormDetailComposite detailForm;

@Override

8 public void selectionChanged(

SelectionChangedEvent ev) {

EObject selectedObject =

getFirstSelectedEObject(ev.getSelection())

;

10 if (selectedObject != null) {

if (detailForm != null) detailForm.dispose();

// relevant lines

14 detailForm = factory.

createFormDetailComposite(detail, SWT.

BORDER);

16 detailForm.init(selectedObject);

}

18 }

...

20 }

Listing 5: Using the FormDetailComposite.

In Listing 5 we show a possible use of FormDe-

tailComposite: we create a view that reacts on se-

lections from other elements of the workbench, and if

the selected element is an EObject it shows its details

in the form. We highlighted the two relevant lines in

the Listing showing how easy it is to create this com-

posite and set it up with EMF Parsley. All the other

code in Listing 5 has to do with Eclipse and SWT.

This view class is already part of EMF Parsley frame-

work, since it is a typical view that can be reused in

applications.

In Figure 1 we show a reusable editor provided

by EMF Parsley and the form view implemented in

Listing 5 (this shows the currently selected object

ﬁelds for editing). In the form we modiﬁed one fea-

ture of the selected writer, and the editor sensed this

change and went into “dirty” state (the * in the ed-

itor title). All these features are automatically han-

dled by the EMF Parsley framework itself. Moreover,

any change to the model in any view or editor that is

connected to the same model resource will soon be

Figure 1: A tree editor and a form view.

reﬂected in all the components using that resource;

this takes place transparently, since our framework in-

ternally uses EMF Databinding, which connects the

model and the user interface.

In Figure 1 the viewer and form contents are auto-

matically created by EMF Parsley using EMF reﬂec-

tive capabilities; the programmer can then customize

this behavior in many respects, as shown in the next

section.

3.3 Customizations

In EMF Parsley we provide customization mecha-

nisms (based on injection) that are easier to use than

the standard EMF.Edit framework.

We use the class PolymorphicDispatcher, im-

plemented in Xtext, for performing (overloaded)

method dispatching according to the runtime type of

arguments, a mechanism known as dynamic over-

loading (Castagna, 1997; Bettini et al., 2009)

multi-methods (Mugridge et al., 1991). This poly-

morphic dispatching mechanism does not require to

implement a visitor structure (Gamma et al., 1995)

since it inspects the available methods using reﬂec-

tion. With this mechanism we provide a declarative

way of specifying custom behaviors according to the

class of objects of an EMF model.

For example, by implementing a custom Viewer-

LabelProvider (a label provider of our framework),

the programmer can specify the text and image for la-

bels of the objects of the model by simply deﬁning

several methods text and image, respectively, using

the classes of the model to be customized as param-

eters. An example is shown in Listing 6 (using the

While most compiled or statically-typed languages

(such as Java) determine which implementation to call at

compile-time.

DevelopingUserInterfaceswithEMFParsley

public class MyLabelProvider extends

ViewerLabelProvider {

2 public String text(Book book) {

return "Book: " + book.getTitle();

4 }

public String image(Book book) {

6 return "book.png";

}

8 public String text(Borrower b) {

return "Borrower: " + b.getFirstName();

10 }

// other customizations

12 }

Listing 6: An example of customization of labeling in EMF

Parsley.

public class MyCustomModule extends

EmfParsleyGuiceModule {

2 public Class<? extends ILabelProvider>

bindILabelProvider() {

return MyLabelProvider.class;

4 }

...

6 }

Listing 7: Binding the custom label provider.

EMF Library example). This code is much more read-

able and easier to write than the one of Listing 2 (note

also the absence of internal details, especially for the

images). Most of the customizations in EMF Parsley

follow the same declarative pattern.

Injecting this customization is just a matter of

deﬁning the binding in the Guice module, as shown

in Listing 7.

4 THE DSL

To enhance the usability of EMF Parsley we devel-

oped a DSL with Xtext (Itemis, 2014; Eysholdt and

Behrens, 2010; Bettini, 2013a). Xtext is a framework

for the development of programming languages: it

generates all the typical artifacts for a fully-ﬂedged

IDE on top of Eclipse. With our DSL we can eas-

ily specify and customize the aspects of the view-

ers and composites of our framework without writ-

ing Java code and without writing the corresponding

Guice module bindings.

This DSL uses Xbase (Efftinge et al., 2012), a

reusable Java-like expression language, completely

integrated with the Java type system (including gener-

ics). This means that all the existing Java libraries can

be used in our DSL. From Xbase the DSL “inherits” a

rich Java-like syntax for expressions; Java program-

mers will note the similarities between Xbase and

Java, though Xbase removes most of the “syntactic

module MyCustomModule {

2 labelProvider {

text {

4 Book b −> "Book: " + b.title

Borrower b −> "Borrower: " + b.ﬁrstName

6 }

image {

8 Book −> "book.png"

}

10 }

featureCaptionProvider {

12 text {

Person : ﬁrstName −> "First name"

14 Person : lastName −> "Surname"

}

16 }

featuresProvider {

18 features {

Library −> name, address

20 Person −> ﬁrstName, lastName, address

Writer −> ﬁrstName, lastName, books

22 }

}

24 }

Listing 8: An example of module deﬁnition in EMF Parsley

DSL.

noise” from Java (e.g., types of variable declarations

can be automatically inferred) and provides more ad-

vanced features (e.g., lambdas). Xbase also provides

some syntactic sugar, like extension methods and a

concise getter/setter syntax

With the EMF Parsley DSL we only need to de-

ﬁne a module that will correspond to a Guice mod-

ule in the generated Java code; inside this module we

specify customizations (we described some in Sec-

tion 3.3). The DSL will then generate the correspond-

ing Java classes, and the corresponding custom bind-

ings in the generated Guice module. This way, the

customizations are speciﬁed in a much more compact

form and they are all grouped together in a single ﬁle

(instead of being spread into several Java classes).

Listing 8 shows some customizations using the

DSL. With featureCaptionProvider we customize

the representation of the features of the model, i.e., the

captions of the ﬁelds in a form or the column headers

in a table. Similarly, one might want to specify only

a subset of features to be shown in the user interface;

we do that using featuresProvider. The customiza-

tion shown in Listing 8 should be self-explanatory.

Thanks to Xbase and its integration with the Java

type system, the class names in Listing 8 actually re-

fer to the corresponding Java classes of the model, and

from the DSL editor one can directly navigate to their

e.g., foo(a, b) can be written as a.foo(b),

a.getFirstName() as a.firstName and

a.setFirstName("foo") as a.firstName = "foo".

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends

Figure 2: An RCP application implemented with EMF Pars-

ley and its DSL.

sources; the editor also provides syntax highlighting

and code completion for all Java types (not to men-

tion automatic import statements insertion). More-

over, the feature names in featureCaptionProvider

and featuresProvider are bound to the correspond-

ing EMF features; also in this case, one can navigate

to those features and get code completion for the fea-

tures of the corresponding EMF class. This implies

that the DSL checks that the features speciﬁed actu-

ally belong to the corresponding EMF class.

As a ﬁnal example, we show an RCP application

implemented with EMF Parsley and its DSL; the re-

sulting application is shown in Figure 2. This is sim-

ilar to the classic Mail RCP application example that

comes with Eclipse. It does not aim at implementing

an actual email client, but it concentrates on the user

interface part based on an EMF model.

The Eclipse projects are created using the EMF

Parsley project wizards that take care of creating the

initial Java code for Guice.

All the views, forms and tables shown in this ex-

ample are provided by EMF Parsley; we only need to

specify the customizations. EMF Parsley fosters the

use of a separate project for each Guice module, so

that all the classes in the same project use the same

customizations. In the Mail application shown above,

each view is implemented and customized in its own

project.

Listing 9 shows the speciﬁcation of the view for

the accounts (the view on the left in Figure 2). In the

module we also specify the parts section that will

correspond to the Eclipse extension point for views;

the DSL compiler will also generate the correspond-

ing plugin.xml in the current project.

Thanks to Xbase, we are able to specify, for in-

stance, the labelProvider with a Java-like syntax, as

shown in Listing 9. Thus, using the DSL instead

module accountsview {

2 parts {

viewpart {

4 viewname "Mail Accounts View"

viewclass AccountsView

6 }

}

8 labelProvider {

image {

10 Account −> "account.gif"

Folder −> {

12 switch (name) {

case "Inbox" : "inbox.gif"

14 case "Sent" : "sent.png"

case "Trash" : "trash.png"

16 default: "folder.gif"

}

18 }

}

20 text {

Account −> email

22 Folder −> name

}

24 }

viewerContentProvider {

26 children {

Folder −> subfolders // don’t show emails

28 }

}

30 ...

Listing 9: Customization of the accounts view.

of Java does not prevent from writing involved cus-

tomizations. This example also shows the customiza-

tion of the content provider for the viewer; in this case

we want to avoid the mails of a folder to be shown in

tree, thus we specify that the children of a folder are

only subfolders. Also in this case, this customization

is easy and compact (and the editor will provide con-

tent assist for Java types).

The application then uses a table view provided by

EMF Parsley; this view automatically shows the mails

of the selected folder in the tree of the accounts view.

By default, this view would show all the features of

the mail objects. Since we want only the “subject”

and the sender (feature “from”) to be shown in this ta-

ble, we specify this customization in the correspond-

ing module:

featuresProvider {

2 features {

Mail −> subject, from

4 }

}

We then use a form view that shows the currently

selected mail in the table view. Also in this case we

want to specify some customizations (Listing 10). For

example, we want a different caption for the “recipi-

DevelopingUserInterfaceswithEMFParsley

...

2 featureCaptionProvider {

text {

4 Mail : recipients −> ’to’

}

6 }

formControlFactory {

8 control {

Mail : message −> {

10 createText("", SWT.MULTI, SWT.

BORDER, SWT.WRAP, SWT.

V SCROLL)

} target observeText(SWT.Modify)

12 }

}

14 ...

Listing 10: Customization of the form.

ents” feature; we specify this using featureCaption-

Provider. Moreover, we want to show the body of the

mail (the feature “message”) in a text area instead of

a single line text. Note that in this case we have full

control both on the creation of the SWT control and

on the corresponding EMF Databinding mechanism

(the target section is indeed used by EMF Parsley to

perform databinding).

We refer to http://projects.eclipse.org/

projects/modeling.emf-parsley for the com-

plete source code of the example. Here, we only

want to stress that for implementing this application

we only had to write an average of 30 lines of EMF

Parsley DSL code for each view (and in some cases a

few small Java classes).

5 OTHER FEATURES

Teneo and CDO are two mainstream frameworks to

persist EMF models on databases. Teneo resources

can already be used seamlessly in EMF Parsley. On

the contrary, CDO resources require some additional

work. Indeed, CDO offers scalability, transactions ca-

pabilities, explicit locking, change notiﬁcation, and

branching/merging over models. EMF Parsley auto-

matically recognizes CDO resource URIs and uses a

speciﬁc resource loader that automatically creates a

transaction (or a view, in case we use read-only wid-

gets) and returns the associated CDO resource. Thus,

also CDO resources can be used transparently with

EMF Parsley, again, relieving the programmer from

all the internal details.

Another important feature of EMF Parsley is

its support for RAP (Remote Application Frame-

work) (Eclipse Foundation, 2014). RAP allows to

seamlessly port an existing RCP application to the

web. In particular, with its single-sourcing features

the same application developed on the desktop can

run in the browser (RAP supports all relevant web

browsers, without any add-ons required). All EMF

Parsley views, editors and internal mechanisms are

implemented with single sourcing techniques so that

they are available also for RAP applications. Figure 3

shows an RCP application implemented with EMF

Parsley on the left; the same application (without any

modiﬁcation) is ready for RAP, it just needs to use

the RAP version of EMF Parsley bundles; the ﬁgure

shows the web version running on Chrome (center)

and on Firefox (right). All of them are using a CDO

resource, thus they act on the same data.

The use of Xbase implies another important fea-

ture: when running the generated Java code in debug-

ging mode in Eclipse, we can choose to debug directly

the original Parsley DSL code (it is always possible

to switch to the generated Java code). Indeed a well-

known problem of DSLs that generate Java code is

that for debugging, the programmer has to debug the

generated code that is usually quite different from the

original program; our DSL implementation does not

have this drawback.

6 RELATED WORK AND

CONCLUSIONS

Differently from many generative frameworks for

EMF (such as, e.g., JET or EEF and EGF, which

are available in EMFT (Eclipse Modeling Framework

Technology, 2012)), EMF Parsley does not generate

code for the widgets and does not require the pro-

grammer to modify that generated code: the program-

mer uses the provided components and injects the cus-

tomized code. The only point where we generate code

is in the DSL (Section 4), but we generate code only

for the customizations, not the code of the widgets.

EMF Parsley is also much different from GUI gen-

erators, like, for instance, WindowBuilder. Window-

Builder generates Java classes for GUI parts, and pro-

vides a visual editor with rich tooling to design GUI

parts visually. Since WindowBuilder directly gener-

ates Java code, and not an intermediate representation

of the GUI part, it is also capable of dynamically in-

specting such Java code and updating the visual editor

accordingly. Thus, the programmer can insert manu-

ally written sections in such generated Java code. As

we stressed throughout the paper, EMF Parsley fol-

lows a completely orthogonal approach: it provides

GUI parts that are ready to use, and allows the pro-

grammer to “inject” customizations of behavioral as-

pects. With that respect, EMF Parsley and its DSL

share many design and goals with other reﬂective and

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends

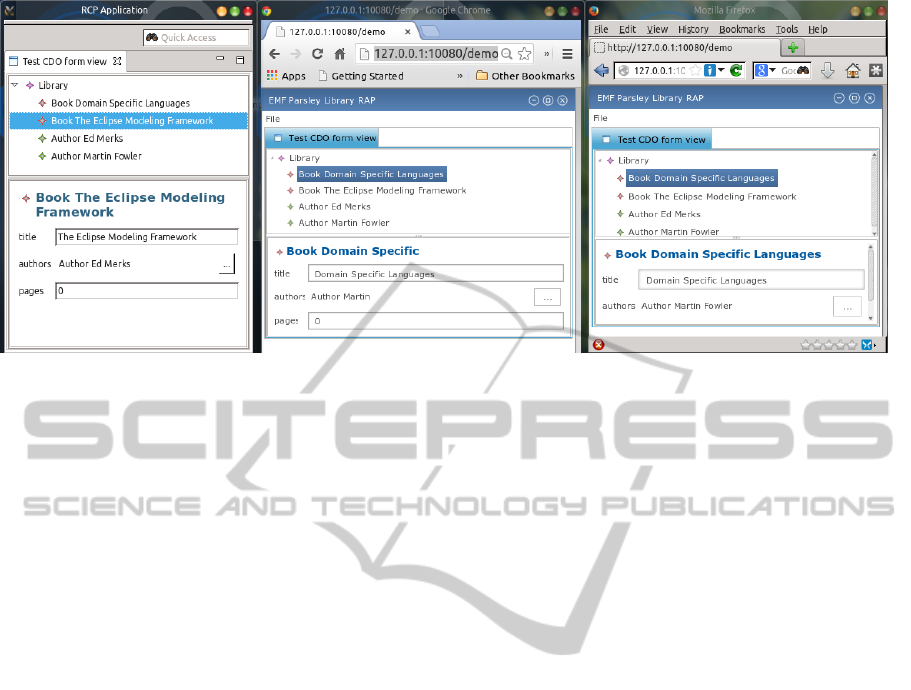

Figure 3: An RCP application implemented with EMF Parsley and the same application ported to the web using RAP (in

execution in two different browsers).

meta-model based frameworks such as, for instance,

Magritte (Renggli et al., 2007) (although they tar-

get different programming languages, since Magritte

is based on Smalltalk): customizations in one single

place in the source-code (i.e., our DSL module) and

easy abstractions without having to know internal de-

tails.

The work that is closest to EMF Parsley is the

EMF Client Platform (ECP) (EMF Client Platform,

2014), a framework to build EMF-based client ap-

plications. ECP provides tools to create an applica-

tion based on a given EMF model. The main differ-

ence between EMF Parsley and ECP is that we aim

at providing many small blocks to build an applica-

tion based on EMF, while ECP already provides an

application ready to use. With this respect, our cus-

tomizations, and our components, are easier to reuse

since they are smaller. Another important difference

is that the customizations inside ECP are not based on

dependency injection and they do not use the declara-

tive style (based on polymorphic dispatching). We are

currently investigating possible interactions and coop-

erations between EMF Parsley and ECP, for instance

we are considering to rewrite some parts of ECP itself

by relying on EMF Parsley and, on the other hand, we

could reuse some of the ECP parts in EMF Parsley.

EMF Parsley can be used in existing applications,

and it does not require to be used from the very be-

ginning; in particular, EMF Parsley fosters an incre-

mental adoption in existing applications. This is pos-

sible because EMF Parsley honors possible manual

implementations that use EMF.Edit in legacy appli-

cations. Indeed EMF Parsley builds on top existing

EMF mechanisms (like EMF.Edit) but it does not re-

place them.

We are also working on the integration of other

EMF technologies in our framework, like queries,

transactions and advanced validation mechanisms

(though the standard EMF validation mechanisms are

already handled inside EMF Parsley).

ACKNOWLEDGEMENTS

The author is grateful to all the people from RCP Vi-

sion for their help, support and contribution to the de-

velopment of EMF Parsley.

REFERENCES

Bettini, L. (2012). EMF Components - Filling the Gap

between Models and UI. In ICSOFT, pages 34–43.

SciTePress.

Bettini, L. (2013a). Implementing Domain-Speciﬁc Lan-

guages with Xtext and Xtend. Packt Publishing.

Bettini, L. (2013b). Rapidly Implementing EMF Applica-

tions with EMF Components. In Software and Data

Technologies, Communications in Computer and In-

formation Science. Springer.

Bettini, L., Capecchi, S., and Venneri, B. (2009). Feath-

erweight Java with Dynamic and Static Overloading.

Science of Computer Programming, 74(5-6):261–278.

Castagna, G. (1997). Object-Oriented Programming: A

Uniﬁed Foundation. Progress in Theoretical Com-

puter Science. Birkhauser.

Eclipse Foundation (2014). RAP, Remote Application Plat-

form. http://eclipse.org/rap.

Eclipse Modeling Framework Technology (2012). Eclipse

Modeling Framework Technology (EMFT). http://

www.eclipse.org/modeling/emft/.

DevelopingUserInterfaceswithEMFParsley

Efftinge, S., Eysholdt, M., K

ohnlein, J., Zarnekow, S.,

von Massow, R., Hasselbring, W., and Hanus, M.

(2012). Xbase: Implementing Domain-Speciﬁc Lan-

guages for Java. In GPCE, pages 112–121. ACM.

EMF Client Platform (2014). EMF Client Platform. http:

//www.eclipse.org/ecp.

Eysholdt, M. and Behrens, H. (2010). Xtext: imple-

ment your language faster than the quick and dirty

way. In SPLASH/OOPSLA Companion, pages 307–

309. ACM.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1995). Design Patterns: Elements of Reusable

Object-Oriented Software. Addison-Wesley.

Itemis (2014). Xtext. http://www.eclipse.org/Xtext.

Mugridge, W., Hamer, J., and Hosking, J. (1991). Multi-

Methods in a Statically-Typed Programming Lan-

guage. In ECOOP, volume 512 of LNCS, pages 307–

324. Springer.

Renggli, L., Ducasse, S., and Kuhn, A. (2007). Magritte

A Meta-driven Approach to Empower Developers and

End Users. In Model Driven Engineering Languages

and Systems, volume 4735 of LNCS, pages 106–120.

Springer.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2008). EMF: Eclipse Modeling Framework.

Addison-Wesley, 2nd edition.

Vlissides, J. (1996). Generation Gap [software design pat-

tern]. C++ Report, 8(10):12, 14–18.

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends
