Clustering Users’ Requirements Schemas

Nouha Arfaoui and Jalel Akaichi

BESTMOD – Institut Supérieur de Gestion, 41, Avenue de la liberté,

Cité Bouchoucha, Le Bardo 2000, Tunisie

Keywords: Star Schema, User Requirement, Clustering, k-Mode Extension, Ontology.

Abstract: Data Mining proposes different techniques to deal with data. In our work, we suggest the use of clustering

technique since we want grouping the schemas into clusters according to their similarity. This technique is

applied to variety type of variables. We focus on categorical data. Many algorithms are proposed, but no

one of them takes into consideration the semantic aspect. For this reason, and in order to ensure a good

clustering of the schemas of the users’ requirements, we extend the k-mode algorithm by modifying its

dissimilarity measure. The schemas within each cluster will be merged to construct the schemas of the data

mart.

1 INTRODUCTION

Clustering is the unsupervised classification of

patterns into groups called Clusters (Jain et al.,

1999). It involves dividing a set of data points into

non-overlapping groups, or cluster of points (Faber,

1994). The purpose of the cluster is to maximize the

homogeneity of a partition of a set of variables into

K disjoint clusters (Chavent et al., 2010). There are

two different ways to classify the cluster analysis

methods (Rezankova, 2009): the partitioning

methods which cluster the objects into certain

number of clusters and methods of hierarchical

cluster analysis which make assignment of objects

into different numbers of clusters possible.

The clustering can be applied to different kind

of data: numeric data, binary data, categorical data

and ordinarily data.

In this work, we look for clustering the schemas

corresponding to the users’ requirements so that in

one cluster we will have the set of schemas which

are semantically very close to be able to build the

schemas of the data mart later. The existing

algorithms do not take into consideration the

semantic aspect while comparing the schemas. For

this reason, we propose a new algorithm which is an

extension of k-mode algorithm. This choice will be

argue in the state of the art.

We modify the dissimilarity measure and we

integrate the ontology to deal with the semantic

aspect. Let us give a short presentation of the

ontology. Indeed, it is used, at the beginning, with

the philosophy. It is concerned with the nature of

existence and the cataloguing of the existing entities

(Quine, 1980). It is considered also as a collection of

abstract objects, relationships and transformations

that represent the physical and cognitive entities

necessary for accomplishing some task (Alexander

et al., 1986). It is used mainly to resolve the

heterogeneity problem existing in the information

environments (Alexiev et al., 2005). In our case, it is

used to improve the document quality using the

hierarchical knowledge (Hotho et al., 2003), (Jing et

al., 2006).

The proposed algorithm can be applied in several

areas. We propose its use to build the data mart

schemas from the users’ requirements that are

presented as star schemas. The different users have

different skills and belong to different departments,

which makes the clustering of the schemas a crucial

step to facilitate the schema building.

The outline of this work is as following:

- In the second section, we present the state of

the art where we describe some of the existing

clustering algorithms used to cluster the

categorical data. We also give a comparative

study to argue the extension of k-mode.

- In the third section, we focus on the collection

of the users’ requirements and we give the

structure of the generated schemas.

- In the fourth section, we give the

characteristics of the k-mode algorithm.

Arfaoui N. and Akaichi J..

Clustering Users’ Requirements Schemas.

DOI: 10.5220/0004991100150021

In Proceedings of 3rd International Conference on Data Management Technologies and Applications (DATA-2014), pages 15-21

ISBN: 978-989-758-035-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

- In the fifth section, we describe our proposed

algorithm. We give its steps, its new

dissimilarity measure, as well as, the ontology

that serves to improve the quality of the

comparison.

- In the sixth section, we present the

implementation of our solution.

- We finish this work with the conclusion and

future work.

2 STATE OF THE ART

In this section, we summarize some existing

algorithms used to cluster the categorical data. Then

we give a comparative study in function of their

complexity to argue the extension of k-mode.

2.1 The Clustering Algorithms

K-Mode: The k-means has the capacity to deal with

large databases (San et al., 2004) and it is efficient

with numerical data (Huang, 2008), (Ng et al.,

2007), but it does not work with categorical data.

The idea is to extend this algorithm to deal with real

world data (including categorical data), hence the

appearance of a new algorithm k-mode (Huang,

2008), (Ng et al., 2007), (San et al., 2004).

ROCK and QROCK: In (Guha et al., 2000), the

authors present the ROCK (RObust hierarchical

Clustering with linKs) which is a hierarchical

clustering algorithm. Since the distance is not

appropriate to deal with categorical data, they

propose the links to measure the similarity/proximity

between a pair of data points.

An improvement has been proposed in (Khan

and Kant, 2007) through QROCK (Quick ROCK)

that computes the clusters by determining the

connected components of the graph which ensures

having a drastic reduction of the computing time

compared to ROCK.

COOLCAT: The proposed algorithm in

(Barbara et al., 2002) uses the notion of entropy

measure to group the records. The choice of the

entropy is because it is a more natural and intuitive

way of relating records and it does not rely in

arbitrary distance metrics.

LIMBO: According to (Andritsos et al., 2004), it

is built on the Information Bottleneck (IB)

framework that is used to define a distance measure

for categorical tuples. It has the capacity to produce

clustering of different sizes in a single execution.

Indeed, there is no need to keep whole tuples or

clusters in the memory, but instead it is sufficient

statistics to describe them.

MULIC: According to (Andreopoulos et al.,

2004), MULIC is an extension of k-mode algorithm.

It starts by clustering objects with high values; it

does not require specifying the number of the

clusters in the beginning since it can change during

the process, it forms clusters gradually and if a new

pattern is discovered, etc.

HIERDENC: The authors (Andreopoulos et al.,

2004) applied this algorithm to categorical datasets.

It clusters the m-dimensional cube with m-

categorical attributes. The algorithm considers an

object’s neighbors that are within a radius of

maximum dissimilarity in order to find the dense

subspace. It starts from the densest subspace of the

cube and it expands outwards from a dense subspace

by connecting nearby dense subspaces.

RAHCA: In (Chen et al., 2006), the authors

propose the use of Rough Set Theory (RST) to

cluster categorical data in order to solve the problem

of similarity measure. The clustering data set is

mapped as the decision table through the

introduction of decision attribute. RST is based on

Euclidean distance.

2.2 Comparative Study

In order to justify our choice, we compare the

previous algorithms according to their complexity as

present in Table 1.

According to Table 1, we can notice that k-mode

has the lowest complexity (O (n)), also, it has the

capacity to deal with huge amount of data and it is

easy to implement. For the cited reasons, we use it.

K-mode, as it is defined, cannot deal with our data.

It does not take into consideration the semantic

aspect of the elements while comparing. For

example if we compare the two dimension tables

“film” and “movie” using the simple matching as

defined in k-Mode, they will not be considered as

the same, although they are two synonymous terms.

So, we need to improve the dissimilarity measure by

integrating other techniques such as the ontology,

synonyms, etc.

More details about the assistant system are given

in (Arfaoui and Akaichi, 2013).

3 THE USER REQUIREMENT

The requirement is a source of pertinent information.

It plays a crucial role in the DW process design. It

can cause the failure of the whole project if it is

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

Table 1: Comparison of different algorithms used to cluster categorical data.

Algorithm Algorithm type Complexity Coefficient

K-MODE

Partitioning

O (n) Simple Matching

ROCK

Hierarchical clustering O(kn

) Links

QROCK

Hierarchical clustering O(n

) Threshold

COOLCAT

Hierarchical clustering

O (n

) Entropy

LIMBO

Hierarchical clustering

O (nLogn) Information Bottleneck

MULIC

Partitioning

O (n

) Hamming measure

HIERDENC

Hierarchical clustering O (n) Simple Matching

RAHCA

Hierarchical clustering O (An

) New similarity measure based on Euclidean distance

faulty. It is used to specify “what data should be

available and how it should be organized as well as

what queries are of interest” (Malinowski and

Zimanyi, 2008). It extracts the important elements

related to the multidimensional schema (facts,

measures, dimensions, attributes).

3.1 Collecting the Users’ Requirements

This step is about facilitating to the users the

specification of their requirements. They can find

difficulties to express their needs with the SQL

queries especially when using the GROUP BY

and/or HAVING clauses (Annoni et al., 2006),

(Gyssens and Lakshmanan, 1997).

We propose, as solution, the use of an assistant

system that intervenes by suggesting the possible

multidimensional elements to use. The proposed

system saves the manipulation of each user as a

trace. Then, it exploits the stored experiences by

making a set of comparisons between them and the

current manipulation of the user. Finally, it suggests

the appropriate elements to manipulate.

3.2 Generating the Schemas

To facilitate the manipulation of the users’ needs, we

propose their presentation as star schemas (Figure

1). They have the following structure:

- Fact table corresponds to the subject of

analysis. It is defined by FN and MF{} with:

o FN: is the fact name “Profit”.

o MF {m1, m2, m3, m4, …}: is the set of

measures related to the fact F: “Quantity and

Price”.

- Dimension tables represent the axis of

analysis. Each one is composed by DN and

A{}, with:

o DN: is the dimension name: “Customer,

Supplier, Product etc.”

o A {a1, a2, a3, a4, …}: is the set of attributes

describing the current dimension D:

“FirstName, LastName, Address etc.”.

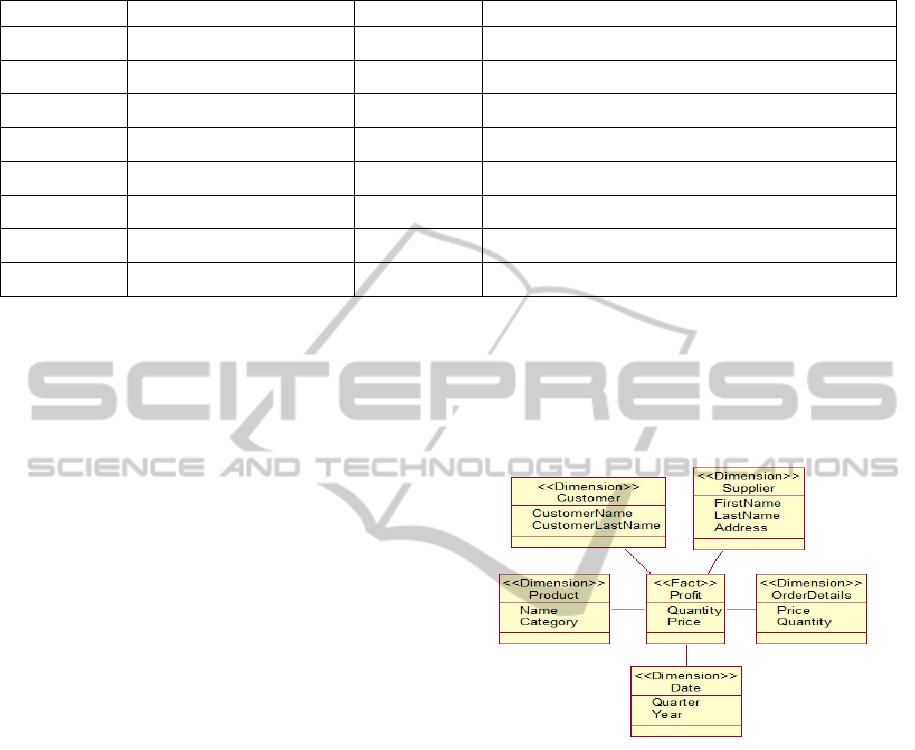

Figure 1: Example of schema corresponding to a user

requirement.

4 THE CHARACTERISTICS OF

K-MODE

The proposed algorithm is an extension of k-mode.

This latter presents some challenges that we present

in the following.

4.1 ‘k’: The Number of Clusters

One of the challenges related to the construct of

clusters is the estimation of the appropriate ‘k’

(Hand et al., 2001). One of the proposed solutions is

the calculation of the validity measure that is based

on the inter-cluster and inter-cluster distance

measures: validity= intra / inter (Malinowski and

ClusteringUsers'RequirementsSchemas

Zimanyi, 2008). A second solution consists on using

the gap statistic. It is about comparing the change in

within-cluster dispersion with that expected under an

appropriate reference null distribution (Tibshirani et

al., 2001).

4.2 The Distance

Concerning the distance (Huang, 2008), (Ng et al.,

2007), it is based on the simple matching

dissimilarity measure that takes two values 0 or 1. It

calculates the relative attribute frequencies of the

cluster modes in the dissimilarity measure in the k-

modes objective function. This modification allows

the algorithm to recognize a cluster with weak intra-

similarity, and therefore assigns less similar objects

to such cluster, so that the generated clusters have

strong intra-similarities.

4.3 The Selection of Modes

K-mode is unstable due to non-uniqueness of the

modes (San et al., 2004). The clustering results

depend strongly on the selection of modes during the

clustering process. As solution, the authors propose

“cluster center” represented by the most frequent

values. Their formation is done using Cartisian

product and union operations, and for the

dissimilarity measure, it depends on the relative

frequencies of categorical values within the cluster

and simple matching between categorical values

which can be considered as a categorical counterpart

of the squared Euclidean distance measure.

5 THE PROPOSED ALGORITHM

5.1 The Specification of the New

Algorithm

As we saw, the k-mode presents some

disadvantages. To use it, we propose some

improvements related to the number of clusters and

the used distance.

- “k” the number of clusters: Since we are

looking for grouping the different schemas into

clusters, we suggest considering “k” as the

number of existing domains. By this way, we

are sure that the schemas of one cluster belong

to same domain and they have some common

elements. This choice facilitates the generation

of the schemas of data mart.

- The distance: The k-mode uses the simple

matching dissimilarity measure that is based

on the relative frequencies of items within

clusters. This measure cannot be applied to the

schemas. As consequence, we propose its

extension. The new distance will be detailed

next.

5.2 The Ontology

In order to improve the simple matching

dissimilarity measure, we propose the use of the

ontology. In fact, the traditional measures, those are

used for numerical data, categorical data and even

for heterogeneous data, ignore the semantic

knowledge. This has negatively influences on the

quality of the interpretations (Batet et al., 2008),

especially with the possibility to add semantic

information about the domain in some fields (Studer

et al., 1998).

Our ontology helps to extract the similar

elements belonging to the same category. We need,

then, the following classes:

- Domain: It corresponds to the domain of a

specific schema.

- Schema: It identifies the schemas. It links its

different elements.

- Fact: It corresponds to the subject of analysis.

It includes all the different ways used to

describe one fact.

- Measure: every fact has one or more measures

that are numerical. We keep information about

the different words used to describe a specific

measure.

- Dimension: it corresponds to the axe of

analysis. It serves to group the different ways

to describe one specific dimension.

- Attribute: every dimension has a set of

attributes. We keep information about the

different words used to describe a specific

attribute.

Once we specify the classes, we move to the

relationships, and we have:

- is-Schema (Si, Dj): “Si” is a schema that

belongs to the domain “Dj”.

- is-Fact (Fi, Sj): “Fi” is a fact that belongs to

the schema “Sj”.

- is-Dimension (Di, Fj): “Di” is a dimension that

belongs to the fact “Fj”.

- is-Measure (Mi, Fj): “Mi” is a measure that

belongs to the fact “Fj”

- is-Attribute (Ai, Di): “Ai” is an attribute that is

related to the dimension “Di”.

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

To exploit the ontology, we propose the

implementation of a method that takes two elements

to return three values: (-1), (0) and (1).

- (-1) implies that at least one of the two

elements does not exist in the ontology.

- (0) implies that the two elements are not the

same.

- (1) implies that the two elements are the same.

In the first case, we calculate the similarity of the

elements of the two schemas taking into

consideration the following points:

- The identical: It is the case where we use the

same elements name in the two schemas.

DeId (e1, e2) =1 if “e1” and “e2” are identical

and 0 if not.

- The synonymous: It is the case where we use

two different names that have the same

meaning.

DeSy (e1, e2) = 1 if “e1” and “e2” are

synonymous, and 0 if not.

- The typos: It is the case where the user makes

mistakes when writing the name of the

element. We calculate the degree of error. If it

is low, we are in the case of typing error. If it is

high we are in the case of two different words.

In the following we only take into

consideration the first case.

DeTy (e1, e2) =1 if “e1” and “e2” are the same

with the existence of typing error.

- The post-fixe: It is the case where we use post-

fixes to design the same thing.

DePost (e1, e2) = 1 if one of the two elements is

the post-fixe of the other, and 0 if not.

- The pre-fixe: It is the case where we use pre-

fixes to design the same thing.

DePre (e1, e2) = 1 if one of the elements is the

pre-fixe of the other, and 0 if not.

Concerning the homonyms, it is taken into

account implicitly. In fact, during the specification

of the user requirements, we specify the domain. By

this way, we adjust the terms so that two identical

terms used in the same domain, denote the same

thing and give the same information.

The degree of similarity of “e1” and “e2”

(DeSim (e1, e2)) is measured by the numeric value

in {0}, {1} using the formula (1).

DeSim (e1, e2) = [DeId (e1, e2) + DeSy (e1, e2) +

DeTy (e1, e2) + DePost (e1, e2) + DePre (e1, e2)]

(1)

The result of this formula is ‘0’ or ‘1’. ‘0’

implies that the two elements are not similar, ‘1’ if

they are. The result is inserted into the ontology.

5.3 The New Dissimilarity Measure

Since we are dealing with star schema, we have as

elements: fact table, dimension tables, measures and

attributes.

The new measure Coef

representing the

coefficient of similarity is presented through the

following formula (2):

Coef

= [ (MaxD – CoefD) / MaxD] +

[(MaxM – CoefM) / MaxM] + [(MaxF – CoefF )

/MaxF] + [ ( MaxA – CoefA ) /MaxA]

(2)

With:

- MaxD: corresponds to the maximum number

of the existing dimension tables.

- MaxM: corresponds to the maximum number

of the existing measures.

- MaxF: corresponds to the maximum number of

the existing fact tables.

- MaxA: corresponds to the maximum number

of the existing attributes.

- CoefD: calculates the number of similar

dimension tables using the formula (1).

- CoefM: calculates the number of similar

measures using the formula (1).

- CoefF: calculates the number of similar fact

tables using the formula (1).

- CoefA: calculates the number of similar

attributes using the formula (1).

5.4 The Algorithm

The new algorithm has the same steps as k-mode:

a) Define the ‘k’ number of existing domains

b) Select ‘k’ initial modes.

c) Allocate a schema to the cluster whose mode is

the nearest to the cluster, using the formula (2):

d) Update the mode of the cluster after each

allocation.

e) After all schemas have been allocated to the

respective cluster, retest the schemas with new

modes and update the clusters.

f) Repeat steps (b) and (c) until there is no

change in clusters.

Concerning the update of the mode, we use the

same method as defined in the k-mode which is

based on the frequency of the elements.

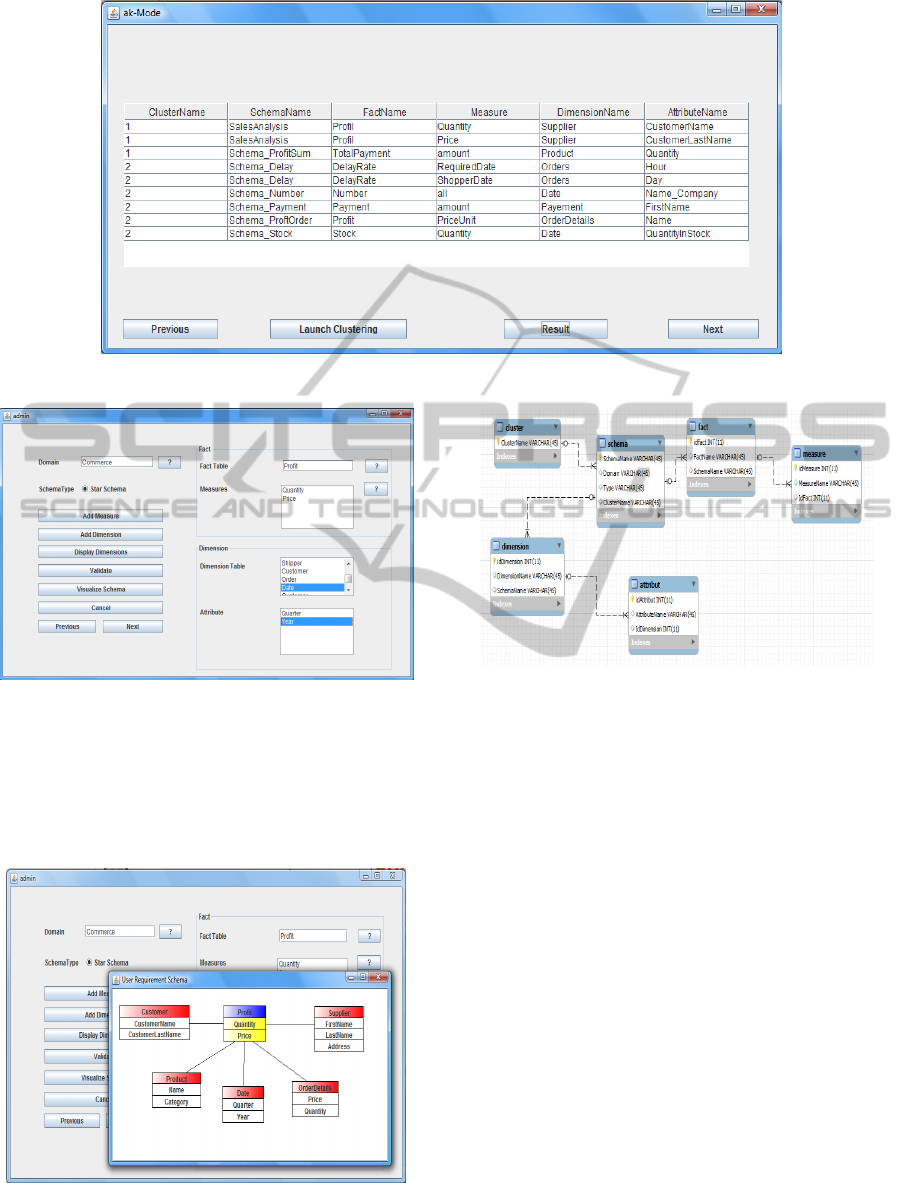

6 THE IMPLEMENTATION

In this section, we present the implementation of our

solution. Figure 2 presents the interface that we use

to collect the users’ requirements.

ClusteringUsers'RequirementsSchemas

Figure 5: The result of the application of the new algorithm.

Figure 2: The proposed interface to specify the users’

requirements.

Once he finishes all the specifications, the result

of this step is visualized as a star schema as

presented in Figure 3. Such modeling facilitates the

task of clustering.

Figure 3: Example of star schema corresponding to the

user requirement.

Figure 4: The structure of the used database.

The collected schemas are stored into database

(Figure 4). It is composed by 6 classes which are

“Cluster”, “Schema”, “Fact”, “Measure”,

“Dimension” and “Attribute”.

Once we collect the set of schemas

corresponding to the users’ requirements, we move

to the next step where we apply our new algorithm

to cluster them. The result of the clustering is

presented in Figure 5 where we have two clusters.

For each cluster, it visualizes the set of existing

elements.

7 CONCLUSION

In this work, we proposed a new algorithm ak-mode

to cluster the schemas that were generated from the

users’ requirements. The new algorithm is an

extension of k-mode algorithm. It is chosen because

of its capacity to deal with huge amount of data;

also, it has the lowest temporal complexity. The new

algorithm uses the ontology to improve the quality

of the dissimilarity measure to take into

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

consideration the semantic aspect while comparing

the elements of the schemas. The result of this

algorithm is a set of clusters containing a set of

schemas semantically close.

The new algorithm offers the possibility to deal

with the requirements of different users having

different skills and belonging to different

departments.

As future work, we will merge the schemas

within each cluster using the schema integration

technique to generate data mart schemas.

We propose, also, extending this work to deal

with other structures of schemas corresponding to

the databases schemas.

ACKNOWLEDGEMENTS

We would like to thank everyone.

REFERENCES

Alexander, J. H., Freiling, M. J., Shulman, S. J., Staley, J.

L., Rehfuss, S., and Messick, S. L., 1986. Knowledge

Level Engineering: Ontological Analysis. In

Proceedings of the 5th National Conference on

Artificial Intelligence, AAAI-86, 963-968.

Alexiev, V., Breu, M., De Bruijn, J., Fensel, D., Lara,

R., and Lausen, H., 2005. Information Integration with

Ontologies: Experiences from an Industrial Showcase,

John Wiley & Son.

Andreopoulos, B., An, A., and Wang, X., 2004. MULIC:

Multi-Layer Increasing Coherence Clustering of

Categorical data sets. Technical Report CS-2004-07,

York University.

Andritsos, P., Tsaparas, P., Miller, R. J., and Sevcik, K.

C., 2004. LIMBO: Scalable Clustering of Categorical

Data. In Proceedings of the 9th International

Conference on Extending Database Technology

(EDBT), Heraklion, Greece, 123-146.

Annoni, E., Ravat, F., Teste, O., and Zurfluh, G., 2006.

Towards Multidimensional Requirement Design. In

Proceedings of 8th International Conference Data

Warehousing and Knowledge Discovery (DaWaK),

75-84.

Arfaoui. N., Akaichi. J., 2013. New Approach for the

Collection of Users’ Requirements using DwADS. In

Proceedings of 22nd International Business

Information Management Association (IBIMA),

Rome, Italy,

Barbara, D., Couto, J., and Li, Y., 2002. COOLCAT: An

entropy-based algorithm for categorical clustering. In

Proceedings of the eleventh international conference

on Information and knowledge management, 582-589.

Batet, M., Valls, A., and Gibert, K.., 2008. Improving

classical clustering with ontologies. In Proceedings of

the 4th world conference of the international

association for statistical computing, 137-146.

Chavent, M., Kuentz, V., and Saracco, J., 2010. Clustering

of categorical variables around latent variables.

Cahiers du GREThA 2010-02, Groupe de Recherche

en Economie Theorique et Appliquee.

Chen, D., Cui, D.W., Wang, C.X., and Wang, Z. R., 2006.

A Rough Set-Based Hierarchical Clustering Algorithm

for Categorical Data. International Journal of

Information Technology.

Faber, V., 1994. Clustering and the Continuous k-means

Algorithm. Los Alamos Science, 138-144.

Guha, S., Rastogi, R., and Shim, K.., 2000. ROCK: A

Robust Clustering Algorithm for Categorical

Attributes. In: Inf. Syst., Vol. 25, Nr. 5 Oxford, UK,

UK: Elsevier Science Ltd., 345-366.

Gyssens, M. and Lakshmanan, L. V. S., 1997. A

Foundation for Multi-dimensional Databases.

In Proceedings of 23rd International Conference on

Very Large Data Bases (VLDB), 106-11.

Hand, D., Mannila, H., and Smyth, P., 2001. Principles of

Data Mining. MIT Press, Cambridge, MA.

Hotho, A., Staab, S., and Stumme, G., 2003. Wordnet

improves Text Document Clustering. In Proceedings

of the SIGIR 2003 Semantic Web Workshop.

Huang, Z., 1998. Extensions to the k-Means Algorithm for

Clustering Large Data Sets with Categorical Values.

Data Mining and Knowledge Discovery, 2:283–304.

Jain, A. K., Murty, M. N., and Flynn, P. J., 1999. Data

Clustering: A Review. ACM Comput. Surv., 264-323.

Jing, L., Zhou, L., Ng, M. K., and Huang, J. Z., 2006.

Ontology-based Distance Measure for Text Clustering.

In Proceeding of SIAM International conference on

Text Data Mining, Bethesda.

Khan, S. S., Kant, S., 2007. Computation of Initial Modes

for K-modes Clustering Algorithm using Evidence

Accumulation.

International Joint Conference on

Artificial Intelligence, 2785-2789.

Malinowski, E., and Zimanyi, E., 2008. Advanced Data

Warehouse Design, From Conventional to Spatial and

Temporal Applications, Springer Verlag Berlin

Heidelberg.

Ng, M. K., Li, M. J., Huang, J. Z., and He, Z., 2007. On

the Impact of Dissimilarity Measure in k-modes

Clustering Algorithm. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 29 (3): 503-507.

Quine, W.V.O., 1980. From a Logical Point of View.

Harvard University Press; Cambridge, MA.

Rezankova, H., 2009. Cluster Analysis and Categorical

Data. Statistika, 216-232.

San, O. M., Huynh, V. N., and Nakamori, Y., 2004. An

Alternative Extension Of The K-Means Algorithm For

Clustering Categorical Data. Journal of Applied

Mathematics and Computer Science, No. 2, 241-247.

Studer, R., Benjamins, V. R., and Fensel, D., 1998.

Knowledge Engineering: Principles and Methods.

IEEE Trans on Data and Knowledge Engineering, 25

(1-2): 161-197.

Tibshirani, R., Walther, G.., and Hastie, T., 2001.

Estimating the number of clusters in a data set via the

gap statistic, J. R. Statist. Soc. B, 411-423.

ClusteringUsers'RequirementsSchemas
