Large-Scale Assessment and Visualization

of the Energy Performance of Buildings with Ecomaps

Project SUNSHINE: Smart Urban Services for Higher Energy Efficiency

Luca Giovannini

, Stefano Pezzi

, Umberto di Staso

, Federico Prandi

and Raffaele de Amicis

Sinergis, Via del Lavoro, 71 Casalecchio di Reno (BO), Italy

Fondazione Graphitech, via alla cascata, 56/C Trento (TN), Italy

Keywords: CityGML, WebGL, 3D City Model, Smart City, Interoperable Services, Energy Efficiency, City Data

Management, Open Data.

Abstract: This paper illustrates the preliminary results of a research project focused on the development of a Web 2.0

system designed to compute and visualize large-scale building energy performance maps, so called

“ecomaps”, using: emerging platform-independent technologies such as WebGL for data presentation, an

extended version of the EU-Founded project TABULA/EPISCOPE for automatic calculation of building

energy parameters and CityGML OGC standard as data container. The proposed architecture will allow

citizens, public administrations and government agencies to perform city-wide analyses on the energy

performance of building stocks.

1 INTRODUCTION

During the last years, one of the hottest topics in the

information technology research area has certainly

been the one about “smart-cities”. But, what is a

smart-city? What is its role in shaping the quality of

our life?

Many definitions exist in the current literature,

for example (Giffinger et al. 2010, Bowerman et al.

2000, Washburn et al. 2009, Giffinger 2007) define

a smart-city in different ways, but all of them have a

factor in common: the existence of an underlying

ICT infrastructure that connects the physical

infrastructure of the city with web 2.0 capabilities

and enables innovative solutions for city

management, in order to improve sustainability and

the quality of life for citizens.

Typical factors that are taken into consideration

when the “quality of life” offered by a city,

especially a big city or a metropolitan area, is

evaluated are:

 Level of urban traffic.

 Quantity and quality of green spaces.

 Public transportation efficiency.

 Level of air pollution.

 Services to citizens (schools, hospitals, etc.).

However, there are also other, less-intuitive,

factors that have an impact on the overall city

ecosystem. A factor that, tackled by an ICT-enabled

smart approach, would increase the quality of life of

city dwellers is certainly the energy consumption

efficiency of residential houses. Increasing building

energy efficiency would not only mean a cut-down

in energy expense for citizens, but would also have

an impact on the overall production of CO

(at

energy plants) but also, less intuitively, on the city

air pollution. In fact, researches conducted in this

area (Fenger, 1999) demonstrated that the major

causes of poor air quality are actually industries and

domestic heating systems, not the quantity of

vehicles circulating in the urban area, as one might

more typically think.

So, how can ICT tackle this topic? What kind of

smart service can be designed in order to support the

increase of building energy efficiency and improve

the city quality of life in this respect? What we

present in this paper is a specific answer to these

questions. The paper will illustrate the concept and

the development of smart services which will allow

to assess the energy performance of all the

residential buildings in a city and to visually deliver

that information with a language accessible not only

to experts, but to the entire city population alike.

170

Giovannini L., Pezzi S., di Staso U., Prandi F. and de Amicis R..

Large-Scale Assessment and Visualization of the Energy Performance of Buildings with Ecomaps - Project SUNSHINE: Smart Urban Services for

Higher Energy Efﬁciency.

DOI: 10.5220/0004997001700177

In Proceedings of 3rd International Conference on Data Management Technologies and Applications (DATA-2014), pages 170-177

ISBN: 978-989-758-035-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

The challenge is related to effectively providing

these services on the whole city area, avoiding the

typical discontinuous availability of energy

certification of buildings. Indeed, the classical

building certifications, adopted by many of EU

countries, can provide a very detailed insight on

building energy properties, but on the other hand,

these certifications are not mandatory for all the

residential buildings and their availability is thus

very sparse.

The development of these services is part of the

wider-scope SUNSHINE project (Smart UrbaN

ServIces for Higher eNergy Efficiency,

www.sunshineproject.eu), that aims at delivering

innovative digital services, interoperable with

existing geographic web-service infrastructures,

supporting improved energy efficiency at the urban

and building level. SUNSHINE smart services will

be delivered from both a web-based client and a

dedicated App for smartphones and tablets. In

particular, the SUNSHINE platform is structured

into three main scenarios:

 Building Energy Performance Assessment:

Automatic large-scale assessment of building

energy behaviour based on data available from

public repositories (e.g. cadastre, planning data

etc.). The information on energy performances

will be used to create urban-scale maps to be

used for planning activities and large-scale

energy pre-certification purposes.

 Building Energy Performance Optimization:

Assessed energy performance data will be used,

together with localised weather forecasts

available through interoperable web-services, to

enable optimisation of energy consumption of

heating/cooling systems through automatic

alerts that will be sent via the SUNSHINE App

to the final users.

 Public Lighting Energy Management:

Interoperable control of public illumination

systems based on remote access to lighting

network facilities via interoperable standards, to

enable optimised management of energy

consumption from a web-based client as well as

via the SUNSHINE App.

This paper focuses on the preliminary results for

the first of the three scenarios: Building Energy

Performance Assessment. As we have already

hinted, the aim of the service for Building Energy

Performance Assessment and Visualization is to

deliver an automatic large-scale assessment of

building energy behaviour and to visualize the

assessed information in a clear and intuitive way,

through the use of what we call Ecomaps.

Ecomaps will be publicly available via a 3D

WebGL-based virtual globe that leverages on

interoperable OGC standards, allowing citizens,

public administrations and government agencies to

evaluate and perform analysis on the building energy

performance data.

Having a clear and self-descriptive view of the

energy efficiency state of a city building stock

makes it possible to plan infrastructural maintenance

activities to increase the overall energy efficiency,

allow citizen to save more money and, ultimately,

improve the air quality of the city.

2 STATE OF THE ART

The current availability of relevant technologies and

standards has encouraged the development of many

research projects in the area of building energy

performance estimation based on publicly available

data. These data generally do not include all the

information needed for the energy performance

calculation regulated by the 2006/32/CE directive,

so one of the most critical aspects for these type of

projects is how to estimate the missing information

in a reliable way, using the basic input data that is

typically available, such as building geometry,

building use, construction year, climatic zone, etc.

A common and powerful approach to the

problem, as described in (Nouvel et al., 2013), is to

use the CityGML (City Geography Markup

Language) OGC standard (Gröger et al., 2008) to

semantically describe the set of objects that compose

the urban environment, exploit a building typology

database (such as the outcome of TABULA project,

Ballarini et al. 2011) to statistically estimate the

energy performance properties of buildings and,

finally, define an Application Domain Extensions

(ADE) to store the estimated information in the

GML of each building (Carrión et al. 2010, Kaden

et al. 2013, Krüger et al. 2012).

A radically different approach is described in

(Hay et al., 2010), where operational energy

performance of buildings is estimated from thermal

images acquired by airborne thermal cameras.

Both approaches have pros and cons: in the

former case, input data are publicly available,

requiring no additional cost; the main limit is instead

represented by the energy performance estimation

process that takes into consideration only residential

buildings (other typical building use typologies are

offices, schools, sport facilities, warehouses,

factories, etc.). Moreover, the overall software

architecture is typically desktop based, so the access

Large-ScaleAssessmentandVisualizationoftheEnergyPerformanceofBuildingswithEcomaps-ProjectSUNSHINE:

SmartUrbanServicesforHigherEnergyEfficiency

171

to the results is often limited to a small number of

users with advanced GIS skills. Another limit is

related to the dissemination and exploitation

activities of the computed results: for performance

reasons, the visualization of CityGML encoded data

is commonly provided via a conversion to KML

(Wilson, 2008), where the link between the building

performance data and its geometry is colour-coded

in each building-style parameter and the other

information stored in the starting CityGML file is

lost.

In the thermal image approach, instead, all the

building use typologies are taken into consideration,

but the cost to collect thermal images to cover an

entire city is hardly negligible. Furthermore, only the

roof surface is evaluated in terms of energy

performance, ignoring the full contribution of walls.

Moreover, the use of proprietary standards does not

encourage the adoption of the same solution by the

research community.

3 SUNSHINE APPROACH

3.1 Architectural Concept

In this chapter, the system architecture of the

SUNSHINE platform is presented. As reported in

the introduction, the SUNSHINE project covers

three different scenarios; however, given the focus

of the paper on the first scenario, the system

architecture description has been rearranged to focus

on the components that are meaningful in this

context.

The chosen approach for this scenario was that of

leveraging on a building typology database and the

system architecture that has been designed to

comply with it (see Fig. 1) is based on a Services

Oriented Architecture (SOA) with three tiers (data,

middleware and application layers). A SOA-based

approach allows accessing to the resources through a

middleware layer in a distributed environment and

thus avoids single access-points limitations that are

instead typical for desktop-based architectures.

3.1.1 Data Layer

The bottom level of the SUNSHINE system

architecture is aimed at storing geometry and

semantic information about buildings and thematic

raster data. The two fundamental components of this

layer are the 3D CityDB and the raster map

repository.

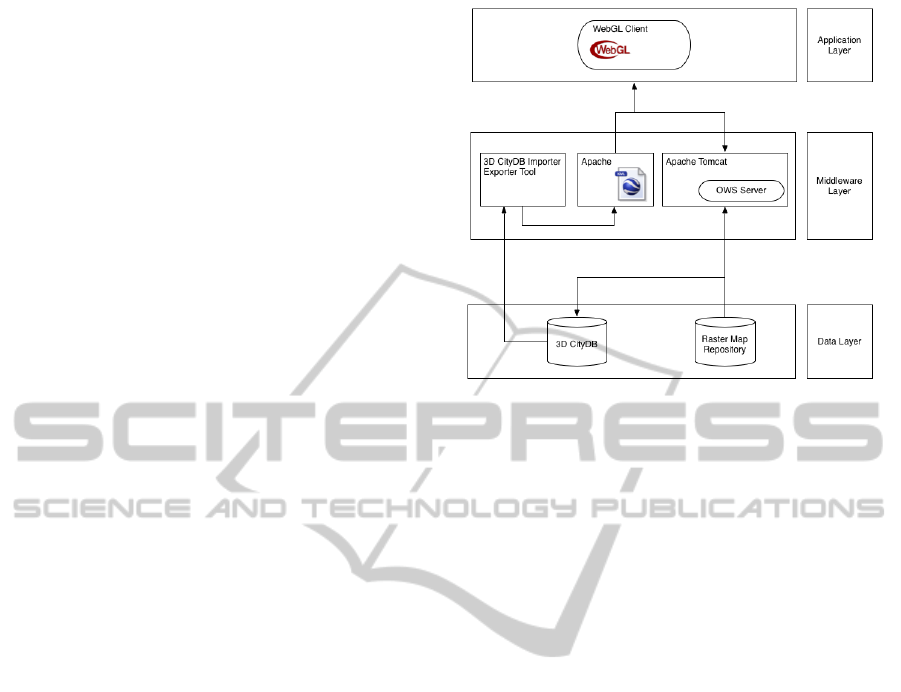

Figure 1: System Architecture.

The 3D City Database (Stadler et al., 2009) is a

free 3D geo database designed to store, represent,

and manage virtual 3D city models on top of a

standard spatial relational database. The database

model contains semantically rich, hierarchically

structured, multi-scale urban objects facilitating GIS

modelling and analysis tasks on top of visualization.

The schema of the 3D City Database is based on the

CityGML standard for representing and exchanging

virtual 3D city models.

The 3D City Database is described via a PostGIS

relational database schema and specific SQL scripts

are provided to create and drop instances of the

database on top of a PostGIS DBMS. The main

features of the 3D City Database are:

 Semantically rich, hierarchically structured

model.

 Five different Levels of Detail (LoDs, see Fig.2).

 Appearance data in addition to flexible 3D

geometries.

 Representation of generic and prototypical 3D

objects.

 Complex digital terrain models (DTMs).

 Management of large aerial photographs.

 Version and history management.

 Matching/merging of building features.

 Works with PostGIS 2.0 or higher.

 Open source and released under the terms of the

GNU Lesser General Public License v3 (LGPL).

The raster map repository is a data file store

aimed at containing geo-located orthophoto and

elevation files in raster file format.

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

172

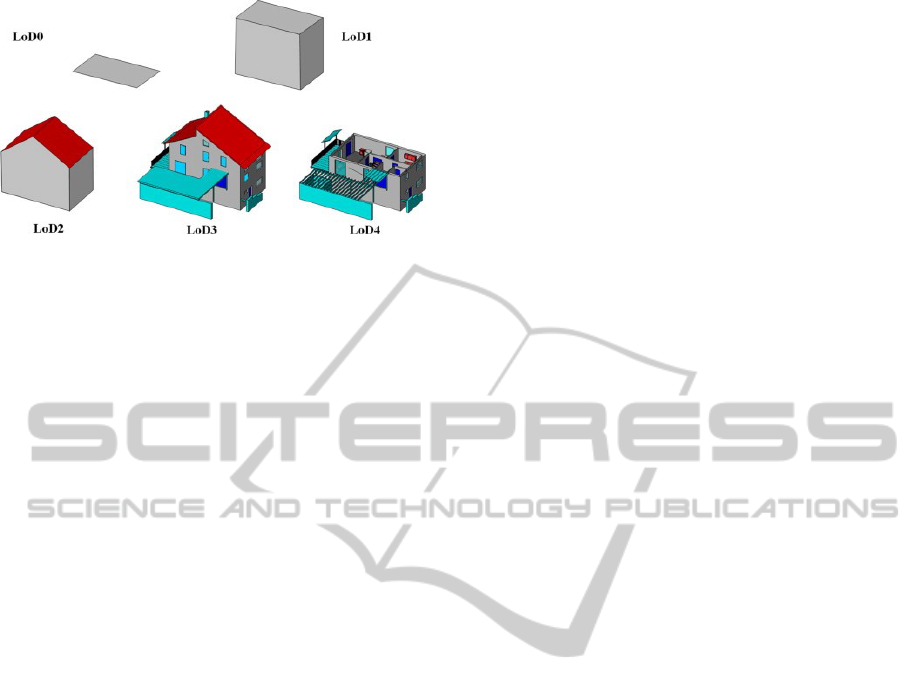

Figure 2: CityGML LOD example.

3.1.2 Middleware Layer

The middleware layer is the core component of the

SUNSHINE platform. Its duty is to manage the

connection between the application layer and the

data layer, providing access to the resources stored

in databases and map repository. The middleware

layer is composed by the 3D CityDB

Importer/Exporter Tool and Apache Tomcat.

The 3D CityDB Importer/Exporter Tool allows

interacting with the 3D City Database or external

data and has the following specific features:

 Full support for CityGML 1.0 and 0.4.0.

 Exports of KML/COLLADA models.

 Generic KML information balloons.

 Reading/writing CityGML instance documents

of arbitrary file size.

 Multithreaded programming facilitating high-

performance CityGML processing.

 Resolving of forward and backwards XLinks.

 XML validation of CityGML documents.

 User-defined Coordinate Reference Systems.

 Coordinate transformations for CityGML

exports.

 Matching/merging of building features.

 Open source and released under the terms of the

GNU Lesser General Public License v3 (LGPL).

The Apache Tomcat (Apache Community, 2014)

is an open source software implementation of the

Java Servlet and JavaServer Pages technologies.

3.1.3 Application Layer

A further challenge that the SUNSHINE project took

into high consideration is the dissemination and

exploitation of the reached results. A smart-city will

become smarter only if all the involved stakeholders

(citizens, public administrations and government

agencies) are aware about the outcomes of the

research activities in that particular scope. For this

reason, a great effort was put in designing and

implementing a client platform that would be usable

by the majority of devices, both mobile and desktop-

based.

To achieve the widest dissemination possible for

the project’s results, the emerging WebGL

technology (Marrin, 2011) has been employed, in

conjunction with HTML5 elements, as the main

component of the application layer. WebGL is a

cross-platform royalty-free web standard for a low-

level 3D graphics API based on OpenGL ES 2.0,

exposed through the HTML5 Canvas element as

Document Object Model interface.

3.2 Ecomap Generation Workflow

The aim of this section is to describe how each

building is associated with an energy class index.

The energy class is an index describing the energy

performance of a building and it is usually computed

from a series of detailed information on building

energy properties that are not available in general as

public domain data. Publicly available data is

usually limited to more basic information, such as

building geometry, year of construction, number of

building sub-units, etc. So, the approach we

followed was to estimate the energy parameters

needed for performance calculation from the few

publicly available data and to do so we leveraged on

the outcomes of project TABULA (Loga, 2010).

Project TABULA had a two-fold aim:

 Define a set of building typologies for each of

the countries participating into the project. Each

country defined a classification of its building

stock basing on 4 parameters: country, climate

zone, building construction year, building size

type. A building stereotype, described in all its

energy properties, is associated to each class,

with the aim of representing the average energy

behaviour for buildings of that class.

 Define a common set of parameters to describe

the energy behaviour of buildings and a coherent

common energy balance method, in accordance

with field standards ISO 13790, ISO 15316. In

this way the procedure can be applied to the

entire national building categories and provide a

common framework of reference to compare

computed energy performance parameters.

So, if data are available on country, climate zone,

construction year and size type for a building, than,

via the use of TABULA, it is possible to associate

the building to a specific typology class and thus to

its corresponding building stereotype and its energy

performance properties, including estimated energy

Large-ScaleAssessmentandVisualizationoftheEnergyPerformanceofBuildingswithEcomaps-ProjectSUNSHINE:

SmartUrbanServicesforHigherEnergyEfficiency

173

performance class that will then be shown via the

ecomap.

However, it is to be noted that the building

classification defined in TABULA currently applies

specifically to residential buildings and thus cannot

be used to assess the energy performance of

buildings with a predominant use that is other than

residential (commercial, administrative, industrial,

educational, etc). As a consequence, the ecomap

itself will carry information only for residential

buildings. This seems to us a reasonable

compromise as residential buildings are among the

major causes for energy consumption and air

pollution (Fenger, 1999). It is also to be stressed that

the ecomap, that is the display of the energy

performance classes of residential buildings as

estimated via the use of building typology

stereotypes, is a statistical representation of the

residential building energy condition, so its intrinsic

value lies on the overall picture that it provides, not

on the accuracy of the estimation for any given

specific building.

In order to evaluate the validity of our approach

we foreseen to compare the simulation results with

the information available from the existing energy

certificates for a statistically meaningful number of

buildings.

Fig. 3 shows the workflow diagram for the

ecomap generation procedure. The inputs to the

procedure are:

 A LoD-1 CityGML model, containing the

information on building geometry and spatial

distribution;

 Mandatory building data: country, climate zone,

building main use (residential, non-residential),

year of construction;

 Optional building data: refurbishment level

(none, standard, advanced), storey height,

number of floors;

 Building typology stereotype data. One building

typology stereotype for each class defined by:

country, climate zone, period of construction,

building size type, refurbishment level.

It can be noted that the information about

building size type class is necessary to identify the

proper corresponding building stereotype, but it is

not among the requested input building data.

TABULA identifies four building size type classes

for residential buildings: single-family house, multi-

family house, terraced house and apartment block.

This kind of data typically is not publicly available,

but it can nonetheless be estimated from the

available building data.

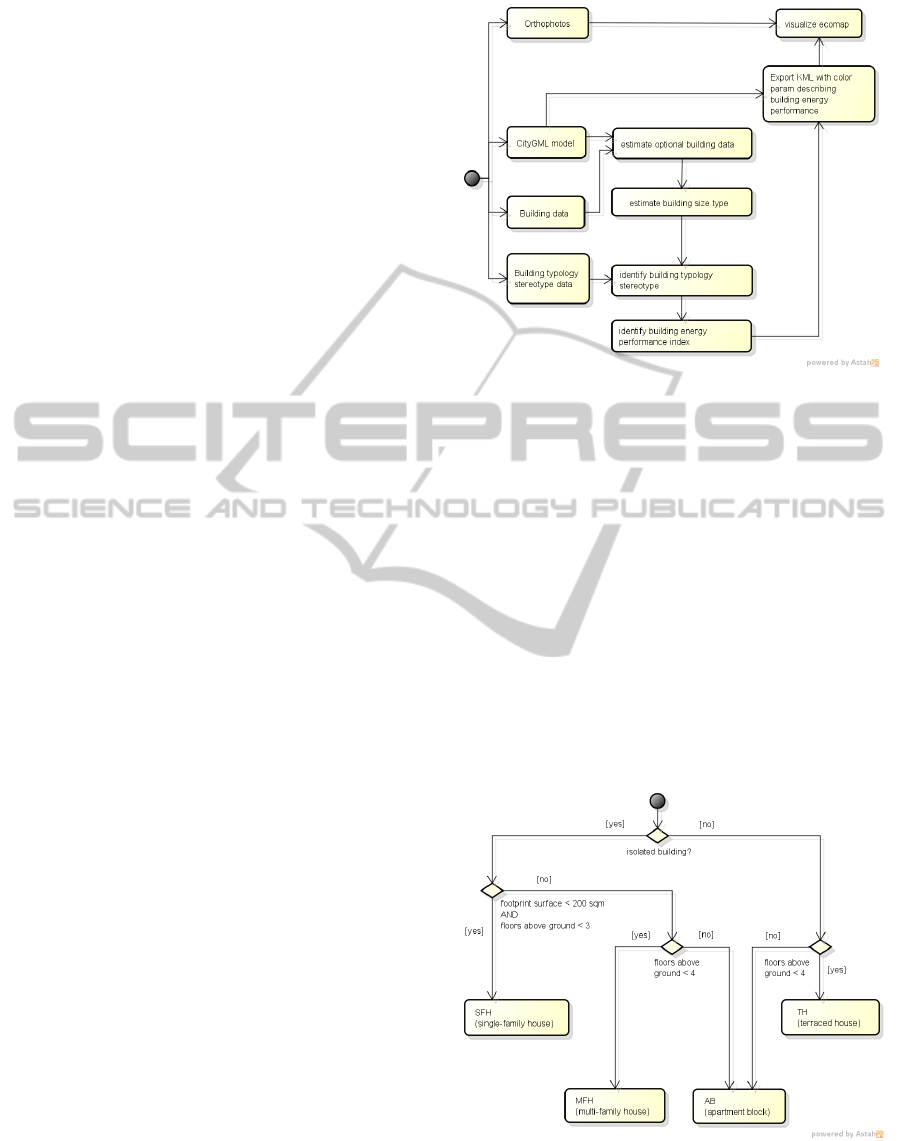

Figure 3: Ecomap workflow diagram.

The simple and clear-cut approach that we have

taken to estimate building size type from the other

data is described in Fig. 4. Only three parameters are

taken into consideration: building isolation (derived

from knowledge on footprint reciprocal position),

footprint surface and number of floors above

ground. The information about storey height and

number of floors is either part of the provided input

or estimated during the building size type estimation

phase by assuming a storey height of 3 meters. The

thresholds for the number of floors above ground

include the mansard space that is usually present in

buildings with sloping roofs. This is a consequence

of LoD-1 building geometrical model that includes

mansard space as an integral part of the building.

Figure 4: Building size type estimation.

Finally, the estimated data about building size

type is used to identify the proper building

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

174

stereotype from the available typology classes. If the

information about refurbishment level is not

provided in input, than it is assumed that no

refurbishment activity has been performed on the

building. From that, the energy performance

parameters are derived, including the energy

performance class index to be shown in the ecomap.

3.3 CityGML Extension for Building

Energy Performance Data

This section is intended to provide a more detailed

view of the attribute list that we defined for

describing building energy-related properties. As

Tab. 1 shows, attributes include both input and

output data to the ecomap generation procedure.

The first sets of attributes store the mandatory

input data (country, climate zone, building main use

and construction period) and the optional input data

(refurbishment level, storey height, number of

floors, number of sub-units). As discussed in the

previous section, the latter are either provided by the

user or estimated during the workflow execution.

From these attributes and by the use of TABULA

building typology database, the appropriate value for

the building size type is identified.

The following sets of attributes in the table

describe the thermal-related properties of the

building: the envelope heating balance (mean

envelope heat transmission coefficient, heating

comfort temperature, heating season start and end)

and the systems performance (heating system type,

main heating controls, hot water preparation system

type, ventilation system type). The values assigned

to those attributes are taken from the TABULA

building stereotype corresponding to the building

typology class the building belongs to. Those

attributes are the base for the computation of the

energy performance parameters for the building,

according to TABULA common energy balance

computation procedure.

The final sets of attributes store the computed

energy performance parameters: energy need (for

space heating and hot water preparation) and

delivered energy (for space heating, hot water

preparation and for auxiliary systems). Different

choices can be made about which of those attributes

or combination thereof to use as a cumulative index

for the energy performance of the building. Energy

need refers to the net energy needed to maintain

thermal comfort, while delivered energy is the actual

energy delivered by the energy distributor that takes

also into account the efficiency of heating/hot water

systems in producing the energy needed to maintain

thermal comfort. So, the choice of referring to

delivered energy is the most reasonable if

comparison between estimated and measured

consumption are foreseen, as it is the case in the

SUNSHINE project. Indeed the possibility to

compare the estimated values with the measured

ones in a number of pilot buildings is an important

target of the project in order to assess the validity of

the estimation process.

Table 1: Building energy performance attributes.

Attribute Name Type

Country string

Climate zone string

Building main use string

Construction period string

Refurbishment level string

Storey height real

Number of floors integer

Number of sub-units integer

Building size type string

Mean envelope

heat transmission coefficient

real

Heating comfort temperature real

Heating season start date

Heating season end date

Heating system type string

Main heating controls string

Hot water preparation system type string

Ventilation system type string

Energy need for space heating real

Energy need for hot water preparation real

Delivered energy for space heating real

Delivered energy

for hot water preparation

real

Delivered auxiliary energy real

Our choice of attributes is in line with the results

of other research activities, such as (Dalla Costa et

al., 2011). However, while that research focuses on

providing an attribute schema that can accommodate

for building energy performance analysis on

different level of aggregation (sub-unit, building,

block, etc), our choice of attributes has been done

having in mind a building centred approach as this is

the aim of the SUNSHINE project.

3.4 Ecomap Visualization via WebGL

As described in the previous section about system

architecture, via the WebGL-enabled visualization

the project stakeholders can easily discover,

compare and perform statistics on the estimated

Large-ScaleAssessmentandVisualizationoftheEnergyPerformanceofBuildingswithEcomaps-ProjectSUNSHINE:

SmartUrbanServicesforHigherEnergyEfficiency

175

ecomap data by accessing to a classical HTML web

page.

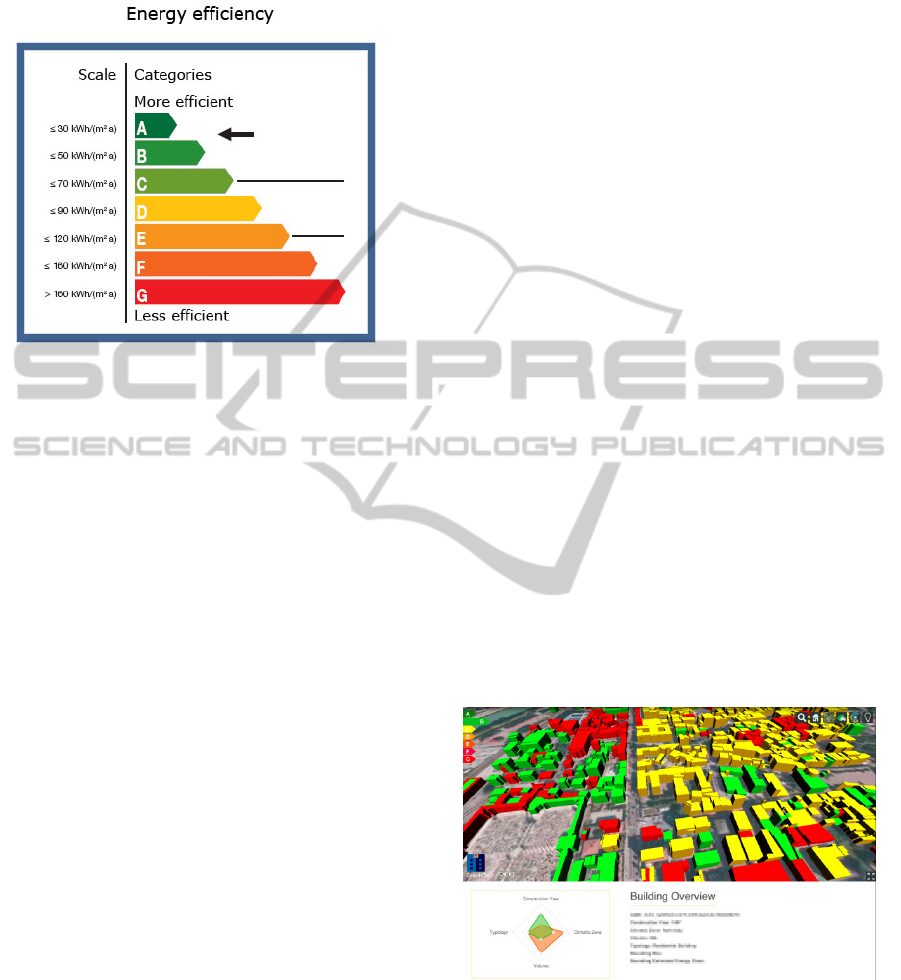

Figure 5: Building colour-coding scale.

Ecomaps are generated merging geometry LOD-

1 information from the CityGML of the displayed

city with the output of the energy performance

estimation procedure. More specifically, the colour

of each extruded KML polygon will be dependent

on the estimated building energy class. The

reference between each building in the KML file and

the corresponding building in the 3D CityDB is

ensured by storing the unique GML UUID of the

building in the KML polygon name property. By the

use of a web service it will then be possible to

retrieve the energy-related parameters corresponding

to the selected object.

The following code shows an example of how

each building is specified in the KML file.

</PolyStyle>

</Style>

<description>Building extruded

test 1</description>

<name>UUID_a2017297-d0cf-45ee-

ae6d-94a5d4fcda03</name>

<altitudeMode>absolute</altitudeMode>

coordinates>

11.1263299929,46.0683712643,213.486

11.1263070656,46.0684180254,214.313

11.1262141309,46.0684011600,208.837

11.1262401711,46.0683529640,213.74

11.1263299929,46.0683712643,213.486

</coordinates>

</LinearRing>

</outerBoundaryIs>

</Polygon>

</Placemark>

Referring to the code listed above, the first part is

used to make a visual representation of the energy

class determined by the estimation procedure. Fig. 5

shows the colour coding of each building geometry

based on its estimated energy class. The second part

of the KML code is used to describe the extruded

geometry of each building contained in the source

file.

As Fig. 6 shows, the ecomap visualizer is

composed by two interconnected parts:

1. An HTML5 canvas that displays the WebGL

virtual globe in which KML ecomaps, based on

CityGML LOD-1 geometries, are loaded;

2. A classical HTML tab, displaying the detailed

energy data corresponding to the selected

building. Comparisons between building energy

efficiency characteristics can easily be performed

using the “radar” diagram placed in the bottom-

left part of the page. The diagram allows the

comparison of the most important building

proprieties between the current and the

previously selected building.

Figure 6: Ecomap visualization.

4 CONCLUSION AND FUTURE

DEVELOPMENTS

In this paper we have presented some of the

preliminary results of the SUNSHINE project. The

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

176

use of the TABULA building typology database

allows for a large-scale application of the building

energy performance assessment and the underlying

service-oriented system architecture supports a

distributed access to the related services. Moreover,

the use of the emerging WebGL technology ensures

the largest available audience in terms of devices,

both desktop and mobile, avoiding the development

of device-dependent custom clients for 3D city map

visualization.

Future developments on the building typology

side will be linked to the efforts of the EPISCOPE

project extending the results of TABULA project to

additional European countries and to building with

predominant use other than residential. In particular

a deeper investigation on the influence of the shape

factor of the building (Waste surface/Volume)

should be performed in order to improve the

classification especially in specific urban context.

On the side of data structure and visualization,

improvements will be focused on increasing the

quality of the geometry displayed, making it

possible to render buildings based on CityGML

LoD-2 level of detail and on the development of

more detailed building size type estimation

procedures.

ACKNOWLEDGEMENT

The project SUNSHINE have received funding from

the EC, and it has been co-funded by the CIP-Pilot

actions as part of the Competitiveness and

innovation Framework Programme. The author is

solely responsible of this work, which does not

represent the opinion of the EC. The EC is not

responsible for any use that might be made of

information contained in this paper.

REFERENCES

Apache Community, 2014. Apache Tomcat.

http://tomcat.apache.org/

Ballarini, I., et al., 2011. Definition of building typologies

for energy investigations on residential sector by

TABULA IEE-project: application to Italian case

studies. Proceedings of the 12th. International

Conference on Air Distribution in Rooms, Trondheim,

Norway, p. 19-22.

Bowerman, B., et al., 2000. The vision of a smart city. 2nd

International Life Extension Technology Workshop,

Paris.

Carrión, D., et al., 2010. Estimation of the energetic

rehabilitation state of buildings for the city of Berlin

using a 3D city model represented in CityGML. ISPRS

international conference on 3D Geoinformation, p. 4.

Dalla Costa, S., et al., 2011. A CityGML 3D geodatabase

for buildings’ energy efficiency. International Archives

of the Photogrammetry, Remote Sensing and Spatial

Information Sciences 38.4: C21.

Fenger, J., 1999. Urban air quality. Atmospheric

environment, 33.29: 4877-4900.

Giffinger, R., 2007. Smart cities: Ranking of European

medium-sized cities. Final report, Centre of Regional

Science, Vienna UT.

Giffinger, R., Gudrun, H., 2010. Smart cities ranking: an

effective instrument for the positioning of the cities?

ACE: Architecture, City and Environment, vol. 4,

num. 12, p. 7-26.

Gröger, G., et al., 2008. OpenGIS city geography markup

language (CityGML) encoding standard. Open

Geospatial Consortium Inc.

Hay, G., et al., 2010. HEAT - Home energy assessment

technologies: a web 2.0 residential waste heat

analysis using geobia and airborne thermal imagery.

The International Archives of the Photogrammetry,

Remote Sensing and Spatial Information Sciences,

Vol. XXXVIII-4/C7.

Kaden, R., Kolbe T., 2013. City-wide total energy demand

estimation of buildings using semantic 3D city models

and statistical data. ISPRS Annals of the

Photogrammetry, Remote Sensing and Spatial

Information Sciences, Volume II-2/W1.

Krüger, A., Kolbe, T., 2012. Building Analysis for urban

energy planning using key indicators on virtual 3D

city models - The energy atlas of Berlin. International

Archives of the Photogrammetry, Remote Sensing and

Spatial Information Sciences, Volume XXXIX-B2.

Loga, T., 2010. Use of Building Typologies for Energy

Performance Assessment of National Building Stocks:

Existent Experiences in European Countries and

Common Approach. IWU, 2010.

Marrin, C., 2011. WebGL specification. Khronos WebGL

Working Group.

Nouvel, R., et al., 2013. CityGML-based 3D city model for

energy diagnostics and urban energy policy support.

Proceedings of BS2013, 13th Conference of

International Building Performance Simulation

Association, Chambéry, France.

Stadler, A., et al., 2009. Making interoperability

persistent: A 3D geo database based on CityGML.

Geo-Information Sciences, Springer, p. 175-192.

Washburn, D., Sindhu, U., 2009. Helping CIOs

Understand “Smart City” Initiatives. Report by

Forrester Research, Inc.

Wilson, T., 2008. OGC® KML. OGC Encoding Standard,

Version 2.0.

Large-ScaleAssessmentandVisualizationoftheEnergyPerformanceofBuildingswithEcomaps-ProjectSUNSHINE:

SmartUrbanServicesforHigherEnergyEfficiency

177
