Modelling Microservices in Email-marketing
Concepts, Implementation and Experiences
Martin E. Brüggemann, Raoul Vallon, Aykut Parlak and Thomas Grechenig
Research Group for Industrial Software, Vienna University of Technology, Wiedner Hauptstr. 76, 1040 Vienna, Austria
Keywords: MDE, Model-Driven Engineering, Enterprise Modelling, Microservices, Email-Marketing, BPMN.
Abstract: Our experience with email-based marketing campaigns (or short: “Microservices”) showed that they are an
intersecting set of a) projects and processes and b) technology and creativity. Their properties of fixed due
date, fixed scope and at the same time fixed duration render classical management methodologies
unfeasible. The same applies to the supporting enterprise infrastructure architecture, where ad-hoc changes
lead to a loss of stability and performance. The remedy was found in Model-Driven Engineering; a
choreography for Microservices helped to indicate improvement opportunities for both the architecture and
the information flow within, which in turn increased throughput.
1 THE CONCEPTS OF EMAIL
MARKETING AND
MICROSERVICES
The branch of email-based marketing services, or
short, “eMarketing”, is characterized by rather low
market entry barriers, since the product “email” does
not show enough technical complexity to allow for
sufficient differentiation. The resulting wide array of
competitors led to a steady decline in prices, which
is why for several years now, leading eMarketing
providers diversify and render ever more customized
and ever more complex services to their customers.
To avoid a competition for price leadership with
unknown outcome, eMarketing providers currently
move away from technically-aligned providers of
specialized software for sending email campaigns,
towards agencies for full-service marketing
campaign creation: from idea to text production to
translation and evaluation of feedback.
The challenge in this transformation from
software providers towards full-service agencies lies
in the fact that constraints are more than ever
externally defined, with only a narrow margin to
adapt to changes. In a controlled environment
(PRINCE2, 2009), a set of requirements is used to
develop detailed specifications and subsequently a
project plan. The plan is then executed within the
constraint triple of time/scope/resources. Every
change to one of the parameters can easily be
compensated by the other two. The challenge after
the aforementioned transformation and the major
problem in eMarketing today is that now all three
constraints are defined by customers and partners,
resulting in an enormous pressure to further shorten
lead times. Lead times of individual eMarketing
campaigns currently average 4-8 working days – a
time span in which the entire workflow is run; from
requirements analysis to implementation, to testing
and deployment.
In contrast, the typical iteration length in Agile
approaches is 10-20 working days, which is too long
in the field of eMarketing and the associated
campaign management.
One could argue that these are not stand-alone
projects, but rather individual artefacts in a parent
process. This is not the case, since an eMarketing
campaign is "[...] a targeted, one-time venture,
which consists of a set of coordinated, controlled
activities with start and end dates [...]”, which is
exactly the definition of a project from PMI (2004).
Well-documented Lean approaches (Anderson,
2010; Knieberg, 2010; Ladas, 2008) are based on the
assumption that development follows one underlying
process, with discrete process steps, all of which
repeatable. Thus, by definition, they describe
multiple tasks of a single project, contrary to the
requirements outlined above.
Program management (Hanford, 2004; Larman,
2009) shares some resemblance with management of
eMarketing campaigns – both disciplines coordinate
67
Brüggemann M., Vallon R., Parlak A. and Grechenig T..
Modelling Microservices in Email-marketing - Concepts, Implementation and Experiences.
DOI: 10.5220/0005000800670071
In Proceedings of the 9th International Conference on Software Paradigm Trends (ICSOFT-PT-2014), pages 67-71
ISBN: 978-989-758-037-6
Copyright
c
2014 SCITEPRESS (Science and Technology Publications, Lda.)
multiple projects. With eMarketing campaigns
however, the frequency is much higher than with
traditional projects, with their lead time of days,
rather than weeks or months.
At the same time, following the definition in
(Krafzig, 2004), a Service is a self-contained unit of
functionality, built around the principle of separation
of concerns.
Since there are no two identical campaigns, each
is created individually, and dozens of individual
campaigns are required to accomplish a marketing
goal (the service), every individual campaign is
merely a “Microservice”, a term proposed by the
authors to reflect the semi-project/semi-service
properties.
The authors described an environment of intense
competition and cost pressure, resulting in the need
to reduce lead times and the desire to offer a
multitude of products, features and services. This
balancing act of “citius altius fortius” can only be
solved by massive component reuse and by
uncompromising automation of processes – but how
can this best be accomplished?
Due to the strong parallels between software and
Microservices, namely intangible output and high
degree of creativity, we intend to apply software
design approaches in this context. Therefore, the aim
of this paper is to use Model-Driven Engineering
(MDE) (DSouza, 2001) to indicate improvement
opportunities for both the architecture and the
information flow within. Therefore, we aim to
develop a process model which enables fitting the
entire value stream of a Microservice from planning,
design, implementation to testing into an average
lead time of 4-8 working days. This process model
would have to allow for multiple Microservices to
be processed in parallel, in a continuous flow of
work packages, each of which with minimal scope.
The benefit of applying MDE in this context is to be
verified by an increase of throughput (measured in
Microservices completed per period of time).
This leads us to formulating the research
questions below:
RQ1. What is an optimal approach to model
Microservices and their interaction?
RQ2. (based on RQ1): Applying MDE, would
modelling of Microservices lead to identification of
improvement opportunities?
2 METHODOLOGICAL
APPROACH
The data for this exploratory case study was
provided by an eMarketing provider based in
Vienna, Austria, with about 400 employees
worldwide. Data was analyzed for only the
department that was scope of the modelling
approach described in the course of this paper. That
department is located in Berlin, Germany, ensuring
that the authors were neutral observers. Since data
for the baseline (Section 2.1) could only be provided
for 9 subsequent months, this was selected as the
observation period.
In order to tackle the above research questions,
the following methodological approach is pursued:
After defining a baseline and measuring the
status quo, we are approaching the first research
question in Chapter 3.
The identified modelling approach is then
applied to the workflows within the department
selected for this case study (Chapter 4); the intended
outcome being a full business process choreography.
In order to be fully usable, this choreography is to be
embedded into the existing enterprise architecture.
In order to validate or falsify RQ2, again data from
nine months is collected and compared to the prior
baseline (Chapter 5).
2.1 Establishing a Baseline
In order to allow for resource planning and –
allocation, a constant load would be ideal. Figure 1
however shows the oscillating resource load or, in
other words, shows how resources are alternating
between being overloaded and idling, which in turn
might lead to employee burnout (Maslach, 2001).

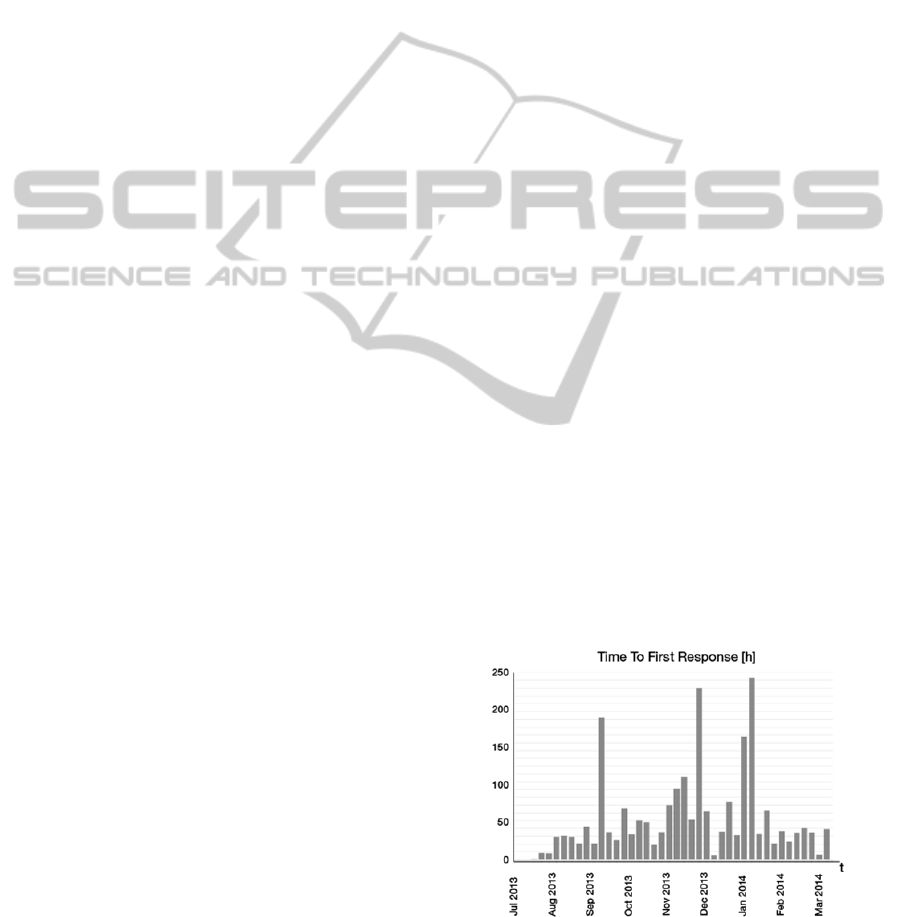

Figure 1: Oscillating resource load, plotted over 270 days.
ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends
68

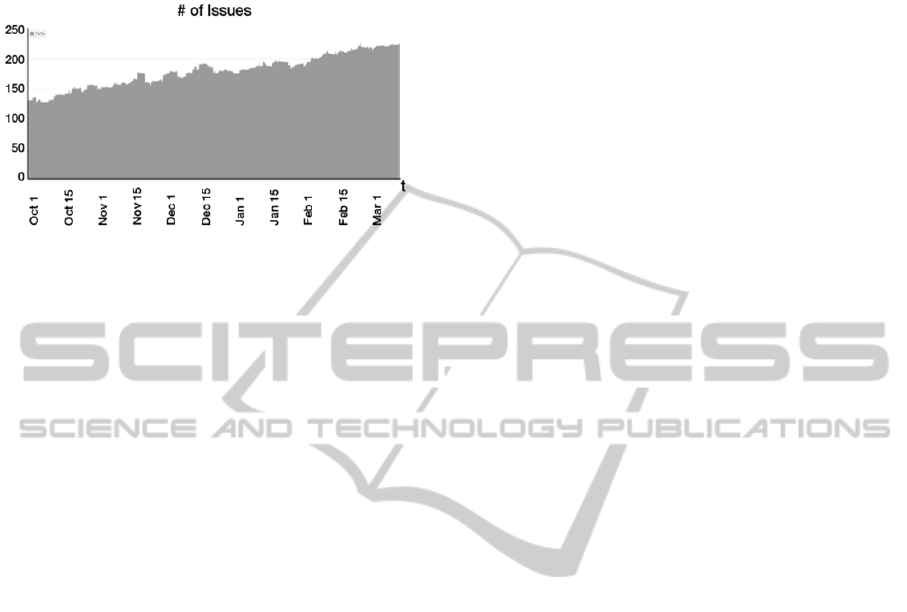

The impact of such a lack of resources is shown
in Figure 2, which plots backlog growth over a
period of nine months.
Figure 2: High resource load leads to growing backlog.
2.2 Intended Outcome
To a marketer it comes rather natural to strive for a
multitude of offers, with the upper limit set only by
the number of customers, which leads to further
complexity of the existing infrastructure.
Such an approach is almost impossible for a
system architect to work with, as without proper
planning the resulting "universal" platform will
simply offer low stability and mediocre performance
at best.
To tackle the described challenges, a team of
system engineers and system architects was soon
able to isolate two solutions as the ones to be most
promising:
(i) A stop was to be put to ad-hoc customizations
and changes, which would be a culture change in
itself. All too often, these little tools and scripts are
not only poorly documented, but are also
implemented under severe time pressure. The
customer has already been billed, but the costs of
side effects and symptoms are occurring elsewhere
in the infrastructure and can rarely be measured - so
the ROI calculation is distorted. The ad-hoc
approach of engineering was to be replaced by
MDE, using high-level models to find improvement
opportunities in both productivity and quality.
(ii) Secondly, in order to deliver solutions faster
in the future, it was obvious that the ability to reuse
whole system components (not just pieces of
software) had to be improved. This way, marketing
and sales teams can both have their will, and every
customer indeed receives a different product, but
always one made of existing building blocks, never
made from scratch.
The combination of the aforementioned solutions
would allow for advancement of the existing
architecture towards a true Enterprise Service Bus
(ESB) (Menge, 2007). From the beginning, this
architecture was designed to be applicable not only
to the software aspects of the business, but end-to-
end, from project controlling to procurement, to
feature deployment and billing. The initiative was
built around an idea from Arsanjani (2004), which
was ideally suited to combining computational and
human resources in one infrastructure.
The described set of solutions gives the
impression to be straightforward and easy to
implement. However, the envisioned goal comes
with its own challenges:
Doing away with ad-hoc customizations reduces
revenue in the short term. It requires a great deal of
management support to say “no” to a customer’s
request due to the infrastructure currently being
refactored.
3 MODELLING FOR
MICROSERVICES
In order to approach RQ1, a modelling approach for
the context of Microservices had to be identified.
Methods for modelling large software systems are
well described and widespread (Arsanjani, 2004;
Benguria, 2007; Dsouza, 2001). The first impulse
was to treat products, features etc. as discrete
objects, and consequently use Object Oriented
Modelling (OOM) approaches. However, OOM
approaches have been developed for the modelling
and construction of individual large software
systems, not for modelling the communication
between and the interaction of multiple system
components. See (Lee, 2012) for an overview of
OOM shortcomings.
The same holds true for the modelling of
business processes:
Using BPMN (ISO/IEC, 2013), it is possible to
model a business process or a choreography of
multiple processes. BPMN models can be checked
for validity, but just as was mentioned in the
previous section, there are no means for “process
discovery”. The great advantage of BPMN,
however, is that it is easy to learn and is
comprehensible to both technical and non-technical
staff, to both domain experts and laypersons.
For all its advantages it was decided to use
BPMN and to overcome the shortcomings
mentioned by building upon work of Benguria
(2007) and Gietl (2010). The result was that we
found an optimal modelling approach, which
allowed for modelling the individual business
units, departments and also hardware and network
ModellingMicroservicesinEmail-marketing-Concepts,ImplementationandExperiences
69

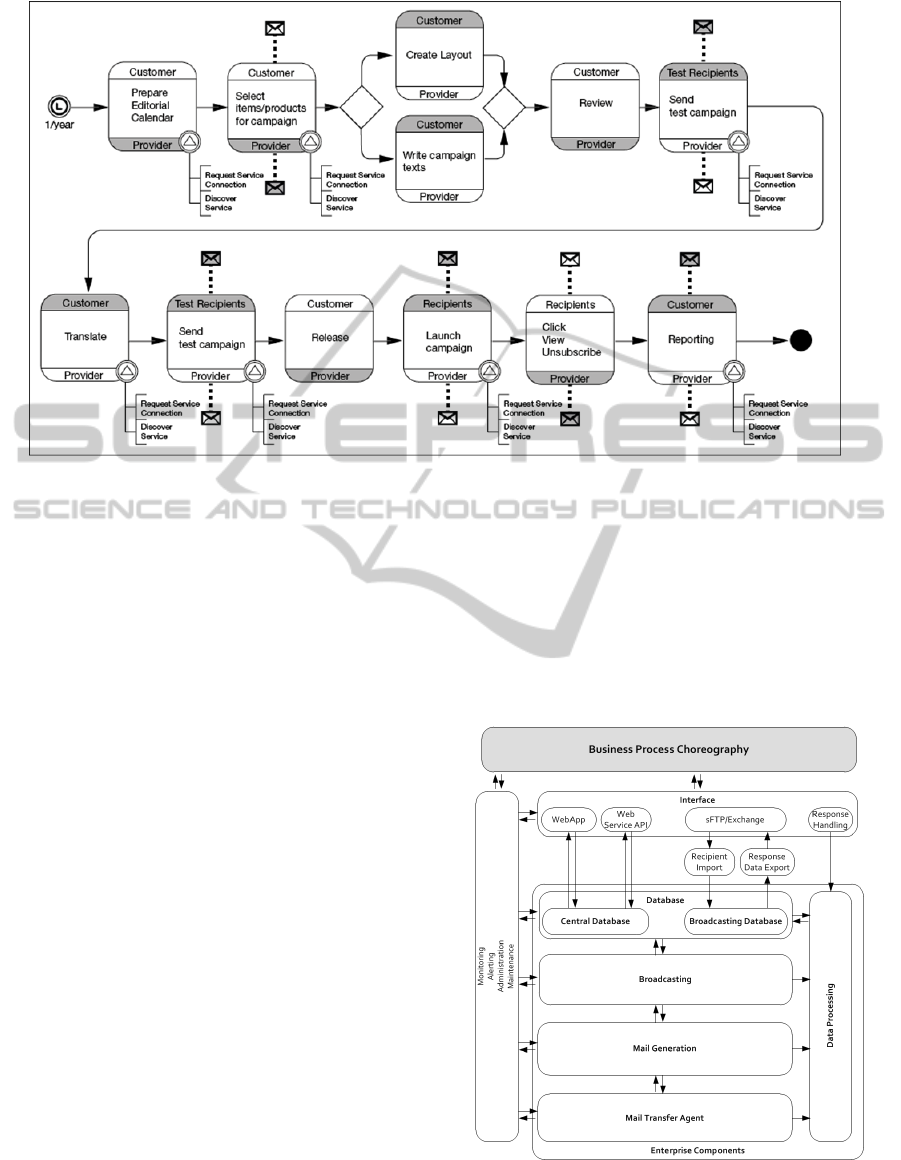

Figure 3: A Choreography for Microservices.
infrastructure within one unified model. All
components were to be autonomous independent
elements, or short, “Services”, that can be described,
discovered and orchestrated (Krafzig, 2004).
Therefore, it was necessary to encapsulate (and
later utilize) non-computational resources and
provide an interface to the existing infrastructure,
much in the same fashion as Amazon Inc.
demonstrated with their “Mechanical Turk”
(Berinsky, 2012; Paolacci, 2010).
Encapsulation of human processing steps and
linking them to an ESB would allow for an optimal
scalability and also load balancing.
The modelling approach thus identified will now
be used to verify our RQ2, namely if the application
of MDE in this context of Microservices would lead
to the identification of improvement opportunities.
4 TOWARDS A TRUE
MICROSERVICES
ECOSYSTEM
In a first step, the process chain was modelled from
initial customer request to implementation and
quality assurance, with strong focus on the message
flow and the sequence of messages being passed. In
order to do so, a department was selected for
modelling whose process steps incorporated the
highest level of uncertainty, but at the same time
showed the highest costs – resulting in the highest
potential for optimization.
The result can be seen in Figure 3. The reader
might recognize the strong resemblance to BPMN
choreographies, but note the additional elements to
allow for service description and –discovery.
Furthermore, the choreography depicted in
Figure 3 is embedded into the overall enterprise
architecture. Figure 4 shows the architecture as a
layer model – note the embedded choreography at
the top.
Figure 4: Enterprise architecture (layer model).
Microservice choreography to the top, human processing
steps shown to the left, all other: computational processing
steps.
ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends
70
5 EXPERIENCES AND
CONCLUSIONS
The benefits of this approach could be seen
instantly: not only have areas for automation and
streamlining been identified, but entirely new
business models, where the resources freed up by the
optimization efforts could be put to proper use. A
streamlined information flow resulted in an
increased output, as Figure 5 depicts. The slope of
the backlog growth curve is now negative:

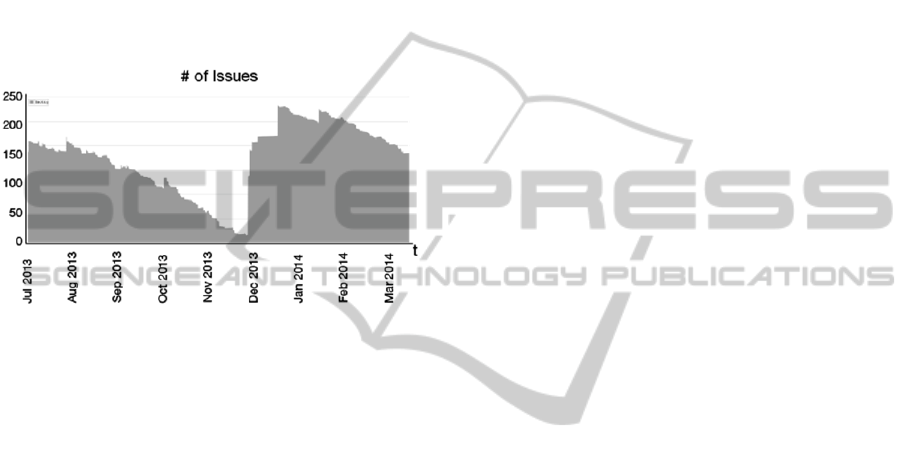

Figure 5: Reduction of backlog request volume due to
increased throughput. Note the backlog increase due to
new requests being added at the start of new year,
resulting in a non-continuous curve.
Encouraged by the positive results showed by
our new approach of using MDE in the context of
Microservices, the authors are planning to carry out
subsequent studies with an increased scope.
We are considering to extend the application of
MDE in areas that have similar properties and
challenges and incorporate their processes into the
existing choreography. This area of application lies
on the ingress side of our model and is formed by
internal and external suppliers. Examples would be
the processes for text creation, localization, graphic
creation and combinations thereof.
We consider measuring such a comprehensive
modelling and validating any synergy effects from
future work.
REFERENCES
Andersen, D.J. 2010. Kanban: Successful Evolutionary
Change for Your Technology Business, Blue Hole
Press, 2010.
Arsanjani, A. 2004. Service-oriented modeling and
architecture. https://www.ibm.com/developerworks/
library/ws-soa-design1/
Benguria, G. et al. 2007. A Platform Independent Model
for Service Oriented Architectures. Enterprise
Interoperability, 2007, pp23-32
Berinsky, A. et al. 2012. Evaluating Online Labor Markets
for Experimental Research: Amazon.com's
Mechanical Turk. Political Analysis, 2012
DSouza, D 2001. Model-Driven Architecture and
Integration: Opportunities and Challenges. Model-
Driven Architecture and Integration 2001, pp1-32.
Forrester, J. W., 1992. System Dynamics, Systems
Thinking, and Soft OR. System Dynamics Review, Vol
10, No 2.
Gietl, F. et al. 2010. Annotationsbasierte Prozess-
modellierung in SOA – dargestellt an einem Beispiel
aus dem Precision Dairy Farming. GI Jahrestagung,
2010.
Hanford, M.F. 2004. Program Management: Different
from project management. http://www.ibm.com/
developerworks/rational/library/4751-pdf.pdf
ISO/IEC19510 2013. Information technology - Object
Management Group Business Process Model and No-
tation. http://www.iso.org/iso/catalogue_detail.htm?
csnumber=62652
Knieberg, H., Skarin, M. 2010. Kanban and Scrum:
Making the Most of Both, C4Media, 2010.
Krafzig, D. et al. 2004. Enterprise SOA: Service-Oriented
Architecture Best Practices, Prentice Hall, 2004.
Ladas, C. 2008. Scrumban: Essays on Kanban Systems for
Lean Software Development, Modus Cooperandi
Press, 2008.
Larman, C., Vodde, B. 2009. Scaling Lean&Agile
Development. Thinking and Organizational Tools for
Large-Scale Scrum, Addison-Wesley, 2009.
Lee, S.-H., Yoo, H. 2012, Requirement Analysis for
Aspect-Oriented System Development, Lecture Notes
in Electrical Engineering, Vol. 215, pp 1201-1209,
2013.
Maslach, C. et al., 2001. Job Burnout. Annual Review of
Psychology, Vol. 52, pp397-422, 2001.
Menge, F. 2007. Enterprise Service Bus. Proceedings of
Free and Open Source Software Conference, 2007,
pp1-6.
Paolacci, G et al. 2010. Running Experiments on Amazon
Mechanical Turk. Judgment and Decision Making,
2010.
PMI Project Management Institute 2004. A Guide to the
Project Management Body of Knowledge (PMBOK)
3rd ed., pp5-6.
PRINCE2 2009: Managing Successful Projects with
PRINCE2, Axelos, 2009.
ModellingMicroservicesinEmail-marketing-Concepts,ImplementationandExperiences
71
