Aspect-oriented Requirements Engineering with Problem Frames

Stephan Faßbender, Maritta Heisel and Rene Meis

paluno - The Ruhr Institute for Software Technology, University of Duisburg-Essen, Duisburg, Germany

Keywords:

Early Aspect, Problem Frames, Requirements Engineering.

Abstract:

Nowadays, the requirements of various stakeholders for a system do not only increase the complexity of the

system-to-be, but also contain different cross-cutting concerns. In such a situation, requirements engineers

are really challenged to master the complexity and to deliver a coherent and complete description of the

system-to-be. Hence, they are in need for methods which reduce the complexity, handle functional and quality

requirements, check completeness and reveal interactions, and are tool supported to lower the effort. One

possible option to handle the complexity of a system-to-be is the separation of concerns. Both, aspect-oriented

requirements engineering and the problem frames approach implement this principle. Therefore, we pro-

pose a combination of both, the AORE4PF (Aspect-Oriented Requirements Engineering for Problem Frames)

method. AORE4PF provides guidance for classifying requirements, separating the different concerns, mod-

eling requirements for documentation and application of completeness and interaction analyses, and weaving

the reusable parts to a complete and coherent system. AORE4PF provides tool support for most activities. We

exemplify our method using a smart grid case obtained from the NESSoS project. For validation, the results

of a small experiment in the ﬁeld of crisis management systems are presented.

1 INTRODUCTION

Keeping an eye on good and sufﬁcient require-

ments engineering is a long-known success fac-

tor for software projects and the resulting software

products (Hofmann and Lehner, 2001). Nonethe-

less, larger software incidents are regularly reported,

which originate in careless dealing with, for exam-

ple, security requirements. Beside reputation damage,

loss of market value and share, and costs for legal

infringement (Cavusoglu et al., 2004; Khansa et al.,

2012), ﬁxing defects that caused the incident is costly.

Fixing a defect when it is already ﬁelded is reported to

be up to eighty times more expensive than ﬁxing the

corresponding requirements defects early on (Boehm

and Papaccio, 1988; Willis, 1998). Therefore, it is

crucial for requirements engineers to identify, ana-

lyze, and describe all requirements and related quality

concerns. But eliciting good requirements is not an

easy task (Firesmith, 2003), even more when consid-

ering complex systems.

Nowadays, for almost every software system, var-

ious stakeholders with diverse interests exist. These

interests give rise to different sets of requirements.

These diverse requirements not only increase the

complexity of the system-to-be, but also contain dif-

ferent cross-cutting concerns, such as qualities, which

are desired by the stakeholders. In such a situation,

the requirements engineer is really challenged to mas-

ter the complexity and to deliver a coherent and com-

plete description of the system-to-be.

One possible option to handle the complexity of

a system-to-be is the concept of separation of con-

cerns (Parnas, 1972). In its most general form, the

separation of concerns principle refers to the ability

to focus on, and analyze or change only those parts

of a system which are relevant for one speciﬁc prob-

lem. The main beneﬁts of this principle are a re-

duced complexity, improved comprehensibility, and

improved reusability (Parnas, 1972).

Both, aspect-oriented requirements engineering

and the problem frame approach implement this prin-

ciple, but for different reasons. The approach of

AORE (aspect-oriented requirements engineering),

which originates from aspect-oriented programming,

is to separate each cross-cutting requirement into an

aspect. Instead of integrating and solving the cross-

cutting requirement for all requirements it cross-cuts,

the aspect is solved in isolation. Hence, aspect-

orientation leads to a clear separation of concerns. To

combine an aspect with a requirement, an aspect de-

ﬁnes a pointcut (set of join points), which describes

145

Faßbender S., Heisel M. and Meis R..

Aspect-oriented Requirements Engineering with Problem Frames.

DOI: 10.5220/0005001801450156

In Proceedings of the 9th International Conference on Software Paradigm Trends (ICSOFT-PT-2014), pages 145-156

ISBN: 978-989-758-037-6

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

how the aspect and a requirement can be combined.

The problem frames approach (Jackson, 2001) gen-

erally also follows the separation of concerns princi-

ple. It decomposes the overall problem of building

the system-to-be into small sub-problems that ﬁt to

a problem frame. Each sub-problem is solved by a

machine, which has to be speciﬁed using the given

domain knowledge. All machines have to be com-

posed to form the overall machine. We will show that

aspect-orientation gives guidance for the process of

decomposing the overall problem and especially for

the composition of the machines. As both ways of

separating concerns seem to be complementary, it is

promising to combine both. Hence, we propose the

AORE4PF (Aspect-Oriented Requirements Engineer-

ing for Problem Frames) method that provides guid-

ance for classifying requirements, separating the dif-

ferent concerns, modeling requirements for documen-

tation and application of completeness and interaction

analyses, and weaving the reusable parts to a com-

plete and coherent system. Furthermore, AORE4PF

provides tool support for most activities.

The rest of the paper is structured as follows. Sec-

tion 2 introduces a smart grid scenario, which is used

as a case study. In Section 3, we brieﬂy introduce

the problem frames approach and UML4PF as back-

ground of this paper. Our method for the integration

of AORE into the problem frames approach is pre-

sented in Section 4. A small experiment for validation

is presented in Section 5. Work related to this paper is

discussed in Section 6. Finally, Section 7 concludes

the paper and presents possible future work.

2 CASE STUDY

To illustrate the application of the AORE4PF method,

we use the real-life case study of smart grids. As

sources for real functional requirements, we consider

diverse documents such as “Application Case Study:

Smart Grid” provided by the industrial partners of

the EU project NESSoS

, the “Protection Proﬁle for

the Gateway of a Smart Metering System” (Kreutz-

mann et al., 2011) provided by the German Fed-

eral Ofﬁce for Information Security

, and “Require-

ments of AMI (Advanced Multi-metering Infrastruc-

ture”) (OPEN meter project, 2009) provided by the

EU project OPEN meter

We deﬁne the terms speciﬁc to the smart grid do-

main and our use case in the following. The smart

http://www.nessos-project.eu/

www.bsi.bund.de

http://www.openmeter.com/

meter gateway represents the central communication

unit in a smart metering system. It is responsible for

collecting, processing, storing, and communicating

meter data. The meter data refers to readings mea-

sured by smart meters regarding consumption or pro-

duction of a certain commodity. A smart meter rep-

resents the device that measures the consumption or

production of a certain commodity and sends it to the

gateway. An authorized external entity can be a hu-

man or an IT unit that communicates with the gateway

from outside the gateway boundaries through a wide

area network (WAN). The WAN provides the commu-

nication network that interconnects the gateway with

the outside world. The LMN (local metrological net-

work) provides the communication network between

the meter and the gateway. The HAN (home area net-

work) provides the communication network between

the consumer and the gateway. The term consumer

refers to end users of commodities (e.g., electricity).

For the rest of the paper, we have chosen a small

selection of requirements to exemplify our method.

These requirements are part of the 13 minimum

use cases deﬁned for a smart meter gateway given

in the documents of NESSoS and the open meter

project. The considered use cases are concerned with

gathering, processing, and storing meter readings

from smart meters for the billing process. The

requirements are described as follows:

(R1) Receive Meter Data. The smart meter gateway

shall receive meter data from smart meters.

(R17) New Firmware. The gateway should accept a

new ﬁrmware from authorized external entities. The

gate shall log the event of successful veriﬁcation of a

new version of the ﬁrmware.

(R18) Activate New Firmware. On a predetermined

date the gateway executes the ﬁrmware update. The

gateway shall log the event of deploying a new

version of the ﬁrmware.

(R28) Prevent Eavesdropping. The Gateway should

provide functionality to prevent eavesdropping. The

gateway must be capable of encrypting communi-

cations and data by the safest and best encryption

mechanisms possible.

(R29) Privacy and Legislation. Many countries pro-

tect customers’ and people’s rights by laws, to ensure

that personal and conﬁdential information will not

be disclosed easily within communicating systems.

Grid systems shall not be a way to reveal information.

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends

146

Description

Informal

Requirements

Base

Diagrams

Problem

Base

Specifications

Problem

Base

Requirements

Quality

Relations

Cross−Cut

Preliminary

Requirements

Aspect

Preliminary

Requirements

Quality

Preliminary

Aspect

Requirements

Relations

Cross−Cut

Specifications

Problem

Weaved

Relations

Weaving

Diagrams

Problem

Aspect

Consolidated

Diagrams

Problem

Base

Consolidated

Specifications

Problem

Weaved

Consolidated

Relations

Weaving

Consolidated

Specifications

Problem

Aspect

Diagrams

Problem

Aspect

Document

Requirements

Classify

Requirements

Base

Model

Qualities

Underlying

Identify

Analyse

Completeness

Requirements

Aspect

Model

Weave

Requirements

output

input /

output

input /

information flow control flow

Activity

generated automatically

generated semi−automatically

Analyze

Interactions

process

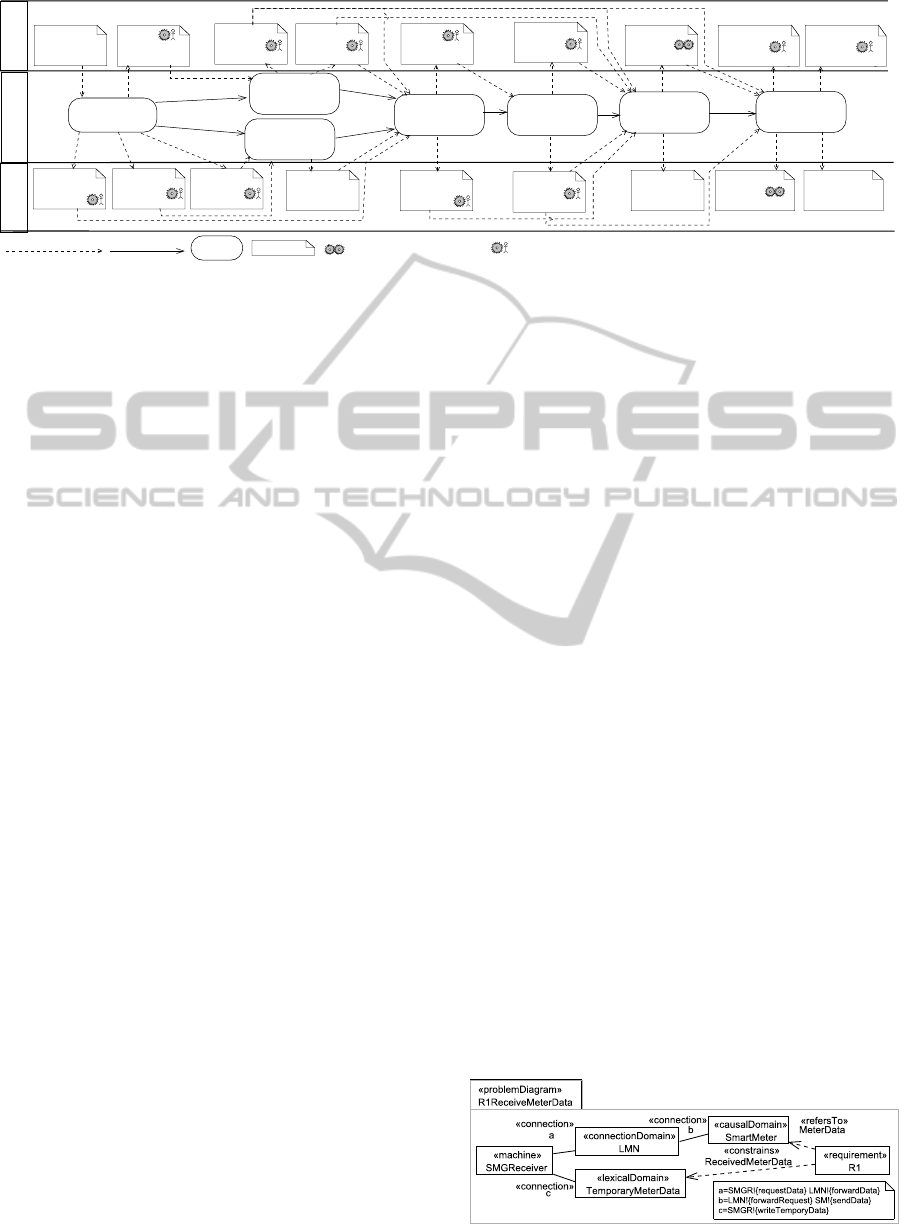

Figure 1: The AORE4PF method.

3 UML-BASED PROBLEM

FRAMES

Problem frames are a means to describe software de-

velopment problems. They were proposed by Jack-

son (Jackson, 2001), who describes them as follows:

“A problem frame is a kind of pattern. It deﬁnes an

intuitively identiﬁable problem class in terms of its

context and the characteristics of its domains, inter-

faces and requirement.” It is described by a frame

diagram, which consists of domains, interfaces be-

tween domains, and a requirement. We describe prob-

lem frames using UML class diagrams extended by

stereotypes as proposed by Hatebur and Heisel (Hate-

bur and Heisel, 2010). All elements of a problem

frame diagram act as placeholders, which must be in-

stantiated to represent concrete problems. Doing so,

one obtains a problem diagram that belongs to a spe-

ciﬁc class of problems.

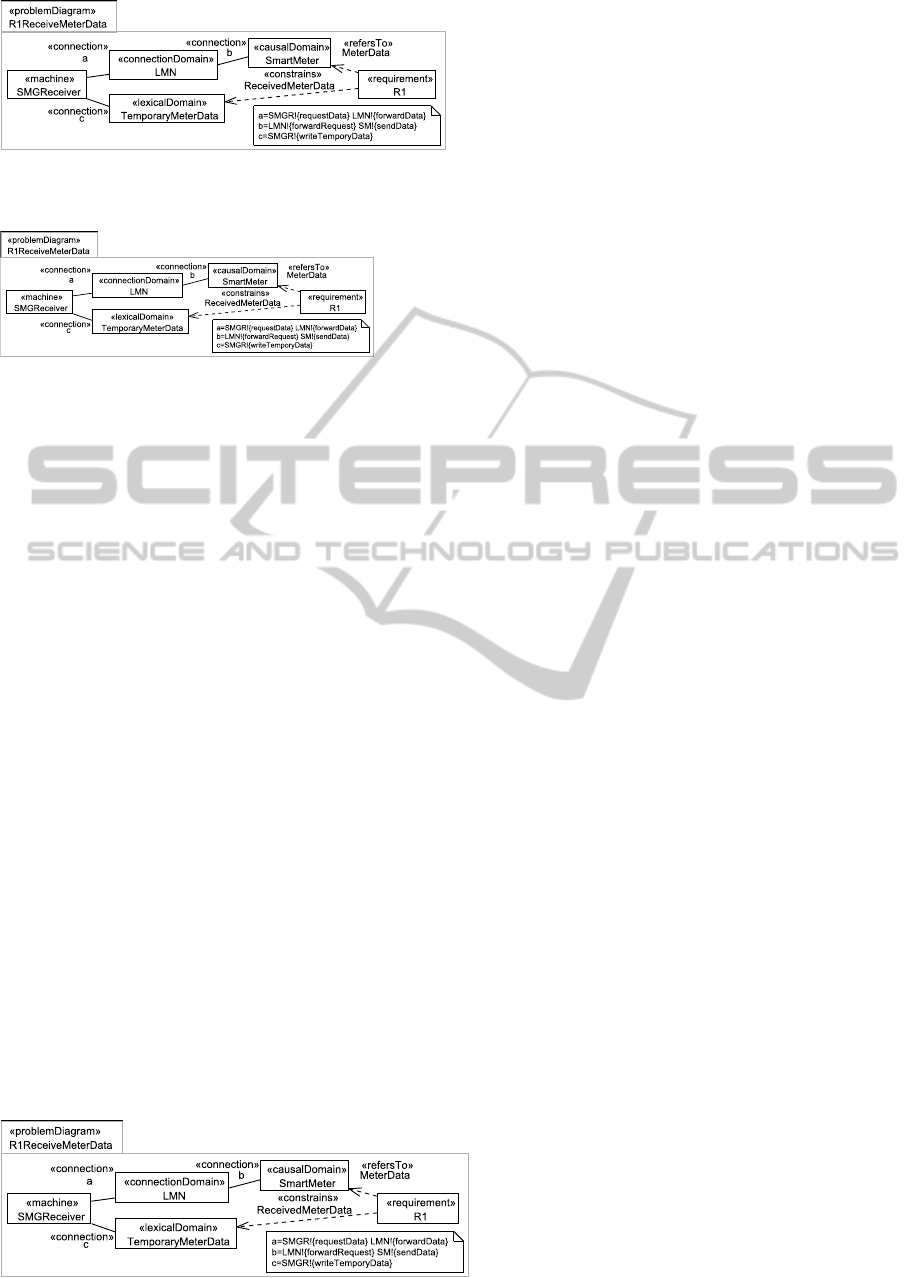

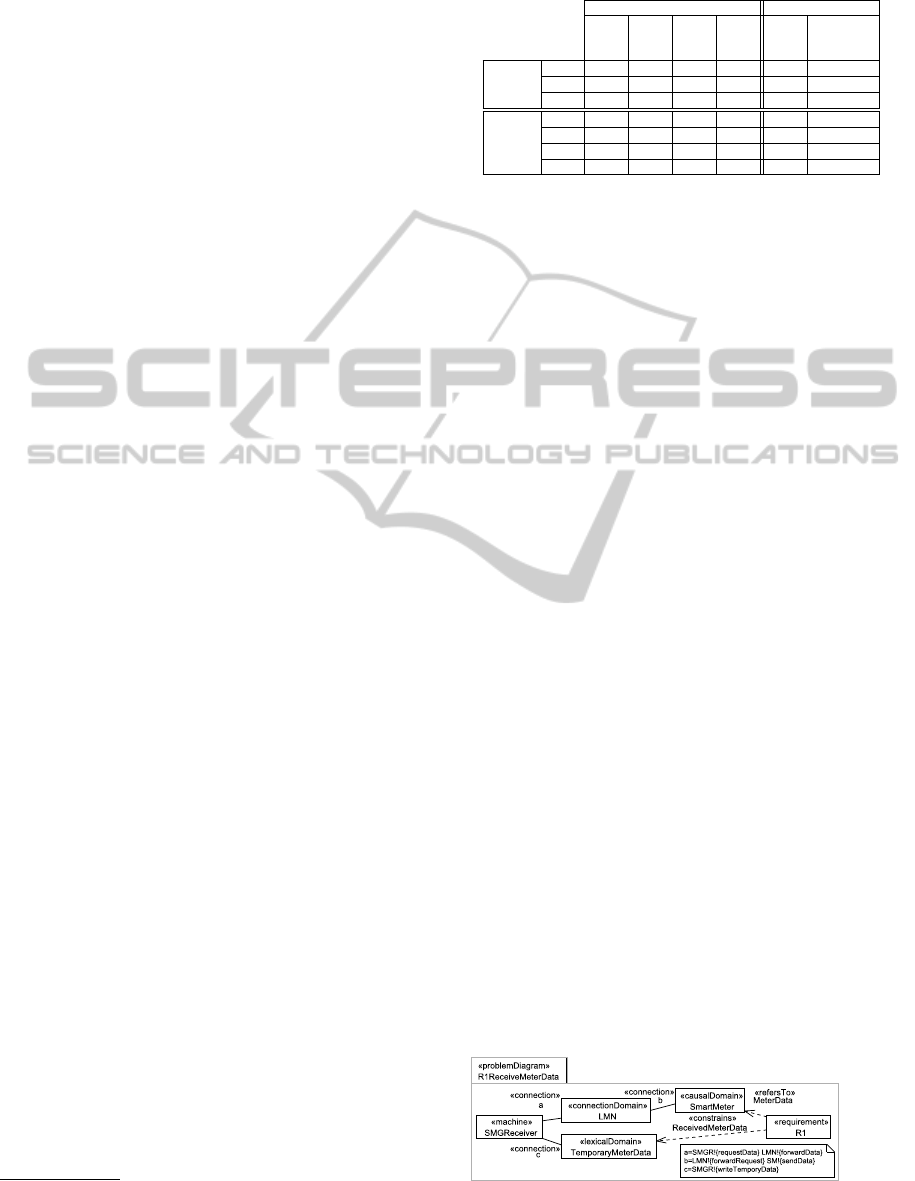

Figure 2 shows a problem diagram in UML no-

tation. The class with the stereotype machine

represents the thing to be developed (e.g., the soft-

ware). The classes with some domain stereotypes,

e.g., causalDomain or lexicalDomain represent

problem domains that already exist in the applica-

tion environment. Jackson distinguishes the domain

types causal domains that comply with some physi-

cal laws, lexical domains that are data representations,

biddable domains that are usually people, and con-

nection domains that mediate between domains.

Domains are connected by interfaces consisting

of shared phenomena. Shared phenomena may be

events, operation calls, messages, and the like. They

are observable by all connected domains, but con-

trolled by only one domain, as indicated by an ex-

clamation mark. For example, in Figure 2 the nota-

tion LMN!{forwardData} means that the phenomenon in

the set {forwardData} is controlled by the domain LMN

and observable by the machine domain SMGReceiver,

which is connected to it. These interfaces are rep-

resented as associations, and the name of the associ-

ations contain the phenomena and the domains con-

trolling the phenomena.

In Figure 2, the lexical domain TemporaryMeterData

is constrained and the SmartMeter is referred to, be-

cause the machine SMGReceiver has the role to request

meter data from the SmartMeter and store the response

as TemporaryMeterData for satisfying requirement R1.

These relationships are modeled using dependencies

that are annotated with the corresponding stereotypes.

The full description for Figure 2 is as follows:

The causal domain SmartMeter controls the sendData

command, which is forwarded by the LMN and ﬁnally

observed by the machine domain SMGReceiver. The

SMGReceiver controls the phenomenon writeTemporary-

Data, which stores the received information in the

lexical domain TemporaryMeterData. Additionally, the

SMGReceiver can requestData which is forwarded by

the LMN to the SmartMeter. The connection domain

LMN forwards the data and requests it observes. The re-

quirement R1 constrains the TemporaryMeterData and

refers to the SmartMeter.

Software development with problem frames pro-

ceeds as follows: ﬁrst, the environment in which the

machine will operate is represented by a context di-

agram. Like a problem diagram, a context diagram

consists of domains and interfaces. However, a con-

text diagram contains no requirements. Then, the

problem is decomposed into subproblems. If ever

possible, the decomposition is done in such a way that

Figure 2: Problem Diagram R1: Receive Meter Data.

Aspect-orientedRequirementsEngineeringwithProblemFrames

147

the subproblems ﬁt to given problem frames. To ﬁt

a subproblem to a problem frame, one must instan-

tiate its frame diagram, i.e., provide instances for its

domains, phenomena, and interfaces. The UML4PF

framework provides tool support for this approach. A

more detailed description can be found in (C

e et al.,

2011).

4 METHOD

An illustration of our method is given in Figure 1.

The initial input for our method is a textual infor-

mal description of the requirements the system-to-be

shall fulﬁll. These requirements are classiﬁed into

preliminary aspect requirements (or short aspects),

which are functional and cross-cutting, preliminary

quality requirements (or short qualities), which are

non-functional and cross-cutting, and base require-

ments (or short bases), which are not cross-cutting.

Additionally, the relations between requirements and

aspects or qualities are documented as preliminary

cross-cut relations. Then all identiﬁed base require-

ments are modeled following the problem frames ap-

proach introduced in Section 3, such that for each

base requirement a base problem diagram is created.

Additionally, we create a sequence diagram for each

problem diagram. The sequence diagrams serve as a

base problem speciﬁcation. To prepare the complete-

ness analysis, we identify for all preliminary aspect

requirements the underlying qualities they address.

The already known preliminary quality requirements

can aid the identiﬁcation. As a result, we get a set of

quality requirements. Based on the identiﬁed quality

and base requirements, we can analyze whether there

is a cross-cut relation between a quality requirement

and a base requirement not discovered yet. Thus, we

analyze the completeness of the preliminary cross-

cut relations and update them if necessary. The re-

sults are a set of cross-cut relations and also updated

aspect requirements. Next, the aspect requirements

are modeled in a similar way as requirements using

specialized problem diagrams, called aspect problem

diagrams. Again, we specify the machine behav-

ior using sequence diagrams, which results in aspect

problem speciﬁcations. For the next step, weave re-

quirements, the base problem speciﬁcations and as-

pect problem speciﬁcations are weaved to fulﬁll the

base and aspect requirements as deﬁned by the base

problem diagrams and aspect problem diagrams. For

the weaving, we have to accomplish two activities.

First, we deﬁne the weaving relations. These relations

reﬁne the cross-cut relations. Then, we can automat-

ically generate for each requirement a weaved prob-

lem speciﬁcation representing the weaved system be-

havior. Last, we have to analyze the base and aspect

problem diagrams for unwanted interactions, such as

conﬂicts. The weaving relations and the weaved prob-

lem speciﬁcations can support this activity. The re-

sults of this step are consolidated base and aspect

problem diagrams as well as consolidated weaving

relations and problem speciﬁcations. We will discuss

all steps of our method in detail in the following sec-

tions.

4.1 Classify Requirements

As a ﬁrst step, we have to identify and analyze the

requirements contained in the informal description.

We have to separate and classify these requirements

as they will be treated differently afterwards. A re-

quirement can be 1) a base, which is functional and

not cross-cutting, 2) an aspect, which is functional

and cross-cutting, and 3) a quality, which is non-

functional and cross-cutting. Note that we see quality

requirements as requirements, which are not opera-

tionalized to an aspect right now. Hence, there is a

clear relation between qualities and aspects, and we

will later on reﬁne qualities to aspects. Normally,

statements in an informal description are not given

that clear-cut as given by the three discussed classes

of requirements. Hence, one can ﬁnd requirements

mixing different classes, for example, aspects are al-

ready combined with the corresponding bases or qual-

ities are mentioned in the according bases. In con-

sequence, identifying statements which constitute re-

quirements is only half of the job, but also a separa-

tion of mixed requirements has to be performed.

First, we separate functional and quality require-

ments. A tool like OntRep (Moser et al., 2011) can

support the requirements engineer in this step. This

way we identify R29 as requirement containing two

quality requirements (R29A and R29B) and R28 con-

taining one quality (R28A) and one functional require-

ment (R28B):

(R28A) Security. The Gateway should provide func-

tionality to prevent eavesdropping. [. . . ]

(R29A) Privacy. [. . . ] to ensure that personal and

conﬁdential information will not be disclosed easily

within communicating systems. Grid systems shall

not be a way to reveal information.

(R29B) Compliance. Many countries protect cus-

tomers’ and people’s rights by laws, [. . . ]

Thus, we have identiﬁed and separated the prelimi-

nary quality requirements.

Second, we have to analyze the functional require-

ments for aspects and separate them. For this ac-

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends

148

tivity tools like EA-Miner (Sampaio et al., 2007),

Theme/Doc (Baniassad and Clarke, 2004) or REAs-

sistant

can aid the requirements engineer. This way

we identify the following two aspects:

(R28B) Encryption. [. . . ] The gateway must be ca-

pable of encrypting communications and data by the

safest and best encryption mechanisms possible.

(R30) Logging. The gate shall log the occurring im-

portant events.

Note that while eavesdropping is already formulated

as separate aspect, logging is introduced as a new as-

pect that is extracted from R17 and R18 which both

contain the logging aspect:

(R17B) New Firmware: Logging. The gate shall log

the event of successful veriﬁcation of a new version of

the ﬁrmware.

(R18B) Activate New Firmware: Logging. The

gateway shall log the event of deploying a new ver-

sion of the ﬁrmware.

Thus, we have identiﬁed and separated the prelimi-

nary aspect requirements.

The remaining functional requirements form the

base requirements for our system:

(R1) Receive Meter Data. The smart meter gateway

shall receive meter data from smart meters.

(R17A) New Firmware. The gateway should accept

a new ﬁrmware from authorized external entities.

(R18A) Activate New Firmware. On a predeter-

mined date the gateway executes the ﬁrmware update.

We document the relations between the separated

functional, quality, and aspect requirements in a pre-

liminary cross-cut relation table. These relations are

given in Table 1 with crosses in italic. If a require-

ment is separated into a functional requirement (base

or aspect) and a quality, then we add a cross in the

corresponding cell of the table. In Table 1, we doc-

umented that the aspect R28B is related to the quality

R28A. If functional requirements are separated into

base and aspect requirements, then we also add re-

spective crosses. In Table 1, we documented that the

aspect R30 cross-cuts the base requirements R17A and

R18A. Note that everything given in bold is discov-

ered later on in the annotated step (

4.2 Model Base Problems

In this step, we model the functional requirements

identiﬁed in the previous step. For each functional re-

https://code.google.com/p/reassistant/

Table 1: Requirements (Cross-Cut) Relation Table for the

Smart Grid Scenario.

Quality Aspect

R28A R29A R29B R31 R28B

R30

(R17B,

R18B)

Base R1

R17A

R18A

Quality R28A

R29A

R29B

R31

quirement, we create a problem diagram as proposed

by the problem frames approach introduced in Sec-

tion 3. For reasons of space, we only show the prob-

lem diagrams for the requirements R1 and R17A, but

these two problem diagrams are sufﬁcient to under-

stand the rest of the paper, even though we use the ﬁve

selected requirements for exemplifying our method.

The problem diagram for R1 is shown in Figure 2 and

explained in Section 3. Figure 3 shows the problem

diagram for R17A. The biddable domain Authorized-

ExternalEntity controls the updateFirmware command,

which is observed by the connection domain WAN.

The SMGFirmwareStorage controls the phenomenon

storeNewFirmware, which is observed by the lexical do-

main FirmwareUpdate. The WAN forwards the ﬁrmware

update it observes. The requirement R17A (for a tex-

tual description see Section 2) constrains the Firmware-

Update and refers to the AuthorizedExternalEntity.

For every problem diagram, we have to provide

a reasoning, called frame concern (Jackson, 2001),

why the speciﬁcation of the submachine together with

the knowledge about the environment (domain knowl-

edge) leads to the satisfaction of the requirement. To

visualize how frame concern is addressed in the spe-

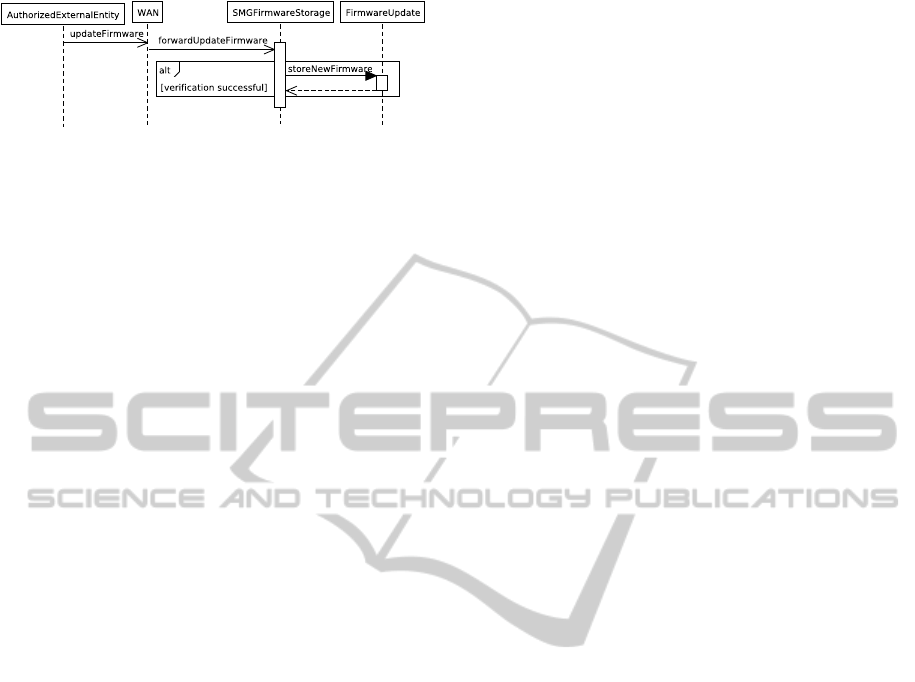

ciﬁc problems, we create at least one sequence dia-

gram for each problem diagram. These sequence dia-

grams describe the speciﬁcation (behavior of the ma-

chine) and the domain knowledge (behavior of the do-

mains) which is necessary to satisfy the requirement.

How to systematically create the sequence diagrams

is out of scope of this paper, but the approach pre-

sented by Jackson and Zave (Jackson and Zave, 1995)

can be used for this task. Figure 4 shows the se-

quence diagram for the sub-problem New Firmware..

The interaction is started by an AuthorizedExternalEn-

tity causing the phenomenon updateFirmware (require-

ment). This request is forwarded via the WAN to

the sub-machine SMGFirmwareStorage (domain knowl-

Figure 3: Problem Diagram R17A : New Firmware.

Aspect-orientedRequirementsEngineeringwithProblemFrames

149

Figure 4: Sequence diagram for R17A.

edge). The sub-machine then performs a veriﬁcation

on the received ﬁrmware update (speciﬁcation). In

the case of a successful veriﬁcation, the new ﬁrmware

is stored in the lexical domain FirmwareUpdate (spec-

iﬁcation). Hence, the gateway accepts new ﬁrmware

from authorized external entities (requirement).

4.3 Identify Underlying Qualities

In order to check whether the cross-cut relation is

complete, we identify for all aspects the software

qualities they address. Note that the relationship be-

tween aspects and qualities is many-to-many. That

is, an aspect can address multiple software qualities.

For example, the logging of system events possibly

addresses the software qualities accountability, trans-

parency, maintainability, performance, and traceabil-

ity. On the other hand, a software quality can be ad-

dressed by multiple aspects, for example, the software

quality conﬁdentiality could be addressed by the fol-

lowing aspects: encryption, authentication and autho-

rization, and data minimization. For the identiﬁcation

of underlying qualities tools such as QAMiner (Rago

et al., 2013) can be used. This way we discover that

in our case the aspect R30 has the underlying quality

maintainability:

(R31) Maintainability. All events which are useful

to trace a malfunction of the gateway shall be logged.

4.4 Analyze Completeness

Based on the identiﬁed qualities, we can re-use

quality-dependent analysis techniques on problem

frames to check the completeness of the cross-cut

relation. For example, for privacy one can use the

ProPAn method (Beckers et al., 2014), the law (iden-

tiﬁcation) pattern method (Faßbender and Heisel,

2013) provides guidance for compliance, security is

covered by the PresSuRE method (Faßbender et al.,

2014), and so forth. These analysis techniques iden-

tify for a given problem frames model and the re-

spective quality in which functional requirements the

quality has to be considered. At this point of our

method, we have all inputs that the analysis tech-

niques need. Using the results of the analysis tech-

niques, we can update the cross-cut relation and check

whether the selected aspects together with the de-

ﬁned cross-cut relation guarantee the intended soft-

ware qualities. In this way, we identify that, for ex-

ample, several qualities are relevant for R1. Privacy

(R29A) is relevant as the consumption data metered

by the smart meters enables one to analyze what the

persons in the household are currently doing. Hence,

the consumption data is an asset which has to be pro-

tected. As result, the security analysis also shows

that the consumption data has to be protected against

eavesdropping (R28A). Maintainability (R31) is also

relevant for R1, as a malfunction can also occur while

receiving consumption data. The compliance anal-

ysis (R29B) reveals and strengthens the importance

of privacy because of different data protection acts.

Additionally, the logging mechanism is not only rel-

evant for maintainability but also for compliance as

several laws require the fulﬁllment of accountability

requirements whenever there is a contractual relation

between different parties. The already existing as-

pect requirements are sufﬁcient to cover the newly

found relations. This information is used to update

the cross-cut relation table (see Table 1).

4.5 Model Aspect Requirements

To model aspect requirements in a similar way

as base requirements, we extended the UML pro-

ﬁle of the UML4PF tool with aspect-oriented con-

cepts. The AORE4PF UML proﬁle is shown in

Figure 5. To differentiate aspect requirements,

the machines that address them, and the diagram

they are represented in, from base requirements

and their machines and diagrams, we introduce

the new stereotypes Aspect, AspectMachine,

and AspectDiagram as specialization of the

stereotypes Requirement, ProblemDiagram, and

Machine, respectively. In addition to problem di-

agrams, an aspect diagram has to contain a set of join

points, which together form a pointcut. These join

points can be domains and interfaces. Hence, we in-

troduced the new stereotype JoinPoint, which can

be applied to all specializations of the UML meta-

class NamedElement. During the weaving, join points

are instantiated with domains of the problem dia-

grams the aspect cross-cuts.

To create an aspect diagram, we have to identify

the join points which are necessary to combine the

aspect with the base problems it cross-cuts and to un-

derstand the problem of building the aspect machine.

In most cases, we have a machine, besides the aspect

machine, as join point in an aspect diagram. This

machine will be instantiated during the weaving with

the machine of the problem diagram that the aspect is

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends

150

Figure 5: AORE4PF UML Proﬁle.

Figure 6: Aspect diagram for aspect requirement R28.

weaved into. The interface between this join point and

the aspect machine describes how a problem machine

can utilize an aspect. We have to deﬁne appropriate

interfaces between the aspect machine and the iden-

tiﬁed join points, so that the aspect can be combined

with all base requirements in a uniform way. Besides

the specialized stereotypes for the machine and the

requirement, and the deﬁnition of join points for the

later weaving, the process of building an aspect di-

agram is similar to the process of building problem

diagrams. As for problem diagrams, we also create a

sequence diagram for each aspect diagram.

For reasons of space, we will only discuss the as-

pect requirement R28 in detail. R28 covers the preven-

tion against eavesdropping attacks in the smart grid

scenario by encrypting all communication. The cor-

responding aspect diagram is presented in Figure 6. It

contains the aspect machine SMGEavesdropping, which

has access to the public and private keys for the en-

cryption and decryption. The keys are stored in the

KeyStorage. Furthermore, the aspect diagram contains

three domains as join points. The machine SMGRe-

quester will be instantiated by a problem machine and

the interface b describes that the problem machine

is able to send a request to SMGEavesdropping in or-

der to decryptData and encryptData. SMGEavesdropping

returns decryptedData and encryptedData, respectively.

The join points Network and SenderReceiver are added

to refer to the network an attacker may eavesdrop and

to the sender or receiver of the data to be transmitted.

Figure 7: Sequence diagram for aspect requirement R28.

Hence, we can have two different scenarios for the as-

pect of preventing eavesdropping. The ﬁrst scenario

is concerned with the decryption of data a problem

machine received from a sender, and the second sce-

nario is concerned with the encryption of data a prob-

lem machine shall send to a receiver. The sequence

diagram for the ﬁrst scenario is shown in Figure 7.

The sequence diagram shows that when the machine

SMGRequester receives data from some sender over a

network, it asks the aspect machine SMGEavesdrop-

ping to decrypt the received data (aspect requirement).

Then the aspect machine retrieves the needed public

key from the KeyStorage to decrypt the data in order to

send it back to the machine SMGRequester (speciﬁca-

tion). The sequence diagram for the second scenario

is built in a similar way, but left out due to space lim-

itations.

Note that the modularization of the prevention

against eavesdropping into an aspect allows us to eas-

ily change the encryption mechanism if a better and

newer mechanism is available, so that we are able to

encrypt communications and data by the safest and

best encryption mechanisms possible.

4.6 Weave Requirements

For each base requirement, we now create a sequence

diagram that describes how the aspect requirements

have to be weaved into it to address the cross-cut re-

lation. The basis for the weaving sequence diagram is

the sequence diagram of the requirement. The behav-

ior of the sub-machine is extended with the invocation

of the aspects given by the row of the base require-

ment in the cross-cut relation table (see Table 1).

The cross-cut relation (see Table 1) is not sufﬁ-

cient to weave the aspect requirements into the base

requirement. The reason is that the cross-cut relation

does not deﬁne how and when an aspect has to be in-

tegrated into the base problem. We create a table for

each base requirement that deﬁnes how the aspects

are integrated into the base problem. A row in the ta-

ble consists of a message of the sequence diagram of

the base requirement, a keyword, and the aspect that

shall be weaved into the requirement. For this paper,

we use the keywords before and after, but we plan to

extend this list, to provide more possibilities to inte-

grate aspects into problems. The keyword describes

whether the aspect has to be integrated before or after

the message. If multiple aspects shall be integrated

before or after a message, we have to deﬁne the order

in which the aspects are integrated. Table 2 shows the

reﬁned cross-cut relation for base requirement R17A.

Because of the aspect requirement R28 all commu-

nications have to be encrypted to prevent eavesdrop-

Aspect-orientedRequirementsEngineeringwithProblemFrames

151

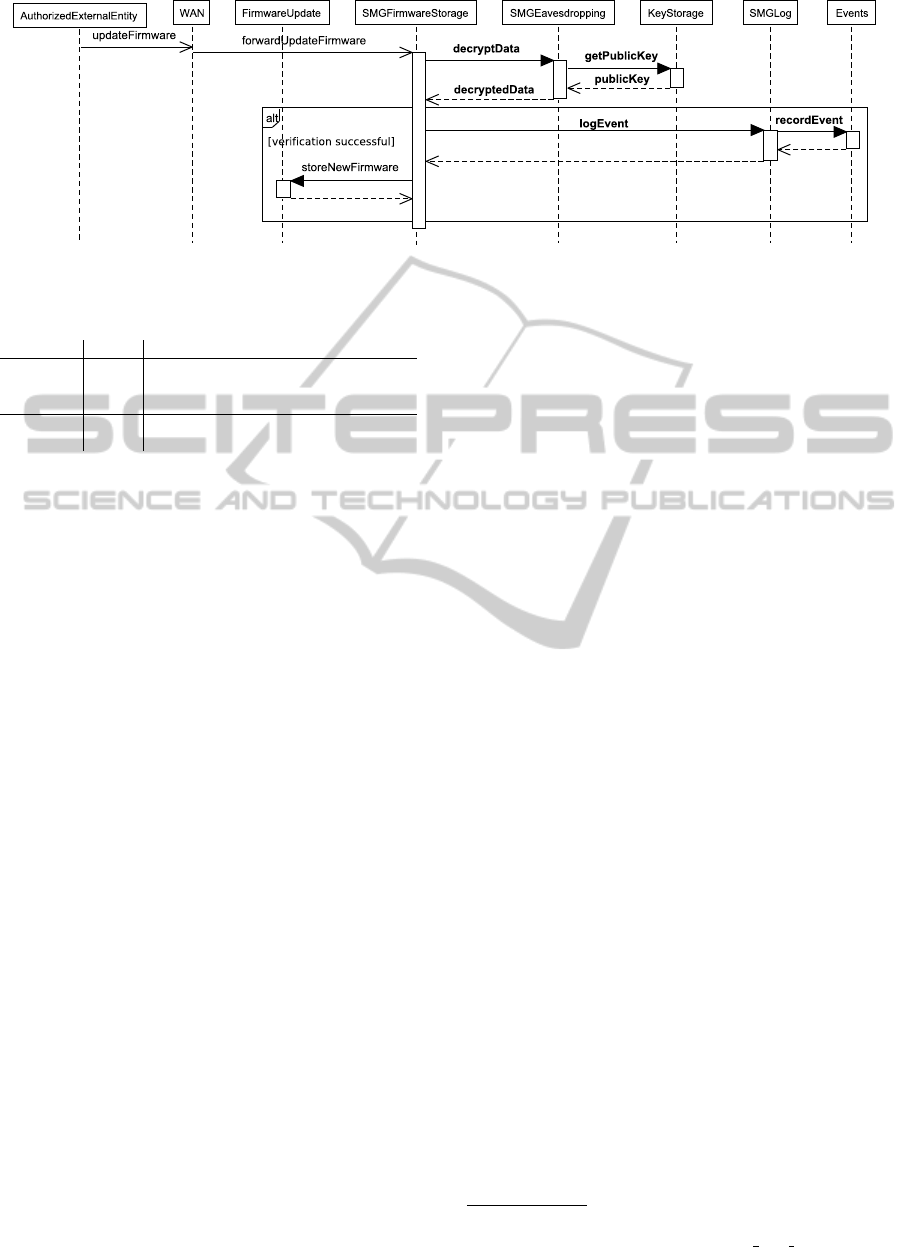

Figure 8: Weaved sequence diagram for R17A.

Table 2: Reﬁned Cross-cut relation table for R17A.

Message Key Aspect Sequence Diagram

forward-

Update-

Firmware

after Eavesdropping[WAN/Network, Authorized-

ExternalEntity/Sender, SMGFirmware-

Storage/SMGRequester]

storeNew-

Firmware

before Logging[SMGFirmwareStorage/SMG-

Requester]

ping attacks. This implies that all external messages

that a sub-machine receives have to be decrypted.

For R28 we express this in the ﬁrst row of Table 2.

The row deﬁnes that after the message forwardUpdate-

Firmware was received by the sub-machine the se-

quence diagram Eavesdropping of aspect requirement

R28 shall be integrated. Additionally, it is deﬁned

that the join points Network, Sender, and SMGRequester

are instantiated with the domains WAN, AuthorizedEx-

ternalEntity, and SMGFirmwareStorage. In this way, we

addressed the concern that external messages have to

be decrypted in the base requirement R28.

The reﬁned cross-cut relations are used to auto-

matically generate the weaving sequence diagrams

from the sequence diagrams of the problem and as-

pect diagrams. These automatically generated se-

quence diagrams have then to be adjusted, such that

the overall behavior satisﬁes the weaving require-

ment. The generated sequence diagram is shown in

Figure 8. For the sake of readability, we highlighted

the messages from the integrated aspect speciﬁcations

using a bold font. The other messages are the mes-

sages from the problem speciﬁcation, which form the

basis of the weaving sequence diagram. In accor-

dance with Table 2, the sequence diagrams Eaves-

dropping is integrated after the message forwardUpdate-

Firmware and the sequence diagrams Logging before

the message storeNewFirmwareBase. The latter ad-

dresses the concern that the event of a successful

ﬁrmware veriﬁcation shall be logged (aspect require-

ment R17B). For the presented example, we do not

need further adjustments because it already addresses

the combination of the base requirement with its as-

pect requirements adequately.

4.7 Analyze Interactions

For reasons of space, we do not go into detail for this

step. Alebrahim et al. provide methods for interac-

tion analysis using problem frames. In (Alebrahim

et al., 2014b) functional requirements are treated, and

(Alebrahim et al., 2014a) describes how to analyze

quality requirements for interactions. Both works use

the smart grid as a case study. Hence, we re-used the

methods and results also for this work. The results are

documented in Table 1 using bold I.

5 VALIDATION

To validate our method, we applied it to the crisis

management system (CMS) (Kienzle et al., 2010) that

Kienzle et al. proposed as a case study for aspect-

oriented modeling. We derived an informal scenario

description and the textual use case descriptions from

the original as input for our method

. The method was

executed by a requirements expert, who did not know

the case beforehand. From the information provided

to the requirements analyst, he identiﬁed 13 base re-

quirements that he modeled using 10 problem dia-

grams, 8 aspect requirements that he modeled using

5 aspect diagrams, and 6 quality requirements.

The effort spent for conducting our method on

the CMS is summarized in Table 3. It took 5 hours

to classify the requirements. Note that for the case

study this step was done manually. The reason was

that tools such as, for example, OntRep (Moser et al.,

2011) or EA-Miner (Sampaio et al., 2007) require

some additional input like training documents or an

existing ontology. But unfortunately, such inputs

were not available. Hence, the ﬁrst step can be sped

up signiﬁcantly using these tools. Another big block

For the inputs and the results see http://imperia.uni-

due.de/imperia/md/content/swe/aore4pf cms report.pdf

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends

152

Table 3: Effort spent (in person-hours/minutes) for conducting the method.

Number of items

Ø per item 11min 36min 7min 7min 34min 23min 6min

Total 5h 00min 6h 3min 45min 1h 15min 2h 51min 3h 53min 1h 45min

Classify

Requirements

Model Base

Requirements

Identify

Underlying

Qualities

Analyze

Completeness

Model Aspect

Requirements

Weave

Requirements

Analyze

Interactions

requirements

10 base

requirements

6 aspect

requirements

10 base

requirements

5 aspect

requirements

10 base

requirements

16 functional

requirements

Table 4: Requirements identiﬁed.

1) Functional

2) Availability

3) Reliability

4) Persistence

5) Real-Time

6) Security

7) Mobility

8) Statistic Logging

9) Multi-Access

10) Safety

11) Adaptability

12) Accuracy

13) Maintainability

14) Performance

15) Scalability

Sum

Same Class

Identified 100% 33% 50% 0% 0% 67% 0% 0% 0% 75% 0% 0% 30%

Partly 0% 0% 0% 0% 0% 33% 0% 0% 0% 0% 0% 0% 3%

Not Identified 0% 0% 0% 0% 0% 0% 33% 0% 0% 25% 0% 75% 13%

Other Class

Identified As 13) 2) 1) 14) 1) 1) 15) 1) 1)

Identified 0% 67% 50% 100% 67% 0% 67% 100% 100% 0% 25% 25% 45%

Partly 0% 0% 0% 0% 33% 0% 0% 0% 0% 0% 75% 0% 10%

Aggregated

Identified 100% 100% 100% 100% 67% 67% 67% 100% 100% 75% 25% 25% 75%

Partly 0% 0% 0% 0% 33% 33% 0% 0% 0% 0% 75% 0% 13%

Not Identified 0% 0% 0% 0% 0% 0% 33% 0% 0% 25% 0% 75% 13%

of effort is the modeling of base and aspect require-

ments. Here the tool support already helps to speed up

the modeling, but is subject for further improvement.

Note that the modeling steps do not only include the

modeling itself, but also the analysis and improve-

ment of the original requirements, which make the

requirements more precise and unambiguous. There-

fore, parts of the effort spend on the modeling steps

are unavoidable even when using another method or

notation. And the modeling itself pays off as it allows

the usage of the broad spectrum of methods and tools

which need problem frame models as input. For ex-

ample, the analysis of completeness uses these mod-

els and takes about an hour for different kinds of qual-

ities. The weaving of aspects is quite time consuming

right now. Here the tool support is on an experimen-

tal level, but the observations taken during the case

study imply that a full ﬂedged tool support will signif-

icantly drop the effort. The interaction analysis takes

round about two hours, which is signiﬁcantly below

the effort of doing such an analysis without a prob-

lem frame model (see (Alebrahim et al., 2014b) for

further information). All the effort spent sums up to

21,5 person hours, which is signiﬁcant but reasonable

with regards to the results one gets. And compared

to efforts other authors report, the effort spent for our

method seems to be even low. For example, Landuyt

et al. (Landuyt et al., 2010) report an effort spent for

their method of 170 hours for the requirements engi-

neering related activities,

To asses the sufﬁciency of the method and the

used tools, the requirements and qualities found

within our method were compared to the original doc-

ument as described by Kienzle et al. Table 4 shows

the comparison. Overall, the results are satisfying as

most requirements were found and classiﬁed in the

correct class (30%) or in another, also correct, class

(45%). The high amount of requirements classiﬁed

differently are due to speciﬁc classes given in the orig-

inal documents. For example, persistence and statis-

tical logging were completely described as functional

requirements in the documents but treated as quali-

ties. For such requirements it is a more general dis-

cussion if they are quality requirements or not. Hence,

we accepted both views as correct. For some speciﬁc

qualities, such as mobility or accuracy, the overall ob-

servation cannot be acknowledged. The reasons are

subject to further investigations.

To asses the aspects identiﬁed, we compared the

results of our method to the results given in other pub-

lications considering requirements engineering using

the same scenario (Landuyt et al., 2010; Mussbacher

Aspect-orientedRequirementsEngineeringwithProblemFrames

153

Table 5: Aspects identiﬁed.

Found and separated 83% 75%

Found and not separated 17% 25%

Not Found 0% 0%

Not Mentioned 38% 25%

Landuyt et al., 2010 Mussbacher et al.,2010

et al., 2010). The result of the comparison is shown in

Table 5. Overall, our results are very similar. The

result of applying our method includes all require-

ments which are treated as aspects in the other works.

And most of these found requirements are also sepa-

rated as aspects by our method (Row “Found and sep-

arated”). Only a minor number was not treated as as-

pect (Row “Found and not separated”), but a detailed

investigation showed that both views on these require-

ments are reasonable. The indicator, “Found and sep-

arated”, computes as ((requirement present as aspect

in both documents ) / (requirements present as aspect

in the publication at hand)). In respect, “Found and

not separated”, computes as ((requirement present in

both documents but not as aspect in our results) /

(requirements present as aspect in the publication at

hand)). Some of the aspects our method found were

not mentioned in the other works (Row “Not Men-

tioned”). This indicator computes as ((requirements

only present in our result) / (all requirements present

in our results)). Reasons for the missing requirements

might be that they were not reported due to lack of

space or that they were not found.

We could not asses our completeness analysis

quantitatively as the other works using the scenario

stick to the original requirements. But the qualitative

investigation of the completeness analysis showed

reasonable results. This observation is also true for

the cross cut relations. We also compared the weaved

speciﬁcation with sequence diagrams or state ma-

chines given by the original document and works in

(Kienzle et al., 2010). Here we observed that the

speciﬁcations produced by our method were at least

as good as the chosen assessment artifacts. Again,

the interaction analysis could not be assessed quan-

titatively due to missing benchmarks. But the found

interactions seemed to be real problems which have

to be resolved in a real case.

6 RELATED WORK

There are many works considering early aspects

(Rashid, 2008; Yu et al., 2004; Jacobson and Ng,

2004; Whittle and Araujo, 2004; Sutton and Rou-

vellou, 2002; Moreira et al., 2005; Grundy, 1999).

Most of these approaches deal with goal-oriented ap-

proaches and use-case models. But goal or use-

case models are of a higher level of abstraction

than problem frames. Additionally, goal and use-

case models are stakeholder-centric, while problem

frames are system-centric. Therefore, reﬁning func-

tional requirements taking into account more de-

tail of the system-to-be and analyzing the system-

to-be described by the functional requirements is re-

ported to be difﬁcult for such methods (Alrajeh et al.,

2009). Recently, there were papers which reported a

successful integration of goal- and problem-oriented

methods (Mohammadi et al., 2013; Beckers et al.,

2013). Hence, one might beneﬁt from integrating

goal-models in our method.

Conejero et al. (Conejero et al., 2010) present a

framework alike the method presented in this paper.

Their process also starts with unstructured textual re-

quirements. Then different tools and modeling nota-

tions are used along the frame work to identify and

handle aspects. In difference to our process, they do

not consider a completeness or interaction analysis

and especially for the modeling of aspects they lack

tool support.

Only few approaches consider the integration

of early aspects in the problem frames approach.

Lencastre et al. (Lencastre et al., 2008) also inves-

tigated how early aspects can be integrated into prob-

lem frames. Their method to model aspects in the

problem frames approach differs from ours. For an

aspect, the authors ﬁrst select a problem frame as PF

Pointcut Scenario. This pointcut scenario deﬁnes into

which problems the aspect can be integrated. The

pointcut scenario is then extended to the PF Aspec-

tual Scenario, which is similar to our aspect diagrams,

with the difference that the pointcut always has to be

a problem frame. This reduces ﬂexibility, because an

aspect (e.g., logging of all system events) may have to

be integrated into different problem diagrams.

7 CONCLUSIONS

In this paper, we presented the AORE4PF method

which integrates aspect-orientation and the problem

frames approach. We extended the UML4PF proﬁle

with stereotypes that allow us to create aspect dia-

grams. We further introduced a structured methodol-

ogy to separate aspects from requirements, to model

aspects, and to weave aspects and requirements to-

gether. We considered both the static and the be-

havioral view on the requirements, aspects, and their

weaving. We exempliﬁed our method using a smart

grid scenario from the NESSoS project as case study

and validated it using a crisis management system.

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends

154

The contributions of this work are 1) the integra-

tion of aspects into the problem frames approach, 2)

a structured way of separating base, quality and as-

pect requirements, starting from a textual description,

3) the detection of implicit qualities given by aspects,

4) identiﬁcation of all base requirements relevant for a

quality and the related aspects, 5) a structured method

to weave base and aspect requirements, and 6) the in-

tegration of an interactions analysis between the re-

sulting requirements. The AORE4PF method is 7)

tool-supported in most steps.

For future work, we plan to improve the tool sup-

port and provide an integrated tool chain. Addition-

ally, we plan to integrate our new model elements into

more already existing methods and analyses based on

UML4PF to cover a broader spectrum of qualities.

ACKNOWLEDGEMENTS

Part of this work is funded by the German Research

Foundation (DFG) under grant number HE3322/4-2.

REFERENCES

Alebrahim, A., Choppy, C., Faßbender, S., and Heisel, M.

(2014a). Optimizing functional and quality require-

ments according to stakeholders’ goals. In System

Quality and Software Architecture. Elsevier. to appear.

Alebrahim, A., Faßbender, S., Heisel, M., and Meis, R.

(2014b). Problem-based requirements interaction

analysis. In Requirements Engineering: Foundation

for Software Quality, volume 8396 of LNCS, pages

200–215. Springer.

Alrajeh, D., Kramer, J., Russo, A., and Uchitel, S. (2009).

Learning operational requirements from goal models.

In IEEE 31st International Conference on Software

Engineering, pages 265–275. IEEE Computer Soci-

ety.

Baniassad, E. and Clarke, S. (2004). Finding as-

pects in requirements with Theme/Doc. In Early

Aspects: Aspect-Oriented Requirements Engi-

neering and Architecture Design, pages 15–22.

http://trese.cs.utwente.nl/workshops/early-aspects-

2004/workshop papers.htm.

Beckers, K., Faßbender, S., Heisel, M., and Meis, R.

(2014). A problem-based approach for computer

aided privacy threat identiﬁcation. In Privacy Tech-

nologies and Policy, volume 8319 of LNCS, pages 1–

16. Springer.

Beckers, K., Faßbender, S., Heisel, M., and Paci, F. (2013).

Combining goal-oriented and problem-oriented re-

quirements engineering methods. In Availability, Reli-

ability, and Security in Information Systems and HCI,

volume 8127 of LNCS, pages 178–194. Springer.

Boehm, B. W. and Papaccio, P. N. (1988). Understanding

and controlling software costs. IEEE Transactions on

Software Engineering, 14(10):1462–1477.

Cavusoglu, H., Mishra, B., and Raghunathan, S. (2004).

The effect of internet security breach announce-

ments on market value: Capital market reactions for

breached ﬁrms and internet security developers. In-

ternational Journal of Electronic Commerce, 9(1):70–

104.

Conejero, J. M., Hernandez, J., Jurado, E., and van den

Berg, K. (2010). Mining early aspects based on syn-

tactical and dependency analyses. Science of Com-

puter Programming, 75(11).

e, I., Hatebur, D., Heisel, M., and Schmidt, H. (2011).

UML4PF - a tool for problem-oriented requirements

analysis. In Proceedings of the 19th IEEE Interna-

tional Requirements Engineering Conference, pages

349–350. IEEE Computer Society.

Faßbender, S. and Heisel, M. (2013). From problems

to laws in requirements engineering using model-

transformation. In ICSOFT ’13, pages 447–458.

SciTePress.

Faßbender, S., Heisel, M., and Meis, R. (2014). Functional

requirements under security pressure. In ICSOFT ’14.

SciTePress. to appear.

Firesmith, D. (2003). Specifying good requirements.

Journal of Object Technology, 2(4):77–87.

http://www.jot.fm/issues/issue 2003 07/column7.

Grundy, J. C. (1999). Aspect-oriented requirements engi-

neering for component-based software systems. In

Proceedings of the IEEE International Symposium on

Requirements Engineering, pages 84–91, Washington,

DC, USA. IEEE Computer Society.

Hatebur, D. and Heisel, M. (2010). A UML proﬁle for re-

quirements analysis of dependable software. In Com-

puter Safety, Reliability, and Security, volume 6351 of

LNCS, pages 317–331. Springer.

Hofmann, H. and Lehner, F. (2001). Requirements engi-

neering as a success factor in software projects. IEEE

Software, 18(4):58–66.

Jackson, M. (2001). Problem Frames. Analyzing and

structuring software development problems. Addison-

Wesley.

Jackson, M. and Zave, P. (1995). Deriving speciﬁcations

from requirements: an example. In ICSE, USA, pages

15–24. ACM Press.

Jacobson, I. and Ng, P.-W. (2004). Aspect-Oriented Soft-

ware Development with Use Cases. Addison-Wesley

Professional.

Khansa, L., Cook, D. F., James, T., and Bruyaka, O. (2012).

Impact of HIPAA provisions on the stock market value

of healthcare institutions, and information security

and other information technology ﬁrms. Computers

& Security, 31(6):750 – 770.

Kienzle, J., Guelﬁ, N., and Mustaﬁz, S. (2010). Crisis man-

agement systems: A case study for aspect-oriented

modeling. In Katz, S., Mezini, M., and Kienzle, J., ed-

itors, Transactions on Aspect-Oriented Software De-

velopment VII, volume 6210 of LNCS, pages 1–22.

Springer.

Aspect-orientedRequirementsEngineeringwithProblemFrames

155

Kreutzmann, H., Vollmer, S., Tekampe, N., and Abromeit,

A. (2011). Protection proﬁle for the gateway of a

smart metering system. Technical report, BSI.

Landuyt, D., Truyen, E., and Joosen, W. (2010). Discovery

of stable abstractions for aspect-oriented composition

in the car crash management domain. In Transac-

tions on Aspect-Oriented Software Development VII,

volume 6210 of LNCS, pages 375–422. Springer.

Lencastre, M., Moreira, A., Ara

ujo, J., and Castro, J.

(2008). Aspects composition in problem frames. In

Proceedings of the 16th IEEE International Require-

ments Engineering Conference, pages 343–344. IEEE

Computer Society.

Mohammadi, N. G., Alebrahim, A., Weyer, T., Heisel, M.,

and Pohl, K. (2013). A framework for combining

problem frames and goal models to support context

analysis during requirements engineering. In Avail-

ability, Reliability, and Security in Information Sys-

tems and HCI, volume 8127 of LNCS, pages 272–288.

Springer.

Moreira, A., Arajo, J., and Rashid, A. (2005). A concern-

oriented requirements engineering model. In Pastor,

O. and Falco e Cunha, J., editors, Advanced Infor-

mation Systems Engineering, volume 3520 of LNCS,

pages 293–308. Springer.

Moser, T., Winkler, D., Heindl, M., and Bifﬂ, S. (2011).

Requirements management with semantic technology:

An empirical study on automated requirements cate-

gorization and conﬂict analysis. In Advanced Infor-

mation Systems Engineering, volume 6741 of LNCS,

pages 3–17. Springer.

Mussbacher, G., Amyot, D., Ara

ujo, J., and Moreira, A.

(2010). Requirements modeling with the aspect-

oriented user requirements notation (AoURN): A case

study. In Transactions on Aspect-Oriented Software

Development VII, volume 6210 of LNCS, pages 23–

68. Springer.

OPEN meter project (2009). Requirements of AMI. Tech-

nical report, OPEN meter project.

Parnas, D. L. (1972). On the criteria to be used in decom-

posing systems into modules. Communications of the

ACM, 15(12):1053–1058.

Rago, A., Marcos, C., and Diaz-Pace, J. A. (2013). Uncov-

ering quality-attribute concerns in use case speciﬁca-

tions via early aspect mining. Requirements Engineer-

ing, 18(1):67–84.

Rashid, A. (2008). Aspect-oriented requirements engineer-

ing: An introduction. In Proceedings of the 16th IEEE

International Requirements Engineering Conference,

pages 306–309. IEEE Computer Society.

Sampaio, A., Rashid, A., Chitchyan, R., and Rayson, P.

(2007). Ea-miner: Towards automation in aspect-

oriented requirements engineering. In Transactions

on Aspect-Oriented Software Development III, vol-

ume 4620 of LNCS, pages 4–39. Springer.

Sutton, Jr., S. M. and Rouvellou, I. (2002). Modeling of

software concerns in cosmos. In Proceedings of the

1st International Conference on Aspect-oriented Soft-

ware Development, AOSD ’02, pages 127–133, New

York, NY, USA. ACM.

Whittle, J. and Araujo, J. (2004). Scenario modelling with

aspects. IEE Proceedings Software, 151(4):157–171.

Willis, R. (1998). Hughes Aircraft’s Widespread Deploy-

ment of a Continuously Improving Software Process.

AD-a358 993. Carnegie-Mellon University.

Yu, Y., Cesar, J., Leite, S. P., and Mylopoulos, J. (2004).

From goals to aspects: Discovering aspects from re-

quirements goal models. In Proceedings of the 12th

IEEE International Requirements Engineering Con-

ference, pages 38–47. IEEE Computer Society.

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends

156
