Reconﬁgurable Wireless Sensor Networks

New Adaptive Dynamic Solutions for Flexible Architectures

Hanen Grichi

, Olfa Mosbahi

and Mohamed Khalgui

Tunisia Polytechnic School, La Marsa, Tunisia

National Institute of Applied Science and Technology, University of Carthage, Tunis, Tunisia

Keywords:

Wireless Sensor Network, Reconﬁguration, Multi-agent Architecture, Nested State Machine, Simulation.

Abstract:

This paper deals with reconﬁgurable wireless sensor networks RWSN that should be adapted to their envi-

ronment under user and energy constraints. A RWSN is assumed to be composed of a set of communicating

nodes such that each one executes reconﬁgurable software tasks to control local sensors. We propose three

reconﬁguration forms to adapt a RWSN: (a) software reconﬁguration allowing the addition/ removal/ update of

tasks, (b) hardware reconﬁguration allowing the activation/deactivation of nodes, (c) protocol reconﬁguration

allowing the modiﬁcation of routing protocols between nodes. We propose a zone-based multi-agent architec-

ture for RWSN where a communication protocol is well-deﬁned to optimize distributed reconﬁgurations. Each

agent of this architecture is modeled by nested state machines in order to control the problem complexity. The

paper’s contribution is applied to a case study that we simulate to show the originality of this new architecture.

1 INTRODUCTION

Wireless Sensor Networks (to be denoted by WSN)

become today an important established technology

for a large number of applications (pollution pre-

vention (Vikram Guptay and Tovary, 2011), agricul-

ture (Wang, 2010), military, structures and buildings

health, etc). WSNs usually consist of many small de-

vices called sensor nodes. Each node is able to allow

local control processing and communications with re-

mote nodes under real-time and energy constraints.

Wireless Sensor Networks can be homogeneous (sen-

sor nodes are of the same nature) or heterogeneous

(with different types of nodes) (R.Saravanakumar,

2011). We are interested in this paper in homo-

geneous WSN. Several related works such as (Hnin

Yu Shwe and Kumar, 2013), (Mahalik, 2009) de-

scribe the wireless sensor network (WSN) as a sys-

tem of spatially distributed sensor nodes that col-

lect important information in the target environment.

Each sensor node has limited computation capacity,

local memory, power supply (Swamy, 2003) and com-

munication link. Each directed link connects two

neighboring nodes through a network (T.-S. Chen

and Sheu, 2000). The most generic model for a

WSN is based on the data gathering (Jiping Xiong

and Chen, 2013) and communication capabilities

of sensors. Nowadays, WSN migrate to an auto-

programming technology which is based on intelli-

gent sensor networking infrastructures (Vikram Gup-

tay and Tovary, 2011). The system can change its

behavior at run-time, it is what we call a reconﬁg-

urable system. Two reconﬁguration policies could

be identiﬁed: static (ofﬂine: by stopping the WSN

to make required modiﬁcations and restart it) or dy-

namic (online: by changing the network structures

during its execution) (R.Saravanakumar, 2011). In the

second case, we have also two kinds of reconﬁgura-

tion: manual (executed by users) and automatic (ex-

ecuted by agents). The researchers deﬁne the RWSN

(Reconﬁgurable WSN) as an adaptive WSN. The re-

conﬁguration is any operation that redirects data ﬂows

when we change the state of source or destination

nodes. The reconﬁguration can also add/remove

one/more physical elements of the network by activat-

ing/deactivating them. The reconﬁguration touches

ﬁrst the material (allowing the activation/deactivation

of nodes), second the software (allowing the recon-

ﬁguration of tasks) and third the communication pro-

tocols (allowing the adaptation of routing protocols

between nodes). Many projects deal with RWSN

such as WASAN (Kindratenko1 and Pointer, 2005),

ReWINS (Harish Ramamurthy, 2005), TWIST project

(Vlado Handziski, 2005). This deﬁnition touches one

or two reconﬁguration types (hardware, software or

protocol) but these works do not mix all of them. Our

254

Grichi H., Mosbahi O. and Khalgui M..

Reconﬁgurable Wireless Sensor Networks - New Adaptive Dynamic Solutions for Flexible Architectures.

DOI: 10.5220/0005005602540265

In Proceedings of the 9th International Conference on Software Engineering and Applications (ICSOFT-EA-2014), pages 254-265

ISBN: 978-989-758-036-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

problem consists in the application of these three re-

conﬁguration types: what is the gain that we can get

by using any hardware reconﬁguration, or software

reconﬁguration or also the protocol reconﬁguration?

If we reduce the communication by applying recon-

ﬁguration scenarios, can we win in term of energy?

We try in this paper to answer these questions by

deﬁning three forms of reconﬁguration for low power

RWSNs. We deﬁne a new zone-based multi-agent ar-

chitecture for RWSN where a communication proto-

col is well-deﬁned for useful distributed reconﬁgu-

rations. We decompose the RWSN to a set of zones

where each one gathers a number of nodes. The radius

of each zone is a parameter to be deﬁned by users ac-

cording to several characteristics of the followed tech-

nology. We deﬁne a Controller Agent (CrA) that han-

dles the reconﬁguration strategies of the whole net-

work, and assign a Zone Agent for each zone (ZA) to

control the local reconﬁguration scenarios. Each node

of a particular zone is controlled by a Slave Agent

(SA) that monitors the local reconﬁguration scenarios

inside the node. This original multi-agent architec-

ture combines all possible reconﬁguration forms to

be adapted for the environment where we minimize

the energy consumption. This adaptive architecture

is modeled by nested state machines in order to con-

trol the speciﬁcation complexity. With our solution,

we gain in term of energy to be consumed by each

node and the number of exchanged messages between

nodes in the network. This architecture supports the

delegation between agents and controls the complex-

ity by providing hierarchical structure of RWSN. We

apply and simulate the paper’s contribution to a case

study to be assumed as a running example, and com-

pare our results to some related works in order to

show the originality of this architecture.

The paper is organized as follows: after introduc-

tion and background, Section 3 presents our position

between related works. Section 4 proposes a new def-

inition of RWSN to be explained on a case study. The

multi-agent architecture of the RWSN is proposed in

Section 5. Section 6 presents the coordination pro-

tocol between different agents. The simulation and

evaluation of the paper’s contribution is provided in

Section 7 before concluding the paper in Section 8.

2 BACKGROUND

We brieﬂy present the formalism of ﬁnite state ma-

chines to be used in the following for the modelling

of RWSN. Finite State Machine (FSM) is an abstract

machine that can be in one of ﬁnite number of states.

It changes the behavior from a state to another by ﬁr-

ing a transition in response to particular event. A FSM

is an efﬁcient way to specify constraints of the over-

all behavior of a system (Samek, 2003). A classic

form of a FSM is a direct graph with the following el-

ements: G=(Q, Σ, Z, δ, q

, F) where: (a) Vertices Q is

a ﬁnite set of states (Q

,...,Q

) such that each state

) models a system’s behavior at an instant t, (b) In-

put symbols Σ is a ﬁnite collection of input symbols

or designators. This part of graph represents the ﬁnite

set of initial states, (c) Output symbols Z is a ﬁnite

collection of output symbols or designators. This part

of graph represents the ﬁnal state of the system, (d)

Edges δ represents transitions from one state to an-

other as caused by input symbols, (e) Start state q

the start state q

∈ Q, (f) Accepting state(s) F: F ∈ Q

is the set of accepting states. We deﬁne Nested State

Machines as a set of FSM such that a state of one cor-

responds to another machine. This solution is useful

for the modeling of a complex system where the in-

formation should be modeled on different hierarchical

levels in order to control the complexity.

3 STATE OF THE ART

Today, several researches deal with RWSN where a

reconﬁguration can be applied in three levels: hard-

ware, software and data routing (Bellis et al., 2005),

(Jie CHEN and LUO, 2009). Hardware recon-

ﬁgurations are deﬁned in (Bellis et al., 2005) by

adding FPGA-based intelligent modules to nodes. In

(Kindratenko1 and Pointer, 2005), the wireless au-

tonomous sensor and networks of actors (WASAN)

deﬁne hardware reconﬁgurations as dynamic oper-

ations that model platforms of evaluation and assis-

tance. To model well the protocol reconﬁguration,

the existence of reconﬁgurable interfaces is essential;

Harish Ramamurthy in (Harish Ramamurthy, 2005)

presents the ReWINS project (Reconﬁgurable Wire-

less Interface for Networking), to manage the recon-

ﬁgurability thanks to a ’Central Control Unit’. The

Reconﬁgurable Wireless Sensor Network for Struc-

tural Health Monitoring (M. Bocca and Eriksson,

2009), is also another project of RWSN. This proposi-

tion has the possibility to reconﬁgure the parameters

of the monitoring application (software reconﬁgura-

tion), depending on the needs of the end-user oper-

ating at the sink node. To optimize the radio trans-

mission of data and avoid interferences (protocol re-

conﬁguration), each sink node establishes a reserved

communication link with each of the sensor nodes. In

(Vlado Handziski, 2005), the TWIST project (a scal-

able and ﬂexible tested architecture for indoor deploy-

ment of wireless sensor networks) deﬁnes two recon-

ReconfigurableWirelessSensorNetworks-NewAdaptiveDynamicSolutionsforFlexibleArchitectures

255

ﬁguration forms: software/ hardware. This project

uses the USB infrastructure for the hardware recon-

ﬁguration and the software one is controlled by a set

of interfaces to be implemented on a station.

We note that all related works do not address all

possible reconﬁguration forms together that the cur-

rent paper deals with: software, hardware and pro-

tocol reconﬁgurations. We propose a new zone-

based multi-agent architecture for RWSN. Our propo-

sition is original and different from all others since we

treat all reconﬁguration forms, control the complex-

ity of modeling by using nested state machines and

optimize the energy consumption as well as the ex-

changed messages between nodes thanks to the zone-

based solution.

4 CONTRIBUTION: NEW

SOLUTIONS FOR RWSN

4.1 RWSN: Deﬁnition

We deﬁne a reconﬁguration scenario as any response

to a request in order to adapt the system to its en-

vironment and to improve also its performance. We

consider three kinds of reconﬁgurations: (i) soft-

ware reconﬁguration allowing the addition/removal

and update of Os-tasks or data, (ii) hardware recon-

ﬁguration allowing the activation/deactivation of sen-

sor nodes, (iii) protocol reconﬁguration allowing the

optimization/degradation of the protocol (e.g. addi-

tion/removal/update of messages to be exchanged be-

tween nodes as well as their routing paths). We denote

in the following by a RWSN, a reconﬁgurable WSN

that automatically modiﬁes its software and/or hard-

ware architecture and/or inter-nodes communication

protocol. Contrary to all related works, a RWSN is

deﬁned as a dynamic reconﬁgurable WSN, that auto-

matically modiﬁes at run time the architecture as well

as structure of the network. This modiﬁcation can

touch the material (e.g. sensors), the software (e.g.

OS tasks) and the data routing. Note that the TWIST

project (Vlado Handziski, 2005) does not address the

protocol reconﬁguration. The ReWINS project (Har-

ish Ramamurthy, 2005) does not suppose the recon-

ﬁguration of WSN as a dynamic and automatic recon-

ﬁguration. In the current paper, we extend all related

works and address all possible reconﬁguration forms

that can be applied at run time on RWSN.

4.2 RWSN: New Architecture

We give in the following some deﬁnitions that will be

used in the following.

• RWSN: a set of Nbz zones and S stations. A station

controls the whole network, whereas each zone is

composed of n nodes such that each node gath-

ers m hardware detectors to be controlled by soft-

ware tasks. Note that a communication protocol

is applied between nodes of a same or of different

zones. We deﬁne Nbz = number of the zones in

WSN and Zi as the zone number i of the network.

• RWSN zone: a geographical space to be deﬁned

by all the points included in the area of this zone.

This zone is ﬁxed by a radius to be deﬁned by the

RWSN designer.

• RWSN station: a supervisor in a RWSN to be char-

acterized by: (i) A memory, that should be bigger

than a node memory, (ii) A bandwidth, that repre-

sents the velocity of data transmission with nodes.

• Reconﬁgurable node: a device to be composed

with others. It runs under energy, real-time and

functional constraints. A node is characterized by:

(i) An identiﬁer (ID) which is unique in the zone,

(ii) a set of m detectors DTi (i =1,2,...,m) where

each sensor is modeled by two variables: the state

(Sd: active or not), and the value to be detected

(Vd), (iii) a power unit represented by two batter-

ies (we denote by PwBi(t) the current value of bat-

tery’s charge and PwBiMax the maximum load),

(iv) the router (R) that supports the communica-

tions with other nodes.

• Reconﬁgurable sensor: a detector that consumes

energy to provide required services for the node.

We suppose that it is controlled by a unique OS-

Task.

• Reconﬁgurable protocol: a protocol that supports

the communication between nodes. We assume it

as reconﬁgurable since we suppose that messages

can be added or removed at run-time. Table 1 de-

scribes the parameters of a routing table in each

node in order to characterize each communication

between them.

Table 1: Node routing table parameters.

ID Node Identiﬁer

IDZone Zone Identiﬁer

IDDest Final Destination Node Identiﬁer

IDNext Next Node Identiﬁer in communication

path (neighbor)

Time Execution time for communication by

a node

4.3 Reconﬁguration Forms

We have three forms of reconﬁgurations:

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

256

4.3.1 Software Reconﬁguration

Modiﬁes the behaviors of nodes at run time. The

modiﬁcation is made on the software architecture by:

(i) adding (or removing) OS-tasks to be executed in

nodes, (ii) modifying their scheduling, (iii) modify-

ing the used data by tasks.

4.3.2 Hardware Reconﬁguration

This kind of hardware reconﬁguration consists of:

(i) activation/deactivation of detectors, (ii) activa-

tion/deactivation of nodes. The deactivation of all

detectors in a node implies its deactivation. In fact,

activating only one detector in a node results in its ac-

tivation.

4.3.3 Protocol Reconﬁguration

Consists in modifying the data routing when soft-

ware and hardware reconﬁgurations are applied at

run-time.

4.4 Case Study

We propose as a running example a RWSN to be de-

noted by Sys. It is composed of 3 zones (Z1, Z2,

Z3) where each one Z

is composed of three nodes.

These three zones are supervised by a station (S).

Each node Nzj, ( j = 1..9) is characterized by two de-

tectors, two batteries and a router (Rj). Each detec-

tor DTm, (m = 1 or 2) can detect the temperature (to

be denoted by DT1) and the humidity of the environ-

ment (to be denoted by DT2). It is characterized by

a state (Sd: {activate= 1, deactivate= 0}), and the de-

tected value (Vd). The two batteries are denoted by

Bk(k = 1 or 2). Each battery Bk is characterized by

a current value of load (PwBk,j) and a value of maxi-

mum load (PwBMaxk,j). We suppose initially, that Nz5

executes only DT1(see Figure 1).

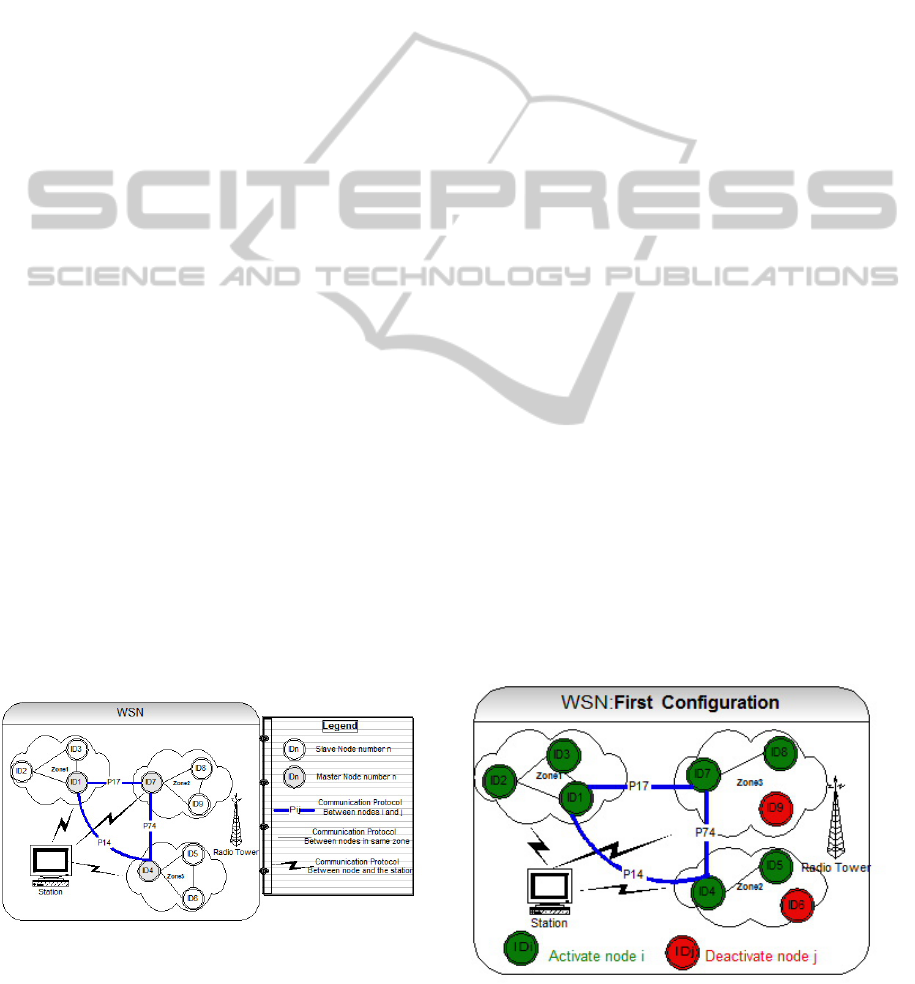

Figure 1: A Case Study of an WSN.

4.4.1 Software Reconﬁguration

We deﬁne the following three tasks {T1,T2,T3}: (i)

T1: controls the temperature and detects signal when

it is higher than 45

◦

C. (ii) T2: reduces the threshold

from 45

◦

C to 30

◦

C. This task can be used for any

detection of ﬁre. (iii) T3: controls the humidity of the

environment. We deﬁne 3 software reconﬁgurations:

{SR1, SR2, SR3}. (a) SR1: a reconﬁguration that al-

lows the addition of (T1) to each node in a summer

day; (b) SR2: is applied to each summer night to re-

move the task (T1) and to add (T2). (c) SR3: updates

the threshold to be taken by (T3).

4.4.2 Hardware Reconﬁguration

In order to minimize the dissipated energy, we ap-

ply hardware reconﬁgurations {HR1, HR2, HR3} on

3 sensor nodes (Nz1 from Z1, Nz5 from Z2, Nz9 from

Z3) (i) HR1: deactivates Nz1 from Z1 by deactivating

(DT1(1) of Nz1 and DT2(1) of Nz1), (ii) HR2: deacti-

vates DT1(5) for the node Nz5, (iii) HR3: activates Nz9

from Z3 by activating DT2(9) of Nz9. The hardware

reconﬁguration, in this case, can change the routing

information between nodes. The link of communica-

tion between Nz1 and its neighbors is cut (the same

case as Nz5). By using HR3, (Nz9) can be connected

to its neighbors (see the modiﬁcation from Figure 2 to

Figure 3).

4.4.3 Protocol Reconﬁguration

If we apply HR1, HR2 and HR3 (deactivation of Nz1,

Nz5 and activation of Nz9), the routing tables of (Nz1,

Nz5, Nz9) will be changed from Table 2 to Table 3. In

this case the reconﬁguration of protocol eliminates 3

communication links between nodes (Nz1, Nz5), and

adds 2 other links to (Nz9).

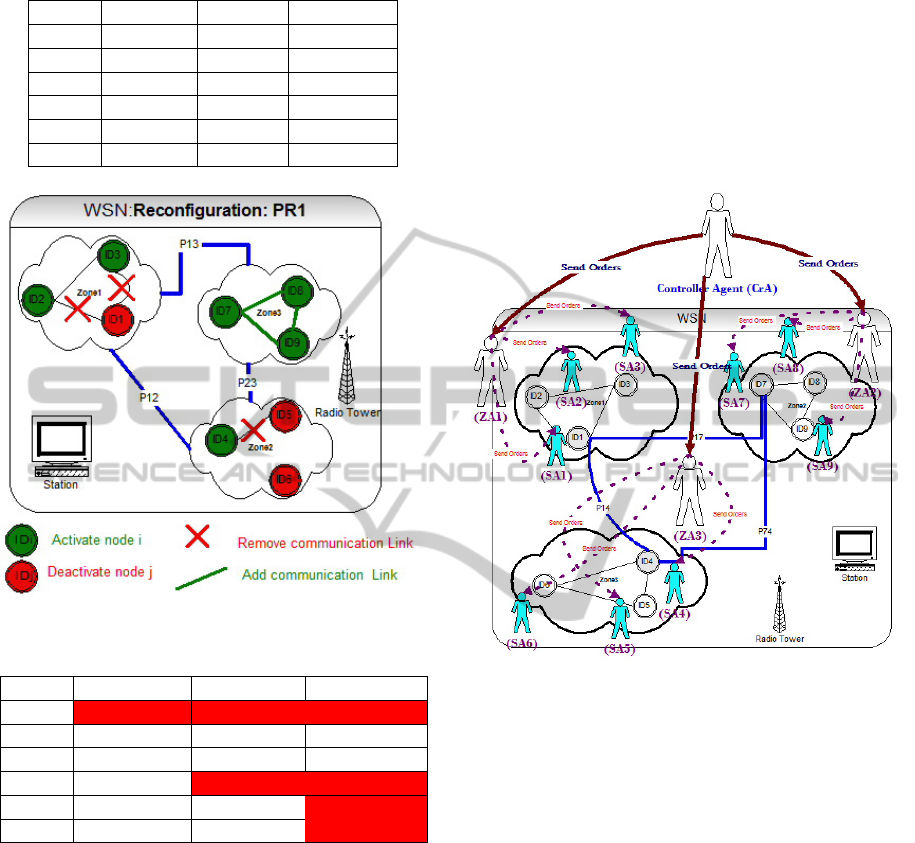

Figure 2: First conﬁguration of (WSN).

ReconfigurableWirelessSensorNetworks-NewAdaptiveDynamicSolutionsforFlexibleArchitectures

257

Table 2: First routing table parameters.

Nz1 Nz5 Nz9

State Activate Activate Deactivate

ID ID1 ID5 ID9

IDZone Z1 Z2 Z3

IDDest ID7 ID1

IDNext ID2, ID3 ID4

Time 0.02s 0.01s

Figure 3: Protocol reconﬁguration of (WSN).

Table 3: Second routing table parameters.

Nz1 Nz5 Nz9

State Deactivate Deactivate Activate

ID ID1 ID5 ID9

IDZone Z1 Z2 Z3

IDDest ID7 ID9 ID2

IDNext ID2 Or ID3 ID4 ID7 Or ID8

Time 0.02s

5 NEW MULTI-AGENT

ARCHITECTURE FOR (RWSN)

5.1 Motivation

To handle all cited forms, we propose a multi-agent

architecture for RWSN. This architecture is composed

of a Controller Agent (CrA) that controls the whole

architecture, a Zone Agent (ZA) to be affected to each

zone in order to control its nodes, and a Slave Agent

(SA) that controls each node of any zone. All these

agents handle the different reconﬁguration forms that

we described above. In order to control the com-

plexity, each agent has a hierarchical architecture to

be modeled by Nested State Machines. We show in

Figure 4 this new multi-agent architecture of RWSN.

We model the multi-agent architecture for RWSN as a

system to be composed by one CrA, a set of (ZA) and

a set of (SA): Sys={CrA, ϕZA, ϕSA};

ϕZA= set of all Zones Agents;

ϕSA = set of all Slaves Agents;

In one Zone = {ZA, ϕSA}

Figure 4: Multi-Agent Architecture for RWSN.

We denote in the following by SetZi the set of all mas-

ter and slave nodes in the zone i. Let we assume a

node Nzji of the zone i, it is denoted by Snji if it is the

jth slave node of this zone and by Mnji if it is the j

master one.

5.2 Formalization of RWSN

5.2.1 Controller Agent (CrA) Logic

For the modeling of this agent, we propose two lev-

els: (i) First Reconﬁguration Level: CrA Architec-

ture: The (CrA) deﬁnes in this level the set of active

and deactive zones under well-deﬁned conditions at

a particular time. This level will be modeled latter

with the State Machine (FSM I). (ii) Second Recon-

ﬁguration Level: CrA Data Flows: This level de-

scribes the different ﬂows of data to be exchanged

between the active zones that we deﬁne in level 1.

For each state of (FSM I) that models level 1, we de-

ﬁne in the current second level a particular state ma-

chine that deﬁnes all the possible data ﬂows. A state

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

258

of this State Machine deﬁnes a particular reconﬁgura-

tion scenario that changes the routing policy software

between zones. In Figure 5, the red state of (FSM

I) deﬁnes a subset of active zones and corresponds to

the state machine (FSM I.1) in level 2. The state Rtp 1

represents a ﬁrst routing solution between these zones

and Rtp 2 represents another routing solution.

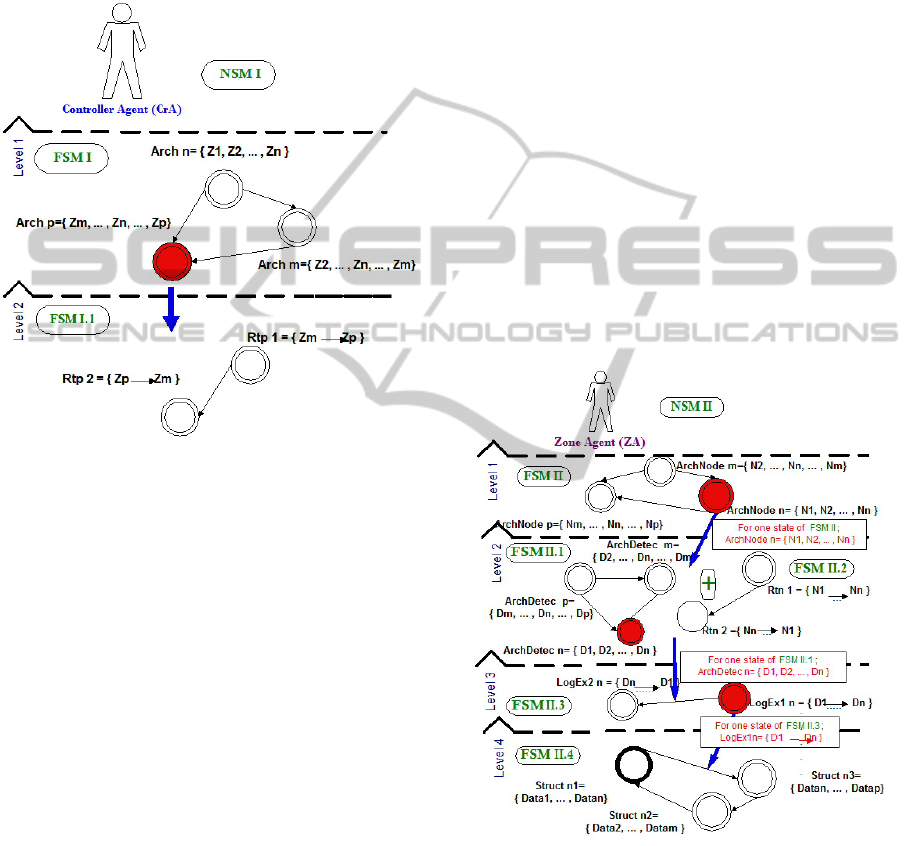

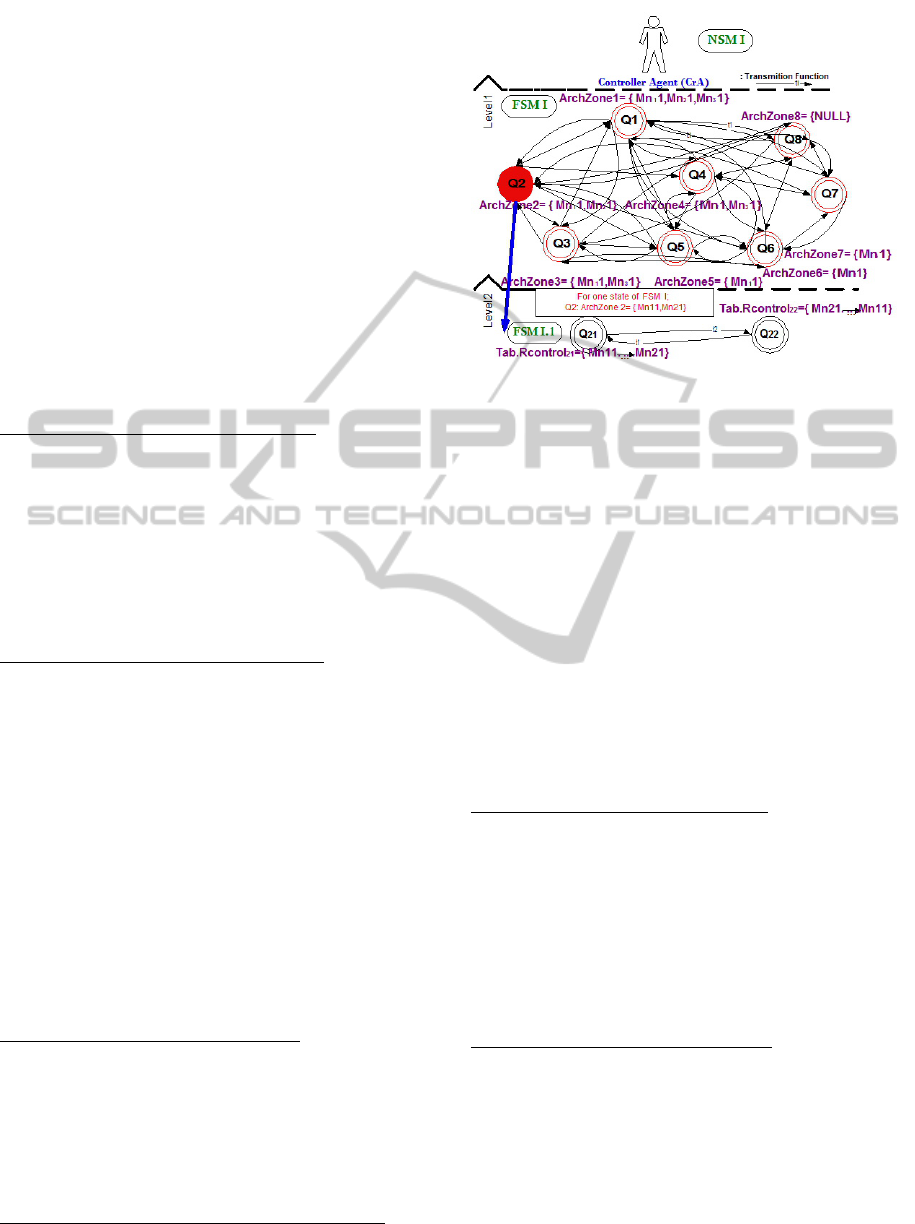

Figure 5: Controller Agent architecture.

5.2.2 Zone Agent (ZA) Logic

We propose four levels for this agent: (i) ﬁrst recon-

ﬁguration level: ZA Architecture: we describe in

this level the different active and deactive nodes under

well-deﬁned conditions at a particular time. This level

is characterized by a superset of nodes such that any

reconﬁguration scenario corresponds to the activation

of a subset, (ii) second reconﬁguration level: ZA

Data Flows/ Detectors: the second level of the Zone

Agent (ZA) deﬁnes the set of detectors that should be

active in each node under well-deﬁned conditions at

a particular time. This second level deﬁnes also the

different data ﬂows that can be followed to exchange

data between the active nodes of the zone. The activa-

tion of detectors as well as the deﬁnition of reconﬁg-

uration data ﬂows belong to the same level since they

are depending in logic, (iii) third reconﬁguration

level: ZA Scheduling: this level deﬁnes the different

reconﬁgurable scheduling of OS-tasks that control ac-

tive detectors in active nodes under well-deﬁned con-

dition at a particular time, (iv) fourth reconﬁgura-

tion level: ZA Data value: This level deﬁnes the dif-

ferent values and structure of data to be used by the

OS-tasks of active nodes under well-deﬁned condi-

tions at a particular time.

To handle the complexity of the problem, we use

nested state machines to model the Zone Agent. In

Figure 6, the red state ArchNode n deﬁnes the differ-

ent active nodes of a zone at a particular time t un-

der well-deﬁned conditions, this state corresponds to

two state machines FSM II.1 and FSM II.2 in level 2.

FSM II.1 deﬁnes in this zone all possible activations

of detectors. FSM II.2 represents the different routing

solutions between active nodes in this zone. The red

state ArchDetect n deﬁnes under well-deﬁned condi-

tions the different detectors which should be active in

active nodes of the zone. Rtn 1 deﬁnes a particular

solution to exchange data between active nodes in a

zone. Two states of these state machines of level 2

deﬁne a particular state machine in level 3 where a

state deﬁnes a particular scheduling of active tasks.

The red state LogEx1 n deﬁnes the execution logic

of tasks and deﬁnes a new state machine FSM II.4 in

level 4. Each state in FSM II.4 deﬁnes particular val-

ues and structures of data to be used by actives tasks.

Thanks to this solution we can cover all possible re-

conﬁguration forms while controlling the complexity

of the problem.

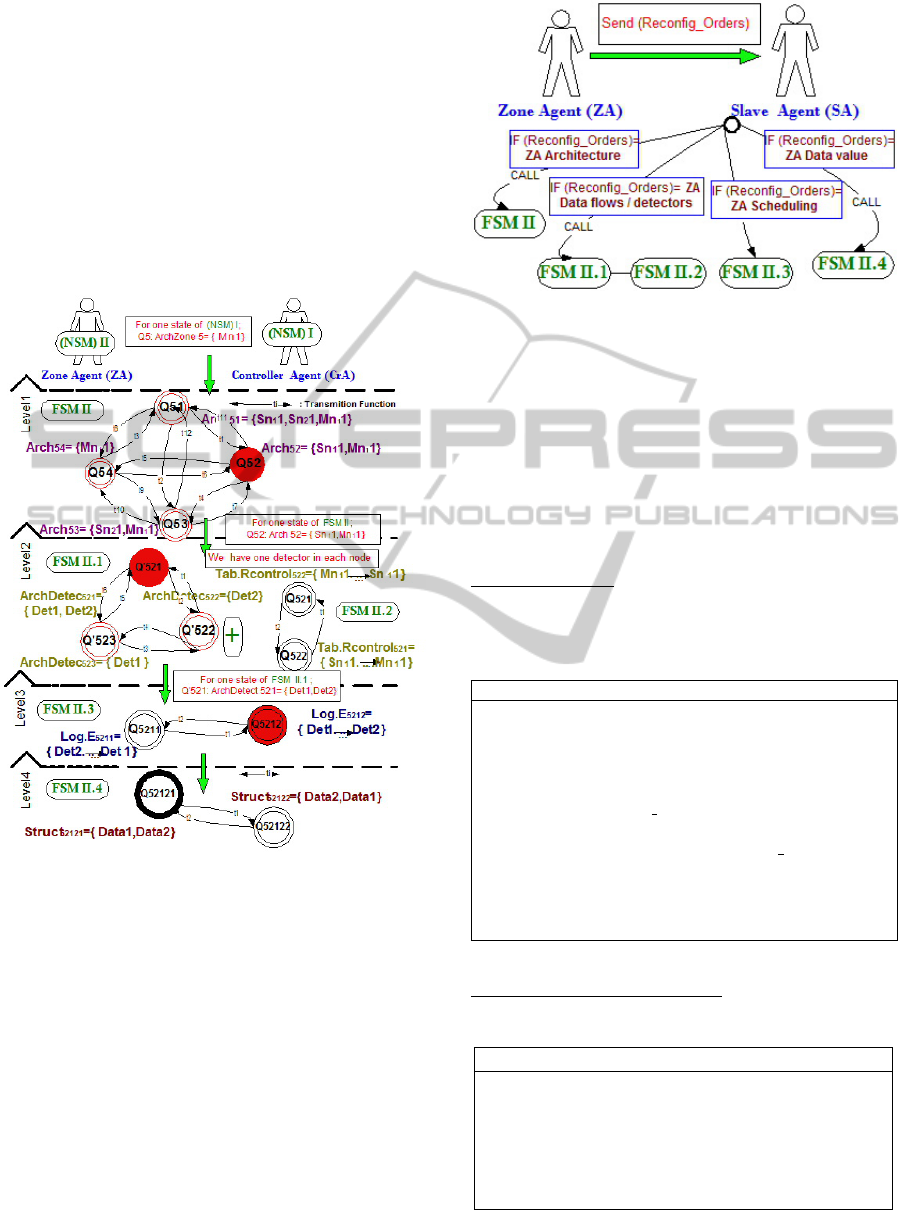

Figure 6: Zone Agent architecture.

5.2.3 Slave Agent (SA) Logic

This agent executes the reconﬁguration strategies to

be deﬁned by CrA and ZA.

Note Finally that to gain in terms of energy for ex-

ample, each Zone Agent (ZA) controls at run-time the

load in the batteries of each slave before applying re-

quired reconﬁguration scenarios that can possibly re-

ReconfigurableWirelessSensorNetworks-NewAdaptiveDynamicSolutionsforFlexibleArchitectures

259

move tasks or also deactivate nodes in order to pre-

serve power as much as possible. We note also that we

are interested in the architecture of RWSN without de-

tailing the technical solutions to add/remove tasks or

activate/deactivate nodes. We are not interested also

in the real-time scheduling of tasks that will be in an-

other paper. The contribution of the current paper is

dealing with the architecture of RWSN to address all

possible reconﬁguration forms while controlling the

complexity of the problem.

5.3 Modeling of RWSN

5.3.1 Controller Agent (CrA) Model

We model the two levels of (CrA) by the following

state machines.

-First modeling level: CrA Architecture:

=(Qc, δc, qc

) where:

(a) Vertices Qc: set of states such that each

state corresponds to active zones at a partic-

ular time (Qc

,Qc

,...,Qc

). We denote by

=(MN

,MN

,...,MN

) the set of active master

nodes of RWSN, (b) Edges δc: activation or deacti-

vation of master nodes, (c) Start state qc

: a ﬁrst

architecture which deﬁnes the default active zones.

-Second modeling level: CrA Data ﬂows: For each

state Qc

∈ Qc in GC1, we deﬁne:

=(Qp, δp, qp

) where:

(a) Vertices Qp: set of states where each one rep-

resents a particular routing solution between active

zones (Qp

,Qp

,...,Qp

i j

). (b) Edges δp: the mod-

iﬁcation of data ﬂows between active zones. (c) Start

state qp

: the data ﬂows between the default active

zones.

Figure 7 describes (FSM I) and (FSM I.1) that

model level 1 and level 2 for CrA:

5.3.2 Zone Agent (ZA) Model

We deﬁne the following nested state machines of each

(ZA).

First modeling level: ZA Architecture:

=(Qd, δd, qd

) where:

(a)Vertices Qd: set of states such that each

one represents a subset of active nodes in a

zone, Qd

=(N

,...,N

), (c)Edges δd: activa-

tion/deactivation of nodes in a zone, (d)Start state

: default list of nodes in a zone.

Second modeling level: ZA Data ﬂows/detectors: For

each state Qd

of GD

, we deﬁne two state machines

and GN

Figure 7: CrA Running Example.

=(Qn, δn, qn

) where:

(a)Vertices Qn: set of states where each one rep-

resents a particular routing solution between active

nodes of a zone, (b)Edges δn: modiﬁcation of data

ﬂows between active nodes, (c)Start state qn

: data

ﬂows between default active nodes Qn

=(Qn’, δn’, qn

,) where:

(a)Vertices Qn’: set of states such that each

one represents detectors to be active at a par-

ticular time ,(Qn

,Qn

,...,Qn

i j

). We can deﬁne

i j

=(Detc

,Detc

,...,Detc

) as a set of active detec-

tors, (b)Edges δn’: activation/deactivation of detec-

tors, (c)Start state qn

: the default list of detectors in

a node: Qn

Third modeling level: ZA Scheduling: For each state

i j

in GN

and Qn

i j

in GN

, we deﬁne:

=(Qe, δe, qe

) where:

(a)Vertices Qe: set of states such that each one rep-

resents the scheduling of OS-tasks implementing ac-

tive nodes in a zone. ,(Q

i j1

i j2

,...,Q

i jk

), (b)Edges

δe: modiﬁcation of the execution sense of detectors

by respecting the dependence of the latter, (c)Start

state qe

: the default scheduling of OS-tasks Qe

i j1

Fourth modeling level: ZA Data value: For each state

i jk

in GE

, we deﬁne:

=(Qs, δs, qs

) where:

(a)Vertices Qs: set of states where each state repre-

sents data structures and values to be used by active

tasks, (Q

i jk1

i jk2

,...,Q

i jkl

), (b)Edges δs: modiﬁca-

tion of data structure or values, (c)Start state qs

: the

default data structures Q

i jk1

Figure 8 deﬁnes the nested state machines that

model ZA1 of Z1. FSM II is a state machine that

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

260

deﬁnes all possible activations of nodes in the zone,

the red state Q52 corresponds to two state machines

FSM II.1 and FSM II.2 in level 2. Q

521

represents a

particular data ﬂow between active nodes in a zone.

521

is a set of active detectors in a node. Both of the

two states correspond to a particular state machine in

level 3 . Q

5212

represents a particular scheduling of

OS-tasks that control active detectors in level 2. Q

5212

corresponds to particular data structures FSM II.4 in

level 4, Q

52121

corresponds to a particular data struc-

tures and values to be used by active nodes in this

zone Zone1.

Figure 8: Running Example for ZA Modeling.

5.3.3 Slave Agent Modeling (SA)

This agent executes directly the orders of the corre-

sponding (ZA). Figure 9 shows the reaction of a slave

agent in Zone1 when it receives an order from a cor-

responding Zone Agent.

6 COORDINATION PROTOCOL

BETWEEN AGENTS

We propose a communication protocol between the

different agents (CrA, ZA, SA) of this architecture. It

is based on the following operation: (i) CrA Algo-

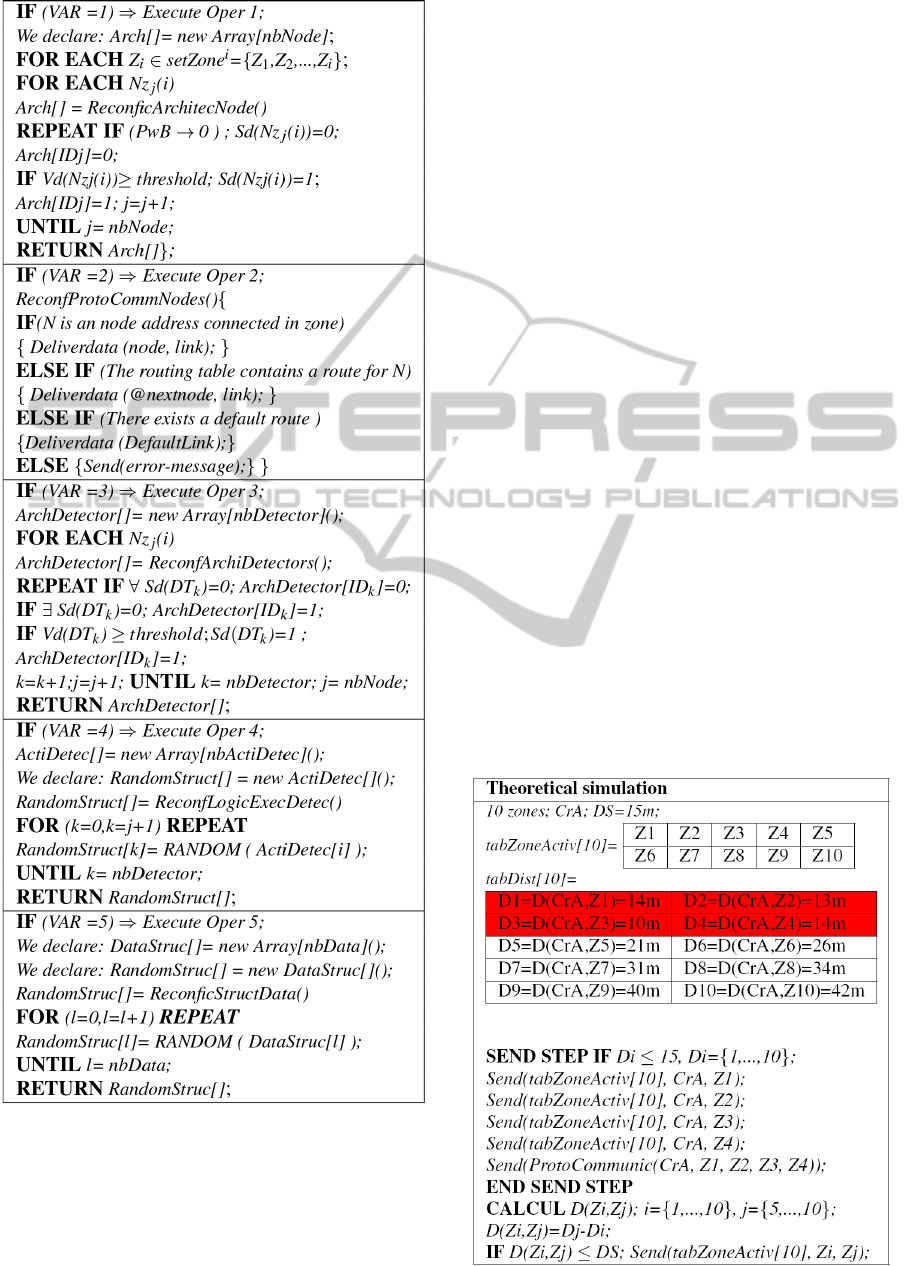

rithm: the operation that links CrA to any ZA. (ii) ZA

Figure 9: Running Example for SA Modeling.

Algorithm: the operation between any ZA and any cor-

responding SA. (iii) Oper 1: an operation allowing the

activation/deactivation of nodes in a zone. (iv) Oper2:

an operation allowing a modiﬁcation of data ﬂows in

a zone (v) Oper3: an operation allowing the activa-

tion/deactivation of detectors in a node. (vi) Oper4:

an operation allowing the modiﬁcation of scheduling

in a zone and (vii) Oper5: an operation allowing the

modiﬁcation of data structures or values in a zone.

CrA Algorithm: to apply a reconﬁguration, CrA

sends to any ZA an array containing the list of de-

sired active zones with the new ﬂow of data to be ex-

changed between them.

Algorithme 1 : CrA Algorithm

Z Zone; newArray(tabZoneActiv[nb]);

DS= Transmission Distance (threshold);

D(CrA,j)= α, j 6= CrA;

D(i,j)=β , j 6= i;

REPEAT

{Send new vector(activ zones) to neighbors zones:

IFD(CrA,j) ≤ DS; Send (tabZoneActiv[nb], CrA, j);

FOR EACHdest j, ﬁnd the next with dist min to j;

IFD(i,j) ≤ DS; Send(tabZoneActiv[nb], j, i);

i+1; calculate(D(i,j));}

UNTIL D (i,j)= 0; source i = destination j;

Send(ProtoCommunic (AC, ZoneDest1, ..., ZoneDestj));

ZA Algorithm: Step-By-Step (ZA) sends to any

(SA) a reconﬁguration scenario.

Algorithme 2 : ZA Algorithm

We declare: VAR = orderReconﬁg(ZA, SA);

IF (VAR =1) Send (ReconﬁcArchitecNode(), ZA, SA);

IF (VAR =2) Send (ReconfProtoCommNod(), ZA, SA);

IF (VAR =3) Send (ReconfArchiDetectors(), ZA, SA);

IF (VAR =4) Send (ReconfLogicExecDetec(), ZA, SA);

IF (VAR =5) Send (ReconﬁcStructData(), ZA, SA);

ReconfigurableWirelessSensorNetworks-NewAdaptiveDynamicSolutionsforFlexibleArchitectures

261

7 SIMULATION AND

EVALUATION

In order to show the beneﬁts of the paper’s contribu-

tion, we apply a simulation of RWSN. We start with

a theoretical simulation before presenting a practical

one.

7.1 Theoretical Simulation

We propose a system (Sys) to be composed of 10

zones (Z1...Z10), each one is composed of 100 nodes:

one master node (Mni) and 99 slaves (Snj), and a

station (S) to control the whole RWSN. Each node

Nz(j) in the same zone Zi is characterized by two

sensors or detectors : DT n

(n =1 or 2) to detect the

temperature and the humidity of the environment.

Each sensor node is equipped with a battery, thus

the available energy is limited. Our system (Sys) is

characterized as follows: (i) all the nodes (Nzn) are

homogeneous in terms of battery and transmission

range, (ii) an omnidirectional antenna is installed

in each sensor node and the transmission range is

deﬁned in 15m (DS), (iii) each node is identiﬁed by

a unique identiﬁer in the network, (iv) the data are

transmitted without any delay, (v) the exchanged

messages are with a constant size. To Apply the three

forms of reconﬁguration, we execute the following

scenarios: (i) (CrA) sends the ﬁrst reconﬁguration

to be applied: activation of all nodes (Hardware

reconﬁguration) and modiﬁcation of temperature to

be (45

◦

C) (Software reconﬁguration), (ii) (ZA) of

each zone receives this order and broadcasts it to each

corresponding slave which applies this order, (iii)

(SA) veriﬁes the new routing table according to the

recommendation of ZA (Protocol reconﬁguration),

(iv) All (SA) send the collected information in step by

step to (CrA). This scenario is described as follows:

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

262

To show the beneﬁts of our contribution,

we compare this work to the projects TWIST

(Vlado Handziski, 2005) and ReWINS (Harish Ra-

mamurthy, 2005): (i) we compute the number of ex-

changed messages in our multi-agent architecture of

RWSN (denoted by Arch 1) where 10 messages are

exchanged between (CrA) and the 10 (ZA) agents. We

suppose that we have 50 active nodes and 50 deac-

tive ones per zone. In this case, 50 messages are

exchanged between (ZA) and (SA). The number of

exchanged messages: NbExchMgs1= 10+10*50=510

messages. For the TWIST project (Vlado Handziski,

2005), the authors use the notion of Super nodes,

(denoted by Arch 2), which is similar to our Zone

Agent but without a concept of active nodes. We

have 10 messages to be exchanged between the sta-

tion and super nodes (10 messages are equal to the

number of super nodes) plus the messages to be ex-

changed between the super nodes and all others=

10*1000. The number of exchanged messages is

NbExchMgs2= 10+10*1000=10010 messages. For

the project ReWINS (Harish Ramamurthy, 2005),

the authors do not consider an agent-based architec-

ture. We denote this architecture by Arch 3, we have,

500 exchanged messages between the station and its

nearly nodes plus the exchanged messages between

the rest of nodes. The number of exchanged messages

is NbExchMgs3= 500+

500

∑

i=0

i=250750 messages. mes-

sages. (ii) If we suppose that the time of transmission

of any message is 2 ms, we can calculate the trans-

mission time of all messages for these three solutions

as follows.

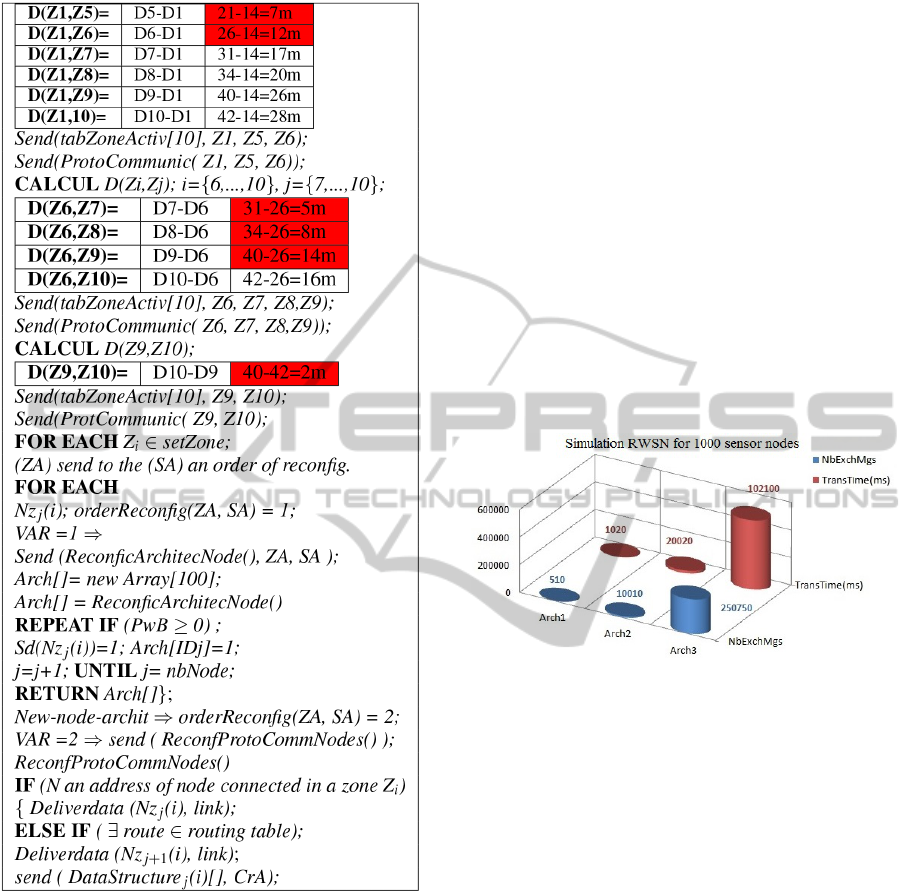

Figure 10: .Comparison between 3 architectures types:Arch

1, Arch 2, Arch 3.

Note that the minimization of exchanged mes-

sages between nodes reduces the total energy con-

sumption in a RWSN. We can compute the com-

plexity of our coordination protocol that we com-

pare to related works (Vlado Handziski, 2005) and

(Harish Ramamurthy, 2005). Let n be the constant

size of data to be exchanged between nodes, and N

be the number of operations in the communication

protocol (Oper 1, Oper 2, Oper 3, Oper 4, Oper 5),

Nb(oppj) the number of sub-operations in the op-

eration oppj, j=(A,..5), Size(n): the algorithm size

or the total number of sub-operations in the proto-

col. The complexity of our protocol is compared

to related works (Vlado Handziski, 2005) and (Har-

ish Ramamurthy, 2005) as follows: (a): For our ar-

chitecture (Arch 1): Size(n) =

∑

j=1

(

∑

i=0

Nb(opp j)) =

5(2n[log

n]) = 10n[log

n] and the complexity is

O(10n[log

n])=O(n[log

n]). The Size(n)=recursive

equation. (b): For TWIST (Vlado Handziski, 2005)

architecture (Arch 2), we have: Size(n)= n(2n[log

n])

= n

[log

n] and the complexity is O(n2[log

n]). (c):

ReconfigurableWirelessSensorNetworks-NewAdaptiveDynamicSolutionsforFlexibleArchitectures

263

For ReWINS (Harish Ramamurthy, 2005) architec-

ture (Arch 3), we have: Size(n) = n

and the complex-

ity is O(n

7.2 Practical Simulation

We are interested in the exchange of signals between

nodes when the temperature is between 30

◦

C and

◦

C (30

◦

C ≤Temp≤ 50

◦

C). Our major goal is

to keep all nodes of the network on live as much

as possible. We assume that if the number of dead

nodes (node with battery charge = 0, PwB=0) reaches

30% of the original number of nodes (in order of 300

nodes) then, the network collapses. We apply our con-

tribution to this case study by using WSNet (Wire-

less Sensor Network simulator) (Elyes Ben Hamida,

2007). Figure 11 shows the network topology

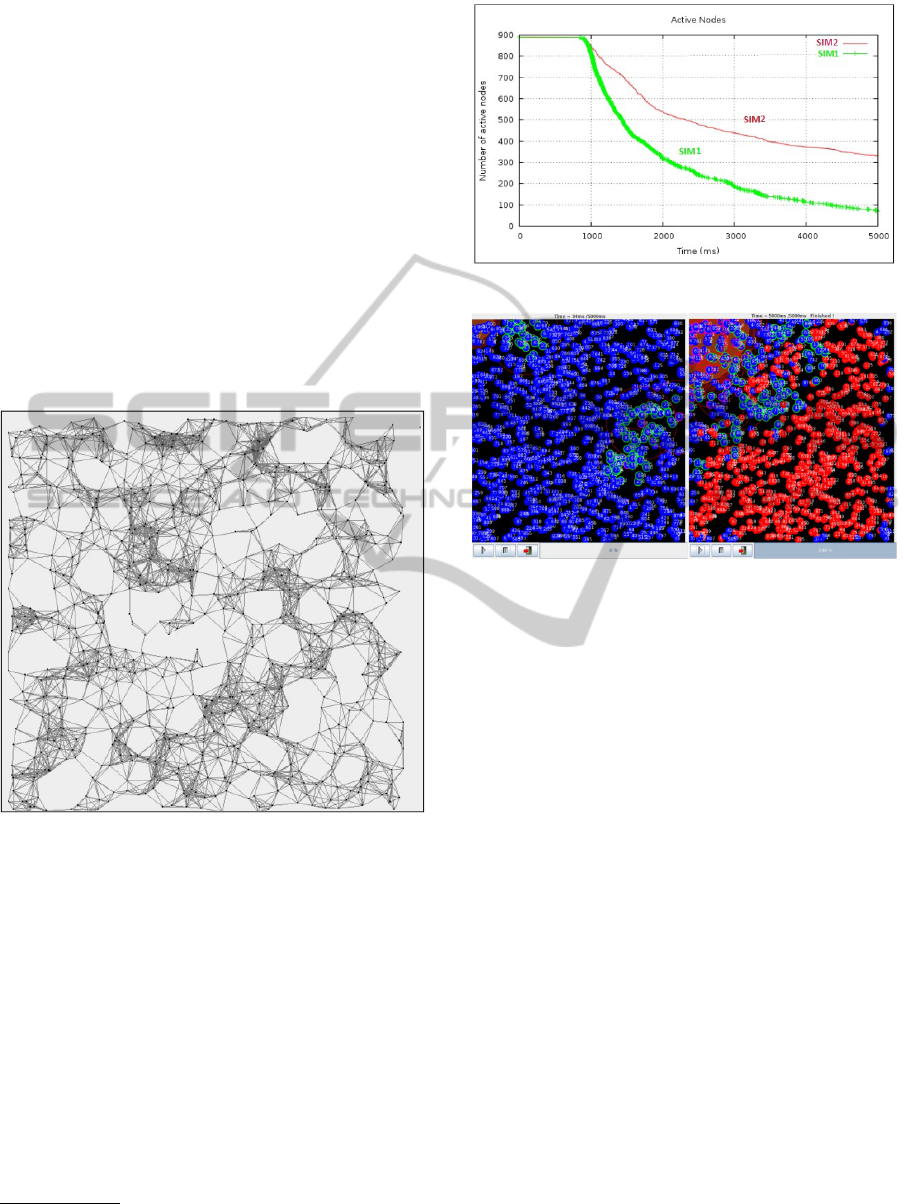

Figure 11: Simulated RWSN topology.

We assume two simulation strategies: (i) First

case (SIM1): We suppose that we do not apply the pa-

per’s contribution. Each node sends periodically the

temperature information even it’s higher than 50

◦

(ii) second case (SIM2): We apply our contribution by

assuming that each node stops any emission of tem-

perature information if it is higher than 50.

Figure 12 shows the beneﬁts of our contribution

that we tested with WSNet.

We note that without the reconﬁguration (SIM1),

the network performance is low, since it collapses

much faster than in (SIM2). Figure 13 presents addi-

tional results of our simulation by using WSNet. The

red nodes are deactivated nodes (PwB=0), the brown

We thank Ms. Zeineb Gueich for collaboration to pre-

pare this experimentation

Figure 12: .Comparison between two simulation cases.

Figure 13: The start and end of simulation.

area shows the high temperature zone, the nodes with

a purple outline are active in the process of transmit-

ting data and those in green are in their neighborhoods

and participating in routing.

According to our theoretical and practical simu-

lation, the advantages of the paper’s contribution :(i)

a gain in transmission time of messages to be ex-

changed between nodes. This gain includes a de-

crease of transmission times, (ii) a gain in terms of

energy since we gain in transmissions of messages,

(iii) a hierarchical architecture of RWSN in order to

control the complexity of the problem and to increase

the ﬂexibility of reconﬁguration.

8 CONCLUSIONS AND

PERSPECTIVES

This paper proposes new solutions for reconﬁgurable

wireless sensor networks to be composed of commu-

nicating nodes which execute reconﬁgurable tasks.

The reconﬁguration is assumed to be any operation

allowing the adaptation of the network to its envi-

ronment under different constraints. We deﬁne three

forms of reconﬁgurations to increase the ﬂexibility of

the network: (i) software reconﬁguration allowing the

addition/removal and update of tasks, (ii) hardware

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

264

reconﬁguration allowing the activation/deactivation

of sensor nodes or detectors, (iii) protocol recon-

ﬁguration allowing the modiﬁcation of data ﬂows.

Nowadays, many projects deal with RWSN such as

WASAN and TWIST(Vlado Handziski, 2005). Nev-

ertheless no one addresses all these forms together.

We propose a zone-based multi-agent architecture

for RWSN where hierarchical agents are deﬁned for a

more ﬂexibility of the network. We use nested state

machines as a modeling solution to cover all these

forms and control the complexity. A coordination

protocol is deﬁned between agents for their feasible

coordination. We present in the paper a theoretical

and practical simulation that proves the paper’s con-

tribution.

The applicability bound of our proposed solu-

tion is the modelling complexity when the number

of zones increases. Moreover, the system that we

treat is real-time, but it is critical to meet all real-time

constraints while handling different reconﬁguration

scenarios. The third applicability bound is the crit-

ical management of reconﬁguration requests on the

medium between the nodes especially when the num-

ber of zones increases.

We plan in the future work to verify functional

and temporal properties for the formal validation of

RWSN. The real-time scheduling in nodes as well as

the functional safety will be possible future trends to

be also followed. A real industrial case study will be

considered for more evaluations of our contribution.

REFERENCES

Bellis, S. J., Delaney, K., Barton, J., and Razeeb, K. M.

(Aug 2005). Development of ﬁeld programmable

modular wireless sensor network nodes for ambient

systems. In Computer Communications, Special Issue

on WSNs, pages 1531– 1544.

Elyes Ben Hamida, S. S. (2007). Wsnet : Simulation con-

ﬁguration tutorial. Technical report, ARES INRIA /

CITI - INSA Lyon.

Harish Ramamurthy, B. S. Prabhu, R. G. (2005). Re-

conﬁgurable wireless interface for networking sensors

(rewins). 9th IFIP Interernational Conference on Per-

sonal Wireless Communincation, 15.

Hnin Yu Shwe, Chenchao Wang, P. H. J. C. and Kumar,

A. (2013). Robust cubic-based 3-d localization for

wireless sensor networks. Wireless Sensor Network,

11(5):169–179.

Jie CHEN, L. Z. and LUO, J. (2009). Reconﬁguration cost

analysis based on petrinet for manufacturing system.

J. Software Engineering & Applications, 8(2):361–

369.

Jiping Xiong, J. Z. and Chen, L. (9 Feb 2013). Efﬁcient data

gathering in wireless sensor networks based on matrix

completion and compressive sensing. IEEE Commu-

nications Letters, 3:1–3.

Kindratenko1, V. . and Pointer, D. . (2005). Mapping a

sensor interface and a reconﬁgurable. Communication

System to an FPGA CoreSensor Letters, 3:174– 178.

M. Bocca, E. I. Cosar, J. S. and Eriksson, L. (July 2009). A

reconﬁgurable wireless sensor network for structural

health monitoring.

Mahalik, N. P. (2009). Sensor Networks and Conﬁgura-

tion Fundamentals, Standards, Platforms and Appli-

cations. Springer Berlin Heidelberg New York.

R.Saravanakumar, S.G.Susila, J. L. J. (March 2011). Energy

efﬁcient homogeneous and heterogeneous system for

wireless sensor networks. International Journal of

Computer Applications, 17.

Samek, M. (2003). Practical Statecharts in C/C++: Quan-

tum Programming for Embedded Systems. CMP

Books, imprint of CMP Media LLC.

Swamy, N. (2003). Control Algorithms for Networked Con-

trol and Communication Systems. PhD Thesis, Dept.

of Elect. Eng.

T.-S. Chen, C.-Y. C. and Sheu, J.-P. (2000). Efﬁcient path-

based multicast in wormhole-routed mesh networks.

J. Sys. Architecture, 46:919–930.

Vikram Guptay, Junsung Kim, A. P. K. L. R. R. R. and To-

vary, E. (2011). Nano-cf: A coordination framework

for macro-programming in wireless sensor networks.

In Mesh and Ad Hoc Communications and Networks

(SECON), volume 9.

Vlado Handziski, Andreas Kopke, A. W. A. W. (November,

2005). Twist: A scalable and reconﬁgurable wireless

sensor network testbed for indoor deployments. Tech-

nical report, Technical University Berlin, Telecommu-

nication Networks Group.

Wang, F. (2010). Case study: Using labview to design

a greenhouse remote monitoring system. Technical

note, Northeast Agriculture University.

ReconfigurableWirelessSensorNetworks-NewAdaptiveDynamicSolutionsforFlexibleArchitectures

265
