Enhanced Interior Gateway Routing Protocol for OMNeT++

Vladimír Veselý, Jan Bloudíček and Ondřej Ryšavý

Faculty of Information Technology, Brno University of Technology, Božetěchova 2, Brno, Czech Republic

Keywords: Enhanced Interior Gateway Routing Protocol, EIGRP, OMNeT++, Dynamic Routing Protocol, Routing,

Simulation, ANSA.

Abstract: Cisco’s EIGRP is a hybrid routing protocol between distance vector and link-state routing protocols. EIGRP

offers routing based on composite metric, which takes into account multiple factors and allows more

granular and precise routing decisions based on the current state of the network. Cisco released basic

specification of EIGRP as IETF’s RFC draft in the beginning of 2013. This paper introduces one of the first

freely available EIGRP design and a simulation model implementation that can be run and tested within

OMNeT++ discrete event simulator.

1 INTRODUCTION

Network layer serves the purpose of end-to-end data

delivery. Routers employ routing tables to make

correct routing decisions by forwarding hop-by-hop

the packet closer to receiver. Dynamic routing

protocols maintain up-to-date content of routing

tables by exchanging updates about known

networks.

Routing protocols for traditional wired networks

could be divided into three categores: a) distance-

vector where routing is based on information

provided by neighbors and each route has one

attribute representing distance of network from a

given router; b) path-vector which is the same as

distance vector but routes have more than one

attribute; and c) link-state where every router

maintains independent view on topology and

computes the shortest path tree towards all other

nodes. Additional typology of routing protocol is

according to type of deployment: a) interior

gateway protocols (IGP) for routing within one

administrative domain; b) exterior gateway

protocols (EGP) for routing between autonomous

systems (AS). Among typical representants belong:

 Routing Information Protocol (RIPv2 for IPv4

(Malkin, 1998), RIPng for IPv6 (Malkin &

Minnear, 1997)) – Distance-vector routing

protocol that works with hop-count as the

metric. Routes with metric 16 or more are

considered unreachable;

 Babel (Chroboczek, 2011) – Babel is distance-

vector protocol specialized (but not

exclusively) for wireless networks that have

different metric criteria than wired networks.

Metric may represent cost, number of host or

any other implementation dependent route

atribute. Nevertheless, routes with infinity

metric 0xFFFF are considered unreachable.

Babel currently supports both IPv4 and IPv6;

 Intermediate System to Intermediate System

(IS-IS) (Oran, 1990) – The first link-state

protocol ever, which is also capable of working

with different metrics simultaneosly. IS-IS was

originally intended to be used with Connection-

less Mode Network Service Protocol

(concurrent of IP) for ISO/OSI networks,

however, later was developed implementation

for both IPv4 and IPv6 protocols. IS-IS is by

design agnostic to used address-family and

single instance can carry routing updates for

various network protocols. Formerely used IS-

IS metrics were delay and link errorness,

current revision employs only speed of the

link;

 Open Shortest Path First (OSPFv2 for IPv4

(Moy, 1998), OSPFv3 for IPv4/6 (Coltun, et

al., 2008)) – OSPF started as IP alternative to

IS-IS and later become industrial standard link-

state routing protocol that has wide-spread

deployment. OSPF uses cost as the metric,

where cost is derived from the interface

bandwidth. OSPF supports only IP routing

updates;

Veselý V., Bloudí

cek J. and Ryšavý O..

Enhanced Interior Gateway Routing Protocol for OMNeT++.

DOI: 10.5220/0005038400500058

In Proceedings of the 4th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2014),

pages 50-58

ISBN: 978-989-758-038-3

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

 Border Gateway Protocol (BGPv4) (Rekhter &

Hares, 2006) – Extends distance-vector idea by

having multiple attributes acompanying the

single prefix update. BGPv4 is currently the

only one EGP that is being used and it is often

refered as policy-control routing protocol.

Enhanced Interior Gateway Protocol (EIGRP) is

the backward compatible successor of previous

Cisco proprietary Interior Gateway Protocol (IGRP).

It is categorized as a hybrid routing protocol which

means that it is a crossover between distance-vector

(topology is known based on announcement from

neighbors) and link-state protocols (instead of

periodic updates, topology changes are propagated

immediately). Down below follows the list of main

beneficial features of EIGRP:

 EIGRP employs Diffusing Update Algorithm

(DUAL) (Garcia-Lunes-Aceves, 1993) that

effectively propagates any topology change

and minimizes path recomputational time;

 Currently EIGRP is the only routing protocol

that guarantees loop-free topology even during

the time when topology is actively converging

towards a new routing state;

 EIGRP leverages its own reliable transport

protocol (even for multicast data transfer);

 In the contrary to other distance-vector

protocols, EIGRP is capable of sending event-

driven partial bounded updates;

 It has neighbor discovery and recovery

mechanism to determine route reachibility via

particular adjacent node;

 EIGRP contains protocol-dependent modules

that allow operation over different network

protocols (including IPv4 and IPv6);

The EIGRP was introduced in 1993 as a cojoint

effort of Cisco and SRI International (Albrightson,

et al., May 1994). Initial and later measurements

revealed that it outperforms other routing protocols

(i.e., speed of convergece, network bandwidth

utilization, queing delay) (Xu & Trajkovic, 2011).

Despite its beneficial aspects (or maybe because of

them) it had been protected as one of the major

Cisco intellectual properties by a bunch of patents

for nearly twenty years. In the beginning of 2013,

basic EIGRP design and functionality were

submitted as a publicly available IETF informational

draft (Savage, et al., 2013).

The project ANSA (Automated Network

Simulation and Analysis) running at the Faculty of

Information Technology is dedicated to develop the

variety of software tools that can create simulation

models based on real networks and subsequently to

allow formal analysis and verification of network

configurations. This paper outlines a new simulation

module, which is a part of the ANSA project and

which extends functionality of the INET framework

(OMNeTpp/INET, 2014) in OMNeT++ (OMNeTpp,

2014).

This paper has the following structure. The next

section covers a quick overview of existing EIGRP

implementations (either real or simulation ones).

Section 3 deals with our contribution, mainly

necessary theory, proposed design and subsequent

implementation. Section 4 presents validation

scenarios proving corectness of the implementation.

The paper is summarized in Section 5 together with

unveiling our future plans.

2 STATE OF THE ART

Currently none of vendors other than Cisco supports

EIGRP in its active network devices. Despite

positive campaign targeting wider EIGRP

acceptance, many manufacturers and customers

remain skeptical and rely on a long-time proven

open solutions like OSPF or IS-IS. The one of the

first publicly available open-source EIGRP routing

demon is being developed at the University of Žilina

(GitHub/janovic, 2013) within the scope of Quagga

project (nonGNU, 2013).

A freely available demonstration tool called

Easy-EIGRP (SourceForge, 2013) exists rather for

educational purposes.

OPNET simulator has contained EIGRP

simulation modules even before its public IETF

release. However, its functionality is limited and it

lacks IPv6 support for EIGRP. Nevertheless,

OPNET and its simulation models were used to

conduct several measurement studies comparing

different routing protocols including EIGRP (Wu,

2011).

Previously described state of EIGRP deployment

affirmed our decision to offer academic and

enterprise community with a full-fledged EIGRP

implementation with all usually employed features.

The current status of unicast routing support in

OMNeT 4.4.1 and INET 2.2 framework is according

to our best knowledge as follows. The IPv4 (named

networkLayer) and IPv6 (pragmatically called

networkLayer6) layers are already parts of INET

framework. The framework contains OSPFv2 as the

only available dynamic routing protocol.

During ANSA project development we have

extended original simple router module to be dual-

stack and enhanced it with a variety of dynamic

routing protocols (RIP, RIPng, IS-IS, OSPFv3,

EnhancedInteriorGatewayRoutingProtocolforOMNeT++

PIM), thus creating ANSARouter as the compound

simulation module based on the standard behavior of

Cisco routers.

The basic goal behind our effort is to support

EIGRP dynamic routing protocol. Hence, we have

decided to add missing functionality in form of

simulation module directly connected to

networkLayer and networkLayer6 as

depicted on

Figure 1.

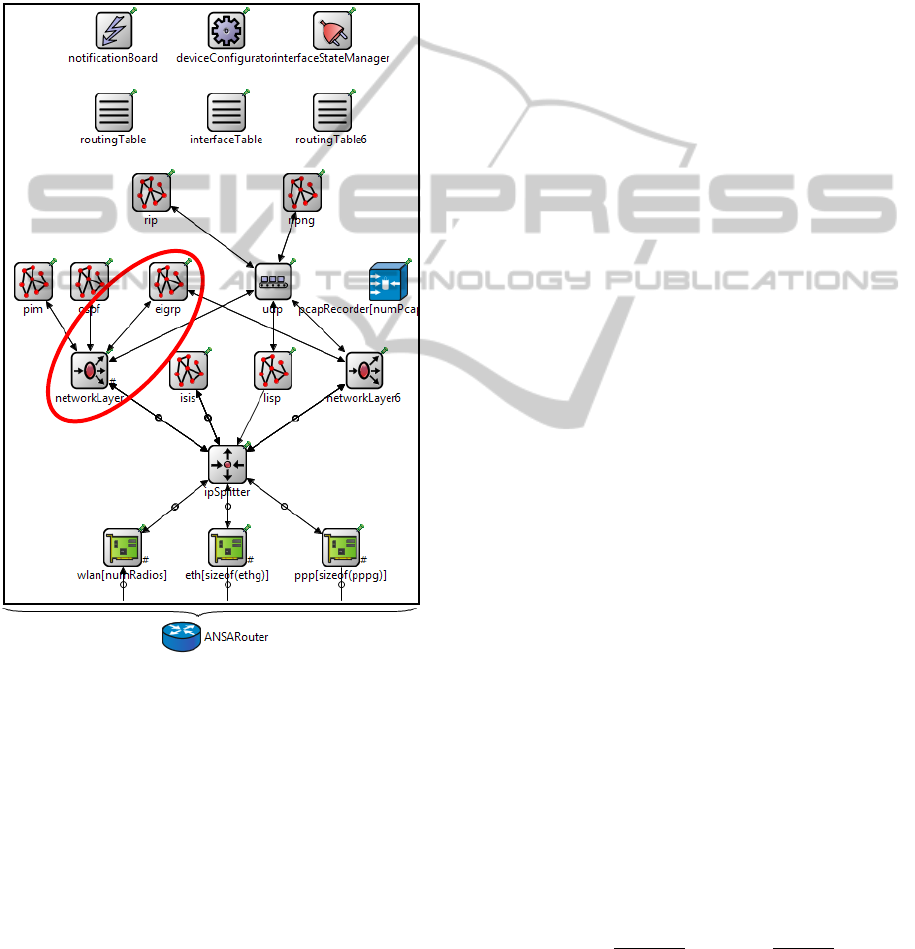

Figure 1: ANSARouter structure with highlighted

contribution.

OMNeT++ state of the art prior to this paper is

the result of ongoing research covered in our other

articles.

3 CONTRIBUTION

We have implemented OMNeT++ compound

simulation module supporting EIGRP behavior and

functionality. This section provides a short

theoretical background, overview of design and

some implementation notes.

3.1 Theory of Operation

An EIGRP process computes a successor for every

destination. A successor represents the next-hop

router where the route to the destination via

successor is loop-less and with the shortest distance.

Feasible successor (FS) or so called backup next-

hop is the router that provides loop-less route but

with higher distance. To determine whether

particular router is a feasible successor, the router is

working with two parameters – a feasible and a

reported distance. Feasible distance () is the best

known distance from a destination network to a

given EIGRP router (historical minimum).

Reported distance () is distance from

destination network advertised by a given EIGRP

router neighbor. The router is using  and  to

decide whether the feasible condition is satisfied or

not. Feasible condition assumes that any route with

 is without any doubts loop-less. The

passive state is the state of the destination network

when the successor is known and the route is

converged and usable. Active state is in contrast to

the previous definition when the destination network

does neither have a successor nor FS and the router

is actively searching and computing a new

successor.

The EIGRP employs composite metric which

takes into account multiple route attributes. The

basic composite metric consists of following four

parameters: a) bandwidth (abbr.  is minimal

bandwidth enroute); b) delay (abbr.  is

accumulative sum of delays enroute), c) load (abbr.

 is maximal traffic load in range from 1 to 255 on

the links towards destination where lower is

considered better), d) reliability (abbr.  is minimal

reliability in range from 1 to 255 on the links

towards destination where higher is considered

better). Parameters a) and b) are static, parameters c)

and d) are dynamically recomputed every 5 minutes

on certain EIGRP versions. Parameters are

accompanied with K-values called weights which

are unsigned byte long values where 







Usually Cisco routers are using default composite

formula for metric computation without dynamic

parameters:





.



.

Complete composite formula including all

parameters looks like this:





.





.

256





.∙









The new revision of EIGRP establishes two new

parameters: a) jitter (abbr.  is accumulative delay

SIMULTECH2014-4thInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

variation enroute measured in microseconds where

lower is preferred); b) energy (abbr.  is

accumulative energy consumption in watts per

transferred kilobit where lower is preferred). Both

parameters are accompanied with 



weight. A new

wide metric is 64 bit long in opposite to older 32 bit

long standard metric and it also solves problem of

standard metric when taking into account delay on

links faster than 1 Gbps. Wide metric composite

formula is then:





.





.

256





.









∙









When employing multicast for communication

on local segment, EIGRP has either reserved address

224.0.0.10 for IPv4 or FF02::A for IPv6. EIGRP

routers exchange following messages during

operation:

 EIGRP Hello – Detects EIGRP neighbors with

their settings (K-values, autonomous system

number, timers and authentication) and checks

their aliveness. Sent periodically every

5 seconds by default. Hold timer (period after

which neighbor is considered dead) is 3×

longer, and by default it is 15 seconds.

Neighbor announces its own hello and hold

intervals which will obey during its operation;

 EIGRP Update – Carries routing information

that might cause receivers to start DUAL. Sent

either as unicast or multicast;

 EIGRP Ack – Used for acknowledging EIGRP

Update, Query and Reply messages. It is reused

EIGRP Hello message with empty structure;

 EIGRP Query – If network transits to active

state and router starts to search for a new

successor then router starts DUAL and sends

EIGRP Queries to neighbors usually as

multicast;

 EIGRP Reply – This message contains the

routing answer to previous EIGRP Query.

3.2 Design and Implementation

The EIGRP implementation works with three tables:

 Neighbor table (NT) – Stores information

(e.g., IP address, router-id, uptime, hold-time,

query count, etc.) relevant to all adjacent

EIGRP routers;

 Topology table (TT) – The main routing

information base from point of view of a given

router. It contains each known network and

relevant routes, their states and next-hop

addresses together with their  and ;

 Routing table (RT) – A routing table is the

gathering place of best routes from different

routing sources, thus the best EIGRP routes are

installed here from topology table.

The compound EIGRP simulation module is

divided into components depicted in Figure 2.

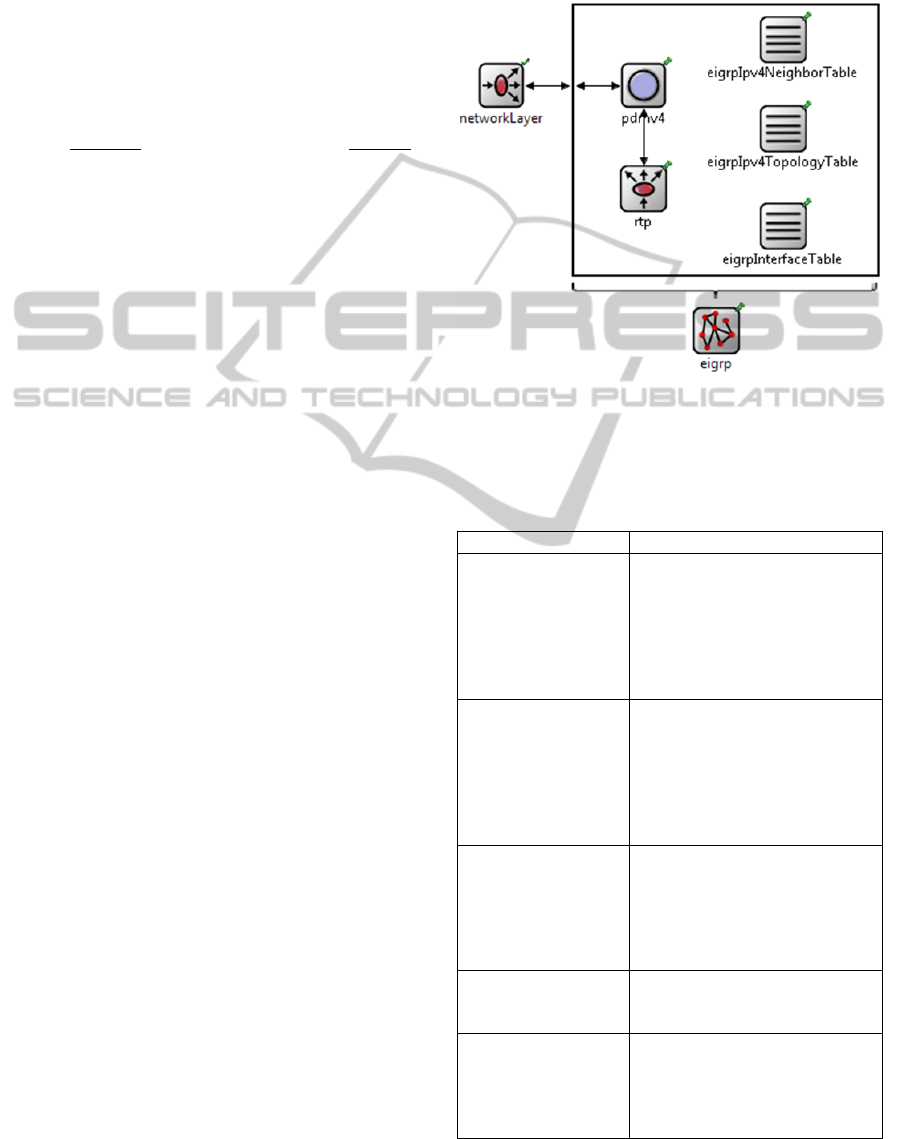

Figure 2: EIGRP simulation module structure.

A brief description of components is provided in

Table 1:

Table 1: Description of EIGRP submodules.

Name Description

pdmv4

The protocol-dependent

module (PDMs) sends and

receives EIGRP messages that

contain IPv4 routing

information. It mediates control

exchange between routing table

and topology table.

rtp

EIGRP uses Cisco Reliable

Transport Protocol (RTP) to

ensure reliable transfer of

EIGRP messages. It uses

sequence number and positive

acknowledgement scheme to

detect any gaps in transfers.

eigrpIpv4

NeighborTable

This module is emanation of

neighbor table. It maintains

state of all EIGRP adjacencies

(i.e., neighbor IP address, state,

hold timer, RTP sequence

number)

eigrpIpv4

TopologyTable

EIGRP RIB which includes all

learned routes, their state, 

and computed successors.

eigrp

InterfaceTable

Simulation module keeps

settings relevant to any

interface on which EIGRP is

enabled (i.e., separate hello and

hold timers, query count).

EnhancedInteriorGatewayRoutingProtocolforOMNeT++

4 TESTING

In this section, we provide information on testing

and validation of our implementation. Only two

scenarios are described here really thoroughly

because of limited space. Nevertheless a rich set of

test scenarios is accompanied with the published

source codes.

We compared results with the behavior of the

referential EIGRP implementation running at Cisco

routers. For this reason, we built exactly the same

topology and observed (using Switched Port

Analyzer and Wireshark) relevant message

exchanges between real devices (Cisco 7204 as

routers with IOS version c7200-adventerprisek9-

mz.152-4.M2 and host stations with Windows 7

OS).

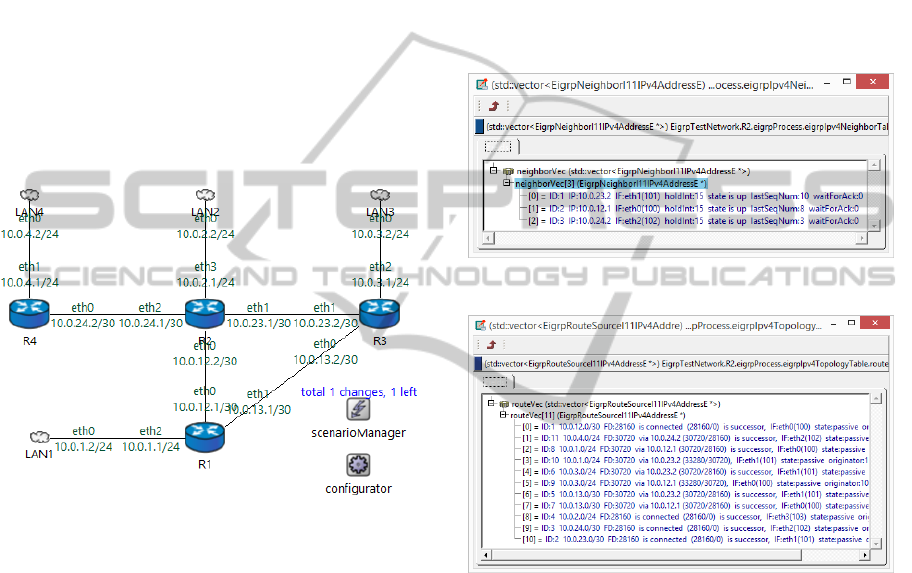

Figure 3: EIGRP testing topology.

Testing topology (see above Figure 3) consists of

four EIGRPRouters (marked R1, R2, R3 and R4)

and four ANSAStandardHosts (LAN1, LAN2,

LAN3 and LAN4) which substitutes whole separate

LAN segment with dedicated IP networks.

In the first scenario, we would like to show how

metric changes are being propagated. In the second

scenario, we focus on topology changes.

4.1 Scenario 1: Metric Change

A typical message exchange of freshly booted

routers is following:

#1) Routers establish neighborship by sending

and receiving EIGRP Hello messages.

Whenever a new neighbor is discovered, all

relevant information is recorded and stored in

NT. This fact is depicted on Figure 4 where

we can observe

eigrpIpv4NeighborTable content on

router R2 just few seconds after beginning of

scenario (no later than 4 seconds after the

start);

#2) Whenever neighborship is established,

routers exchange EIGRP Updates containing

routing information to build their TTs and

determine best routes towards known

destinations. Reception and processing of any

update is confirmed by EIGRP Ack.

Figure 5

shows converged state of topology from the

router R2’s eigrpIpv4TopologyTable

point of view. Routes have known ,

successors and are in passive states.

Figure 4: R2's Neighbor Table prior to Scenario 1 events.

Figure 5: R2's Topology Table prior to Scenario 1 events.

We scheduled bandwidth alternation R3’s eth2

interface facing LAN3 changes its  attribute from

100 to 10 000 in order to show how the change of

metric influences topology (for instance content or

R2’s RT is depicted on Figure 6). In simulator, we

uses scenarioManager to accomplish this goal,

in case of real-network, we change interface

configuration.

#3) R3 initiates DUAL, which discovers that only

10.0.3.0/24 is reachable via eth2 and

propagates metric change to its neighbors R2

and R1 by sending EIGRP Update for

network 10.0.3.0/24;

#4) R2 acknowledges update with EIGRP Ack.

R2’s DUAL is unable to find FS, hence route

transits to active state and router sends

ordinary EIGRP Query to R1 and R4 and

SIMULTECH2014-4thInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

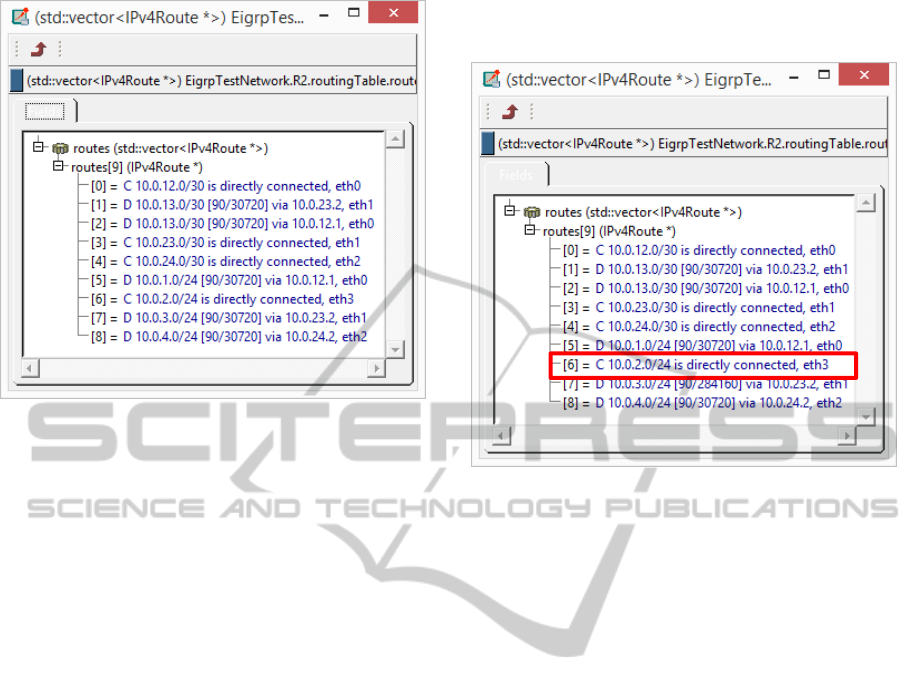

Figure 6: R2's Routing Table prior to Scenario 1 events.

poison reverse EIGRP Query with maximal

metric towards R3. Same previous steps

apply also for R1 where situation is similar –

acknowledgment towards R3, DUAL marks

network as active, query to R2 and poison

reverse query to R3;

#5) R1 receives EIGRP Query from R2 and it

acknowledges it with EIGRP Ack. Following

next, R1 responds with EIGRP Reply with a

new metric via successor R3. Same situation

repeats on R2 when replying to R1 query;

#6) R3 receives queries from R1 and R2 and it

acknowledges them. Following next, R3 finds

out FS (itself) and responds with EIGRP

Replies to R2 and R1;

#7) R4 receives EIGRP Query from R2 and

confirms it with EIGRP Ack. DUAL is unable

to determine FS, thus route transits to active

state. Because of split-horizon rule, there is

no neighbor to query. Hence, R2 is marked as

a successor due to infinity . The network

transits back to passive state with a changed

metric via new and old successor R2. R4

sends poison reverse EIGRP Reply back to

R2;

#8) R1 and R2 receive and acknowledge EIGRP

Replies which they exchanged and store a

new metric in TT;

#9) R1 and R2 receive EIGRP Reply from R3 and

store a new metric in TT. Because all

neighbors of R1 and R2 responded to their

queries, DUAL stops. Next, they both R1 and

R2 update records in RTs to reflect changed

metric situation of network 10.0.3.0/24.

Topology is converged and state of R2’s

routing table is depicted on

Figure 7.

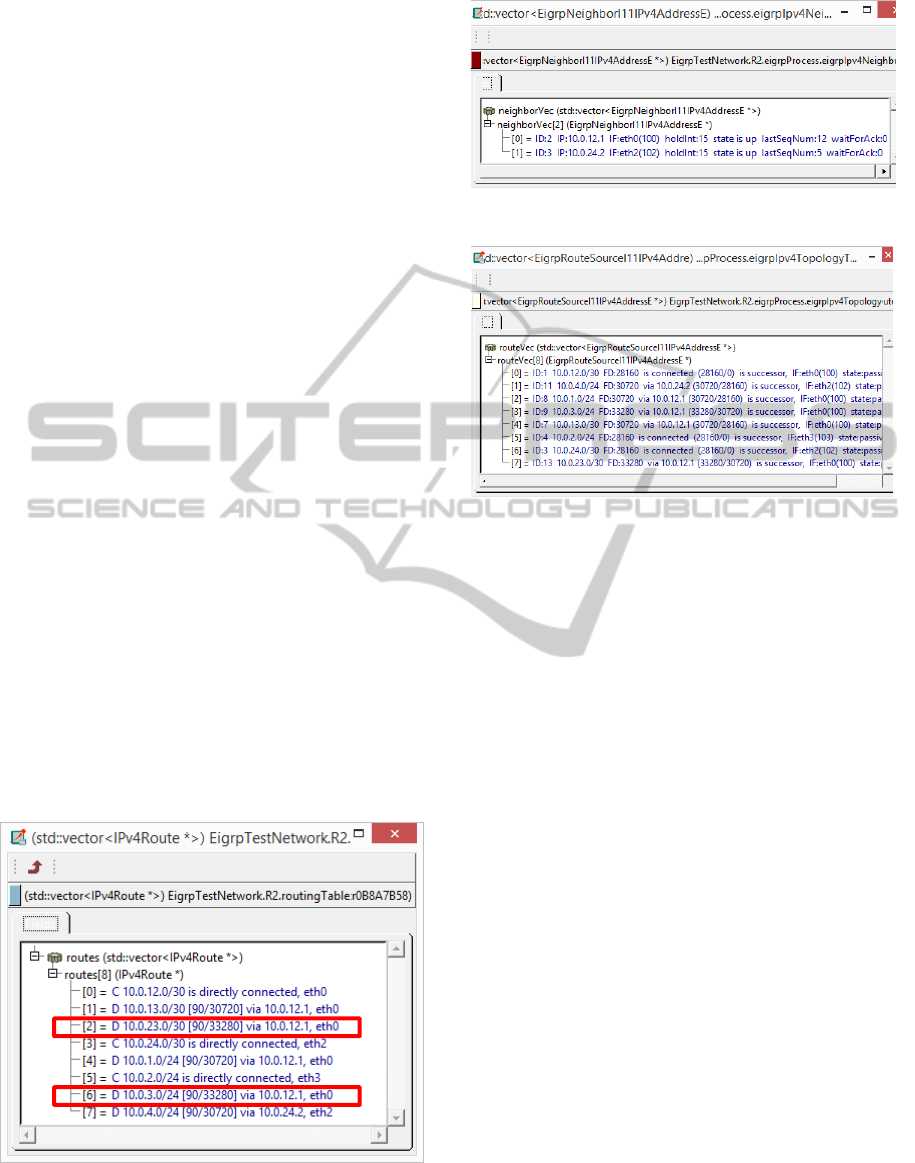

Figure 7: R2's Routing Table after Scenario 1 events.

4.2 Scenario 2: Topology Change

Scenario begins exactly same as the previous one

with phase #1, when neighbors are discovered, and

phase #2, when topology converges by initial

routing information exchange (same content of R2’s

NT, TT and RT as on Figure 4, 5 and 6).

We scheduled link failure (R2’s eth1) of

interconnection between routers R2 and R3 for this

scenario. Goal is to show how topology change is

propagated from the source to other routers. Once

again we accomplish this with the help of

scenarioManager in simulator. In case of real

network, we just shut down the interface. In both

cases, R3’s eth1 remains operational.

We have decided to omit all acknowledgement

in subsequent text in order to make it clearer and

easier to read. Nevertheless, all routers correctly

confirm reception of EIGRP Update, Query and

Reply messages by sending EIGRP Ack. Scenario

continues in following manner:

#3) Eth1 comes down on R2. EIGRP process

goes through TT and transits all networks

reachable via successor (10.0.23.0/30 and

10.0.3.0/24) on eth1 interface to active

state. R2 sends EIGRP Queries to

neighbors R1 and R4. Load balancing is

enabled, thus 10.0.13.0/30 is reachable via

two routes in the RT – the one that leads

through R3 is removed and neighbors are

notified by EIGRP Update messages;

EnhancedInteriorGatewayRoutingProtocolforOMNeT++

#4) R4 receives EIGRP Query from R2. DUAL

cannot find FS for routes and because of

split-horizon rule there is no other neighbor

to ask. Hence, R4 sends EIGRP Reply

stating that 10.0.23.0/30 and 10.0.3.0/24 are

unreachable from its perspective;

#5) R1 receives EIGRP Query. Dual finds out

FS and responds back with EIGRP Reply.

Moreover, the route to 10.0.23.0/30 via R2

is removed from RT and EIGRP Update

about this is sent to neighbors R3 and R2.

Routes on this router remain in passive

state;

#6) Integrated optimization prevents

information from particular updates to be

passed to DUAL. Namely previously sent

EIGRP Update from R1 to R3, from R2 to

R1, from R1 to R2 and from R2 to R4;

#7) R2 receives EIGRP Reply from R4 and

from R1. All replies has been received, thus

routes to 10.0.23.0/24 and 10.0.3.0/30 has a

new successor in R2’s TT and that is R1.

Those routes are propagated to R2’s RT and

information about change is sent to

neighbors as EIGRP Update;

#8) R4 receives EIGRP Update from R2 and

inserts R2 as a new successor to its RT.

Because of RT change, poison reverse

EIGRP Update is sent back to R2;

#9) Same optimization as in case of phase #6.

EIRGP Updates from R2 to R1 and from

R4 to R2 are omitted from DUAL

processing. Content of R2’s NT, TT and RT

does not change for the rest of scenario and

it shown on Figures 8, 9 and 10);

Figure 8: R2's Routing table after Scenario 2 events.

Figure 9: R2's Neighbor table after Scenario 2 events.

Figure 10: R2's Topology Table after Scenario 2 events.

#10) Hold timer expires on R3, thus

neighborship is terminated and R2 is

removed from R3’s NT. Also R3 sends

goodbye EIGRP Hello as a preventive

notification. All affected networks

reachable via R2 (10.0.24.0/30, 10.0.2.0/24,

10.0.4.0/24) transit to active state and

EIGRP Query is sent to remaining neighbor

R1. Only exception is 10.0.12.0/30 that has

another FS due to load balancing. However,

its second route is removed from R3’s RT

and EIGRP Update is sent to R1;

#11) R1 receives EIGRP Query and Update from

R3. DUAL finds FS for all queried routes in

R1’s TT and thus no network transits to

active state. EIGRP Reply is sent to R3 as

response;

#12) R3’s DUAL collects all (single) EIGRP

Replies (from R1). R3’s TT is updated with

a new successor and affected networks

transit back to passive state. The best routes

are introduced to R3’s RT and EIGRP

Update is sent to R1;

#13) Processing of update is optimized just as in

case of phase #6 and #9 on R1. Topology is

converged.

SIMULTECH2014-4thInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

4.3 Test Summary

Comparison for Scenario 1 can be observed in Table

2. Similarly description for Scenario 2 is in Table 3.

Column marked with header “

S → R” contains

sender and receiver of a given message. In

comparisons, we have focused on messages

processed mostly by router R2. Nevertheless,

messages that are not shown and were processed by

other routers are also in correct order and without

any significant deviations between simulation and

real time.

The correlation of messages between simulation

and real network suggests correctness of our EIGRP

implementation.

Table 2: Timestamp comparison for Scenario 1.

Phase Message

S →R

Simul. [s] Real [s]

#3 Update

R3→R2

0.000 0.000

#4 Query

R2→R1

0.001 0.036

#5 Reply

R1→R2

0.002 0.068

#9 Reply

R4→R2

0.003 0.088

Table 3: Timestamp comparison for Scenario 2.

Phase Message

S →R

Simul. [s] Real [s]

#3 Query

R2→R1

0.000 0.040

#4 Reply

R4→R2

0.001 0.076

#5 Reply

R1→R2

0.001 0.096

#7 Update

R2→R1

0.002 0.116

#8 Update

R4→R2

0.003 0.180

#10

Hello

R3→R2

10.659 10.736

Query

R3→R1

10.660 10.764

#11 Reply

R1→R3

10.661 10.812

Validation testing against the real-life topology

shows just reasonable time variations (around ±200

milliseconds). This variation observable on Cisco

devices is caused by three factors: a) control-plane

processing delay and internal EIGRP optimizations;

b) packet pacing that guarantees constant bandwidth

consumption by EIGRP process and avoids potential

race conditions between EIGRP instances;

and c) inaccuracy in timing of certain event in real-

life network. Nevertheless, the routing outcomes of

simulated and real network are exactly same when

taking into account accuracy in order of seconds.

5 CONCLUSIONS

We presented an overview of the theory behind

EIGRP routing protocol. The main contribution of

work is a new OMNeT++ simulation module that

mimics Cisco’s EIGRP protocol implementation

based on the available specification and from a

reverse-engineering observations. We introduce a

simulation scenario and relevant results to

demonstrate its compliance with the reference Cisco

IOS implementation.

EIGRP is beneficial namely for large enterprise

networks because it generally consumes less

resources than link-state IGPs. It is the one of the

best distance-vector IGPs available and with its

public release we can expect that more companies

will tend to use it. For such entities, we offer

polished simulation models for a reliable

comparison on their network functionality which

now includes also EIGRP.

We plan to carry on work towards: 1) wrap up

IPv6 protocol dependent module for our EIGRP

simulation module; 2) extend functionality with stub

functionality, stuck-in-active support and further

tune EIGRP simulation model. Additional plan is to

conduct comparative evaluation of our models

against those in OPNET simulator.

More information about the ANSA project is

available on homepage (Brno University of

Technology, 2014). All source codes including

EIGRP implementation could be downloaded from

GitHub repository (GitHub/kvetak, 2013).

ACKNOWLEDGEMENTS

This work was supported by the Brno University of

Technology organization and by the research grants:

 FIT-S-14-2299 supported by Brno University

of Technology;

 VG20102015022 supported by Ministry of the

Interior of the Czech Republic;

 IT4Innovation ED1.1.00/02.0070 supported by

Czech Ministry of Education Youth and Sports.

REFERENCES

Albrightson, R., Garcia-Luna-Aceves, J. J. & Boyle, J.,

May 1994. EIGRP a fast routing protocol based on

distance vectors. Proceedings Networld/Interop,

Volume Vol. XCIV, pp. 136-147.

Brno University of Technology, 2014. [Online] Available

at: http://nes.fit.vutbr.cz/ansa/pmwiki.php.

Coltun, R., Ferguson, D., Moy, J. & Lindem, A., 2008.

RFC 5340: OSPF for IPv6. [Online] Available at:

http://tools.ietf.org/html/rfc5340.

Garcia-Lunes-Aceves, J., 1993. Loop-Free Routing Using

Diffusing Computations. IEEE/ACM Transactions on

Networking, Vol. I(No. 1), pp. 130-141.

EnhancedInteriorGatewayRoutingProtocolforOMNeT++

GitHub/janovic, 2013. janovic/Quagga-EIGRP. [Online]

Available at: https://github.com/janovic/Quagga-

EIGRP [Accessed April 2014].

GitHub/kvetak, 2013. [Online] Available at:

https://github.com/kvetak/ANSA [Accessed January

2014].

Chroboczek, J., 2011. RFC 6126: The Babel Routing

Protocol. [Online] Available at: http://

tools.ietf.org/html/rfc6126.

Malkin, G., 1998. RFC 2453: RIP Version 2. [Online]

Available at: https://tools.ietf.org/html/rfc2453.

Malkin, G. & Minnear, R., 1997. RFC 2080: RIPng for

IPv6. [Online] Available at: https://

tools.ietf.org/html/rfc2080.

Moy, J., 1998. RFC 2328: OSPF Version 2. [Online]

Available at: http://tools.ietf.org/html/rfc2328.

nonGNU, 2013. Quagga Software Routing Suite. [Online]

Available at: http://www.nongnu.org/quagga/

[Accessed April 2014].

OMNeTpp/INET, 2014. INET Framework | Main /

Welcome to the INET Framework. [Online] Available

at: http://inet.omnetpp.org/ [Accessed April 2014].

OMNeTpp, 2014. OMNeT++ Network Simulation

Framework. [Online] Available at: http://

www.omnetpp.org/ [Accessed April 2014].

Oran, D., 1990. RFC 1142: OSI IS-IS Intra-domain

Routing Protocol. [Online] Available at:

http://tools.ietf.org/html/rfc1142.

Rekhter, Y. & Hares, S., 2006. RFC 4271: A Border

Gateway Protocol 4 (BGP-4). [Online] Available at:

http://tools.ietf.org/html/rfc4271.

Savage, D. et al., 2013. Enhanced Interior Gateway

Routing Protocol. [Online] Available at:

https://tools.ietf.org/html/draft-savage-eigrp-01.

SourceForge, 2013. Easy-EIGRP | Free software

downloads at SourceForge.net. [Online] Available at:

http://sourceforge.net/projects/easy-eigrp/

Wu, B., 2011. Simulation Based Performance Analyses on

RIPv2, EIGRP, and OSPF Using OPNET. [Online]

Available at: http://digitalcommons.uncfsu.edu/

macsc_wp/11.

Xu, D. & Trajkovic, T., 2011. Performance Analysis of

RIP, EIGRP, and OSPF Using OPNET. [Online]

Available at: http://summit.sfu.ca/item/10841.

SIMULTECH2014-4thInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications
