Secure Video Player for Mobile Devices

Integrating a Watermarking-based Tracing Mechanism

Pablo Ant´on del Pino, Antoine Monsifrot, Charles Salmon-Legagneur and Gwena¨el Do¨err

Technicolor R&D France, 975, avenue des Champs Blancs, 35576 Cesson S´evign´e, France

Keywords:

Digital Right Management, Trusted Execution Environment, Secure Boot, Watermarking.

Abstract:

Content protection relies on several security mechanisms: (i) encryption to prevent access to the content during

transport, (ii) trusted computation environment to prevent access during decoding, and we can also add (iii)

forensic watermarking to deter content re-acquisition at rendering. With the advent of next generation video

and the ever increasing popularity of embedded devices for content consumption, there is a need for new con-

tent protection solutions that rely less on hardware. In this context, we propose an architecture that combines

the ARM TrustZone technology, an hypervised environment built on Genode and a bit stream watermarking

algorithm that inserts serialization marks on the ﬂy in an embedded device. As a result, an attacker cannot get

access to video assets in clear form and not watermarked. Reported performances measurements indicate that

the induced computational overhead is reasonable.

1 INTRODUCTION

Digital Rights Management (DRM) systems protect

multimedia content all along the content distribution

chain. In a typical DRM infrastructure (OMA, 2008),

video content is encrypted on the server side and de-

crypted locally on a consumer device. The distribu-

tion itself is considered to be a ﬂawless process thanks

to the security provided by cryptography. Neverthe-

less, at consumption time, a video player is subject to

two major threats: (i) access to clear text video con-

tent (compressed or uncompressed) in memory and

(ii) acquisition of rendered content e.g. with screen-

casting tools or camcorders.

To protect against such attacks, each DRM so-

lution deﬁnes some speciﬁc robustness rules. Next

generation video (ultra high deﬁnition, high dynamic

range, ultra wide gamut) is emerging and MovieLabs,

a R&D consortium sponsored by six major Holly-

wood studio, is pushing some requirements to harden

client platforms. For instance, a key requirement is

the presence of a hardware root of trust, an embed-

ded secret that cannot be read or replaced (Microsoft,

2010; MovieLabs, 2013). This forms the basis for a

chain of trust, to verify the signature and the integrity

of running software, e.g. a video player. As a result,

it is impossible to modify the source code to hook the

video pipeline.

To prevent an external program to directly tap

into memory where video may transit in clear, the

media data pipeline is also required to be secure.

For instance, one could provide memory scrambling

protection and protection of uncompressed content

to the output (HDCP) (Microsoft, 2013). Actually,

MovieLabs is going even one step further and requires

a secure computation environment, isolated by a hard-

ware mechanism for critical operations, and a mem-

ory protection for this secure environment. This ex-

tends on a larger scale what Conditional Access ven-

dors already provide in set-top boxes with hardware

security modules. Such secure environment can then

be used to run sensitive applications e.g. video de-

coding that necessarily operates on decrypted video

content.

These security solutions are now well established,

e.g. with TrustZone



technology largely deployed by

ARM silicon partners. However, they do not address

the threat of content re-acquisition after rendering. As

a matter of fact, it is impossible to prevent somebody

from placing a camera in front of a screen. Common

practice is therefore to rely on signal processing de-

terrence mechanism referred to as digital watermark-

ing (Cox et al., 2007). In a nutshell, video content

is imperceptibly modiﬁed to convey some informa-

tion and this information can be recovered even if the

content has been further processed afterwards. In par-

ticular, this auxiliary communications channel can be

exploited to transmit a binary code that uniquely iden-

253

Antón del Pino P., Monsifrot A., Salmon-Legagneur C. and Doërr G..

Secure Video Player for Mobile Devices Integrating a Watermarking-based Tracing Mechanism.

DOI: 10.5220/0005042502530260

In Proceedings of the 11th International Conference on Security and Cryptography (SECRYPT-2014), pages 253-260

ISBN: 978-989-758-045-1

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

tiﬁes the recipient of the video. As a result, if a copy

of a movie surfaces on some unauthorizeddistribution

network, content owners can trace back to the source

of the leak based on the watermark information. This

strategy is routinely used today to distribute DVD/BD

screeners prior to theatrical release or in digital cin-

ema (EDCINE, 2007).

With the coming next generation video,

MovieLabs promotes the use of such forensics

watermark at a larger scale. “The system shall have

the ability to securely forensically mark video at

the server and/or client side to recover information

necessary to address breaches” (MovieLabs, 2013).

The objective of this paper is to propose a secure

player that would combine both security mechanisms:

video watermarking and decoding at the client side

in a trusted environment. The proposed architecture

establishes a secure media data path so that, at any

time, an attacker could not get access to video assets

in clear form and not watermarked.

In Section 2, we brieﬂy review background ele-

ments that will be necessary for the proposed archi-

tecture. In Section 3, we outline the architecture of a

secure video player that incorporate a watermarking-

based serialization module and details a number of

implementation detailed in Section 4. Performances

measurements reported in Section 5 suggest that the

computational overhead of our solution remains ac-

ceptable. Eventually, perspectives for future work are

outlined in Section 6.

2 BACKGROUND

2.1 GlobalPlatform TEE

GlobalPlatform deﬁnes a Rich Execution Environ-

ment (REE) and a Trusted Execution Environment

(TEE). The TEE is a secure area in the main proces-

sor of an embedded device whose task is to store, pro-

cess, and protect sensitive data. In particular, the TEE

is expected to resist to all known remote and software

attacks, and a set of external hardware attacks. Any

code running inside the TEE is trusted in authenticity

and integrity, thereby protecting assets and code from

unauthorized tracing and control through debug and

test features.

Client applications running in the REE make use

of a TEE client API to communicate with their asso-

ciated trusted application (GlobalPlatform, 2010). A

salient feature of the model is the ability to commu-

nicate large amounts of data using a memory area ac-

cessible to both the TEE and the REE, thus avoiding

unnecessary copies of data. In our development, the

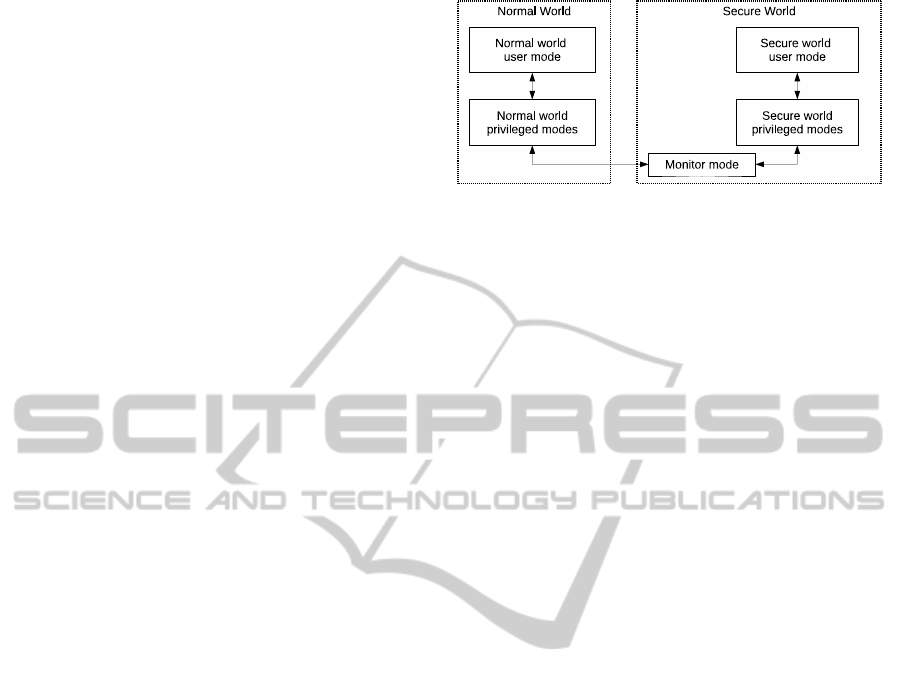

Figure 1: TrustZone operation modes

TEE Client API and Communication Stack is based

on the Open Virtualization TEE solution (Sierraware,

2012).

2.2 Secure Boot

GlobalPlatform speciﬁes that the TEE must be in-

stantiated through a secure boot process using assets

bound to the system on chip (SoC) and isolated from

the REE. The role of a secure boot is to implement

a chain of trust (Arbaugh et al., 1997). The ROM of

the SoC is usually the only component in the system

that cannot be trivially modiﬁed or replaced by sim-

ple reprogramming attacks. As a result, it routinely

hosts the ﬁrst stage boot-loader that acts as the root of

trust. Subsequent components are then authenticated

before being executed. In this study, we will use the

Freescale i.MX53 low cost SoC, that provides a multi-

stage secure boot process based on the high assurance

boot library (HAB).

2.3 TrustZone

The implementation of a TEE depends on the plat-

form architecture. The i.MX53 is equipped with the

ARM TrustZone technology, which offers a hard-

ware solution to obtain a rich open operating envi-

ronment with a robust security solution (ARM, 2009).

In TrustZone terminology, the domains for REE and

TEE environmentare referred to as Normal World and

Secure World respectively. The security of the system

is achieved by partitioning all of the SoCs hardware

and software resources so that they exist in one of the

two worlds – the Secure World for the security sub-

system, and the Normal World for everything else.

For instance, two virtual cores are associated to

each physical processor core. A mechanism known as

Monitor Mode then allows to robustly context switch

between worlds, as illustrated in Figure 1. Trigger-

ing the context switch requires the execution of a

speciﬁc processor instruction that only runs in priv-

ilege modes. The execution of a Secure Monitor Call

(SMC) instruction causes a processor exception that

is handled by a routine deﬁned on the Monitor excep-

tion table.

SECRYPT2014-InternationalConferenceonSecurityandCryptography

254

Rich

Execution

Environment

Trusted

Execution

Environment

Video client application (ffplay)

Protected Video

Content

DRM application

DEMUX

Decryption

Key Mgt

Decoder

Encrypted

compressed

Decrypted

Decoded

Watermarked

Decoder

Decrypted

Compressed

HDCP

Encryption

Decrypted

Compressed

Watermarked

Decrypted

Compressed

Watermarked

HDCP

Encryption

DTCP Link

Encryption

Decrypted

Decoded

Watermarked

Hardware components

Software components

Video

sink

Link

sink

Protected

Clear and watermarked

Clear and not watermarked

Watermark

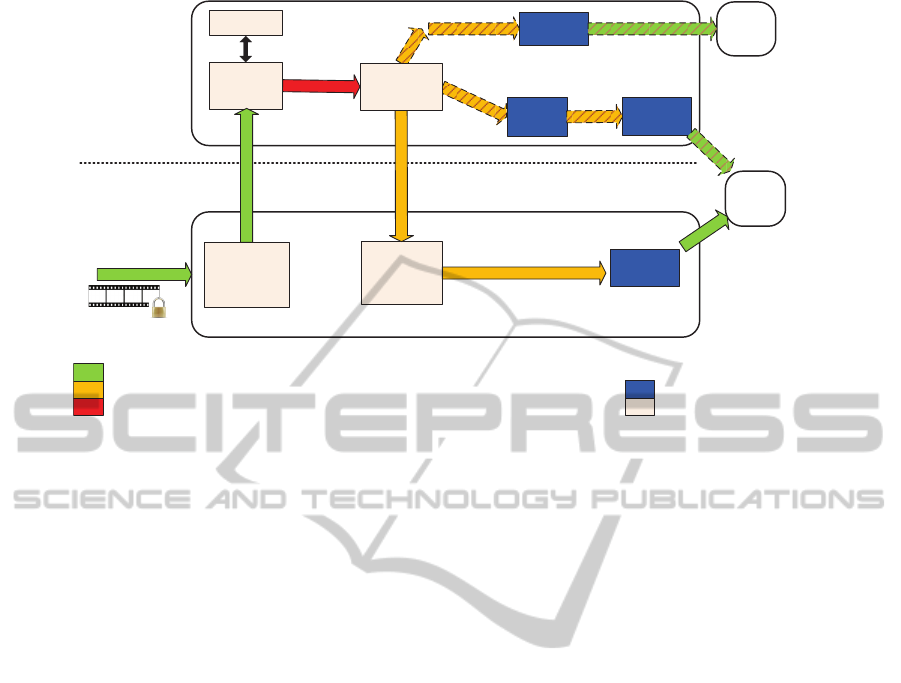

Figure 2: Secure data path in the proposed architecture. Video content is never accessible in clear and without a forensic

watermark. Performing watermarking at the bit stream level offers the possibility to shift the decoding process in the non-

trusted environment and thereby lighten the load of the TEE.

2.4 TrustZone VMM

Managing both environments requires a software

layer that supports two features: a kernel to run ap-

plications in the trusted environment and a virtual

machine monitor (VMM) to switch between envi-

ronments. In order to reduce the attack surface,

µ-kernels are usually preferred. Several commer-

cial solutions based on TrustZone security exten-

sion instruction set exist: Trusted Foundations from

Trusted Logic Mobility in Tegra-powered tablets,

Mobicore

from Giesecke & Devrient in the Galaxy

SIII, and more recently <t

-base-300, from the

joint-venture Trustonic. On the open source side, a

good alternative would be L4Android (Lange et al.,

2011) but it does not manage TrustZone security ex-

tension. In contrast, Genode is an operating system

framework that implements a VMM on top of the

TrustZone hardware and that could be based on var-

ious µ-kernels, e.g. L4, Fiasco and Genode. Since

version 13.11, Genode’s hardware-based µ-kernel has

been supporting Freescale i.MX53 with TrustZone

and we therefore adopted this full Genode setup.

3 SECURE VIDEO PLAYER

Figure 2 depicts the overall architecture for the se-

cure player that we are proposing. The video client

application runs in a regular Linux environment, and

is extended with some secure components within a

TEE. Following the principle of isolation for ARM

TrustZone

, the most sensitive tasks (key manage-

ment, decryption and watermarking) are performed

inside the TEE. Since they run in a conﬁned mem-

ory space which is not physically accessible from the

regular environment, capture of decrypted and non-

watermarked content is prevented.

3.1 DRM Module in TrustZone

TrustZone architecture differs from traditional pro-

tection in set-top boxes. Instead of encapsulating

security critical processes in extra dedicated chips,

the main processor is enhanced by the addition of

a new secure execution mode and a speciﬁc mem-

ory controller for memory partitioning. An important

by-product is that key management can now be per-

formed in software in the TEE, which signiﬁcantly

facilitates the design of new products that would re-

quire otherwise the collaboration from chip vendors.

The video-on demand player Video Hub on Sam-

sung’s Galaxy SIII, developed by Discretix, provides

a good illustration of how TEE may be used for con-

tent protection. Several trusted components, also re-

ferred to as trustlets, embeds DRM modules such

as PlayReady



or Widevine



inside the Mobicore

framework. Discretix’s secure PlayReady DRM so-

lution (Discretix, 2011) includes the truslet itself, but

also a secure user interface, a secure storage, access to

cryptographic engines and hardware codecs. In other

words, it implements a secure media pipeline totally

SecureVideoPlayerforMobileDevicesIntegratingaWatermarking-basedTracingMechanism

255

enclosed into the TEE secure world.

The number of features handled in the secure

world is signiﬁcant and one may wonder if it may

not yield any vulnerability. A software level analysis

of TrustZone OS and trustlets (Behrang, 2013) actu-

ally revealed an issue that could allow unauthorized

communication between low privileged Android pro-

cesses and Mobicore kernel. Now, even if such in-

tegration vulnerabilities were ﬁxed, there would still

be the risk of unauthorized re-acquisition. Content

decoded in the TEE is either forwarded to another de-

vices through a protected link or to the rendering en-

gine. Security ﬂaw or not, content will eventually be

left unprotected, and thus vulnerable, at some point to

be presented in clear to human beings.

3.2 Bit Stream Watermarking

Digital watermarking is the technology of choice to

deter content re-acquisition. This being said, most

video watermarking algorithms feature too much

complexity to be able to watermark content on the ﬂy

on resources-constrained mobile devices. Still, a new

breed of watermarking systems recently emerged that

separate the watermarking process in two elementary

steps (Zou and Bloom, 2008; Zou and Bloom, 2010).

The main objective is to make the watermark em-

bedding module as simple as possible for efﬁciency.

This calls for watermarking systems that operate prior

to decompression, e.g. by swapping a few bytes at dif-

ferent locations directly at the bit stream level. How-

ever, random alterations of the bit stream is prone to

signiﬁcantly impair the quality of rendered video. It is

therefore necessary to perform a computationally in-

tensive proﬁling of the original bit stream to identify

locations that could be modiﬁed as well as the asso-

ciated replacement bytes that could be used without

introducing noticeable visual degradation. A key fea-

ture is that this proﬁling operation only needs to be

performed once, regardless of the number of recipi-

ents whom the video will be sent to.

While the proposed architecture is applicable for

any bit stream watermarking system, we will fo-

cus in the remainder of the article on an algorithm

that operates directly in the H.264 AVC/CABAC bit

stream (Robert and Do¨err, 2013). The proﬁling mod-

ule essentially generates a sequence of instructions

that will be consumed by the embedding module.

Most instructions can be viewed as a triplet contain-

ing (i) an offset where the modiﬁcation can be made,

(ii) a 2-bytes word to use to embed a ‘0’, and (iii) a 2-

bytes word to embed a ‘1’. To avoid synchronization

problems, these instructions are ﬁnally interleaved at

the H.264 signaling level. An H.264 bit stream is es-

sentially composed of a network abstraction layer unit

(NALU). If a NALU is found to host watermarking

locations, it is preceded by a NALU whose header in-

dicates that it contains supplemental enhancement in-

formation (SEI), namely the instructions required to

watermark the next NALU.

As a result, the embedding module operates

NALU by NALU. If the incoming NALU is a SEI

containing watermarking instructions, the payload of

the NALU is stored in memory. If it is a NALU con-

taining video information, the swaps necessary to em-

bed the bits of the locally stored identiﬁer are per-

formed using the instructions in memory (if there is

any) and the memory is reset afterwards. The local

identiﬁer is loaded at startup in a secure way i.e. it is

impossible to modify the identiﬁer that will be subse-

quently embedded in videos. This identiﬁer can point

to a user/device whose privileges need to be revoked

or the built of a software that needs to be updated. In

some sense, this watermarking system is very similar

SequenceKey

proposed by IBM for optical disks

protection (Jin et al., 2004), although it operates at a

much ﬁner granularity.

3.3 Analysis

Figure 2 depicts two alternate media data path im-

plementations. The ﬁrst one embeds the full video

pipeline, from decryption to rendering, inside the

TEE. In the second one, only the critical path, from

decryption to watermarking is included into the TEE.

The forensic watermarking provides a tracing mecha-

nism in case of leak and subsequent operations, from

decoding to output protection, can be done ‘safely’ in

the REE.

The ﬁrst solution avoids additional memory trans-

fers and the clear content, compressed or uncom-

pressed, is never accessible from the REE. From a se-

curity and performance perspective, it looks like the

perfect solution. However, it also comes with some

inherent drawbacks. The large number of system fea-

tures in the TEE (secure video driver, decoding, sink

encryption) signiﬁcantly increases the amount of code

to secure, which exposes to more risks and potential

maintainability issues.

In contrast, the second solution offers a good

trade-off between a good level of security and an

open customizable architecture. The main objective

is to keep the DRM module running in the TEE min-

imal and non CPU intensive. As such, the chosen

bit stream watermarking technology is perfectly in

line with this strategy. Moreover, since the decryp-

tion and watermarking tasks do not require decoding

video content, the proposed DRM module is not tied

to a speciﬁc hardware or software codec implementa-

tion or to a system component. The clear separation

SECRYPT2014-InternationalConferenceonSecurityandCryptography

256

of the security features grants the ﬂexibility to shift all

application features, such as decoding and rendering,

in the normal world. Software maintenance is thereby

greatly facilitated. For instance, the video rendering

module, subject to bug ﬁxes and upgrades, can be eas-

ily updated while the DRM module remains stable

and unchanged.

Another advantage of introducing a

watermarking-based tracing mechanism in a se-

cure player is related to the protection of the output

sink that is routinely found to be the weakest link of

the system. For instance, numerous attacks against

high deﬁnition copy protection (HDCP) have been

publicized in 2010 due to software key discovery,

lack of diversity and broken root of trusts (Rosenblatt,

2011). Watermarking does not prevent copyright

material to be pirated through a broken link but at

least provides a tracing mechanism to identify the

source of the leak. It exempliﬁes the virtue of having

multiple lines of defense in order to avoid single

points of failure.

4 IMPLEMENTATION DETAILS

Figure 3 depicts the interactions between the differ-

ent software modules that we have implemented to

instantiate the video player design proposed in Sec-

tion 3. It closely follows the generic architecture ad-

vocated by Global Platform. On the left hand side,

the REE stands for a Linux Kernel and a

rootfs

that

offer a complete execution environment for user ap-

plications. On the right hand side, the TEE is com-

posed of the Genode API and two Genode user ap-

plications (VMM-TEE and DRM Trusted Applica-

tion). In between, a low-level piece of software is in

charge of several hardware-dependent tasks, includ-

ing in particular communication processes between

the non-secure and secure domains.

4.1 TEE Modules

Genode’s µ-kernel supports TrustZone and can man-

age context switches between worlds from the appli-

cation Virtual Machine Monitor (VMM). VMM han-

dles all aspects related to the para-virtualization of the

REE (memory management, exception handling, se-

cure access to hardware, etc). We complemented this

application with a module called Genode TEE that is

in charge of the interactions between the TEE Client

in the normal world and the trusted application (DRM

Trusted Application in our case) in the secure world.

The resulting joint-application is VMM TEE.

The VMM has two main duties. First, it is in

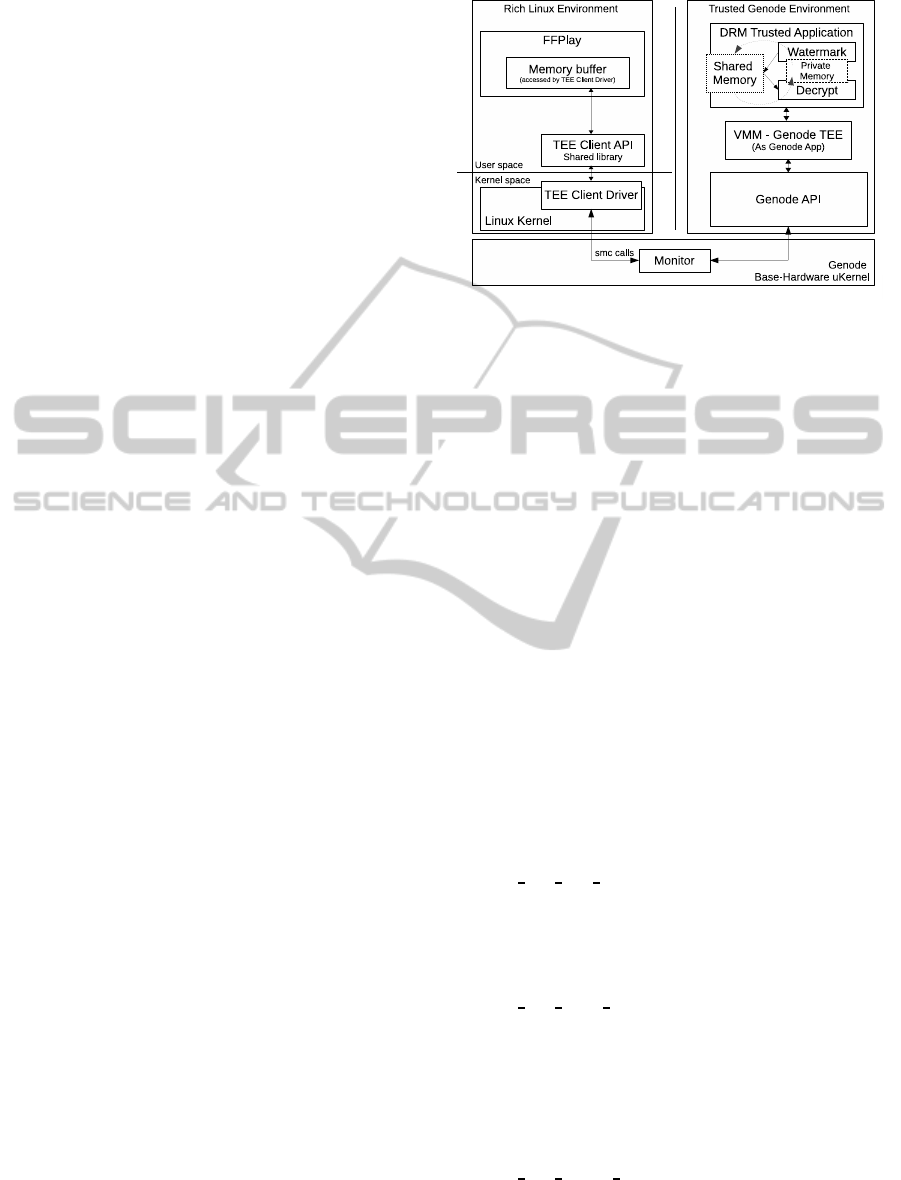

Figure 3: Software architecture of the proposed secure

video player.

charge of conﬁguring the platform to load and run

the REE Linux kernel. It sets up the memory regions

where the kernel image will be loaded, conﬁgures the

security properties to keep the TEE isolated from the

REE, launches the Linux kernel image, and gives it

the control of the machine. The second task of the

VMM is to listen for context switch requests emitted

by the TEE Client Driver. Whenever they occur, it

looks up some parameter values and decides whether

to transfer control or not to Genode TEE handler func-

tion.

On its side, Genode TEE serves as an interface

between the TrustZone hardware and the trusted ap-

plication running in the TEE. In particular, it pro-

cesses a number of commands, e.g. open session with

trusted application, send command to trusted appli-

cation, close session with trusted application, etc. In

addition to such default command, each trusted ap-

plication can deﬁne its own set of command. In the

case of our DRM trusted application, we deﬁned three

commands as well as their associated behavior:

TEE DRM SET LICENCE

command is sent when the

secure player attempt accessing protected content.

It is in charge of extracting relevant information

securely stored in the associated content license,

e.g. content decryption keys and usage rights.

TEE DRM INIT WM

command is issued once when

the secure player is launched to initialize re-

sources allocated to the watermarking module. In

particular, it allocates some buffers to temporarily

store watermarking instructions and securely load

the serialization payload that will be embedded by

the watermarking routine.

TEE DRM DECWM PACKET

is a recurring command

that triggers the decryption and watermarking of

a video packet. The pointer to the region in the

shared memory where the video packet is accessi-

SecureVideoPlayerforMobileDevicesIntegratingaWatermarking-basedTracingMechanism

257

ble must be sent in parameter.

For the sake of clarity, the interactions between the

REE and the TEE will be further detailed in the next

subsection with the workﬂow of our secure player.

Security provided by the DRM trusted applica-

tion is twofold. The content decryption key is re-

trieved from the associated content license, which are

encrypted using a platform/device-dependent public

key. The corresponding private key, which will be

used to decrypt the license and thereby get access to

the content decryption key, is installed by the man-

ufacturer in each consumer board and is only acces-

sible in the TEE. Thanks to TrustZone’s isolation, it

guarantees that crypto-credentials will never leave the

secure world. The second security mechanism comes

from the memory management. The DRM trusted

applications reads encrypted video packets from the

shared memory but stores the decrypted packet in a

private memory that is unaccessible from the REE.

The application pushes the decrypted content back

into the shared memory, only after it has been wa-

termarked. Thus, unencrypted content without water-

mark is never accessible from the non-secure domain.

4.2 Secure Video Player Workﬂow

In our implementation, we are using the FFPlay appli-

cation

, a portable media player combining FFmpeg

and SDL libraries

. Due to its simplicity, establishing

the communication with the TEE Client API shared

library is reasonably easy.

When FFPlay is launched, it issues a com-

mand

TEEC InitializeContext

that prepares driver

structures and buffers, i.e. it initializes the TEE. Im-

mediately afterwards, a command

EEC OpenSession

creates a session with the DRM Trusted Application

located in the TEE. Everything is fairly standard so

far and would be the same for any trusted application.

From this point onward, though, the interactions be-

come application speciﬁc and are triggered with the

TEEC InvokeCommand

function, that can specify any

application command which has been deﬁned.

To set up the watermarking environment, FFPlay

ﬁrst invokes the command

TEE DRM INIT WM

. On the

TEE side, the DRM Trusted Application allocates a

number of buffers, e.g. to temporarily store water-

mark embedding instructions, and places in some se-

cure memory the serialization identiﬁer that will be

embedded by the watermarking module. When the

VMM handles back control to FFPlay, the water-

marking module of the DRM Trusted Application is

http://www.ffmpeg.org/

http://www.libsdl.org/

Table 1: Percentage of processing time devoted to security

tasks along the video processing pipeline of the proposed

secure player for different setups and H.264 proﬁles.

Decryption

REE TEE

Main High Main High

No watermark 0.04 1.03 2.25 5.87

Watermark N/A N/A 2.61 6.83

ready to process any incoming video packet. Still, it

can only handle decrypted content. When FFPlay at-

tempts playing protected content, it therefore invokes

a command

TEE DRM SET LICENCE

to tell the DRM

Trusted application to use the platform/device key to

recover the content decryption keys from the license

that is passed in argument.

Equipped with content decryption keys and a wa-

termarking module ready to go in the TEE, FFPlay

can enter its nominal regime. It reads protected video

packets from the video ﬁle and issue a command

TEE DRM DECWM PACKET

to the DRM Trusted Appli-

cation. On the TEE side, the decryption module ﬁrst

decrypts the video packet accessible in the shared

memory and stores the result in private memory. For

simplicity, in our implementation, a video packet ac-

counts for an integer number of H.264 NALUs. In

the general case, one would need either to introduce

a new module in the TEE to parse video packets and

forward full NALUs to the watermarking module, or

to interleave watermarking instructions at the con-

tainer level so that the watermarking module can op-

erate packet by packet instead of NALU by NALU.

When the watermarking module kicks in, it in-

spects the header of the decrypted H.264 NALU. If

it is a SEI containing watermarking instructions, the

payload of the NALU is copied in a dedicated buffer

and the NALU itself is ﬁlled with dummy bytes to

prevent access to watermarking instructions outside

the TEE. If it is a regular NALU, it consumes the

instructions (if there are any) stored in the buffer to

watermark the NALU located in the private mem-

ory. Once the video packet (containing one or several

NALUs) is fully processed, the resulting decrypted

and watermarked packet located in private memory is

copied back in the shared memory at the exact same

location that it comes from. When the VMM gives

the control back to FFPlay, it can forward the pro-

cessed video packet further along the video pipeline,

e.g. video decoding and rendering.

When FFPlay is closed, it invokes a command

TEEC CloseSession

to properly release resources on

the TEE side.

SECRYPT2014-InternationalConferenceonSecurityandCryptography

258

5 PERFORMANCES

MEASUREMENTS

To evaluate the processing overhead induced by the

proposed architecture, we conducted a number mea-

surement campaigns with movies in high deﬁnition.

For completeness, the videos were compressed with

two different H.264 proﬁles that translate in various

bit rates and average NALU sizes. For instance, the

encoder bit rate is much higher for the high proﬁle

than for the main proﬁle. In our case, this translates

in NALUs being 27 times larger, in average, for the

high proﬁle.

For each movie, we measured the percentage of

processing time dedicated to security tasks with re-

spect to the total processing time during playback. All

time measurements have been done using the function

gettimeofday()

. Such measurements have been

performed for various placements and setup of the de-

cryption and watermarking modules and the average

results are reported in Table 1.

The upper left corner of the table reports perfor-

mances when the video player is fully implemented

in the REE realm without using TrustZone. In this

case, security features reduce to decryption only and

the ﬁrst observation is that decryption processing task

is negligible with respect to decoding. The increase

from 0.04% to 1.03% between the main and high pro-

ﬁles accounts for the increase in size of the processed

NALUs. Decryption time is strictly proportional to

the NALU size, whereas decoding time is not.

The upper right corner of Table 1 showcases the

impact of shifting the decryption module inside the

TEE. It introduces signiﬁcant overhead that is mostly

due to some limitations in the current implementation

of the TEE Client Driver. First, the shared memory

is not fully operational and we actually had to copy

encrypted video packets into the TEE private mem-

ory instead of simply reading from the shared mem-

ory. Moreover, a memory copy from the REE to the

TEE actually requires two memory copies: from the

user space to the kernel space and from the kernel

space to the DRM Trusted Application (or the other

around on the way back). All in all, it induces a total

of four memory copies for a decrypt-watermark loop

of a single video packet. Still, should these limita-

tions be ﬁxed in the future, we could fully leverage

TrustZone’s shared memory. A priori, the processing

time overhead could be reduced to around 0.6% for

the Main proﬁle and 2.25% for the High proﬁle.

Finally, the lower right corner of the table reports

on the impact of introducing the proposed watermark-

ing module in the architecture. For both proﬁles,

the processing time overhead remains below 1% wich

clearly highlight the minimal footprint of this mod-

ule. Again, the overhead is larger for the high pro-

ﬁle. This is due to the fact that larger NALUs offer

more potential embedding sites that translates in byte

swaps for the embedding module. This being said, the

overhead of the watermarking process can easily be

limited if necessary by discarding embedding changes

when formating the watermarking instructions at the

proﬁling stage. The ﬂip side of the coin is that it will

require more video time to embed a full identiﬁer.

From the consumer’s perspective, the addition of

the security modules is transparent i.e. the media con-

sumption experience is the same. We did notice some

occasional freeze of the display but they were actually

due to FFPlay which was not always able to maintain

real-time decoding for high-deﬁnition content on the

i.MX53. This could be solved in the future by using

a more efﬁcient software player or even a dedicated

video decoding chip.

6 CONCLUSION AND FUTURE

WORK

Forensic watermarking is currently used in profes-

sional environments. However, with the advent of

next generation entertainment content, there is mo-

mentum building to deploy such traitor tracing mech-

anism at a larger scale. Content serialization could

either be done on the server side or on the client

side. Solutions on the server side come with their

own shortcomings e.g. storage overhead and reduced

watermark granularity if video segments are precom-

puted (Jarnikov and Doumen, 2011) or computational

and bandwidth overhead if segments are watermarked

on the ﬂy. On the other hand, solutions on the client

side most often rely on hardware to host their security

features (PRIMA Cinema, 2013).

In this paper, we intended to study an alternate

paradigm to design secure video players that would

rely on a software architecture in order to be possi-

bly embedded onto cheap consumers electronics de-

vices. It essentially leverages on two recent devel-

opments: (i) GlobalPlatform and its ARM TrustZone

incarnation that provides a trusted execution environ-

ment where sensitive processes can be run safely, and

(ii) 2-step bit stream watermarking that allows seam-

less integration along the video processing pipeline.

By combining these two elements, the attacker never

has access to clear video content that is not water-

marked with some serialization identiﬁer.

Our proof of concept using the i.MX53 board,

Genode’s environment and FFPlay video player

clearly demonstrated the feasibility of the proposed

SecureVideoPlayerforMobileDevicesIntegratingaWatermarking-basedTracingMechanism

259

solution. While the processing time overhead may

ﬁrst look signiﬁcant, it comes for a large part from

suboptimal design choices that are likely to be ﬁxed

in the future but that induce costly memory copies at

the moment. Moreover, the consumer experience is

more affected by FFPlay that struggles to keep the

real-time cadence for high-deﬁnition content. In the

future, we intend to replace FFPlay by a more efﬁ-

cient player that could exploit hardware acceleration,

such as gstreamer-based player Totem.

Another avenue for future work is to lift the sim-

plifying assumption that an encrypted video packet

contains an integer number of NALUs. A ﬁrst so-

lution is to insert an additional interface between the

decryption and watermarking modules, that would as-

semble NALUs from incoming decrypted video pack-

ets. An alternate, possibly more efﬁcient, solution

would be to raise the transmission of the watermark-

ing instructions at the container level rather than the

video essence level. As a result, the watermark

embedding process, a simple byte swapping engine,

could operate video packet by video packet.

REFERENCES

Arbaugh, W. A., Farber, D. J., and Smith, J. M. (1997). A

secure and reliable bootstrap architecture. In Proceed-

ings of the IEEE Symposium on Security and Privacy,

pages 65–71.

ARM (2009). ARM security technology – Building a secure

system using TrustZone technology. Technical report.

Behrang (2013). A software level analysis of TrustZone OS

and trustlets in Samsung Galaxy phone.

Cox, I. J., Miller, M. L., Bloom, J. A., Fridrich, J.,

and Kalker, T. (2007). Digital Watermarking and

Steganography. 2nd edition.

Discretix (2011). DRM, Ensuring secure content protection

solutions for next generation consumer device. Tech-

nical report.

EDCINE (2007). European Digital Cinema Security White

Book.

GlobalPlatform (2010). GlobalPlatform device technology

– TEE client API speciﬁcation. Technical report.

Jarnikov, D. and Doumen, J. M. (2011). Watermarking for

adaptive streaming protocols. In Proceedings of Se-

cure Data Management, volume 6933 of LNCS, pages

101–113.

Jin, H., Lotspiech, J., and Nusser, S. (2004). Traitor tracing

for prerecorded and recordable media. In Proceedings

of the 4th ACM Workshop on Digital Rights Manage-

ment, pages 83–90.

Lange, M., Liebergeld, S., Lackorzynski, A., Warg, A., and

Peter, M. (2011). L4Android: A generic operating

system framework for secure smartphones. In Pro-

ceedings of the ACM CCS Workshop on Security and

Privacy in Smartphones and Mobile Devices, pages

39–50.

Microsoft (2010). Robustness rules for PlayReady ﬁnal

products. Technical report.

Microsoft (2013). Compliance rules for PlayReady ﬁnal

products. Technical report.

MovieLabs (2013). MovieLabs speciﬁcations for next gen-

eration of video and enhanced content protection.

Technical report.

OMA (2008). DRM architecture. Technical report.

PRIMA Cinema (2013). http://primacinema.com.

Robert, A. and Do¨err, G. (2013). Impact of content master-

ing on the throughput of a bit stream video watermark-

ing system. In Proceedings of the IEEE International

Conference on Image Processing, pages 4532–4535.

Rosenblatt, B. (2011). The new technologies for pay TV

content security. Technical report.

Sierraware (2012). Open virtualization for TrustZone

overview.

Zou, D. and Bloom, J. A. (2008). H.264/AVC stream

replacement technique for video watermarking. In

Proceedings of the IEEE International Conference

on Acoustics, Speech and Signal Processing, pages

1749–1752.

Zou, D. and Bloom, J. A. (2010). H.264 stream replacement

watermarking with CABAC encoding. In Proceedings

of the IEEE International Conference on Multimedia

and Expo, pages 117–121.

SECRYPT2014-InternationalConferenceonSecurityandCryptography

260
