Modeling Requirements for Security-enhanced Design of Embedded

Systems

Alberto Ferrante, Igor Kaitovic and Jelena Milosevic

ALaRI, Faculty of Informatics, Universit`a della Svizzera italiana

Via G. Bufﬁ 13, 6904, Lugano, Switzerland

Keywords:

Modeling, UML Proﬁles, Security Requirements, Embedded Systems Design.

Abstract:

Designing an embedded system is a complex process that involves working on both hardware and software.

The ﬁrst step in the design process is deﬁning functional and non-functional requirements; among them, it is

fundamental to also consider security.

We propose an effective way for designers to specify security requirements starting from User Security Re-

quirements. User Security Requirements are high-level requirements related to security attacks that the system

should be able to withstand. We also provide a mechanism to automatically translate these User Requirements

into System Security Requirements, that include a detailed description of security solutions. For expressing re-

quirements we use Uniﬁed Modeling Language (UML); speciﬁcally, we create a UML proﬁle to describe user

requirements and we use model-to-model transformation to automatically generate system requirements. We

show the effectiveness of the modeling scheme and of the translation mechanism by applying our methodology

to a case study based on wearable devices for e-health monitoring.

1 INTRODUCTION

The use of embedded systems has been continuously

increasing in the last years both with respect to the

number of application areas and to the complexity

of platforms designed: embedded systems have be-

come fundamental in ICT. This increase in their use,

even in new, critical, and non-protected environments,

has not been accompanied by a proper development

of methodologies for making them secure (Viega and

Thompson, 2012). Additionally, security for these

systems proved to be more difﬁcult and more critical

than security for general purpose systems. Criticality

is given both by the kinds of data stored in mobile de-

vices (e.g., phone bookmarks and personal user data)

and by the kind of damages that an attack to a mo-

bile system may produce. However, security is not

yet perceived as a signiﬁcant problem by embedded

systems users.

Any design starts with requirement speciﬁcations.

For each embedded system, there exist functional re-

quirements and non-functional requirements, such as

the ones on cost, performance, time, and area. In the

aim of designing secure embedded systems, it is fun-

damental to add security to these non-functional re-

quirements. In this way, in fact, security can be not

only included along with the functional system de-

sign, thus providing better protection, but it can also

be optimized along with it. Security speciﬁcation is

a ﬁrst step toward a comprehensive approach to the

design of secure embedded systems. This step, as

also mentioned in the ISO/IEC 15408-3 (ISO/IEC,

2009) standard, is fundamental to limit the introduc-

tion of vulnerabilities in the system. Security require-

ments can be speciﬁed by considering two main stand

points: the one of security solutions and the one of at-

tacks that the system should be able to withstand (i.e.,

the impact of these attacks on the system should be

mitigated or, in the best case, completely prevented).

The former should be chosen by considering the latter

and a trade-off among impact of each attack and cost

of a suitable security solutions.

In the rest of the paper we refer to the require-

ments related to security attacks as User (Security)

Requirements; we refer to solution-level requirements

as System (Security) Requirements. During system

design, User Requirements need to be translated into

system ones. System Requirements, in turn, are im-

plemented. The possibility to express security re-

quirements as related to security attacks that the sys-

tem should be able to withstand, would give system

designers the possibility to deﬁne security require-

ments easily, by starting from security standards, pen-

etration tests, and security assessment methods, such

315

Ferrante A., Kaitovic I. and Milosevic J..

Modeling Requirements for Security-enhanced Design of Embedded Systems.

DOI: 10.5220/0005050003150320

In Proceedings of the 11th International Conference on Security and Cryptography (SECRYPT-2014), pages 315-320

ISBN: 978-989-758-045-1

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

as the ones discussed in (K¨oster et al., 2009). There-

fore, a translation mechanism from user to System

Requirements is needed as well as a translation from

System Requirements to a choice of suitable imple-

mentations.

In this paper, we propose a suitable format, based

on UML, for specifying security requirements; we

also propose a methodology for translating the User

Security Requirements into System Security Require-

ments. System Security Requirements obtained in

such a way can be integrated directly into the embed-

ded systems design methodology described in (Fer-

rante et al., 2013), where requirements are translated

into set of implementations and optimized by means

of design space exploration.

The remaining part of this paper is organized as

follows: Section 2 discusses the related work; Section

3 describes in detail the methodology that we have

devised, the UML proﬁle that we propose to use, and

the automatic translation process; Section 4 discusses

the application of the methodology on a case study

related to wearable devices for e-health applications;

Section 5 provides a summary of the obtained results

and outlines future work.

2 RELATED WORK

In (Kocher et al., 2004) it is suggested that design

methodologies for secure embedded systems should

include techniques for specifying security require-

ments in a way that can be easily communicated to

the design team and evaluated throughout the design

cycle; any attempt to specify security requirements

needs to address the desired level of security. Security

is currently speciﬁed by system architects in a vague

and imprecise manner (Kocher et al., 2004).

During embedded system architecture design,

techniques to map security requirements to differ-

ent alternative solutions and to explore the associated

trade-offs in terms of cost, performance, and power

consumption, would be invaluable in helping em-

bedded system architects understand and make bet-

ter design choices (Kocher et al., 2004). Various ap-

proachesthat incorporate security from the early stage

of system design are based on Uniﬁed Modeling Lan-

guage (UML) (Object Management Group, 2011) as

it is standardized as well as the most commonly used

modeling language in industry and academia. UML

can be easily extended and tailored for a speciﬁc do-

main through the concept of proﬁles. A proﬁle is a

set of tags and stereotypes that can be applied to stan-

dard UML notation as additive extensions. For ex-

ample a stereotype can be deﬁned to extend the no-

tation of a UML class in order to model a speciﬁc

type of a hardware component. In (J¨urjens, 2003) a

language named UMLsec is proposed as an extension

of UML for modeling security requirements. A num-

ber of other UML proﬁles have been deﬁned for var-

ious ﬁelds including security, such as (Bouaziz and

Coulette, 2012; Rodriguez et al., 2006). In (Ferrante

et al., 2013) and in (Roudier et al., 2013), embedded

systems design methodologies that include security in

the optimization process, are described. In the former,

security requirements are deﬁned in UML by follow-

ing a given template and in the form of required secu-

rity solutions with the associated parameters; in the

latter, SysML-Sec, an extension of SysML, is pro-

posed and used to model requirements.

There exist languages for specifying security re-

quirements, such as i* (Yu, 1997) and SI* (Massacci

et al., 2010). These two languages are designed to de-

scribe security requirements in information systems,

where multiple actors are involved. Other works,

such as (Markose et al., 2008), propose languages and

methods for modeling security threats in embedded

systems.

The goal of our work is to deﬁne a framework that

can be used to specify security requirements as well

as for automatically or semi-automatically translating

security requirements from the security attacks level

to the security solutions ones. i* and SI* can be used

to specify the security requirements of the environ-

ment in which the considered embedded system will

be used and, therefore, to derive the security require-

ments of the system that will, in turn, be speciﬁed

by using our language. UMLsec, SysML-Sec and the

other existing UML proﬁles, are more in line with our

goals, even though, they do not distinguish between

different level of security requirements nor provide

mechanisms for relating and translating User to Sys-

tem Security Requirements. Our proﬁle overcomes

this gap and can be used along with the existing UML

proﬁles for modeling security.

3 METHODOLOGY

The goal of our approach is to simplify modeling of

security-related requirements. Therefore, we devised

a framework in which a separation of concerns be-

tween system designers and security experts is con-

sidered: security experts deﬁne and keep updated se-

curity libraries for different application ﬁelds (e.g.,

mobile devices) and system designers (assumed not to

be a security expert) rely on these to model security

requirements of the system. More speciﬁcally, each

security library contains a list of possible User Re-

SECRYPT2014-InternationalConferenceonSecurityandCryptography

316

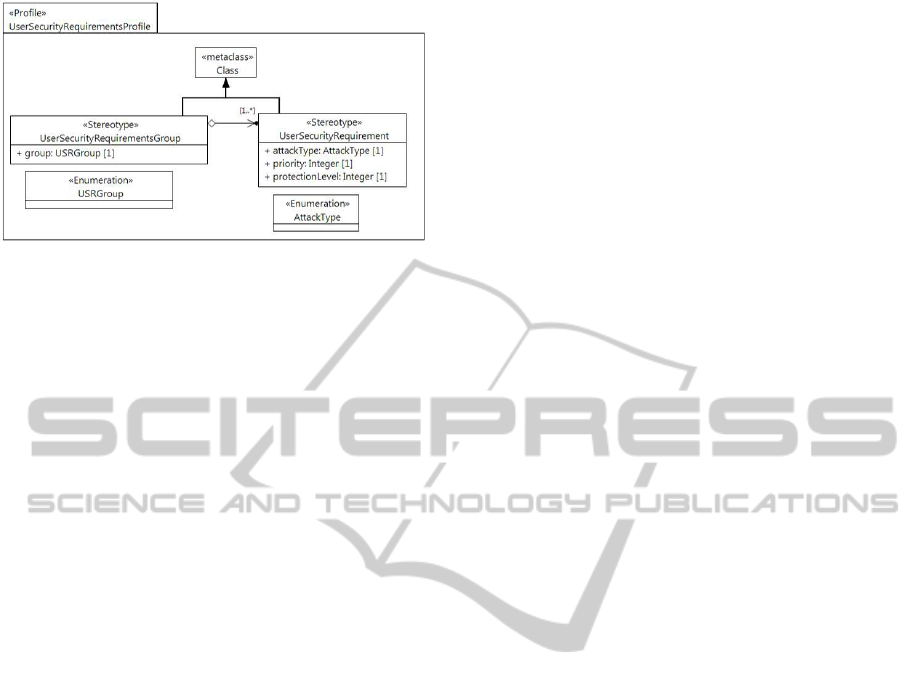

Figure 1: User Security Requirements proﬁle.

quirements and implied System Requirements. Sys-

tem designer choses a subset of User Requirements

and assigns desired priorities and security levels. The

methodology is composed of:

• Security Requirements Framework - a frame-

work for specifying and modeling security re-

quirements and relating User and System Re-

quirements.

• Security Library - a library deﬁned by the secu-

rity expert using the formalism provided by the

framework; it contains a set of User and System

Requirements and appropriate mappings.

• Automated Requirements Translation - a pro-

cess that, for a subset of User Security Require-

ments chosen by the designer, generates alterna-

tive sets of System Security Requirements in an

automated fashion.

In scope of this work we fully deﬁne and imple-

ment the framework and the mapping process. The

security library should be set for each speciﬁc domain

by security experts.

The framework is implemented in Papyrus (The

Eclipse Foundation, 2013b), a widely accepted UML

editor for Eclipse (The Eclipse Foundation, 2013a). A

model-to-model transformation mechanism has been

used to implement the translation of User Security

Requirements into the System ones. The implemen-

tation has been done by using VIsual Automated

model TRAnsformations (VIATRA) framework (The

Eclipse Foundation, 2013c). Even though the current

framework could be designed will less advanced en-

gine than VIATRA, we chose it in order to support

further extensions and enhancements of our method-

ology.

3.1 Security Requirements Framework

The security requirements framework is implemented

as a UML proﬁle divided into three sub-proﬁles: User

Security Requirements Proﬁle, System Security Re-

quirements Proﬁle, Security Requirement Mapping

Proﬁle. The User Security Requirements Proﬁle, de-

picted in Figure 1, extends the notion of a UML class

to model User Security Requirements with following

attributes: Attack type, Priority, Protection level.

Attack types are deﬁned and enumerated as a part

of the Security Library deﬁnition to describe various

types of attacks (e.g., Impersonation and Eavesdrop-

ping). Security requirement priority deﬁnes the im-

portance of a requirement. This property is used when

only a subset of requirementscan be implemented due

to mutual exclusions or resources constrains. Pro-

tection level is deﬁned by the security expert and

might have different interpretations for different at-

tacks. User Requirements groups combine a number

of related User Security Requirements. A User Re-

quirement can belong to any number of groups while

a group (e.g., Network related attacks) must contain

at least one requirement.

System Security Requirements proﬁle depicted in

Figure 2 deﬁnes a set of grouped and related stereo-

types for modeling various types of System Security

Requirements. The proﬁle is deﬁned in a generic

manner so that various security domains can be cov-

ered. These requirements can be further related to so-

lutions that are more speciﬁc in the same way as it is

done in (Ferrante et al., 2013).

Finally, Security Requirements mapping proﬁle

depicted in Figure 3 provides a mean to relate User

and System Requirements. A User Requirement may

imply one or more System Requirements (i.e., mul-

tiple security solutions may be needed to withstand

certain attacks). Thus, a User Requirement is related

to a group of System Requirements that includes a

set of complementary System Requirements. Multi-

ple User Requirements may be mapped to the same

(or similar) System Requirement so that one System

Requirement is included in several groups. Finally,

alternative system requirements might exist for some

User Requirements. Thus, a User Requirement can be

related to multiple (but at least one) alternative groups

of System Requirements.

3.2 Security Library

For a speciﬁc domain, a Security library contains a list

of User Requirements and implied System Require-

ments. User Requirements are divided into groups for

the convenience of designers; a group contains User

Requirements that have similar characteristics (e.g.,

all attacks related to the network connection). Each

User requirement is related to multiple groups of Sys-

tem Requirements.

ModelingRequirementsforSecurity-enhancedDesignofEmbeddedSystems

317

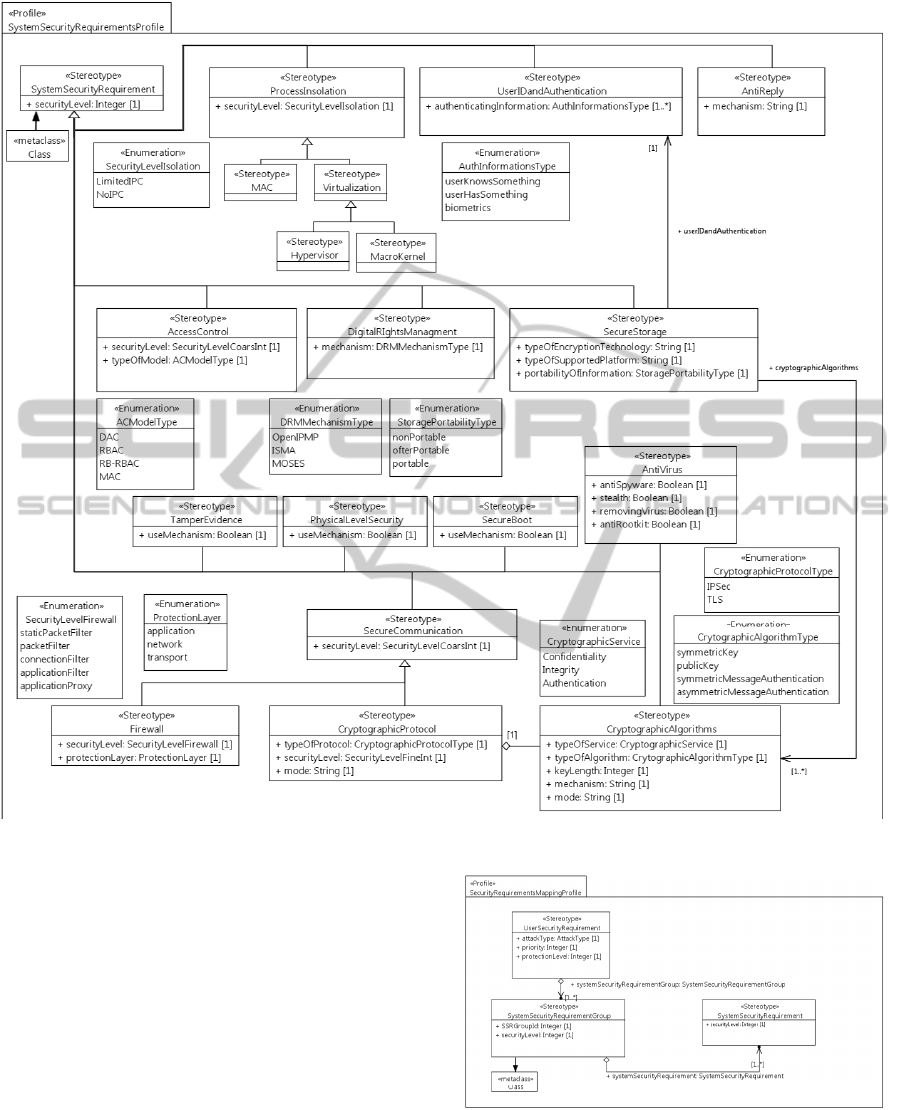

Figure 2: System Security Requirements proﬁle.

3.3 Automated Requirements

Translation

A procedure for translating User into System Require-

ments generates a set of UML diagrams describing

alternative sets of System Security Requirements tak-

ing a set of User Requirements and a Security li-

brary as inputs. A system designer choses a set of

User Requirements and describe their properties in an

XML format. Starting from an empty set of System

Requirements, the translation engine runs a loop in

which it (1) takes one User Requirement at a time, (2)

identiﬁes implied System Requirement groupsand (3)

merges a set of System Requirements from the previ-

ous iteration considering all possible alternative solu-

tions eith these System Requirement groups.

Figure 3: Mapping proﬁle.

4 CASE STUDY

As a case study we consider wearable wireless de-

vices used in Body Area Networks (BAN) for e-health

SECRYPT2014-InternationalConferenceonSecurityandCryptography

318

Table 1: Textual representation of the Security Library used

in the case study. In the table, User Requirements are

Mapped to System Requirements; System Requirements

shown in different table rows represent alternative mappings

for the corresponding User Requirement.

Group User Requirements System Requirements

Network-

Eavesdropping of net-

work connection

Symmetric encryption: AES, 128 bit key

Encryption key exchange: pre-shared key

Symmetric encryption: AES, 128 bit key

Encryption key exchange: DSA

Symmetric encryption: Trivium, 80 bit key

Encryption key exchange: pre-shared key

Data modiﬁcation

through man-in-the-

middle

Data authentication: HMAC-SHA256

Authentication key exchange: DSA

Host authentication: Public-key algorithm,

1024-bit key

Data authentication: Poly1305-AES

Encryption key exchange: Pre-shared key

Host authentication: Trivium, 80-bit key

Host authentication key exchange: pre-

shared

Impersonation

Host authentication: public-key algorithm,

1024 bit key

Anti-replay: counter

Host authentication: Trivium, 80-bit key

Host authentication key exchange: pre-

shared

Anti-replay: counter

Local

Data stealing through

physical access to the

device

Local storage encryption: AES, 128 bit key

Local storage encryption: Trivium, 80 bit

key

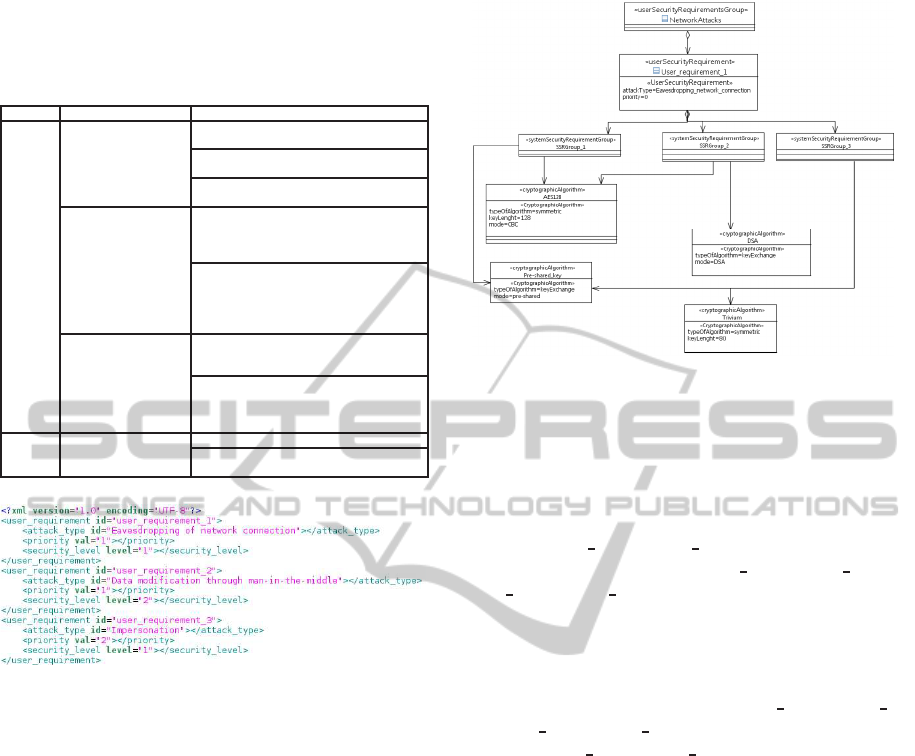

Figure 4: XML code representing the User Requirements of

the case study.

monitoring. Security issues in BANs for telemedicine

and e-health are particularly important because sen-

sitive medical information must be protected from

unauthorized use for personal advantage and fraud-

ulent acts that might be hazardous to a user’s life

(e.g., alteration of system settings, drug dosages, or

treatment procedures) (Poon et al., 2006). Although

they carry sensible information, these devices are usu-

ally quite limited on computational resources and on

power. Moreover, they are often connected to remote

locations by means of a local gateway, that, in most of

the cases, is a smartphone. Speciﬁc security solutions

are available for this kind of devices, such as the ones

listed in (Di Pietro and Mancini, 2003).

We consider the security library containing the re-

quirements shown in Table 1. In (Kargl et al., 2008;

Ameen et al., 2012; Poon et al., 2006) a number of

attack types that could happen in e-health monitor-

ing systems are given; among them, the ones that are

used in this case study are shown in column User Re-

quirements. As an example of the library, a part of it

related to the Eavesdropping of network connection is

represented in Figure 5.

Figure 5: Part of the Security Library representing System

Requirements related to the Eavesdropping of network con-

nection User Requirement.

The User Requirements are represented in the

XML code shown in Figure 4. Both User Require-

ments no. 1 and no. 4 are related to eavesdropping

of network connection and, therefore, they are repre-

sented by user

requirement 1; User Requirement no.

2 and 3 are represented by user

requirement 2 and

user requirement 3, respectively. We assigned priori-

ties to the requirements in the XML ﬁle in such a way

that eavesdropping and data modiﬁcation are more

important than impersonation. Furthermore, we used

the optional security level ﬁeld to specify that we re-

quire lowest possible security for user

requirement 1

and user

requirement 2, while we require medium se-

curity for user requirement 3.

The result of the translation process is a set of

UML class diagrams, each of them representing an al-

ternative set of System Requirements. Each set is de-

ﬁned as a combination of System Requirement groups

and included System Requirements where each group

is related to one of the User Requirements.

5 CONCLUSIONS AND FUTURE

WORK

We presented a methodology to: (1) specify user

and system security requirements, (2) create a secu-

rity library by relating the two, and (3) automatically

translating user security requirements to system se-

curity requirements. User requirements are speciﬁed

by considering the attacks that the system should be

able to withstand; the system requirements are de-

ﬁned considering the protection mechanisms that can

be applied against these attacks. The implementation

is done by deﬁning a set of UML proﬁles and apply-

ModelingRequirementsforSecurity-enhancedDesignofEmbeddedSystems

319

ing model-to-model transformations.

Future work will be on optimizing the translation

mechanism in such a way that similar System Re-

quirements derived from different User Requirements

are recognized and merged.

REFERENCES

Ameen, M., Liu, J., and Kwak, K. (2012). Security and pri-

vacy issues in wireless sensor networks for healthcare

applications. J. Med. Syst., 36(1):93–101.

Bouaziz, R. and Coulette, B. (2012). Applying security

patterns for component based applications using uml

proﬁle. In Computational Science and Engineering

(CSE), 2012 IEEE 15th International Conference on,

pages 186–193.

Di Pietro, R. and Mancini, L. V. (2003). Security and

privacy issues of handheld and wearable wireless de-

vices. Commun. ACM, 46(9):74–79.

Ferrante, A., Milosevic, J., and Janjusevic, M. (2013). A

security-enhanced design methodology for embedded

systems. In ICETE SECRYPT 2013, Reykjavik, Ice-

land. ICETE.

ISO/IEC (2009). ISO/IEC 15408-3 – Evaluation criteria for

IT security – Part 3: Security assurance components.

J¨urjens, J. (2003). Secure Systems Development with UML.

Springer Verlag.

Kargl, F., Lawrence, E., Fischer, M., and Lim, Y. Y. (2008).

Security, privacy and legal issues in pervasive ehealth

monitoring systems. In Mobile Business, 2008. ICMB

’08. 7th International Conference on, pages 296–304.

Kocher, P., Lee, R., McGraw, G., and Raghunathan, A.

(2004). Security as a new dimension in embedded

system design. In Proceedings of the 41st annual De-

sign Automation Conference, DAC ’04, pages 753–

760, New York, NY, USA. ACM. Moderator-Ravi,

Srivaths.

K¨oster, F., Nguyen, H., Obermeier, S., Br¨andle, M., Klaas,

M., Naedele, M., and Brenner, W. (2009). Informa-

tion security assessments for embedded systems de-

velopment: An evaluation of methods. In 8th Annual

Security Conference, Las Vegas, USA.

Markose, S., Liu, X., and McMillin, B. (2008). A system-

atic framework for structured object-oriented security

requirements analysis in embedded systems. In Em-

bedded and Ubiquitous Computing, 2008. EUC ’08.

IEEE/IFIP International Conference on, volume 1,

pages 75–81.

Massacci, F., Mylopoulos, J., and Zannone, N. (2010). Se-

curity requirements engineering: The si* modeling

language and the secure tropos methodology. In Ras,

Z. and Tsay, L.-S., editors, Advances in Intelligent In-

formation Systems, volume 265 of Studies in Compu-

tational Intelligence, pages 147–174. Springer Berlin

Heidelberg.

Object Management Group (2011). Uniﬁed Mod-

eling Language Infrastructure, 2.4.1 edition.

http://www.omg.org/spec/UML/2.4.1.

Poon, C. C. Y., Zhang, Y.-T., and Bao, S.-D. (2006). A

novel biometrics method to secure wireless body area

sensor networks for telemedicine and m-health. Com-

munications Magazine, IEEE, 44(4):73–81.

Rodriguez, A., Fernandez-Medina, E., and Piattini, M.

(2006). Security requirement with a uml 2.0 proﬁle.

In Availability, Reliability and Security, 2006. ARES

2006. The First International Conference on.

Roudier, Y., Idrees, M. S., and Apvrille, L. (2013). Towards

the model-driven engineering of security requirements

for embedded systems. In MODRE 2013, Interna-

tional Workshop on Model-Driven Requirements En-

gineering, 15 July 2013, Rio de Janeiro, Brazil, Rio

de Janeiro, BRAZIL.

The Eclipse Foundation (2013a). Eclipse development en-

vironment. http://www.eclipse.org.

The Eclipse Foundation (2013b). Papyrus UML modeling

tool. http://www.eclipse.org/modeling/mdt/papyrus.

The Eclipse Foundation (2013c). VIATRA2, VI-

sual Automated model TRAnsformations.

http://www.eclipse.org/gmt/VIATRA2/.

Viega, J. and Thompson, H. (2012). The state of embedded-

device security (spoiler alert: It’s bad). Security Pri-

vacy, IEEE, 10(5):68 –70.

Yu, E. (1997). Towards modelling and reasoning support

for early-phase requirements engineering. In Require-

ments Engineering, 1997., Proceedings of the Third

IEEE International Symposium on, pages 226–235.

SECRYPT2014-InternationalConferenceonSecurityandCryptography

320
