NFC Based Mobile Single Sign-On Solution as a Chrome Extension

Ufuk Celikkan and Can Gelis

Department of Software Engineering, Izmir University of Economics,

Faculty of Engineering and Computer Sciences, Izmir,Turkey

Keywords: Single Sign-On, NFC, Authentication, Password, Security.

Abstract: We describe the design and implementation of Single Sign-On authentication solution that uses a Near Field

Communication enabled mobile phone. Such a solution relieves the users from remembering multiple

username and passwords when authenticating themselves to various services on the internet. Mobile phones

are today’s ubiquitous computing devices, used for a wide variety of purposes including authentication,

tracking, medical care, entertainment and electronic payment. The primary advantage of NFC technology is

that since it uses short range communication, it inherently provides another level of security, and being

contactless, it is easy to use. Our solution is seamlessly integrated into the Chrome browser via a browser

extension that allows users easy authentication and management personal information on the phone. The

Google Chrome extension is written in JavaScript; However, this code (JavaScript) when running in a

browser, cannot access the system resources of the computer due to browser security restrictions. Therefore

a program written as a Java applet is implemented to run in the user’s computer. This applet, injected into

the current web page by the extension, provides access to NFC Reader and supplies the bridge between Java

and JavaScript. The user does not need to enter any account information, because it is retrieved from the

phone via NFC and automatically submitted to the web login page.

1 INTRODUCTION

Management of authentication information for

multiple accounts is becoming an increasing

problem as the internet growth continues. The oldest

and most widely used mechanism for verifying the

identity of a subject and for authenticating is the use

of a username and password. Choosing the same

username and password for all the accounts to

circumvent the problem can be dangerous because if

your authentication information is compromised

then all your accounts are exposed. Moreover, it

may not even be possible to choose the same

username for different web sites. Maintaining

synchronized passwords for multiple accounts can

be difficult, since a change in one account requires

all others to be changed which requires considerable

effort and time. On the other hand, choosing

different account names and passwords creates a

challenge of remembering many different account

names and passwords (Felten and Gaw, 2006,

Florencio and Herley, 2007). Besides, a “good”

password that contains numbers and special

characters and is longer than 8 characters (US-

CERT, 2009) increases the challenge of

remembering passwords. There are several solutions

offered to solve this problem, based on the notion of

Single Sign-On (SSO). Browsers already provide a

password vault to remember and auto-fill passwords,

but this is not a secure solution as the security of the

passwords depends on the security of the machine.

Alternatively, the password managers may choose to

store authentication information encrypted in the

cloud that will prevent it to be read in clear. The

drawback of this solution however, is that, you are

no longer in the possession of your data. Therefore,

you give up the integrity of your data which is

vulnerable to processing of it. It can be seized,

analyzed, distributed and attempted to be broken-in

legally or illegally. Enterprise level single sign-on

solutions some of which are based on Kerberos

(Steiner et.al, 1988) address the same problem at an

enterprise level which requires high assurances

while other SSO solutions such as the OpenID are

primarily targeted to Web environment to login to

websites, blogs etc. (OpenID; Sovis et. al, 2010).

Storing usernames and passwords on an NFC

enabled phone and seamlessly integrating it into a

337

Celikkan U. and Gelis C..

NFC Based Mobile Single Sign-On Solution as a Chrome Extension.

DOI: 10.5220/0005056703370343

In Proceedings of the 11th International Conference on Security and Cryptography (SECRYPT-2014), pages 337-343

ISBN: 978-989-758-045-1

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

browser is a secure and convenient solution. It

provides two-factor authentication with the

convenience of Single Sign-On solution. NFC based

SSO provides much better security than password

synchronization methods which maintains one single

synchronized password for all applications (Chinitz

2000). In addition, some level of security is inherent

in the nature of short range communication which is

used by the NFC technology (Coskun et.al, 2013).

Some RFID standards, Bluetooth and NFC readers

exhibit similar security characteristics from an

hacking perspective. They are both open to man-in-

the-middle attacks and eavesdropping. However,

sniffing communications and man-in-the-middle

attacks are much harder to setup in NFC

communications when compared others due to the

close range between devices and the low power RF

field of communication. However, the ultimate

security is achieved by encrypting the channel

communication between the reader and the phone

using a key exchange algorithm such as Diffie-

Hellman.The phone acts as an information

depository to store web sites’ URLs, usernames and

passwords, and when a particular web site is

accessed, the username and password fields are

filled automatically from the phone. This allows

users to login to web sites and access to their

accounts by a single entry of the phone PIN. Once

the user is authenticated to the phone using the PIN,

no more manual username/password entry is

required to access other accounts. This avoids the

danger of over-the-shoulder-eavesdropping due to

manual entry of username and password where the

environment lacks sufficient privacy.

A phone based SSO is called local pseudo SSO,

because a separate authentication occurs every time

the user logs into a web site using authentication

information stored locally at the web site (Pashalidis

and Mitchel, 2003, De Clercq, 2002). This is in

contrast to a true SSO, such as the Kerberos protocol

in which a trusted third party manages your

credentials. Kerberos is available in modern

operating systems. A commercial example of a local

pseudo-SSO solution is Password Director

(Password Director, 2014) which stores the

passwords in an encrypted password database on

local disk and has support for USB flash drives.

Our main objective is to create a SSO solution

with a two-factor authentication. From an SSO

perspective, a user who knows the phone PIN can be

authenticated on other sites without entering another

password. In addition to knowing the PIN

(“something you know”), the user should have the

possession of the phone (“something you have”) to

activate the system. The second objective is to create

an easily installed solution with minimal foot-print

and which is convenient to use. The solution

described in this paper requires the installation of the

Google Chrome extension (Chrome, 2014) and the

Android application.

Using an NFC enabled phone for login helps to

address the problem of misspelled and fake URLs.

For instance, if one enters mail.yohoo.com (i.e. a

fake address with malicious intent) erroneously in

the browser, an attempt to match this URL with the

one on the card will fail, and login will not occur.

Due to the storage capability of a phone, the login

history of a user can be stored on the card, which

later can be used to verify suspicious logins, login

attempts and also for auditing purposes.

The rest of the paper is organized as follows.

Section 2 includes an overview of the system

architecture of the solution. In Section 3, the authors

describe the implementation details of the system.

Finally, Section 4 discusses the advantages of using

the system, the remaining issues and future work and

enhancements.

2 SYSTEM ARCHITECTURE

The phone is integrated into the browser through a

browser extension. The solution has two

components: an Android application that runs on the

mobile phone, and a browser extension that runs on

the host machine. An NFC reader attached to the

computer facilitates the communication between the

mobile phone and the computer. The overall high

level view of the system architecture is shown in

Figure 1.

Figure 1: System overview.

After the extension is installed, it is activated

only when a user attempts to login to a web site,

which results in the injection of an applet into the

web page. The applet then starts polling the NFC

SECRYPT2014-InternationalConferenceonSecurityandCryptography

338

device. Having received the needed data from the

mobile device to login to a website, namely a

username and password, the extension initiates the

authentication sequence by automatically filling the

The actions performed by the extension during the

2.1 Android Application

The Android application on the phone stores user

account information and transmits this information

to the browser on the host machine via NFC. NFC

Communication is provided by high-level Android

NFC libraries that use Simple NDEF Exchange

Protocol (SNEP, 2013) to transmit data to the peer

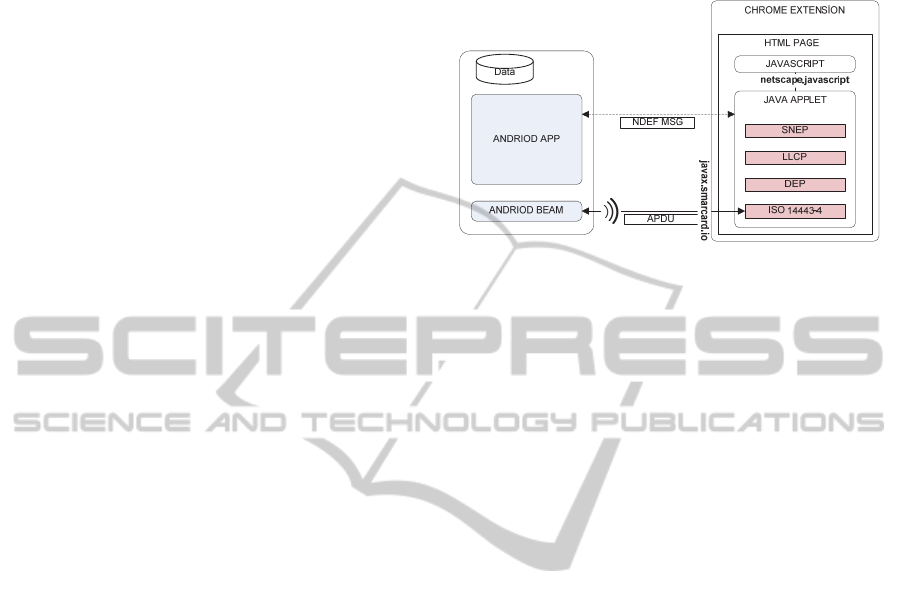

device (SNEP is explained in the Implementation

Section). SNEP protocol messages are in NFC Data

Exchange Format (NDEF, 2006) where user account

information is sent in the payload field.

http:// or

https://

Inject Javascript Code

Load Applet

Get Account Information

Submit Form

Activate Extension

Run JavaScript Code

YES

Figure 2: Extension’s authentication flow.

The phone sends messages to the NFC Reader

via Android Beam and the applet injected into the

web page receives those messages. User account

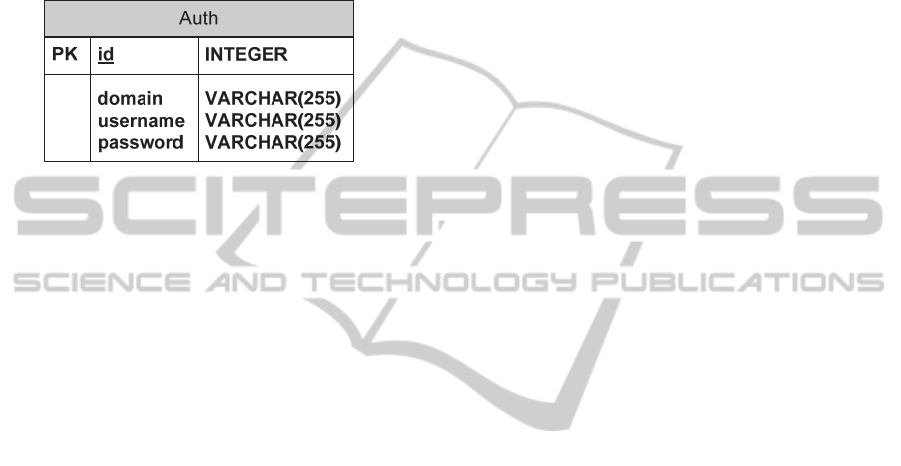

information is stored on the phone in a SQLite

database as triplets that contain domain, username

and password information. This information in the

database is secured by the operating system. By

default, Android OS security architecture does not

allow one application to access to another

application’s private data, such as files, without

acquiring an explicit permission. However, if the

phone is compromised and root privileges are

acquired then the data in the database is exposed

together with other data and applications on the

phone. Encrypting the data on the database partially

addresses the problem, since, now the user must

enter the encryption key every time authentication to

a web site is needed. This is of course in contrary to

the idea of SSO solution that the paper proposes. A

process that makes an attack harder could be

employed as flows: Encrypt data in the database

using the secret key generated from the PIN using

PBKDF2WithHmacSHA1 algorithm. The user

enters the PIN when the application starts a

“session” after which passwords are unlocked and

stored in clear in the memory as long as the user

session is active. When the user ends the session due

to the termination of the application, the clear

passwords in the memory is deleted. However, note

that this provides no extra security and will not

eliminate an attack to recover clear passwords due to

a compromised and rooted phone. This simply

makes the attack little harder and when the

application is not running the passwords remain

encrypted in the database. Figure 3 shows user

interface of the Android application.

Figure 3: Android application’s user interface.

The android application has the following

account management functions:

 Add/Remove account: User can add and remove

accounts;

 Update Account: User can update account;

 Backup Data: The information on the telephone

will be backed up on an NFC card or tag. The

user will be able to use this card for login

purposes as well.

NFCBasedMobileSingleSign-OnSolutionasaChromeExtension

339

2.2 The Brower Extension

The extension is implemented in JavaScript. The

contents_script section of the extension’s manifest

file indicates when to activate the extension and

which JavaScript file to run. When a login page is

encountered, the JavaScript code dynamically adds a

second JavaScript file to the html document, and

also loads the Applet. The extension is logically

divided into two as Applet and Browser layers, each

performing a phase of the authentication process.

2.2.1 Applet Layer

This layer is a bridge between the mobile phone and

the browser. It polls the NFC reader for the presence

of a phone, retrieves the data using NFC hardware

and passes the data to the browser. This layer

provides peer-to-peer connection between the

mobile device and the applet in which data is carried

in NDEF format and transmitted using Simple

NDEF Exchange Protocol. The payload of the

NDEF message carries JavaScript Object Notation

formatted account information. JSON is a

lightweight data-interchange format which can be

easily parsed by the machines and read by the

humans.

2.2.2 Browser Layer

The browser layer is written in JavaScript and

HTML. The corresponding JavaScript code and the

HTML applet tag code to load Java Applet are

injected into the web site for every web page that

contains a login form. Browser layer parses the

JSON formatted data received from the applet to

extract username and password and completes the

authentication by auto-filling the login fields of the

page with account information, followed by the

submission of the page.

3 IMPLEMENTATION

NFC-SSO implementation has two main

components, as shown in Figure 4. The mobile

application is a Java program running on Android

operating system, and host part is implemented as a

Chrome browser extension using JavaScript, HTML,

CSS and includes a Java applet. An NFC reader

provides the contactless communication between the

NFC enabled phone and the host. ACR122U NFC

contactless Smart Card Reader is used as the NFC

Reader (ACR122U). The implementation is tested

on an NFC enabled phone running Android 4.1.2

and Chrome browser running on Windows operating

system.

Figure 4: Detailed view of the system.

Peer to peer mode is used between the NFC

phone and the NFC reader, in which devices send

data to each other using the Simple NDEF Exchange

Protocol. The Android application uses Android

Beam, which in essence is the Link Layer Control

Protocol (LLCP, 2011) and handler system that

enables an application to respond automatically

when the phone is in range of another device that

supports NDEF push. LLCP is similar to TCP or

UDP for HTTP requests, handling the exchange of

NDEF messages between two active devices.

3.1 Android Application

The Android Application stores the user account

information and pushes this data, encapsulated in an

NDEF message, to the Java Applet residing on the

host via Android Beam. Android Beam is part of

Android’s native NFC libraries (android.nfc)

(Android, 2014). It uses SNEP protocol as the

default transmission mechanism, falling back to a

proprietary mechanism called NDEF Push Protocol

(NPP). The application implements the

CreateNdefMessageCallback interface which has the

createNdefMessage method to create an NDEF

message to push. NDEF is the container format to

store NFC data in NFC tags. NDEF is a lightweight

binary message format designed to encapsulate one

or more application-defined payloads into a single

message construct. An NDEF message contains one

or more NDEF records, each carrying a payload of

arbitrary type, and can be as large as 2

-1 octets in

size (NDEF, 2006). NdefMessage class provides the

abstraction for the NDEF messages.

createNdefMessage method is called when the

phone is in range of another device that might

SECRYPT2014-InternationalConferenceonSecurityandCryptography

340

support NDEF push, thus allowing the application to

create the NDEF message only when it is required.

The account information to be sent in the

message payload is stored in a SQLite database on

the mobile device, as shown in Figure 5. The

information is stored as triplets that contain domain,

username and password information and converted

into JSON format for easy parsing by the JavaScript

before it is sent to the host machine.

Figure 5: Authentication information database table.

3.2 Android Manifest File

Android manifest.xml file needs the uses-

permission element i.e., <uses-permission

android:name = "android.permission.NFC"/> to

get permission to access to the NFC hardware. Since

the application depends on the NFC hardware, the

following uses-feature element is included in the

manifest file: <uses-feature android:name=

"android.hardware.nfc" android:required="true

"/>. In order for the single sign-on application to be

dispatched in response to an NDEF payload (i.e.

when the phone is near to the NFC reader), the

following intent-filter element is added: <action

android:name = "android.nfc.action.

NDEF_DISCOVERED"/>

3.3 Host Application: Chrome

Extension

The host application is simply a Chrome extension.

The extension achieves sign-on by injecting

JavaScript and applet code into the page containing

the login form. In order to do this, content_scripts

section in the manifest file is needed to access to the

current page’s Document Object Model tree.

content_scripts section is also used to activate the

extension and specify which JavaScript files to run.

The JavaScript code checks the existence of the

<input type=”text”> and <input

type=”password”> tags in the HTML form. The

presence of these tags indicates that the current web

page is indeed a login page. Consequently, a second

JavaScript code and the Java applet are

programmatically injected into the web page. The

JavaScript function login() called by the Java Applet

is responsible for passing the data received from the

phone to the login form and submitting the form.

netscape.javascript library is used to implement the

bridge between the applet and the browser’s java

script code. The extension obtains the URL from the

browser and auto-completes the username and

password fields on the page.

3.4 Java Applet

The Java Applet is responsible for retrieving the data

from the NFC Reader and passing the data to the

browser. When the extension recognizes a web page

as a login page the applet is injected into the Web

page. On Android API level 14, Android Beam

performs NFC peer-to-peer communication using

LLCP with SNEP being the default data transfer

protocol. Therefore, to match the protocol used by

the Android Beam, SNEP over LLCP is

implemented in the applet code to transfer data from

the Android NFC phone.

The applet uses javax.smartcard.io library for the

data transfer between the reader and the applet. This

library provides an abstraction between the physical

device and the Java code where the Java methods are

bound to the underlying PC/SC (Personal

Computer/Smart Card) subsystem (PCSC, 2014).

The Card.transmitControlCommand method in

javax.smartcard.io library is the wrapper for

PC/SC’s SCardControl function. In PC/SC

architecture, the SCardControl function implements

the dialogue between an application and the reader,

regardless of whether there is a card in the slot. This

function gives you direct control of the reader.

Direct Transmit is used to send the data to the NFC

reader providing data transmission to the reader

when no NFC device or card is presented on the

reader. In the other words, the data is transmitted to

the reader directly not to the card or the device.

A polling mechanism is implemented because

most NFC readers currently on the market do not

support this mechanism for peer-to-peer

connections. Applet’s polling mechanism samples

the status of the reader every 500 milliseconds to

detect the presence of a device. If a device is

detected by the reader, polling stops and the data

transmission starts. Figure 6 shows the calls made to

detect the presence of an NFC Reader and polling of

an NFC enabled phone. Figure 7 shows the

DirectTransmit mechanism used to send Application

Protocol Data Units to the NFC reader.

NFCBasedMobileSingleSign-OnSolutionasaChromeExtension

341

Figure 6: NFC reader discovery.

Figure 7: Direct Transmit of APDU’s.

After data is retrieved from the NFC reader, it is

passed to the browser using netscape.javascript

library. This library provides a bridge between the

Java Applet and the JavaScript code. The library has

the ability to call JavaScript functions from Java or

alternatively Java methods can be called through

JavaScript.

4 CONCLUSION

The ubiquitous mobile phone has many uses, from

entertainment to mobile payments. In this paper we

demonstrate a mobile phone based SSO solution that

is seamlessly integrated into Chrome as a browser

extension to address the problem of remembering

multiple passwords and account names.

Authenticating to multiple web sites using different

account names and passwords causes username and

password management difficulties and in some

cases, security issues. The solution provided in this

study consists of an application for the Android

phone and an extension for the Chrome browser.

The solution presented in the paper is effective

against key loggers since authentication information

is auto-filled without user typing any information. It

can also be used to address the phishing problems

because the URL of the imitated or look-alike web

site will not match the one stored on the phone. The

solution however, cannot handle man-in-the-browser

attacks. The man-in-the-browser attacks targeting a

browser must be handled in a more general setting

by employing several mitigation factors, of which

awareness is the starting point. Number one priority

is protecting the computer. Enhancing the browser

security against malware and trojans by hardening

private static final byte[] ACR122_HEADER = {

(byte) 0xFF, (byte) 0x00, (byte) 0x00, (byte) 0x00 };

private static final int ACR122_CONTROL_CODE = 0x310000 + 3500 * 4;

private byte[] sendCommand(byte[] cmdIn) throws CardException {

/* command = command length + 0xD4 + ACR122 HEADER + command */

byte[] cmd = Util.catBytes((byte) (cmdIn.length + 1),(byte) 0xD4);

cmd = Util.catByteArrays(ACR122_HEADER, cmd);

cmd = Util.cat ByteArrays(cmd, cmdIn);

byte[] response = card.transmitControlCommand(ACR122_CONTROL_CODE, cmd);

return response;

}

import javax.smartcardio.*;

private static final byte[] FELICA_POLLING = { (byte) 0x4A, (byte) 0x01, (byte) 0x02,

(byte) 0x00, (byte) 0xFF, (byte) 0xFF, (byte) 0x00, (byte) 0x00 };

TerminalFactory factory = TerminalFactory.getDefault();

CardTerminal terminal = factory.terminals().list().get(0);

Card card = terminal.connect("direct”);

// Start Polling

while (true) {

response = sendCommand(FELICA_POLLING);

if (response[2] == (byte) 0x01)

break;

Thread.sleep(S_TIME);

}

SECRYPT2014-InternationalConferenceonSecurityandCryptography

342

the browser is also helpful against man-in-the-

browser attacks.

The only hardware requirement is a USB NFC

reader and its associated device driver. Even though

not wide spread, there are commercial desktops,

laptops, tablet PCs, keyboards and monitors that are

equipped with built-in NFC readers (antenna). This

is very promising and gives the solution presented in

the paper a better chance to be accepted by the end

user. javax.smartcard.io provides the low level

communication with the NFC reader. The software

is architected following design pattern guidelines,

and therefore easily extendible to support other

hardware and software tokens. The content of the

card is backed up encrypted for recovery purposes.

Currently, the solution works only on Chrome

browser and only for web forms. Supporting other

browsers, while maximizing the code reuse in the

mean time, requires a number of changes, some of

which are architectural changes in our solution. In

order to be able to automatically provide username

and password data to a web site, the web site’s login

page is parsed for the field names. Although for well

established web sites field names are not subject to

frequent change, any changes can adversely affect

the functioning of the solution because automatic

this problem is to store the field names on the phone

and update them when a web site changes the field

names. The extension then reads the field names

from the phone in addition to the username and

passwords.

The solution presented in the paper can be

enriched by adding features such as automatic

password capture, password generator and, password

strength analyzer. Currently, the implementation

does not support NFC tags and cards; therefore

functionality needs to be added to manage tags and

cards through the browser extension. However, the

most important priority is adding support to enable

the solution to be used with different browsers.

REFERENCES

Felten, E.W. and Gaw, S., 2006. Password management

strategies for online accounts, In Proceedings of the

second symposium on Usable privacy and security,

2006, pp. 44-55.

Florencio, D. and Herley, C., 2007. A large-scale study of

web password habits, In Proceedings of the 16th

international conference on World Wide Web, 2007,

pp. 657 – 666.

US-CERT, 2009. Choosing and Protecting Passwords,

http://www.us-cert.gov/cas/tips/ST04-002.html,

[Accessed 8 April 2014].

OpenID, http://www.openid.net, [Accessed 8 April 2014].

Steiner, J.G., Neuman, C. and Schiller, J.I., 1988.

Kerberos: An Authentication Service for Open

Network Systems, In Proceedings of Winter USENIX

Conference, 1988.

Sovis, P., Kohlar, F. and Schwenk, J., 2010. Security

analysis of OpenID, In Proceedings of the Securing

Electronic Business Processes–Highlights of the

Information Security Solutions Europe 2010

Conference.

Chinitz, J., 2000. Single Sign-On: Is It Really Possible?

Information Systems Security, 9(1), pp 1-14.

Coskun, V., Ozdenizci, B. and Ok, K., 2013. A Survey on

Near Field Communication (NFC) Technology,

Wireless Personal Communications, August 2013, 71

(3), pp. 2259-2294.

Pashalidis, A. and Mitchel, C.J., 2003. A taxonomy of

single sign on systems, In Information Security and

Privacy, 8th Australasian Conference, ACISP 2003,

July 9-11, 2003.

De Clercq, J., 2002. Single Sign-On Architectures, In

Proceedings of the International Conference on

Infrastructure Security InfraSec '02, pp 40-58.

Password Director, Last Bit software.

http://www.passworddirector.com, [Accessed 8 April

2014].

Chome extension development

http://developer.chrome.com/extensions/getstarted,

[Accessed 8 April 2014].

SNEP, 2013. Simple NDEF Exchange Protocol. Technical

Specification, version 1.0, 2013. NFC Forum.

http://members.nfc-forum.org/specs/spec_license,

[Accessed 8 April 2014].

NDEF, 2006. NFC data exchange format Technical

specification, version 1.0, 2006. NFC Forum.

http://members.nfc-forum.org/specs/spec_license,

[Accessed 8 April 2014].

ACR122U USB NFC Reader Aplication Programming

Interface V2.02.

http://downloads.acs.com.hk/drivers/en/API-

ACR122U-2.02.pdf, [Accessed 8 April 2014].

LLCP, 2011.Logical link control protocol . Technical

specification, version 1.1 2011. NFC Forum.

http://members.nfc-forum.org/specs/spec_license,

[Accessed 8 April 2014].

Android NFC development.

http://developer.android.com/guide/topics/connectivity

/nfc/nfc.html, [Accessed 8 April 2014].

PCSC, 2014. http://www.pcscworkgroup.com, [Accessed

April 8 2014].

NFCBasedMobileSingleSign-OnSolutionasaChromeExtension

343
