Document Clustering Using Multi-Objective Genetic Algorithms

with Parallel Programming Based on CUDA

Jung Song Lee

, Soon Cheol Park

, Jong Joo Lee

and Han Heeh Ham

Division of Electronics and Information Engineering, Chonbuk National University, Jeonju-si, Republic of Korea

Department of Korean Language and Literature, Chonbuk National University, Jeonju-si, Republic of Korea

Department of Archeology and Cultural Anthropology, Chonbuk National University, Jeonju-si, Republic of Korea

Keywords: Document Clustering, Genetic Algorithms, Multi-Objective Genetic Algorithms, GPGPU, CUDA.

Abstract: In this paper, we propose a method of enhancing Multi-Objective Genetic Algorithms (MOGAs) for docu-

ment clustering with parallel programming. The document clustering using MOGAs shows better perfor-

mance than other clustering algorithms. However, the overall computation time of the MOGAs is consider-

ably long as the number of documents increases. To effectively avoid this problem, we implement the MO-

GAs with General-Purpose computing on Graphics Processing Units (GPGPU) to compute the document

similarities for the clustering. Furthermore, we introduce two thread architectures (Term-Threads and Doc-

ument-Threads) in the CUDA (Compute Unified Device Architecture) language. The experimental results

show that the parallel MOGAs with CUDA are tremendously faster than the general MOGAs.

1 INTRODUCTION

Clustering is an unsupervised classification tech-

nique that partitions the input space into K regions.

The document clustering, which is one part of a

clustering, is important in the text mining field

(Croft et al., 2009).

Currently, Genetic Algorithms (GA), which is

one of the artificial intelligence algorithms, is widely

used in document clustering. GA is a randomized

search and optimization technique guided by the

principles of evolution and natural genetics, and can

be used to handle large and complex landscapes. It

provides near optimal solutions (Maulik and Bandy-

opadhyay, 2000). Document clustering based on GA

can provide appropriate cluster solutions using the

searching capability of GA. The performance of the

document clustering based on GA is better than

other clustering algorithms (Song and Park, 2009).

However, it slows down the performance of cluster-

ing, so it is not used to prevent premature conver-

gence. To effectively avoid a premature convergence,

Fuzzy Logic based on GA (FLGA), which exerts

several control parameters to manipulate crossover

probability and the mutation probability of GA, has

been proposed (Song and Park, 2010). When the

best fitness iterations reach the consecutive maxi-

mum generation number without improvement, the

diversity of the population is extended by increasing

the crossover and mutation probability. Generally, it

can effectively avoid trapping in a local optimum

and also accelerate the evolving speed. However, it

depends on several control parameters to manipulate

the crossover probability and the mutation probabil-

ity, such as parameter dependence. To solve these

problems (premature convergence, parameter de-

pendence), document clustering using Multi-

Objective Genetic Algorithms (MOGAs) has been

proposed (Lee et al., 2011), (Lee et al, 2011), (Lee

and Park, 2013). MOGAs define the document clus-

tering problem as a Multi-Objective Optimization

Problems (MOP) having two cluster validity indices.

It uses two of MOGAs, NSGA-II (Deb et al., 2002)

and SPEA2 (Zitzler et al., 2002) to solve MOP.

Document clustering using MOGAs shows a higher

performance than the other clustering algorithms.

However, when these algorithms which are imple-

mented by serial computing are applied in document

clustering, the computational complexity is in-

creased by the high time complexities of NSGA-II

and SPEA2. In order to solve this problem, the doc-

ument clustering MOGAs on MATLAB Distributed

Computing Server (MDCS) (Lee and Park, 2012)

has been proposed. But this technique requires many

computer servers called nodes, and each node must

280

Lee J., Park S., Lee J. and Ham H..

Document Clustering Using Multi-Objective Genetic Algorithms with Parallel Programming Based on CUDA.

DOI: 10.5220/0005057502800287

In Proceedings of the 11th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2014), pages 280-287

ISBN: 978-989-758-039-0

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

set up specific and precise configuration of the

MDCS.

Recently, parallel computing has been increas-

ingly employed to increase the speed of computa-

tions. Parallel computing is the technique of using

multiple compute resources simultaneously to solve

a computational problem. So, we introduce the doc-

ument clustering using MOGAs based on General-

Purpose computing on Graphics Processing Units

(GPGPU) to reduce the computational time in this

paper. For this technique, we use CUDA (Compute

Unified Device Architecture) language that is a plat-

form developed by NVIDIA® for performing mas-

sively parallel computations on NVIDIA® Graphics

Processing Unit (GPU) (The NVIDIA Corporation).

This paper is organized as follows. In the next

section, we give a brief review of the document

clustering using MOGAs. Details of the document

clustering using MOGAs based on CUDA are de-

scribed in Section 3. Section 4 shows the experi-

mental results of the document clustering algorithms.

Conclusions are given in Section 5.

2 DOCUMENT CLUSTERING

USING MOGAS

2.1 Multi-Objective Optimization

Problems

In the optimization problems, when there are several

objective functions these problems are called Multi-

Objective Optimization Problems (MOP). MOP has

many solutions that optimize one objective function

but does not optimize other objective functions (e.g.

conflict among objectives). Therefore, it is almost

impossible to simultaneously optimize all objective

functions. The Pareto-based method is often used to

solve MOP with this character. This method finds a

set of solutions by the dominance relation between

candidate solutions.

2.2 Multi-Objective Genetic

Algorithms

Various algorithms have been suggested in order to

solve the MOP. They are dependent on the initial

search space and various solutions cannot be found.

GA solves this disadvantage. GA for solving MOP is

often called Multi-Objective Genetic Algorithms

(MOGAs). Variations of MOGAs have been used in

many applications and their performances were test-

ed in several studies, i.e. PESA-II, SPEA2, NSGA-II,

etc., representing leading research in this category.

With these methods, NSGA-II and SPEA2 are easy

to implement and do not have parameters for diver-

sity in a population (Konak et al., 2006). So, we

applied these algorithms to document clustering.

2.3 Document Representation

In order to perform document clustering, an im-

portant process is document representation. The

general approach uses Vector Space Model (VSM)

to represent documents. The document vector that

represents the character of the document is formed

by the weights of the terms indexed in a document

(Choi et al, 2008). The following equation is the nth

document vector whose size is 1 by t. t is the number

of the total indexed terms in the corpus and W is the

term weight.







〈



,

,

,

,⋯,

,

〉

(1)

We extracted the indexed terms by using stop words

and Porter’s stemming, and calculated the term

weight by Okapi’s calculation (Salton and Buckley,

1988). In VSM we use cosine measure to compute

the similarity between two documents (Xia et al.,

2006). The cosine similarity between document d

and d

is defined by:











,









∑



,

∙

,











∑



,







∙



∑



,









(2)

2.4 MOP for Document Clustering

The document clustering using GA with a single

objective function can be regarded as an optimiza-

tion problem to optimize the cluster validity index.

This view offers a chance to apply MOP on the clus-

tering problem. Therefore, the document clustering

was thought of as MOP optimizing two cluster va-

lidity indices through this trade-off relation as:

argmax





∈











∧









,

(3)

where P is the population and P = {C

, C

, … , C

… , C

}. C

is a chromosome and C

= {CN

, CN

… , CN

, … , CN

}. CN

is the cluster number as-

signed to a documents and 1  CN

 K, n is the

number of chromosomes in a population, m is the

number of documents and K is the number of clus-

ters. F

and F

are indicated as CH index (Ca-

linski and Harabasz, 1974) and DB index (Davies

and Bouldin, 1979) for the objective functions of

MOGA. Objective function prescribes the optimality

of a solution in GA. A clustering validity index was

used as the objective function and determines the

DocumentClusteringUsingMulti-ObjectiveGeneticAlgorithmswithParallelProgrammingBasedonCUDA

281

optimal partition and the optimal number of clusters.

If the cluster validity index has the minimum value

or maximum value, optimal clustering will result.

2.5 Chromosome Encoding

and Evolution Principles

In document clustering using MOGAs, data should

be close to gene structure through the encoding pro-

cess. The chromosome is encoded by a string of

integers. Each chromosome in the population is

initially encoded by a number of m genes with an

integer value randomly in the range 1~K, where m is

the number of documents and K is the number of

clusters. Thus, each gene represents a document, and

the value of a gene represents a cluster number.

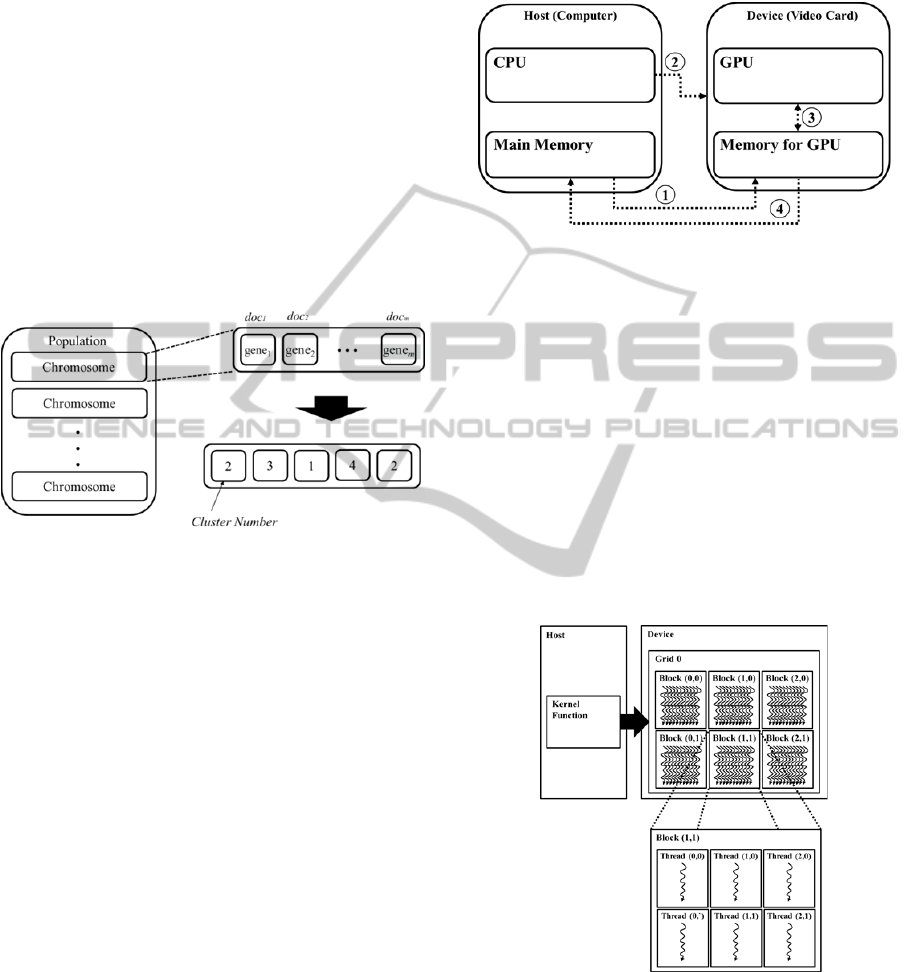

Figure 1: Chromosome encoding for the document cluster-

ing.

For example, in Figure 1, for m = 6 and K = 4, the

encoding {2, 3, 1, 4, 2} allocates the first document

to the second cluster, the second document to the

third cluster and the third document to the first clus-

ter, and so on. That is, the document clustering using

MOGAs finds the optimal cluster group of each

document. Also, Multi-Point Crossover and Uniform

Mutation were adopted in the evolution operators.

3 DOCUMENT CLUSTERING

USING MOGAS BASED ON

CUDA

3.1 Basic CUDA

This section introduces the main concepts behind the

CUDA (Compute Unified Device Architecture)

programming model. CUDA is a platform developed

by NVIDIA

for performing massively parallel

computations on NVIDIA

Graphics Processing

Unit (GPU). It enables dramatic increases in compu-

ting performance by the power of the GPU and pro-

vides the ability to use high-level languages such as

C to develop the application. The basic architecture

of CUDA is as Figure 2.

Figure 2: The basic architecture of CUDA.

(1)

Copy input data from the Main Memory of

Host to Memor

for GPU in Device

(2) Instruct the processing (Load GPU program)

(3) Execute parallel in each Core of GPU

(4)

Copy results from Main Memory in HOST

to Memory for GPU in Device

As illustrated by Figure 3, parallel portions of an

application execute on the device as kernels. A ker-

nel function that is called by the host is the basic unit

of work on GPU, and it is executed by an array of

threads in parallel. All threads execute the same

code and these are grouped into blocks. Blocks are

organized into a grid and a kernel is executed as a

grid of blocks of threads.

Figure 3: Thread hierarchy in CUDA.

Threads may access data from multiple memory

spaces during their execution, as illustrated by Fig-

ure 4. Per-thread local memory is private to the

thread. Per-block shared memory is shared by all

threads of the block and same lifetime as the block.

Threads can safely share data through this memory.

ICINCO2014-11thInternationalConferenceonInformaticsinControl,AutomationandRobotics

282

Global memory is device level memory that is

shared by all threads.

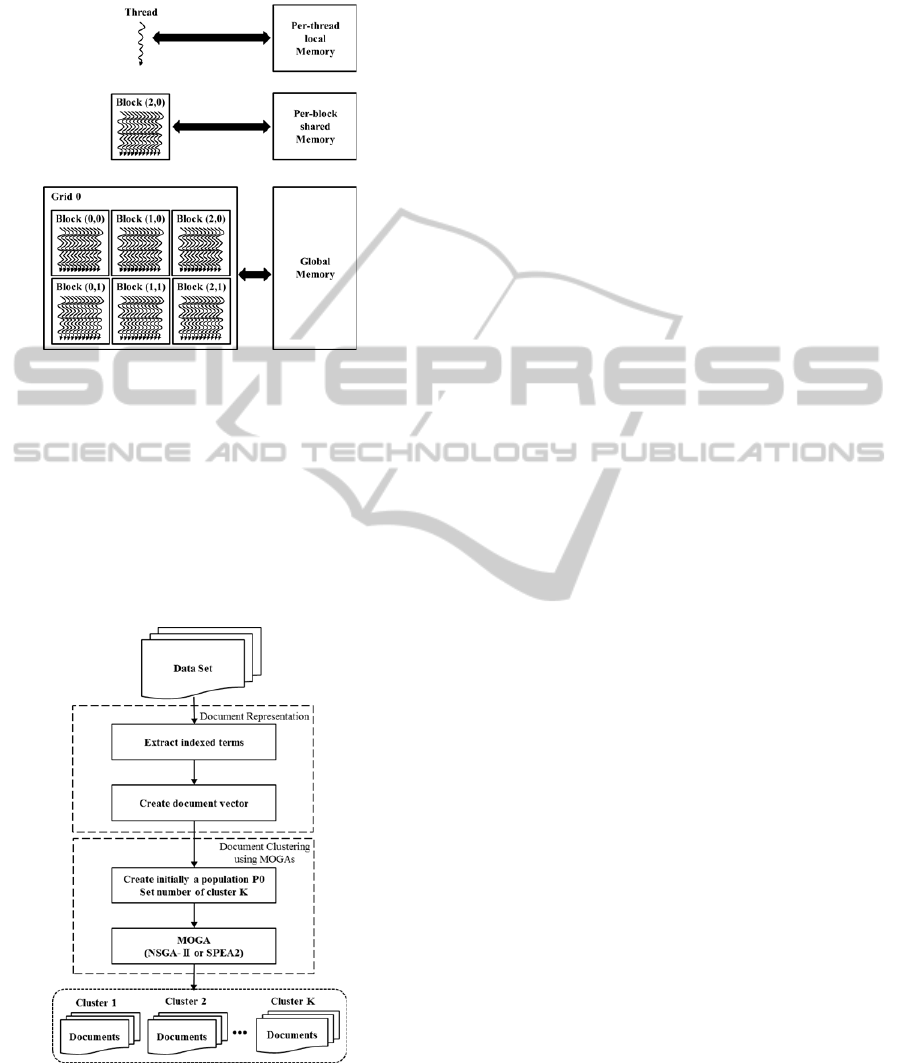

Figure 4: Memory hierarchy in CUDA.

3.2 Issue of Document Clustering using

MOGAs based on CUDA

The procedure of document clustering using MO-

GAs is shown in Figure 5. First, documents are rep-

resented by using IR techniques (Stop Word Re-

move, Porter’s Stemming). Second, the documents

are clustered by using MOGAs, NSGA-II and

SPEA2.

Figure 5: Procedure of document clustering using MO-

GAs.

The performance of the document clustering using

NSGA-II and SPEA2 among MOGAs is better than

the other clustering algorithms (k-means, conven-

tional GA). The time complexities of NSGA-II and

SPEA2 are O(MN

) and O(MN

logN) respectively,

where M is the number of objective functions and N

is the population size. MOGAs using the cluster

validity indices as the objective functions require

higher computational complexity. Moreover, in or-

der to perform document clustering, an important

process is document representation.

The general approach uses VSM to represent

documents. VSM has many drawbacks; because

each unique term in the vocabulary represents one

dimension in feature space, VSM needs a large

number of features to represent high dimensions,

and it can easily cause the high cost of computation-

al time. To overcome these problems, we adopted

the data parallel computations on kernel function in

CUDA to the calculating the objective function of

the population.

In Figure 5, evolution operators (initial popula-

tion, selection, crossover, mutation) of MOGAs are

executed by serial code in host. The objective func-

tions of each chromosome in population are calcu-

lated by parallel code with CUDA in device. We

propose two architectures which are called Term-

Threads and Document-Threads. We designed the

implementation process described detailedly as fol-

lowing.

Term-Threads

Step 1 : i

chromosome in a population at genera-

tion p, centroid vectors, and document vectors allo-

cate to global memory in device.

Step 2 : Set block size n. n is the number of docu-

ments and each block indicates value of gene. Con-

sequently, x

block indicates n

document vector

). For example, first block allocates to the first

document vector, second block allocates to the sec-

ond document vector and so on.

Step 3 : Set threads size t in each block. Each thread

indicates term weight (W

n,t

) in document vector (D

Step 4 : Start computation of each block; calculate

cosine similarity between component of document

vector (W

n,t

) and component of centroid vector (C

k,t

)

in each thread.

Step 5 : Finally, the result of cosine similarity be-

tween document vector (D

) and centroid vector

(CV

) allocates to the shred memory in each block.

So, we use it for clustering validity index (CH index,

DB index).

Consequently, in Term-Threads architecture as

shown Figure 6, genes of i

chromosome are as-

signed to each block. So, it simultaneously calcu-

lates n documents cosine similarity in an i

chromo-

some and number of iteration is population size.

DocumentClusteringUsingMulti-ObjectiveGeneticAlgorithmswithParallelProgrammingBasedonCUDA

283

Figure 6: Term-Threads architecture.

Figure 7: Document-Threads architecture.

ICINCO2014-11thInternationalConferenceonInformaticsinControl,AutomationandRobotics

284

Document-Threads

Step 1 : population at generation p, centroid vectors,

and document vectors allocate to global memory.

Step 2 : Set block size i. i is the number of chromo-

some in population at generation p and x

block

indicates i

chromosome. For example, first block

allocates to the first chromosome, second block

allocates to the second chromosome and so on.

Step 3 : Set threads size n in each block. Each

thread indicates value of gene in i

chromosome.

Consequently, n

thread indicates n

document

vector (D

Step 4 : Start computation of each block; calculate

cosine similarity between document vector (D

) and

centroid vector (CV

) in each thread.

Step 5 : Finally, the result of cosine similarity be-

tween document and centroid vector allocates to the

shred memory in each block. So, we use it for clus-

tering validity index (CH index, DB index).

While in Document-Threads architecture as

shown Figure 7, chromosomes of population at gen-

eration p are assigned to each block. So, it simulta-

neously calculates n × i documents cosine similarity

in a generation p.

4 EXPERIMENT RESULTS

In this section, we implement our method of MO-

GAs on CUDA for document clustering on the Reu-

ters-21578 collection, which is one of the most

widely adopted benchmark datasets in the text min-

ing field, and compare and discuss the performance

of MOGAs on CUDA with conventional GA. Also,

we use F-measure (Fragoudis et al., 2005) to evalu-

ate the performances of these clustering algorithms.

The population number in our conventional GA and

MOGAs is 300. These algorithms are terminated

when the number of generations reaches 1,000, or

when the iterations without improvement reach con-

secutive 20. In the current test data set 1, containing

100 documents from three topics (acq(30),

crude(30), trade(40)), data set 2 containing 200

documents from four topics (coffee(50), trade(50),

crude(50), sugar(50)), and data set 3 containing 300

documents from six topics (coffee(50), trade(50),

crude(50), sugar(50), grain(50), ship(50)) are se-

lected. After being processed by word extraction,

stop word removal, and Porter’s stemming, there are

1019, 3436 and 4210 index terms, respectively. Al-

so, the index term weight that is extracted by using

the Okapi’s calculation was determined.

We implement our experiments in two steps:

Firstly, by comparing the performances of the MO-

GAs to those of the other clustering algorithms for

the different data sets in serial code. Secondly, by

comparing the computational times of these algo-

rithms for the same data sets then we design GPU

parallel code and compare the computational times

with CPU serial code.

Figure 8 shows the performances of clustering

algorithms with the different data sets. GA indicates

the conventional GA with single objective function.

NSGA-II and SPEA2 indicate the MOGAs with two

objective functions. DB and CH indicate objective

functions applied in the clustering algorithms. DB

stands for DB index and CH for CH index. In sum-

mary, the clustering performances in all data sets are

highest F-measure when using NSGA-II and next,

SPEA 2. With each data set, the average F-measure

value of MOGAs using the NSGA-II and SPEA2 is

0.79, 0.75 and 0.80. Consequently, the document

clustering applying the MOGAs shows the perfor-

mance about 21% than conventional GA.

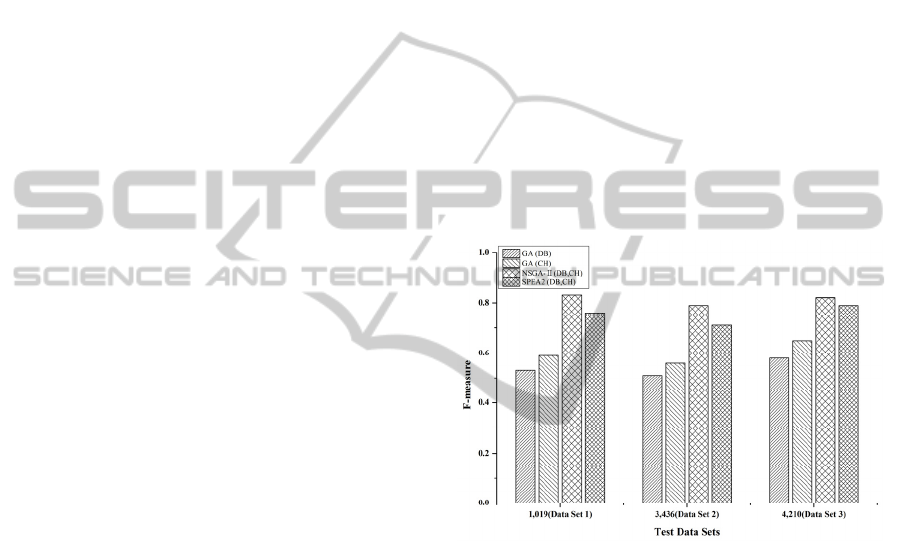

Figure 8: The clustering performance for each data set.

However, as a result of Table 1 the computational

time of MOGAs is greater than GAs. So, we adopted

CUDA for reduce computational times in document

clustering using MOGAs. We evaluate performance

of our MOGAs base on CUDA implementation us-

ing GeForce GTX 550Ti video cards with 192 cores

and 1 GB of RAM DDR3. GeForce GTX 550 Ti

consists of four Streaming Multiprocessors (SM).

Each SM consists of eight processor cores called

Streaming Processors (SP). In effect, GeForce GTX

550 Ti is a massively-parallel multi-core processor

embodying 32 SPs in total and maximum number of

active threads on each block is 1,024, in total more

than 130,000 threads. The computer used for exper-

iments was a desktop PC with Intel Core i7-2600 to

3.4 GHz, 8 GB of RAM, operating system 64-bit

Microsoft Windows 7 sp1.

DocumentClusteringUsingMulti-ObjectiveGeneticAlgorithmswithParallelProgrammingBasedonCUDA

285

Table 1: The computational time of MOGAs and general

GA (minutes).

Test Data Sets

Data Set 1 Data Set 2 Data Set 3

GA(DB) 34 110 237

GA(CH) 52 130 253

SGA-II 84 162 334

SPEA 2 93 178 350

Table 2 shows the computational times of each data

set of MOGAs using serial code and MOGAs using

parallel code based on CUDA with two thread archi-

tecture, Term-Threads and Document-Threads.

Table 2: The computational time of MOGAs based on

CUDA, general MOGAs (seconds).

Test Data Sets

Data

Set 1

Data

Set 2

Data

Set 3

Serial

Code

NSGA-II

5,040 9,720 20,040

SPEA 2 5,580 10,680 21,000

Parallel

Code

NSGA-II

Term-

Threads

120 ‒ ‒

Document-

Threads

7 24 220

SPEA 2

Term-

Threads

122 ‒ ‒

Document-

Threads

8 25 220

From Table 2, we can see that the Term-Threads

and Document-Threads architecture are faster than

serial code. Also, CUDA helps to reduce computa-

tional times substantially. Especially, Document-

Threads architecture can get 600x, 400x, and 90x

speed-up in each data sets respectively. However, in

Table 2, Term-Threads architecture is impossible

to implement over 1,024 threads because maximum

number of active threads per block is 1,024 on Ge-

Force GTX 550 Ti. That is, Term-Threads architec-

ture is impossible to execute when number of term is

over 1,024.

5 CONCLUSIONS

We have presented document clustering using MO-

GAs based on GPGPU to solve the problem of long

computational time in the general MOGAs. The

document similarity of the objective functions in

MOGAs is computed with GPGPU using the parallel

computing platform of CUDA.

The results show that these MOGAs enhanced

the clustering performance about 12% higher than

those of both the general GA. Furthermore, two

architectures, Term-Threads and Document-

Threads, show faster execution times than general

MOGAs. Especially, Document-Threads architec-

ture gains over 600x speed-up and handles more

than 1,000 documents simultaneously with Term-

Threads architecture.

In future, we will do more work on some optimi-

zation techniques of the document clustering in

CUDA, seeking the best of threads architectures for

document clustering.

ACKNOWLEDGEMENTS

This work was supported by the National Research

Foundation of Korea Grant funded (NRF) by the

Korean Government (NRF-2013S1A5B8A01072201

& NRF-2013R1A1A2063572) and the Brain Korea

21 PLUS Project, National Research Foundation of

Korea.

REFERENCES

Croft, W. B., Metzler, D., and Strohman, T., 2009. The

book, Search engines information retrieval in practice.

Addison Wesley.

Maulik, U., and Bandyopadhyay, S., 2000. Genetic algo-

rithm-based clustering technique. Pattern Recognition,

33(9):1455-1465.

Song, W., and Park, S.C., 2009. Genetic algorithm for text

clustering based on latent semantic indexing. Comput-

ers and Mathematics with Applications. 57:1901-1907.

Song W., and Park, S.C., 2010. Latent semantic analysis

for vector space expansion and fuzzy logic-based ge-

netic clustering. Knowledge and Information Systems.

22:347-369.

Lee, J. S., Choi, L. C., and Park, S. C. 2011. Document

clustering using multi-objective genetic algorithm with

different feature selection methods. 1st International

Workshop on Semantic Interoperability.

Lee, J. S., Choi, L. C., and Park, S. C., 2011. Multi-

objective genetic algorithms, NSGA-II and SPEA2,

for document clustering. Communications in Comput-

er and Information Science. 257:219-227.

Lee, J., S. and Park, S., C. 2013. Generation of Non-

redundant Summary based on Sentence Clustering Al-

gorithms of NSGA-II and SPEA2. The 4th Interna-

tional Conference on Evolutionary Computation Theo-

ry and Applications. 176-182.

Deb, K., Pratap, A., Agarwal, S., and Meyarivan, T., 2002.

A fast elitist multiobjective genetic algorithm: NSGA-

II. IEEE Transaction on Evolutionary Computation.

6(2):182-197.

Zitzler, E., Laumanns, M., and Thiele, L., 2002. SPEA2:

Improving the strength pareto evolutionary algorithm.

ICINCO2014-11thInternationalConferenceonInformaticsinControl,AutomationandRobotics

286

Proceedings of the EROGEN.

Lee, J., S. and Park, S., C. 2012. Document Clustering

Using Multi-Objective Genetic Algorithms on

MATLAB Distributed Computing. The 3rd Interna-

tional Conference on Information Science and Appli-

cations.

The NVIDIA Corporation. 2012. The book, NVIDIA

C.U.D.A. Programming guide.

Konak, A., Coit, D. W and Smith, A. E., 2006. Multi-

objective optimization using genetic algorithms : A tu-

torial. Reliability Engineering and System Safety.

91:992-1007.

Choi, L.C., Choi, K.U., and Park, S.C., 2008. An automat-

ic semantic term-network construction system. In In-

ternational Symposium on computer Science and its

Applications.

Salton, G., Buckley, C., 1988. Term-weighting approaches

in automatic text retrieval. Information Processing &

Management.

Xia, H., Wang, S., and Yoshida, T., 2006. A modified ant-

based text clustering algorithm with semantic similari-

ty measure. Journal of Systems Science & Systems En-

gineering. 15(4):474-492.

Calinski, T., Harabasz, J., 1974. A dendrite method for

cluster analysis. Communucations in Statistics.

Davies, D.L., and Bouldin, D.W., 1979. A cluster separa-

tion measure. IEEE transactions on Pattern analysis

and Machine Intelligene.

Fragoudis, D., Meretakis, D., and Likothanassis, S., 2005.

Best terms:an efficient feature-selection algorithm for

text categorization. Knowledge and Information Sys-

tems.

DocumentClusteringUsingMulti-ObjectiveGeneticAlgorithmswithParallelProgrammingBasedonCUDA

287
