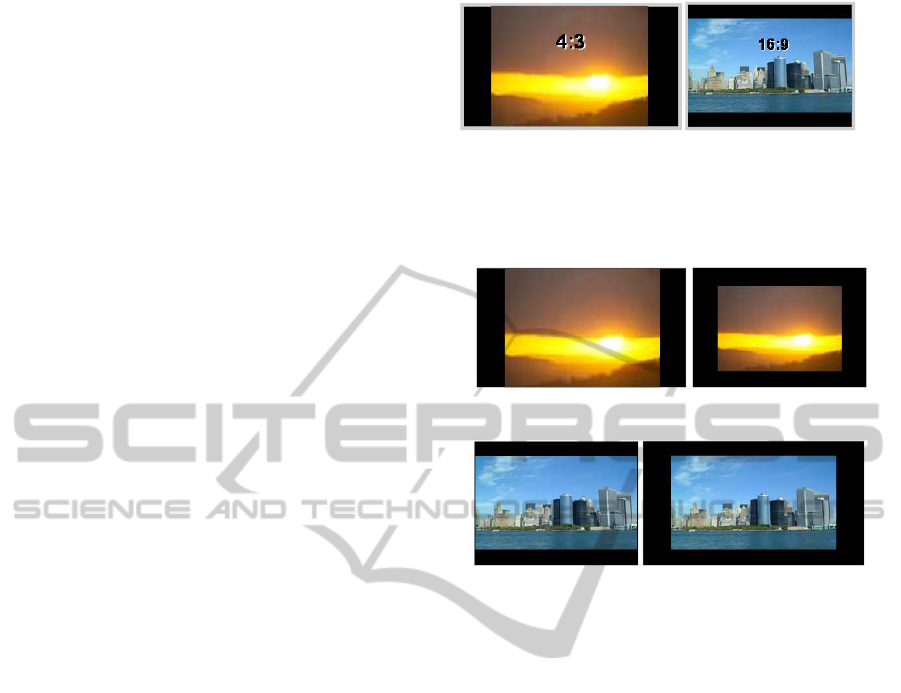

In Case 1, and in order to detect the letterbox top
bar (its presence and width), the algorithm starts by
scanning each frame line, from the top to the bottom
of the frame, applying conditions (1) and (2) to each
pixel to verify if it corresponds to a black pixel; if
line i is the first one for which those conditions are
not verified, the top horizontal bar width is set to i-1.
To detect a horizontal bar on the bottom of the
frame, the procedure is repeated but carrying out the
scanning from the bottom to the top of the frame. To
detect the bars due to the pillarbox effect, a similar
procedure is applied along the horizontal direction of
the frame.

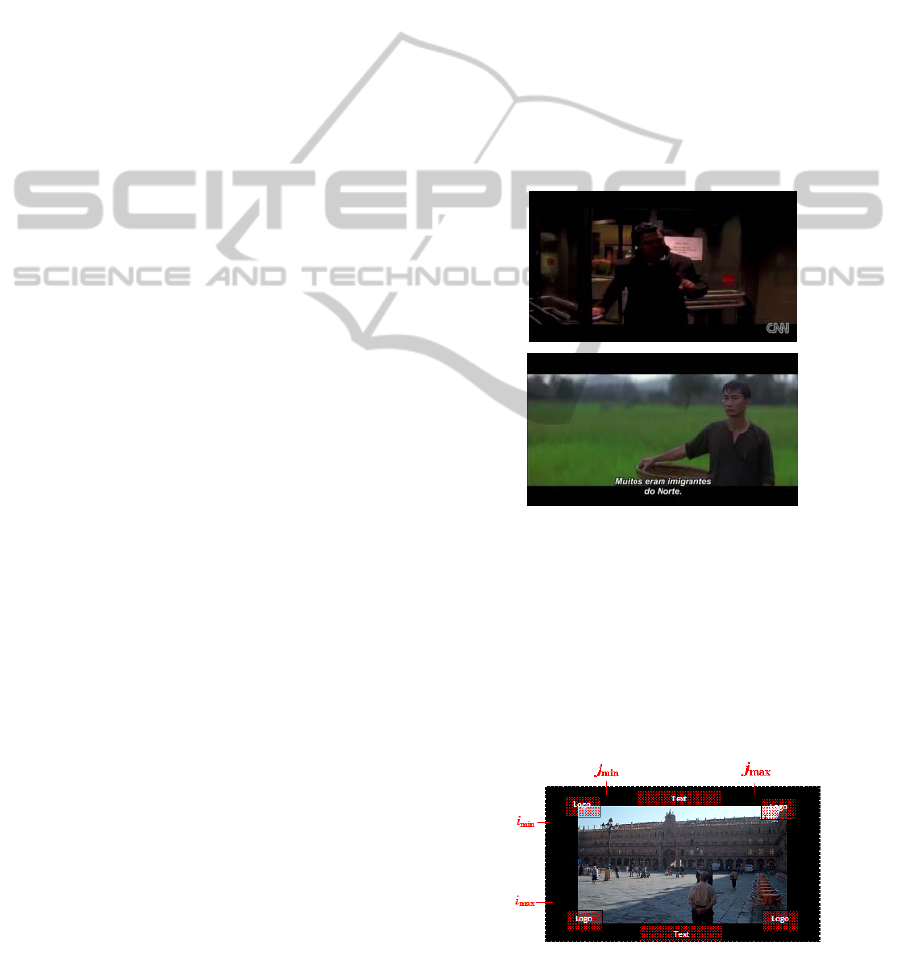

For Case 2, consider Fig. 4 where the typical
positioning of subtitles and logos is represented. To
detect the letterbox top bar, the algorithm starts by
scanning each image line (from top to bottom, as in
Case 1), but considering only the pixels situated
between the limits j
min
=0.25×Width and
j
max
=0.75×Width, where Width is the horizontal
resolution, in pixels, of the video. This strategy
reduces the inclusion of pixels from logos.
Conditions (1) and (2) are applied to each pixel
along the scan line. Let F
b
be the fraction of pixels,
along the current picture line, that verifies those
conditions. The line in question is considered has a
potential black bar line if F
b
F
T
, where F
T
is a user
defined threshold (by default, F
T
= 0.8). With this
criterion, lines of the image where a certain fraction
of pixels is not black due to the existence of subtitles
on the black margins (which will be confirmed by
the procedure described in section 3.3), can still be
considered as belonging to a black border.
When a set of N
c
consecutive lines (by default
N
c
=20), does not check the condition
F
b
F
T
, it is considered that the limits of the bar
have been overpassed; the width of the bar will be
given by the i coordinate of the last line that has
verified the condition F
b
F
T
.
To detect a horizontal bar on the frame bottom,
the procedure is repeated but carrying out the
scanning from bottom to top. To detect the bars due
to the pillarbox effect, a similar procedure is applied
along the horizontal direction, but with the
controlling parameters set to N
c
= 1 and F
T
= 0, since
no text is expected over those bars; i
min
and i
max
are
respectively set (by default) to 0.25×Heigth and
0.75× Height, where Height is the number of lines
per frame.
In both cases 1 and 2, and to minimize false
detections, it is required that the resulting aspect
ratio should be present in a minimum number, N
F,
of
consecutive frames, before accepting it as valid. By
default, N
F
= 125 (5 seconds of video for a frame
rate of 25 Hz).
3.3 Logo and Subtitles Detection
This section describes the procedure for detecting
logos and hard subtitles that may exist over the
pillarbox and letterbox black bars. The distinction
between logos and subtitles detection can be done by
its spatial location, as the subtitles are typically
centered on the bottom or on the top of the frame,
occupying the space of one or two lines of text, and
logos tend to be located in the corners of the frame,
as depicted in Fig. 4. Accordingly, logos are
searched for on the part of the bars area situated
between the frame limits and 1/10 of the height (for
vertical bars) and 1/10 of the width (for horizontal
bars) of the frame; subtitles (their vertical limits) are
searched for in the area of the letterbox bars
comprised between j
min
and j
max
.
For subtitles detection each line within the
search area is scanned on the horizontal, from
bottom to top, searching for non-black rows of
pixels. The vertical limits (signalized by the red lines
in Fig. 5) of the subtitles are considered to be the
position of the first and last non-black rows found.
The procedure is repeated on the horizontal
direction, scanning along the image columns inside
the searching area, in order to find the lateral limits
of the subtitles (signalized by the yellow lines in Fig.

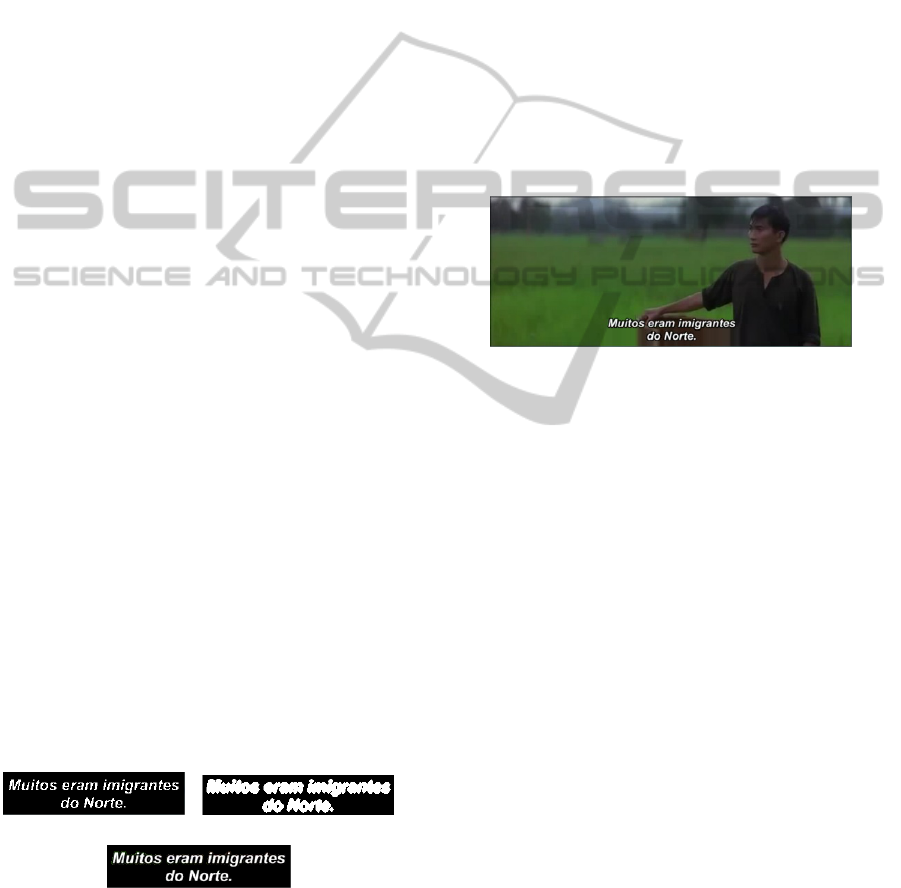

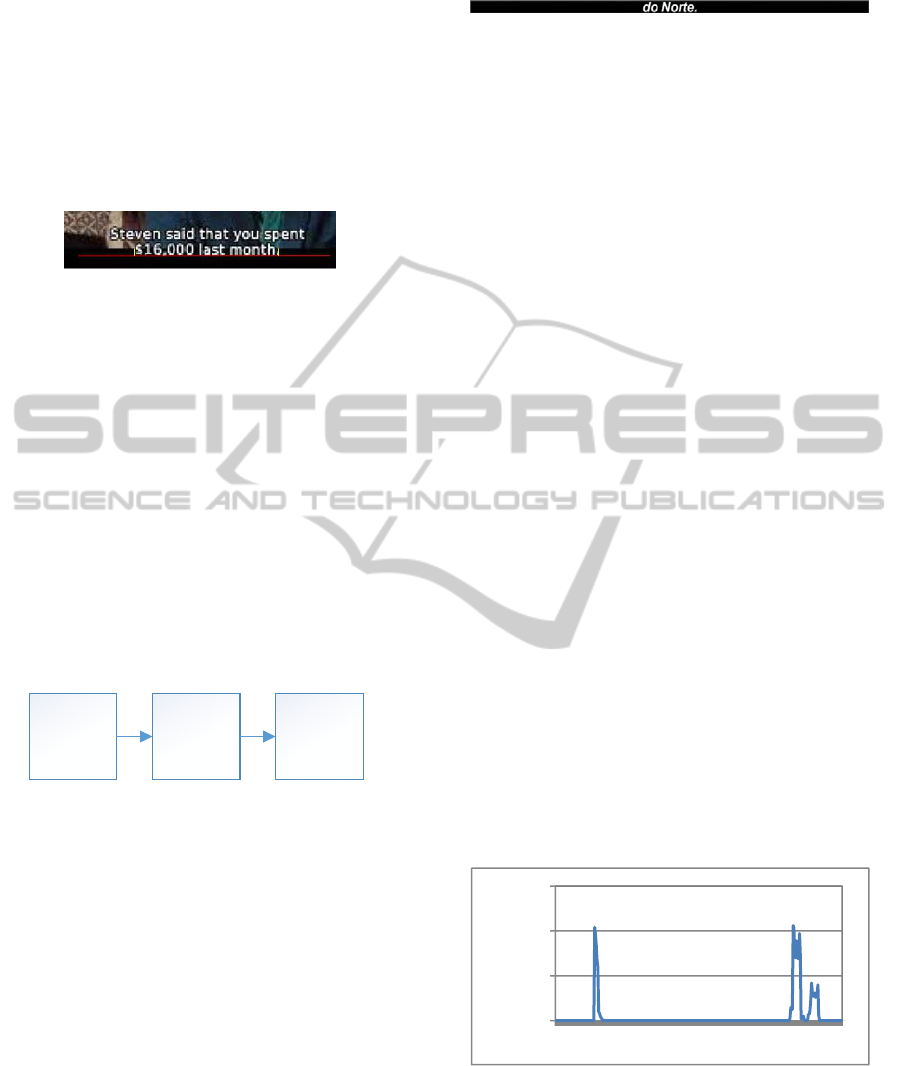

5). Note that if a subtitle text line intercepts the
active image area boundary, only three subtitle
limits will be found (Fig. 6). Logo detection is
carried out with a similar procedure but with the
scan first performed along the image columns,
within the logo searching area, and in order to
determine the lateral limits of it (signalized by the
green lines in Fig. 5). If the search zone contains
only a part of the logo (case in which just one of the
limits will be found), the search proceeds outside the
initial search area, column by column, until the
second limit is found. In order to find the vertical
limit (signalized by the orange line in Fig. 5), the
process is repeated on the perpendicular direction.

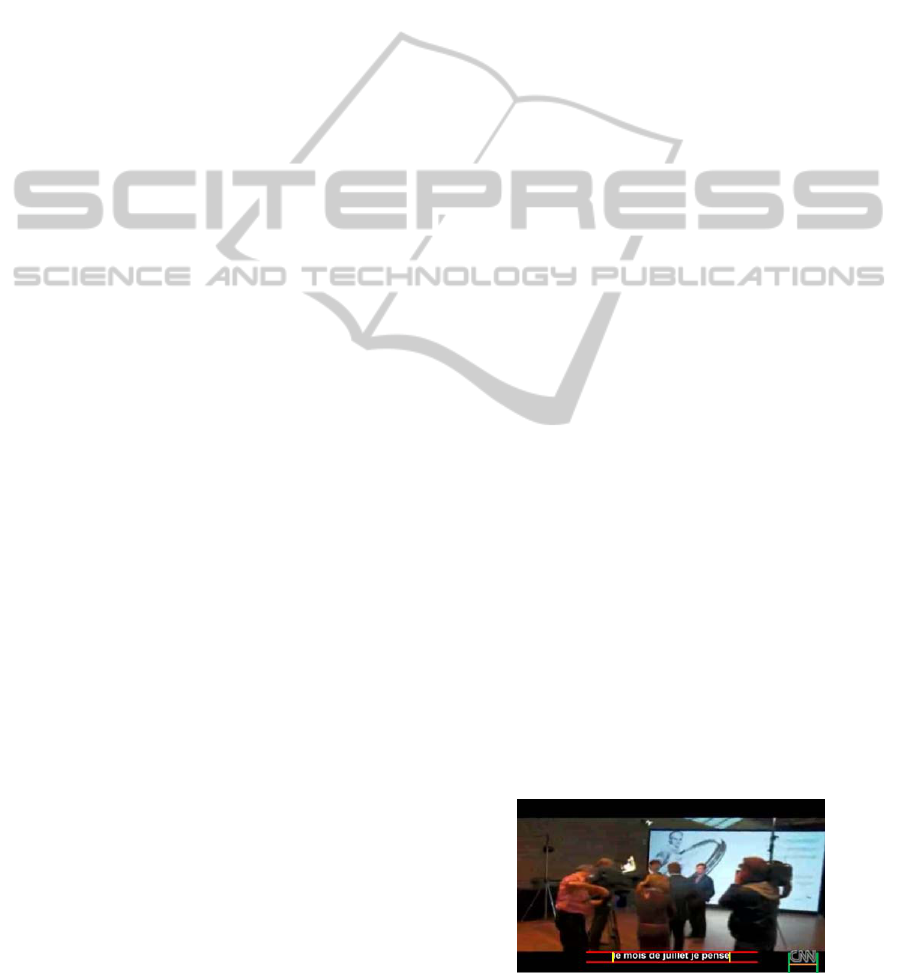

Figure 5: Logo (green and orange lines) and subtitle (red
and yellow lines) limits.
