Combined Algebraic and Truncated Differential Cryptanalysis on

Reduced-round Simon

Nicolas Courtois

, Theodosis Mourouzis

, Guangyan Song

, Pouyan Sepehrdad

and Petr Susil

University College London, London, U.K.

Qualcomm Inc., San Diego, CA, U.S.A.

Ecole Polytechnique F ´ed ´ereale de Lausanne, Lausanne, Switzerland

Keywords:

Lightweight Cryptography, Block Cipher, Feistel, SIMON, Differential Cryptanalysis, Algebraic Cryptanal-

ysis, Truncated Differentials, SAT Solver, Elimlin, Non-linearity, Multiplicative Complexity, Guess-then-

determine.

Abstract:

Recently, two families of ultra-lightweight block ciphers were proposed, SIMON and SPECK, which come in

a variety of block and key sizes (Beaulieu et al., 2013). They are designed to offer excellent performance for

hardware and software implementations (Beaulieu et al., 2013; Aysu et al., 2014). In this paper, we study the

resistance of SIMON-64/128 with respect to algebraic attacks. Its round function has very low Multiplicative

Complexity (MC) (Boyar et al., 2000; Boyar and Peralta, 2010) and very low non-linearity (Boyar et al.,

2013; Courtois et al., 2011) since the only non-linear component is the bitwise multiplication operation. Such

ciphers are expected to be very good candidates to be broken by algebraic attacks and combinations with

truncated differentials (additional work by the same authors). We algebraically encode the cipher and then

using guess-then-determine techniques, we try to solve the underlying system using either a SAT solver (Bard

et al., 2007) or by ElimLin algorithm (Courtois et al., 2012b). We consider several settings where P-C pairs that

satisfy certain properties are available, such as low Hamming distance or follow a strong truncated differential

property (Knudsen, 1995). We manage to break faster than brute force up to 10(/44) rounds for most cases

we have tried. Surprisingly, no key guessing is required if pairs which satisfy a strong truncated differential

property are available. This reﬂects the power of combining truncated differentials with algebraic attacks in

ciphers of low non-linearity and shows that such ciphers require a large number of rounds to be secure.

1 INTRODUCTION

Nowadays, due to the continuously growing impact

of mobile phones, smart cards, RFID tags, sensor net-

works, there is a great demand to provide security and

design cryptographic algorithms which are suitable

and can be efﬁciently implemented in very resource-

constrained devices. The area of cryptography which

studies the design and the security of such lightweight

cryptographic primitives, called lightweight cryptog-

raphy, is rapidly evolving and becoming more and

more important.

These lightweight cryptographic primitives are

designed to be efﬁcient (in both hardware and soft-

ware) when limited hardware resources are available

and at the same time to guarantee a desired level of se-

curity. The design of such primitives is a great chal-

lenge and can be seen as a non-trivial optimization

problem, where several trade-offs are taken into ac-

count. They need to maintain a reasonable balance

between security, efﬁcient software and hardware im-

plementation and very low overall cost with respect to

several meaningful metrics (power consumption, en-

ergy consumption, size of the circuit (Courtois et al.,

2011; Boyar and Peralta, 2010; Boyar et al., 2000)).

In July 2013, a team from the NSA has proposed

two new families of particularly lightweight block ci-

phers, SIMON and SPECK, both coming in a variety

of widths and key sizes (Beaulieu et al., 2013). We

use a basic reference implementation of both ciphers

which can be found in (Courtois et al., 2014), as well

as the generator of algebraic equations to be used in

algebraic attacks.

However, no advanced analysis of the security

of the ciphers was discussed. In the same paper

(Beaulieu et al., 2013), they brieﬂy said that SIMON

and SPECK were designed to provide security against

traditional adversaries who can adaptively encrypt

399

Courtois N., Mourouzis T., Song G., Sepehrdad P. and Susil P..

Combined Algebraic and Truncated Differential Cryptanalysis on Reduced-round Simon.

DOI: 10.5220/0005064903990404

In Proceedings of the 11th International Conference on Security and Cryptography (SECRYPT-2014), pages 399-404

ISBN: 978-989-758-045-1

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

and decrypt large amounts of data and some attention

was paid so that there are no related-key attacks. No

analysis against common attacks such as linear or dif-

ferential cryptanalysis was presented and the task of

analyzing the resistance of the ciphers against known

attacks was left to the academic community. Immedi-

ately after the release of the speciﬁcations we had the

ﬁrst attempts of cryptanalysis against differential, lin-

ear and rotational cryptanalysis (Farzaneh et al., 2013;

Alkhzaimi and Lauridsen, 2013). However, since SI-

MON is a cipher of exceptionally low MC and as a re-

sult of low non-linearity it is an ideal candidate for al-

gebraic attacks and combinations of algebraic attacks

with truncated differential cryptanalysis.

Contribution and Outline. In this paper, we

study SIMON-64/128 against algebraic attacks and

combinations of algebraic attacks with truncated dif-

ferential cryptanalysis. Our aim is to use the very rich

algebraic structure with additional data provided ( e.g.

pairs {(P,P

′

),(C,C

′

)} which follow a certain highly

probable truncated differential property) in order to

solve the underlying multivariate system of equations.

We attempt to solve the system by either using a SAT

solver (after converting the system to its correspond-

ing CNF-SAT form (Bard et al., 2007)) or by ElimLin

algorithm (Boyar et al., 2013; Courtois et al., 2011;

Courtois et al., 2013). We are able to break up to

10 (/44) rounds of the cipher using a SAT solver and

usual guess-then-determine techniques. Surprisingly,

in most cases we are able to obtain the key without

guessing any key bits (Susil et al., 2014) when trun-

cated differentials are used. This is a very remarkable

results since one of the biggest difﬁculties in software

algebraic cryptanalysis is to know how do experimen-

tal attacks scale up for larger numbers of rounds. This

is possibly due to the very low non-linearity of the

cipher and suggests that it worths studying a speciﬁc

strategy for P-C pairs which have certain structure and

decrease even more the non-linearity of the system by

introducing more linear equations (e.g. truncated dif-

ferential properties) until the key can be obtained even

for more number of rounds. We discuss in details our

results in Section 4.

In our attacks, we study the following three set-

tings:

1. RP/RC. (Random Plaintexts/Random Cipher-

texts): We assume that random plaintext-

ciphertext (P-C) pairs are available

2. SP/RC. (Similar Plaintexts/Random Ciphertexts):

We assume that random P-C pairs such that the

plaintexts differ by very few bits are available

(low Hamming distance)

3. SP/SC. (Similar Plaintexts/Similar Ciphertexts):

We assume that random P-C pairs which follow

a highly probably truncated differential property

are available.

In Section 2 we discuss the speciﬁcation of

SIMON-64/128 version. In Section 3, we provide

some introduction regarding algebraic cryptanalysis,

MC and the ElimLin algorithm. We discuss software

algebraic cryptanalysis as a 2-step process, where in

the ﬁrst step we algebraically encode the problem and

then we aim to solve the underlying system of equa-

tions using available software solver.

2 GENERAL DESCRIPTION OF

SIMON

SIMON is a family of lightweight block ciphers

with the aim to have optimal hardware performance

(Beaulieu et al., 2013). It follows the classical Feis-

tel design paradigm, operating on two n-bit halves in

each round and thus the general block size is 2n. The

SIMON block cipher with an n-bit word is denoted by

Simon-2n, where n = 16,24,32,48 or 64 and if it uses

an m-word key (equivalently mn-bit key) we denote it

as Simon-2n/mn. In this paper, we study the variant

of SIMON with n = 32 and m = 4 (i.e. 128-bit key).

Each round of SIMON applies a non-linear, non-

bijective (and as a result non-invertible) function

F : GF(2)

→ GF(2)

(1)

to the left half of the state which is repeated for 44

rounds. The operations used are as follows:

1. bitwise XOR, ⊕

2. bitwise AND,

3. left circular shift, S

by j bits.

We denote the input to the i-th round by L

i−1

||R

i−1

and in each round the left word L

i−1

is used as input

to the round function F deﬁned by,

F(L

i−1

) = (L

i−1

<<< 1) ∧ (L

i−1

<<< 8) ⊕ (L

i−1

<<< 2)

(2)

Then, the next state L

||R

is computed as follows

(cf. Fig. 1),

= R

i−1

⊕ F(L

i−1

) ⊕ K

i−1

(3)

= L

i−1

(4)

The output of the last round is the ciphertext.

The key schedule of SIMON is based on an LSFR-

like procedure, where the nm-bits of the key are used

to generate the keys K

,...,K

r−1

to be used in each

SECRYPT2014-InternationalConferenceonSecurityandCryptography

400

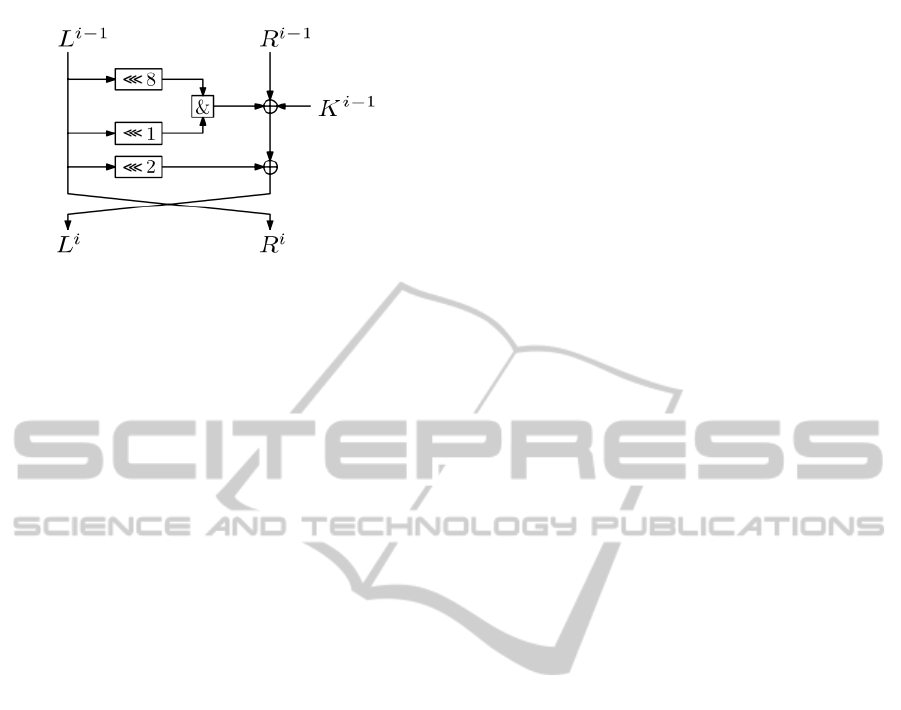

Figure 1: The round function of SIMON.

round. There are three different key schedule proce-

dures depending on the number of words that the se-

cret key consists of (m = 2,3,4).

At the beginning, the ﬁrst m words

,...,K

m−1

are initialized with the secret

key, while the remaining are generated by the LSFR-

like construction. For the variant of our interest,

where m = 4, the remaining keys are generated in the

following way:

Y = K

i+1

⊕ (K

i+3

>>> 3) (5)

i+4

= K

⊕Y ⊕ (Y >>> 1) ⊕ c ⊕ (z

)

(6)

The constant c = 0x f f ... f c is used for preventing

slide attacks and attacks exploiting rotational symme-

tries (Beaulieu et al., 2013). In addition, the generated

subkeys are xored with a bit (z

)

, that denotes the

i-th bit from the one of the ﬁve constant sequences

,...,z

. These sequences are deﬁned in (Beaulieu

et al., 2013) and for our variant we use z

3 ALGEBRAIC ATTACKS AND

METHODS FOR SOLVING

STAGE

Claude Shannon, has once suggested that the secu-

rity of a cipher should be related to the difﬁculty of

solving the underlying system of equations and deriv-

ing the key (Shannon, 1949). Initially, this was not

understood and since then only the statistical and lo-

cal aspects of the ciphers were studied. This global

approach was not considered. Probabilistic attacks

very often require huge amount of data, while alge-

braic attacks can be attempted with very little data. In

general, an algebraic attack can be a form of known-

plaintext attack which consists of the following two

basic steps; the modeling step where the cipher is de-

scribed as a multivariate system of polynomial equa-

tions and the solving stage where we solve the sys-

tem.

The modeling step is not trivial and one simple

method is to follow closely a hardware implemen-

tation of the cipher as a circuit (Courtois and Bard,

2007). The most challenging part is the second part

where some extra assumptions and information are

needed until the system is solvable. Such method

is guess-then-determine techniques, where some ran-

dom bits (or carefully chosen bits depending on the

structure) of the key are guessed and then try to solve

for the rest key bits.

Several methods for solving the underlying sys-

tem of equations are known. One method is to com-

pute the corresponding CNF-SAT form of the prob-

lem and then attempt to derive the solution using a

SAT solver software (Bard et al., 2007). The advan-

tage of such technique is that SAT solvers can perform

reasonably well and do not require a lot of memory as

in case of Gr ¨obner basis-based techniques (Faugere,

1999). The only disadvantage is the unpredictability

of its complexity.

Another method, is to use ElimLin algorithm

(Courtois et al., 2012b). ElimLin stands for Eliminate

Linear and it is a simple algorithm for solving poly-

nomial systems of multivariate equations over small

ﬁnite ﬁelds and was initially proposed as a single tool

by Courtois to attack DES (Courtois and Bard, 2007).

It is also known as ”inter-reduction” step in all major

algebra systems.

Its main aim is to reveal some hidden linear equa-

tions existing in the ideal generated by the system of

polynomials. ElimLin is composed of two sequential

stages, as follows:

• Gaussian Elimination: Discover all the linear

equations in the linear span of initial equations.

• Substitution: Variables are iteratively eliminated

in the whole system based on linear equations

found until there is no linear equation left.

This method is iterated until no linear equation is

obtained in the linear span of the system. Intuitively,

ElimLin seems to work better in cases where there is

low non-linearity since this implies the existence of

more linear equations. MC is another notion of non-

linearity (Boyar et al., 2013; Courtois et al., 2013)

and possibly such method may work sufﬁciently well

in cryptographic primitives of low MC.

In this paper, we apply both techniques for solv-

ing the underlying system of equations that describes

SIMON cipher. In order to introduce more linearity

to the system, we use either P-C pairs with plaintexts

of low Hamming distance which are used to eliminate

many variables in the initial equations or pairs which

CombinedAlgebraicandTruncatedDifferentialCryptanalysisonReduced-roundSimon

401

satisfy certain truncated differential properties. Com-

bining differential and algebraic attacks is like reduc-

ing the number of non-trivial variables in the system

and thus increasing the probability of solving the sys-

tem by computer algebra tools. For example, a trun-

cated differential mask [0000022200000080], with

four active bits for the input variables, is equivalent

to adding 60 linear equations of the form P

⊕ P

= 0.

4 ALGEBRAIC CRYPTANALYSIS

OF SIMON

We evaluated the security of SIMON against alge-

braic attacks under the following three settings (cf.

Fig. 2), where S=Similar and R=Random.

Setting 1 is the simplest setting of understanding

how many rounds of SIMON can be broken by simple

guess-then-determine techniques, assuming availabil-

ity of a few P-C pairs. This setting help us to under-

stand the maximum number of rounds we can break

by guessing as few as possible key bits and using as

few as possible P-C pairs. It a non-trivial step in or-

der to set the benchmark for attacking more number

of rounds.

An attack using Setting 2 is a form of known-

plaintext attack. Setting 2 requires P-C pairs with

plaintexts of low Hamming distance such that many

variables are eliminated in the ﬁrst few rounds.

Lastly, Setting 3 requres P-C pairs

{(P

),(P

),...,(P

)}

such that P

⊕ P

∈ ∆P and C

⊕C

∈ ∆C, for all

1 ≤ i, j ≤ n and some truncated differential masks

∆P, ∆C of low Hamming weight which holds with

comparatively high probability. In our attacks we al-

ways use 2 pairs which satisfy a given truncated dif-

ferential property and then more P-C pairs are gen-

erated by using the ﬁrst 2 plaintexts and computing

the encryptions of new plaintexts which have small

Hamming distance from the ﬁrst ones. The difference

from Setting 2 is that in this case we also eliminate

variables from the last rounds of the cipher, expecting

that the system is even more easier to solve.

We run experiments using SAT solvers and Elim-

Lin Algorithm on a machine with the following char-

acteristics, CPU: Intel i7-3520m 2.9GHz, RAM: 4G

and OS: 64-bit Windows 8.

In all of our attacks we use the best 8

and 10 round truncated differential property

∆ = [0000022200000080] (with 4 active bits

and propagates with probability 2

−20.51

) and

[0000002200000080] → [002e f f 9a00022e4c] (

probability 2

−16.96

) respectively. More details about

Figure 2: Our three attack scenarios.

our discovery method will be published in future

papers.

4.1 ALGEBRAIC ATTACKS BASED

ON SAT SOLVERS

Table 1 presents the best result obtained for several

rounds using a SAT solver. The average time (in sec-

onds) taken T

average

to solve the underlying problem

by a SAT solver is presented, while the time complex-

ity C

(in terms of SIMON encryptions) is computed

by the following formulae,

= 2

× 2

log

average

)

, (7)

where k is the number of bits we guess initially.

From Table 1, we observe that up to 9 rounds we

can solve the underlying system of equations without

guessing any key bits initially provided we have Set-

tings 2 and 3. Setting 3 seems to be slightly better up

to 9 rounds.

Moreover, assuming Setting 3 we can break 10

rounds by guessing 70 bits of the key initially with

time complexity 2

98.79

encryptions. Note that in

SP/SC setting we always generate two P-C pair which

s satisfy the truncated differential property and the

rest pairs are generated from them assuming low

Hamming Distance in plaintexts.

SECRYPT2014-InternationalConferenceonSecurityandCryptography

402

Table 1: Best results obtained by a SAT solver. n,s,h stand for number of variables, sparsity and hardness respectively and

m the number of equations. We deﬁne hardness as a number h such that h

is the running time, where n is the number of

variables. It is known that h ≤ 1.47 for 4-SAT problems (cf. Table 1 in (Semaev and Mikus, 2010)).

#(Rounds) k #(P-C) T

average

(s) C

Setting n x =

s h

8 45 6 207.0 2

27.78

RP/RC 8576 6.51 4.28 1.0032

8 75 2 156.6 2

102.4

SP/RC 2944 6.34 4.27 1.0092

8 0 6 12.8 2

23.8

SP/RC 8576 6.51 4.28 1.0029

9 0 6 222.5 2

27.9

SP/RC 9536 6.70 4.31 1.0029

9 0 7 94.7 2

26.6

SP/RC 11104 6.71 4.31 1.0024

10 90 8 346.0 2

118.5

SP/RC 13952 6.90 4.32 1.002

8 0 6 11.2 2

23.6

SP/SC 8576 6.55 4.26 1.0028

9 0 7 18.56 2

24.30

SP/SC 9536 6.70 4.31 1.0026

10 70 10 417.73 2

98.79

SP/SC 17408 6.88 4.31 1.0022

4.2 Algebraic Attacks Using ElimLin

Algorithm

Table 2 presents the results using the ElimLin algo-

rithm.

Table 2: Best results obtained by a ElimLin Algorithm.

#(Rounds) k #(P-C) T

average

(s) C

Setting

8 0 6 824.4 2

29.8

SP/RC

8 0 6 583.2 2

29.3

SP/SC

We have been able to break up to 8 rounds in Set-

ting 3 without guessing any key bits initially. The best

attack we have obtained is of time complexity 2

29.3

encryptions against 8 rounds of SIMON. Adding pairs

which follow a strong truncated differential property

is equivalent to adding linear equations in the system

and this is exploited by the ElimLin algorithm. An

immediate improvement is to use additional interme-

diate truncated differences and this will be our future

work.

5 CONCLUSIONS AND FUTURE

RESEARCH

Nowadays, there is a great demand to design

lightweight cryptographic primitives which are suit-

able to be implemented in very resource-constrained

devices. The research community has proposed sev-

eral lightweight cryptographic primitives and recently

two families of lightweight block ciphers were pro-

posed, Simon and Speck (Beaulieu et al., 2013).

In (Beaulieu et al., 2013) only the implemen-

tation aspects of the ciphers are discussed but im-

mediately after their release, a few attacks against

reduced-round versions of the ciphers were discov-

ered; we have mainly differential attacks (Farzaneh

et al., 2013; Alkhzaimi and Lauridsen, 2013) and at-

tacks using impossible differentials (Farzaneh et al.,

2013) (cf. Table 3).

In this paper, we studied the security of Simon-

64/128 cipher against algebraic attacks and algebraic-

differential attacks. We have combined two powerful

cryptanalytic techniques: truncated differential crypt-

analysis and software algebraic cryptanalysis. To the

best of our knowledge we are the ﬁrst to show that

such a combination is powerful enough to break up to

10 rounds of a block cipher without guessing any key

bits. How important is it to be able to break ciphers

without guessing any key bits (Susil et al., 2014) ?

One of the biggest difﬁculties in software alge-

braic cryptanalysis is to know how do experimental

attacks scale up for larger numbers of rounds. A pes-

simistic version says that there is a combinatorial ex-

plosion of dependencies with respect to key variables

and there is no hope to break many rounds much

faster than brute force (Courtois et al., 2012a), even

though it might be possible to break more rounds very

slightly faster than brute force. An optimistic version

becomes more plausible when we exhibit poly-time

like attacks in which there is no guessing of key vari-

ables whatsoever, all variables are determined. Such

algebraic attacks are expected to scale up much better

for larger numbers of rounds.

CombinedAlgebraicandTruncatedDifferentialCryptanalysisonReduced-roundSimon

403

Table 3: State-of-art regarding cryptanalysis of Simon-64/128.

Authors Rounds Attacked Type Time Data Memory

(Farzaneh et al., 2013) 24/44 Diff 2

58.427

62.012

(Farzaneh et al., 2013) 16/44 Imp-Diff 2

91.986

65.248

60.203

(Alkhzaimi and Lauridsen, 2013) 26/44 Diff 2

94.0

63.0

31.0

(Biryukov et al., 2014) 26/44 Diff 2

121.0

63.0

31.0

This paper 9/44 Alg 2

29.8

2.59

negl.

This paper 10/44 Alg 2

118.5

3.0

negl.

This paper 10/44 Trunc-Diff-Alg 2

98.79

negl.

REFERENCES

Alkhzaimi, H. and Lauridsen, M. (2013). Differential and

linear cryptanalysis of reduced-round simon. In Cryp-

tology ePrint Archive, Report 2013/543.

Aysu, A., Gulcan, E., and Schaumont, P. (2014). Simon

says, break the area records for symmetric key block

ciphers on fpgas. In Cryptology ePrint Archive, Re-

port 2014/237.

Bard, G., Courtois, N., and Jefferson, C. (2007). Efﬁcient

methods for conversion and solution of sparse systems

of low-degree multivariate polynomials over gf(2) via

sat-solvers.

Beaulieu, R., Shors, D., Smith, J., Treatman-Clark, S.,

Weeks, B., and Wingers, L. (2013). The simon and

speck families of lightweight block ciphers. In Cryp-

tology ePrint Archive, Report 2013/404.

Biryukov, A., A. Roy, A., and Velichkov, V. (2014). Dif-

ferential analysis of block ciphers simon and speck.

In 21st International Workshop on Fast Software En-

cryption, FSE 2014.

Boyar, J., Find, M., and Peralta, R. (2013). Four measures

of nonlinearity. In In Algorithms and Complexity, pp.

61-72. Springer Berlin Heidelberg.

Boyar, J. and Peralta, R. (2010). A new combinational logic

minimization technique with applications to cryptol-

ogy.

Boyar, J., Peralta, R., and Pochuev, D. (2000). On the mul-

tiplicative complexity of boolean functions over the

basis. In Theoretical Computer Science 235, no. 1,

pp. 43-57.

Courtois, N. and Bard, G. (2007). Algebraic cryptanalysis

of the data encryption standard. In In IMA Int. Conf.

volume 4887, Springer.

Courtois, N., Gawinecki, J., and Song, G. (2012a). Contra-

diction immunity and guess-then-determine attacks on

gost. In In Tatra Mountains Mathematic Publications,

Vol. 53 no. 3, pp. 65-79.

Courtois, N., Hulme, D., and Mourouzis, T. (2011). Solv-

ing circuit optimisation problems in cryptography and

cryptanalysis. In In electronic proceedings of 2nd IMA

Conference Mathematics in Defence 2011.

Courtois, N., Mourouzis, T., and Hulme, D. (2013). Exact

logic minimization and multiplicative complexity of

concrete algebraic and cryptographic circuits. In To

Appear in IARIA Journal: IntSys13v6n34.

Courtois, N., Mourouzis, T., and Song, G. (2014).

Reference implementation of simon and

speck and a basic generator of equations -

https://github.com/gsonghashrate/simonspeck/.

Courtois, N., Sepehrdad, P., Susil, P., and Vaudenay, S.

(2012b). Elimlin algorithm revisited. In Fast Software

Encryption, pp. 306-325, Springer Berlin Heidelberg.

Farzaneh, A., List, E., Lucks, S., and Wenzel, J. (2013). Dif-

ferential and linear cryptanalysis of reduced-round si-

mon. In Cryptology ePrint Archive, Report 2013/526.

Faugere, J.-C. (1999). A new efﬁcient algorithm for com-

puting grobner bases (f4). In Journal of pure and ap-

plied Algebra, Vol. 139, pp. 61-88.

Knudsen, L. (1995). Truncated and higher order differen-

tials. In In Fast Software Encryption, pp. 196-211,

Springer Berlin Heidelberg.

Semaev, I. and Mikus, M. (2010). Methods to solve alge-

braic equations in cryptanalysis. In In Tatra Moun-

tains Mathematic Publications, Vol. 45, pp. 107-136.

Shannon, C. (1949). Communication theory of secrecy sys-

tems. In Bell System Technical Journal 28.

Susil, P., Sepehrdad, P., and Vaudenay, S. (2014). On selec-

tion of samples in algebraic attacks and a new tech-

nique to ﬁnd hidden low degree equations. In ACISP.

SECRYPT2014-InternationalConferenceonSecurityandCryptography

404
