Efﬁcient Rate Control for Intra-Frame Coding in High Efﬁciency Video

Coding

Feng Cen, Qianli Lu and Weisheng Xu

Department of Control Science and Engineering, Tongji University,

No. 1239 Siping Road, Shanghai, 200092, China

Keywords:

HEVC, Intra-frame, Rate Control, Rate-quantization Model.

Abstract:

In this paper, a coding tree unit (CTU)-level rate control (RC) scheme is proposed for intra-frame coding

in the high efﬁciency video coding (HEVC). The CTU-level target bits are allocated based on the content

complexity and the parameters of the Cauchy-based rate-quantization (R-Q) model of the current CTU is

estimated according to the neighboring previously encoded CTUs. The proposed RC does not exploit any

information of the adjacent frames such that it can inherently handle the initial frame and the scene change

frames. The experimental results demonstrate the accurate rate estimation and stable video quality of the

proposed RC scheme.

1 INTRODUCTION

Intra-frame is an important coding tool in the video

coding. It can be not only used as the reference frame

for the inter-frame coding in the video coding (Sul-

livan et al., 2012), but also independently used for

the video coding and the still image coding in intra-

only setup (Ku et al., 2006). Generally, the intra-

predicted coding will generate much more bits than

inter-predicted coding due to the lack of exploiting

the temporal correlation between the frames. Hence,

the accurate rate control (RC) of intra-frame coding is

critical to consistently achieve good video quality for

video coding under the limited bandwidth and buffer

constraints.

Several RC schemes dedicated to intra-frame cod-

ing for H.264/AVC have been reported in the lit-

erature in recent years. Jing et al. (Jing et al.,

2008) proposed a frame-level approach by utilizing a

frame-level complexity measure based on the average

gradient-per-pixel of the frame and the Cauchy-based

rate estimation model. However, in their scheme, the

estimation of the model parameters used for the cur-

rent intra-framedependson the precedingframes. Be-

sides, how to accurately determine the initial quan-

tization parameter (QP) for the sequence or a new

scene is not addressed in their paper. Tsai et al. (Tsai

and Chou, 2010) proposed a scene change aware RC

approach for intra-only coding. They employed the

Taylor-series approximation of Jing’s model to cir-

cumvent the unreliable update of the non-stationary

parameter, and proposed a rate estimation model for

scene-transition frames. But, the performance of their

RC algorithms highly relies on the precise of the

scene change detection, which is still an open issue

in video coding (Zeng et al., 2005), (Jing and Chau,

2006), (Yang et al., 2009). In addition, the parameters

of their rate estimation models for the scene-transition

frames are empirically obtained and may not be fea-

sible for all practical scenarios.

As the latest video coding standard, the high

efﬁciency video coding (HEVC) developed by the

Joint Collaborative Team on Video Coding (JCT-VC)

promises much higher compression efﬁciency than

that possible with existing video coding standards

(Ohm et al., 2012). Many new coding tools are devel-

oped for HEVC to improve the coding efﬁciency (Sul-

livan et al., 2012). Although many RC schemes have

been proposed for HEVC (H. Choi and Sim, 2012)

(Si et al., 2012) (Naccari and Pereira, 2012) (Li et al.,

2012), but few of them are optimized for intra-frame

coding. Recently, the R-λ model based scheme (Li

et al., 2012) is adopted to the HEVC reference soft-

ware HM14.0(Bossen et al., ), and on the basis of R-λ

model, the Karczewicz et al. (Karczewicz and Wang,

2012) employed the sum of absolute transformed dif-

ferences (SATD) to allocate the bit budget for intra-

frame. However, the developedR-λ model is based on

the conventional video quality measure PSNR. When

the perceptual objective quality metrics, such as struc-

Cen F., Lu Q. and Xu W..

Efﬁcient Rate Control for Intra-Frame Coding in High Efﬁciency Video Coding.

DOI: 10.5220/0005067100540059

In Proceedings of the 11th International Conference on Signal Processing and Multimedia Applications (SIGMAP-2014), pages 54-59

ISBN: 978-989-758-046-8

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

ture similarity index, are used to measure video qual-

ity, the merits of R-λ model are dubious. Further-

more, in (Karczewicz and Wang, 2012), the model pa-

rameters are updated according to previously encoded

frames such that the scheme is not suited to handle the

initial frame of a new scene.

In this paper, we present a novel coding tree unit

(CTU)-level RC approach for intra-frame coding in

HEVC. In the proposed scheme, the Cauchy-based

R-Q model is applied to the CTU-level RC, the num-

ber of the target bits of each CTU is allocated accord-

ing to the complexity measure of the CTU. To accu-

rately initialize the model parameter, the ﬁrst CTU of

a frame is re-encoded on demand. The model parame-

ters of the remaining CTUs in the frame are predicted

by the model parameters of the preceding adjacent en-

coded CTUs of the current CTU. The advantages of

the proposed scheme lie in that it can achieve accu-

rate RC, inherently handle the scene transition frame

regardless of the scene change detection and easily

work together with the SSIM based rate-distortion

optimization (RDO) algorithm (Cen et al., 2014) to

achieve better perceptual video quality within the

bandwidth constraint.

The rest of the paper is organized as follows. Sec-

tion 2 introduces the proposed CTU-level RC ap-

proach. The experimental results are provided in sec-

tion 3. Finally, section 4 concludes this paper.

2 PROPOSED CTU-LEVEL RC

SCHEME

2.1 Complexity Measure

Instead of the macroblock, the core of the coding

layer in HEVC is the CTU. To handle the variable

block size in HEVC, the pixel-based complexity mea-

sure of the mth CTU in a frame is deﬁned as the sum

of the gradients of the pixels (SG) in the CTU, i.e.,

M− 1

∑

i=0

N−1

∑

j=0

i, j

− I

i+1, j

| + |I

i, j

− I

i, j+1

|, (1)

where I

i, j

denotes the luminance of the pixel at the lo-

cation of (i, j) , and M and N are the horizontal and

vertical dimensions of the luma samples of the CTU,

respectively. It is well known that the number of gen-

erated bits r and SG have a linear relationship at the

frame level (Jing et al., 2008). After analyzing plenty

of frames from various sequences, we observe that

such a linear relationship is still approximately held

even at the CTU level, as shown in Fig. 1. Here, r

denotes the number of the generated bits of the mth

CTU.

0 2 4 6 8 10

x 10

0.5

1.5

x 10

r(bits)

QP = 24

0 2 4 6 8 10

x 10

5000

10000

15000

r(bits)

QP = 28

0 2 4 6 8 10

x 10

2000

4000

6000

8000

10000

r(bits)

QP = 32

0 2 4 6 8 10

x 10

1000

2000

3000

4000

5000

6000

r(bits)

QP = 36

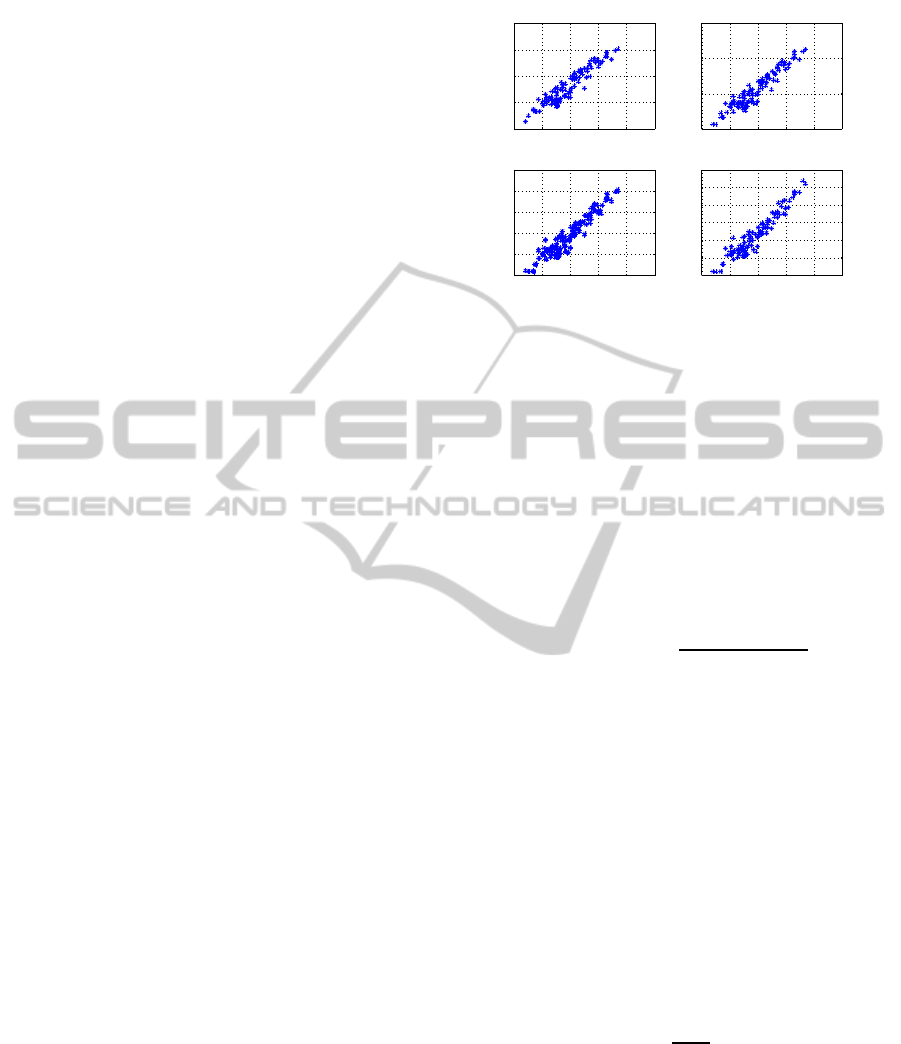

Figure 1: Scatter plots of r

versus SG

for all the CTUs in

the ﬁfth frame of PartyScene (WVGA) sequence under QP =

24,28,32,36. Apparently, there exists a linear relationship

between r

and SG

for coding with ﬁxed QP.

2.2 CTU-level Bit Allocation

Owing to the fact that r

is approximately propor-

tional to SG

, we allocate the number of the target

bits of the mth CTU according to its complexity mea-

sure. Let T

be the number of the target bits of the

current frame. Then, the number of the target bits of

the mth CTU, t

, is given by

= (T

− Σ

m−1

i=1

)

− Σ

m−1

i=1

, (2)

where SG

denotes the frame-level SG, which is the

sum of all the SG

s in the frame.

2.3 R-Q Model

Analogous to the frame-level Cauchy-based rate esti-

mation model in (Jing et al., 2008), we formulate r

with

= SG

, (3)

where a

and b

are model parameters for the mth

CTU, and Q

is the quantization step size for the

mth CTU. For convenience, we deﬁne the complexity-

normalized r

. (4)

The examples of ϒ

− Q are shown in Fig. 2.

Theoretically, a

and b

can be determined ac-

cording to the Cauchy probability density function of

the transform coefﬁcients (Altunbasak and Kamaci,

2004). However, since only after encoding can the

actual distribution of the transform coefﬁcients in a

CTU be obtained, these two model parameters should

be predicted. We have analyzed a large number of

EfficientRateControlforIntra-FrameCodinginHighEfficiencyVideoCoding

0 20 40 60

0.05

0.1

CTU 3:a = 0.183,b = −1.03

Actual rate

Curve fitting

0 20 40 60

0.05

0.1

CTU 16:a = 0.131,b = −0.87

Actual rate

Curve fitting

0 20 40 60

0.05

0.1

0.15

CTU 24:a = 0.152,b = −0.939

Actual rate

Curve fitting

0 20 40 60

0.05

0.1

0.15

CTU 27:a = 0.109,b = −0.881

Actual rate

Curve fitting

Figure 2: Curve ﬁtting results between ϒ

and Q for four

randomly selected CTUs with the size of 64×64 in the ﬁfth

frame of BasketballPass sequence. The QP values range

from 4 to 40, at an increment of 4.

frames from sequences with various texture charac-

teristics, and found that the optimal b

is fallen in the

range of -1.05 to -0.85 and the variation of b

has

little impact on the accuracy of the rate estimation.

Hence, for simplicity, we ﬁx b

at a moderate value

−0.9 for the model used in our experiments and omit

the subscript m hereinafter.

Now, only a

is left to be determined. The param-

eter a

is estimated as follows. For the ﬁrst CTU in

a intra-frame, a

is ﬁrstly initialized with a constant.

In our experiments, we set a

to 0.142. If the rela-

tive error between target and generated bits, which is

deﬁned as

∆r

− r

, (5)

is greater than a threshold τ (empirically, we set τ =

0.3), then a

is updated with the real ϒ

as follows,

, (6)

and the ﬁrst CTU is re-encoded with the new a

For the following CTUs in the frame, a

is pre-

dicted by using the actual complexity-normalized

generated bits, actual model parameter a

and quanti-

zation step sizes of the encoded CTUs on the left, top

and top-left positions of the current CTU, i.e.,











βa

m−1

+ (1− β)

m−1

, m < W + 1

βa

m−1

+ (1− β)

m−W

, (m%W) == 0

βa

m−1

+ (1− β)(

m−1

m−W

m−W−1

)

otherwise

, (7)

where W is the number of CTUs in the horizontal di-

mension of the current frame, and β is a weight factor.

In our experiments, we set β = 0.2. After estimating

, we can determine the QP of the current CTU by

(3) according to the target bits.

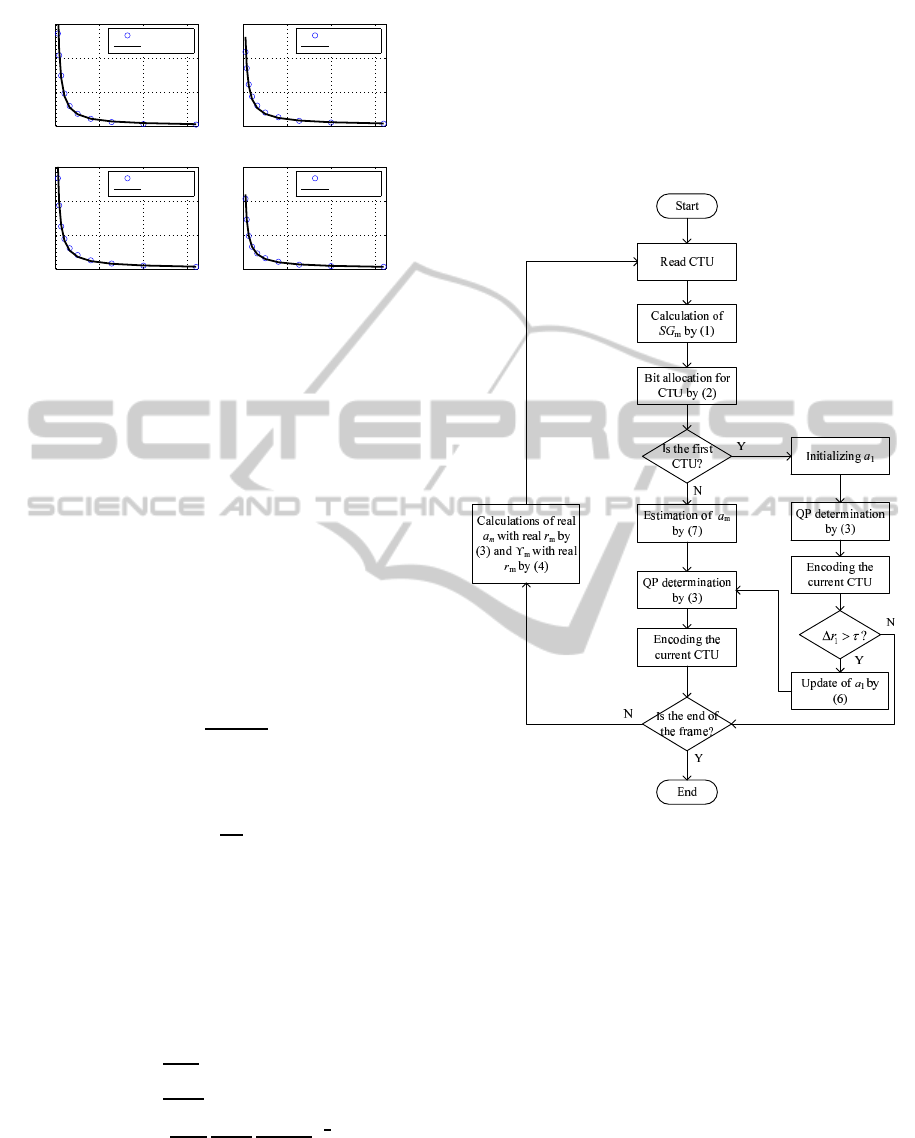

2.4 RC Scheme

In summary, we illustrate the proposed CTU-level RC

scheme in Fig. 3. Note that in order to keep the

Figure 3: Flowchart of the proposed RC scheme for the cod-

ing of an intra-frame.

smoothness of the visual quality, we restrict the max-

imum QP change between consecutive CTUs in the

frame to 2.

3 EXPERIMENTAL RESULTS

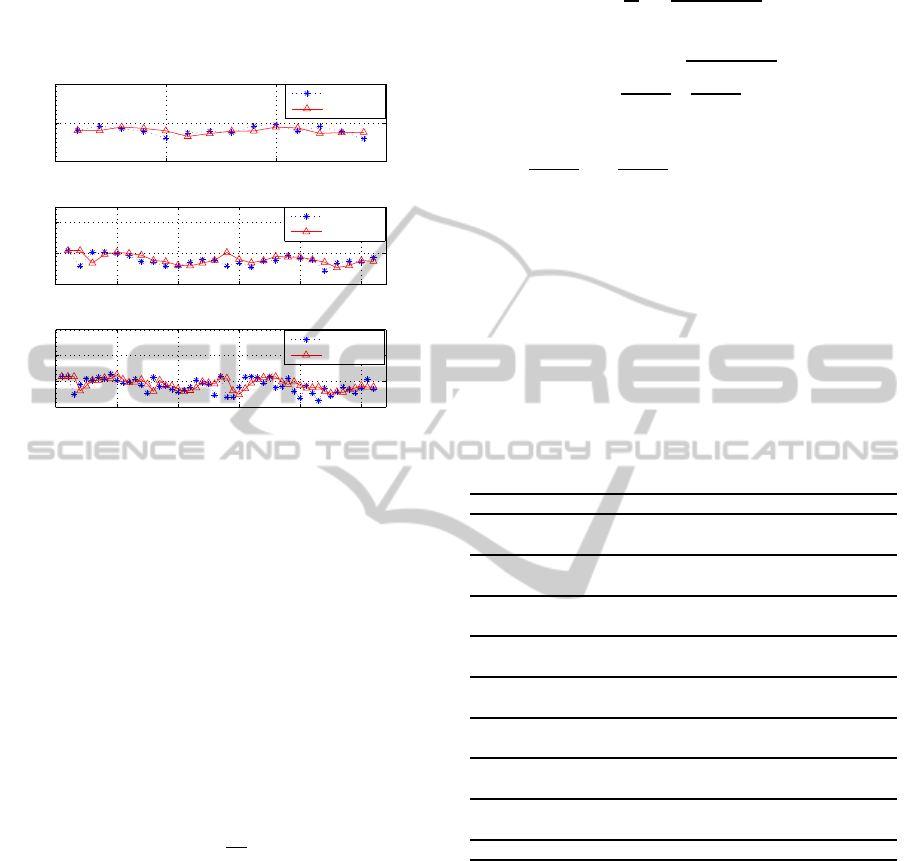

3.1 Rate Estimation Accuracy

In HEVC, the CTU has the variable size. Fig. 4 com-

pares the actual and estimated ϒ

s for the ﬁrst two

rows of the CTUs in the seventh frame of Blowing-

Bubbles sequences. It can be observed that the esti-

mated ϒ

is very close to the actual ϒ

and can track

the change of the actual ϒ

. Moreover, we can ob-

serve that the estimation accuracy degrades for the

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

small size of the CTU. Although the proposed RC

scheme can be extended to coding unit (CU)-level, we

do not recommend to apply it to the luma block size

smaller than 16× 16 .

0 5 10 15

0.01

0.02

size: 64x64, QP: 32

Actual ϒ

Estimated ϒ

0 5 10 15 20 25

0.01

0.02

size: 32x32, QP: 32

Actual ϒ

Estimated ϒ

0 10 20 30 40 50

0.01

0.02

0.03

size: 16x16, QP: 32

Actual ϒ

Estimated ϒ

Figure 4: Comparison of the actual and estimated ϒ’s for the

ﬁrst two rows of the CTUs in the seventh frame of Blowing-

Bubbles sequences. The QP is ﬁxed to 32. The CTU sizes

from top to bottom are 64x64, 32x32 and 16x16, respec-

tively.

3.2 RC Performance

To evaluate the performance, we integrated our pro-

posed RC approach into the HM 8.0 (Bossen et al.,

). The CTU size is set to 64 × 64, the maximum al-

lowed size in HEVC. In our experiments, a commonly

used simple and efﬁcient bit allocation strategy (Tsai

and Chou, 2010) that assigns the same bits for the re-

maining frames is adopted for the frame-level target

bit budget T

F,l

, i.e.,

F,l

, (8)

where R

and K

are the available bits for the remain-

ing frames and the number of the remaining frames,

respectively.

The ﬁrst group of experiments is conducted by us-

ing the ﬁrst 150 frames of eight test sequences se-

lected from Class A∼D speciﬁed in the common test

conditions (Bossen, 2011). All test sequences are

encoded in constant bit-rate (CBR) setting with the

intra-only high efﬁcient conﬁguration, and the target

bit-rate for each test sequence is set to the average bit-

rate generated by HM8.0 with a ﬁxed QP. Table 1 tab-

ulates the average frame-levelbit mismatch ratio M%,

peak mismatch ratio PM% and ∆PSNR for all the test

sequences. M%, PM% and ∆PSNR are calculated as

follows,

M% =

∑

l=1

F,l

− R

F,l

× 100%, (9)

PM% = max

l=1,...,K

(

F,l

− R

F,l

× 100%), (10)

∆PSNR =

PSNR− PSNR

, (11)

respectively, where K is the number of frames in the

sequence, and R

F,l

is the generated bits for the lth

frame.

PSNR and PSNR

are the average PSNRs ob-

tained by using the proposed RC approach and the

ﬁxed QP approach in HM 8.0, respectively. In Table

1, the QP indicates that the target bit-rate is obtained

by using HM8.0 with the ﬁxed QP equal to the cor-

responding value. From Table 1, we can observe that

M% and PM% are quite small. Meanwhile, the aver-

age PSNR for the proposed RC approach is also quite

close to that for the the HM8.0 encoder with the ﬁxed

QP. These results demonstrate that the proposed RC

approach can accurately control the bit-rate without

any sacriﬁce in video quality.

Table 1: Performance of the proposed RC scheme.

Sequence QP M% PM% ∆PSNR(dB)

PeopleOnStreet 24 1.51 1.73 0.11

(1600P) 32 1.46 1.60 0.06

Trafﬁc 24 1.27 1.43 0.04

(1600P) 32 0.97 1.14 0.04

ParkScene 24 1.07 1.61 -0.09

(1080P) 32 0.43 0.98 -0.08

BasketballDrive 24 0.60 1.47 -0.20

(1080P) 32 0.83 2.40 -0.25

BasketballDrill 24 1.01 1.28 0.12

(WVGA) 32 0.52 1.98 0.03

PartyScene 24 1.05 1.85 0.13

(WVGA) 32 1.16 1.56 0.06

BlowingBubbles 24 0.90 1.54 0.04

(QWVGA) 32 0.82 1.11 0.00

BQSquare 24 1.03 1.39 0.09

(QWVGA) 32 0.62 1.32 0.04

Avg. 0.95 1.52 0.0261

To demonstrate the merits of the proposed RC

scheme to handle scene changes, we use a combi-

nation sequence Combo (BasketballDrill-PartyScene-

BQMall, WVGA), which is generated by cascading

the ﬁrst 30 frames from the three test sequences,

for the experiments. The prominent H.264/AVC

intra-frame RC approaches, Jing’s RC approach (Jing

et al., 2008) (denoted by ”Jing’s”) and Jing’s RC

approach with two-pass encoding for each scene-

transition frame (denoted by ”J+SC”), are imple-

mented to HM8.0 for comparison. In ”J+SC”, the

two-pass encoding technique can improve the RC per-

formance at the scene-transition frames. This is be-

cause although an inaccurate initial QP may be used

EfficientRateControlforIntra-FrameCodinginHighEfficiencyVideoCoding

in the ﬁrst-pass encoding, the outcome of the ﬁrst-

pass encoding is used to improve the accuracy of the

frame-level rate estimation model, and thus, a better

QP can be determined with the improved rate estima-

tion model in the seconde-pass encoding. Further-

more, in the experiments with ”Jing’s” and ”J+SC”

schemes, we assume that there is a perfect scene

change detection, although it is not true for the stat of

the art automatical scene change detection algorithm.

So, instead of using an automatical scene change de-

tection, we manually point out the scene transition

frame for the experiments with ”Jing’s” and ”J+SC”

schemes.

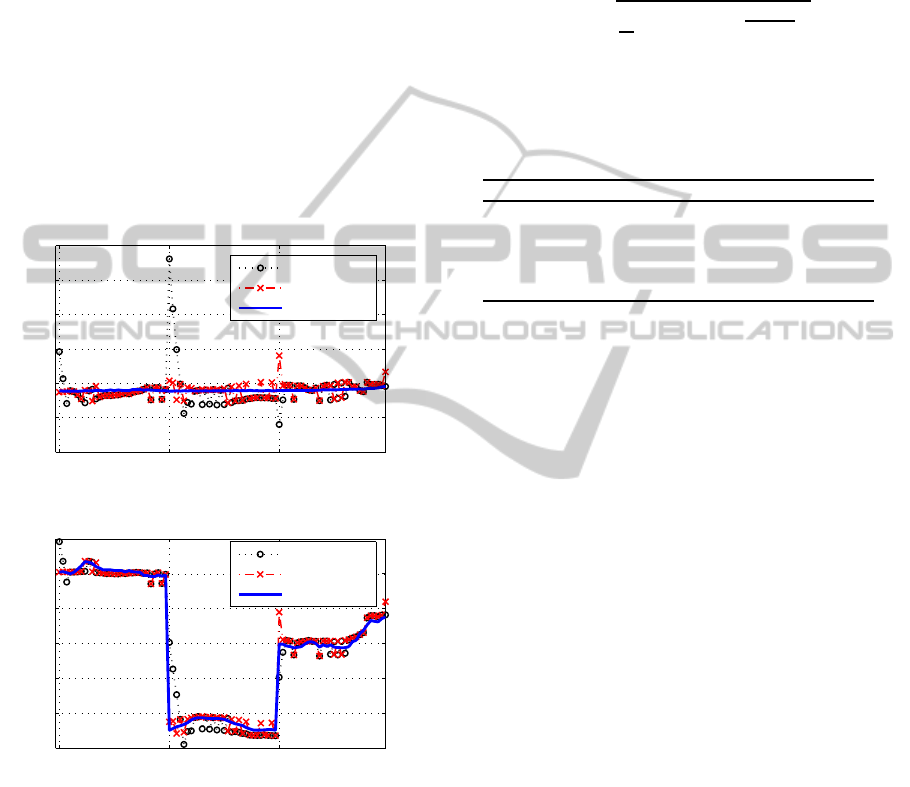

Fig. 5(a) and Fig. 5(b) show the comparisons of

the generated bits and PSNRs frame by frame, respec-

tively. As it can be seen from Fig. 5, the bit-rate of the

1 31 61

0.5

1.5

2.5

3.5

x 10

frame number

R (Bits)

Jing

J+SC

Proposed RC

(a)

1 31 61

frame number

PSNR

Jing

J+SC

Proposed RC

(b)

Figure 5: Comparisons of (a) generated bits and (b) PSNR

for the Combo sequence. The scene changes occur at the

31st and 61st frames The frame rate is 30 f/s, and the target

bandwidth is 4096 kbit/s.

proposed RC scheme is more stable than those of the

other two approaches and the PSNR of the proposed

RC scheme is smoother between frames in the same

scene than those of the other two approaches. Partic-

ularly, even without any indication about the scene

transition frames, at the scene transition frame the

proposed RC scheme works better than the other two

approaches. This is because the proposed RC scheme

does not rely on the scene change detection. Further-

more, from table 2, we can observe that the M% is re-

duced by 95.4% and 84.3% and the PSNR ﬂuctuation

(variance) in the scene for different scenes reduced by

10.2% − 76.0%, respectively. Here, The PSNR stan-

dard deviation, Dev, is deﬁned as

Dev =

∑

l=1

(PSNR

−

PSNR)

, (12)

where PSNR

denotes the PSNR of the lth frame in

the scene. The improvement of the proposed RC

Table 2: Performance comparison of the Jing’s, J+SC and

the proposed RC schemes.

Jing’s J+SC Proposed RC

M% 9.7% 6.01% 0.94%

PSNR 31.84 31.75 31.88

Dev: 1st scene 0.445 0.263 0.226

Dev: 2nd scene 1.165 0.443 0.279

Dev: 3rd scene 0.659 0.593 0.532

scheme is attributed to the CTU-level rate adjustment

and the accurate estimation of the model parameter

and the generated bits. Since there is at most one

CTU that is needed to be re-encoded, the proposed

RC scheme has low delay and computational com-

plexity and is particular suitable for the live video

coding.

4 CONCLUSION

In this paper, a simple and efﬁcient CTU-level RC ap-

proach for intra-frame coding is presented. The pro-

posed RC approach has the advantage in maintain-

ing the stability of the bit-rate and PSNR, especially

for the sequence containing multiple scene changes.

Moreover, due to the pixel-based complexity mea-

sure, the proposed RC approach can be easily ex-

tended to slice-level or CU-level.

ACKNOWLEDGEMENTS

The authors would like to thank the support of the

National Natural Science Foundation of China No.

60972035.

REFERENCES

Altunbasak, Y. and Kamaci, N. (2004). An analysis of

the DCT coefﬁcient distribution with the H.264 video

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

coder. In IEEE International Conference on Acous-

tics, Speech, and Signal Processing, volume 3, pages

177–180.

Bossen, F. (2011). Common test conditions and software

reference conﬁgurations. In ITU-T SG16 Contribu-

tion, JCTVC-E700, Daegu.

Bossen, F., Flynn, D., and Suehring, K. HM

reference software. [Online]. https :

//hevc.hhi. fraunhof er.de/svn/svn

HEVCSoftware/.

Cen, F., Lu, Q., and Xu, W. (2014). Ssim based rate-

distortion optimization for intra-only coding in hevc.

In Consumer Electronics (ICCE), 2014 IEEE Interna-

tional Conference on, pages 17–18. IEEE.

H. Choi, J. Nam, J. Y. and Sim, D. (2012). Rate control

based on uniﬁed RQ model for HEVC. In ITU-T SG16

Contribution, JCTVC-H0213, San Jos´e.

Jing, X., Chau, L., and Siu, W. (2008). Frame complexity-

based rate-quantization model for H.264/AVC in-

traframe rate control. IEEE Signal Processing Letters,

15:373–376.

Jing, X. and Chau, L.-P. (2006). A novel intra-rate estima-

tion method for H.264 rate control. In Circuits and

Systems, 2006. ISCAS 2006. Proceedings. 2006 IEEE

International Symposium on, pages 4–pp. IEEE.

Karczewicz, M. and Wang, X. (2012). Intra frame rate

control based on SATD. ITU-T SG16 Contribution,

JCTVC-M0257, Incheon, pages 1–5.

Ku, C.-W., Cheng, C.-C., Yu, G.-S., Tsai, M.-C., and

Chang, T.-S. (2006). A high-deﬁnition H.264/AVC

intra-frame codec IP for digital video and still camera

applications. Circuits and Systems for Video Technol-

ogy, IEEE Transactions on, 16(8):917–928.

Li, B., Li, H., Li, L., and Zhang, J. (2012). Rate control by

R-lambda model for HEVC. ITU-T SG16 Contribu-

tion, JCTVC-K0103, Shanghai, pages 1–11.

Naccari, M. and Pereira, F. (2012). Quadratic modeling

rate control in the emerging HEVC standard. In Pic-

ture Coding Symposium (PCS), 2012, pages 401–404.

IEEE.

Ohm, J., Sullivan, G. J., Schwarz, H., Tan, T. K., and

Wiegand, T. (2012). Comparison of the coding efﬁ-

ciency of video coding standardsłincluding high ef-

ﬁciency video coding (HEVC). Circuits and Sys-

tems for Video Technology, IEEE Transactions on,

22(12):1669–1684.

Si, J., Ma, S., Zhang, X., and Gao, W. (2012). Adaptive

rate control for high efﬁciency video coding. In Visual

Communications and Image Processing (VCIP), 2012

IEEE, pages 1–6. IEEE.

Sullivan, G. J., Ohm, J., Han, W.-J., and Wiegand, T. (2012).

Overview of the high efﬁciency video coding (HEVC)

standard. Circuits and Systems for Video Technology,

IEEE Transactions on, 22(12):1649–1668.

Tsai, W. and Chou, T. (2010). Scene change aware intra-

frame rate control for H.264/AVC. Circuits and Sys-

tems for Video Technology, IEEE Transactions on,

(99):1–1.

Yang, M., Serrano, J. C., and Grecos, C. (2009). MPEG-

7 descriptors based shot detection and adaptive initial

quantization parameter estimation for the H.264/AVC.

IEEE Transactions on Broadcasting, 55(2):165–177.

Zeng, W., Du, J., Gao, W., and Huang, Q. (2005). Ro-

bust moving object segmentation on H.264/AVC com-

pressed video using the block-based MRF model.

Real-Time Imaging, 11(4):290–299.

EfficientRateControlforIntra-FrameCodinginHighEfficiencyVideoCoding
