Stability Evaluation of Combined Neural Networks
Ibtissem Ben Othman and Faouzi Ghorbel
GRIFT Research Group, CRISTAL Laboratory, School of Computer Sciences, Manouba University, Manouba, Tunisia
Keywords: Bayesian Neural Networks, Error Rate Probability Density Function, Kernel-Diffeomorphism Semi-
Bounded Plug-in Algorithm, Stability, Theoretical Error Rates.
Abstract: In the industrial field, the artificial neural network classifiers are currently used and they are generally
integrated of technologic systems which need efficient classifier. However, the lack of control over its
mathematical formulation explains the instability of its classification results. In order to improve the
prediction accuracy, most of researchers refer to the classifiers combination approach. This paper tries to
illustrate the capability of an example of combined neural networks to improve the stability criterion of the
single neural classifier. The stability comparison is performed by the error rate probability densities function
estimated by a new variant of the kernel-diffeomorphism semi-bounded Plug-in algorithm.
1 INTRODUCTION
In high dimension spaces, due to the samples limited
size, the classification in these spaces requires
dimension reduction in the first step. In order to
simplify this reduction, the linear methods are the
most commonly used ones.
Qualified by non parametric methods, the
Artificial Neural Networks (ANNs or NNs) can
achieve a non-linear dimension reduction which tries
to find a subspace in which the data are well
presented. Thus, the ANNs have become a regular
method to provide a solution for the non-linear
dimension reduction and classification, where
statistical techniques have traditionally been used.
The traditional statistical approaches are based
on the Bayesian decision rule, which presents the
ideal classification technique. However, a dimension
reduction is often required in the first step because
of the limited samples size. The favorite linear
technique for this purpose is the Fisher Linear
Discriminate Analysis (LDA) which tries to find
efficient discrimination directions.
A recent review of various experimental
comparison studies between neural and statistical
approaches is presented by Paliwal and Kumar in
(Paliwal, 2009).
In order to compare the neural and statistical
classifiers, most of researchers try to compare their
prediction accuracy while forgetting the NNs
instability criterion. In (Othman, 2013) and
(Othman, 2014), we have proven the instability of
network classifier results compared to the statistical
methods. The stability evaluation is based on
estimating the error rate probability density function
(pdf) of each classifier. The pdf is estimated by
applying the Plug-in kernel algorithm, which
optimizes its smoothing parameter. The
misclassification error is positive value, so we
choose to improve the pdf estimation precision by
using a new variant of the kernel-diffeomorphism
semi-bounded Plug-in algorithm since pdf support
information is known.
Many techniques proved their effectiveness in
improving the classifiers performance. Combining
several classifiers is becoming an active research
area. Thus, the combination approach for the neural
networks may improve their performance and
stability.
The present work will be organized as follows:
the next section summaries the neural classifiers
including the multilayer perceptron neural network.
Here we deal with the combined neural network
approach. In section 3, we lead a comparative study
between the combined and single neural networks
stressing their stability degree. This stability degree
is performed by visualizing the results through
multivariate Gaussian distributions. Then, we intend
to test the classifiers stability and performance for
the handwritten digits recognition problem. Finally,
we will present our works conclusions.
203
Ben Othman I. and Ghorbel F..
Stability Evaluation of Combined Neural Networks.
DOI: 10.5220/0005077402030209
In Proceedings of the International Conference on Neural Computation Theory and Applications (NCTA-2014), pages 203-209
ISBN: 978-989-758-054-3
Copyright
c
2014 SCITEPRESS (Science and Technology Publications, Lda.)
2 ARTIFICIAL NEURAL
NETWORKS
In pattern recognition, the extractor-classifier neural
network is the most studied and used neural models.
These mixed neural networks present a combination
of the features extractors NNs and the classifiers
NNs. Although the hidden layers are capable to
reduce the data dimension in a non-linear way, the
output layer makes the last decision by applying a
non-linear separation to the extracted primitives. An
interesting example is the feedforward Multi-Layer
Perceptron (MLP) that uses the back-propagation
algorithm.
The main duty of this supervised algorithm is to
reduce the mean squared error (MSE) between the
ANN outputs and the known target values:
2
1
1
N
j
jj
yt
N
MSE
(1)
where t
j
and y
j
represent the target and network
output values for the j
th
training sample respectively,
and N is the training samples size.
Based on the results from (Steven, 1991) and
(Lepage, 2003), a MLP with one hidden layer is
generally sufficient for most problems including the
classification. Thus, all used networks in this study
will have a unique hidden layer. The number of
neurons in the hidden layer could only be
determined by experience and no rule is specified.
However, the number of nodes in the input and
output layers is set to match the number of input and
target parameters of the given process, respectively.
2.1 Neural Networks Limitations
Although the effectiveness and significant progress
of ANNs in several applications, and especially the
classification process, they present several limits.
First, the neural classifiers produce a black box
model in terms of only crisp outputs, and hence
cannot be mathematically interpreted as in statistical
approaches. Second, the MLP desired outputs are
considered as homogeneous to a posterior
probability. Till today, no proof of the quality of this
approximation has been presented. However, for the
users of these networks, this approximation is
presented as a threshold function to binaries the
obtained outputs. Third, the NNs have a complex
architecture that the task of designing the optimal
model for such application is far from easy.
Unlike the simple linear classifiers which may
underfit the data, the architecture complexity of NNs
tends to overfit the data and causes the model
instability. Breiman proved, in (Breiman, 1996), the
instability of ANNs classification results. Therefore,
a large variance in its prediction results can be
introduced after small changes in the training sets.
Thus, a good model should find the equilibrium
between the under-fitting and the over-fitting
processes.
Indeed, researches kept looking for suitable
methods to solve these related problems. The cross
validation method, mentioned in (Morgan, 1990)
and (Weiss, 1991), presents the classical solution.
German and al introduced, in (Geman, 1992), the
bias plus variance decomposition of the prediction
error, which presents an interesting solution for the
over-fitting problem. Intending to reduce the over-
fitting effect of NNs, a probabilistic interpretation of
NNs learning methods has been proposed by
Mackay, in (Mackay, 1992) and (Mackay, 1995),
thereby using Bayesian techniques. In (Othman,
2014), we have proved that the Bayesian NN is most
stable and performs better than the conventional NN.
The performance and stability classification may
also be improved by combining several neural
classifiers (Miller, 1998), (Zhang, 2000), (Hansen,
1990) and (Morgan, 1990).
2.2 Combined Neural Networks
Many studies show that combining several
classifiers significantly improves their performances
with respect to each individual classifier. Several
combined methods have proved their effectiveness
to improve the individual classifier performance.
Referring to the implementation order criterion, the
classifiers combination approaches could be
classified into sequential, parallel and hybrid.
However, among these different combination
architectures, the parallel architecture resulted in the
most significant work. Its simplicity of
implementation, its ability to exploit the combining
classifiers taking into account (or not) the behavior
of each classifier and its proven efficiency in many
classification problems show its success, including
in the sequential approach for which knowledge of
the behavior of each classifier is necessary in order
to obtain a pattern of effective cooperation.
To implement the combined NNs, the outputs of
the first level networks were combined to a second
level neural network. The combined NN model used
in the present study is shown in Figure 1. Two
MLPs, with the same structure, and having each one
hidden layer, were used in the first level. Their
outputs constitute the second level network inputs. A
NCTA2014-InternationalConferenceonNeuralComputationTheoryandApplications
204
third MLP was used in the second level having also
one hidden layer. In the first and second level, the
back-propagation training algorithm was used. The
number of hidden nodes in each level was
determined considering the classification accuracies.
In the hidden and output layers, the sigmoïd
activation function was used.

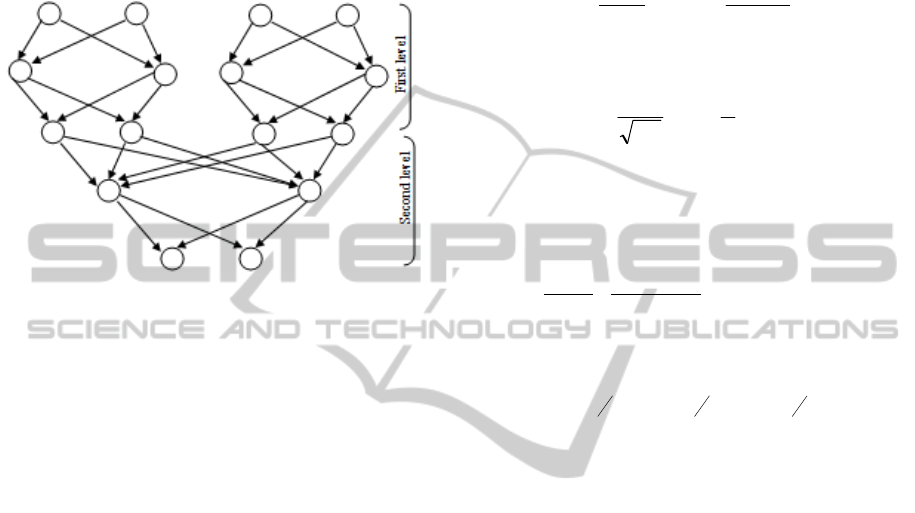

Figure 1: Combined neural networks topology.
3 PERFORMANCE AND
STABILITY COMPARISON
Some classifiers are instable, small changes in their
training sets or in constructions may cause large
changes in their classification results. Therefore, an
instable model may be too dependent on the specific
data and has a large variance. In order to analyze and
compare the stability and performance of each
classifier, we have to illustrate their error rate
probability densities in the same figure. The
classifier, whose curve is on the left, is the most
efficient one. Also, a classifier with the largest
density curve is the least stable one. Therefore, a
good model should find a balanced equilibrium
between the error rate bias and variance.
3.1 Non-parametric Density Estimation
The first step before comparing is to train the two
classifiers, and then we proceed by measuring the
error rate produced by each classifier with each one
of N independent test sets. Let’s consider (X
i
)
1≤i≤N
the N generated error rates of a given classifier
(Bayes or ANN). These error rates (X
i
)
1≤i≤N
are
random variables which have the same probability
density function (pdf), f
X
(x). These (X
i
)
1≤i≤N
are
supposed to be independent and identically
distributed.
We suggest to estimate the pdf of the error rates
for each classifier using the kernel method proposed
in (Fukunaga, 1990) and (Ghorbel, 2012), where the
involved smoothing parameters h
N
are estimated by
optimizing an approximation of the integrated mean
square error (IMSE). The kernel estimator of the
probability density is defined as follows:
N
i
N
i
N
N
h
Xx
K
Nh
xf
1
1
)(
ˆ
(3)
In our study, K(.) is chosen as the Gaussian kernel:
)
2
1
exp(
2
1
)(
2
xxK
(4)
The choice of the optimal smoothing parameter
*
N
h
is very important. Moreover, Researchers have
introduced different methods that minimize the
integrated mean square error
(
4
))(()(
4
N
N
hXfJ
Nh
KM
IMSE
) to define the optimal
bandwidth. The smoothing parameter
*
N
h
becomes
as follows:
5
1
5
1
5
1
*
)]([)]([
KMfJNh
XN
(5)
where;
dxxKKM
)()(
2
dxxffJ
XX
2''
))(()(
3.2 Conventional Plug-in Algorithm
The goodness of estimation depends on choosing an
optimal value for the smoothing parameter.
Calculating its optimal value, with a direct
resolution of the equation (4), seems very difficult.
We opt for the recursive resolution: The Plug-in
algorithm. Actually, a fast variant of known
conventional Plug-in algorithm has been developed
(Ghorbel, 2012). It applies directly a double
derivation of the kernel estimator analytical
expression in order to approximate the function J(f).
3.3 Kernel-diffeomorphism
Semi-bounded Plug-in Algorithm
The set of observed error rates (X
i
)
1≤i≤N
of each
classifier is a set of positive values. In this case, the
kernel density estimation method is not that
attractive. When estimating the probability densities,
which are defined in a bounded or semi-bounded
StabilityEvaluationofCombinedNeuralNetworks
205
space
d
U
, we will encounter convergence
problems at the edges : the Gibbs phenomenon.
Several authors have tried to solve this issue and
presented some methods to estimate the probability
densities under topological constraints on the
support. The orthogonal functions method and the
kernel diffeomorphism method are two interesting
solutions (Saoudi, 1997) and (Saoudi, 1994). The
kernel diffeomorphism method is based on a suitable
variable change by a C1-diffeomorphism. Although,
it is important to maximize the value of the
smoothing parameter in order to ensure a good
estimation quality. The optimization of the
smoothing parameter is performed by the Plug-in
diffeomorphism algorithm which is a generalization
of the conventional Plug-in algorithm (Troudi, 2013)
and (Ghorbel, 2012)
For complexity and convergence reasons, we
propose in this paper a new variant of the kernel-
diffeomorphism semi-bounded Plug-in algorithm.
This algorithm version is based on the variable
change of the positive error rates:
)(XLogY . In
order to define new classification quality measure, a
sequence of three steps is performed:
Step 1: using the variable change )(XLogY ,
the kernel estimator expression becomes:
N
i
N
i
N
Y
h
Yy
K
Nh
yf
1
**
1
)(
ˆ
(6)
Step 2: iterate the conventional Plug-in algorithm
for the transformed data.
Step 3: compute
x
Logxf
xf
Y
X
)(
ˆ
)(
ˆ
The use of this new variant of the kernel-
diffeomorphism semi-bounded Plug-in algorithm
tends to be a good criterion for the stability
comparison of the different classifiers. This
algorithm produces a sufficient precision for the
densities estimation and the stability aspect.
4 SIMULATIONS
The neural and statistical approaches were first
compared experimentally on the multivariate
Gaussian mixture classification problem. Three types
of classifiers are applied to evaluate their
performances and stability: Fisher-Bayes, single
MLP and combined MLPs. For the combination
approach, three MLPs were combined using the
parallel topology discussed in the section 2.2. With
the same train set (including 1000 samples for each
class), we look to find the optimal transformation by
the mean of the well known Fisher criterion which
realizes the dimension reduction before applying the
Bayesian rule, and then to fix the optimal NN model
parameters for both single and combined MLPs.
After the training phase, we generate 100
independent supervised test sets (including 1000
samples for each class). For each test set, the
classifier performance is evaluated by its error rate
calculated from the confusion matrix. In order to
compare the stability degree, the error rate
probability densities, retained for the statistical and
neural approaches, are estimated using the new
version of the kernel-diffeomorphism semi-bounded
Plug-in algorithm discussed in the previous section.
Figure 2 shows the estimated error rate
probability densities generated for the different
classifiers on a mixture of two homoscedastic and
heteroscedastic Gaussians. It illustrates the results of
two homoscedastic Gaussians (Fig.2.a and Fig.2.b), a
simple case of two heteroscedastic Gaussians
(Fig.2.c), two heteroscedastic superposed Gaussians
(Fig.2.d and Fig.2.e) and two truncated ones
(Fig.2.f). The stability and performance of the
classifiers are also analyzed by presenting their error
rate means and variances in table 1.
By analyzing the results shown in the three first
cases in figure 2 and table 1, the statistical classifier
(Fisher-Bayes) admits the smallest error rate mean
that proves its performance against the single neural
classifiers for these simple cases. However, the error
rate probability density functions of the neural
models are on the left for the complex cases of the
two heteroscedastic superposed Gaussians and the
truncated ones. For these complex cases, the Fisher
LDA fails to find the optimal projection subspace.
Whereas, the neural classifiers perform well due to
their non linear reduction dimension capability. We
deduce then the efficiency of these models.
Although, the single MLP remains the least stable
classifier that presents the greatest variance and thus
the widest curve for the most cases. However, the
combination approach for NN improves its stability
and performance (except the fifth case where the
variances are too close).
NCTA2014-InternationalConferenceonNeuralComputationTheoryandApplications
206

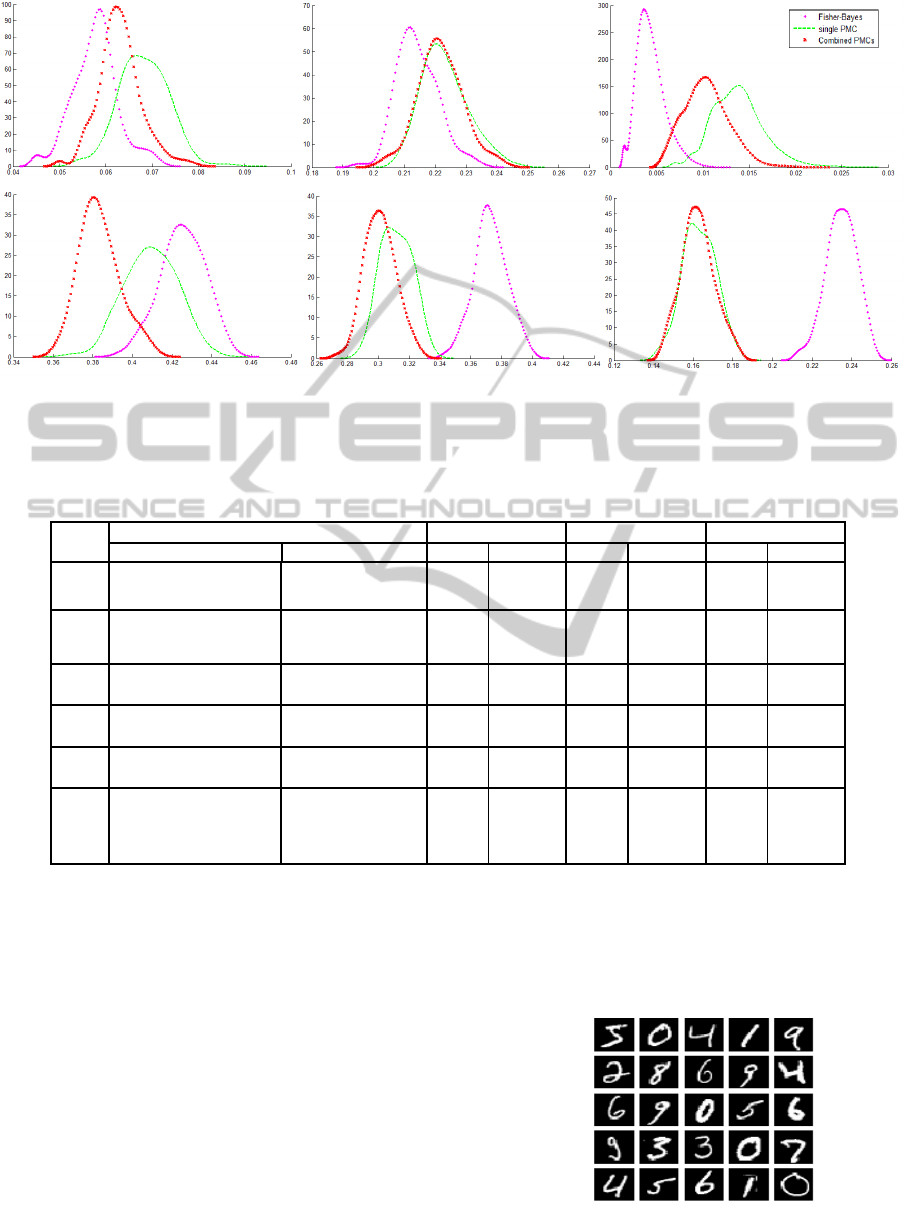

Figure 2: Error rate probability density function of Fisher-Bayes classifier (in pink(*)), single MLP (in green(--)) and
combined MLPs (in red(x)).
Table 1: Comparison results of Fisher-Bayes, single MLP and combined MLPs.
Low (mean/variance) ==> Better (performance/stability)
Cases
Distributions Fisher-Bayes Single MLP Combined MLPs
Gaussian 1 Gaussian 2 Mean Variance Mean Variance Mean Variance
a
μ
1
=(1,..,1),∑
1
=I
10
μ
2
=(2,..,2),∑
2
=I
10
0.0577 0.0234 0.0682 0.0267 0.0630 0.0212
b
μ
1
=(1.5,..,1.5),∑
1
=I
10
μ
2
=(2,..,2),∑
2
=I
10
0.2142 0.0424 0.2231 0.0559 0.2217 0.0518
c
μ
1
=(0,..,0),∑
1
=I
10
μ
2
=(2,..,2),∑
2
=2*I
10
0.0044 0.0020 0.0138 0.0074 0.0104 0.0056
d
μ
1
=(1,..,1),∑
1
=2* I
10
μ
2
=(1,..,1),∑
2
=3*I
10
0.4253 0.1215 0.4093 0.1594 0.3834 0.1025
e
μ
1
=(0,..,0),∑
1
= I
10
μ
2
=(0,..,0),∑
2
=2*I
10
0.3730 0.0113 0.3119 0.0954 0.3015 0.0966
f
μ
1
=(0,0,0)
∑
1
=[0.06 0 0
0 0.01 0
0 0 0.01 ]
μ
2
=(0.1,0.1,0.1)
∑
2
=[0.01 0 0
0 0.06 0
0 0 0.05 ]
0.2347 0.0578 0.1630 0.0657 0.1623 0.0661
5 APPLICATION TO
HANDWRITTEN DIGIT
RECOGNITION
In this section, we study the handwritten digit
recognition problem, which is still one of the most
important topics in the automatic sorting of postal
mails and checks’ registration. The database used to
train and test the different classifiers described in
this paper was selected from the MNIST database
made of about 60.000 training samples and 10.000
test ones. The images resolution is 28x28 pixels.
For the training and test sets, we select
randomly, from the MNIST training and test sets
respectively, single digit images (the both sets
contain 1000 images for the 10 digit classes).
Random sampling images are shown in Fig.3.
Figure 3: Random sample images of MNIST database.
(wordpress).
(a) (b) (c)
(
d
) (e) (f)
StabilityEvaluationofCombinedNeuralNetworks
207
The most difficult step in handwritten digit
recognition is to choose the suitable features. The
chosen features must necessarily verify a non-
exhaustive set of criteria such as stability,
completeness, fast computation, powerful
discrimination and invariance under the geometrical
transformations. The invariant descriptors family
proposed by Ghorbel in (Ghorbel, 1998) satisfies
the various criteria cited above. Thus, each image
will be described by this type of descriptor. We
select a high descriptors size (D = 14).
The principal goal of the train set is to fix the
parameters of the optimal NN model for both
single and combined multilayer perceptron. Thus,
we have used two single MLPs with three layers
having, respectively, 14, 12 and 10 neurons. We
intend to compare the classifiers stability by
evaluating their respective performances for 100
times using the k-folds cross validation algorithm
(k=10 in our study). We use this algorithm from the
MNIST test set to select the test sets (N=1000
images for each class).
With these sets, we calculate the misclassification
rate (MCR) of each classifier.
Figure 4 shows the classifiers error rate
probability densities estimated using the kernel-
diffeomorphism semi-bounded Plug-in algorithm
for Ghorbel descriptors. In table 3, we summarize
the MCR means and variances obtained for the two
types of descriptors using the two single classifiers
and the combined one. The results show the
performance and stability of the combined MLP
against the two single classifiers. Thus, we can
approve that the stability and performance of the
MLP increases with the parallel combination
approach.
6 CONCLUSIONS
This paper provided a novel approach to comparing
single and combined neural networks. This new
criterion is performed by using a new variant of the
kernel-diffeomorphism semi-bounded Plug-in
algorithm.

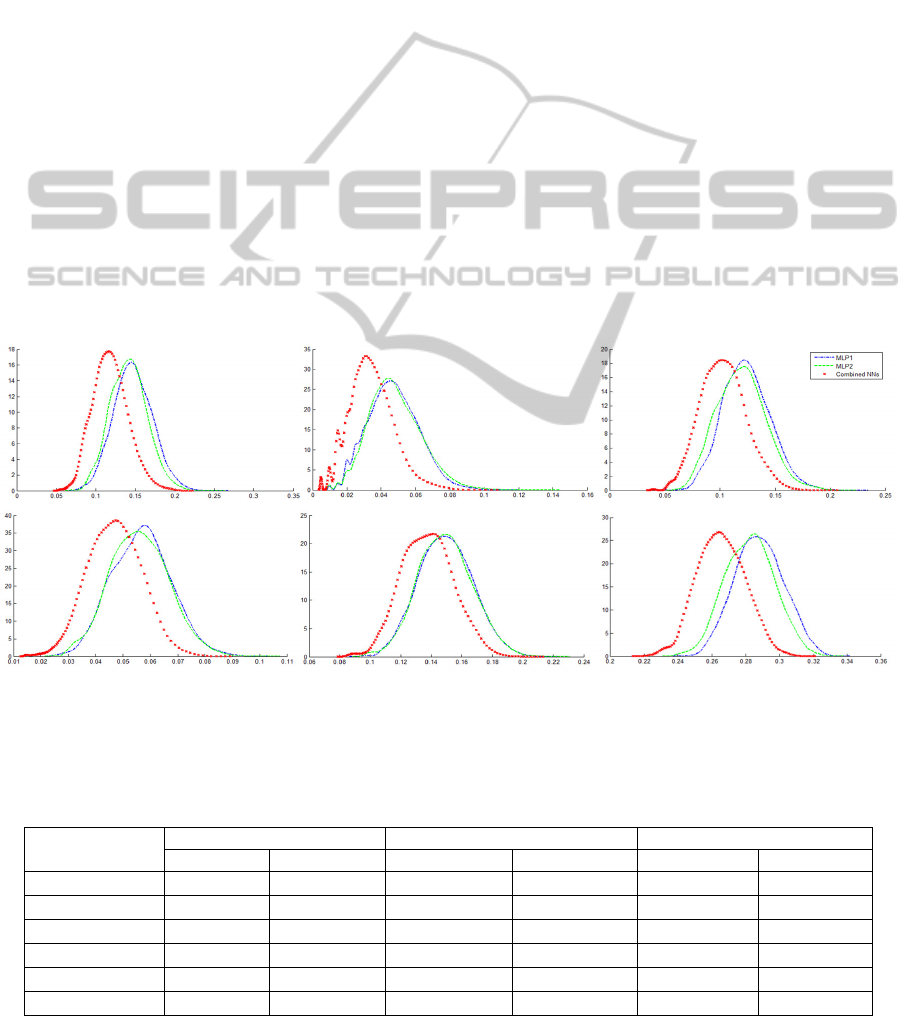

Figure 4: Error rate probability density function of single MLP1 (in blue(-.)), single MLP2 (in green(--)) and combined
MLPs (in red(x)) for Ghorbel descriptors.
Table 2: Comparison results of the single and combined MLPs on the MNIST database for Ghorbel descriptors
Low (mean/variance) ==> Better (performance/stability)
Digit classes
MLP1 MLP2 Combined MLPs
Mean Variance Mean Variance Mean Variance
a (2 and 5)
0.1470 0.5779 0.1415 0.5197 0.1185 0.4741
b (4 and 7)
0.0470 0.2007 0.0480 0.2170 0.0345 0.1466
c (6 and 9)
0.1240 0.4437 0.1195 0.4740 0.1030 0.4005
d (0,1,2 and 3)
0.0567 0.1116 0.0560 0.1098 0.0470 0.0914
e (4,5,6 and 7)
0.1495 0.2996 0.1493 0.3095 0.1375 0.2758
f (0..9)
0.2880 0.1983 0.2824 0.2029 0.2655 0.1884
(a) (b)
(
d
)
(c)
(e) (f)
NCTA2014-InternationalConferenceonNeuralComputationTheoryandApplications
208
The comparative study demonstrated that the
statistical classifier is more stable than the neural
networks. However, the combination approach of
NN showed improvements in its performance and
stability.
Future works will be directed towards the
stability evaluation of other classifiers such as
support vector machine and CART decision trees.
Another interesting point would be also to test other
classifiers combination strategies.
REFERENCES
Breiman, L., 1996. Bagging predictors, Machine
learning, vol. 24, no. 2, pp. 123-140.
Fukunaga, K., 1990. Introduction to Statistical Pattern
Recognition, Academic Press, second edition.
Geman, S. Bienenstock, E., Doursat, T., 1992. Neural
networks and the bias/variance dilemma, Neural
Comput., vol. 5, pp. 1–58.
Ghorbel, F., 1998. Towards a unitary formulation for
invariant image description: application to image
coding. Annals of telecommunication, vol. 53,
France.
Ghorbel, F., and al., 2012. Récentes avancées en
Reconnaissance de Formes Statistique, Art-pi
edition, Tunis, www.arts-pi.org.tn.
Hansen, L.K., Salamon, P., 1990. Neural network
ensembles, IEEE Trans. Pattern Anal. Machine
Intell., vol. 12, no. 10, pp. 993–1001.
Kumar, U.A., 2005. Comparison of neural networks and
regression analysis: A new insight. Expert Systems
with Applications, vol. 29, no. 2, pp. 424–430.
Lepage, R., Solaiman, B., 2003. Les réseaux de neurones
artificiels et leurs applications en imagerie et en
vision par ordinateur. Montréal.
MacKay, D.J.C., 1992. A practical Bayesian framework
for back-propagation networks. Neural Comput,
4(3), 448–72.
Mackay, D.J.C., 1995. Bayesian methods for neural
networks: theory and applications.
Miller, D.W., 1998. Fitting frequency distributions,
Book Resource. Second edition.
Morgan, N., and Bourlard, H., 1990. Generalization and
parameter estimation in feedforward nets: Some
experiments, Adv. Neural Inform. Process. Syst.,
vol. 2, pp. 630–637.
Othman, I.B., Ghorbel, F., 2013, A New criterion for
Comparing Neural Networks and Bayesian
Classifier, ICCAT’ 2013, Tunisia.
Othman, I. B., Ghorbel, F., 2014. The Use of the
Modified Semi-bounded Plug-in Algorithm to
Compare Neural and Bayesian Classifiers Stability,
Neural Networks and Fuzzy Systems, Venice, Italy.
Paliwal, M., Kumar, U.A., 2009. Neural networks and
statistical techniques: A review of applications,
Expert Syst. Appl., vol. 36, no. 1, pp. 2–17.
Saoudi, S., Ghorbel, F., Hillion, A., 1994.
Nonparametric probability density function
estimation on a bounded support: applications to
shape classification and speech coding, Applied
Stochastic Models and Data Analysis Journal, vol.
10, no. 3, pp. 215–231.
Saoudi, S., Ghorbel, F., Hillion, A., 1997. Some
statistical properties of the kernel-diffeomorphism
estimator, Applied Stochastic Models and Data
Analysis Journal, Vol. 13, no. 1, pp. 39-58.
Steven, K., Rogers, Kabrisky, M., 1991. An Introduction
to Biological and Artificial Neural Networks for
Pattern Recognition,
SPIE Optical Engineering
Press, vol. 4.
Troudi, M., Ghorbel, F., 2013. The generalised Plug-in
algorithm for the diffeomorphism kernel estimate.
International Conference on Systems, Control,
Signal Processing and Informatics.
Weiss, S.M., Kulilowski, C.A., 1991. Computer Systems
that Learn. San Mateo, CA: Morgan Kaufmann.
Zhang, G.P., 2000. Neural networks for classification: a
survey. Systems, Man, and Cybernetics, Part C:
Applications and Reviews, IEEE Transactions, vol.
30, no 4, p. 451-462.
www.wordpress.com.
StabilityEvaluationofCombinedNeuralNetworks
209
