Digital Database for Screening Mammography Classification Using

Improved Artificial Immune System Approaches

Rima Daoudi

1,2

, Khalifa Djemal

and Abdelkader Benyettou

IBISC Laboratory, University of Evry Val d’Essonne, 91020 Evry Cédex ,France

SIMPA Laboratory, University of Sciences and Technologies, BP 1505 El-M'naouar, Oran, Algeria

Keywords: DDSM, Breast Cancer, Clonal Selection, Local Sets, Median Filter, Clone, Mutate.

Abstract: Breast cancer ranks first in the causes of cancer deaths among women around the world. Early detection and

diagnosis is the key for breast cancer control, and it can increase the success of treatment, save lives and

reduce cost. Mammography is one of the most frequently used diagnosis tools to detect and classify

abnormalities of the breast. In this aim, Digital Database for Screening Mammography (DDSM) is an

invaluable resource for digital mammography research, the purpose of this resource is to provide a large set

of mammograms in a digital format. DDSM has been widely used by researchers to evaluate different

computer-aided algorithms such as neural networks or SVM. The Artificial Immune Systems (AIS) are

adaptive systems inspired by the biological immune system, they are able of learning, memorize and

perform pattern recognition. We propose in this paper several enhancements of CLONALG algorithm, one

of the most popular algorithms in the AIS field, which are applied on DDSM for breast cancer classification

using adapted descriptors. The obtained classification results are 98.31% for CCS-AIS and 97.74% for MF-

AIS against 95.57% for original CLONALG. This proves the effectiveness of the used descriptors in the

two improved techniques.

1 INTRODUCTION

Breast Cancer is malignant tumor that develops from

breast cells; it is becoming one of the major causes

of death among women in the whole world,

according to the World Health Organization (WHO)

the incidence rate of breast cancer between 2008 and

2012 was more than 20% with 14% of mortality rate

(Ferlay and al., 2013), and as there is no prevention

techniques, the only way to help patients survive is

by early detection. If cancerous cells are detected

before they spread other organs, the survival rate of

patient is more than 97% (American cancer society

homepage 2008).

There is no doubt that the evaluations of data

taken from patients and experts decisions are most

important factors in diagnosis. However, artificial

intelligence techniques and expert systems are

gaining popularity in this field by dint of their high

diagnosis capability and effective classification. In

this context, various articles have been published in

the aim of classifying breast cancer databases using

artificial intelligence techniques as Neural Networks

(Marcano-Cedeno et al.,2011)(Timmy Manning and

Paul Walsh, 2013)(Zadehand et al., 2012)(Aboul

Ella Hassanien et al., 2014), SVM(Mahnaz and

Broumandnia, 2013)(Aboul Ella Hassanien et al.,

2013); Genetic Algorithms(Jain, R. and J.

Mazumdar, 2003)(Mazurowski, M.A., et al., 2007)

Expert Systems (Wan Noor et al., 2013) and

Artificial Immune Systems(Sharma and Sharma,

2011)(Daoudi et al., 2013)(Daoudi et al., 2013).

The natural immune system is composed of

diverse sets of cells and molecules that work

together with other systems (like neural and

endocrine) for maintaining homeostatic state. It

primary function is to protect the body from foreign

substances called antigens by recognizing and

eliminating them. This process is known as the

immune response. It makes use of a huge variety of

antibodies to neutralize these antigens (Leung, K. et

al., 2007).

The Artificial Immune Systems (AIS) are

adaptive systems which are inspired by human

immune system and offer similar features of

biological immune system such as self-organization,

noise tolerance and memory mechanism, while

having the ability to learn(J. H. Ang and al., 2010).

244

Daoudi R., Djemal K. and Benyettou A..

Digital Database for Screening Mammography Classiﬁcation Using Improved Artiﬁcial Immune System Approaches.

DOI: 10.5220/0005079602440250

In Proceedings of the International Conference on Evolutionary Computation Theory and Applications (ECTA-2014), pages 244-250

ISBN: 978-989-758-052-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

There are many models of Artificial Immune

Systems including negative selection, clonal

selection and immune networks.

The immune network theory was first proposed

by Jerne in 1947 (Jerne, N.K, 1974), the hypothesis

was that the immune system maintains an idiotypic

network of interconnected antibodies to recognize an

antigen (Aickelin et al., 2014). The negative

selection is a mechanism that protects the body from

self-reactive lymphocytes. It deals with the immune

system’s ability to detect unknown antigens while

not reacting self-cells (Daoudi et al., 2013). The

Clonal Selection algorithms are derives from the

clonal selection principle, which is based on

initiation of candidate solution, affinity maturation,

selection, cloning, mutation and reselection.

In the last decade, AIS have proven their

effectiveness in different areas and especially in the

medical field, they were applied to the detection of

lung disease, diagnosis of diabetes, tuberculosis,

heart disease and the detection of several types of

cancers... etc..

This paper proposes enhancements of a popular

clonal selection algorithm named CLONALG, for

classification of breast cancer cells into

benign/malignant classes taking into account three

new descriptors of the Digital Database for

Screening Mammography (DDSM). The results

obtained are compared to different AIS algorithms

and SVM.

2 DDSM CLASSIFICATION

METHOD

In This Section, we first present CLONALG

algorithm and it limitations, and then we give

detailed descriptions of the enhancements made on

this algorithm for breast cancer classification.

2.1 CLONALG Limitations

From proposed works respectively in (Daoudi et al.,

2013a) and (Daoudi et al., 2013b), we try to enhance

CLONALG algorithm. The first approach named

Cells Clonal Selection (CCS-AIS), the principle is to

select the best cells to be cloned by calculating the

averages of groups of the most competent cells. The

second one Medial Filter Artificial Immune System

(MF-AIS), the algorithm introduces median filter

principle to create the cell to be cloned.

Both algorithms propose improvements of

CLONALG algorithm (De Castro et al., 2002) which

is one of the most popular algorithms in the field of

the Artificial Immune systems using the principle of

the clonal selection.

We can distinguish two main limitations in

CLONALG algorithm. Indeed, the first limitation

we can observe is in the initialization step,

CLONALG algorithm takes a random population of

antibodies before launching the learning step. These

cells are selected randomly from the set of training

examples, which means that the initial cells do not

represent necessarily all of the cells to learn.

Learning will then depend on this set of randomly

initialized cells.

The second limitation of CLONALG is in the

training step, CLONALG select for each example to

learn a set of memory cells, clone and mutate these

cells; a reselection of the best mutated clones is

made thereafter to be added to the memory cells set.

Next, CLONALG replace P worst cells by randomly

created ones, even if the randomly generated cells

are worse than the rejected ones or if the rejected

cells can be more representatives of other training

examples in next generations, no check is made.

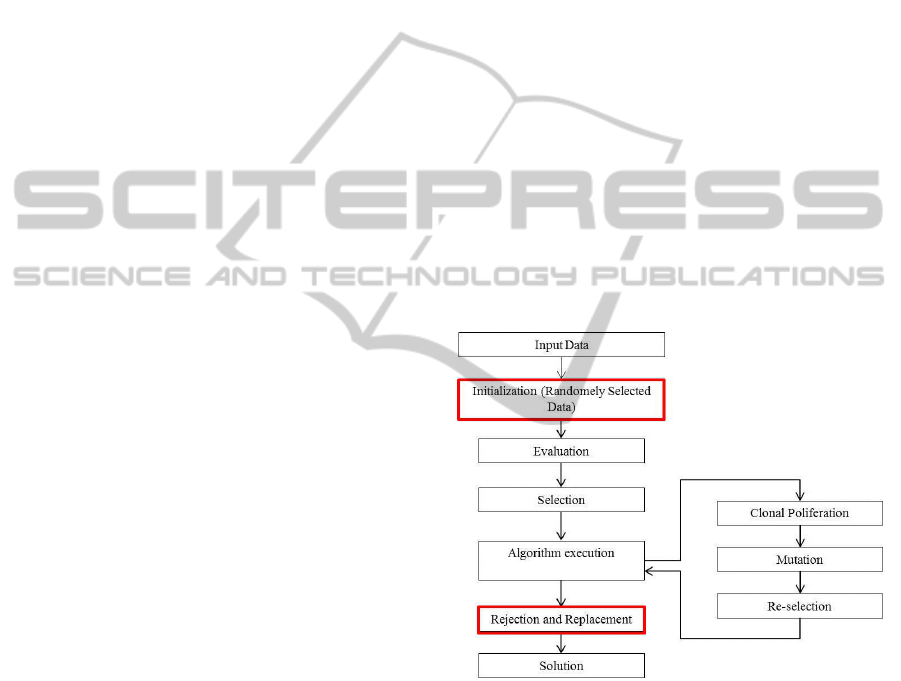

Figure 1 provides a simple ﬂowchart of the

CLONALG algorithm.

Figure 1: Flowchart of CLONALG.

2.2 Cloned Cell Creation in

CLONALG System by CCS-AIS

and MF-AIS

The first improvement proposed in both proposed

techniques treats the problem of initialization of

antibodies before launching the learning, instead of

picking randomly some examples of training

database, the initialization step consists in dividing

every class of learning into subgroups, the average

cell of every local subgroup is considered as initial

antibody created to launch the learning algorithm.

DigitalDatabaseforScreeningMammographyClassificationUsingImprovedArtificialImmuneSystemApproaches

245

This process will allow the initial antibodies to

represent all the examples to be learnt and not some

only. Other various improvements brought to

CLONALG in both approaches are during the

learning phase, in the choice of the cell to be cloned.

In CCS-AIS, for each example to learn, the

selection of the closest cells is made and an average

cell of these cells is created, if the average cell has

better affinity than the nearest memory cell, it will

be added to the set of memory cells, and a set of the

best mutated clones of this average cell maximizing

the affinity with the learning example is selected to

join the set of memory cells, otherwise the best

antibody will undergo to the operators of cloning

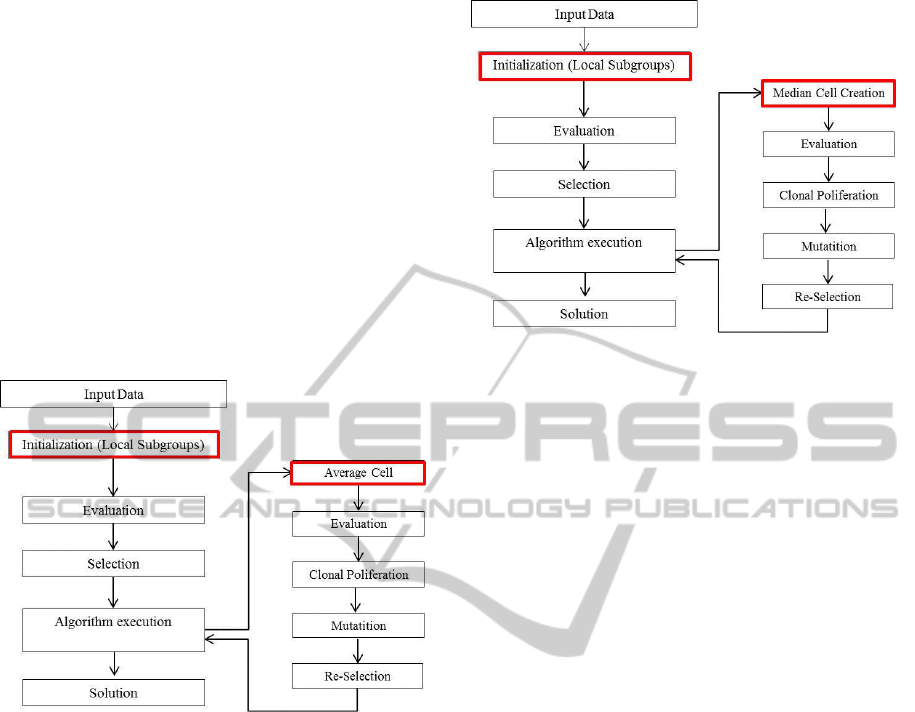

and mutation. Figure 2 presents the ﬂowchart of the

CCS-AIS algorithm.

Figure 2: Flowchart of CCS-AIS.

In MF-AIS, the learning phase consists in

creating a cell that will be cloned and mutated

named median cell. Knowing that the learning base

is composed of N attributes, the process of creating

the median cell is done by selecting N closest cells

to the learning example by measuring affinity, and

taking the median value of each attribute from these

cells. The median cell created is subsequently

evaluated and if it has a higher affinity than the

nearest antibody, it will be added to all memory cells

as well as all its best mutated clones. The diagram of

MF-AIS is given in Figure3.

Figure 3: Flowchart of MF-AIS.

The classification step consists of comparing

each example to classify to all memory cells

obtained at the end of learning, and the example is

assigned to the class of the memory cell that

maximizes the affinity.

Both detailed above approaches have been

applied for the diagnosis of breast cancer on the

Wisconsin Breast Cancer Database (WBCD), and

the results were promising, to validate the

approaches, we propose in this article apply them on

another database widely used in the field of

detection of breast cancer using new descriptors, and

to compare the results obtained with other AIS

methods.

2.3 Improvements on DDSM

In order to compare the results obtained in our

previous work and validate our approaches, we

chose a database constructed from digitized films

named Digital Database for Screening

Mammography (DDSM). It was assembled by a

group of researchers from the University South

Florida and was completed in 1991 (M. Heath et al.,

2000). DDSM contains 2620 cases collected from

Massachusetts General Hospital, Wake Forest

University School of Medicine, Sacred Heart

Hospital and Washington University of St. Louis

School of Medicine.

Digital Database for Screening Mammography

was widely used by the scientific community in the

field of breast cancer; it has the advantage of using

the same lexicon standardized by the American

College of Radiology in BI-RADS. The different

patient records were made in the context of

screening and were classified into three cases:

normal case (no lesions), benign case and malignant

ECTA2014-InternationalConferenceonEvolutionaryComputationTheoryandApplications

246

case, each file is composed of four views containing

the mediolateral-oblique incidence (MLO) and the

Cranio-Caudal incidence (CC) of each breast. These

files are also provided with annotations provided by

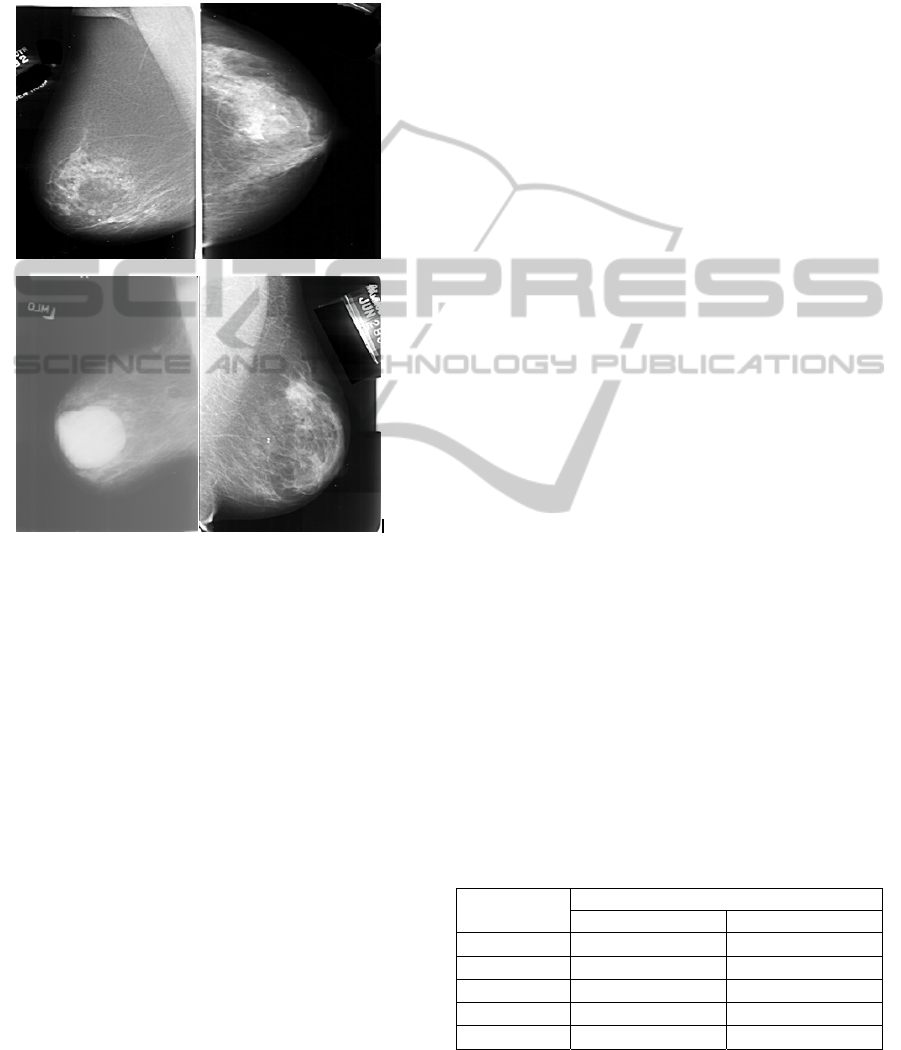

expert radiologists. Fig 4 shows samples DDSM

used in the evaluation.

Figure 4: Samples of DDSM database used in evaluation.

Sub-base of DDSM was created consisting of

242 masses: 128 benign and 114 malignant. These

examples will be partitioned into training examples

and test examples.

Part description of breast masses is a very

important part , in (Cheikhrouhou, 2012), the author

proposed three new descriptors: the skeleton

endpoint (SEP), Protuberance selection (PS) and the

spiculated mass Descriptor (SMD), which were

compared to 19 other descriptors proposed in the

literature including:

 Area;

 Perimeter;

 Circularity;

 Squareness;

 Modified squareness;

 Compactness;

 Curvature;

 Elliptic normalized skeleton;

 Number of large protuberances and

depressions;

 Average of the normalized radial length;

 Standard deviation of the normalized radial

length;

 Entropy;

 Ratio of surface;

 Roughness;

 Rate of zero crossing;

 Difference of the standard deviations;

 Modified entropy;

 Report of surface modified;

 Rate of modified crossing in zero.

In this work, all of the 22 descriptors are used in

the stage of classification by both approaches

detailed in the section 2.1; the results obtained as

well as a comparison of the results are presented in

the following part.

3 RESULTS AND DISCUSSION

3.1 DDSM Classification Results

The performances of the approaches are studied

using DDSM, the training data are antigens

represented by feature vectors, also, the antibodies

have the same shape as the antigenic vectors, and the

Euclidean distance is used as a measure of

similarity; the 5-CV (Cross validation) is used.

Specifically, each dataset is split into five equal

subsets. In every run of each algorithm, one of the

subsets was used as test set, and the remaining four

comprised the training set. The average of 5 times of

successive runs is taken as classification result. After

1, 2, 5, 8 and 10 iterations, memory cells generated

at the end of learning are used in classification, by

comparing each cell to classify to all of the created

memory cells, and assigning it to the class

containing the memory cell with the highest measure

of similarity, simulation and implementation are

done using MATLAB 7.11.0. Tables 1 and 2

summarize the results obtained:

Table 1: Classification accuracies of Cells Clonal

Selection AIS on DDSM.

Iteration N° Classification Accuracies (%)

Train Test

72,85 71,21

93,24 96,48

93,56 96,81

93,74 96,69

97,70 98,13

DigitalDatabaseforScreeningMammographyClassificationUsingImprovedArtificialImmuneSystemApproaches

247

Table 2: Classification accuracies of Median Filter AIS on

DDSM.

Iteration N° Classification Accuracies (%)

Train Test

95,89 92,89

96.76 94.23

95,18 93,87

95,31 96,96

96,33 97.74

So as to compare the results obtained, we have

implemented different AIS algorithms and applied

them on DDSM using the same parameters; Table 3

shows the test results of five successive runs, the

average accuracy and supported by the standard

deviation value of each AIS classification algorithm:







²



1

(1)

Calculating the standard deviation (1) of

successive runs of each algorithm allows us to know

how the results of different executions are far from

the average accuracy. Indeed, for CCS-AIS de

standard deviation is 0.82 while it is 1.85 for

CLONALG algorithm.

Table 3: Classification accuracies of different AIS

algorithms on DDSM.

AIS

Algorithm

Classification Accuracies (%)

(Standard

Deviation)

run 2

run 3

run 4

run 5

run Average

CSA 90.15 92.21 88.34 93.67 89.33 91.17 2.21

CLONALG 96.35 92.67 97.26 94.83 96.75 95.57 1.85

CLONAX 95.77 93.84 91.96 94.51 95.18 94.25 1.47

AIRS 81.27 83.54 80.12 84.67 81.16 82.15 1.88

CCS-AIS 98.33 99.09 97.92 96.87 98.46 98.13 0.82

MF-AIS 98.94 96.87 97.75 96.66 98.49 97.74 0.99

To validate the new proposed descriptors, author

in (Cheikhrouhou, 2012) classified each one

separately using SVM classifier, on order to

compare our approaches, we applied CCS-AIS AND

MF-AIS on the three new descriptors, the results

obtained are given in Table 4, and ROC curves

representing the results of the two proposed

approaches are presented un Figure 5 and Figure 6 .

Table 4: Classification accuracies of different AIS

algorithms on DDSM.

Classification Accuracies

Descriptors SVM

(Cheikhrouhou,2012)

CCS-AIS MF-AIS

SEP 92% 95.43 93.12

PS 93% 97.69 96.52

SMD 97% 98.95 98.57

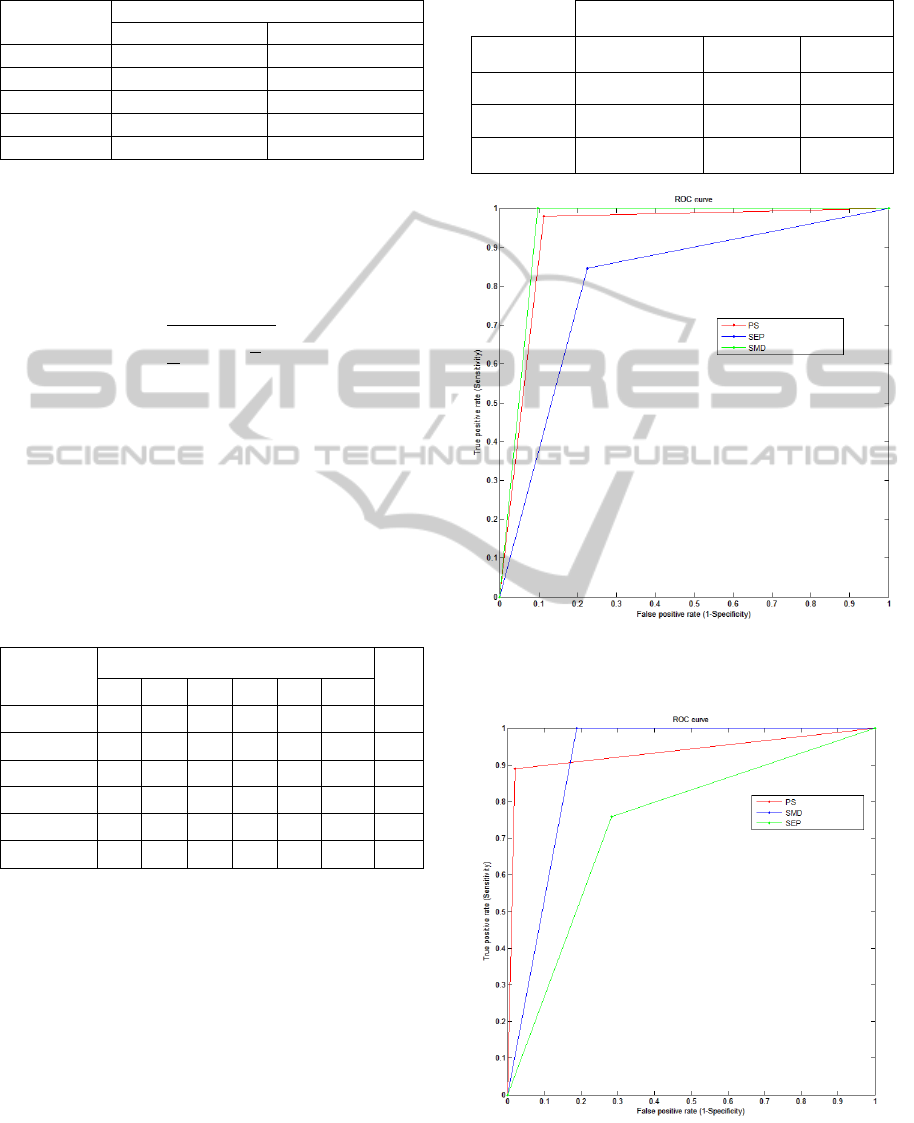

Figure 5: Roc Curves of test results Cells Clonal

Selection-AIS on the three new descriptors proposed.

Figure 6: Roc Curves of test results of Median Filter-AIS

on the three new descriptors proposed.

ECTA2014-InternationalConferenceonEvolutionaryComputationTheoryandApplications

248

3.2 Discussion

From the tables above, we can see that the

improvements brought to CLONALG show

effective. The choice of the initial antibodies to

launch an AIS algorithm directly affects the results,

it is necessary that these antibodies represent all

learning classes and not just some examples only, it

will allow to find the cell which represents most

exactly the example to learn. The creation of local

subgroups from learning classes has treated this

problem in each of the both proposed approaches.

The creation of the cloning cell also played an

important role in the learning phase, in Cells Clonal

Selection AIS, the creation of this cell was done by

calculating an average cell of the best memory cells,

while in median Filter AIS, the median cell was

created from the median values of each attribute of

the matrix of the nearest memory cells, and to

maximize the affinity of each cell created, they are

compared to the best antibodies and they are added

to the set of memory cells only if they are better. No

cell can be representative in next generation was

rejected.

Classification results after 20 iterations on

DDSM taking into account three new descriptors

proposed in (Cheikhrouhou, 2012) are 98.71% for

cells clonal selection AIS and 98.21% for Median

Filter for AIS, efficient results compared to other

approaches AIS.

The classification results of each one of the new

descriptors separately prove that the proposed

approaches prove the effectiveness of the proposed

techniques comparing to the SVM classifier.

4 CONCLUSION

In this work, the classification of DDSM by Clonal

Selection-Based AIS was presented. Each of the two

techniques deals with the problem of initialization of

the antibodies before the launching of the training

Phase for the representation of the entirety of the

data to learn and proposes a new method for the

choice of the cell to clone in order to maximize

affinity with the training example. Cells Clonal

Selection AIS proposes the creation of an average

cell from the closest memory cells, and Median

Filter AIS introduces the principle of the median

filter to create a median cell for the cloning. The

obtained results indicate that the improvements

brought to CLONALG are effective and can be of a

precious help to the experts for a second opinion in

their diagnosis of breast cancer.

Note that we have made is that the two

approaches in particular and AIS algorithms

generally require heavy computation time , our next

work will focus on the treatment of this problem.

REFERENCES

Ferlay J, and al., 2013. GLOBOCAN 2012 v1.0, Cancer

Incidence and Mortality Worldwide: IARC

CancerBase No. 11 [Internet]. Lyon, France:

International Agency for Research on

Cancer.Available from http://globocan.iarc.fr

Marcano-Cedeno, A., J. Quintanilla-Dominguez, and D.

Andina,2011,WBCD breast cancer database

classification applying artificial metaplasticity neural

network. Expert Systems with Applications, 38(8): pp.

9573-9579.

Timmy Manning and Paul Walsh, 2013.Improving the

Performance of CGPANN for Breast Cancer

Diagnosis Using Crossover and Radial Basis

Functions, in Proceeding of 11th European

Conference, EvoBIO 2013, Vienna, Austria.

Hossein Ghayoumi Zadehand al.,2012.Diagnosis of Breast

Cancer using a Combination of Genetic Algorithm and

Artificial Neural Network in Medical Infrared Thermal

Imaging, Iranian Journal of Medical Physics Vol. 9,

No. 4, pp 265-274.

Aboul Ella Hassanien and al. 2014. MRI breast cancer

diagnosis hybrid approach using adaptive ant-based

segmentation and multilayer perceptron neural

networks classiﬁer, Elsevier Applied Soft Computing ,

Volume 14 , pp 62–71

Mahnaz Rafie and Ali Broumandnia, 2013.Evaluation of

Cancer Classification Using Combined Algorithms

with Support Vector Machines, International Journal

of Computer & Information Technologies (IJOCIT13),

Vol 1, Issue 2 , pp 137-148

Aboul Ella Hassanien and al.2013.Breast Cancer

Detection and Classification Using Support Vector

Machines and Pulse Coupled Neural Network, in

Proceedings of the Third International Conference on

Intelligent Human Computer Interaction (IHCI 2011),

Prague, Czech Republic, Advances in Intelligent

Systems and Computing Volume 179, 2013, pp 269-

279

Jain, R. and J. Mazumdar, 2003. A genetic algorithm

based nearest neighbor classification to breast cancer

diagnosis. Australasian physical & engineering

sciences in medicine / supported by the Australasian

College of Physical Scientists in Medicine and the

Australasian Association of Physical Sciences in

Medicine, 26(1): p. 6-11.

Mazurowski, M.A., et al.2007. Case-base reduction for a

computer assisted breast cancer detection system using

genetic algorithms. 2007 Ieee Congress on

Evolutionary Computation, Vols 1-10,

Proceedings2007. 600-605.

DigitalDatabaseforScreeningMammographyClassificationUsingImprovedArtificialImmuneSystemApproaches

249

Wan Noor Aziezan Baharuddin and al. 2013. Mamdani-

Fuzzy Expert System for BIRADS Breast Cancer

Determination Based on Mammogram Images,

Springer Soft Computing Applications and Intelligent

Systems Communications in Computer and

Information Science Volume 378, pp 99-110

Anuarg Sharma and Dharmendra Sharma, 2011. Clonal

Selection Algorithm for Classification , in Proceeding

of 10th International Conference on Artificial Immune

Systems ICARIS 2011, Vol 6825 of LNCS,(pp. 361-

370). Springer.

Rima Daoudi, Khalifa Djemal and Abdelkader Benyettou,

2013a. Cells clonal selection for Breast Cancer

classification, in proceeding of 10th International

Multi-Conference on Systems, Signals & Devices

SSD13.

Rima Daoudi, Khalifa Djemal and Abdelkader Benyettou.

2013b. An Immune-Inspired Approach for Breast

Cancer Classification, in proceeding of 14th

International Conference on Engineering

Applications of Neural Networks EANN 2013, Series

Volume 38, pp 273-281, Springer.

Leung, K., Cheong, F., Cheong, C.2007. Generating

compact classifier systems using a simple artificial

immune system. IEEE Transactions on Systems Man

and Cybernetics Part B-Cybernetics 37(5), 1344–1356

(2007)

J. H. Ang, K. C. Tan, A. A. Mamum, 2010. An

evolutionary memetic algorithm for rule extraction,

Expert Systems with Applications 37 (2010) 1302–

1315

Jerne, N.K., 1974, Towards a Network Theory Of

Immune System. Annales D Immunologie,.C125(1-2):

p. 373-389.

Uwe Aickelin, Dipankar Dasgupta, Feng Gu,2014.

Artificial Immune Systems, Search Methodologies,

Springer Science+Business Media New York, pp 187-

211,

De Castro, L. N.; Von Zuben, F. J,2002.Learning and

Optimization Using the Clonal Selection Principle.

IEEE Transactions on Evolutionary Computation,

Special Issue on Artificial Immune Systems (IEEE) ,

2002. 6. (3): 239–251.

M. Heath, K. W. Bowyer, D. Kopans, et al. 2002. The

Digital Database for Screening Mammography,

presented at 5th International Workshop on Digital

Mammography Toronto, Canada, 2000.

Imene Cheikhrouhou Kachouri, 2012, Description et

classification des masses mammaires pour le

diagnostic du cancer du sein, Ph.D. Thesis. Uiversity

of Evry Val d’Essone: France.

ECTA2014-InternationalConferenceonEvolutionaryComputationTheoryandApplications

250
