Modularization Compass

Navigating the White Waters of Feature-Oriented Modularity

Andrzej Olszak and Bo Nørregaard Jørgensen

The Maersk Mc-Kinney Moller Institute, University of Southern Denmark, Odense, Denmark

Keywords: Software Evolution, Measurement, Modularity, Features.

Abstract: Successful software systems have to adapt to the evolving needs of their users. However, adding and

extending functional features often becomes more difficult over time due to aggregated complexity and

eroded modularity. This erosion can be quantified by measuring scattering and tangling of feature

implementations in the source code, to track long-term regressions and to plan refactorings. This paper

argues that the traditional usage of only the absolute values of modularity metrics is, however, insufficient

and proposes to use their relative values instead. These relative values are referred to as the drift of feature-

oriented modularity, and are defined as the distance between the actual metric values for a given source

code and their values achievable for the source code’s ideally modularized counterpart. The proposed

approach, called modularization compass, computes the modularity drift by optimizing the feature-oriented

modularization of source code based on traceability links between features and source code. The optimized

modularizations are created automatically by transforming the groupings of classes into packages, which is

guided by a multi-objective grouping genetic algorithm. The proposed approach was evaluated by

application to long-term release histories of three open-source Java applications.

1 INTRODUCTION

Incorporating changes requested by the users during

software evolution is non-trivial, because it requires

a deep understanding of the relations between the

software’s problem domain and its solution domain

(Turner et al., 1999). Doing so is difficult because

the problem domain is centered around user-

observable units of functionality, the so-called

features (Turner et al., 1999)(Tarr et al., 1999),

whereas the solution domain is arranged around

source-code units such as modules, packages,

classes, methods and instructions. Hence, during

modification of a feature in response to a particular

change requested by users, it is important to be able

to efficiently map the feature to the concrete source-

code units that need to be inspected, modified and

tested. Furthermore, in order to aid software

inspection and modification, one needs to properly

modularize the implementations of features into

source-code modules (Parnas, 1972).

Unfortunately, it is common that

implementations of features are not explicitly

represented in the organizations of software into

source-code modules. Instead, the organization of

software traditionally focuses on separating

technical concerns such as model, view, controller

or persistence into separate architectural layers each

represented by one or more source-code modules.

As a result, the implementations of features become

scattered over multiple source-code modules and

tangled with one another, as each feature typically

crosscut multiple architectural layers. These

relations between feature specifications and source-

code modules affect software evolution in several

ways:

 Scattering denotes the delocalization of the

implementation of a feature over several

source-code units of an application (Turner et

al., 1999) and corresponds to the software

comprehension phenomenon of delocalized

plans (Letovsky and Soloway, 1986). The

presence of delocalized plans is known to make

it difficult to identify the relevant source-code

units during change tasks (Letovsky and

Soloway, 1986)(Eaddy et al., 2008).

 Tangling of features denotes the interleaving of

the implementation of multiple features within a

single module of source code (Rugaber et al.,

1995). Such interleaving is known to make it

difficult to understand how multiple features

Olszak A. and Nørregaard Jørgensen B..

Modularization Compass - Navigating the White Waters of Feature-Oriented Modularity.

DOI: 10.5220/0005092800480059

In Proceedings of the 9th International Conference on Software Engineering and Applications (ICSOFT-EA-2014), pages 48-59

ISBN: 978-989-758-036-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

relate and how they reuse fragments of each

others’ implementations (Benestad et al., 2009).

Apart from software comprehension, the

representation gap between features and source-code

modules makes it more difficult to modify source

code. Due to scattering, modification of one feature

may require understanding and modification of

several seemingly unrelated source-code modules.

Due to tangling, a modification intended to affect

only one feature may cause accidental change

propagation to other features that happen to use the

source-code module being modified.

Due to the evolutionary implications of

scattering and tangling, it is important to keep track

of the development of their values over subsequent

evolutionary releases of software. The erosion of

feature-oriented modularity, as indicated by

increasing scattering and tangling, has to be

observed to provide feedback on the extent of the

development overhead that they may incur.

Ultimately, such knowledge can be used to inform

planning of feature-oriented remodularization

efforts.

This paper proposes an approach called

modularization compass that quantifies the so-called

drift of feature-oriented modularity in software. We

define the drift in feature-oriented modularity as the

distance between the scattering and tangling metric

values for the actual source code of a software

release and counterpart that is ideally modularized

with respect to the metrics of interest. The idealized

counterparts are created through a remodularization

process that optimizes the grouping of classes into

packages according to feature-oriented criteria using

a multi-objective grouping genetic algorithm. To

compute the values of scattering and tangling, the

approach assumes availability of traceability links

between features and source-code units, as

obtainable from several existing feature-location

approaches. Based on the measurements of

scattering and tangling drifts, the modularization

compass approach provides so-called compass views

that depict the evolution of drift of feature-oriented

modularity over an application’s lifetime.

This approach was implemented for the Java

programming language and evaluated using long-

term release histories of three open-source Java

applications. There, the drift information from the

modularization compass views was used to identify

the development periods in which the potential

benefits from restructuring the code would have

been largest, and to determine whether this

restructuring effort should have focused on reducing

the scattering or the tangling of features. Apart from

demonstrating the approach, a number of

observations were made regarding the nature of drift

of feature-oriented modularity.

The remaining part of the paper is structured as

follows. Section 2 describes the state of the art of

feature-oriented modularity. Section 3 presents the

modularization compass approach. Section 4

evaluates the approach. Finally, Section 5 concludes

the paper.

2 STATE OF THE ART

There exist several works that investigate evolution

of features and the modularity of their

implementations over time.

Hsi and Potts (Hsi and Potts, 2000) proposed to

use three views: morphological view, functional

view and object view to study the co-evolution of

the representation of features in the UI, their textual

specifications and their implementation in three

releases of Microsoft’s Word text processor. The

presented qualitative analysis shows that the features

providing the core functionality experience little

change and tend to stabilize over time. This is

because they tend to become more entangled with

associations as new features are added. As a result,

newer features are observed to be added on the

periphery of the main functionality of the

application in either small extensions or larger

clumps.

Fischer and Gall (Fischer and Gall, 2004)

designed a visualization of feature co-evolution

based on the logical coupling between source files

created during adoption of change requests. This

approach is used to uncover hidden dependencies

among features and thereby to identify potential

occurrences of architectural deterioration in

directory structures of programs. The authors apply

their approach to a four-year revision history of the

Mozilla web browser to uncover unanticipated

dependencies and co-evolution of features.

Hou and Wang (Hou and Wang, 2009) analyzed

the evolution of features related to usability in the

Eclipse IDE. This was done by both qualitative and

quantitative manual analyses of the change logs of

the project. The authors identify the majority of the

changes as gradual refinements or incremental

additions well accommodated by the project’s

architecture. The authors observe the usability-

related features to be the largest component of work

in the project, with a shift over time towards

focusing on features concerned with integration of

other features and their automation. The observed

ModularizationCompass-NavigatingtheWhiteWatersofFeature-OrientedModularity

incremental, rather than punctuated, growth of

features of Eclipse is believed to be enabled by the

stability of the architecture.

Greevy et al. (Greevy et al., 2005) focused on

qualitative assessment and visualization of

evolutionary changes in implementations of

features. Using the proposed visualization, the

authors are able to reason about functional

specialization of classes over time, extension of

existing features with new classes and refactorings

performed to features. The presented results depict

an increase of feature count and addition of feature-

specific classes over time.

In an earlier work, Olszak and Jørgensen (Olszak

and Jørgensen, 2012) developed an approach to bi-

directional remodularization of existing Java

applications to improve the modularization of

features in source code. There, feature location was

performed using an annotation-driven dynamic

analysis mechanism, and new feature-oriented

package structures were created automatically using

a multi-objective genetic algorithm aiming at

reducing scattering, tangling, coupling and

increasing cohesion. The observed improvements

suggested that the modularizations produced by this

approach to be good starting points when migrating

applications to feature-oriented designs.

3 THE APPROACH

Implementing a feature inherently requires a mixture

of technically diverse classes. In particular, each

non-trivial feature encompasses some forms of (1)

interfacing classes, which allow users to activate the

feature and see the results of its execution, (2) logic

and domain model classes, which contain the

essential processing algorithms, and (3) persistence

classes, which allow for storing and loading the

results of the feature’s execution. Hence, features

can be viewed as implicit vertical slices that crosscut

the common horizontal layers of an application’s

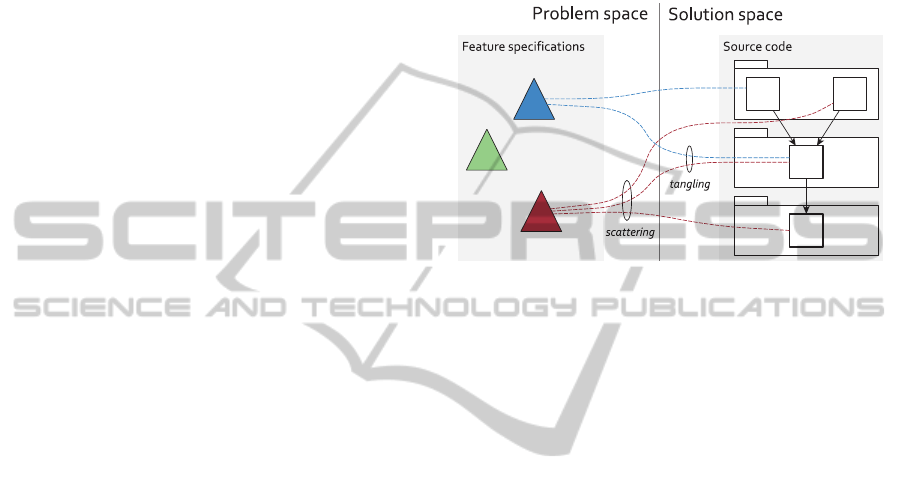

architecture. These implicit slices consist of graphs

of collaborating classes that end up scattered and

tangled within individual layers (Van Den Berg et

al., 2006). This is depicted in Figure 1.

Our approach quantifies these two facets of

modularity of features using the following measures,

based on formulations proposed by Brcina and

Riebisch (Brcina and Riebisch, 2008):

 Scattering of a feature is quantified as the

number of packages that contribute to

implementing that feature. The average of these

values computed for all features in a system is

referred to as FSCA. The formulation of FSCA

is described in detail in Section 4.3.

 Tangling of a package is quantified as the

number of features that the package contributes

to. The average of these values computed for all

packages in a system is referred to as FTANG.

The formulation of FTANG is described in

detail in Section 4.3.

Figure 1: Relations between feature specifications and

units of source code.

The extent to which scattering and tangling of

features is minimized is a measure of how well

features are modularized within source-code units.

We refer to this as the degree of feature-oriented

modularity of software.

In order to measure feature-oriented complexity

of evolving features in terms of scattering and

tangling, relations between the source-code units

and individual features have to be identified. The

process of identifying the relations between source-

code units and observable functionality of a system

is known as feature location (Wilde et al., 1992).

This work assumes that traceability links are readily

available or are recovered for an application using

one of the feature-location approaches available in

the literature. In particular, for the evaluation

purposes, Section 4 uses an existing feature-location

approach based on source-code annotation and

dynamic analysis.

3.1 Evolution of Feature-Oriented

Modularity

The essence of how features of software applications

evolve is well expressed by the laws of continuing

growth and the law of increasing complexity

formulated by Lehman (Lehman, 1980). According

to the first, software applications need to expand and

enhance their features over time in order to remain

useful to their users. The second postulates that

these expansions will lead to increasing complexity

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

of the source code, unless work is done to reduce it.

One of the facets of the increasing complexity is the

increasing complexity of how features are

modularized in source code, as will be exemplified

in the following.

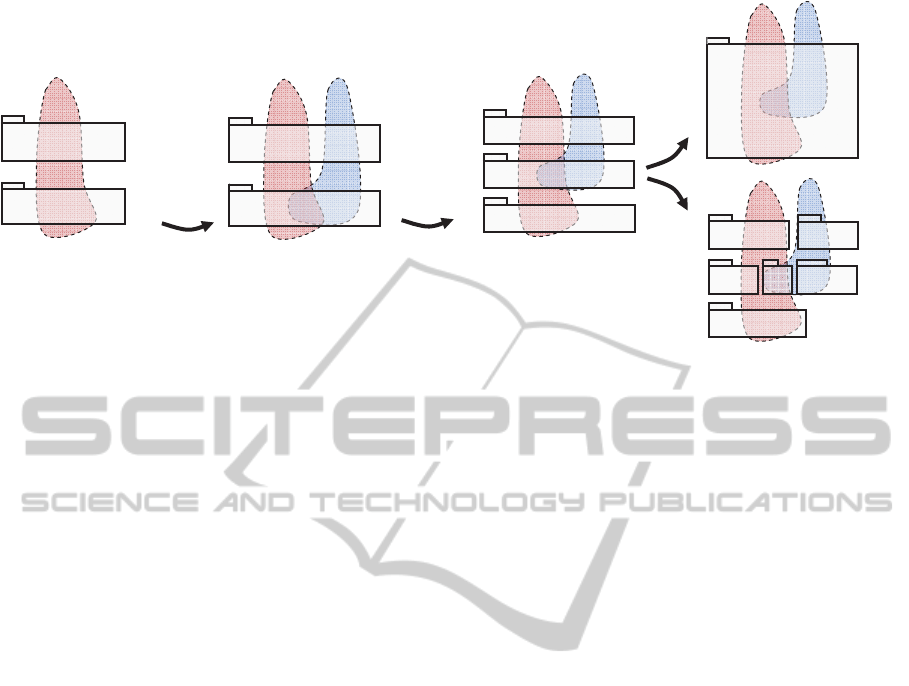

The example application schematically depicted

in Figure 2 initially provides only one feature that is

implemented by two layered modules. Hence, the

initial average tangling FTANG in the application

equals 1 (initially each module implements one

feature), and the initial average scattering FSCA

equals 2 (the feature is implemented by two

modules).

The first change scenario depicts the effects of

adding a new feature to the application without

modifying the structure of the source code. Such a

functional extension will naturally tend to increase

the tangling of the application’s modules, as a result

of reusing parts of existing code among features.

The second scenario shows the effects of

enhancing one of the existing features. Because the

enhancement is implemented as a new module in the

application (a realistic example of doing so would

be adding persistence capabilities), the scattering of

the feature increases.

Thereafter, depicted are two possible contrasting

scenarios of source-code restructurings undertaken

to improve modularization of features. One of them

is based on the merging of existing modules to

minimize the scattering of features. As can be seen,

this causes features to be more tangled with one

another. The other restructuring reduces feature

tangling by dividing existing modules along the

boundaries of features. As a side effect, the

scattering of features increases.

Based on this simple example, two important

observations can be made:

Addition and enhancement of user functionality

will tend to increase the tangling and scattering of

features. Accordingly, the difficulties of code

comprehension and change propagation associated

with these phenomena should be expected to

increase as well.

Restructuring the source code to minimize only

one of the two properties of feature-oriented

modularity (i.e. scattering or tangling) will tend to

degrade the other property. Hence, in order to

achieve a simultaneous optimization of both these

conflicting criteria, a middle-ground restructuring

needs to be devised. As for the presented toy

example, this could be done by simply enumerating

all possible modularizations, but it would certainly

not be feasible for larger systems, since the number

of all possible distributions of N classes among M

modules is equal to M

3.2 The Drift of Modularity

There are multiple factors that have to be considered

when planning a feature-oriented restructuring of an

application. Fundamentally, undertaking a

restructuring is only worthwhile if the costs of doing

so are regained by lower development costs for

subsequent releases. The costs of a restructuring

include factors such as the actual effort required, the

impact on time-to-market of the product, changes to

design documentation, etc. On the benefits side, one

should expect improvements of changeability and

understandability of feature implementations during

subsequent releases and hence a reduction of

development costs. Unfortunately, estimating these

eature a

add feature

enhance feature

FTANG: 2→5/3

FSCA: 2→5/2

eature a

eature b

FTANG: 1→2

FSCA: 2→2

eature a

eature b

eature a

eature b

separate

features

FTANG: 5/3→7/6

FSCA: 5/2→7/2

localize

features

FTANG: 5/3→2

FSCA: 5/2→1

eature a

eature b

ure 2: Exam

le im

act of evolutionar

chan

es on feature-oriented modularit

ModularizationCompass-NavigatingtheWhiteWatersofFeature-OrientedModularity

benefits remains difficult without knowing how

much the modularization of features can actually be

improved by means of restructuring.

Hence, to make informed feature-oriented

restructuring decisions, one should be able to

foresee the consequences of performing a feature-

oriented restructuring. In practice, this boils down to

being able to foresee how much the current values of

feature scattering and tangling can be reduced in

course of restructurings.

Unfortunately, the achievable benefits of

restructurings cannot be estimated by simply

computing the distance between the current values

of scattering and tangling metrics and their

numerical minima. This is because the numerical

minima of these and other metrics often do not

correspond to realistic optimal modularizations of

non-trivial applications, e.g. tangling equal to 1

requires no code sharing among features; scattering

equal to 1 requires each feature to be fully contained

in a single module; coupling equal to 0 requires no

dependencies among modules, etc. The situation is

further complicated by the presence and the type of

normalization factors embedded in each metric.

In order to identify the maximum possible

improvements of feature-oriented modularization, it

is therefore necessary to actually construct its

optimized modularization, on which the reference

scattering and tangling values can be measured.

Assuming that doing so is possible with sufficient

accuracy and in an automated manner (which

assumption will be expanded on in the next section),

it would be possible to calculate the distance

between the current values of scattering and tangling

and their optimized values achievable, if the

application is restructured according to feature-

oriented criteria.

Based on this, we define the drift of feature-

oriented modularity in an application as the

distances between the absolute and the optimal

values of the scattering, measured here using FSCA,

and of tangling, measured here using FTANG.

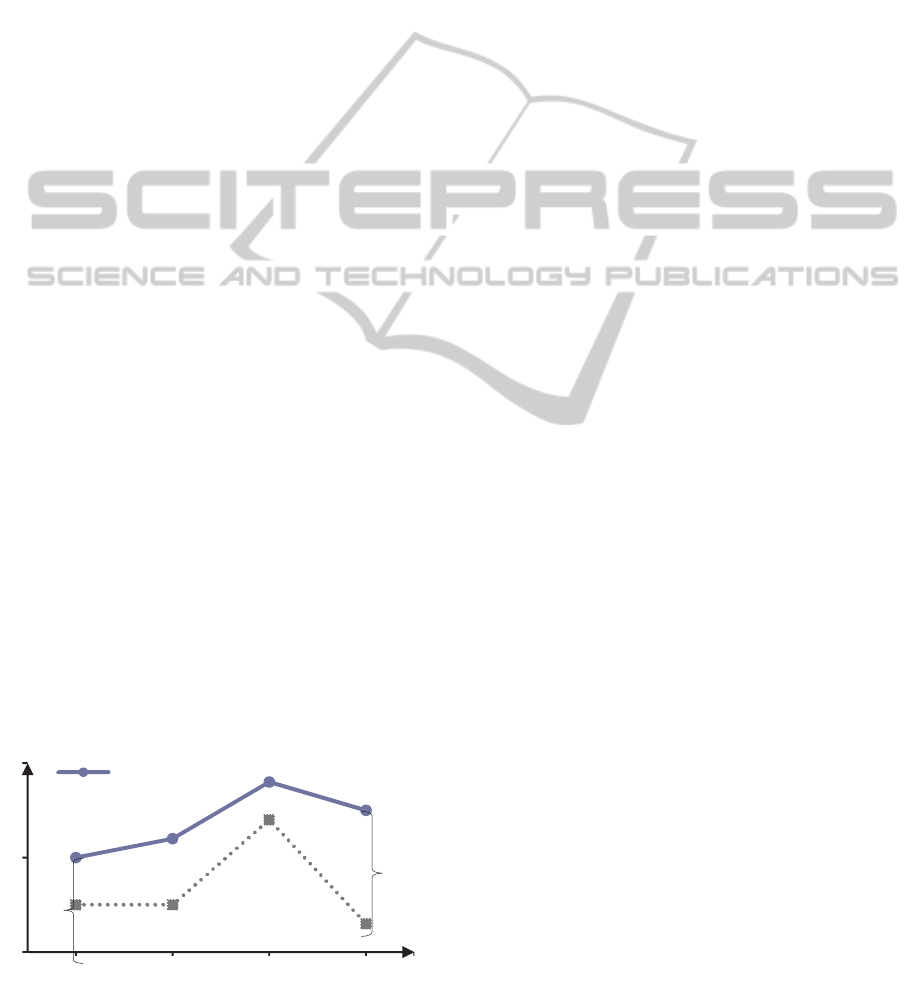

Figure 3: Relativity of metric drift.

As schematically depicted in Figure 3, the drift

of feature-oriented modularity can be plotted over

time for a given application to serve as a

metaphorical compass that indicates how much the

modularization of features diverges from the

optimum with each subsequent release. Observing

the drift trends can be used in several ways by

developers to determine the need for initiating

feature-oriented restructurings of the next releases of

their applications.

The compass views of scattering and tangling

drifts can be used to identify periods in which

restructuring efforts would be most beneficial.

Types of such periods include the ones in which the

drift constitutes a large portion of the absolute

metric value. An example of such a period is the

release r4 in Figure 3, where there is a large

potential for reducing the absolute metric value by

improving modularization of features. Moreover, in

the release r4 the drift increased significantly with

relation to the previous release, and therefore

restructuring could be considered in r4 to prevent

further divergence of the application’s

modularization from the optimum in the next

release.

Furthermore, by contrasting the drift plots for

scattering and tangling, one can determine the

character of restructuring most needed at a given

point in time. For instance, large drift of scattering

indicates a need for improving localization of

individual features within modules, which may

require reducing the overall number of modules. In

contrast, large drift of tangling indicates a need for

improving separation of features within modules,

which may require increasing the overall number of

modules.

3.3 Calculating Drift using

Optimization

As demonstrated by Murphy et al. (Murphy et al.,

2001), there exist tradeoffs between the known

approaches to improving modularization of features.

Firstly, Murphy et al. found pure class-based

refactorings to have a limited potential for

separating tangled features. In contrast, approaches

based on AspectJ and Hyper/J were found to have a

better separation potential, but also more difficult to

apply and making some of the resulting isolated

code fragments difficult to understand. In addition, it

was demonstrated that aspect-oriented techniques

are sensitive to the order of composition, which

resulted in coupling of features to one another.

r1 r2 r3 r4

Metricvalue

Release

Actual

modularization

Absolute

metric value

Drift as the distance to the

optimized modularization

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

Given the known technical characteristics and

automation potentials of the existing methods for

separating features, the modularization compass

approach is based on regrouping classes in terms of

packages to reduce scattering and tangling of

features. While this purely class-based approach has

limits to the level of feature separation that it can

achieve, it has the important property from the point

of view of this work that it allows for complete

automation of searching for desired feature-oriented

package structures and subsequently establishing

them in source code by using refactorings.

In order to calculate the drift of feature-oriented

modularity, the modularization compass approach

uses the so-called feature-oriented remodularization.

Feature-oriented remodularization is the process of

multi-objective optimization of the distribution of

classes among packages, which aims at identifying

Pareto-optimal package structures that minimize

both scattering FSCA and tangling FTANG metrics

(Olszak and Jørgensen, 2012).

In addition, this formulation encompasses two

traditional object-oriented objectives that govern the

inter- and intra-module dependencies among class,

i.e. the objectives of maximizing cohesion in

packages and minimizing coupling among packages.

Formalized definitions of the four metrics used as

evaluation criteria for the mentioned optimization

objectives are listed in Figure 4. There, the set of all

features in an application is denotes as F, the set of

all packages that contribute to at least one feature as

, and the set of all types as T.











∑

|

∈



:⇝

|



∈



→min















∑

|

∈:⇝

|





∈



→min













∑





,



∈

⇒



, 

,  

∑∑





,

∪

,



∈

⇒

∈

⇒

∑∑





,

∪

,



∈

⇒

∈

⇒



→max













∑





, 



∈

⇒

, 





, 





∑∑



,

∪

,



∈

⇏

∈

⇒

→min



Figure 4: Objectives for optimizing modularity of features.

The definitions of FSCA and FTANG

correspond to the ones mentioned earlier and are

simplified versions of the metrics proposed by

Brcina and Riebisch (Brcina and Riebisch, 2008)

that are defined based on the ⇝ (i.e. “implemented

by”) relation between features and packages. The

reformulation made in this work removes the

additional normalization factors and makes the

metrics correspond directly to the numbers of

features tangled in a package, and packages that a

feature is scattered over. Doing so allows for easier

interpretation of the metric values, and is possible

due to the modularity drift calculation being

independent of metric normalization, as discussed

earlier.

The cohesion metric PCOH is the package-level

version of the RCI metric based on data-data (DD)

and data-method (DM) relations proposed by Briand

et al (Briand et al., 1998). In its essence, this metric

computes for the set of packages P the average

quotient of the actual number of intra-package static

dependencies among classes and the maximum

possible number of such dependencies. In turn, the

package coupling metric PCOUP corresponds to a

sum of the ACAIC, OCAIC, ACMIC, and OCMIC

coupling measures, as defined by the same authors

in (Briand et al., 1999), and thereby constitutes the

sum of all inter-package static dependencies in an

application.

The actual process of optimizing the

application’s modularity with respect to all the

metrics is performed using a tailored formulation of

a genetic algorithm that we refer to as multi-

objective grouping genetic algorithm (MOGGA)

(Olszak and Jørgensen, 2012). The multi-objectivity

is achieved by exploiting the notion of Pareto-

optimality, whose efficiency in optimizing

modularization of software systems according to

multiple conflicting criteria was demonstrated by

Harman and Tratt (Harman and Tratt, 2007). The

grouping nature of the problem is exploited by using

a set of tailored genetic operators based on the work

of Seng et al. (Seng et al., 2005), who demonstrated

their significant effect on improving the efficiency

of traversing the search space of alternative

modularizations. Hereby, MOGGA constitutes a

composition of these two well-established

approaches that is aims at leveraging their respective

advantages.

In its essence, MOGGA evolves a population of

individuals by means of selection, reproduction and

mutation driven by the score of the individuals with

respect to a fitness function. Each individual

represents a particular distribution of classes among

packages, expressed by an array of integers. Within

this array, classes are represented by indexes in the

arrays, and their assignment to packages is

represented by the values of the corresponding array

cells.

ModularizationCompass-NavigatingtheWhiteWatersofFeature-OrientedModularity

MOGGA adapts two genetic operators that

exploit the grouping-based nature of the

remodularization problem. First, the crossover

operator that forms two children from two parents is

made to preserve packages as the building blocks of

modularizations. Secondly, a mutation operator is

defined to randomly perform one of three actions:

merge two packages with the smallest number of

classes, split the largest package into two packages,

and adopt an orphan class (Tzerpos and Holt, 2000)

being alone in a package into another package.

Evaluation of the fitness of the individual

modularization alternatives is done by computing

the four metrics of FSCA, FTANG, PCOH and

PCOUP. In order to appropriately represent the

regions of the four-dimensional search space that the

individual modularizations in the population occupy,

MOGGA adopts the concept of Pareto-optimality.

Hence, the fitness of each individual becomes a

tuple consisting of four independent metric values.

Such a multi-modal fitness is used for comparing

individuals based on the Pareto-dominance relation,

which states that one out of two individuals is better

than the other individual, if all of its fitness values

are not worse, and at least one of the values is better.

Thereby, it becomes possible to partially order

individuals and to determine the set of non-

dominated individuals in a population, i.e. the so-

called Pareto-front.

Starting with an initial population consisting of

98% randomized individuals and 2% of the

individuals from the original modularization, a

predefined number of evolutionary iterations are

executed. Then the last Pareto-front is used to select

a single individual being the optimization result.

This is done by ranking the individuals in the

obtained four-dimensional Pareto-front with respect

to each metric separately, and then choosing the

individual that is ranked best on average. Please note

that while this method is used here, existing

literature defines a range of diverse methods for

choosing a single solution out of a Pareto-front.

4 EVALUATION

We have implemented the presented

remodularization approach as part of the freely

available Featureous tool for feature-oriented

analysis of Java software (Featureous). The code

transformations required for establishing the source-

code modularizations were implemented using the

Recoder code transformation library (Recoder).

Furthermore, as will be discussed later, this

evaluation relies on a dynamic feature-location

approach provided by Featureous.

The goal of the study presented in this section is

formulated as follows:

To evaluate whether drift-based metrics bring

new insights into the evolution of feature-oriented

modularity of applications, as compared to using

their absolutes values.

This is done by applying the approach to long-

term release histories of three open-source Java

applications that were chosen based on their size,

maturity and availability of the historical revisions.

The used applications are: RText – a text editor for

programmers (17 releases spanning, 3 years)

(RText), FreeMind – a mind-mapping tool (13

releases, 5 years) (FreeMind) and JHotDraw Pert –

a diagramming application being a showcase for the

JHotDraw framework (11 releases, 8 years)

(JHotDraw).

4.1 Results of Feature Location

While the modularization compass approach does

not impose any constraint on the feature-location

approach to be used, we have chosen to use the

dynamic feature-location approach provided by the

Featureous tool. This feature-location approach

identifies code units involved in implementing

individual features by tracing the execution of an

instrumented program during its interaction with a

user. The tracing agent used for this purpose is

guided by annotations that have to be placed by a

programmer at appropriate starting methods of each

feature. Apart from the use of annotations and user-

driven feature triggering, this approach remains

analogous to other dynamic approaches, such as

software reconnaissance (Wilde et al., 1992). An

extensive discussion of the conceptual and technical

details of the used feature-location approach can be

found in (Olszak and Jørgensen, 2012).

The part of the feature-location process that was

most sensitive to human interpretation was the

recovery of feature specifications for each release of

the three investigated applications. We have

performed this recovery by inspecting the available

user documentation and by listing the functionality

exposed in the user interfaces of the applications.

Table 1 lists the identified features and the release in

which they were added to the systems, if they were

added during the investigated periods.

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

Table 1: Investigated releases and their identified features.

Application

releases

Identified features

RText

Releases:

0.8.0; 0.8.1;

0.8.2; 0.8.3;

0.8.4; 0.8.5;

0.8.6; 0.8.7;

0.8.8; 0.8.9;

0.9.0; 0.9.2;

0.9.3; 0.9.4;

095 097 098

Display text, Document properties (0.9.0), Edit

basic, Edit text, Exit program, Export document

(0.8.7), Init program, Modify options,

Customize text (0.9.0), Multiple documents,

Navigate text, New document, Open document,

Playback macro (0.9.0), Print document, Record

macro, Save document, Show documentation,

Source browser (added in 0.8.8 and removed in

0.9.0), Undo redo, Plugins (0.9.0)

FreeMind

Releases:

0.0.2; 0.0.3;

0.1.0; 0.2.0;

0.3.0; 0.3.1;

0.4.0; 0.5.0;

0.6.0; 0.6.1;

0.6.5; 0.6.7;

071

Browse mode (0.3.0), Cloud node (0.7.1),

Display map, Show documentation (0.2.0), Edit

basic, Edit map, Evaluate (0.3.0), Exit program,

Export map (0.5.0), File mode (0.1.0), Icons

(0.6.7), Import/export branch (0.2.0), Init

program, Link node (0.0.3), Modify edge,

Modify node, Multiple maps (0.0.3), Multiple

modes (0.1.0), Navigate map, New map, Open

map, Print map (0.03), Save map, Zoom

JHotDraw

Pert

Releases: 5.2;

5.3; 5.4b1; 6.0b1;

7.0.7; 7.0.8;

7.0.9; 7.1; 7.2;

7.3; 7.3.1

Align, Dependency tool, Edit basic, Edit figure,

Exit program, Export drawing (7.0.7), Group

figures, Init program, Line tool (removed in

6.0b1), Modify figure, Multiple windows

(7.0.7), New drawing, Open drawing, Order

figures, Save as drawing, Selection tool, Snap to

grid, Task tool, Text tool, Undo redo (5.3),

Zoom(707)

4.2 Results of Feature Drift

Measurement

In this evaluation, the drift of feature-oriented

modularity was calculated by executing MOGGA on

each release of the three applications. Based on

observations from a series of pilot executions of the

MOGGA on the target applications, we arrived at

the following configuration of the algorithm that

reduces the overall execution times while preserving

high optimization level of the resulting

modularizations. MOGGA was executed for a

population of 300 individuals for 500 evolutionary

iterations with mutation probability of 5%. This

configuration of the algorithm was applied to each

release ten times to reduce the impact of non-

determinism of genetic computation. The best of the

solutions found was used as the final result for each

release. It is worth mentioning that while this

configuration of MOGGA was observed to produce

Pareto-optimal solutions in acceptable timeframes

for all the investigated releases (i.e. in the order of

magnitude of days), further adjustments to the

algorithm parameters could lead to reducing these

times even further.

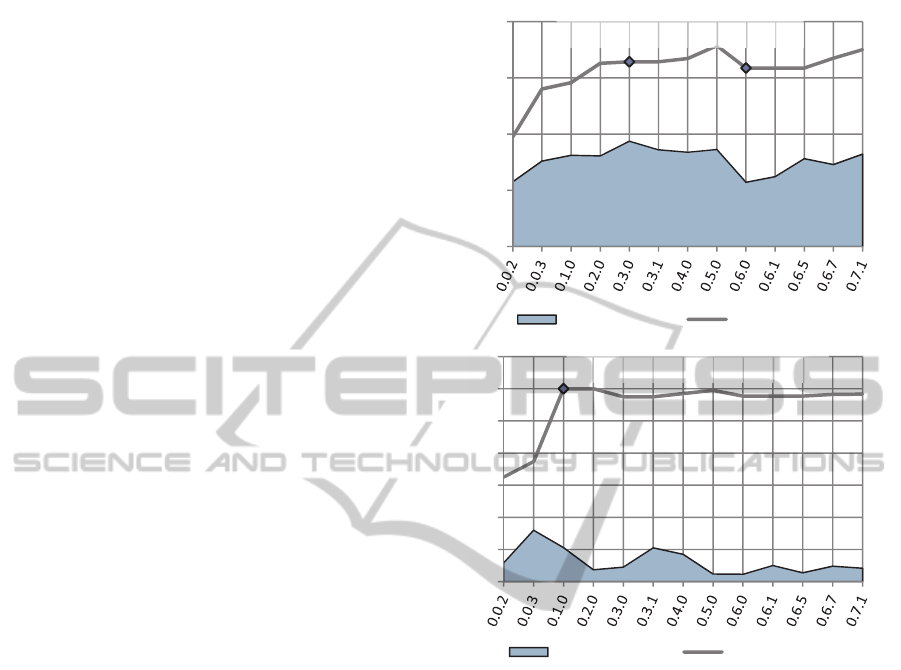

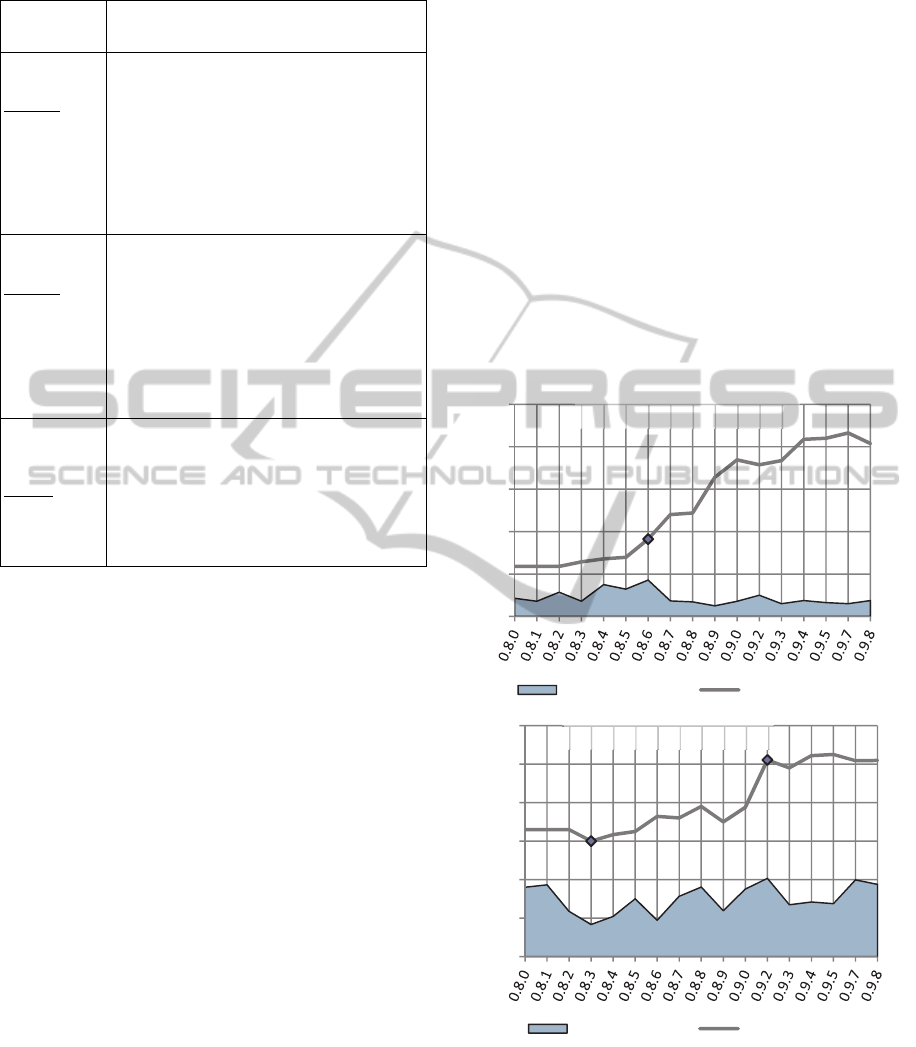

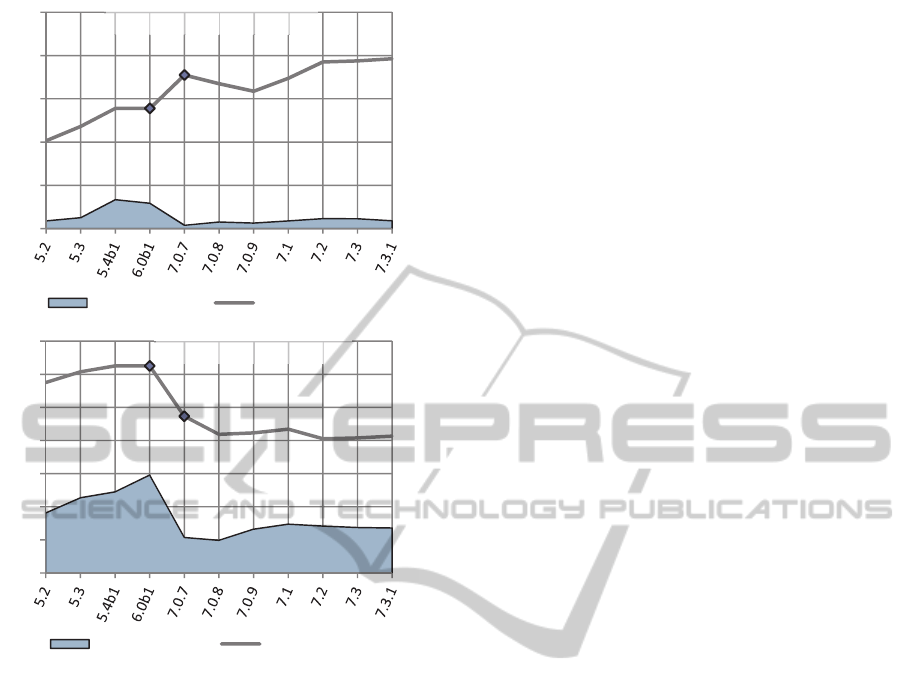

The results of measuring the drift of feature-

oriented modularity using MOGGA are presented in

the form of compass views in Figure 5 for RText, in

Figure 6 for FreeMind, and in Figure 7 for

JHotDraw Pert. For each application, two plots are

shown – one for evolution of scattering and one for

evolution of tangling. In the plots, the absolute

metric values are displayed as a line, whereas the

calculated drift is displayed as an area at the bottom

of the plots. This is aimed at simplifying the

observation of development and relation of the drift

to the absolute metric value.

The scattering drift plot for RText, shown in

Figure 5, can be divided into two distinct periods.

The first period, ranging from the release 0.8.0 to

the 0.8.6, is a period of overall growth of the

scattering drift. Despite of minor reductions

observed in a few intermediate releases (i.e., 0.8.1,

0.8.3 and 0.8.5), the drift value doubled in this first

period.

Figure 5: Drift measurements for releases of RText.

This was also the period, in which the drift

increased together with the absolute scattering and

constituted on average 42% of the scattering’s value.

During the second period, between the releases 0.8.6

and 0.9.8, the drift was initially decreased, and

FSCA

Release

ScatteringdriftofRText

Driftofscattering Absolutescattering

FTANG

Release

TanglingdriftofRText

Driftoftangling Absolutetangling

ModularizationCompass-NavigatingtheWhiteWatersofFeature-OrientedModularity

thereafter maintained a relatively constant level.

Interestingly, this was achieved despite of an over

twofold increase in the absolute scattering of the

application. This indicates that the modularization

decisions of the developers with regard to confining

features to a small number of packages were close to

optimum in this period.

The tangling drift plot for RText, shown in

Figure 5, contains three interesting periods. Firstly,

the period between the releases 0.8.0 and 0.8.3 is the

period of sharp decreases of drift and absolute

tangling and a decrease of the relative contribution

of drift to the absolute tangling value. Secondly,

between the releases 0.8.3 and 0.9.2, both the drift

and the absolute tangling were increasing at a

similar rate. Despite the overall growth, the drift

appears here to be periodically reduced by the

developers. Lastly, in the period 0.9.2 to 0.9.8 both

the drift and the absolute tangling remain fairly

constant. It is also this period, where the relative

contribution of the drift is the lowest. However, it

remains significantly higher than the relative

contribution observed earlier of the scattering drift.

Together, this data indicates that the features of

RText were better localized than separated from one

another in terms of packages.

The scattering drift plot for FreeMind, shown in

Figure 6, depicts several oscillations of the

scattering drift over time. Initially, the oscillations

are stronger but they eventually weaken over time.

In comparison, the value of the absolute scattering

of the application increases sharply between the

releases 0.0.2 and 0.1.0, and thereafter remains

approximately constant over the next 10 releases.

This suggests that the application structure

established at release 0.1.0 served well for the

purpose of adding new features and extending the

existing ones in a localized fashion.

The tangling drift plot for FreeMind, shown in

Figure 6, can be divided into three periods: the

period of increasing drift and increasing absolute

tangling (0.0.2 – 0.3.0), the period of decreasing

drift and stabilized absolute tangling (0.3.0 – 0.6.0),

and the period of continued growth in both the drift

and the absolute tangling. It can be seen that the

overall changes of tangling drift and the absolute

tangling reflect each other over time; only a minor

difference in the growth rates can be observed, i.e. in

the release 0.0.2 the drift constitutes 59% of the

absolute tangling value, whereas in release 0.7.1. it

constitutes 47% of the absolute tangling value. This

high contribution indicates that FreeMind has a

relatively high potential for improving the

separation of features through source code

restructuring.

Figure 6: Drift measurements for releases of FreeMind.

A potential trace of such efforts undertaken by

the FreeMind developers is the transition from the

release 0.5.0 to 0.6.0, where the drift of tangling was

reduced by 34%.

In both the scattering and tangling drift plots for

JHotDraw Pert, shown in Figure 7, it can be seen

that the feature-oriented evolution of the application

underwent a dramatic shift after release 6.0b1. Up

till then, both the drifts and the absolute values of

scattering and tangling were generally increasing.

Starting from the release 7.0.7, these trends have

changed. During the transition from 6.0b1 to 7.0.7,

the drift of scattering was reduced almost

completely, despite an increase in the absolute

scattering, and both the drift and the absolute value

of tangling were decreased significantly. Thereafter,

both scattering and tangling drifts experienced only

very small increases, whereas the absolute scattering

value continued to rise and the absolute tangling

value continued to slightly decrease.

FTANG

Release

TanglingdriftofFreeMind

Driftoftangling Absolutetangling

FSCA

Release

ScatteringdriftofFreeMind

Driftofscattering Absolutescattering

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

Figure 7: Drift measurements for releases of JHotDraw

Pert.

It turns out that these observations find their

reflection in the types of work on the application

that the developers undertook in the period

preceding the 7.0.7 release. The release notes from

that period mention a large-scale architectural

refactoring of the underlying JHotDraw framework.

While it is difficult to tell whether improving the

separation of individual features of Pert was among

the intentions of these refactorings, it certainly

became one of the results. Furthermore, the obtained

reductions for both the drifts and the absolute value

of scattering and tangling have shown to remain

fairly stable after the source code refactoring –

especially if compared to the rapid developments

prior to the refactoring. Interestingly, the absolute

value of tangling began to decrease over a longer

period, which is a behavior unseen in the two other

investigated software applications.

4.3 Discussion

The reported study applied the modularization

compass approach to three real-world Java

applications. The measured drift values were

observed to evolve over the subsequent releases of

the three applications in ways that were not trivially

related to evolution of the absolute metric values.

This indicates that for the study subjects, the drift

measurements add a new type of information about

the evolution of the applications’ modularity over

time.

The obtained drift measurements were used as an

input to formulating a number of hypotheses about

the reasons for the observed changes of the

applications’ feature-oriented modularity over time

and a number of restructuring recommendations.

Overall, in all the investigated applications the

tangling drift constituted a significantly higher

portion of FTANG than the scattering drift did for

FSCA. This suggests that it is the separation of

features from one another, rather than their

confinement in few packages, that should be the

primary restructuring goal for the three investigated

applications. While at this point it is not possible to

judge whether the insufficient separation of features

is a common trait of layered object-oriented

architectures, we see it as a viable hypothesis for

further investigation.

Furthermore, periodical oscillations of the drift

were observed in several cases that were not

observed on the absolute metric values. This initial

observation appears possibly be related to the

observations of Anton and Potts (Antón and Potts,

2003) about the burst-like nature of adding new

features. In a 50-year evolution of a telephone

system, they observed new features to be introduced

in discrete bursts, i.e. they exhibit punctuated rather

than incremental or gradual evolution. These bursts

were typically followed by periods of retrenchment

that merged similar features and phased out older

versions of new features. In our context, burst-like

additions or enhancements of features could have

resulted in rapid increases of drift, which were

thereafter reduced during retrenchment periods.

There are several threats to validity of the

obtained results, as well as several aspects of the

presented study that can be improved in the future.

Firstly, in order to strengthen the internal validity

of the results, a separate systematic exploration of

MOGGA configuration parameters can be

performed to improve the configuration of the

algorithm. Even though care was taken during the

configuration process to obtain a set of parameters

FSCA

Release

ScatteringdriftofPert

Driftofscattering Absolutescattering

FTANG

Release

TanglingdriftofPert

Driftoftangling Absolutetangling

ModularizationCompass-NavigatingtheWhiteWatersofFeature-OrientedModularity

that produces the best observable solutions, it

remains interesting to compare the performance of

different configurations of MOGGA and other

optimization approaches. Performing such a

systematic follow-up comparison, similarly as done

by Mitchell and Mancoridis (Mitchell and

Mancoridis, 2007), would be important to learning

about the characteristics of MOGGA.

Secondly, it is worthwhile to equip the

remodularization approach with method-level

refactorings (e.g. move method, extract method,

etc.), so that drift at the granularity of methods can

also be detected. Nevertheless, such a refinement is

expected to have only a limited impact on the results

presented in this paper, according to an earlier work

of the authors showing that method-level

refactorings only have a minor effect on scattering

and tangling optimization (Olszak and Jørgensen,

2012).

Lastly, while the presented work was motivated

by influence of modularization of features on

evolvability of software, it remains possible to apply

the modularization compass approach to other

characteristics of software design. This can be done

as long as these ‘other characteristics’ are

quantifiable and can be shaped by means of source-

code restructuring. In practice, the presented

approach can be re-purposed by replacing the

metrics that are used to drive the MOGGA.

Guidelines for doing so can be found in the work of

Harman and Clark (Harman and Clark, 2004).

5 CONCLUSION

The ability to change is both a blessing and a burden

to software. On the one hand, it allows systems to

adapt to changing requirements imposed by users.

On the other hand, changing existing source code is

often difficult and the adoption of repetitive changes

tends to erode the original structure of source code.

The work presented in this paper focused on the

drift of feature-oriented modularity during the

evolution of software applications. The proposed

approach called modularization compass measures

this type of drift by comparing the original version

of an application to its automatically remodularized

counterpart. The remodularization process is

performed by using a multi-objective grouping

genetic algorithm that uses metrics of scattering,

tangling, cohesion and coupling as the objectives for

package structure optimization.

The approach was implemented in Java, and

applied to three open-source Java applications. The

obtained compass views showed the significant

differences between the evolution of absolute values

of scattering and tangling and the evolution of their

drifts. Based on the analysis of drifts over

subsequent releases, we were able to identify when

restructuring brings the largest improvement in

feature modularity, and to determine that the

restructuring effort for all three applications should

focus on separating features from one another to

reduce the significant drifts of their tangling.

Finally, the design and the evaluation of the

approach resulted in several promising directions for

future research and provided several preliminary

observations about the general nature of evolution of

software features.

REFERENCES

Recoder, http://recoder.sourceforge.net/

Hou, D. and Wang, Y. 2009. An empirical analysis of the

evolution of user-visible features in an integrated

development environment. In Proceedings of the 2009

Conference of the Center For Advanced Studies on

Collaborative Research, CASCON '09, 122-135.

Antón, A. I. and Potts, C. 2003. Functional Paleontology:

The Evolution of User-Visible System Services. IEEE

Trans. Softw. Eng. 29, 2, 151-166.

Hsi, I. and Potts, C. 2000. Studying the Evolution and

Enhancement of Software Features. ICSM’00: In

Proceedings of the International Conference on

Software Maintenance, pp. 143.

Fischer, M. and Gall, H. 2004. Visualizing feature

evolution of large-scale software based on problem

and modification report data: Research Articles. J.

Softw. Maint. Evol. 16, 6 (Nov. 2004), 385-403.

Greevy, O., Ducasse, S., Girba, T. 2005. Analyzing

feature traces to incorporate the semantics of change

in software evolution analysis. ICSM '05: Proceedings

of the International Conference on Software

Maintenance, pp. 347-356.

Turner, C. R., Fuggetta, A., Lavazza, L. and Wolf, A. L.

1999. A conceptual basis for feature engineering.

Journal of Systems and Software, vol. 49, no. 1, pp.

3-15.

Parnas, D. L. 1972. On the criteria to be used in

decomposing systems into modules. Communications

of the ACM, vol. 15, no. 12, pp. 1053-1058.

Rugaber, S., Stirewalt, K. and Wills, L. M. 1995. The

interleaving problem in program understanding.

WCRE’95: In Proceedings of 2nd Working

Conference on Reverse Engineering, pp. 166-175.

Letovsky, S. and Soloway, E. 1986. Delocalized plans and

program comprehension. IEEE Software, vol. 3, no. 3,

pp. 41-49.

Eaddy, M., Zimmermann, T., Sherwood, K. D., Garg, V.,

Murphy, G. C., Nagappan, N. and Aho, A. V. 2008.

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

Do crosscutting concerns cause defects?. IEEE

Transactions on Software Engineering, 34, 497-515.

Benestad, H. C., Anda, B. and Arisholm, E. 2009.

Understanding cost drivers of software evolution: a

quantitative and qualitative investigation of change

effort in two evolving software systems. Journal of

Empirical Software Engineering, 15(2), 166-203.

Van Den Berg, K., Conejero, J. M. and Hernández, J.

2006. Analysis of crosscutting across software

development phases based on traceability. In EA’06:

Proceedings of the 2006 international workshop on

Early aspects at ICSE, 43–50.

Brcina, R. and Riebisch, M. 2008. Architecting for

evolvability by means of traceability and features. In

23rd International Conference on Automated Software

Engineering - Workshops, pp. 72-81.

RText, http://fifesoft.com/rtext/

FreeMind, http://freemind.sourceforge.net/

JHotDraw, http://www.jhotdraw.org/

Wilde, N., Gomez, J.A., Gust, T., Strasburg, D. 1992.

Locating user functionality in old code. ICSM’92: In

Proceedings of the 1992 International Conference on

Software Maintenance, pp.200-205.

Tarr, P., Osher, H., Harrison, W., Sutton, S. M. 1999. N

Degrees of Separation: Multi-Dimensional Separation

of Concerns. ICSE’99: In Proceedings of the 21st

International Conference on Software Engineering, pp

107-119.

Featureous, http://featureous.org/

Briand, L. C., Daly, J. W. and Wüst, J. 1998. A unified

framework for cohesion measurement in object-

oriented systems. Journal of Empirical Software

Engineering, vol. 3, no. 1, pp. 65-117.

Briand, L. C., Daly, J. W. and Wüst, J. 1999. A unified

framework for coupling measurement in object-

oriented systems. IEEE Transactions on Software

Engineering, vol. 13, no. 2, pp. 115-121.

Seng, O., Bauer, M., Biehl, M. and Pache, G. 2005.

Search-based improvement of subsystem

decompositions. In Proceedings of the 2005

conference on Genetic and evolutionary computation ,

1045-1051.

Olszak, A. and Jørgensen, B. N. 2012. Remodularizing

Java Programs for Improved Locality of Feature

Implementations in Source Code. Science of

Computer Programming, Vol. 77, no. 3, pp. 131-151.

Lehman, M.M. 1980. Programs, life cycles, and laws of

software evolution. Proceedings of the IEEE, 68(9),

1060-1076.

Harman, M. and Tratt, L. 2007. Pareto Optimal Search

Based Refactoring at the Design Level. GECCO’07:

In Proceedings of the 9th annual conference on

Genetic and evolutionary computation, 1106-1113.

Tzerpos, V. and Holt, R. C. 2000. ACDC: An Algorithm

for Comprehension-Driven Clustering. WCRE’00: In

Proceedings of Seventh Working Conference on

Reverse Engineering, 258-267.

Olszak, A. and Jørgensen, B. N. 2012. Modularization of

Legacy Features by Relocation and

Reconceptualization: How Much is Enough?

CSMR’12: In Proceedings of the 16th European

Conference on Software Maintenance and

Reengineering, IEEE Computer Society Press, pp.

171-180.

Harman, M. and Clark, J. 2004. Metrics Are Fitness

Functions Too. METRICS'04: In Proceedings of the

IEEE International Symposium on Software Metrics,

58-69.

Mitchell, B. S., Mancoridis, S. 2007. On the evaluation of

the Bunch search-based software modularization

algorithm. Journal of Soft Computing. 12, 1, 77-93.

Murphy, G. C., Lai, A., Walker, R. J. and Robillard, M. P.

(2001). Separating features in source code: an

exploratory study. In ICSE’01: Proceedings of the

23rd International Conference on Software

Engineering, 275-284.

ModularizationCompass-NavigatingtheWhiteWatersofFeature-OrientedModularity
