Software Reengineering Toolkit with Tangible Interface by Haptics

Makoto Yoshida

, Shinnta Okumura

and Noriyuki Iwane

Department of Information & Computer Engineering, Okayama University of Science, Okayama, Japan

Department of Information & Computer Science Hiroshima City University, Hiroshima, Japan

Keywords: Software Reengineering, Toolkit, Metrics, Haptics, Tangible User Interface.

Abstract: Software reengineering is an important task for software maintenance and improvement. Several metrics are

proposed for evaluating software programs, and the toolkits which evaluate the software using the metrics

are developed. The tool should be easy to understand, easy to modify the programs, enjoyable to use, and

must be effective. We developed the 3D visualized toolkit for software reengineering providing various

tangible user interfaces with haptics. The toolkit decomposes the java source program into small classes,

and integrates them into the harmonized program using haptic device. The decomposed classes can be given

the sound, colour and vibration attributes that can be touched and perceived, and can be merged into another

classes by moving the arm of the haptic device. This paper describes the toolkit which uses the haptic device

for program reorganization providing various tangible user interfaces. Software reengineering methodology

is proposed, and some experiments are performed and the results are presented.

1 INTRODUCTION

Most of the programs are not newly written; they are

reused, and the systems are maintained. The

objective of reengineering is to produce a new

maintainable system with least efforts (Stephen,

2007). The programs must be reorganized, and many

tools are developed (Serge, 2013). Metrics analysis

and visualization help to reorganize the programs

(Serge, 2000; Lanza, 2006). The reorganized

program must have adequate modularity; modules

with high cohesion and low coupling must be

maintained (Kionel, 1999; Fernando, 2000). M.

Lanza, et al, express the metrics of the program by

3D visualization and by the metaphor of cities

(Werrel, 2011; Greevy, 2006). Unharmonized

programs that may have intensive coupling, shotgun

surgery, dispersed coupling, god class, et al (Lanza,

2006), are recognized by visualizing the structure of

the program on metrics.

Looking at the tool interfaces, the user interface

has changed from CUI to GUI, namely from 1D

metrics values to 2D to 3D visualization, and now is

changing from GUI to TUI, the tangible user

interface. The TUI was first proposed by Ishii (Ishii,

1997), and now is used for as the next generation

interface. Ishii tried to operate the computer on

manipulating the virtual objects by touching and

moving the objects, connecting the body movement

with the computer operations (Ishii, 1997).

We developed the software reengineering toolkit

with tangible user interface by using hapatic device.

Two types of user interface: the active user interface

that the user can touch any objects and the passive

user interface that the arm of the haptic device

moves among objects automatically based on the

execution log of the program, are developed. As the

active user interface, the perceptual user interface

which can touch the program modules, which can

hear the sounds of program modules by hitting,

which can feel the vibration of program modules by

executing the program, are supported. As the passive

user interface, the movements of the arm of the

haptic device which follow the execution of the

program modules are supported. The program

modules are visualized as 3D objects like spheres

and cubes; each objects has its tangible attributes

mapped from the program metrics. The program

module structure is reorganized by decomposing and

coupling modules by using the tangible user

interface.

This paper describes the system framework and

the user interface of the toolkit for software

reengineering with some experiments. The

methodology using tangible user interface by haptics

is proposed and examined.

351

Yoshida M., Okumura S. and Iwane N..

Software Reengineering Toolkit with Tangible Interface by Haptics.

DOI: 10.5220/0005095203510356

In Proceedings of the 9th International Conference on Software Engineering and Applications (ICSOFT-EA-2014), pages 351-356

ISBN: 978-989-758-036-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

2 TOOLKIT

Figure 1 shows the haptic device, FALCON, the

physical device which provides the tangible user

interface to the toolkit. Through touching an object

displayed on the screen by the arm (catching Part A

in Figure 1), it can perceive the object. Recognizing

the object perception, it can couple the object putting

one onto another object. It integrates the objects

into one object.

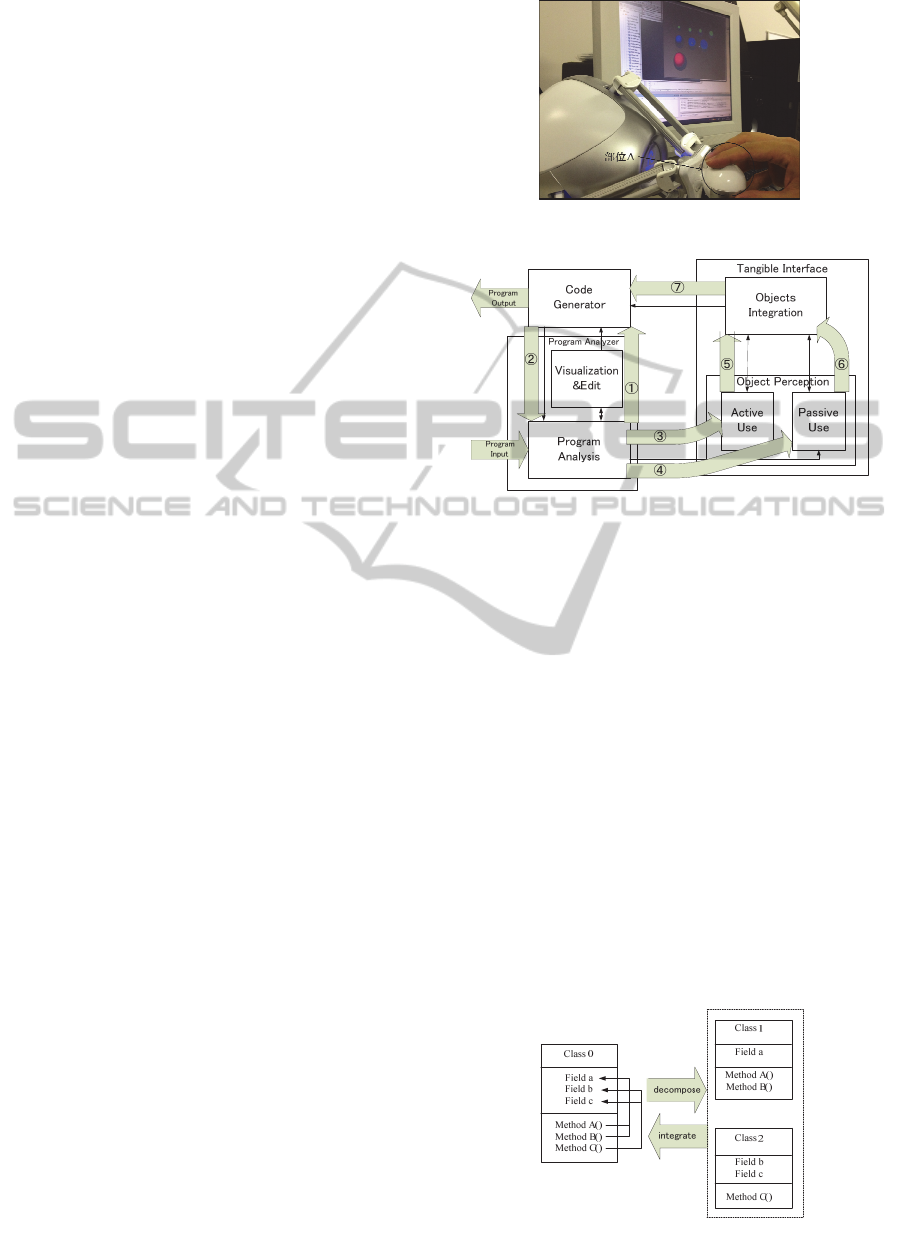

Figure 2 shows the system framework of the

toolkit. It consists of three parts: the program

analysis part, the object perception part, and the

code generation part. The program analysis part

analyses the Java source program, and produces the

metrics of the program. Numbers of classes, lines,

methods, fields, dependency of classes, et al, are

analysed. It can also decompose the program into

smaller components. A class can be decomposed

into more small classes. Decomposed classes are

represented as the objects in the object perception

part given the device attributes mapped from the

metrics analysed. In object perception part, haptic

device shown in Figure 1 is used to manipulate the

object operations. In the code generation part, the

java source code is automatically generated from the

results of object integration operated either in the

object perception part or in the analysis part.

Figure 2 also shows the way that the program is

reengineered using the tangible user interface. There

exists three cycles in Figure 2. The first cycle is

depicted by the arrows ① and ②. This cycle uses

metrics to reorganize the program. In this cycle, the

metrics such as overviewPyramid, complexity,

hotspots and blueprint (Lanza, 2006) can be 2D

visualised, and used to reorganize the program. The

second cycle is depicted by the arrows ③,⑤ and ⑦.

The analyzed metrics are passed to the object

perception part, and those data are mapped to the

attributes of the haptic objects. As the user active

perception using the haptic device, the operations of

coupling and decomposing objects by sound hearing,

looking at the colours and feeling the vibration of

the objects, are provided. The third cycle is depicted

by the arrows ④,⑥ and ⑦. It is the user passive

perceptive operation using the haptic device. The

arm of the haptic device chases the program

execution. In addition to the above mentioned

mapping, it is possible to map the metrics into any

attributes of the haptic device. Any cycles can be

repeated any times; if n times cycles were repeated,

then 3

ways of the program reorganization can be

possible.

Figure 1: Haptic device.

Figure 2: Toolkit framework.

2.1 Program Analysis

Program analysis consists of two parts: the program

analysis part and the visualization & edit part. The

former analyses the program and produces the

metrics, and the latter visualizes and edits the

program and decomposes the program into smaller

elements such as subclasses and modules. One class

can be decomposed into several subclasses, or

integrated into one large class. This is shown in

Figure 3. Figure 3 shows that class 0 is decomposed

into two classes: class 1 and class 2, as the method A

and B only access the field a, and method C only

accesses the field b and c. Figure 3 also shows the

integration possibility of two classes, class 1 and

class 2, into a class 0. The basic policy for program

decomposition is the fact that the program can be

decomposed into the smaller unit if there exists no

dependency among units, namely if no units

interaction occurs.

Figure 3: Class decomposition & ntegration.

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

352

2.2 Object Perception

This section describes the object perception part in

the toolkit framework. The metrics of the programs

analyzed are passed to the object perception part,

and mapped to the haptic objects with appearance.

Haptic objects are displayed in the screen and

touched by using the arm of the haptic device. Two

types of tangible interface, active and passive

interface, are provided. As the active user interface,

object sounding, colouring, and vibrating are

introduced. As the passive user interface, automatic

arm chasing of the haptic device with program

execution is introduced.

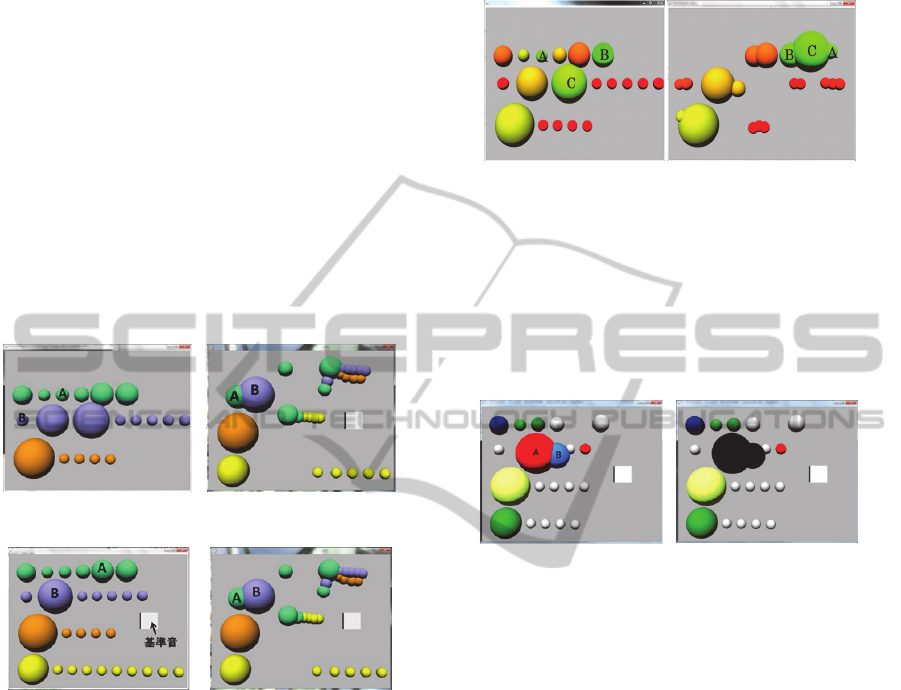

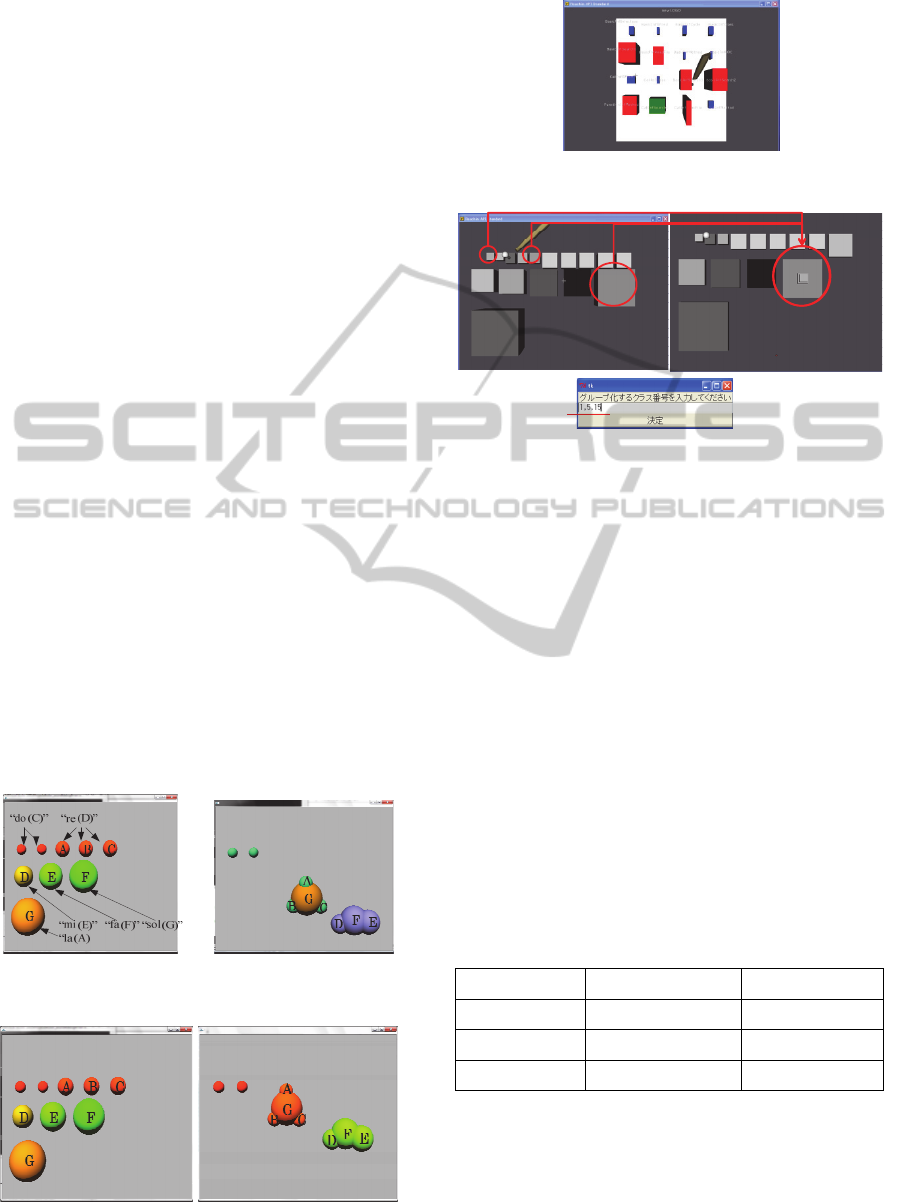

Figure 4 shows the example of the sound objects.

Touching and moving the objects, object A, B, C

and G are merged into one large object and the new

sound is assigned. In Figure 4(b), the sound ‘mi’ is

assigned, as the average sound of the objects merged.

The object can be given the colour. Figure 5(a)

indicates 9 objects, and each object is given the

colour. Touching and moving the objects, object A,

B, C and G are merged into one large object and the

colour ‘orange’ is assigned, as the average colour of

the objects merged.

Figure 6 shows an example of the vibrating

objects. It is based on the execution log of the

program. The execution of the program can be

recognized by vibrating and touching the objects.

Figure 7 shows the passive user interface. The

arm of the haptic device chases automatically with

the execution log of the program. Figure 7(b) shows

that the object 1, 5 and 15 are integrated into one

object.

(a) Sound Object (b) Sound Integration

Figure 4: Object sounding.

(a) Coloured Object (b) Colour Integration

Figure 5: Object colouring.

Figure 6: Object vibration.

12 3 4 5 6 7 8 9 10

11 12 13 14 15

(a) Arm Movement (b) Object Integration

Figure 7: Passive use interface.

3 HAPTICS OPERATION

EXAMINED

This section shows various haptic operations

performed for reengineering the program by using

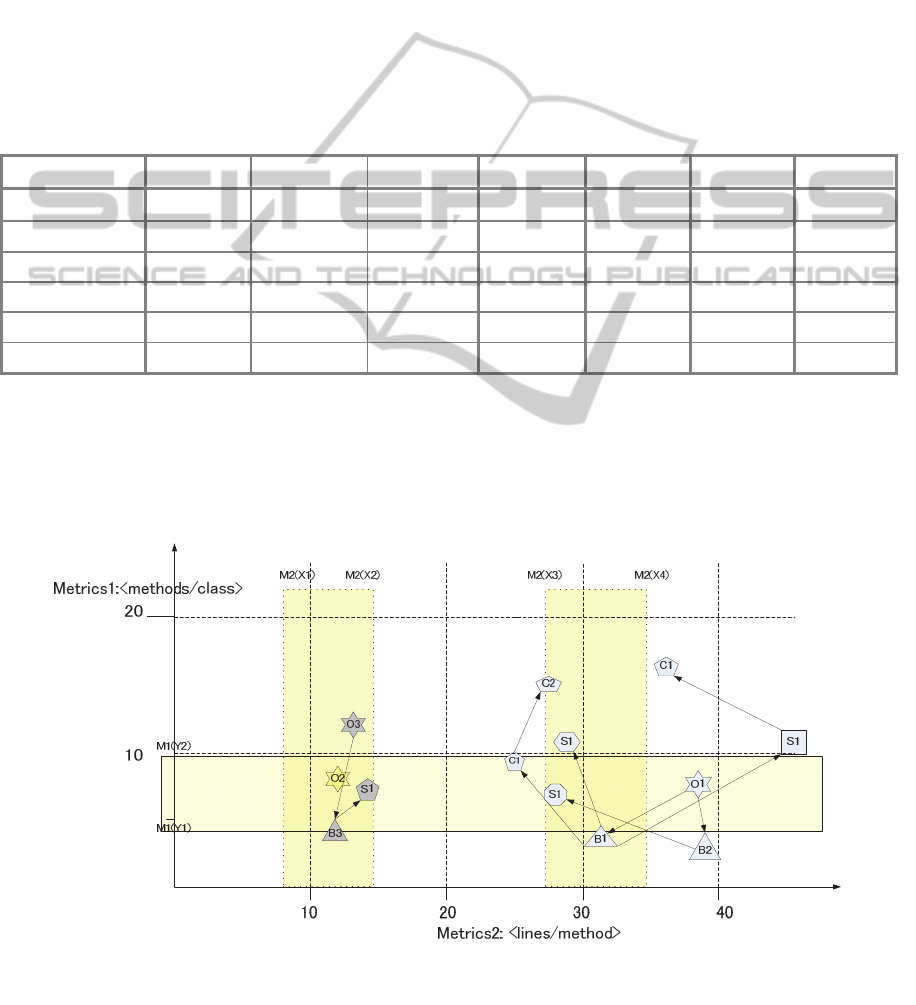

tangible user interface. Table 1 shows the metrics

mapped to the object in this experiments. Two

metrics, metrics 1 and metrics 2, are used. The

metrics 1 is the number of lines per method, and the

metrics 2 is the number of methods per class (Lanza,

2006). The metrics 1 is used for decomposing the

program, and method 2 is used for measuring the

integration goodness of the program. In this section,

the left side of each Figures shows the program

structure of before the coupling, and the right side

shows the program structure of after the coupling.

Table 1: Metrics mapping example.

Metrics Sound Representation ColourRepresentation

# of classes # of objects # of objects

# of lines size of the object size of the object

# of lines/method sound of the object colour of the object

3.1 Sound Coupling

Figure 8 shows an example of sound coupling. Sixty

six sounds, ranging from 110Hz to 4693Hz, are

arranged, and the metrics 1 is mapped to the sound

of object. The objects which have high difference on

SoftwareReengineeringToolkitwithTangibleInterfacebyHaptics

353

sound are coupled. In the example, object A, which

has the sound 293Hz, and object B, which has the

sound 123Hz, are coupled together into one object

AB, and the integrated sound became 165Hz. Figure

9 shows another example of sound coupling with

different coupling method. Several objects are

merged into one object to have the adequate object

sound after couplings. The adequate sound, whose

Hz is set to the average Hz of the whole objects, is

represented by the square in Figure 9. The sound of

the square object is preliminary settled, and user can

ascertain the sound of the object by hitting the

square object by haptic hand. Figure 9 shows the

object A ,whose sound is ‘so’ and its height is784Hz,

and the object B whose sound is ‘do’ and the height

is 1046Hz, are merged into the object AB, and the

sound ‘ra’ is assigned, and the height became

932Hz.

Figure 8: Example of sound coupling 1.

Figure 9: Example of sound coupling 2.

3.2 Colour Coupling

Figure 10 shows an example of colour coupling.

Sixty six colours, ranging from red to green, are

arranged. Metrics 1 is mapped to the colour of an

object. The experiments that couple the objects

which have similar colours are examined. In the left

of figure 10, the object A and B, both of which has

the colour green, and the object C which has the

colour yellow green, are merged, and produced the

object ABC coloured green.

3.3 Undo Coupling

Module should be in high cohesion and low

coupling. The execution log of the program, which

is the history of the objects executed, is collected.

The operation UNDO, which undoes the coupling

when the objects coupled have no access

relationship among them in the execution log, is

provided.

Figure 10: Example of colour coupling.

In the left figure of Figure 11, the object A and B

are coupled into one object. However, as the abject

A and B have no access relationship in the execution

log, its integration was denied by the toolkit, and the

colour of the coupled object changed to the black, as

is shown in the right figure of Figure 11. In this case,

the coupling operation must be undone.

Figure 11: Example of undone coupling.

4 METHODOLOGY

4.1 Coupling Schema

Several experiments were performed, and the

coupling schema was examined. Figure 12 shows

the coupling schema that the metrics must satisfy. A

dotted rectangle in the Figure 12 shows the

appropriate domain of the program, and it shows that

two metrics of the program are converging into the

rectangular. The right figure of Figure 12 is the

general schema. Two metrics, metrics 1(M1) and

metrics 2(M2), are adopted. M1 is the number of

methods in a class, and M2 is the lines of code in a

method [1]. The schema adapted for object

integration is as follows;

Operation1. First, decompose the program, and

map the metrics M1 to the object. The toolkit we

developed decomposes a class into smaller units of

module, and creates the corresponding objects. This

operation always decreases the value of M1, and it is

repeated until the M1’s value of the program

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

354

becomes lower than the lower bound predefined (see

the right figure of Figure12).

Operation2. Use the metrics M2 to integrate the

objects. The coupling operations provided should be

performed to lead the M2’s value to converge into

the dotted rectangular area.

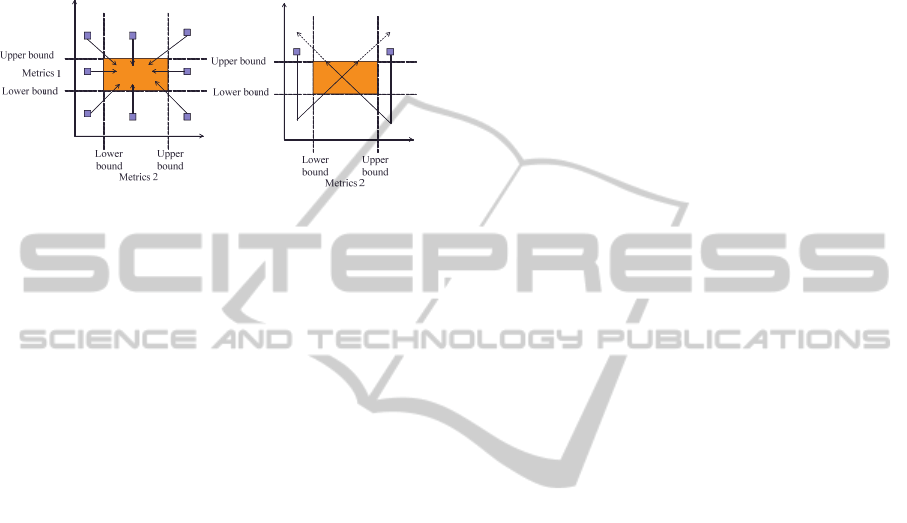

Figure 12: Object integration schema.

4.2 Discussions

Reengineering programs using the toolkit by haptics

was examined. In the Appendix, the metrics of the

program experimented are depicted. The original

program was reorganized using several coupling

methods following the methodology described in

section 4.1, and the reorganized metrics were

collected.

Table 2 shows five experimental results. The

transition of metrics 1 and 2 of the programs

followed by the coupling schema is shown in Figure

13. In Figure 13, the original program is denoted as

O1, and the succeeding reorganization of the

program is described as arrows. Three programs, O1,

O2 and O3, are reengineered. S stands for Sound,

and objects are integrated by sound coupling, C

stands for Colour, and objects are integrated by

colour coupling. M1(Y1) and M1(Y2) are the

boundaries of metrics 1, and the program had better

be in this boundary when reorganized. M2(X1) and

M2(X2) are the boundary of metrics 2; M2(X3) and

M2(X4) are the other boundary of metrics 2. These

boundaries are predefined and the integration of

objects was performed to be converged in these

boundaries.

Michele Lanza (Lanza, 2006) computed the

methods per class (M1) and the lines per method

(M2) by analyzing 45 java projects, and showed that

the average of M1 is 7 ranging from 4 to 10, and the

average of M2 is 10 ranging from 7 to 13. The

suitable metrics area of the program by the reference

(Lanza, 2006) is between M2(X1) and M2(X2) for

metrics 2 and between M1 (x 1) and M1 (x 2) for

metrics 1.

In Figure 13, it can be seen that the metrics M1

for the program O1 was decomposed, and changed

the metrics M1 to B1 and B2, and then changed to

C1 and S1 after integration. The program O3 is

decomposed, and changed to B3, and then integrated

to S1. If we follow the reference (Lanza, 2006), only

an object O2 had the appropriate metrics, and O3’s

reengineering was performed well, but O1’s

reengineering was not appropriate.

5 CONCLUSIONS

This paper described the software reengineering

toolkit with tangible user interface by using haptic

device. The system framework of the toolkit, the

program decomposition method and several

coupling methods of the objects are described. Two

types of the tangible user interface by haptics, the

active user interface and the passive user interface,

are introduced. Several object coupling methods are

described and discussed. The methodology of the

program integration by using haptic device is

proposed. Two metrics, methods per class and lines

per method, are adopted, and some experiments for

software program reengineering were performed.

The discussion of the results examined the

usefulness of the toolkit.

Software visualization is changing from 2D to

3D, and the user interface is changing from GUI to

TUI (Ishii, 1997). The interface devices with body

movement, and 3D visualization tools with more

sophisticated metaphor are emerging (Wettel, 2011).

This paper introduced the new tangible user

interface by using the haptic device, and examined

some experiments.

However, we need more efforts for practical use.

Shaping up the toolkit, and validating the

effectiveness of the toolkit with more experiments,

we are going to use the toolkit to the first

programming course to learn the style of the

program, and also be going to provide to the people

who is not familiar with the programming.

ACKNOWLEDGEMENTS

This study was partially supported by JSPS

KAKENHI Grant Number 24501142.

REFERENCES

Lanza, M., Marinescu, R., 2006. Object oriented metrics

in practice, New York.

SoftwareReengineeringToolkitwithTangibleInterfacebyHaptics

355

Briand, K. C., Daly, J. W., Wust, J. K., 1999. A Unified

Framework for Coupling Measurement in Object-

Oriented Systems, IEEE Transactions on Software

Engineering，Vol.25, No.1, January/February.

Btito e Abreu, F., et al., 2000. A Coupling-Guided Cluster

Analysis Approach to Reengineering the Modularity to

Object-Oriented Systems, CMMR2000.

Demeyer, S., Ducasse, S., Nierstrasz, O., 2000. Finding

refactorings via change metrics, OOPSLA ’00.

Demeyer, S., Ducasse, S., Nierstrasz, O., 2013. Object-

Oriented Reengineering Patterns, free download from

http://scg.unibe.ch/oorp/.

Wettel, R., Lanza, M., Robbes, R., 2011. Software System

as Cities: A Controlled Experiment, ICSE’11.

Greevy, O., Lanza, M., Wysseier, C., 2006. Visualizing

Live Software Systems in 3D, SoftVis 2006 , 3rd

International ACM Symposium on Software

Visualization.

Schach, S. R., 2007. From Modules to Object, in book,

Object-Oriented & Classical Software Engineering,

McGRAW-Hill International Edition,

Ishii, H. Ullmer, B., 1997. Tangible Bits: Towards

Seamless Interfaces between People, Bits and Atoms,

CHI 1997.

APPENDIX

Table 2: Metrics of the experiments.

Metrics Original Decomposed Integrated1

Integrated2 Integrated3 Integrated4 Integrated5

# of classes 10 19 7

11 8 5 5

# of fields 126 126 126

126 126 126 126

# of lines 2171 2186 2167

2175 2169 2153 2163

# of methods 76 76 76

76 76 76 76

lines/method 38.5 31.7 28.3

28.1 24.8 35.7 27.6

methods/class 7.6 4.0 10.9

6.9 9.5 15.2 15.2

*Original: The metrics of the original program. O1 in Figure 13.

Decomposed: The metrics of the decomposed program. Denoted by B1 in Figure 13.

Integrated1: Integrated by using ① and ② in Figure2. TUI is not used.

Integrated2: Integrated by sound coupling. TUI is used. The metrics of Figure 9. Denoted by S1 in Figure 13.

Integrated3: Integrated by colour coupling. TUI is used. The metrics of Figure 10. Denoted by C1 in Figure 13.

Integrated4: Integrated by sound and colour coupling. Sound coupling followed by colour coupling.

Integrated5: Integrated by two times of colour couplings. Denoted by C2 in Figure 13.

Figure 13: Metrics of the experiments.

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

356
