A Framework for Adoption of Machine Learning in Industry for
Software Defect Prediction
Rakesh Rana
1
, Miroslaw Staron
1
, Jörgen Hansson
1
, Martin Nilsson
2
and Wilhelm Meding
3
1
Computer Science & Engineering, Chalmers, University of Gothenburg, Gothenburg, Sweden
2
Volvo Car Group, Gothenburg, Sweden
3
Ericsson, Gothenburg, Sweden
Keywords: Machine Learning, Software Defect Prediction, Technology Acceptance, Adoption, Software Quality
Acronyms Used — ML: Machine Learning, SDP: Software Defect Prediction, TAM: Technology
Acceptance Model.
Abstract: Machine learning algorithms are increasingly being used in a variety of application domains including
software engineering. While their practical value have been outlined, demonstrated and highlighted in
number of existing studies, their adoption in industry is still not widespread. The evaluations of machine
learning algorithms in literature seem to focus on few attributes and mainly on predictive accuracy. On the
other hand the decision space for adoption or acceptance of machine learning algorithms in industry
encompasses much more factors. Companies looking to adopt such techniques want to know where such
algorithms are most useful, if the new methods are reliable and cost effective. Further questions such as how
much would it cost to setup, run and maintain systems based on such techniques are currently not fully
investigated in the industry or in academia leading to difficulties in assessing the business case for adoption
of these techniques in industry. In this paper we argue for the need of framework for adoption of machine
learning in industry. We develop a framework for factors and attributes that contribute towards the decision
of adoption of machine learning techniques in industry for the purpose of software defect predictions. The
framework is developed in close collaboration within industry and thus provides useful insight for industry
itself, academia and suppliers of tools and services.
1 INTRODUCTION
Testing is an essential activity in software
engineering (Bertolino, 2007), but also one of the
most expensive phase within software development
life cycle with some estimates approximating it to
consume about 50% of time and resources (Harrold,
2000). Software Defect Prediction (SDP) offers one
possible way to make software testing more
effective by making it possible to optimize test
resource allocation, i.e. distributing more effort to
parts (files/modules) that are predicted to be more
prone to defects. The importance of such predictions
is further substantiated by previous research
suggesting applicability of 80:20 rule to software
defects (that is approximately 20% of software files
are responsible for 80% of errors and cost of rework)
(Boehm,1987) (Güneş Koru and Tian, 2003).
Different methods for defect prediction have
been evaluated and used; these can broadly be
classified as traditional (using expert opinions and
regression based approaches) and those based on
machine learning techniques. Methods based on
machine learning offer addition advantage with their
ability to improve their performance through
experience (as more data is made available over
time). Despite the importance of predicting defects in
a software project and demonstrations that SDP using
ML techniques is not too difficult to apply in practice
(Menzies et al., 2003), their adoption and application
by practitioners in industry has been limited which is
apparent from the lack of published experience
reports. Adoption of any complex method/technology
is dependent on several dimensions (Legris et al.,
2003), but most of the earlier studies in SDP have
focused mainly on the aspect of predictive accuracy.
In this paper we argue that our lack of understanding
of other factors relevant to industrial practitioners is a
major reason for low adoption of ML techniques for
SDP in industry.
383
Rana R., Staron M., Hansson J., Nilsson M. and Meding W..
A Framework for Adoption of Machine Learning in Industry for Software Defect Prediction.
DOI: 10.5220/0005099303830392
In Proceedings of the 9th International Conference on Software Engineering and Applications (ICSOFT-EA-2014), pages 383-392
ISBN: 978-989-758-036-9
Copyright
c
2014 SCITEPRESS (Science and Technology Publications, Lda.)
Based on the technology acceptance model
(TAM) and technology adoption frameworks we
develop a framework for explaining the adoption of
ML for SDP in industry. TAM intends to explain
why users’ belief and their attitudes towards a
technology affect their acceptance or rejection of the
information-communication technology. While TAM
is parsimonious and theoretically justified model to
explain information technology adoption (Van der
Heijden, 2003), to use this model for a specific
technology requires identification of detailed
attributes specific to the given technology and
context which collectively explain the belief and
attitude of uses towards the given technology. The
research question we address in this paper is:
“How can we use the technology acceptance
and adoption models for developing framework for
ML adoption in industry and how to adapt it for
software defect prediction?”
2 BACKGROUND AND RELATED
WORK
2.1 Software Defect Prediction Using
Tradition Approaches
Traditional methods used for software defect
prediction and risk assessment can be broadly
categorized under:
Expert Opinions
Analogy Based Predictions
Regression Based Approaches
Statistical approaches based on regression have
also been used for the task of defect prediction. The
dependent (or outcome) variable could be binary
(defective or not defective) as in logistic regression
or the model could be built to predict the number of
expected defects as in case of multiple linear
regression. Logistic regression has been applied in
Khoshgoftaar and Allen (Khoshgoftaar and Allen,
1999) for classifying modules as fault-prone or not.
Zimmermann, Premraj and Zeller (Zimmermann et
al., 2007) also applied Logistic regression to classify
file/packages in Eclipse project as defect prone (has
defect Vs. not has defect) . Multiple linear regression
is used to model software changes (Khoshgoftaar et
al., 1993) as a function of a set of software
complexity metrics. Linear regression was also used
by Khoshgoftaar et al. (Khoshgoftaar et al., 1992) for
predicting program faults in two subsystems of a
general-purpose operating system, where they also
evaluated different fitting criteria’s (namely Least
Squares, Least Absolute Value, Relative Least
Squares and Minimum Relative Error).
2.2 Software Defect Prediction Using
ML Techniques
Broad types of Machine Learning (ML) techniques
used for software defect prediction:
Decision Trees (DTs)
Support Vector Machines (SVMs)
Artificial Neural Networks (ANNs)
Bayesian Belief Networks (BNNs)
Machine learning algorithms can also be used to
model the software defect prediction as a
classification problem as in case of DTs and SVMs
where the class variable can take two values
(defective or not defective). Or the problem can be
modelled to predict expected number of defects in a
software module/system using different code and
change metrics. ML techniques for pattern
recognition for e.g. ANNs and BNNs can be used to
accomplish such tasks.
Number of various classification models including
DTs and SVMs have been evaluated and compared in
(Lessmann et al., 2008). Iker Gondra (Gondra, 2008)
applied machine learning algorithms to predict the
fault proneness and compared between the ANNs
and SVMs and found that if fault proneness is
modelled as classification task, SVMs performs
better than the ANNs.
Table 1 provides an overview of some of the
important ML techniques that can be applied for SDP
and lists their main advantages and limitations. For
details on ML techniques applicable in software
engineering domain; readers are referred to work by
Zhang and Tsai (Zhang and Tsai, 2003).
2.3 Technology Adoption Framework
According to Attewell (Attewell, 1992) adoption of
complex technology is not an event, but resembles
knowledge acquisition over time, the perspective is
applicable where new innovation/technique is
(Attewell, 1992):
Abstract and have demanding scientific
base,Fragile in sense of consistency, i.e. do
not always perform as expected,
Difficult to try in a meaningful way, and
Unpackaged, i.e. adopters cannot pick a tool
out of shelve and use it as a black box model,
but instead need to acquire broad tacit
knowledge and procedural know-how.
ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications
384
Table 1: Overview of ML techniques used for software
defect prediction.
Algorithm Type DTs
Domain
Knowledge
Not Required
Training Data
Adequate data needed to avoid
over-fitting.
Advantages
Robust to noisy data; Missing
values tolerated; Capable of
learning disjunctive expressions.
Disadvantages Prone to over-fitting.
Algorithm Type SVMs
Domain
knowledge
Not Required
Training Data Adequate data needed for training.
Advantages
Effective for high dimensional
spaces, is memory efficient and is
versatile as it can take different
kernel functions as decision
function
Disadvantages
SVMs are likely to give low
performance if number of features
is much higher than the number of
samples
Algorithm Type ANNs
Domain
knowledge
Not Required
Training Data Adequate data needed for training.
Advantages
Able to learn non-linear and
complex functions; Robust to
errors in training data.
Disadvantages
Slow training and convergent
process; Prone to over-fitting;
Results difficult to interpret.
Algorithm Type BNNs
Domain
Knowledge
Not Required
Training Data
Required for estimate the prior
probabilities.
Advantages
Able to give probabilistic
predictions; Useful for knowledge
discovery; Can be used very early
in the development lifecycle
Disadvantages
Requires estimation of many prior
probabilities that can be very large
for big models; computationally
expensive; requires domain
expertise for building the network.
Characteristics of ML based techniques fits well
to most above point and thus can be classed as
complex technology/techniques. Further according to
the Theory of Reasoned Action (TRA) (Ajzen and
Fishbein, 1980), the intention of adoption of
behaviour or technology is based on the beliefs about
the consequences of adoption. The theory have been
used to build Technology Acceptance Model (TAM)
by Davis (Davis Jr, 1986), an overview of model is
presented in Figure 1. TAM postulates that a users’
adoption intention and the actual usage of
information technology is determined by two critical
factors, the perceived usefulness and perceived ease
of use. Perceived usefulness is defined as the degree
to which a user believes that using a particular
system would enhance his/her job performance,
while perceived ease of use is the degree to which the
user believes that using the system would be effort
free (Van der Heijden, 2003).
Figure 1: Overview of Original Technology Acceptance
Model (Legris et al., 2003).
In this study we are focused on technology
adoption decisions, thus the model we use for our
framework is based on the revised version of original
TAM model (Pijpers et al., 2001), the postulation of
revised model is that potential users of a technology
actively evaluate the usefulness and ease of use of
given technology in their decision making process
(Yang, 2005). Our position in this paper is similar:
We contend that applying technology adoption
framework to ML techniques use in SDP is needed to
better understand the needs of industry - which will
help accelerate the technology transfer and adoption
process of these techniques.
Technology adoption framework by Tornatzky
et al. (Tornatzky et al., 1990) also provide a model of
adoption that has been applied widely. According to
the framework, there are three elements which
influence the innovation adoption process:
1. The external environmental context,
2. The technological context, and
3. The organizational context.
Chau and Tam (Chau and Tam, 1997) used the
framework to model the factors affecting adoption of
open systems in the Information Science (IS). We
adapt their framework in conjunction with the
Technology Acceptance Model (TAM) to model the
factors affecting adoption of ML in industry.
AFrameworkforAdoptionofMachineLearninginIndustryforSoftwareDefectPrediction
385
3 STUDY DESIGN
The research process for development and
quantitative validation of adoption framework for
ML techniques in industry is shown in Figure 2. The
focus of this paper is Stage-1, where the center of
attention has been to develop the general adoption
framework for machine learning techniques and
demonstrate how the model can be adapted for the
specific case of software defect prediction (SDP).
Figure 2: Research process overview.
Literature Review: To capture the factors that
affect the adoption of ML techniques in industry we
searched for likely factors mentioned in software
engineering, machine learning and technology
adoption literature. A list of factors deemed
potentially relevant for industry was compiled which
was used for discussions with the industrial
practitioners. The application area we concentrated
on is defect prediction in software system/projects.
Interviews: Semi-structured interviews were
conducted with industrial practitioners to first
evaluate which factors are relevant for ML adoption
in industry. In the next round the same interviewees
helped adapt this general model for the case of
software defect prediction.
In total four managers from two large companies
with significant focus on software development were
interviewed consequently in two rounds. The
companies included in the study are:
Volvo Car Group (VCG): A company from the
automotive domain, and
Ericsson: A company from the telecom domain
The divisions we interacted with have one thing in
common, they have not yet adopted machine learning
as their main method/technique for predicting
software defects, but they are evaluating it as a
possible technique to compliment the current
software defect measurement/prediction systems in
place. The interviewees included,
• Manager at Volvo Cars Group within the
department responsible for integrating software
sourced from different teams and suppliers, the
manager has more than 20 years of experience
working with software development and testing.
Ensuring safety and quality of software developed is
a major responsibility in this job role.
• Team leader at Volvo Car Group responsible for
collection, analysis and reporting of project status
with regard to software defects and their predictions,
the team leader has more than three decades of
experience in various roles at the company.
• A senior quality manager at Ericsson whose
experience with software (mainly within quality
assurance) spans more than three decades, and
• Team leader of metrics team at Ericsson;
metrics team is a unit at Ericsson that provides the
measurement systems for various purposes including
software defect measurement, monitoring and
prediction systems within the organization.
The main focus in the first round of interviews
is to identify the factors relevant with regard to
technology adoption/acceptance decisions (to build a
general framework of ML adoption in industry).
While the second round of interviews were focused
on identification of relevant attributes for each factor
in the specific context of software defect prediction.
4 FRAMEWORK FOR
ADOPTION OF ML
TECHNIQUES IN INDUSTRY
It is important to note that for any organization at any
given point in time, the trade-off analysis is not
between adopting or not adopting a new
technology/process (as in case of ML techniques);
the trade-off is between adopting it now or deferring
that decision until a later date. This distinction is
important as the factors that affect the adoption are
not only specifically related to direct advantages and
limitation of given technology/process, but also
organizational and environmental at a given point in
time. In this context, nine important factors that
affect the adoption of ML techniques were identified;
these can be grouped into three categories according
to the framework by Tornatzky (Tornatzky et al.,
1990). The framework for adoption of ML in
industry is presented in Fig 3.
In Fig 3 (+) and (-) signs denote the possibility
of positive/negative relationship with medium
strength between a given factor and probability of
ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications
386
adoption of ML. A double (++/--) indicate a strong
relationship; the strength of relationship can be tested
by setting a stricter significance level during
quantitative evaluation (for e.g. alpha value of 0.1 for
+/- and 0.05 for ++/--). Accordingly hypotheses for
each factor can be formulated which can be tested
quantitatively from a survey. We provide a couple of
examples of null hypothesis that can be quantitatively
tested:
H1: Higher levels of perceived benefits of
adopting ML techniques will strongly (and positively)
affect the likelihood of their adoption.
H2: Higher levels of perceived barriers of
adopting ML techniques will strongly (and
negatively) affect the likelihood of their adoption.

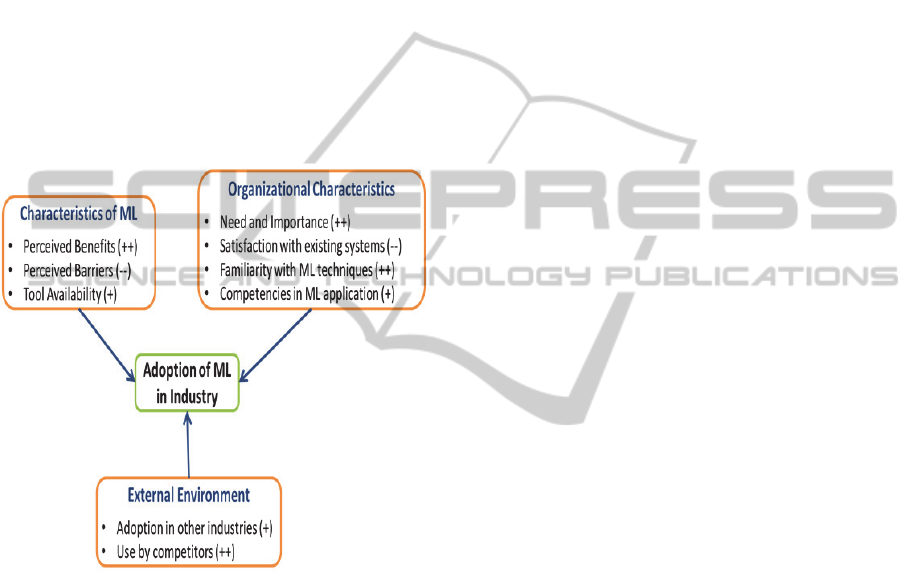

Figure 3: A Model for ML adoption in Industry.
5 ADAPTATION OF ML
ADOPTION FRAMEWORK
FOR SDP
We adapt the general framework for ML adoption in
industry (Fig 3) to the specific problem of software
defect prediction.
5.1 Characteristics of Machine
Learning
Adoption of any new technology or process change is
heavily dependent upon the characteristics of
technology/innovation. Factors affecting cost-benefit
trade-off of adoption are some of the critical factors
in decisions of adoption. The relevant attributes that
affect the acceptance of ML for software defect
predictions are presented in Figure 4.
Perceived Benefits: one of the most critical factors
in adopting ML techniques in industry are the
perceived benefits of these techniques for a given
organizations specific context. The keywords here
are perceived and context. While the actual benefits,
an organization can achieve by adopting a new
innovation/technology is important in long run, at a
given point in time what affects an organizations
decision to adopt a new specific
technology/innovation is its perception.
When it comes to SDP, the perceived benefits of
using ML approaches as expressed in previous
studies evaluating ML techniques for SDP and
opinions expressed by the interviewees of this study
are ability of ML based algorithms to:
Provide higher prediction accuracy (high
probability of detection and low probability of
false alarm) (Gondra, 2008).
Be highly automated, i.e. most aspects of system
including data collection to visualization of
results can be done using smart algorithms
mining and analyzing data autonomously from
the multiple local databases (Zhang and Zaki,
2006) with minimal human intervention.
It is perceived that ML techniques can handle
large data; in fact ML methods are expected to
improve their performance as more data is made
available over time (Zhang and Tsai, 2003).
Another important expectation with techniques
applied to predicting software defects is that
these techniques are capable of identifying new
patterns in data thus providing new insights from
the data itself. This offers possibility to use large
historical data to discover regularities and use
them to improve future decisions (Mitchell,
1999). New insights can be generated using
large data by employing specific ML techniques
such as causal modeling for example by using
Bayesian Networks to model causal networks
and deduct probabilistic relationships.
Given the self-adaptive nature, using ML
techniques is also perceived to be low on
maintenance activities.
Perceived Barriers: On the other hand perceived
barriers negatively affect the adoption/acceptance of
ML techniques. For software defect predictions,
some of the common perceived barriers are:
AFrameworkforAdoptionofMachineLearninginIndustryforSoftwareDefectPrediction
387
Steep learning curve – According to Edmondson
et al. (Edmondson et al., 2003), users of new
innovation/technology need to understand it well
before they can put it into productive use. Their
study also suggests that when tacit knowledge is
needed, new technologies may fail in market
even when their advantages have been proven.
For example in case of SDP, when using
classification or pattern recognition, selecting
the set of attributes (inputs) that give optimal
results is very much based on domain
experience and experience of using ML based
techniques which is difficult to
document/codify explicitly for new users.
Lack of trust – stakeholders in software projects
who are used to traditional approaches of
predicting defects (such as expert opinions) do
not generally trust the algorithms to outperform
expert based predictions.
For software projects, in general and in
particular for safety and business critical
software products, the penalty for mis-prediction
is an important barrier. The severity of mis-
prediction is correlated to importance of
information need and actions it can trigger. For
example a prediction model that falsely predicts
20% of software modules as defect prone
(compared to actual 10%) may lead to review of
10% modules which was unnecessary and results
in resource allocation which is not optimal.
As traditional methods have been used for
comparatively longer time, their levels of
(un)certainty are known – which is not the case
with ML techniques. To overcome this barrier
we recommend that in the initial phase of
adoption of machine learning techniques, these
should be using alongside the traditional
methods to validate their usefulness and
predictive accuracy in practice. This provides the
comparisons industrial practitioners want to see
before trust in new techniques begins to build up
over such trial periods.
Given that most practical aspects can be affected
by wide range of factors; techniques based on
ML approaches usually do not take into account
all of these. Human factors such as differences in
productivity, people getting sick or motivation
level of employees are hard to measure and
account for in algorithmic models for SDP and
thus a source of error in such techniques.
Uncertainty regarding generalizability of ML
over projects. The perception is that while ML
techniques (used for classification and pattern
recognition) work well in recognizing existing
patterns in the data, but their performance
degrades for patterns that are unseen before.

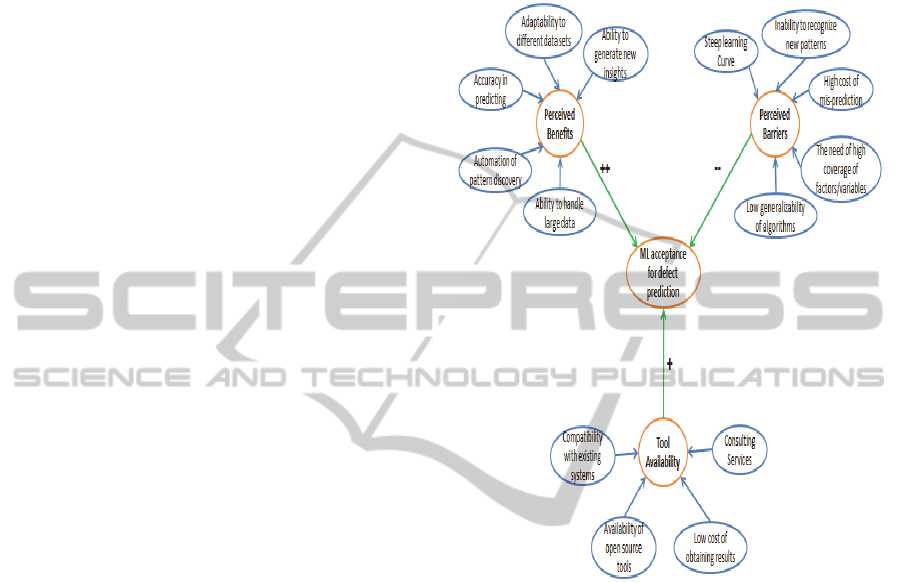

Figure 4: Overview of attributes relevant to ML
characteristics that affects its acceptance for SDP.
Availability of Tool and Support is expected to
increase the acceptance of ML in industry
(Sonnenburg et al., 2007). Some of the attributes
related to this factor are - if the available tools are
open source or proprietary, how much support is
available and how much they cost. Others include if
the given tool is compatible with existing
measurement systems and in-house competences
with respect to its usage. Consulting services can also
help specific companies to get started with new
approaches that they do not have enough experience
with - thus helping acceptance of new techniques and
tools in industry.
A number of packages implementing ML
algorithms are available for e.g. Netlab, Spider and
BNT for Matlab; Nodelib, Torch for C++; and
CREST for python. Commercial (e.g. Ayasdi,
NeuroSolutions etc.) and open source tools (e.g.
Weka, KNIME etc.) are also available with GUI.
While availability of such tools is likely to increase
ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications
388
the adoption of ML in industry, other attributes such
as support and consulting services is also important
in determining the level and speed with which ML is
adopted in the industry.
One possible way of enhancing adoption
through tool and support availability is by making
available problem specific customized solutions for
highly relevant industrial problems such as SDP.
Other activities that can potentially accelerate the
adoption process is integration of ML based
algorithms in existing software packages widely used
within industry, for e.g. Microsoft Neural Network
algorithm available for SQL Server 2012.
5.2 Organizational Characteristics
Need and Importance: The higher the need and
importance of given information is in an
organization, the higher is the likelihood for adopting
new techniques to satisfy this information need.
To improve on the accuracy and reliability for
such measures, new approaches that offer higher
accuracy and reliability are more likely to be
adopted. Zhang and Tsai (Zhang and Tsai, 2003)
provides a good overview of applications of ML in
software engineering domain which outlines different
information needs within this domain. Examples of
information need specific to software defect
predictions are:
Predicting software quality (identification of
high-risk, or fault-prone components)
Predicting software reliability
Predicating expected number of defects
Predicting maintenance task effort
Predicting software release timings
Factors such as how satisfied a company is with
its existing defect prediction systems, their
familiarity with machine learning techniques and in-
house competences are also important for explaining
acceptance and adoption of ML for SDP within a
company. A model of attributes that contribute to
these factors is presented in Figure 5.
Satisfaction with Existing Systems: the motivation
for change (adoption of new approaches) is strongly
connected to given organizations satisfaction with its
current measurement/analysis systems. If a company
is well satisfied with accuracy and efficiency of
existing methods it is unlikely to invest significant
amount of cost, resources and learning on new
approaches. In case of software defect prediction,
attributes relevant to satisfaction with existing
systems are:
If or not the existing system satisfies the
information need of stakeholders involved in the
project.
Does existing system allow stakeholders to
effectively and efficiently visualize the trend
over time and let them compare current projects
with similar historical projects data.

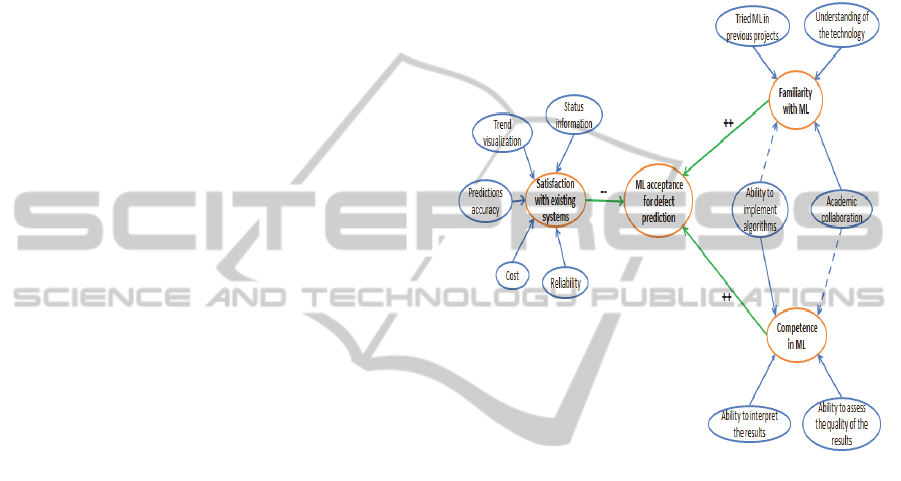

Figure 5: Overview of attributes relevant to organizational
characteristics that affects its acceptance for SDP.
The reliability and cost also plays important
role in determining the level of satisfaction with
existing defect management and prediction systems
within software development organizations.
Familiarity and Competence with ML
Techniques: organizations familiar with approaches
of machine learning though their workforce or
collaborations with academia will have better
understanding of advantages and limitations of such
approaches. These organizations will also be more
informed about practical applicability of these
techniques and thus in a position where they can
identify and assess areas where the benefits of using
ML techniques outweigh the barriers – therefore
organizations that are familiar with such methods are
strongly likely to adopt these methods.
Attewell (Attewell, 1992) proposes that “firms
delay in-house adoption of complex technology until
they obtain sufficient technical know-how to
implement and operate is successfully”
AFrameworkforAdoptionofMachineLearninginIndustryforSoftwareDefectPrediction
389
Almost all mature organizations engaged in
developing software generally collect, store and
analyze their product and process related data. Given
that such data is available in large quantities (within
the organizations), an organization with good
competences/skills in machine learning are more
likely to try ML techniques on their data and
eventually adopt it on larger scales.
The main challenge in this context is
unavailability of structured data. Much of the data
generated within an organization is in form of
unstructured text (e.g. software requirements, defect
reports, customer feedback written in textual form).
On the other hand most ML algorithms require inputs
in numeric or categorical form which presents
challenge in using such data in practice.
Developments in field of Natural Language
Processing (NLP) are already addressing these
challenges and advances in such areas are likely to
increase the adoption of ML based techniques for
SDP.
5.3 External Environment
ML techniques, if adopted in different industries
signals their applicability in practice, although this is
not expected to be a strong factor deriving adoption
in other industries – it is likely to affect positively the
probability of adoption.
A similar but stronger factor for adoption of new
technology/approaches such as ML in a given
company is likely to be the information whether or
not any of the competing companies are using such
techniques. The motivation behind this factor is
simple - every organization in a given domain
intends to be at the forefront of technology or process
knowledge. The adoption of a particular
technique/process by a competitor is a strong signal
that given technique could have potential benefits;
this can potentially motivate the need for evaluation
of such methods within the given organization.
6 HOW TO USE THE
FRAMEWORK
Over the years companies have begun capturing huge
volumes of data about their products, consumers and
operations (Mitchell, 1999). ML offers new tools that
can use this data to recognize patterns and provide
useful insights hidden within these huge volumes of
data.
6.1 Setting the Research Direction
The research in software defect predictions has been
mainly focused on evaluating and highlighting the
predictive accuracy of ML techniques and in some
cases comparing it to traditional methods. On the
other hand the adoption framework indicates that not
only predictive accuracy, but attributes such as cost,
reliability and generalizability are also important for
adoption decisions.
Therefore the technology adoption framework,
such as one proposed here, can be useful to guide
future research directions by helping to identify
which factors are relevant for industrial adoption,
but currently unaddressed in terms of their scientific
evaluation.
6.2 Evaluating Specific ML Techniques
by a given Company
Technology acceptance/adoption frameworks
enhance our understanding of which factors affect
the end users decision to adopt a given
technology/innovation. Although these factors do
play a role to varying degree when companies
evaluate their decision to adopt or delay the adoption
of such techniques, the lack of a framework can lead
to sub-optimal decisions. Without a guiding
framework there is high probability that effect of
some detailed attributes that affect the overall
usefulness is missed. The severity of problem is
greater when comparisons are made between two or
more techniques or tools where it is likely that
evaluation would focus only on small set of
attributes which does not provide the full picture.
In such cases, the adoption framework can be
used as a guide so that all important factors and
associated attributes are covered when considering
adoption of new techniques or tools or even as a
checklist to make such assessment and comparison
between two or more techniques/tools using Likert-
type scale for evaluation. To provide an example,
Table 2 shows a checklist to compare a ML based
technique against existing system for SDP and Table
3 show potential use of similar checklist for
comparison of two competing tools. Industrial
practitioners can use such checklists to make
informed decision with regard to adoption of these
techniques and for effective comparison between
tools.
The technology adoption framework also help
companies to reflect upon their strengths with
respect to given technology and areas of potential
improvement. Such analysis is useful to identify
ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications
390
areas where training and competence build-up would
be advantageous. For example in SDP, if a company
identifies that the in-house competence for
implementing and maintaining ML based system
would benefit a specific business unit within the
organization, necessary training and or recruitment
targeting those specific skills could be quickly
arranged, thus improvising the long term
competitiveness of the company.
Table 2: Example of how comparative checklist can be
used to evaluate new technique for SDP.
Attribute Existing
Method
New ML based
technique
Predictive Accuracy Good Very Good
Auto data acquisition Yes Yes
Report generation Yes, word
document
Yes, web based
Can handle multiple
projects
No Yes
Generate causal maps No Yes
Running time (typical
project)
15min 30min
Cost of license (tool) None $ 20000/ license
Maintenance cost
(estimate)
$ 2000 pa $ 7000 pa
…
6.3 Improvising the Tool and Services
by Vendors
Technology adoption framework is also useful for
tool vendors who can use the information in multiple
ways, to:
Prioritize feature introduction, and
Effective marketing of their tools and
services
Tools based on emerging
technologies/techniques usually provide new
functionality not available in old well established
tools, but at the same time they are not mature and
need to constantly evolve to engage and acquire new
customers. Understanding clearly which attributes
are key for adoption decision help these tool vendors
to prioritize the features they implement and deliver
to their customers. For example, a vendor with Tool
X for SDP which at a given time do not outperform
existing tools on predictive accuracy; finds out that
running and maintenance costs are important
attributes in adoption decisions - may use this
information to strategically decide to develop a light
version of tool which demands low running and
maintenance costs.
Table 3: Example of how adoption framework can be used
to compare between two new tools/services.
Attribute Tool A Tool B
Predictive Accuracy 85% 82%
Auto data acquisition Yes Yes
Report generation Yes, web
based
Yes, multiple
format
Can handle multiple
projects
Yes Yes
Generate causal maps Yes, Non-
Interactive
Yes, Interactive
Running time (typical
project)
30min 40min
Cost of license (tool) $ 20000/
license
$ 35000/ license
Maintenance cost
(estimate)
$ 7000 pa $ 9000 pa
…
Understanding of which attributes play a key
role in adoption decisions also help tool and service
vendors to make their marketing more effective.
Vendors may choose to highlight how they provide
value to their customers on the key attributes
industry is looking for when considering adopting a
new technology based product or services. This
accelerates the adoption and acceptance of new
techniques within the industry.
7 CONCLUSIONS AND FUTURE
WORK
Large and constantly growing amount of data is now
available within organizations that can be used for
gaining useful insights to improvise process, products
and services. Machine learning techniques have high
potential to aid companies in this purpose. Despite
demonstration of usefulness of such techniques in
academia and availability of tools, the adoption of
these techniques in industry currently is far from
optimal. Our position in this paper has been that for
accelerating the adoption of ML based techniques in
industry, we need to enhance our understanding of
information needs of industry in this respect.
Technology acceptance model offer cost effective
approach to meet this purpose.
In this paper we developed a framework for the
adoption of ML techniques in industry. The
framework is developed with its basis on previous
research on technology adoption and technology
acceptance models. We also adapted the framework
to the specific problem of software defect predictions
and highlighted that while adoption decisions are
AFrameworkforAdoptionofMachineLearninginIndustryforSoftwareDefectPrediction
391
multi-dimensional, current research studies have
mainly focused on few of these attributes. We
contend that elevating our understanding of factors
and attributes relevant for industrial practitioners will
help companies, researchers and tool vendors to meet
the specific information needs.
In future work we plan to quantitatively
evaluate the effect size of important attributes
towards ML adoption decision using large scale
survey of companies that have already adopted ML
techniques and ones that are yet to embrace them.
Research with regard to which factors are important
for industry and evaluative studies of ML based
techniques/tools on these factors can complement the
existing and on-going work on establishing the
characteristics of ML techniques and thus contribute
toward their adoption in industry and society.
ACKNOWLEDGEMENTS
The research presented here is done under the VISEE
project which is funded by Vinnova and Volvo Cars
jointly under the FFI programme (VISEE, Project
No: DIARIENR: 2011-04438).
REFERENCES
Ajzen, I. & Fishbein, M., 1980. Understanding attitudes
and predicting social behaviour. Available at:
http://www.citeulike.org/group/38/article/235626.
Attewell, P., 1992. Technology diffusion and
organizational learning: The case of business
computing. Organization Science, 3(1), pp.1–19.
Bertolino, A., 2007. Software testing research:
Achievements, challenges, dreams. In 2007 Future of
Software Engineering. IEEE Computer Society, pp.
85–103.
Boehm, B., 1987. Industrial software metrics top 10 list,
IEEE Computer Soc 10662 Los Vaqueros Circle, Po
Box 3014, Los Alamitos, Ca 90720-1264.
Chau, P.Y. & Tam, K.Y., 1997. Factors Affecting the
Adoption of Open Systems: An Exploratory Study.
Mis Quarterly, 21(1).
Davis Jr, F.D., 1986. A technology acceptance model for
empirically testing new end-user information systems:
Theory and results. Massachusetts Institute of
Technology.
Edmondson, A.C. et al., 2003. Learning how and learning
what: Effects of tacit and codified knowledge on
performance improvement following technology
adoption. Decision Sciences, 34(2), pp.197–224.
Gondra, I., 2008. Applying machine learning to software
fault-proneness prediction. Journal of Systems and
Software, 81(2), pp.186–195.
Güneş Koru, A. & Tian, J., 2003. An empirical
comparison and characterization of high defect and
high complexity modules. Journal of Systems and
Software, 67(3), pp.153–163.
Harrold, M.J., 2000. Testing: a roadmap. In Proceedings
of the Conference on the Future of Software
Engineering. ACM, pp. 61–72.
Van der Heijden, H., 2003. Factors influencing the usage
of websites: the case of a generic portal in The
Netherlands. Information & Management, 40(6),
pp.541–549.
Khoshgoftaar, T.M. et al., 1992. Predictive modeling
techniques of software quality from software
measures. Software Engineering, IEEE Transactions
on, 18(11), pp.979–987.
Khoshgoftaar, T.M. & Allen, E.B., 1999. Logistic
regression modeling of software quality. International
Journal of Reliability, Quality and Safety Engineering,
6(04), pp.303–317.
Khoshgoftaar, T.M., Munson, J.C. & Lanning, D.L., 1993.
A comparative study of predictive models for program
changes during system testing and maintenance. In
Software Maintenance, 1993. CSM-93, Proceedings.,
Conference on. IEEE, pp. 72–79.
Legris, P., Ingham, J. & Collerette, P., 2003. Why do
people use information technology? A critical review
of the technology acceptance model. Information &
management, 40(3), pp.191–204.
Lessmann, S. et al., 2008. Benchmarking Classification
Models for Software Defect Prediction: A Proposed
Framework and Novel Findings. IEEE Transactions
on Software Engineering, 34(4), pp.485–496.
Menzies, T. et al., 2003. How simple is software defect
detection. Submitted to the Emprical Software
Engineering Journal.
Mitchell, T.M., 1999. Machine learning and data mining.
Communications of the ACM, 42(11), pp.30–36.
Pijpers, G.G. et al., 2001. Senior executives’ use of
information technology. Information and Software
Technology, 43(15), pp.959–971.
Sonnenburg, S. et al., 2007. The need for open source
software in machine learning. Journal of Machine
Learning Research, 8(10).
Tornatzky, L.G., Fleischer, M. & Chakrabarti, A.K., 1990.
Processes of technological innovation.
Yang, K.C., 2005. Exploring factors affecting the adoption
of mobile commerce in Singapore. Telematics and
informatics, 22(3), pp.257–277.
Zhang, D. & Tsai, J.J., 2003. Machine learning and
software engineering. Software Quality Journal, 11(2),
pp.87–119.
Zhang, S. & Zaki, M.J., 2006. Mining multiple data
sources: local pattern analysis. Data Mining and
Knowledge Discovery, 12(2-3), pp.121–125.
Zimmermann, T., Premraj, R. & Zeller, A., 2007.
Predicting defects for eclipse. In Predictor Models in
Software Engineering, 2007. PROMISE’07: ICSE
Workshops 2007. International Workshop on. IEEE,
pp. 9–9.
ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications
392
