e-Shop User Preferences via User Behavior

Peter Vojtáš and Ladislav Peška

Dpt. Software Engineering, Faculty of Mathematics and Physics, Charles University,

Malostranske nam. 25, 118 00 Prague, Czech Republic

Keywords: Web Market without Dominant Seller, Small to Medium Company e-Shop, User Behavior, User Models,

User Preference Learning, Performance Metrics, Offline Experiments, Production Data.

Abstract: We deal with the problem of using user behavior for business relevant analytic task processing. We describe

our acquaintance with preference learning from behavior data from an e-shop. Based on our experience and

problems we propose a model for collecting (java script tracking) and processing user behavior data. We

present several results of offline experiments on real production data. We show that mere data on users

(implicit) behavior are sufficient for improvement of prediction of user preference. As a future work we

present richer data on time dependent user behavior.

1 INTRODUCTION

An increasing number of trading activities moved to

the web. It is interest of both sellers and customers

to better understand processes behind a web shop.

A usual way of supporting product search is to

use ratings. User can provide explicit ratings. The

ration between user’s effort (cost) needed to provide

explicit rating and benefit the user perceives is

crucial for getting explicit ratings in a scale one can

derive reliable conclusions.

It is very often that users do not input explicit

ratings. Alternative solution is to track user behavior

as implicit indicators of user’s interests.

Our use case is a real world application in a

domain ranging from entertainment to tourist

industry.

The problem we would like to address here is:

do mere data on users’ implicit behavior suffice for

some business relevant conclusions? That is, we do

not have any additional data about users, we do not

have any additional data about objects we have only

data from tracking user behavior on the web. We

obtain these data using features of browsers which

enable to run java script tracking mouse actions and

reporting (asynchronously) these to server.

Implicit measures are generally thought to be

less accurate than explicit (Nichols, 1997). Because

of the situation on the market there is no other

possibility in our domain than to collect implicit data

about user behavior.

1.1 Domain Description

Our research is tightly connected to experiments

with data from a real life web shop running on a

cloud providing web server, database and system

with programming environment.

Our web shop acts in the area ranging from

entertainment to tourism and it is rather a small to

medium company. What is typical for this domain –

there is no dominant seller and there is a big number

of competing portals. We omit in this paper

appearance of aggregation portals (our web shop is

not listed at any of these).

This forces users visiting and browsing big

number of portals and indirectly this means that a

typical user is not registered to any of these systems.

This further leads to the fact that our knowledge

about user is restricted to data coming from cookies.

This causes additional noise in our research, because

whenever cookies are deleted (or expired), we

cannot identify that user anymore.

1.2 Users Visiting Portal

Big amount of users come to our portal redirected

from search engines and/or through various links

and almost immediately leave and never come back

(nevertheless causing load increase on server side).

Users interested in products / services offered in

portal under investigation, can be classified into

several groups. In our domain of entertainment and

Vojtáš P. and Peška L..

e-Shop User Preferences via User Behavior.

DOI: 10.5220/0005102300680075

In Proceedings of the 11th International Conference on e-Business (ICE-B-2014), pages 68-75

ISBN: 978-989-758-043-7

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

tourism, there is a big part of users coming to buy

product without searching (usually a single popular

event) and never come back (or at least we cannot

identify their return by cookies). Moreover purchase

of such product is not connected to registration and

we do not get any information about these

customers.

Our focus is on users which are searching for a

more expensive product, return several times, open

details to several offers (we can assume that they

behave similarly on competing web shops). These

users form a quite small fraction of portal visitors

(let us call them target group) and from those only a

very small fraction purchases a product.

Nevertheless, in our domain, a purchase is not an

every day event, it usually appears only once-twice a

year per customer (and hence for him/her it is quite

important to make a good choice).

1.3 The Goal and Contributions

From the above we can summarize:

- We do not have here any information about

content of purchased objects; we have only

information about user behavior

- Our target group in this research are users

which visit / display several objects

- The only preference indicator is purchases

- We would like to improve recommendation on

our target group

Goal of this paper is to check whether mere data

on users’ (implicit) behavior are sufficient for any

business relevant conclusions about user

preferences.

We are able to show that our methods improved

quality of recommendation based solely on user

behavior data.

Main contributions of the paper are:

- Models, methods and experimental tools for

learning user preference from behavioral data

- Experiments on real production data and order

sensitive metrics showing improvement of

recommendation

- Report on collection of time dependent user

behavior data for future research

2 DATA, MODEL, METHODS

In this chapter we describe our application domain

(which influences the formal model) and problem

formulation.

To protect our data source from disclosing

business relevant data, all results in this paper are

only relative portions of measured phenomenon

(relativized to maximal value). Offline experiments

were provided with unrelativized real production

data.

2.1 Implicit Factors Describing User

Behavior

In our situation, as described above, we have users

identified per cookies. We have two possibilities;

either to require explicit or implicit feedback.

Explicit feedback forces users to additional activities

beyond their normal search behavior (Kelly and

Teevan, 2003). Following natural user interaction

and collecting implicit feedback with system is

possible through new browser technologies. Data

collected on the client side can be (asynchronously)

stored on the server side. Kelly and Teevan, 2003,

argue: as large quantities of implicit data can be

gathered at no extra cost to the user, they are

attractive alternatives.

Table 1: Example of entries of the dataset, here implicit

factors are abbreviated as follows: userID = uID, Object

ID = OID, Purchase = Pur, Pageview = Page, scroll = scr,

timeOnPage = timeOP, mouseMoves = moMo,

openFromList = opFL.

uID OID Pur Page scr timeOP moMo opFL

Id1 56 1 2 0 77 100 0

Id2 164 1 3 28 414 900 0

Id3 74 0 1 3 2 0 0

Id4 1990 0 1 0 160 20 1

In our system, we follow only users from our

target group. We collect data in following structure

’s are called implicit factors):

userID,objectId,purchase,F

=pageView,F

=scroll,

=timeOnPage,F

=mouseMoves,F

=openFromList

Data are collected incrementally, that is after a

certain period (depending on the attribute) database

entry is appropriately increased. We collect data per

user and object (see example in Table 1).

Dependence between number of page views and

purchases is illustrated in Figure 1.

In general a point in data cube (representing user

behavior) is of form

, …, b

)  D

(1)

Because these are explanation variables, we try

to show that purchase is a dependent variable.

2.2 Modification of CRISP-DM

We use for description of our task CRISP-DM

methodology (Shearer, 2000). This consists of

following phases: Business Understanding, Data

Understanding, Data Preparation, Modeling,

Evaluation and Deployment. In our case of an e-

shop it can be depicted as in Figure 2. In our present

understanding the biggest effort is on double arrows

first between Business Understanding and Data

Understanding (we do not deal with this issue here),

second, between Data Preparation and Modeling

(our emphasis is on Preference learning, we consider

GUI issue in future work) and Evaluation.

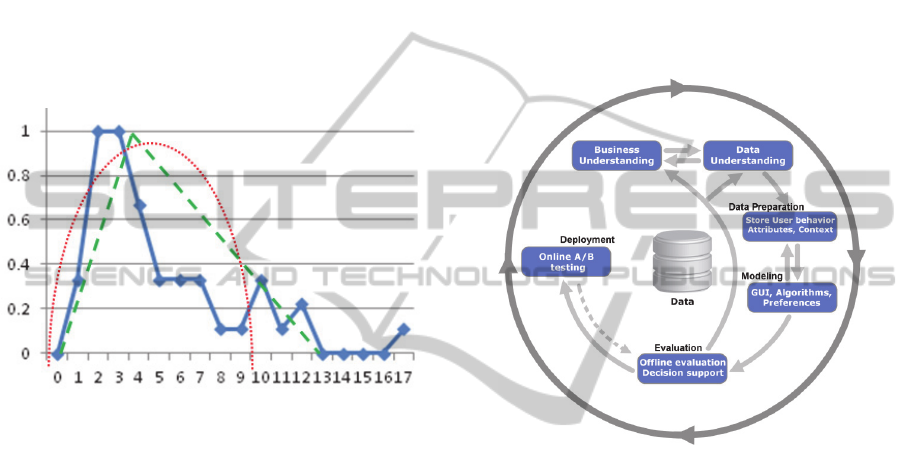

Figure 1: Blue (solid) line is number of purchases (y-axis,

relativized to maximum) depending on number of page

views per user and object. Red (round dot) and green

(dashed) line are examples of learning local preferences

(see section 2.3 and 2.4).

2.2.1 Business Understanding and Data

Understanding

In this part, our data come from a medium sized

travel agency. Main activity is via web. We omit

various marketing issues and concentrate on part of

the page headed “We recommend”. So far we

provide only offline test on real production data.

Data are collected using Jscript in php which

collect browser actions.

2.2.2 Data Preparation and Modeling

Data preparation consists of writing scripts and

decision what to collect. These tasks are repeatedly

evaluated in connection with business.

Our model has two steps – local preferences and

global preferences. In our case there is only one

direct preference indicator – purchase. Local

preference learning contains methods which try to

learn preferences on each single implicit factor. Here

we mention only local methods peak and quadratic

(see Eckhardt, 2012 and Eckhardt, 2009).

2.2.3 Evaluation and Deployment

Our final goal is to provide online A/B testing.

Nevertheless to able to deploy methods we have to

consider not only good data mining evaluation

results (mostly tuning different parameters of

methods) but also ability to use it for each single

user coming to our web. Moreover we have to

convince managers to make a decision for online

tests.

Figure 2: Our modified Crisp-DM process diagram

(Jensen).

2.3 Local and Global Preference

Models

Each user is characterized by several implicit factors

(mainly numeric). These can be measured on item

page and/or catalogue page.

To normalize preferences we first represent

influence of each preference factor by a function

: D

[0,1], j=1,…,5 (2)

Where D

is the domain of respective implicit

factor, f

tries to mimic influence of value on

preference indicator (which is here purchase). This

function has to be learned by a local preference

learning method. In Figure 1 we see different

possibilities for f

a local preference function for F

= pageView.

Figure 3: Illustration of steps of our method: Data cube

(left) is via Pareto cube (not depicted) transformed to

linear ordering (two left to right arrow) and this is

compared to preference by purchases (left-right arrow).

Local preferences transform the data cube  D

(left in Figure 3, x axis has preference the bigger the

better, y-axis has preference the smaller the better)

into preference cube [0,1]

ordered by Pareto

ordering (not depicted). See also Table 2 where

illustration of possible transformation of point from

Table 1 is given.

Table 2: Illustration, how can local preferences transform

data from Table 1 to preference degrees (prefix L denotes

transformed attributes), corresponding preference cube

consists of attributes (axes) LPage, Lscr, LtimeOP,

LmoMo, LopFL of [0, 1]

uID OID Pur LPage Lscr LtimeOP LmoMo LopFL

Id1 56 1 0.6 0 0.4 0.6 0

Id2 164 1 0.9 0.4 0.2 0.1 0

Id3 74 0 0.3 0.1 0 0 0

Id4 1990 0 0.3 0 0.8 0.3 0.5

Second step of our model is a monotone

aggregation function

a: [0,1]

[0,1] (3)

which transforms each local preference tupple to

global preference, which orders all entries (depicted

in Figure 3 in middle).

2.4 Methods

We discuss now methods which learn user

preferences. The idea is that a stabile user comes to a

catalogue page and visits several item pages.

Assume for each user u and item i we have data

about 5 behavior factors b

, …, b

. Considering all

users and all visited items we get data points { b

…, b

: u, i}. More over we know which items were

purchased (in training set). This gives us a direct

preference indicator (of course with many ties on 1 =

purchased, 0 = not purchased).

For learning local preference we consider two

methods. First is method “quadratic” (which is

practically quadratic regression (see red round dot

line in Figure 1)). Second local preference learning

methods is peak: we first try to find an ideal point in

and then twice to use linear regression to get a

triangle shaped preference function (green dashed

line in Figure 1).

To learn aggregation we use methods from

Eckhardt and Vojtas, 2008.

, …, b

)  (4)

 (f

), …, f

))  [0,1]



(5)

 a((f

), …, f

)))  [0,1]

(6)

The idea is, that if a new user comes (from

testing set, hence we do not know whether he/she

will purchase, we know only (b

, …, b

)). For

transforming (4) to (5) we use local preference

learned either by quadratic or peak method. To get

from (5) to (6) we use an aggregation a.

For comparison of our methods we consider also

direct data mining techniques which transform the

data points (4) directly to preference degree (6), see

Table 6.

3 EXPERIMENTS

In this chapter we describe our experiments. To

check the quality of computed ordering, we have to

compare it with indicated ordering (see Figure 3

right, purchased items are ordered higher than those

which were not purchased).

We present here two ways to check this quality,

first the quality of generated Pareto order and second

is the quality of final liner preference order

consistency with purchase – non purchase order.

3.1 From Data Cube to Preference

Cube

Each user is characterized by five implicit factors.

These can be measured on item page and/or

catalogue page.

First possibility of judging quality of our

preference learning is to check the quality of

transformed data points in Pareto ordering (where

 i

if (f

ui1

)  f

ui2

) for all j=1,…,5

(7)

the vector (1,1,…,1) is the highest preference).

Pareto ordering (and eventual preference) of two

items is given by (7) in a little bit simplified form.

Assume the total number of items is n. Pair i

 i

is concordant if Purchase(i

)

 Purchase(i

). If the

order is opposite the pair is called discordant.

Otherwise the pair is not Pareto comparable. The

number of concordant pairs is denoted n

, the

number of discordant pairs is denoted n

, the rest is

number of incomparable pairs n

inc

The quality of learning local preferences can be

evaluated by those numbers. As far as aggregation is

a monotone function, a discordant pair cannot be

repaired, and its position in the final ordering will be

opposite to that of purchase ordering. A concordant

Table 3: Purchase order versus Pareto order on preference

cube, number a ratio of discordant pairs.

localmethod n

ratiodiscord

peak 2181 0.0596

quadratic 2223 0.0608

Table 4: Purchase order versus Pareto order on preference

cube, number a ratio of concordant pairs.

localmethod n

 ratioconcord

peak 18215 0.4980

quadratic 17498 0.4784

Table 5: Purchase order versus Pareto order on preference

cube, number a ratio of incomparable pairs.

localmethod n

 Ratioincomp

peak 16180 0.4423

quadratic 16855 0.4608

pair is already well ordered and will preserve it also

after the a transformation into the final computed

preference ordering. Incomparable pairs can be

repaired by the aggregation.

In Tables 3, 4 and 5 we show (non)violation of

purchase (better) and non-purchase order after

transformation by various local preference methods.

Of course it can happen that some images are not

comparable.

We consider results quite interesting. Using an

experience of Holland, Ester and Kiessling, 2003,

incomparable elements can be used to get a Pareto

front which can be interesting for offering not only

best/top-k (probably very similar object) but also

diversify results.

3.2 Can Aggregation Help? from

Preference Cube to Linear

Ordering

We would like to have all items ordered linearly for

recommendation. Our preliminary tests show

performance of our local methods coupled with an

aggregation (Eckhardt and Vojtas, 2008) compared

to direct mapping by tools from Weka (composition

of both arrows in (4, 5, 6)).

Table 6: Results, here SMOreg is Weka support vector

machine for regression (Sourceforge, SMO Classifier) and

M5P is a Weka tree classifier (Sourceforge, M5P

Classifier).

Method 





Peak + Eckhardt, 2012 0.724682 0.157858

Quadratic+Eckhardt,2012 0.670330 0.146018

SMOre

0.683289 0.148841

M5P 0.707622 0.154142

where



















(8)







































(9)





  1/2

(10)













1/2



(11)













1/2



(12)

Here we use for comparison Kendal correlation

coefficient (Wikipedia, Kendall), where 

does not

incorporate ties and 

calculates with number of ties

(especially ties on purchases). In (11), t

is the

number of tied values in the i-th group of ties for the

first quantity (computed ordering). In (12), u

is the

number of tied values in the j-th group of ties for the

second quantity (purchase / non-purchase ordering).

Best result is in bold. We did not check statistical

significance of our improvement.

4 CONCLUSIONS AND FUTURE

WORK

In this chapter we describe conclusions and a little

bit extended section on future work with some new

user behavior data collected (so far not used for

preference learning, nevertheless indicating some

promising hypothesis).

4.1 Conclusions

In this paper we have presented continuation of our

project of preference learning for recommendation

on an e-shop along with some observation and

results. Our results were computed on combination

of tools from (Eckhardt, 2009 and 2012) and (Peska

et al. 2011).

We succeeded to show that based solely on user

behavior data we can improve user preference

learning. Our methods are based on two local

preference learning and one global preference

learning methods. We presented two types of

experiment. First, number of discordant pairs in

corresponding Pareto cube is only about 6% (this

shows that our local preference methods are not

making big irreparable mistakes). Second, we tested

the quality of linear preference order in comparison

to purchase / non-purchase order. Here our methods

outperformed standard machine learning methods.

4.2 Future Work

In this section we would like to describe additional

data collected. We present some summarizing

overviews. These will probably influence our future

work.

4.2.1 Time Distribution

In our data collection by scripts, we do not

distinguish between sessions. Temporal aspects of

implicit user behavior were split to five consecutive

periods (for each period we have only total sum of

implicit factor. Nevertheless server load is here the

main concern). In Figure 4 we depict development

of these data during five time periods from October

2012 to January 2013. All series are depicted as

percentage from maxima and relative per number of

users in respective period. E.g. number of purchases

per users was maximal in first period; measure of

mouse moves was maximal in last period relative to

number of users in this period.

4.2.2 Change of User Interface – A

Business Decision

In Figure 4 three parameters visibly decreased after

first period. This was probably caused by a business

decision (which was out of our control): list of

suggested items no longer appears on the first page.

Figure 4: Time development of implicit features relative

per user (normalized to maximum) in 5 consecutive time

periods.

Figure 5: Time series of number of relative comparison of

pageView (y-axis) in different time periods (x-axis,

omitting first period before change of UI).

It is out of scope of this paper to describe how

this list is created and to evaluate this business

decision.

In what follows we deal only with data collected

through periods 2 to 5.

For pageView we were interested in time

development during periods 2 to 5 (see Figure 5).

We can see that number of page view was relatively

stable when calculated per users.

There are clear trends when depicting pageView

relative to number of days a period lasts and to rows

in our data matrix (a row represents data collected

for a tuple (userID, objectID)).

This initial observation led us to decision to

change the data collection model and take content

into account.

4.2.3 Observation on Stability and Changes

of Page Types

In this point of data collection we came to another

point that it is more or less clear that we have to

follow navigation of a user between different pages.

Principally most important are catalogue pages and

item detail pages.

First problem of user understanding are users’

changes navigating between different catalogue

types of pages. This can be an indicator that the user

is not totally sure what he/she is looking for.

Nevertheless purchases after leaving can indicate

that he/she finally found what was looking for.

To our surprise, users’ behavior is quite stabile

and users do not purchase frequently after changing

type of pages (Table 7 and 8).

We can see, that users, after leaving search in

first type of tours and switching to another type of

tours, do not purchase that often (rather seldom).

Table 7: Main catalogue types of tours and number of

visitors leaving that type of tour.

Type Visits total

Purchase

total

Left for

other

type total

Sports event 31015 859 2974

Wellness tours 19611 536 3146

Sightseeing 26522 363 4488

Mountain tours 7081 325 1724

Ski holidays 2979 108 866

One-day trip 9938 254 2945

Beach holidays 13546 439 4043

Faraway tours 1595 17 1051

Table 8: Main catalogue types of tours, ratio of leaving

that type and purchases after leaving.

Type Ratio left

Purchased

after left

Sports event 0.096 30

Wellness tours 0.160 50

sightseeing tours 0.169 54

Mountain tours 0.243 17

Ski holidays 0.291 23

One-day trip 0.296 45

Beach holidays 0.298 64

Faraway tours 0.659 15

4.2.4 Richer Data Structure

Based on this stability observation, it seems we have

to concentrate on user behavior on pages of one

type.

Nevertheless, there are also opposite behavior

patterns.

On Figure 6 (time running from left to right) we

present a behavior pattern which can be interesting

from the business understanding point view. A user

is at a catalogue page which is interesting for

her/him and opens several tabs with items details.

At the beginning user is landing at index page.

Then in a separate browser tab, he/she opens

catalogue 1 page of type: “beach holiday” and after a

while restricting to catalogue 3 “beach holiday with

price < 500 EUR”.

Almost simultaneously he/she opens another tab

with catalogue 2 “France” and continuing with a

conjunctive query to catalogue 4 “France and beach

holiday”. Additional opening of catalogue 5 “Spain”

and viewing details of object 3 does not bring result

and both tabs are closed (marked x).

The search continues from catalogue 3 to page

view of object 1 and in another tab to object 2 of

same type (beach holidays with price <500EUR) and

viewing a similar object 4.

Finally the whole procedure is finished by

purchasing object1.

Figure 6: Schematic behavior in time pattern of opening

several tabs, catalogue types and objects, which can be

interesting for improving preference learning.

Behavior data of such type are probably of a big

interest and can indicate user interest. Such data can

be also used to increase preference degree of items

open (in comparison to those which were not

opened).

So far we were not able to fully understand such

rich behavior data and bring it to experimentally

verified results. Nevertheless it gives us a hypothesis

which can be tested in further progress of this work.

From this future work section we can learn four

lessons:

- Change of user interface can have impact on

behavior data collected

- We have to take into account temporal aspects

of user behavior

- We have to incorporate content based

recommendation

- We have to follow behavior in parallel browser

tabs

This is really a task for future work: to develop

models and methods that reflect these changes.

ACKNOWLEDGEMENTS

This work was supported by Czech grants SVV-

2013-267312, P46 and GAUK-126313. Authors

would like to thank the e-shop for providing data.

REFERENCES

Eckhardt, A. Prefwork - a framework for user preference

learning methods testing. In Proceedings of ITAT 2009

Information Technologies - Applications and Theory,

Slovakia. CEUR-WS, 7–13

Eckhardt, A., 2012. PrefWork - a framework for testing

methods for user preference learning.

http://code.google.com/p/prefwork/

Eckhardt, A. & Vojtas, P. Considering Data Mining Tech-

niques in User Preference Learning, In Proc. 2008

IEEE/WIC/ACM IC WI-IAT, IEEE, 33 – 36

Holland, S. & Ester, M. & Kiessling, W. Preference mi-

ning: A novel approach on mining user preferences for

personalized applications. In Knowledge Discovery in

Databases: PKDD 2003, Springer Berlin / Heidelberg,

2003, 204–216

Jensen, K. Crisp-DM process diagram, http://en.

wikipedia.org/wiki/File:CRISP-DM_Process_


Kelly, D. & Teevan, J., 2003. Implicit feedback for

inferring user preference: a bibliography. Newsletter

ACM SIGIR Forum, 37.2 ,18 - 28.

Nichols, D.M. Implicit rating and filtering. In Proceedings

of 5th DELOS Workshop on Filtering and Collaborati-

ve Filtering . Budapest, ERCIM 1997

Peska, L. & Eckhardt, A. & Vojtas, P. Upcomp - a php

component for recommendation based on user beha-

vior. In Proc. 2011 IEEE/WIC/ACM IC WI-IAT, IEEE,

306–309

Shearer, C. , 2000. The CRISP-DM model: the new blue-

print for data mining, J Data Warehousing 5 , 13–22

Sourceforge, SMO Classifier, http://weka.sourceforge.net/

doc.dev/ weka/classifiers/functions/SMOreg.html, last

visited 05/07/2014

Sourceforge, M5P Classifier, http://weka.sourceforge.net/

doc.dev/weka/classifiers/trees/M5P.html, last visited

05/07/2014

Wikipedia, Kendall tau rank correlation coefficient,

http://en.wikipedia.org/wiki/Kendall_tau_rank_

correlation_ coefficient, last visited 05/07/2014
