An Alternative Implementation

for Accelerating Some Functions of Operating System

anos V

egh

am Kics

, Zsolt Bagoly

and P

eter Moln

Faculty of Informatics, University of Debrecen, Kassai Str 26, Debrecen, Hungary

PhD School of Informatics, University of Debrecen, Kassai Str 26, Debrecen, Hungary

Keywords:

Operating System, System Call, Hardware Acceleration, Reconﬁgurable Module, Semaphore, Communica-

tion between Processes.

Abstract:

Processes running under an operating system are independent and autonomous entities. However, they need to

share resources, communicate, use OS services, etc. The operating system’s services can be reached through

system calls, which contribute – sometimes excessive – overhead activity. In some cases the payload activity,

used in the system call, is much shorter than that needed for implementing the Exceptional Control Flow,

implementing the system call frame. In certain cases, the OS service in question can be implemented in an

alternative way, practically without overhead. The paper presents such a case, using an easy to understand

simple example, an alternative implementation of a simple binary semaphore. The semaphore has been im-

plemented and tested in a prototyping environment, using an operating system running on a soft processor

equipped with custom instruction. For implementing the semaphores, a reconﬁgurable device was used.

1 INTRODUCTION

Shortly after inventing the electronic computers, mak-

ing software for computers became a science on its

own right. Most of the software developers are work-

ing with a closed hardware (HW) with ﬁnished de-

velopment, and their new ideas and needs might be

included (if ever) only in the next generation of hard-

ware. This is why sometimes the goals could only

be reached through abandoning obstacles (or simply

not foreseen needs) in the architecture of the HW, so

the power of the software could not keep pace with

the development of the hardware (Ousterhout, 1990).

This unfortunate status quo seems to change with the

more and more widespread usage of reconﬁgurable

devices (Xilinx, 2012; Altera, 2013; Adapteva, 2014),

the end users can develop and test user-deﬁned hard-

ware architectures and softwares running on them.

At the beginning HW accelerators were devel-

oped for some well-deﬁned user task. In the past

few years several, reconﬁgurable device based de-

velopments have been published for a wide range of

tasks in connection with operating systems (OS), see

for example (Akesson, 2001; So, 2007; Ferreira and

Oliveira, 2009) and references within. Although they

reach their intended goal and prove the advantages of

acceleration, they only reach partial sucesses. The

main reason is that they simply base their approach

on the the traditional methods of computer science,

but implemented in hardware. It also means that they

are also abandoning the same (in their case virtual)

obstacles in the architecture .

In this paper we re-think the goal of the implemen-

tation of some OS services, and show that in some

cases a much more effective alternative implementa-

tion is possible. We show the advantages of using the

inherent features of reconﬁgurable (RC) components,

on the example of implementing semaphores which

are extensively used for synchronizing processes of

operating systems and which are of utmost impor-

tance in real-time embedded systems.

2 THE SOFTWARE SEMAPHORE

The computers with Neumann architecture were orig-

inally able to run one single process only. Conse-

quently, that single process could use all available re-

sources of the computer, without restriction.

2.1 Cooperating Processes

The ﬁrst real challenge appeared with inventing the

processor interrupt, and following that, immediately

494

Végh J., Kicsák Á., Bagoly Z. and Molnár P..

An Alternative Implementation for Accelerating Some Functions of Operating System.

DOI: 10.5220/0005104704940499

In Proceedings of the 9th International Conference on Software Engineering and Applications (ICSOFT-EA-2014), pages 494-499

ISBN: 978-989-758-036-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

appeared the ﬁrst classic issues. The program with

interrupt handling facility can be considered in such

a way, that two processes are started at the begin-

ning. The main program (the ”core process”) works

as usual, the other process (the interrupt service rou-

tine) is blocked until the triggering signal from the

interrupting device appears. Following that the sig-

nal arrives, the interrupt servicing process takes over

(gets unblocked) and runs until it terminates. After

that, the control returns to the core process, exactly

to the place and state, where and how the interrupt

occurred.

The two processes need to solve their joint task

together, i.e. they need to communicate (to some de-

gree) with each other. This can be realized through

making changes in the state of their shared resources,

typically making changes in the memory. Since both

of these processes use the same resources, special

care must be taken to avoid changes exceeding this

intended communication. This means, that both the

hardware and the interrupt servicing process must

save and properly restore the temporary changes they

caused, in order to make unnoticeable for the core

process when the control is returned to the main pro-

cess after servicing the interrupt, that an interrupt oc-

curred.

The operating principle of the computer assures

only that the single machine instructions are com-

pleted, but in case of operations requiring more than

one machine instructions special care must be taken

to make sure that the execution of a closely related

group of instructions will not be interrupted. In case

of the interrupt service routine the hardware assures

that the control is not returned to the core process

until the servicing process terminates. This means,

that making non-atomic operations within the inter-

rupt control routine needs no special care or action.

On the opposite, in the core task one has to protect

atomic operations (for example, in an easy but not el-

egant way) through disabling/enabling interrupts. No-

tice the asymmetry of the roles of the two tasks.

2.2 The Problem of Communication

In multitasking operating systems there are several

”core” processes and all those processes can be inter-

rupted by the scheduling clock, so resources shared by

two (or more) such processes can be safely used only

through accepting a kind of agreement between tasks,

since (in contrast with the case in previous section)

there is no hardware support for protecting atomic

operations. Namely, the ﬁrst process reaching the

state in which it wants to use a resource, for the pe-

riod of executing the so called critical section, mo-

nopolizes its usage. It does so through changing some

area, visible also for other tasks, of the memory, des-

ignating that right now it is using the corresponding

resource. After ﬁnishing the critical activity, it makes

the resource free again through resetting the changed

memory location. For the other processes needing the

same resource, the resource will only be available af-

ter the ﬁrst process makes the resource free again,

even if the scheduler would run some other process

meanwhile.

Of course, this mechanism is viable only if both

processes keep the agreement (they communicate

with each other before they begin the action), i.e. be-

fore using the resource, the process checks whether

it is available, reserves the resource (changes the re-

spective memory) and uses the resource only if the re-

source is free (otherwise waits for the resource), and

after using it, releases the resource (resets the mem-

ory).

2.3 Communication in Operating

Systems

Implementing this kind of communication of pro-

cesses under an operating system is not really sim-

ple. One of the basic tasks of the operating system

is to protect the processes from each other, including

the memory they use extensively. This also means,

that the changed memory belonging to one task surely

must not even be ”seen” by any other task. If in-

dependent processes want to communicate with each

other, they need the help of a ”reliable third party”.

The obvious available solution is the OS itself,

mainly because the processes of course must be able

to communicate with OS in other businesses as well.

Those processes that need to change (in cooperation

with the OS) the memory content in a region belong-

ing to the OS, and of course in cooperation with the

OS they can also have information on the content of

that memory. Technically it means that before and

after every single usage of the semaphores the pro-

cesses must contact the OS, changing operation mode

and passing parameters there and back. This hap-

pens using software interrupts, which means complete

context switching there and back, and means execut-

ing up to hundreds of machine instructions (according

to (Bryant and O’Hallaron, 2014), the complete con-

text switching might take up to 20,000 clock cycles!).

The so called multitasking operating systems use this

kind of synchronization extensively (sometimes even

recursively (C. A. Thekkath and H. M. Levy, 1994)),

which means a considerable administrative load for

the processor, especially if the implemented payload

functionality is as simple as in case of handling a bi-

AnAlternativeImplementationforAcceleratingSomeFunctionsofOperatingSystem

495

nary semaphore.

Such a mechanism, the so called semaphores (and

their relatives) are extensively applied in OSs for

synchronizing processes. It is worth then to check

whether this mechanism could be implemented us-

ing a quicker, simpler technology, which is function-

ally equivalent with the original one. The basic prob-

lem here is, that in the traditional computer the only

place for storing information is the memory, which

in multitasking environment is under special protec-

tion. Notice that the OS has only administrative role

here: it is not checked whether the process is legi-

ble to use the resource, and similarly, freeing the re-

source is also not supervised. After noticing that,

one can attempt to invent a more simple and quick

mechanism for replacing the current one. The key is

to provide another facility for storing the information

shared between tasks: semaphore array, implemented

using non-Neumann method of operation.

3 THE ALTERNATIVE

SEMAPHORE

Note that the reconﬁgurable module described in this

section is strictly needed for making the prototype

only. The ﬁnal solution can either be a conﬁg-

urable component (in order to provide more ﬂexibil-

ity for the end-user, as in our prototype system) or

non-conﬁgurable HW component (in order to provide

more comfort), but anyhow something outside the ad-

dress space of the process(es).

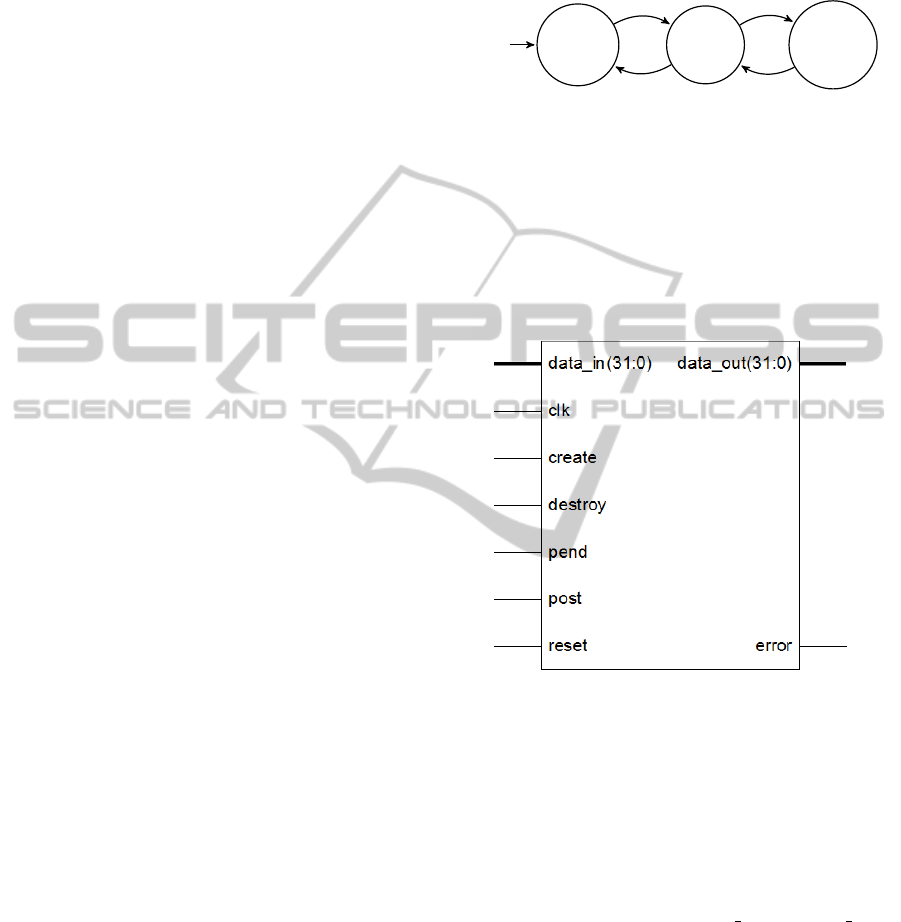

3.1 Implementing the Semaphore

The task of the module is to handle a certain (conﬁg-

urable) number of semaphores. The implementation

of the module has a COUNT parameter, which deﬁnes

the capacity of the module, i.e. how many semaphores

can be used simultaneously. This parameter allows to

accomodate to the needs of the operating system.

Every single semaphore must be created, be ac-

quired (P operation), released (V operation), and de-

stroyed. Also, the module must be able to give in-

formation on possible error situations. Creating and

destroying the semaphore are the equivalents of allo-

cating and freeing up memory in the traditional soft-

ware implementation. In our hardware solution these

operations are implemented through setting/resetting

a single ﬂag bit within the new HW module. All

four operations are executed in one clock cycle, and

in this period the eventuell error information is also

displayed. The operations (state transitions) and the

states of the semaphore are the well-known ones. For

the terminology, many different notations and nam-

ing conventions exist. The present paper uses the one

found in (Li and Yao, 2003), see Fig. 1.

Not in use

start

Available Unavailable

Create

Acquire (P)

Release (V)

Destroy

Figure 1: State diagram of a simple binary semaphore.

The state of the reconﬁgurable semaphores, simi-

larly to the software semaphores, cannot be accessed

imediately. Outside of the module only the module

interface (see Fig 2) is visible, and only the four men-

tioned semaphore operations can be used to step from

one state to another one. That is, the semaphore rep-

resents a completely closed system for other modules.

Figure 2: Interface of the semaphore module.

3.2 The Interface of the Module

For operating the module, a clock signal (clk) and

a reset input line (rst) are surely needed. Four con-

trol lines (create, destroy, pend and post) are used

to implement the four operations. For data input and

output the 32-bit data buses data in and data out

are used. The eventuell errors are displayed in the sta-

tus line error, which shows the status of the last op-

eration. When this line is active, the operation could

not be carried out. In such a case the value on the data

lines provide information on the nature of the error.

3.3 Testing and Simulation

The correct operation of the module is proved by a

carefully assembled series of test cases. In this series

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

496

all semaphore operations are executed, and all error

conditions produced. The test simulates the operation

of the module, checks the output signals of the mod-

ule as well as the correctness of the internal states.

The following test cases are included, in the order of

the listing:

1. Resetting the module

2. Initializing all semaphores

3. Initializing one more semaphore

4. Putting an arbitrarily selected semaphore out of

use

5. Allocating, freeing up and putting out of use the

semaphore above

6. Initializing a semaphore

7. Allocating the initialized semaphore

8. Allocating the semaphore again

9. Freeing up the allocated semaphore

10. Freeing up the semaphore again

11. Setting control lines to invalid state

12. Using invalid semaphore ID

13. Resetting the module

4 USING THE MODULE

The module described above is a closed hardware

unit, with functionally equivalent with the traditional

software-implemented semaphores.

4.1 Linking the Module to the CPU

After having implemented the module, we had to de-

cide how to link it to the CPU. It could be linked using

a kind of ”HW/SW API” (So, 2007) , a kind of ”co-

processor” (Ferreira and Oliveira, 2009), etc. Those

solutions (as well as practically all kinds of hardware

accelerators) use their modules as a kind of I/O pe-

ripheral. This would provide a simple and easy so-

lution, but handling I/O devices under OSs is only

possible through using OS system calls (i.e. adding

considerable overhead due to the mandatory use of

the context switching). This way of implementation

is only worth if the functionality implemented in HW

is complex and lengthy, so the overhead needed for

using the module from OS can be neglected. For our

simple bit testing and setting it is not the case.

Because of its simplicity, the another reason that

the overwhelming majority uses that way of linking

is, that for a closed CPU unit it would be the only

reasonable way for implementing some CPU-related

functionality. Fortunately, when using so called ”soft

processors”, some other ways are also available for

adding extra functionality to the CPU.

4.2 The ”Soft Processor”

The soft processors are CPUs implemented in a re-

conﬁgurable device by the end users. When using re-

conﬁgurable technology for prototyping, a high de-

gree of customization is available for the end-user.

For this implementation, the Nios II soft processor

(Altera, 2011) was used. From our point of view,

its very advantageous feature is that it has so called

”custom instruction”s. These are ”empty” CPU in-

structions, the implementation of the functionality

of which is left for the user. The implemented

semaphore module – using a proper interface – can

be linked to the CPU, and so the semaphore function-

ality can be reached through using a CPU instruction

(apparently, as a C language function). (Recall here,

that the semaphore handling does not need any func-

tionality from the OS, just the safe storage place; so

in this way the handling can be carried out directly

from the user space, without the overhead of chang-

ing context to and from the kernel.)

4.3 The ”Soft OS”

For testing the operation of the semaphore module,

implemented as a CPU instruction, an operating sys-

tem running on that CPU is needed. Fortunately, the

highly conﬁgurable µC OS II (Micrium, 2012) operat-

ing system is available for Nios II. Since it is available

also in form of modiﬁable source, it makes easy to

implement the semaphore wrap functions in different

forms. Actually, three versions of the wrap functions

has been prepared. In addition to the one delivered

with µC OS II, wrappers for the HW semaphore mod-

ule linked to the CPU as I /O device as well as with

custom instruction has been implemented.

5 BENCHMARKING THE

MODULE

5.1 Principles

The different semaphore wrappers can be built into

different versions of the ”soft OS”. Bechmarking OS

functionality is a sensitive area, so maximum care

must be excercised. When running a SW in an OS,

resource sharing (including CPU time) takes place,

so the normal benchmarking makes sense only, if

AnAlternativeImplementationforAcceleratingSomeFunctionsofOperatingSystem

497

the possible non-payload activity (including running

other tasks and system activity) is negligible. When

measuring small (below the msec range) time, the

usual (OS based) timing methods cannot be used.

Even when counting the processor clock cycles, a cor-

rection must be made for the possible exception han-

dling, interleaving the payload activity.

In the case of applications, one can start the cy-

cle counter before starting the application, or within

the application code. When making measurements on

the OS itself, there is no such an obvious possibil-

ity. One needs a special measuring framework, which

is able to build into the OS and carry out the mea-

suring functionality there. The effect of scheduling

can be accounted for, switched off or even the inter-

rupts disabled for the time of measuring. The sub-

tleties of measuring time in a computer system are

excellently discussed in the former edition of (Bryant

and O’Hallaron, 2014). In our case an extra difﬁculty

is that both Neumann-style architecture elements and

simple combinational circuits are included in the test.

5.2 The Setup

The benchmarking setup consists of a NIOS-II soft

processor (equipped with custom instructions imple-

menting the semaphore operations) built with Altera

SoPC builder, running a µC OS II operating system, so

actually a benchmarking SoPC conﬁguration is used.

(In all cases the pre-conﬁgured reference project set-

tings were used.) The available OS proﬁling facilities

can be used to measure execution times for both the

unmodiﬁed semaphore, implemented in traditional

SW, and – using alternative function names – the

semaphore implemented in HW. A further test is to

measure the semaphore implemented in HW through

I/O interface.

The timing facilities of the operating systems are

prepared for measuring ”macroscopic” times (typi-

cally several milliseconds). The µC OS II platform

is equipped with excellent benchmarking functional-

ity, but they are prepared for system and process level

timing. On platform µC OS II, depending on the set-

ting of the base time, the timer interrupt will occur

at every 10-200 ms; this period will also be used for

scheduling. As we learned from the measurements

made by (Bryant and O’Hallaron, 2014), this allows

for untolerable precision and accuracy when making

measurements in the range of just a couple of clock

periods. Even in case of measuring the execution time

of complete processes, special care must be exercised.

This timing facility could be (and will be) used in a

latter phase, when testing the accelerating effect of

the different semaphore implementations on the exe-

cution time of complete, synchronizing applications.

So, we had to look for another timing facilities,

closer to the HW. Fortunately, our Altera HW plat-

form supports this kind of activity with two standard

modules, the Altera Performance Counter and Altera

Interval Timer. The Altera Performance Counter IP

(Intellectual Property) core allows to support bench-

marking/proﬁling at HW level. The Performance

Counter counts – according to its documentation – the

clock periods in a 64-bit counter. The C macro con-

trolled counter uses just a few instructions for operat-

ing the counter, much less than the other micro-scale

timing codes. In this way one can measure the time

through counting clock periods. The Altera Interval

Timer – according to its documentation – counts 10 µs

intervals, so it looks like better suited for measuring

single, system-level activities.

5.3 Calibration and Validation

For our initial goals, only the Altera Performance

Counter looks to be suitable. At the beginning, we

wanted to ﬁnd out the time needed to handle the 64-bit

counter in the Altera Performance Counter. In princi-

ple, the difference of two consecutive readings to that

64-bit counter, with no instruction between, should

result the ”cost” of reading the counter; a correction

factor needed to measure a period with precision of

clock periods. Those measurements results that read-

ing the counter needs ≈ 200 clock periods, with a few

periods variation. For the ﬁrst look, it seems pretty

expensive for a simple counter reading, and also the

variation of the length of that period also implies the

presence of some unknown factors.

Anyhow, at the moment this is the best facil-

ity for measuring the execution time related to the

semaphore. The method provides consistent results,

but with unsatifying precision. This is why not yet

engineering-style results are presented. Development

work to carry out our own timing solution is in course.

5.4 Preliminary Results

The alternative implementation of semaphores pro-

vides a timing task for testing the implementation

itself, as well as measuring the effect of using the

alternative implementation versus the traditional im-

plementation. This exactly corresponds to the mi-

croscopic and macroscopic time scales, mentioned

in (Bryant and O’Hallaron, 2014). These two time

scales require different methods and different timing

facilities.

On microscopic scale, we wanted to measure the

time needed to execute simple semaphore operations.

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

498

We used a single run method, and a loop run method.

When measuring the semaphore operation in a single

run, we measured about ≈ 150 clock cycles. To make

a reasonable measurement, in a loop acquiring and

releasing a semaphore (10,000 times) was run, and the

measured total time was divided by the number of the

loop cycles. The result was about ≈ 100 clock cycles.

The two results are consistent, considering the results

of calibration and validation. (Of course, one has to

take care of the number of interrupts, the number of

context switches, etc. )

When evaluating these results, one must recall that

a simple counter reading takes ≈ 200 clock cycles.

Although the module itself needs 1 clock cycle only,

the offset of implementing it as custom instruction

should have some offset, in the order of magnitude of

reading a counter. In order to make more detailed and

accurate measurements, further studies and more in-

formation on the timing facilities needed. (We guess

that the Performance Counter was designed for much

more complex functionality, and is implemented in a

form too complex for our goals.)

The same measurements have been carried out

also on semaphores implemented using the traditional

SW method. The measurements consequently show

that the HW implementation is ≈ 30 times quicker

than the traditional one. We guess that using a better

support from the processor, this ratio can be reason-

ably higher.

Note that there are several attempts (like (Li

et al., 2011; Akesson, 2001; So, 2007; Ferreira and

Oliveira, 2009) ) to implement more or less function-

ality of the (mainly real-time) operating systems in

HW. Their functionality is either more complex or

connected with some other functionality, or use a dif-

ferent method of linking to the CPU, or do not provide

timing data, so a direct comparison with them is not

possible.

6 CONCLUSIONS

Processes running under operating systems are us-

ing a lot of operations, which are needed for the safe

and/or comfortable operation rather than for the pay-

load work. The extensive use of such operations in

multitasking operating systems reduces the payload

computing power. In case of using an external hard-

ware module properly linked to the CPU and running

parallel with it provides the possibility to implement

such operations on different principle, in a consider-

ably more effective, but functionally equivalent way.

The article presents how communication of processes

in one clock period only can be implemented, possi-

bly replacing hundreds of machine instructions. The

semaphore implemented on this principle has been

built (in reconﬁgurable device) and tested. Initial

benchmarking results are also presented.

The present prototyping implementation – as a

proof of concept – shows that it is possible to

considerably increase some OS-related functionality

through implementing it as a HW module, running

parallel with the CPU. Based on this, more complex

OS-related functionality could and should also be im-

plemented. Following the same idea – considering the

original intention rather than simply re-implementing

the traditional SW solution in HW – the speed of the

execution of other tasks in OSs can be considerably

enhanced.

REFERENCES

Adapteva (2014). Parallella Board.

http://www.parallella.org/.

Akesson, J. F. (2001). Interprocess Communication Utilis-

ing Special Purpose Hardware. PhD thesis, Uppsala

University.

Altera (2011). Nios II Processor Reference.

http://www.altera.com/literature/hb/nios2/

n2cpu nii5v1.pdf.

Altera (2013). DE2 board. https://www.terasic.com.tw/cgi-

bin/page/archive.pl?No=30.

Bryant, R. E. and O’Hallaron, D. R. (2014). Computer Sys-

tems; A Programmer’s Perspective. Pearson.

C. A. Thekkath and H. M. Levy (1994). Hard-

ware and software support for efﬁcient exception

handling. In ASPLOS-VI Proceedings. DOI:

10.1145/195470.195515.

Ferreira, C. M. and Oliveira, A. S. R. (2009). RTOS Hard-

ware Coprocessor Implementation in VHDL, page 6.

Intellectual Property / Embedded Systems Conference

(IP/ESC).

Li, Q. and Yao, C. (2003). Real-Time Concepts for Embed-

ded Systems. CMP Books.

Li, Y., Gu, P.-P., and Wang, X.-X. (2011). The imple-

mentation of Semaphore Management in Hardware

Real Time Operating System. Information Technol-

ogy Journal, 10(1):158–163.

Micrium (2012). µC/OS-II.

http://micrium.com/rtos/ucosii/overview/.

Ousterhout, J. K. (1990). Why aren’t operating systems get-

ting faster as fast as hardware? In USENIX Summer

Conference.

So, H. K.-H. (2007). BORPH: An Operating System for

FPGA-Based Reconﬁgurable Computers. PhD thesis,

University of California, Berkeley.

Xilinx (2012). Zedboard. http://zedboard.org/.

AnAlternativeImplementationforAcceleratingSomeFunctionsofOperatingSystem

499
