Data Re-archival in IT Application Retirement Scenario

A Case Study

Vidyasagar Uddagiri

, Amarendra Mohanty

and Biswaranjan Jena

Tata Consultancy Services Limited, Hyderabad, India

Tata Consultancy Services Limited, Bhubaneswar, India

Keywords:

Information Lifecycle Management, Application Retirement, Data Archival, Re-archival.

Abstract:

The proliﬁc expansion of business operations globally, multi-channel operations and many such newer

paradigms are driving voluminous growth for many businesses. This is resulting in tremendous data volume

growth within supporting IT systems. Increased need for fact driven decision making and regulatory compli-

ance requirements needs is driving the need for retention and storage of historical data for longer duration.

Historical data being referred occasionally does not warrant storage using expensive database systems unlike

transactional data. Information Lifecycle Management (ILM) is an emerging discipline within Information

Technology that addresses this problem. Data Archival is a concept within ILM used to retain necessary data

for reference by live applications, while preserving historical data. The challenges faced during the execution

of a Data Archival project by a Fortune 500 organization, the methodology formulated and implemented to

work-around the challenges are described in this case.

1 INTRODUCTION

It is a widely known fact that the rate of data growth

in business enterprises is increasing at a profound

rate. Changing regulatory requirements and new

paradigms in business models and ecosystems such as

rapid globalization, multi-channel operations, impact

of ﬁve digital forces are the driving forces to these

enterprises for retaining data for a longer period of

time as compared to a decade ago. This trend is ex-

pected to continue in future. It is also observed that

over 80% of such enterprise data is not actively used

and is retained for reference purposes only. However,

the retention of such data on expensive storage me-

dia or databases makes little business sense from the

standpoint of cost containment, risk reduction or op-

erational efﬁciency.

Information Lifecycle Management (ILM) is

shaping up as an emerging disciple to address this sit-

uation. ILM comprises the policies, processes, prac-

tices, and tools used to align the business value of in-

formation with the most appropriate and cost effec-

tive Information Technology (IT) infrastructure from

the time information is conceived to its ﬁnal disposi-

tion. Data Archival, a part of the ILM discipline is a

process of preserving and protecting data as inexpen-

sively and effectively as possible for future use.

A case study of a large automobile component

manufacturer that embarked on a large IT landscape

transformation program that included archival of data

for some applications getting retired is the subject

of this case. The project success criteria, chal-

lenges faced in achieving the success criteria and the

methodology evolved to overcome the challenges are

described in this case.

Section 2 provides an overview of the literature

relevant for the project context. Section 3 describes

the detailed project situation, the risks that mani-

fested and the project execution methodology that

was evolved as mitigation mechanism. Section 4 de-

scribes the details around the design of this method-

ology, Section 5 describes the results of the method-

ology applied and reﬂection on the results and recom-

mendations for future use, while Section 6 provides

the conclusion and suggests the future scope for fur-

ther research.

2 RELATED WORK

Business data is a very critical asset for modern en-

terprises. The corner stone of Information Lifecycle

Management (ILM) revolves around management of

this critical asset.

576

Uddagiri V., Mohanty A. and Jena B..

Data Re-archival in IT Application Retirement Scenario - A Case Study.

DOI: 10.5220/0005109105760581

In Proceedings of the 9th International Conference on Software Engineering and Applications (ICSOFT-EA-2014), pages 576-581

ISBN: 978-989-758-036-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Petrocelli(Petrocelli, 2005) provides a system-

atic, coherent approach to planning and implementing

cost-effective data protection as part of ILM, while,

Smith(Smith, 2009) provides a framework for deﬁn-

ing and assessing the maturity of Enterprise Informa-

tion Management.

Ball(Ball, 2012) provides a comparitive analysis

of various data management lifecycle models and rel-

evance of data archival within each model and Ol-

son(Olson, 2008) provides a detailed step by step

technical procedure for implementing Data Archival

solution.

Khadka(Khadka et al., 2014) provides an insight

into industry perspective on legacy systems, drivers

for modernization and challenges faced in the course

of modernization. However the scope does not

include methods/approaches to overcome the chal-

lenges.

There are some approaches described with respect

to ﬂexible approaches in Information Systems Devel-

opment (Ahituv et al., 1984) that provide foundation

elements for devising newer methodologies using a

combination of various elements.

Practical insights and best practices into Data

Archival are not yet included in the academic / re-

search realm and are conﬁned to the documentation

from product/service vendors.

Thus, there exists a gap in literature with respect to

the project execution methodologies or best practices

to handle risks and challenges not related to technol-

ogy, with speciﬁc reference to data archival projects.

3 PROJECT SITUATION AND

SCOPE

A US based fortune 500 automotive components

manufacturer Auto-Sup-Co (name changed to pro-

tect identity) embarked on a large transformation pro-

gram to modernize the applications on their legacy

Mainframe platform to improve their business ﬂexi-

bility, agility and reduce total cost of operations. The

program included replacement of several applications

with equivalent modules of an Enterprise Resource

Planning (ERP) system (Software Engineering Insti-

tute, 2000), while others became obsolete.

For several legacy applications, the moderniza-

tion involved only replacement of the functionality

by equivalent ERP modules, without any data migra-

tion. However, there was a regulatory requirement to

retain the historical legacy application data for a pe-

riod of 7 years from the date of its creation. Hence,

a Data Archival solution (Ref. Appendix) is neces-

sary. While the application migration work was man-

aged by Auto-Sup-Co with support from their current

information systems services partner, they were look-

ing for another information systems services vendor

experienced in carrying out the Data Archival project

of their transformation program.

Data archival implementation is relevant in the

following scenarios across any business enterprise:

• Data Archival for live applications

– Retain information for an extended period of

time for conformance to various legal and reg-

ulatory requirements

– Perform strategic business analysis on histori-

cal business data

– Improve operational costs and application per-

formance by moving off infrequently referred

data to a lesser cost storage medium

• Data Archival for Application Retirement

– When legacy applications are retired some data

may have to be retained for compliance reasons

even if they are not migrated to newer applica-

tions

There are two solution variants for Data Archival

namely Bulk Data Archival (BDA) or Change Data

Capture (CDC) based on project context as explained

below.

• Bulk Data Archival

– When legacy applications retire, there may be a

need for one-time archival.Bulk Data Archival

(BDA) is the right choice for this situation.

• Change Data Capture

– Data archival may be necessary in live applica-

tions at pre-determined intervals to improve ap-

plication performance. CDC is the right choice

for this situation. CDC includes a bulk data

archival in the ﬁrst pass, followed by periodic

increments.

After a rigorous selection process including eval-

uation of technical and ﬁnancial proposals, proof of

concept execution results and reference checks, the

largest Indian IT Services vendor, TCS was awarded

the project.

As part of the project’s technical proposal, TCS

recommended a commercial data archival product to

implement the archival solution as a better alternative

over a custom built solution. As a strategic decision,

TCS also recommended Auto-Sup-Co to opt for CDC

solution variant because of the long term beneﬁts that

can be reaped. However Auto-Sup-Co did not see a

business case at that point in time for CDC, consid-

ering its high implementation costs and complexity

DataRe-archivalinITApplicationRetirementScenario-ACaseStudy

577

and rather opted for BDA variant of the data archival

product.

Auto-Sup-Co purchased the product while TCS

played the role of System Integrator. The system in-

tegration activities for the Data Archival project in-

cluded conﬁguring, installing and implementing the

solution and carrying out the Data Archival process

for the business application data in scope.

The scope of the project involved archiving about

5 terabytes (TB) of data related to tens of applica-

tions and thousands of data sources. The estimated

duration of this project was 8 months starting in mid-

October 2012. The major constraint that was con-

sidered for the project planning by TCS was the end

timeline of the maintenance contract for the legacy

application platform as indicated by Auto-Sup-Co. It

was also indicated by Auto-Sup-Co that the legacy

application platform will be de-commissioned after

the end of this maintenance contract. Any delay in

the Data Archival project would mean that Auto-Sup-

Co had to renew their legacy application platform

maintenance contract thereby incurring additional ex-

penses. Thus end timeliness and Total Operational

Cost (TCO) of the project were critical success fac-

tors for this project.

The end timeline for the Data Archival project was

planned to be 5 months prior end date of Auto-Sup-

Co’s legacy application platform maintenance con-

tract. This left sufﬁcient time to discover any issues

after the solution rollout and ﬁx them while the legacy

application platform is still available.

The data archiving schedule split for each applica-

tion, was based on the original schedule of application

migration as shared by Auto-Sup-Co. In the applica-

tion retirement scenario, Data Archival is carried after

the respective applications become inactive, lest com-

plexities due to validation of data mutation and im-

pact to service levels hinder the project progress and

manifest as risk, which was clearly highlighted as an

assumption in TCS technical proposal.

3.1 Risk Manifestation and

Remediation Planning

During the course of project execution, while analy-

sis phase was in progress, TCS project team realized

that there would be a delay in the application modern-

ization project. This delay in turn impacted the data

archival project schedule. A plausible option here for

any System Integrator in such a situation was to let the

project be kept on hold, till the remaining applications

become inactive and become ready for archival.

The consequences of this approach were:

• Cost implications to Auto-Sup-Co as part of con-

tractual obligations for schedule delays

• Loss of momentum on the project leading to addi-

tional project restart costs

• Insufﬁcient time for monitoring the project results

after full roll-out

These consequences being unacceptable to Auto-

Sup-Co, both parties to the project, TCS and Auto-

Sup-Co have conducted a brain storming session to

discover options for implementing the project without

putting on hold while leaving reasonable time after

the project end date to ensure any issues that are likely

to arise, can be resolved.

4 DESIGN OF RISK MITIGATION

METHODOLOGY

However there were some guiding factors laid out for

generating options that can fast track the project. The

following factors needed to be provided high impor-

tance:

• Low TCO

• Ease of execution

• End user satisfaction

• Leveraging the investment in BDA solution vari-

ant

• Alignment with the application transformation

program at Auto-Sup-Co

The most plausible idea out of the many ideas gen-

erated in the session was to detail out the critical path

of the data archival process and look at options for

fast tracking. This exercise resulted in realizing 6 sig-

niﬁcant steps in the critical path for carrying out Data

Archival. These steps are depicted in Figure 1.

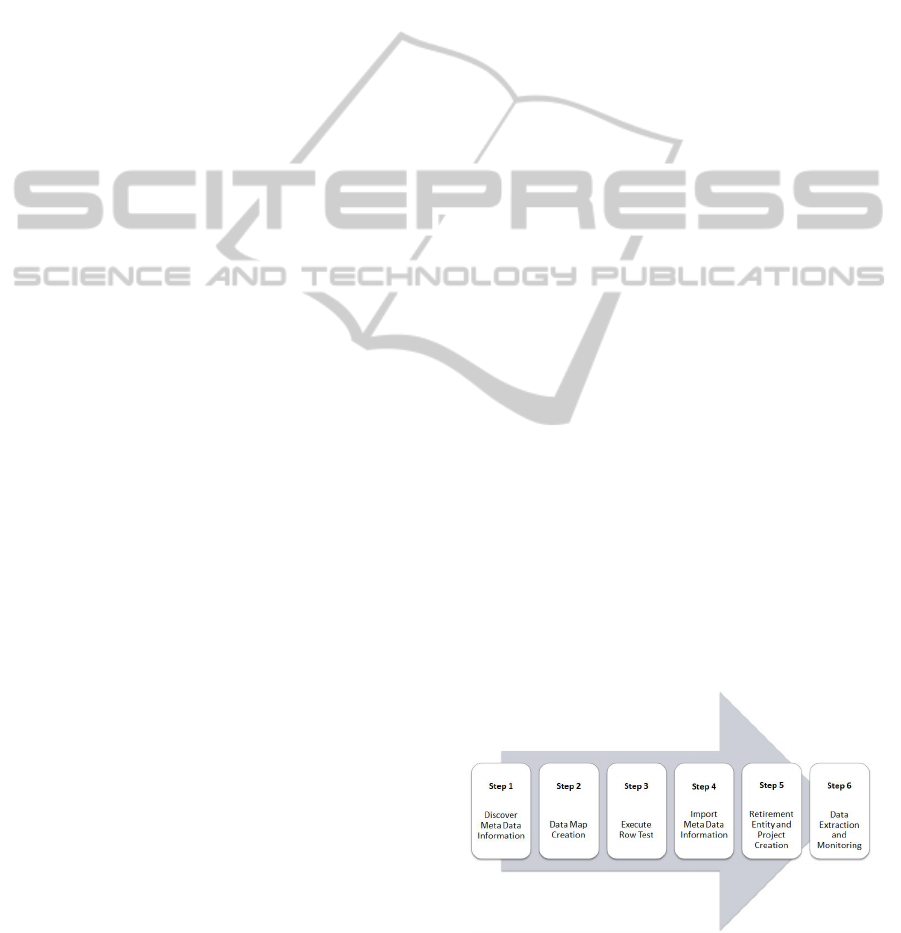

Figure 1: Critical path steps of Data Archival.

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

578

4.1 Outcome of Critical Path Analysis

It was quite evident from the critical path analysis that

Re-archival requires lesser duration as compared to

the full archival cycle. A strategy of two pass archival

process was worked out as a realistic approach.

A cut-off date was mapped for each application to

consider the data existing on that date as the baseline

for archival purposes. The application data would be

archived as per original schedule. This was the ﬁrst

pass of data archival. Later once the applications be-

come inactive, a second pass was decided to be car-

ried out by refreshing the entire data archive with the

source application data without recreating the meta-

data (Step 1 and Step2) since data structures were not

expected to change. This two pass technique was be-

lieved to help in overcoming the challenge of project

delays.

This new methodology was coined as Re-Archival

since archival will be attempted on the entire data all

over again. This strategy is expected to reduce the

critical path duration since two steps will not be exe-

cuted during Re-Archival.

TCS disinterred their corporate knowledge repos-

itory, connected with the Data Archival product ven-

dor and also searched the literature available with re-

spect to prior instances of Re-archival. It was real-

ized that there were no prior recorded instances of im-

plementing the Re-archival methodology anywhere in

the world, before this project was executed.

Hence, a pilot was carried out to validate the tech-

nical feasibility of the solution and better understand

the detailed timeline required for each step of Re-

archival. The results of the pilot conﬁrmed that Re-

archival was a feasible technical solution.

The detailed planning for the Re-archival method-

ology was carried out in the last few weeks of the

ﬁrst pass of Data Archival so the results from the ini-

tial archival cycle could be leveraged to plan the Re-

archival phase of the project as accurately as possible.

4.2 Validating the Decision

The experience and data gathered from the ﬁrst pass

of data archival for all the applications in scope pro-

vided good insights that helped in the preparation of

an accurate execution plan for Re-archival phase of

the project.

It was observed that while the effort and time du-

ration for Step 1 to Step 5 were identical for all types

of data sources, they varied for the last step (Step 6)

based on the type of data source (namely relational

database, networked database, hierarchical database

or ﬁle type data store). While the effort required for

the 6th step was the same across various data sources,

the elapsed time required to load the data once it is

triggered, varies widely (from minutes to days).

The average effort for each step within the data

archival process was determined to understand the

timelines that had to be provisioned for the second

pass of data archival or Re-archival. The results of

these observations are mentioned in Table 1.

Table 1: Effort split among each Data Archival step.

Step

No.

Step Description Percentage

of effort

split

Step 1 Discover Meta Data In-

formation (of source sys-

tem)

18%

Step 2 Data Map creation (in

Data Archival Tool)

36%

Step 3 Execute Row Test (to en-

sure correct data source

is accessed)

Step 4 Import Meta Data from

Source System (into

Data Archival Tool)

Step 5 Retirement Entity and

Project Creation (in Data

Archival Tool)

18%

Step 6 Data Extraction and

Monitoring

10%

About 20% of the data sources had exceptions

with respect to meta-data creation because of their

legacy data structure. The meta-data for exception

sources had to be converted into the common struc-

ture of the Data Archival system. Consequently, dur-

ing re-archival, the steps 1 to 6 had to be executed in

total for these exception scenarios. Fast tracking by

additional resource augmentation seemed a feasible

option to handle the exception cases.

One difference between the ﬁrst pass and second

pass of Data Archival is to follow a differential so-

lution implementation strategy for the two different

classes of data sources:

1. Data sources with no meta data structure excep-

tions

2. Data sources with meta data structure exceptions

Based on the data collected during ﬁrst pass of

archival, it was computed that an incremental service

cost of 35% was necessary for Re-archival by leverag-

ing BDA itself. This was cost-effective as compared

to the alternate option of putting the project on hold

and restarting.

DataRe-archivalinITApplicationRetirementScenario-ACaseStudy

579

5 RESULTS AND REFLECTION

The diligence put in developing the Re-archival

methodology enabled evolution of a detailed Work

Breakdown Structure (WBS). To support execution of

tasks in the WBS and accelerate the execution pro-

cess, a robust software factory execution model (No-

mura et al., 2007) was deployed by TCS.

Re-archival was carried out as a collaborative ex-

ercise between TCS and Auto-Sup-Co, leading to the

success of the project overcoming the schedule chal-

lenges.

There were technical challenges discovered dur-

ing the course of implementation of the Re-archival

process. Since this approach did not have any prece-

dence earlier, everything about Re-archival was learnt

in the course of project execution, the hard way.

Though the Re-archival methodology is tried and

tested once, it is still not recommended as the option

of choice. Better collaboration by including TCS in

the overall transformation program planning, thereby

providing greater insight into the program schedule,

would have resulted in more realistic planning and

identiﬁcation of other Data Archival products or vari-

ants to handle possible schedule challenges.

However, TCS experience with Data Archival

projects states that CDC solution variant costs at-least

50% more in product licensing costs and 25% more

with respect to implementation by System Integrators.

A post project TCO analysis also vindicated this de-

cision. The project TCO including Re-archival phase

was 15% less a CDC solution.

The re-archival methodology resulted in achieving

quicker timelines for overall project completion. The

re-archival for the last set of data sources was com-

pleted in mid-October 2013 providing a reasonable 10

week time prior to the end date of the current contract

for the legacy platform maintenance. Since then, not a

single deviation was reported. This proves the robust-

ness of the Re-archival methodology conceptualized

and implemented by TCS.

However, if one were to really evaluate Re-

archival methodology for future use, the authors sug-

gest that a diligence be carried out to compare all

available options as cited in Table 2.

While considering option 1 or 2, due considera-

tion has to be made to quantify the opportunity cost

for not considering CDC upfront.This will enable

project managers in taking an informed decision in

evaluating all the options before making a choice.

Table 2: Applicable cost elements for each option.

Option

No.

Option

Name

Cost elements to be

included

1 Hold and

restart

project

Cost of BDA and

Cost of project

restart

2 BDA with

Re-archival

Cost of BDA and

Cost of Re-archival

3 CDC Cost of CDC only

6 CONCLUSION

As part of this case a new methodology namely Re-

archival was conceptualized and implemented. This

was suitable considering the context of the project sit-

uation.

However, the authors still recommend that rigor-

ous and collaborative planning by enterprises includ-

ing their systems integrator (either in-house or out-

sourced) will help in better planning of risks and their

mitigation, lest availability of such a methodology

may result into an excuse for not putting enough dili-

gence into planning of Data Archival projects.

Re-archival may turn out to be an effective option

after duly evaluating all available options and solu-

tions with due consideration given for data archival

scenario, data volume and critical success factors for

the project.

The merits of this methodology were bench

marked against the data from only one project case.

Hence, there exists scope for further research and dis-

cussion to include data from larger number of projects

before it can be optimized.

ACKNOWLEDGEMENTS

We would like to acknowledge Vasudev Rao, Gaurav

Joshi and Smita Prava Mishra for the valuable sug-

gestions and feedback provided during the course of

manuscript preparation.

REFERENCES

Ahituv, N., Hadass, M., and Neumann, S. (1984). A ﬂexible

approach to information systems development. MIS

Quarterly, 8:69–78.

Ball, A. (2012). Review of data management lifecycle mod-

els. Opus, University of Bath, UK.

Khadka, R., Batlajery, B., Saeidi, A., Jansen, S., and Hage,

J. (2014). How do professionals perceive legacy sys-

tems and software modernization? In Proceedings of

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

580

the 36th International Conference on Software Engi-

neering.

Nomura, L., Spinola, M., Tonini, A., and Hikage, O.

(2007). A model for deﬁning software factory pro-

cesses. In 19th International Conference on Produc-

tion Research.

Olson, J. (2008). Database Archiving. Morgan Kaufmann.

Petrocelli, T. (2005). Database Protection and Information

Lifecyle Management. Prentice Hall.

Smith, A. (2009). Enterprise information management ma-

turity: Data governance’s role. EIMI Archives, 3:1.

Software Engineering Institute, C. M. U. (2000). A survey

of legacy system modernization approaches. In Tech-

nical Note CMU/SEI-2000-TN-003.

DataRe-archivalinITApplicationRetirementScenario-ACaseStudy

581
