Knowledge Spring Process

Towards Discovering and Reusing Knowledge within Linked Open Data

Foundations

Roberto Espinosa

, Larisa Garriga

, Jose Jacobo Zubcoff

and Jose-Norberto Maz´on

WaKe Research, Universidad de Matanzas “Camilo Cienfuegos”, Matanzas, Cuba

WaKe Research, Dept. de Ciencias del Mar y Biolog´ıa Aplicada, Universidad de Alicante, Alicante, Spain

WaKe Research, Dept. Lenguajes y Sistemas Inform´aticos, Instituto Universitario de Investigaci´on Inform´atica,

Universidad de Alicante, Alicante, Spain

Keywords:

Linked Open Data, Knowledge Discovery, Data Mining, Metamodeling, Model Driven Development.

Abstract:

Data is everywhere, and non-expert users must be able to exploit it in order to extract knowledge, get insights

and make well-informed decisions. The value of the discovered knowledge could be of greater value if it

is available for later consumption and reusing. In this paper, we present the ﬁrst version of the Knowledge

Spring Process, an infrastructure that allows non-expert users to (i) apply user-friendly data mining techniques

on open data sources, and (ii) share results as Linked Open Data (LOD). The main contribution of this paper

is the concept of reusing the knowledge gained from data mining processes after being semantically annotated

as LOD, then obtaining Linked Open Knowledge. Our Knowledge Spring Process is based on a model-driven

viewpoint in order to easier deal with the wide diversity of open data formats.

1 INTRODUCTION

Nowadays, governments are worldwide generating

open data for the sake of transparency. Besides, open

data philosophy encourages the value of reusing data

through participation and collaboration among cit-

izens, public institutions and private organizations.

The promise of open data is to improve citizens’ life

through (i) development of applications (Web, smart-

phones, etc.) that reuse and add value to existing

open data, and (ii) data analysis to get new insights

and acquire knowledge that support daily decision

making process. However, new discovered knowl-

edge from open data is not incorporated to open data

sources again and it hampers its reuse. In order to

overcome this situation, metadata on how the knowl-

edge is discovered from data sources must be incor-

porated as new data sources. This metadata could be

simple when a simple data analysis is performed, al-

though some advanced analysis such as data mining

requires speciﬁc techniques for dealing with meta-

data. Speciﬁcally, two problems need to be addressed

when data mining is used: (i) regular citizens do not

know how to extract insights from available open data

(ii) once someone has done an analysis to discover

some knowledge from data, it can not be reused and

incorporated to the body of Linked Open Data (LOD)

as new knowledge to be further reused. We addressed

the ﬁrst point in our previous work (Espinosa et al.,

2013) and now, in this position paper, we start focus-

ing on the second point by considering required meta-

data. Our hypothesis is that open data is increasingly

available and reused by applying RDF schemas and

getting LOD, so RDF can be also used to maximize

reusing discovered knowledge from data mining re-

sults, since knowledge is included again in the LOD

sets as a new resource.

We found many heterogeneous formats when ex-

amined open data sources in the Web, (CSV, JSON or

RDF, etc.). Lately, RDF is proposed as the most ade-

quate format for reusing data through LOD concepts.

Therefore, when data is processed, metadata and re-

sults must be also converted into RDF to take part in

the LOD sets, thus empowering their reuse. To do so,

a model-driven development approach is proposed in

this paper. This approach allows us to obtain homoge-

neous models from any kind of data source format. A

knowledge discovery process is then applied and re-

sults are labeled with RDFs and incorporated as LOD.

Due to the iterative nature of this process we call it the

Knowledge Spring Process.

Next, we exemplify a possible scenario in which

291

Espinosa R., Garriga L., Jacobo Zubcoff J. and Mazon J..

Knowledge Spring Process - Towards Discovering and Reusing Knowledge within Linked Open Data Foundations.

DOI: 10.5220/0005111102910296

In Proceedings of 3rd International Conference on Data Management Technologies and Applications (DATA-2014), pages 291-296

ISBN: 978-989-758-035-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

our approach could be useful within the data jour-

nalism domain. A journalist requires applying min-

ing techniques to know some patterns in the expenses

done by candidates of several political parties in some

election campaigns. Knowledge provided by this

study is useful as it can be accessed and reused by

other actors in combination with other existing open

data, for example watchdog organizations.

2 ENABLING NON-EXPERT

USERS TO USE DATA MINING

Nowadays, the increasingly use of ICT allows us to

quickly access huge amount of information and sup-

port our daily decision making process. For exam-

ple, someone using a Web search engine always ex-

pects the best answer in the shortest time in order to

make some decisions on travelling, shopping or any

other daily-life task. However, discovering advanced

knowledge from available data (for example, patterns)

requires that an expert take part in the process. Impor-

tantly, the process of knowledge discovery has his-

torically linked up only to experts in data mining.

Due to the fact that it is an intrinsically complex pro-

cess (Nisbet et al., 2009; Vanschoren and Blockeel,

2009) and a great variety of techniques and algo-

rithms of data mining exist. Unfortunately, sweeping

changes are needed, in order to create mechanisms

that allow non-expert users to consume the available

information and discover useful knowledge. User-

friendly data mining(Kriegel et al., 2007) is a step

forward in this direction, since it fosters knowledge

discovery without mastering concepts and data min-

ing techniques. To realize user-friendly data mining,

in our previous paper(Espinosa et al., 2013) a method-

ology that enables “masses” to apply data mining was

presented.

Now, in this paper, we present a framework for

supporting reusing discovered knowledge within an

open data scenario. To this aim, several challenges

are tackled (see Fig.1):

1. Overcoming non-expert difﬁculties when they try

to use the diversity of existing open data formats.

2. Proposing a mechanism that allows non-expert

users to identify their “knowledge discovery” re-

quirements.

3. Facilitating knowledge discovery from Open Data

sources by using data mining techniques without

an expert.

4. Creating a mechanism that allows reusing the

previously discovered knowledge by non-expert

users.

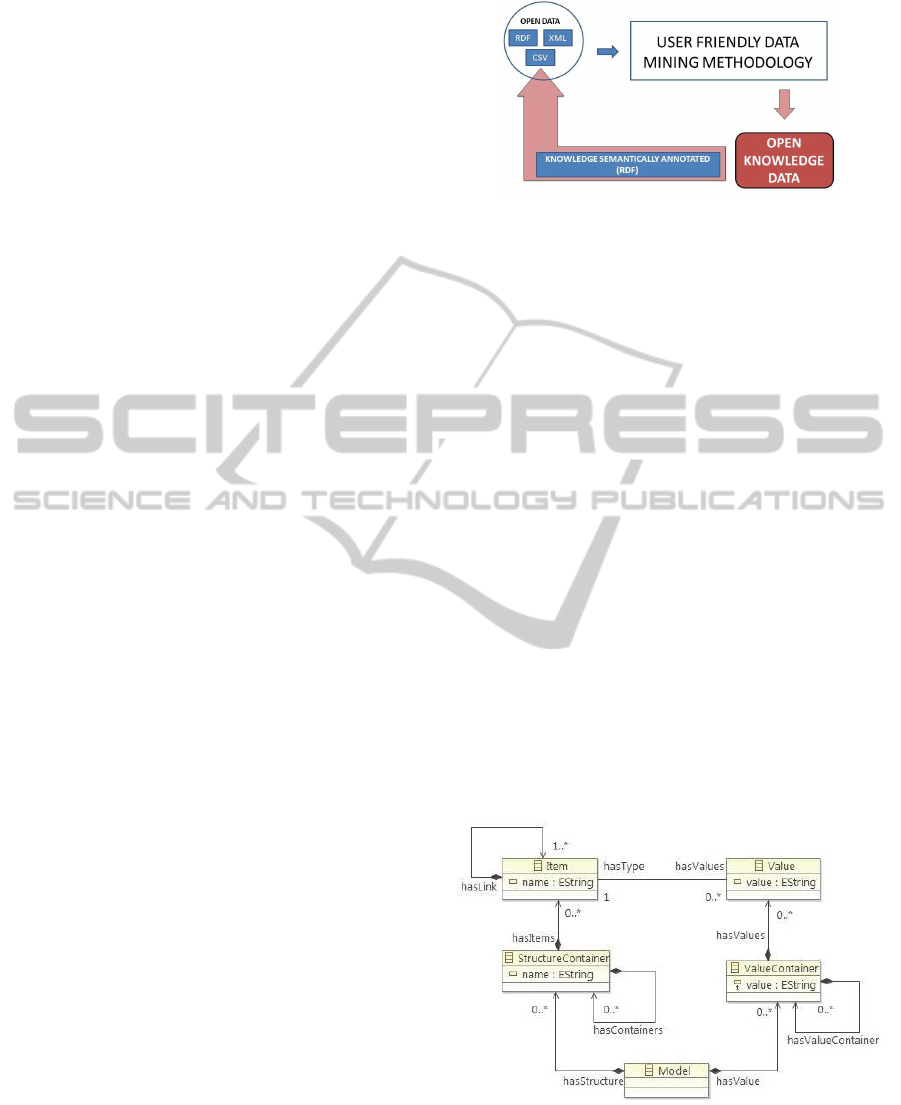

Figure 1: Our proposal for reusing knowledge.

Points 2 and 3 was considered in(Espinosa et al.,

2013) and they are out of the scope of this paper;

while it addresses points 1 and 4.

3 OPEN DATA FORMATS

Our Knowledge Spring Process begins when an user

wishes to analyze some open data sources with the

main objective of knowledge discovery (i.e., getting

insights from data and making a right decision). Open

data sources are available in many formats: RDF,

JSON or CSV, etc. Each of those format structure

information differently. Understanding each of them

is quite difﬁcult for non-expert users that try to ac-

quire the right knowledge in order to make decisions.

Fortunately, we also found common elements in the

diversity of open data formats, in such a way that we

can propose a homogeneous model to represent data

independently of its format. To this aim, a model-

driven development approach is proposed in order to

obtain the extracted information from the open data

ﬁles in a standard way. To this end, the Data Meta-

model designed is shown in the Fig.2.

Figure 2: Metamodel for representing data sources.

3.1 Description of Data Metamodel

After examining the way in which the open data is

structured, a metamodel is deﬁned in order to repre-

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

292

sent data concepts and their relationships in a gen-

eral manner. The goal is that this metamodel could be

simple enough for deﬁning any data representation by

using models conformingthis metamodel without los-

ing schema semantics. Generally speaking, any data

source can be always become into this kind of models.

Next, we will explain in details the included concepts

in our metamodel:

• Model: This is the main container class

in the metamodel, it has associated

StructuralContainer

and

ValueContainer

These elements could be accessed from the

attributes

hasStructural

and

hasValue

respectively.

• StructuralContainer: Store the types of data

hasItems

, that are elements of type

Items

. It can

contain other

StructuralContainer

elements.

The

name

attribute is the key of the container.

• ValueContainer: This class contains elements of

type

Value

, through of the

hasValues

relation.

They can contain other

ValueContainer

ele-

ments. The

value

attribute is the key of the con-

tainer.

• Item: Store the types of data in the

name

at-

tribute. An

Item

element can contain some val-

ues through the

hasValues

relation. An

Item

can

have links to other elements of type

Item

, through

the

hasLink

property.

• Value: contain the values in the

value

attribute.

These values belong to a type

Item

and they can

be accesed as from the property

hastype

3.2 Obtaining the Data Model

In this section we point out how an input open data

source is transformed towards the data model accord-

ing to the metamodel previously presented. Taking

into account the possible schemes of the ﬁles that

appear in the open portals (RDF, JSON or CSV),

we have implemented the correspondent grammars.

Grammars were implemented using the XText frame-

work

of the Eclipse platform

. Once the grammar

was deﬁned we can obtain the correspondent models.

Finally, for the sake of simplicity, we only focus on

RDF ﬁles examples. The RDF metamodel is obtained

from the implemented grammar, and is shown in the

Fig.3.

When a ﬁle is introduced in the system, it is vali-

dated by the corresponding grammar in order to en-

sure a correct structure. For each one of the pos-

http://www.eclipse.org/Xtext/

http://www.eclipse.org

sible input schemas ﬁles, ATL transformations (At-

las Transformation Language) (Jouault and Kurtev,

2005) were implemented to obtain the correspondent

model in accordancewith the Data Model metamodel.

Through this process the uniformity of data in the

mining process is guaranteed. The formal deﬁni-

tion of a transformation is implemented through ATL

rules. The segment of code shows the rule that trans-

forms the element rdfSequence of the source model

into the Item element in the target model.

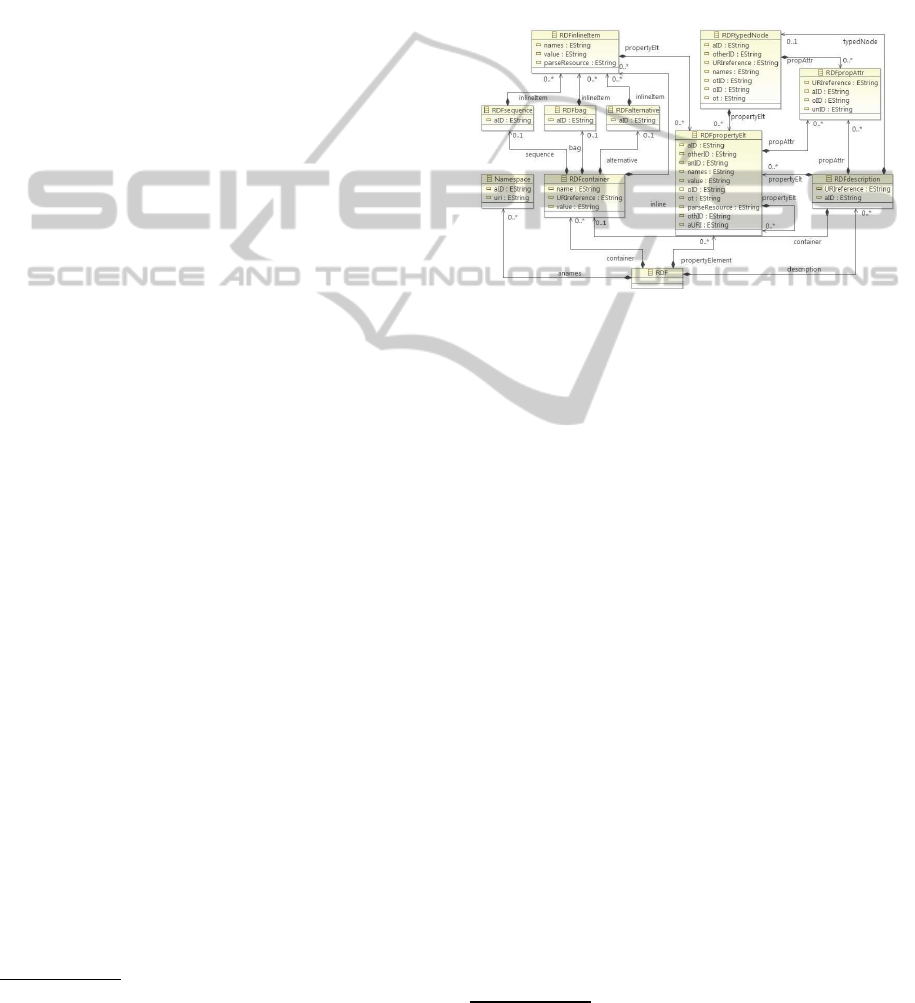

Figure 3: The RDF metamodel.

rule rdfseq2item{

from rsq: RDF!RDFsequence(not(rsq.aID=OclUndefined))

to di:DM!Item(name <- rsq.aID,

hasValues <- rsq.GetSeqValue())

}

After obtaining the data model, the process con-

tinues applying the user-friendly data mining ap-

proach in order to discover knowledge (Espinosa

et al., 2013). This approach is based on the construc-

tion of a knowledge base that contains information

of previous data mining experiments in order to pro-

vide guidance to non-expert users to apply data min-

ing techniques. To generate our knowledge base, a

model-driven approach is deﬁned, based on a Taverna

workﬂow

In the next section, we will discuss what treat-

ment we give to the generated information after ap-

plying the aforementioned user-friendly data mining

methodology.

4 OPEN KNOWLEDGE

The main advantage of our proposal consists of the

potential for reusing the acquired knowledge in the

data mining process. The contribution of our proposal

is given by two fundamentals results to the user. The

ﬁrst one is the solution to the initial problem presented

http://www.taverna.org.uk/

KnowledgeSpringProcess-TowardsDiscoveringandReusingKnowledgewithinLinkedOpenDataFoundations

293

by the non-expert user, after being applied the corre-

sponding model to input data according the sugges-

tion of a recommender and their requirements. The

other one is the generation of a RDF ﬁle semantically

annotated with all the knowledge obtained in the data

mining process. This output is very innovative be-

cause, in this way, useful information is shared and

used by another user. See Fig. 4.

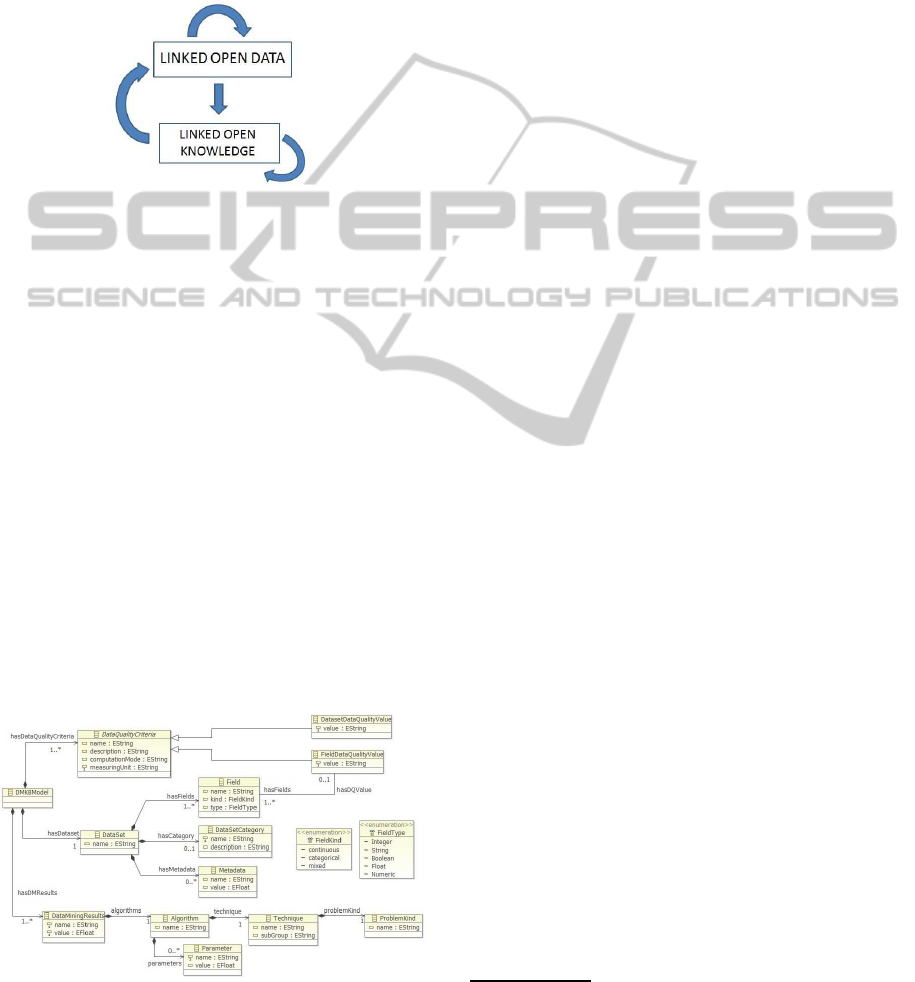

Figure 4: Generation of Linked Data Knowledge.

Users can reuse the LOD ﬁles published on the

Web. While semantically annotated these may be as-

sociated with other LOD ﬁles. When these are an-

alyzed by our proposal, they become Linked Open

Knowledge ﬁles. The Linked Open Knowledge ﬁles

can also be associated to other Linked Open Data ﬁles

or Linked Open Knowledge ﬁles.

4.1 Description of the RDF Model

All the information that is generated in the applied

data mining process (Espinosa et al., 2013) is stored

in a model that conforms to the metamodel of Fig. 5.

The question to solve is how a semantically annotated

RDF ﬁle can be obtained that contains the informa-

tion included in the returned model. To address this

problem we present a metamodel according to RDF

ﬁles, in order to apply ATL transformations between

the DMKB metamodel and the proposed RDF meta-

model.

Figure 5: Our DMKB metamodel.

The RDF data model has been obtained from a

corresponding grammar

. Also, it deﬁnes a simple

model to describe relationships among resources in

terms of designated properties and values. The ba-

sic RDF data model deﬁned consists of three types of

objects:

• Resources: All things described by RDF expres-

sions are called resources. Resources are always

denoted by URIs plus optional identiﬁers.

• Properties: A property is a speciﬁc aspect, char-

acteristic, attribute, or relation used to describe a

resource.

• Sentences: A speciﬁc resource together with a

named property plus the value of that property for

that resource is an RDF statement. These three

individual parts of a sentence are known in the lit-

erature as a subject, predicate and object, respec-

tively. The object of a sentence (ie, the value of

the property) can be another resource or could be

a literal; i.e., a resource (speciﬁed by a URI) or a

simple string or other primitive data types deﬁned

by XML.

The main beneﬁt of using a metamodel that rep-

resents RDF ﬁles is to generate the result that is in a

DMKB model in a RDF ﬁle to included like linked

open knowledge.

4.2 Mapping DMKB Model to RDF

We described the current prototype implementation

which relies on model to model transformations.

Transformations are the nucleus of the model-driven

development. In this section, we describe the map-

ping between an input DMKB model to a RDF model.

The transformation was speciﬁed by using the ATL

plugin from the Eclipse platform

. We only present

here some simple features of our transformations. In

the Fig.6 an abstract of the informal deﬁnition was

presented. Each DMKBModel model class is mapped

to an RDF model class identiﬁed as being semanti-

cally convenient. In each class mapping, the prop-

erties of the DMKB class are mapped to equivalent

properties in the RDF model. Transformation is auto-

matically generated from a high-order transformation

according to semantic links established in the map-

ping model (Hillairet et al., 2008a). The segment of

code shows two examples of rules that allowsto trans-

form the Algorithm elements into their corresponding

RDFinlineItem and, the DataSet element into the RD-

Fcontainer in the destination model.

Resource Description Framework (RDF)

http://www.w3.org/TR/1999/REC-rdf-syntax-19990222

http:/www.eclipse.org

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

294

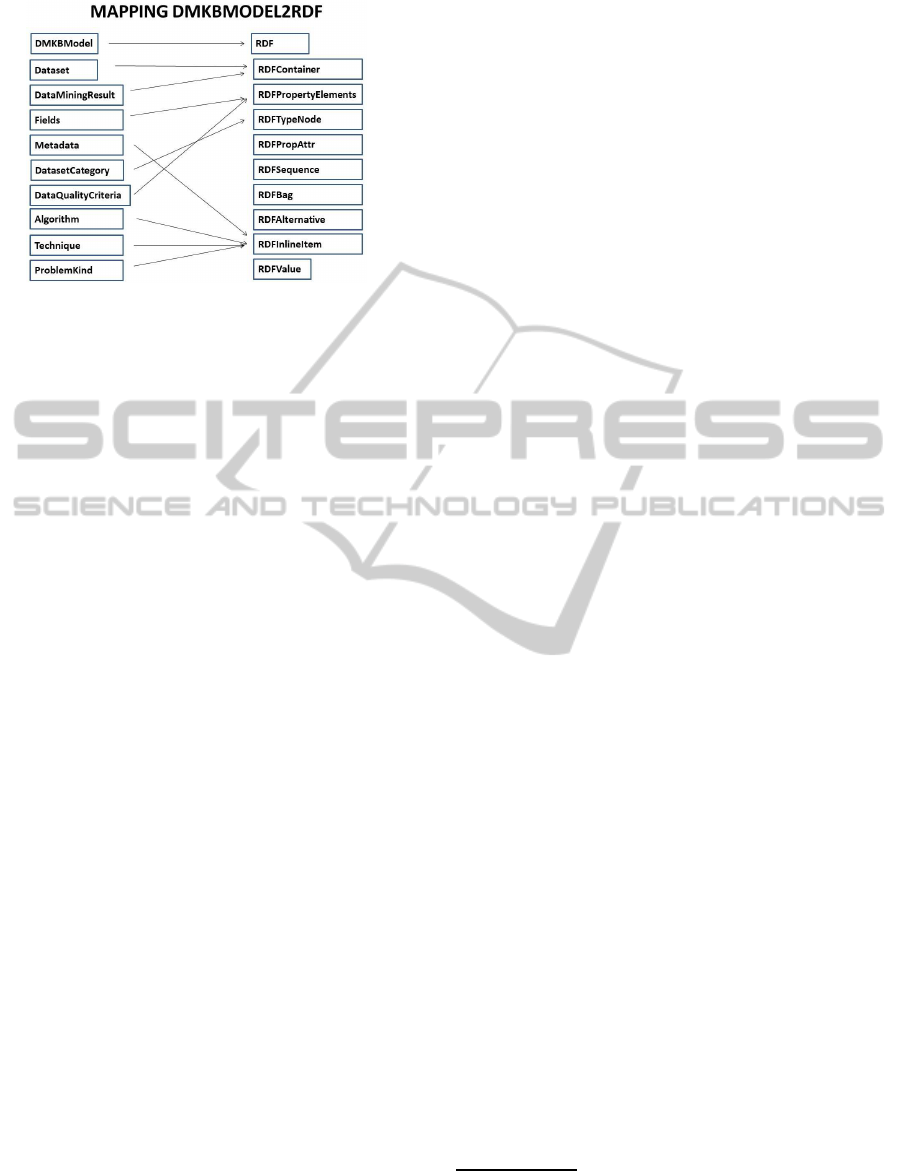

Figure 6: Mapping DMKBModel2RDF.

rule dataSet2container{

from dmkb:dmkb!DataSet

to rdf:rdf!RDFcontainer( name <- ’DMKB:Dataset’,

value <- dmkb.name,

inline <- dmkb.GetInlineItemsMetadata())}

rule algorithm2rdfinlineitem{

from dmkb:dmkb!Algorithm

to rdf:rdf!RDFinlineItem(names<- ’DMKB:Algorithm_’ +

dmkb.GetParent(dmkb).Id.toString(),

value <- dmkb.name)}

The execution of this transformation returns a

RDF model which can be serialized in a RDF doc-

ument containing the description of the EMF objects.

Next, we get the following RDF document excerpt:

<rdf:RDF xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"

xmlns:foaf="http://xmlns.com/foaf/0.1/">

<rdf:RDFcontainer name="DMKB:Dataset" value="audiology"/>

rdf:about="http://audiology.data.gov.uk/data/audiology/2012">

<rdf:RDFinlineItem names="DMKB:Metadata_Instances" value="226.0"/>

<rdf:RDFinlineItem names="DMKB:Metadata_Attributes" value="70.0"/>

<rdf:RDFinlineItem names="DMKB:Metadata_Percentage of Numeric

Attributes" value="0.0"/>

<rdf:RDFinlineItem names="DMKB:Metadata_Percentage of Nominal

Attributes" value="100.0"/>

<rdf:RDFinlineItem names="DMKB:Metadata_Number of classes"

value="24.0"/>

...

</rdf:RDFcontainer>

<rdf:RDFcontainer name="DMKB:DataMiningResult_Correctos"

value="192.0">

<rdf:RDFinlineItem names="DMKB:Algorithm_1" value="AdaBoostM1"/>

<rdf:RDFinlineItem names="DMKB:Technique_1" value="Classification"

parseResource="Classification"/>

</rdf:RDFcontainer>

<rdf:RDFcontainer name="DMKB:DataMiningResult_Correctos" value="172.0">

<rdf:RDFinlineItem names="DMKB:Algorithm_2" value="END"/>

<rdf:RDFinlineItem names="DMKB:Technique_2" value="Classification"

parseResource="Classification"/>

</rdf:RDFcontainer>

...

<rdf:RDFpropertyElement aID="DMKB:DataSetDataQualityCriteria"

otherID="Null Values" anID="Percentage of null values" value="2.0"

oID="DMKB:DataSetDataQualityCriteria" ot="Null Values"/>

<rdf:RDFpropertyElement aID="DMKB:DataSetDataQualityCriteria"

otherID="UnbalanceColumns" anID="Percentage of unbalance columns"

value="71.43" oID="DMKB:DataSetDataQualityCriteria"

ot="UnbalanceColumns"/>

<rdf:RDFpropertyElement aID="DMKB:DataSetDataQualityCriteria"

otherID="Average Entropy" anID="Average Entropy" value="0.1428"

oID="DMKB:DataSetDataQualityCriteria" ot="Average Entropy"/>

...

<rdf:RDF/>

The obtained knowledge is part of open data phi-

losophy, being published and ready to be reused. The

obtained knowledge forms a new layer on the same

data for future analyses. The cycle is closed since this

information can be examined and enriched insofar as

the data is analyzed by our proposal. Knowledge will

be enriched every time our proposal is used. Since

this is an iterative process, more knowledge is gener-

ated each time, acting like a “Spring”, so our proposal

is named the Knowledge Spring Process

5 RELATED WORK

The search for mechanisms to implement the com-

plex process of knowledge extraction in data sources

automatically is an issue raised by several authors for

several years. Due to the complexity of this process

has been addressed from several angles. In (Getoor

and Diehl, 2005) Link mining is presented, focused

on ﬁnding patterns in data by exploiting and explic-

itly modeling the links among the data instances.

The authors tackling the problem of mining richly

structured heterogeneous datasets. On the other side

there are proposals related to OLAP tools to en-

able better decision-making process, mainly for in-

tegrating heterogeneous data sources. This is the

case of (K¨ampgen and Harth, 2011) where authors

provided a mapping from statistical Linked Data

into the Multidimensional Model used in data ware-

houses. They presented a mapping between statisti-

cal Linked Data that conforms to the RDF Data Cube

vocabulary

to a common Multidimensional Model.

In (Niinim¨aki and Niemi, 2009) mapping between the

source data and its OLAP form is done by convert-

ing the data ﬁrst to RDF using ontology maps. Then

the data are extracted from its RDF form by queries

that are generated using the ontology of the OLAP

schema. They combine these two powerful technolo-

gies, Semantic Web and OLAP, resulting in a method

of creating a fully functional tool for analysis. Alter-

natives that support the analysis of open data have ap-

peared to publicize the importance of its use in mak-

ing common decisions. In (Bizer et al., 2009) au-

thors presented the concept and technical principles

of Linked Data, and situate these within the broader

context of related technological developments. Em-

phasis is done in this paper in all of the edges related

with Open Data’s use like road for progression and

the development of the branches linked to the anal-

ysis of data with an eye to obtain knowledge. Lo-

cal and national governments are turning to open data

through out initiatives to disclosure and using data.

In (Hoffmann, 2012) some of the encouraging expe-

The “Spring” term has a double sense, because it is like

the knowledge bloom.

RDF Data Cube vocabulary

http://www.w3.org/TR/vocab-data-cube/

KnowledgeSpringProcess-TowardsDiscoveringandReusingKnowledgewithinLinkedOpenDataFoundations

295

riences are shown. We ﬁnally opted to use Model

Driven Development in order to control the diversity

of available data. Well deﬁned languages can be de-

signed by means of metamodeling (B´ezivin, 2005),

which provides the foundation for creating models in

a meaningful, precise and consistent manner. Several

solutions that use these technologies exist but no one

focused on the analysis of heterogeneousdata in order

to apply mining techniques. In (Hillairet et al., 2008b)

autors addressed the question of enabling the use of

RDF resources as EMF objects, and presented a solu-

tion based on the EMF framework and the ATL model

transformation language. This solution provides a

prototype that offers a small Java library for the in-

stantiation and serialization of EMF objects from, and

to RDF resources.

As you can see there are some proposals to be fo-

cused in the data processing, in order to extracting

knowledge. Most of them are partials solutions in or-

der to resolve speciﬁcs problems, but we don’t ﬁnd a

solution for non-expert user in order to discover and

reuse knowledge within Linked Open Data founda-

tions using data mining techniques.

6 CONCLUSIONS

Nowadays, it is essential that non-expert users can ex-

ploit the vast amount of information available in order

to extract knowledge and make well-informed deci-

sions. The value of the discovered knowledge could

be of greater value if it is available for later consump-

tion. In this paper, we present the ﬁrst version of the

Knowledge Spring Process, an infrastructure that al-

lows non-expert users apply user-friendly data mining

techniques in Open Data ﬁles. The main contribu-

tion of this paper is the concept of reusing the knowl-

edge gained from data mining processes after been

semantically annotated in the RDF ﬁle(Linked Open

Knowledge). A model driven approach is used in or-

der to maintain a standard structure having in account

the diversity of the data formats. As future work, we

plan to improvethe process of obtaining Open Linked

Knowledge.

ACKNOWLEDGEMENTS

This work is funded by IN.MIND project from Uni-

versity of Alicante and by the University Institute for

Computing Research (IUII, http://www.iuii.ua.es/).

REFERENCES

B´ezivin, J. (2005). On the uniﬁcation power of models.

Software and System Modeling, 4(2):171–188.

Bizer, C., Heath, T., and Berners-Lee, T. (2009). Linked

data - the story so far. Int. J. Semantic Web Inf. Syst.,

5(3):1–22.

Espinosa, R., Garc´ıa-Saiz, D., Zorrilla, M. E., Zubcoff, J. J.,

and Maz´on, J.-N. (2013). Development of a knowl-

edge base for enabling non-expert users to apply data

mining algorithms. In SIMPDA, pages 46–61.

Getoor, L. and Diehl, C. P. (2005). Link mining: a survey.

SIGKDD Explorations, 7(2):3–12.

Hillairet, G., Bertrand, F., and Lafaye, J. Y. (2008a). Bridg-

ing EMF applications and RDF data sources. In

4th International Workshop on Semantic Web Enabled

Software Engineering.

Hillairet, G., Bertrand, F., and Lafaye, J.-Y. (2008b). Mde

for publishing data on the semantic web. In Parreiras,

F. S., Pan, J. Z., Aßmann, U., and Henriksson, J., ed-

itors, TWOMD, volume 395 of CEUR Workshop Pro-

ceedings, pages 32–46. CEUR-WS.org.

Hoffmann, L. (2012). Data mining meets city hall. Com-

mun. ACM, 55(6):19–21.

Jouault, F. and Kurtev, I. (2005). Transforming models with

atl. In Bruel, J.-M., editor, MoDELS Satellite Events,

volume 3844 of Lecture Notes in Computer Science,

pages 128–138. Springer.

K¨ampgen, B. and Harth, A. (2011). Transforming statisti-

cal linked data for use in olap systems. In Ghidini, C.,

Ngomo, A.-C. N., Lindstaedt, S. N., and Pellegrini,

T., editors, I-SEMANTICS, ACM International Con-

ference Proceeding Series, pages 33–40. ACM.

Kriegel, H., Borgwardt, K., Kroger, P., Pryakhin, A., Schu-

bert, M., and Zimek, A. (2007). Future trends in data

mining. In Data Min. Knowl. Discov.

Niinim¨aki, M. and Niemi, T. (2009). An etl process for olap

using rdf/owl ontologies. J. Data Semantics, 13:97–

119.

Nisbet, R., Elder, J., and Miner, G. (2009). Handbook

of Statistical Analysis and Data Mining Applications.

Academic Press.

Vanschoren, J. and Blockeel, H. (2009). Stand on the

Shoulders of Giants: Towards a Portal for Collabo-

rative Experimentation in Data Mining. International

Workshop on Third Generation Data Mining at ECML

PKDD, 1:88–89.

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

296
