Papers, Please. . .
X.509 Certificate Revocation in Practice
Manuel Koschuch
1
and Ronald Wagner
2
1
Competence Centre for IT-Security, FH Campus Wien - University of Applied Sciences,
Favoritenstrasse 226, 1100 Vienna, Austria
2
FH Campus Wien - University of Applied Sciences, Favoritenstrasse 226, 1100 Vienna, Austria
Keywords:
OCSP, CRL, X.509v3, Browser, Evaluation.
Abstract:
X.509v3 certificates are the current standard of verifiable associating an entity with a public key, and are widely
used in different networking applications: from HTTPS in browsers, SSH connections, to e-mail, PDF and
code signing. This wide usage also necessitates the existence of a robust, reliable way to detect and deal with
compromised or otherwise invalid certificates. Certificate Revocation Lists (CRLs) and the Online Certificate
Status Protocol (OCSP) are the two mechanisms currently deployed to handle revoked certificates. In this
position paper we present preliminary results of our research into the practical use of these protocols, using
an existing data-set to show that almost 85% of certificates currently in use contain no revocation information,
and compare different browsers under different operating systems as to their dealing with unreachable OCSP
servers. We find that browser behaviour in this case ranges from opening the site without any warnings
whatsoever to totally blocking it, indicating no clear default reaction and no reliable behaviour.
1 INTRODUCTION
The recently (4/2014) published Heartbleed bug
1
is
only the last in a long running series of attack vectors
(Meyer and Schwenk, 2013) against one of the foun-
dations of secure Internet communication, the TLS
protocol. This bug has gained special notoriety due to
the fact that it allows to extract a server’s private key,
requiring the affected server to replace the leaked key
and, consequently, also to establish new certificates
and revoke the old ones.
Revocation of a certificate prior to the natural end
of its validity is, at least in theory, well supported by
the X.509v3 standard, using mechanisms like Certifi-
cate Revocation Lists (CRLs) and the Online Certifi-
cate Status Protocol (OCSP). In practice, however,
things look quite different, and the way these proto-
cols are implemented in different frameworks varies
by a good degree.
In this position paper we present the first results
of our preliminary comparison of different browsers
(like Internet Explorer, Chrome, and Firefox), soft-
ware (Java, Flash installation packages, Adobe Acro-
bat), and operating systems (Windows, Ubuntu), with
the goal to determine how the different systems react
1
http://heartbleed.com/
when they are unable to verify the revocation status of
a given certificate using either CRLs or OCSP.
In addition to this, we also try to quantify how
many certificates in practice actually contain revoca-
tion information, using an existing data-set from the
ZMap project (Durumeric et al., 2013b).
This position paper is now structured as follows:
Section 2 gives an overview of the X.509v3 certifi-
cate and the mechanisms used in CRLs and OSCP.
Section 3 then details our experimental approach and
presents our preliminary results. Finally, Section 4
summarizes our results and provides a short outlook
on future work to be done in this area.
2 X.509 CERTIFICATES
Asymmetric cryptography solves the key distribution
problem present with symmetric algorithms, but cre-
ating a new one by doing so: the need to verify the
authenticity and integrity of an entity’spublic key. Al-
most all systems in wide use today use certificates for
this purpose, binding an identity (be it a real name,
a mail address, or a domain name) to a public key.
Figure 1 gives a schematic overview of the contents
of such a certificate, as specified by the X.509v3
36
Koschuch M. and Wagner R..
Papers, Please... - X.509 Certificate Revocation in Practice.
DOI: 10.5220/0005113800360040
In Proceedings of the 5th International Conference on Data Communication Networking (DCNET-2014), pages 36-40
ISBN: 978-989-758-042-0
Copyright
c
2014 SCITEPRESS (Science and Technology Publications, Lda.)
standard (Cooper et al., 2008), last updated in (Yee,
2013). The subject field contains information about
the owner of the public key present in the subjectPub-
licKeyInfo field, issuer specifies the trusted third party
having signed the certificate (that is, all the fields with
a bold frame in Figure 1) in the signatureValue field,
while finally the extensions field contains an arbitrary
number of other information, marked as either crit-
ical (meaning that implementations which don’t un-
derstand or implement this extension have to abort
processing the certificate) or non-critical.
Usually the lifetime of a certificate (and, conse-
quently, of the public key associated with this certifi-
cate) is limited by dates given in the validity field,
which can range from several months for individual
end-user certificates up to several decades for CA cer-
tificates.
However, in practice it may be necessary to re-
voke a key at an earlier point in time, for example due
to compromise of the private key, compromise of the
CA, and so on (see (Cooper et al., 2008, 5.3.1) for an
enumeration of more possible reasons). To achieve
this, two mechanisms are available in X.509v3: cer-
tificate revocation lists (CRLs) and the online certifi-
cate status protocol (OCSP).

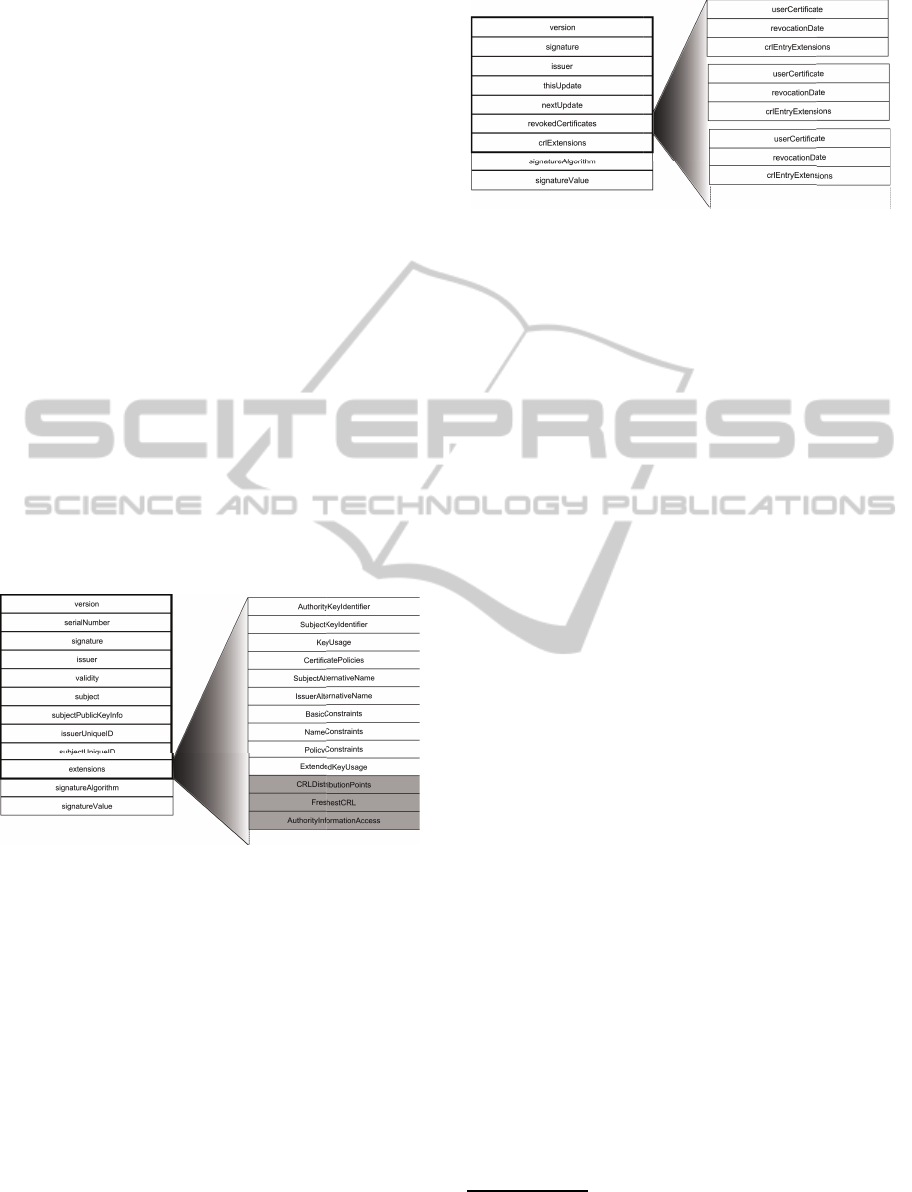

Figure 1: X.509v3 certificate with some selected exten-
sions. Parts covered by the signature are indicated by a bold
frame, fields that contain CRL or OCSP information have a
grey background. (cf. (Cooper et al., 2008))
2.1 Certificate Revocation Lists
Certificate Revocation Lists (CRLs) are the older
method of revoking certificates, first defined in (Hous-
ley et al., 1999), with the latest update in (Cooper
et al., 2008). The main idea behind this approach is
simple: the Certification Authority (CA) periodically
publishes a signed list containing all revoked certifi-
cates, or, in potentially shorter intervals, so called
“delta lists” containing only the differences to the last
full update. The certificates issued by this CA contain
the address of the CRL distribution in the CRLDistri-
butionPoints field for full CRLs and the FreshestCRL
Figure 2: Format of a certificate revocation list, parts cov-
ered by the signature are indicated by a bold frame. (cf.
(Cooper et al., 2008))
field for delta lists, respectively. Both fields are cov-
ered by the CA’s signature (as depicted in Figure 1)
and thus cannot be manipulated by an adversary after
issuing the certificate.
Figure 2 gives an overview of the contents of such
a CRL, where the parts covered by the CA’s signature
are again indicated by a bold frame. The revokedCer-
tificates field contains a list of certificate serial num-
bers together with the corresponding revocation date.
This approach suffers from two main problems:
for one, it doesn’t scale very well. Once a certificate
is added to a CRL, it becomes virtually impossible
to remove it again, even if its regular validity has al-
ready expired (since there are still implementations,
like for example mailing applications, that can and
do also work with expired certificates), resulting in
ever-growing lists that have to be delivered to each
requesting client, that subsequently has to parse the
entire list.
On the other hand, the periodic issuing of CRLs
creates periods of time where a revoked certificate
might not have been added to the list yet and is thus
still considered valid by client applications.
2.2 Online Certificate Status Protocol
The Online Certificate Status Protocol (OCSP), as
defined in (Santesson et al., 2013), tries to alleviate
some of the CRL’s problems by adopting an interac-
tive “challenge-response”-like approach (see Figure
3). When a client wants to determine the validity of a
certificate, it sends a (possibly signed) OCSPRequest
to the responder given in the AuthorityInformationAc-
cess field (see also Figure 1), containing the serial
number as well as a hash of the issuer’s name and
public key of the certificate in question.
The OCSP responder then looks up the requested
certificate in its database and replies with a signed
2
2
note that there is a possible response that can be sent without
signing: the status code “3”, meaning tryLater, which lead to subtle
attacks against this protocol (Marlinspike, 2009).
Papers,Please...-X.509CertificateRevocationinPractice
37

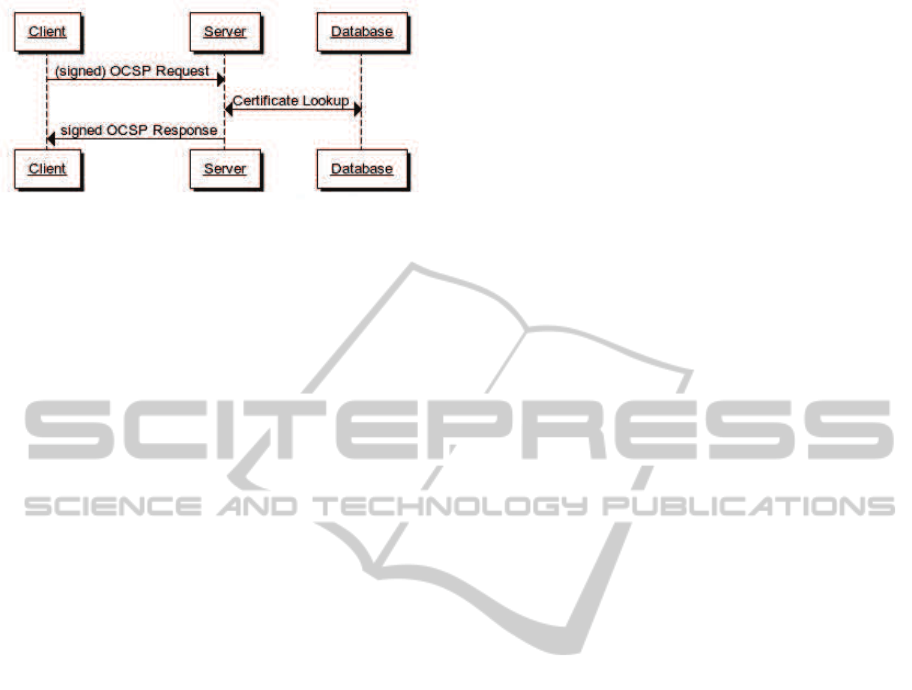

Figure 3: Schematic representation of an OCSP protocol
run. The request may be signed, the response, when con-
taining actual data, must be signed. (cf. (Santesson et al.,
2013))
response, indicating whether this particular certificate
has been revoked or not. While basically scaling bet-
ter than the CRL approach, additional load is put on
the CA’s OSCP responder, which now has to handle
each individual request. A possible way to alleviate
this problem is to employ OCSP stapling, as defined
in (Eastlake, 2011): here the certificate owner (which
in practice usually is the website’s server in the case of
HTTPS) periodically requests a validation of his own
certificate from the CA and sends this validation to-
gether with his certificate to connecting clients. Since
the validation is signed by the CA, a malicious server
is unable to forge this information.
This reduces the pressure on the responder, but
again introduces uncertainty periods, where a revoked
certificate is still considered valid by the client.
3 PRACTICAL EVALUATION
Our practical evaluation was twofold: first, we were
interested in how many certificates provide the lo-
cation of a CRL, how many provide an OCSP re-
sponder, and corresponding combinations of these
two values. For this we used the data-set collected
in (Durumeric et al., 2013a), containing a total of
66, 335, 624 HTTPS certificates.
From these, 9, 833, 063 (roughly 15%) contain a
CRL entry, 9, 295, 779 (approx. 14%) an OCSP en-
try, 9, 249, 263 (again approx. 14%) contained both,
and 56, 456, 045 (that is almost 85%) contained nei-
ther (note that from the 9, 295, 779 certificates con-
taining an OCSP entry, only 7, 130, 220 (that is ap-
prox. 11% of the total number of certificates) actually
contain the string ’OCSP’ in the corresponding au-
thorityInfoAccess field).
So we start with the insight that only about every
fifth HTTPS certificate actually contains revocation
information.
Second, we performed a preliminary analysis of
how different frameworks under different operating
systems react to an unreachable OCSP responder. In
particular, we tested the following software compo-
nents:
• Internet Explorer 8.0.6001.18702 for Windows
XP
• Internet Explorer 11.0.9600.17041for Windows 7
• Firefox 28.0 for Windows 7 and Windows XP
• Firefox 26.0 for Ubuntu 13.04
• Safari 5.1.7 for Windows 7 and Windows XP
• Opera 20.0.1387.91 for Windows 7 and Windows
XP
• Opera 12.16 for Ubuntu 13.04
• Chrome 34.0.1847.116 for Windows 7, Windows
XP, and Ubuntu 13.04
• Outlook 14.0.7116.5000 for Windows 7
• Java 7u55 for Windows 7, Windows XP, and
Ubuntu 13.04
• Adobe Acrobat Professional 8.0.0 for Windows 7
• Adobe Flash Player Installation 13.0.0.182 for
Windows 7
For the browsers we used the two HTTPS demo
sites from https://www.pki.dfn.de/crl/globalocsp/.
https://info.pca.dfn.de/uses a valid certificate con-
taining OCSP information, the certificate of the site
https://revoked-demo.pca.dfn.de/ is revoked, which
again can be verified using OCSP. Both sites were ac-
cessed using the browser’s default settings, first with-
out any modifications to the network connection, then
with an active Checkpoint Gaia R76 firewall blocking
access to the OCSP URL given in the certificates.
Table 1 gives an overview of our preliminary find-
ings, where the first half describes the behaviour with-
out the firewall, the second half with blocking of the
OCSP URL. Each cell gives the results for the website
with the valid and revoked certificate, respectively,
separated by a k. Possible reactions of the browsers
where blocking of the website, thereby impeding ac-
cess altogether (×), opening the websites without any
warnings (X) or presenting a dialogue-box for the
user to choose the preferred action (). The results
vary wildly depending on browser and operating sys-
tem, with Chrome effectively ignoring OCSP alto-
gether (as is also detailed in (Langley, 2014) and basi-
cally stems mainly from usability reasons in practice).
To summarize our findings with the other software
tested:
• The signed Java web start application we tested
(https://pki.pca.dfn.de/guira/guira.jnlp) ran in ev-
ery browser without any warnings, whether OCSP
was blocked or not.
DCNET2014-InternationalConferenceonDataCommunicationNetworking
38
Table 1: Comparison of the reactions of the browsers tested when OSCP was reachable or blocked, respectively. X indicates
that the page was displayed, × that the page was blocked, and that the user was prompted on how to proceed.
OCSP reachable valid certificate k revoked certificate
Windows 7 Windows XP Ubuntu 13.04
Internet Explorer 8.0.6001.18702 X k ×
Internet Explorer 11.0.9600.17041 X k ×
Firefox 28.0 X k × X k ×
Firefox 26.0 for Ubuntu X k ×
Safari 5.1.7 X k X k
Opera 20.0.1387.91 X k × X k ×
Opera 12.16 for Ubuntu X k ×
Chrome 34.0.1847.116 X k X X k × X k X
OCSP blocked valid certificate k revoked certificate
Windows 7 Windows XP Ubuntu 13.04
Internet Explorer 8.0.6001.18702 X k ×
Internet Explorer 11.0.9600.17041 X k ×
Firefox 28.0 X k X X k X
Firefox 26.0 for Ubuntu X k X
Safari 5.1.7 X k X k
Opera 20.0.1387.91 X k × X k ×
Opera 12.16 for Ubuntu X k X
Chrome 34.0.1847.116 X k X X k × X k X
• The validity of the signature on a PDF document
is considered ’unknown’ when OCSP and CRL
access is blocked.
• An e-mail signature is shown as ’valid’ in Outlook
2010 when OCSP and CRL are blocked, but ap-
pears as ’not verifiable’ when examining the sig-
nature details of the message.
• The installation of the signed Flash player exe-
cutable for Windows 7 works without any warn-
ing whatsoever when both OCSP and CRL are
blocked.
4 CONCLUSIONS AND FUTURE
WORK
In this work, we performed a very preliminary evalu-
ation of the reaction of different browsers and other
software using certificates on how they react to
blocked revocation checking.
We find that it is next to impossible to give a con-
sistent picture of how software reacts to inaccessible
OCSP and/or CRL URLs, with everything from qui-
etly ignoring this fact, asking the user, to downright
blocking access to the specific web-page.
In addition to that, by using the existing data-set
from (Durumeric et al., 2013a) we find almost 85%
of HTTPS certificates don’t contain any revocation
information at all, thereby rendering this approach to
deal with compromised keys next to useless in prac-
tice.
Our next steps will be to perform a more thorough
testing of the different browsers with respect to the re-
action of blocked CRLs (something we only did very
inconsistently in this preliminary work) as well as of
other software making use of certificates. But our cur-
rent results already imply that the current practice of
dealing with compromised keys, be it OCSP or CRLs,
does not suffice to actually avoid users from mistak-
enly trusting compromised certificates.
ACKNOWLEDGEMENTS
Manuel Koschuch is being supported by the MA23
- Wirtschaft, Arbeit und Statistik - in the course
of the funding programme “Stiftungsprofessuren und
Kompetenzteams f¨ur die Wiener Fachhochschul-
Ausbildungen”.
REFERENCES
Cooper, D., Santesson, S., Farrell, S., Boeyen, S., Housley,
R., and Polk, W. (2008). RFC5280 - Internet X.509
Public Key Infrastructure Certificate and Certificate
Revocation List (CRL) Profile. Technical report.
Durumeric, Z., Kasten, J., Bailey, M., and Halderman, J. A.
(2013a). Analysis of the HTTPS certificate ecosys-
Papers,Please...-X.509CertificateRevocationinPractice
39
tem. In Proceedings of the 13th Internet Measurement
Conference.
Durumeric, Z., Wustrow, E., and Halderman, J. A. (2013b).
ZMap: Fast Internet-wide scanning and its security
applications. In Proceedings of the 22nd USENIX Se-
curity Symposium.
Eastlake, D. (2011). RFC6066 - Transport Layer Security
(TLS) Extensions: Extension Definitions. Technical
report.
Housley, R., Ford, W., Polk, W., and Solo, D. (1999).
RFC2459 - Internet X.509 Public Key Infrastructure
Certificate and CRL Profile. Technical report.
Langley, A. (2014). No, don’t enable revocation check-
ing.
https://www.imperialviolet.org/2014/
04/19/revchecking.html
.
Marlinspike, M. (2009). Defeating OCSP with the Charac-
ter ’3’.
http://www.thoughtcrime.org/papers/
ocsp-attack.pdf
.
Meyer, C. and Schwenk, J. (2013). SoK: Lessons Learned
from SSL/TLS Attacks. In Kim, Y., Lee, H., and Per-
rig, A., editors, Information Security Applications -
14th International Workshop, WISA 2013, Jeju Island,
Korea, August 19-21, 2013, Revised Selected Papers,
volume 8267 of Lecture Notes in Computer Science,
pages 189–209. Springer.
Santesson, S., Myers, M., Ankney, R., Malpani, A.,
Galperin, S., and Adams, C. (2013). RFC6960 - X.509
Internet Public Key Infrastructure Online Certificate
Status Protocol - OCSP. Technical report.
Yee, P. (2013). RFC6818 - Updates to the Internet X.509
Public Key Infrastructure Certificate and Certificate
Revocation List (CRL) Profile. Technical report.
DCNET2014-InternationalConferenceonDataCommunicationNetworking
40
