Toward Building Aesthetic, useful and Readable Tag Clouds for Websites

Jakub Marszałkowski, Łukasz Rusiecki, Maciej Drozdowski and Hubert Naro

zny

Institute of Computing Science, Poznan University of Technology, Piotrowo 2, 60-965 Pozna

n, Poland

Keywords:

Web Page Optimization, Tag Clouds, 2D Packing, Data Visualization, Usability.

Abstract:

Tag clouds provide a graphical method of summarizing content of a text document (e.g. of a web page) with a

set of phrases projected onto a plane. In this paper we consider building aesthetic tag clouds algorithmically for

website use. General design choices in tag-cloud construction are analyzed. State of the art will be outlined

along the lines of these design choices. Special requirements imposed on tag clouds used on web sites are

presented. Rules of beautiful page setting existing in typography are discussed and subsequently applied in

an attempt to quantify aesthetic aspect of tag cloud appearance. The quantiﬁcation is performed with the

goal of constructing an objective function to be optimized in tag cloud construction. Then, a mathematical

formulation for tag clouds construction is given. Finally, algorithms constructing tag clouds by optimization

are given.

1 INTRODUCTION

Internet-related problems instigate research in many

areas. One of them is combinatorial optimization.

As examples, consider e-business problems of In-

ternet shopping optimization (Bła

zewicz and Musiał,

2011), website layout optimization for the purpose

of ﬂexible placement of the future advertisements

(Marszałkowski and Drozdowski, 2013). Yet, prob-

ably the most studied area of the research in this ﬁeld

is Internet advertising scheduling and advertising dis-

play positioning with papers from as old as (Aggar-

wal et al., 1998) to the recent ones like (Ahmed and

Kwon, 2014). Tag cloud construction is also a mat-

ter of solving a combinatorial optimization problem,

however, the objectives are very different than in the

classic combinatorial problems.

Basically, tags are phrases representing or sum-

marizing content of a text document such as a web

page. Tag cloud is a graphical depicting of the tags as

just a set of words/phrases projected onto a plane. An

example tag cloud from Amazon website is shown in

Figure 1. Tags and tag clouds originated from social

websites, but they gained already a wide usage over

the entire Internet. More details on tag cloud usage

and history can by found in (Vi

egas and Wattenberg,

2008). Tag cloud construction also receives growing

interest of the researcher community as shown in the

next section.

In this paper we analyze the problem of construct-

ing tag clouds for use on web pages that are visually

acceptable or hopefully even pleasing. A ﬁrst step in

tag cloud creation is preparation of tags themselves:

selection, grouping, clustering, weighting, etc. Here

it is assumed that the set of tags is given and their

rendering in two dimensions is studied. Methods of

digesting the text and extracting the tags rest in text

mining area and are beyond the scope of this paper.

The problem of rendering the tags into a tag cloud

is formulated as a combinatorial problem with spe-

ciﬁc objectives and constraints. Further organization

of this text is the following. In Section 2 tag clouds in

general and ones for websites are discussed. Design

options and the choices taken in the past are surveyed.

Requirements for tag clouds for web usage and client

side generation are discussed. Section 3 provides a

mathematical formulation of a tag cloud construction

problem, as well as, the ﬁrst approach to algorithms

solving the problem.

2 TAG CLOUDS

In this section we present results of the research on

tag cloud formation and usability. Then we discuss

requirements for website tag clouds. Finally, the re-

quirements of and status quo in web browsers ﬂexi-

bility are studied.

2.1 State of the Art

In tag cloud construction there are several design

choices determining appearance and usability of tag

clouds. In particular these are:

Marszałkowski J., Rusiecki Ł., Drozdowski M. and Naro

zny H..

Toward Building Aesthetic, Useful and Readable Tag Clouds for Websites.

DOI: 10.5220/0005116302300235

In Proceedings of the 11th International Conference on e-Business (ICE-B-2014), pages 230-235

ISBN: 978-989-758-043-7

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Table 1: Summary of packing choices in tag clouds (See Section 2 for details).

Cloud 1. Tag ordering 2. Cloud shape 3. Tag shape 4. Tag rotation 5. Vertical alignment

Amazon alphabetical rectangle rectangle none baseline

Kaser packing rectangle rectangle none limited

Kuo alphabetical rectangle rectangle none baseline

Fujimura context irregular rectangle none background

Seifert packing given polygon rectangle none free

Wordle opt. alphabetical irregular font body conﬁgurable free

Cui context irregular rectangle none free

Nguyen alphabetical given borders rectangle none background

This paper packing rectangle rectangle none baseline

1. How tags are sorted. Identiﬁed choices are: al-

phabetically, by importance, by context, packing-

decided. The latter means that tags may be re-

ordered for better packing quality.

2. Shape of the entire cloud area. Possible options:

rectangular, irregular, other (given polygons, de-

ﬁned borders).

3. What kind of ﬁgure the tags are. Options: rectan-

gular boxes, or character body. The former means

that bounding boxes of the tags rendered in some

given font are used. The latter means using the ir-

regular shapes of characters in the given font. This

allows for advanced tag alignment in free spaces

of the letter bodies.

4. Tag rotation: disallowed or allowed.

5. Vertical tag alignment. Identiﬁed options are:

sticking to the typographical baselines, limited

by the algorithm properties, free - leading to 2D

packing, forced by tag cloud background.

Results of the outermost design decisions can be

compared in Figures 1 and 2 (cf. the design deci-

sions outlined in Table 1). Let us note that the above

choices resemble variants in combinatorial problems

of packing and cutting. It will be discussed in the

following text. There are also further design-choices

possible. For example, it can be related to the use of

colors or fonts (typefaces, sizes, weights and styles).

We assume that fonts are given as input, coming from

the tag preparation step. Note that use of colors to dis-

tinguish tags may be a bad idea for users with color-

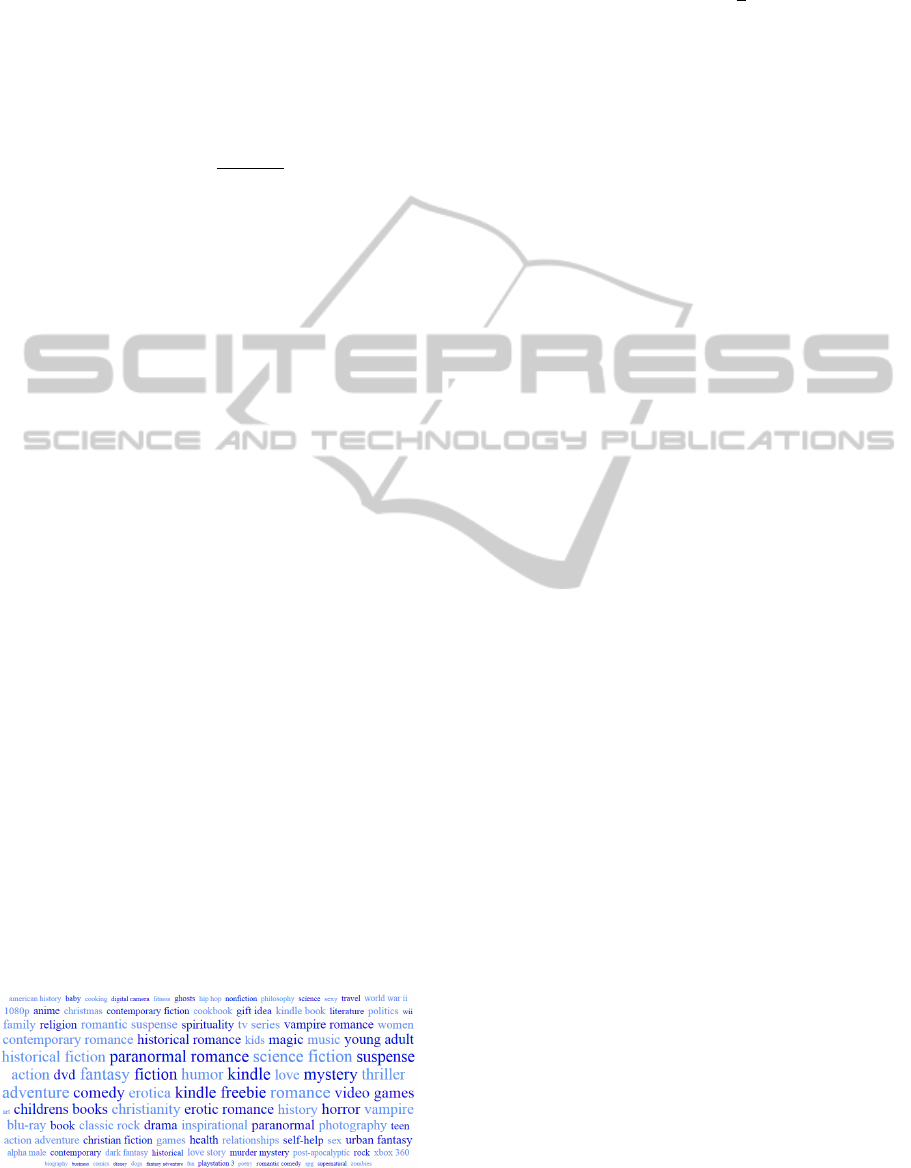

Figure 1: Tag cloud amazon.com/tags.

impaired sight. Hence, we assume that tags are es-

sentially monochromatic (e.g. black) on a contrasting

(e.g. white) background.

Tag clouds construction attract increasing interest

of researchers. (Kaser and Lemire, 2007) submit-

ted an idea of nested HTML tables in order to build

tag clouds well using given rectangular space. (Kuo

et al., 2007) presented application of simple tag cloud

to summarize results of a query over a database. (Fu-

jimura et al., 2008) proposed use of a topographical

map as background to visualize large scale tag clouds

(5000 tags, 10000x10000 pixels). Position of tags is

determined by the map, height on the map reﬂects

tags importance. (Seifert et al., 2008) worked on ﬁt-

ting tags clouds into polygons, and proposed four al-

gorithms. Out of these four algorithms they chose

ones for best usability and aesthetic parameters. Wor-

dle (Viegas et al., 2009) is probably the best-known

web-based tool for data visualizations in the form of

a tag cloud. It allows to set several parameters like

rotation or sorting, but always justiﬁes tags to shapes

of characters and outputs irregular tag clouds. (Cui

et al., 2010) proposed tag clouds preserving context

using color for visualizing trends. (Nguyen and Schu-

mann, 2010) explored putting tags into shapes resem-

bling maps to achieve geo-tagged data exploration.

The choices made by the authors of the above papers

according to terminology introduced at the beginning

of this section are summarized in the Table 1. Out of

these papers only the ﬁrst two consider designing tag

clouds for website use.

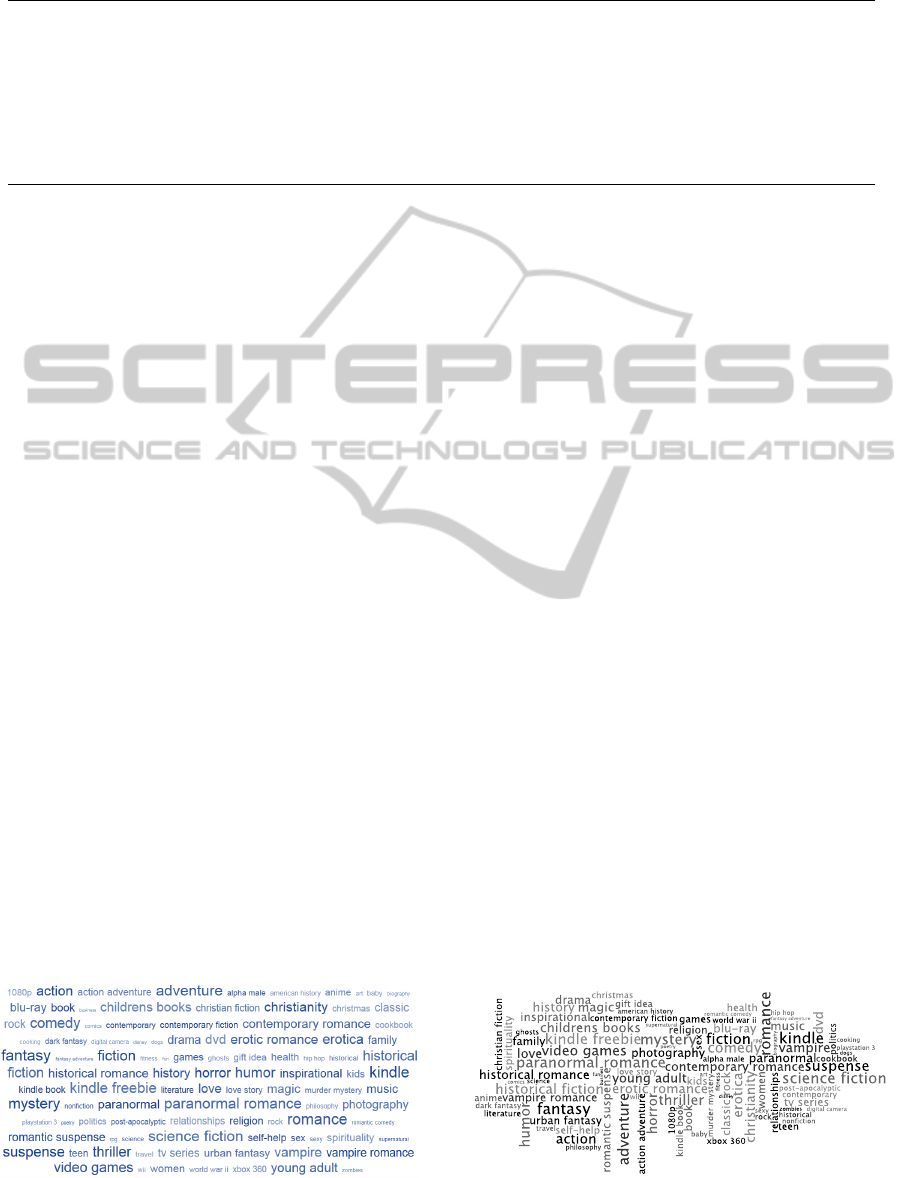

Figure 2: Amazon tags rendered into a cloud by Wordle.

A few studies verifying effectiveness of tag clouds

and user experience have been conducted. List of

tasks that tag clouds can support: Search, Browsing,

Impression Formation and Recognition/Matching is

given by (Rivadeneira et al., 2007). Out of these, the

last one means verifying whether tag cloud is rep-

resenting particular subject. Note that only Search

is goal-oriented task, while the remaining are rather

free browsing tasks. (Halvey and Keane, 2007) per-

formed simple experiment with time necessary for

ﬁnding certain tag, and they found that alphabetical

list is actually faster. They also conclude that users

rather scan than read tag clouds. When testing clouds

obtained from their algorithm, (Seifert et al., 2008)

used a different approach. Namely, they asked users

to point three most important tags and measured the

correctness. Though this seems a better idea for eval-

uating tag clouds, their experiments were strongly re-

lated to their algorithms and give no general insights.

(Rivadeneira et al., 2007) on the basis of their re-

sults, conclude that font size and location affect low-

level memory processes, while layout high-level ones,

such as impression formation. They suggest to fo-

cus on the layout of tag cloud. Research of (Bate-

man et al., 2008) did not tackle the layout matters,

instead font related parameters were tested leading

to conclusions that larger and stronger fonts draw

more users attention, while color although being well

recognized proves difﬁculties in visualizing impor-

tance. (Lohmann et al., 2009) performed several ex-

periments on performance of certain tasks involving

various cloud layouts. They conﬁrm earlier ﬁndings

of (Halvey and Keane, 2007) that ﬁnding a speciﬁc

tag is fastest with alphabetical sorting and that users

are scanning rather than reading. Yet, their other ex-

periments show that for ﬁnding most important tags,

recalling tags, etc. layout plays important role.

The above presented research was focused on

goal-orientated tasks, which are easier to measure, as

opposed to free browsing tasks. However, browsing

is an important application of tag clouds.

2.2 For the Web

In authors’ opinion, tag clouds for websites have to

meet additional requirements. Website space is al-

ways rectangular and scarce so it should be used

wisely. This gives a preference to tag clouds ﬁll-

ing a rectangular envelope well. As websites usually

use column layout (Marszałkowski and Drozdowski,

2013) horizontal size of a tag cloud is ﬁxed, while the

vertical size can be changed, thus moving the com-

ponent below up or down a little. This characteristic

resembles strip packing problems.

A tag cloud for a website should use standard

technologies, making a reasonable trade-off between

fancy looks and the simplicity of the code. This has

two reasons: Firstly, it is a matter of the ease of imple-

mentation. Secondly, not only humans read websites

and making website content available to the robots

is of great importance (see (Marszalkowski et al.,

2014)). Using HTML with JavaScript (JS) and CSS as

simple as possible seems to be a natural decision here.

This simpliﬁes some of the further choices: Though

the use of exact tag shapes or tag rotation are possi-

ble in most modern browsers, they are not standard

and cannot be guaranteed to work perfectly the same

way for every client. Hence, they should be discour-

aged. The same argument can be applied in prefer-

ing the alignment to the baselines over the freedom

of arbitrary 2D packing. Tags on a baseline will be

considered just as line of text by the robots. Taking

into account the results of the studies demonstrating

that users scan lines of the clouds (see Section 2.1),

the use of baselines will make reading tags more efﬁ-

cient.

Next we come to the choice of tag ordering. It was

already mentioned that alphabetical clouds perform

worse in the speed of searching compared to lists, so

why to use them? Moreover, alphabetical ordering

signiﬁcantly restricts ﬂexibility of packing in two fol-

lowing ways. Firstly, since tags cannot be reordered

the only remaining option is to choose where to put a

line break. Secondly, for the same reason use of dif-

fering font sizes must remain limited, as tags of the

smallest font cannot be moved away from the lines

made very tall by the tags of the greatest font size.

To achieve any reasonable visual quality tags have to

be rearranged, i.e. the sequence tags should follow

packing.

Our design recommendations are: 1) tags are re-

ordered with packing, 2) minimum waste of the rect-

angular area is desired, 3) tags are rectangular boxes,

4) rotation is not allowed, 5) tags ﬁt between base-

lines (shelves). Although it may seem that in most

cases simplifying choices were made, we end up with

a problem that can be expected to rest in NP-hard

class. Thus, it can be expected that optimum solu-

tions (e.g. in the sense of used area) can be deliv-

ered by exponential-time algorithms. The current rec-

ommendation encompasses bin packing problems or

strip packing which can be solved by use of shelf al-

gorithms, or metaheurisitcs (Burke et al., 2006).

2.3 Client Side

In times of more and more personalized content each

user can get a different set of tags. But there is more

than that to signiﬁcantly affect packing of the tags.

Namely, clients may have different dimensions (in

pixels) of the same tag depending on the browser,

system and fonts installed. We conducted an exper-

iment into browser font rendering dispersion to verify

our intuitions. We tailored 6 benchmark tags testing

different methods of deﬁning look of text with CSS:

fonts, font stacks, size and weight. A script measur-

ing tag sizes was installed on a production web site

and in course of two days responses from 4201 differ-

ent clients were registered.

0,01%

0,10%

1,00%

10,00%

100,00%

Popularity among clients

Distinct dimensions of benchmark tags

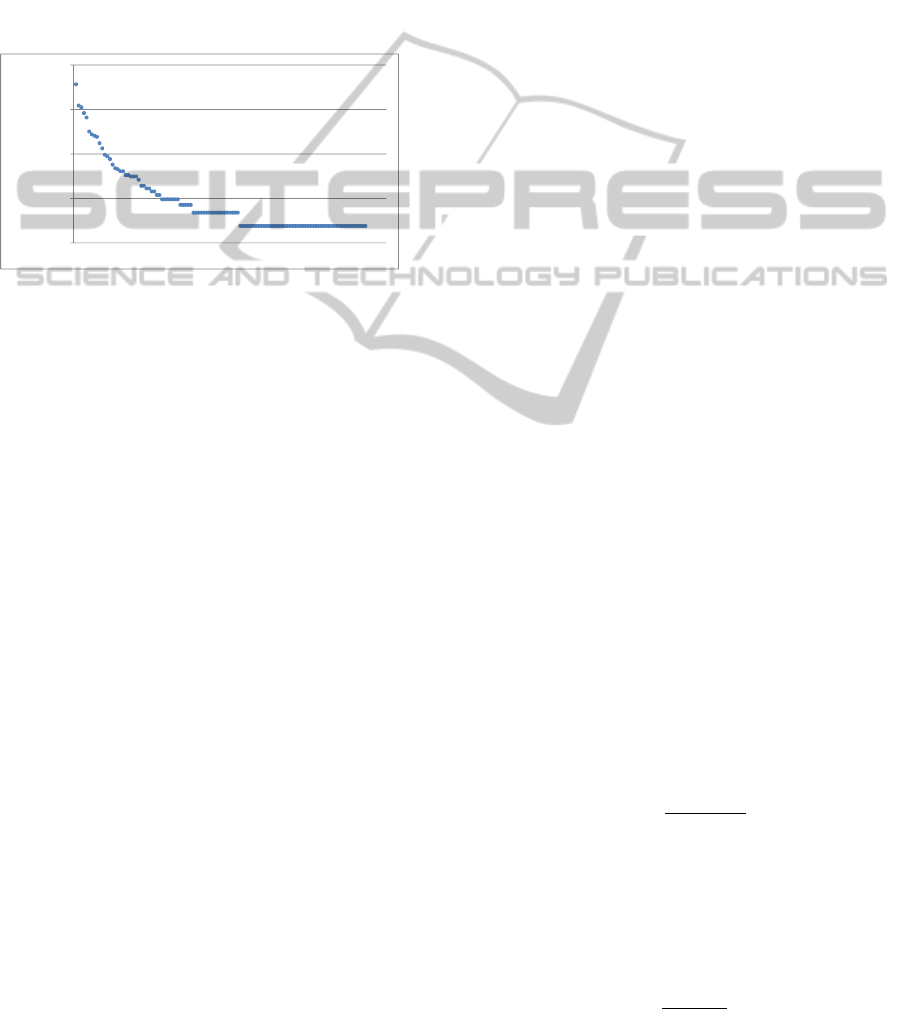

Figure 3: Distribution of dimensions of tags over the mea-

sured Internet users.

In the gathered data we identiﬁed 112 distinct

sizes for the benchmark tags. The results are shown

in the Figure 3. As could be expected we found

that the distribution of tag sizes follow the power law

(with ﬁt quality R

= 0.9774). Most of users use

browser/systems combinations that render the tags in

less than a dozen of the most popular sizes. On

the one end, the three most popular font sizes are

found on, respectively, 36.61%, 12.21% and 11.19%

of clients. On the opposite end, sizes with less than

1% popularity form a long tail of 101 different val-

ues. More so, tag sizes on mobile devices differ

much more than on standard desktop/laptop comput-

ers (even two-three times). The result lead to a con-

clusion that we have to adjust tag cloud construction

to the tag sizes measured at client side.

Algorithmic building of tag clouds can be moved

to client side by meeting just a few requirements. The

implementation has to use JavaScript (JS). Although

other choices are possible, only JS has sufﬁcient mar-

ket penetration. Moreover, JS works on the elements

in DOM structure preserving readability of the tag

cloud for the robots. A disadvantage is that the algo-

rithm constructing a tag cloud must run in very lim-

ited time, i.e. in th order of tenths of a second. There

is plenty of research showing that users do not want

to wait for downloading web-page content from the

Internet and rendering it, because they quickly lose

interest. An up-to-date survey is given in (Marsza-

lkowski et al., 2014). Since the performance of the

client browser is unknown, the algorithm must stop

when time limit is reached, and give a valid solution.

3 2D PACKING FOR BETTER

QUALITY

In this section we formulate tag cloud construction

problem as an optimization problem. What is novel in

this approach is a proposition of reaching back to the

rules of typography, which tell how to typeset read-

able text objects looking good aesthetically. One of

such rules, already introduced for other reasons, is the

use of baselines. Other rule is a desire for good tonal

weight (also known as the typographic color). This

means even distribution of the mass of gray in case of

black letters on white background (Bringhurst, 1996;

Eckersley et al., 2008). A typographer usually has

to squint to asses that. An advantage for building tag

clouds is that this black color dispersion is measurable

and can be included in a mathematical model, which

is rare for the rules of beauty. The tonal weight can

be measured in HTML by reading colors of a pixel in

the canvas element. A canvas would be impractical

for building whole tag clouds, and would contradict

the requirements declared earlier. Luckily, a tag can

be put in canvas, have its tonal weight measured and

recorded. Tonal weights of entire tag cloud, or its sec-

tions, can be calculated from tonal weights of single

tags and their dimensions.

3.1 Mathematical Model

Tag cloud construction problem can be formalized as

a Nonlinear Programming (NLP) optimization prob-

lem as follows. Given is width of a tag cloud W and

a set of tags T = {t

, ...,t

}. Dimensions of a tag i are

and y

. Tonal weight of each tag can be measured

as a sum of tonal weights of its pixels:

∑

1≤x≤x

,1≤y≤y

b[x, y] (1)

where b[x, y] is the tonal weight of the pixel at a posi-

tion x, y, calculated as:

b = 1 −

R + G + B

3 ∗ 255

(2)

R, G and B are values of color bytes for the pixel.

Let f

represent the number of the shelf (baseline)

where tag t

was placed, and let m be the total number

of shelves. Let Z

represent a set of tags placed on a

shelf j, i.e.: Z

= {t

: f

= j}. Tonal weight of shelf j

can be calculated from tags on it and its height:

∑

∈Z

∗W

(3)

where in denominator we have dimensions of the

shelf: height h

= max(x

∈ Z

), and width W . This

causes that the free space will be reﬂected in the value

of α. For example, if tags have large differences

in height, or shelf will be under-utilized, and large

empty areas shall result in low value of α

. With the

scores α

of shelves j we construct objective function

quantifying the differences in tonal weights between

shelves:

min

∑

j=1



1 −

∗W )



(4)

In (4) a deviation from the maximal possible tonal

weight is calculated. It follows implicitly from (4)

that if (4) is minimized then also the height of tag

cloud will be minimized. Finally, it is required that

all tags assigned to a some shelves ﬁt the shelves:

∑

∈Z

< W ∀ j = 1, ..., m (5)

Note that in this approach neither shelves ordering

nor tags ordering on shelves matter. These can be re-

arranged after the packing for example to move more

important tags to areas more frequently scanned by

users.

3.2 Algorithms for Tag Cloud

Optimization

To solve this problem to optimality Branch and Bound

(B&B) algorithm was developed (Lawler and Wood,

1966). Since our problem involves an additional cri-

terion of minimizing the number of shelves, the B&B

algorithm was ﬁrst calculating the minimum number

of shelves and only then was it minimizing the tonal

weight inequalities with objective function (4). Ob-

viously B&B exponential running time renders it not

usable in practice. It was solving instances of up to

20 tags, in execution times up to 7 minutes. However,

the B&B algorithm is necessary to allow measuring

optimality gap of other algorithms.

Several well known low-level heuristics greedy

like FirstFit (FF), BestFit (BF), WorstFit (WF) (Burke

et al., 2006) were used. Also modiﬁed version of the

FF algorithm First Fit Greedy Two (FFG2) was devel-

oped. FFG2 follows a simple idea: when placing an

Figure 4: Example initial results built of tags from Amazon.

element of size x on a shelf, and the space left will be

less than the narrowest remaining element, look for

two elements of sizes nearest to

, and check if the

pair ﬁts better (leaving less waste) than the element of

size x. With the use of earlier sorting of the elements

by width, the checking for these two elements can be

achieved in constant time, and the algorithm has the

overall complexity O(n log n) of FF algorithm. For all

four algorithms their versions using different ordering

of elements were used: decreasing height (DH), de-

creasing width (DW), decreasing tonal weight (DT),

making it twelve algorithms in total.

The algorithms were tested on eight sets of tags

taken from real world websites. The best perform-

ing algorithms were WF (DH and DW) and FFG2

(DT and DH) with a gap from 0.02% to 18.71% to

the result of B&B. This is not really surprising as

WF algorithm is making choices equalizing utiliza-

tion of shelves, and FFG2 should on average pack

slightly better than FF an BF algorithms. An exam-

ple of their results, a cloud built from the same set

of tags from Amazon is presented in Figure 4. Ex-

ecution times were of order of microseconds, which

means that these algorithms can be run many times

as part as some hiper- or metaheuristic algorithm be-

fore becoming noticeable for the user. The highest

observed gaps of over 15% encourage building such

algorithm.

4 CONCLUSIONS AND FUTURE

WORK

In this paper the idea of constructing aesthetic tag

clouds for websites by algorithmically following rules

of typography was presented and justiﬁed. An impor-

tant contribution is inclusion of the typographical rule

of good tonal weight in the objective function. This

metric of quality of text object is easily measurable,

and thus can be included in the mathematical model

and optimized. Such a model was given and work on

algorithms can be performed in future on its basis.

Our experiment showing diversity of sizes for the

same tags on different client caught quite few mobile

devices, and perhaps another experiment for more de-

tailed insight in this area should be performed as a

future work. Also some choices of the parameters of

tag clouds, like for example lack of rotation of the

tags, that was not covered in research to this date,

could have quality of user experience experimentally

veriﬁed. Algorithms proposed here were very quick

which opens chances for algorithms for constructing

even better tag clouds in longer time.

ACKNOWLEDGEMENTS

The research was partially supported by the NCBiR

PolLux grant (IShOP project).

REFERENCES

Aggarwal, C. C., Wolf, J. L., and Philip, S. Y. (1998). A

framework for the optimizing of www advertising.

In Trends in Distributed Systems for Electronic Com-

merce, pages 1–10. Springer.

Ahmed, M. T. and Kwon, C. (2014). Optimal contract-

sizing in online display advertising for publishers with

regret considerations. Omega, 42(1):201–212.

Bateman, S., Gutwin, C., and Nacenta, M. (2008). Seeing

things in the clouds: the effect of visual features on

tag cloud selections. In Proceedings of the nineteenth

ACM conference on Hypertext and hypermedia, pages

193–202. ACM.

Bła

zewicz, J. and Musiał, J. (2011). E-commerce

evaluation–multi-item internet shopping. optimization

and heuristic algorithms. In Operations Research Pro-

ceedings 2010, pages 149–154. Springer.

Bringhurst, R. (1996). The elements of typographic style.

CRC Studio.

Burke, E. K., Hyde, M. R., and Kendall, G. (2006). Evolv-

ing bin packing heuristics with genetic programming.

In Parallel Problem Solving from Nature-PPSN IX,

pages 860–869. Springer.

Cui, W., Wu, Y., Liu, S., Wei, F., Zhou, M. X., and Qu, H.

(2010). Context preserving dynamic word cloud vi-

sualization. In Paciﬁc Visualization Symposium (Paci-

ﬁcVis), 2010 IEEE, pages 121–128. IEEE.

Eckersley, R., Angstadt, R., Ellertson, C. M., and Hendel,

R. (2008). Glossary of typesetting terms. University

of Chicago Press.

Fujimura, K., Fujimura, S., Matsubayashi, T., Yamada, T.,

and Okuda, H. (2008). Topigraphy: visualization for

large-scale tag clouds. In Proceedings of the 17th

international conference on World Wide Web, pages

1087–1088. ACM.

Halvey, M. J. and Keane, M. T. (2007). An assessment of

tag presentation techniques. In Proceedings of the

16th international conference on World Wide Web,

pages 1313–1314. ACM.

Kaser, O. and Lemire, D. (2007). Tag-cloud drawing:

Algorithms for cloud visualization. arXiv preprint

cs/0703109.

Kuo, B. Y., Hentrich, T., Good, B. M., and Wilkinson, M. D.

(2007). Tag clouds for summarizing web search re-

sults. In Proceedings of the 16th international confer-

ence on World Wide Web, pages 1203–1204. ACM.

Lawler, E. L. and Wood, D. E. (1966). Branch-and-bound

methods: A survey. Operations research, 14(4):699–

719.

Lohmann, S., Ziegler, J., and Tetzlaff, L. (2009). Com-

parison of tag cloud layouts: Task-related per-

formance and visual exploration. In Human-

Computer Interaction–INTERACT 2009, pages 392–

404. Springer.

Marszałkowski, J. and Drozdowski, M. (2013). Optimiza-

tion of column width in website layout for advertise-

ment ﬁt. European Journal of Operational Research,

226(3):592–601.

Marszalkowski, J., Marszalkowski, J. M., and Drozdowski,

M. (2014). Empirical study of load time factor in

search engine ranking. Journal of Web Engineering,

13(1-2):114–128.

Nguyen, D.-Q. and Schumann, H. (2010). Taggram: Ex-

ploring geo-data on maps through a tag cloud-based

visualization. In Information Visualisation (IV), 2010

14th International Conference, pages 322–328. IEEE.

Rivadeneira, A. W., Gruen, D. M., Muller, M. J., and

Millen, D. R. (2007). Getting our head in the clouds:

toward evaluation studies of tagclouds. In Proceed-

ings of the SIGCHI conference on Human factors in

computing systems, pages 995–998. ACM.

Seifert, C., Kump, B., Kienreich, W., Granitzer, G., and

Granitzer, M. (2008). On the beauty and usability of

tag clouds. In Information Visualisation, 2008. IV’08.

12th International Conference, pages 17–25. IEEE.

egas, F. B. and Wattenberg, M. (2008). Timelines tag

clouds and the case for vernacular visualization. in-

teractions, 15(4):49–52.

Viegas, F. B., Wattenberg, M., and Feinberg, J. (2009).

Participatory visualization with wordle. Visualiza-

tion and Computer Graphics, IEEE Transactions on,

15(6):1137–1144.
