Keeping an Eye on Your Security Through Assurance Indicators

Moussa Ouedraogo¹, Chien-Ting Kuo², Simon Tjoa³, David Preston

, Eric Dubois¹, Paulo Simoes

and Tiago Cruz

¹Public research Centre Henri Tudor, Luxembourg 1855, Luxembourg

²Department of Electrical Engineering, National Taiwan University, 106 Taipei, Taiwan

CyberTrust Technology Institute, Institute for Information Industry, 105 Taipei, Taiwan

³St. Poelten University of Applied Sciences, Matthias Corvinus-Straße 15, A-3100 St. Poelten, Austria

School of Architecture, Computing and Engineering, University of East London, London, U.K.

CISUC-DEI, University of Coimbra, Coimbra, Portugal

Keywords: Security Assurance, Verification of Security, Security Management.

Abstract: Despite the incommensurable effort made from across computer sciences disciplines to provide more secure

systems, compromising the security of a system has now become a very common and stark reality for

organizations of all sizes and from a variety of sectors. The lax in the technology has often been cited as the

salient cause of systems insecurity. In this paper we advocate the need for a Security Assurance (SA) system

to be embedded within current IT systems. Such a system has the potential to address one facet of cyber

insecurity, which is the exploit of lax within the deployed security and its underlining policy. We discuss the

challenges associated to such an SA assessment and present the flavor of its evaluation and monitoring

through an initial prototype. By providing indicators on the status of a security matter that is more and more

devolved to the provider as it is the case in the cloud, the SA tool can be used as a means of fostering better

security transparency between a cloud provider and client.

1 INTRODUCTION

The complexity of today’s information systems make

it difficult for most users to properly identify, assess

and address information security risks. Although

various security awareness campaigns such as

European Cyber Security Month (ENISA, 2014) or

National Cyber Security Awareness Month (DHS,

2014) try to increase the level of security awareness,

many users still have a wrong risk perception. Users

tend to overestimate the security of their systems and

often consider security risks as resolved the very

moment a mechanism (e.g. anti-malware software,

firewall solutions) is put in place. Although these

mechanisms inevitably enhance the state of security,

the feeling of being protected can lead to risky

behaviour such as downloading files from unknown

or insecure sources, such as file-sharing websites. If

the situation was confined to only the home users,

one could put it down to the lack of understanding

and expertise in security. However, Loske et

al.(2013) concluded in their research that unrealistic

optimism about information security risks also takes

place at enterprise level. Besides the afore-mentioned

challenges of risk perception, a professionalization

and states sponsorship of cybercrime (Contreras et

al., 2013) create a new cyber threat landscape for

organizations. For instance, in 2011 the security of

over forty million people worldwide was

compromised following a massive network intrusion

in the cryptography firm RSA, which resulted in the

theft of information related to the SecurID tokens,

and the personal information of 102 million

registered users of Sonys PlayStation Network

(PSN). Recent vulnerabilities, such as Heartbleed or

Apples SSL also reveal the vulnerability of security

mechanisms we trust. It is true that the reasons we

experience security breaches cannot be exhaustively

discussed and often this is beyond the understanding

of the common user. But why has the security

situation exacerbated despite the advances made in

the technology for security? In our opinion, three

main reasons may explain this. Firstly, our own

complacency about security is sometimes to blame.

Arbaugh and Frincke (2011), note that mission

always trumps security. Therefore, security is often

476

Ouedraogo M., Kuo C., Tjoa S., Preston D., Dubois E., Simoes P. and Cruz T..

Keeping an Eye on Your Security Through Assurance Indicators.

DOI: 10.5220/0005118504760483

In Proceedings of the 11th International Conference on Security and Cryptography (SECRYPT-2014), pages 476-483

ISBN: 978-989-758-045-1

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

bypassed or turned off as soon as it complicates the

completion of an (important) task.

Secondly, although the threat landscape is known to

be perpetually changing, deployed security

mechanisms are often not maintained to address this

issue. In fact even at an enterprise level risk

assessments are often conducted as one-off activities.

Keeping a security mechanism’s deployment features

adequate is relevant since the assumption on which

its effectiveness level is estimated is strongly linked

to the fact that the implementation and/or

deployment should conform to certain principles.

Any violation of those principles stemming from

either a human error or a malicious alteration would

result in the security mechanism being ineffective.

Finally, technology does not sit still (Furnell, 2009),

nor does the effort to compromise it. In fact, the

patching-cracking race between researchers within

the field of security and attackers is one where it is

increasingly difficult to gain an advantage. This

implies that today’s state-of-the-art protection is

likely to be by-passed with relative ease in the near

future, as attackers techniques become more and

more sophisticated. The latest Snowden saga has

shed light to an even more obscure side of cyber

security, whereby it is even harder to distinguish

between the “good and bad guys”. Given all the

above, will we get ahead of this vicious cycle or will

we learn to live with it and adapt to the everyday

risks (Arbaugh and Frincke, 2011)? We argue that a

critical part of living with insecurity resides in the

ability to evaluate and monitor the assurance level of

the existing security mechanisms and policy through

the adoption of a clear strategy. Thus, the current

approach, based on proactively identifying threats

and mitigating the ensuing risks, needs to be

complemented with a more assurance-driven

approach to security. In short, security tools such as

anti-malware and intrusion detection systems, widely

available within current systems, need to be

reinforced with Security Assurance (SA) systems

with the aim to probe the readiness and correctness

of those security mechanisms along with the non-

vulnerability of the security policy. In previous

publications (Ouedraogo et al. 2012, 2013) we have

presented the SA evaluation methodology and

metrics. This paper’s contribution lies on the analysis

of the practical challenges associated to the

assessment of SA and the highlight of an SA

assessment prototype. It also put in perspective the

idea of full SA assessment which will include

probing the security policy against known attack

patterns.

2 RELATED WORK

Prior related work on Security Assurance has been

mainly definitional or focused on the development of

metrics relating to SA. ISO/IEC 15408 or Common

Criteria (ISO/IEC, 2009) is the most recognised

standard in the area. The CC describes a framework

in which developers can specify their security

requirements, and testing laboratories can evaluate

the products to determine if they actually meet the

claimed security levels. A number of notable works

on security metrics have also been proposed. The

Security Metrics Guide for Information Technology

Systems NIST 800-55 (Chew et al., 2008) provides

guidance on how an organisation, through the use of

metrics, identifies the adequacy of in-place security

mechanisms, policies, and procedures. The Relative

Attack Surface Metrics (Manadhata and Wing, 2011)

draw a link between the size of a systems attack

surface and the size of the system. Vaughn et

al.(2003) proposed a taxonomy organized into two

distinct categories of metrics. The first category of

metrics (organisational security) aims to assess the

Information Assurance (IA) posture (i.e. the actual

state) of an organisation while the second category

assesses the IA capabilities of a product or system

(Technical Target of Assessment TTOA). The Bugyo

and Bugyo Beyond projects (Kanstrén et al., 2010)

have provided a pioneering initiative to evaluate the

SA of systems with emphasis on correctness and the

evolving nature of the system model. A critical

survey on the evaluation of the SA of operational

systems is provided by Hecker (2009).

This paper provides an analysis of the practical

challenges to address when engaged in SA

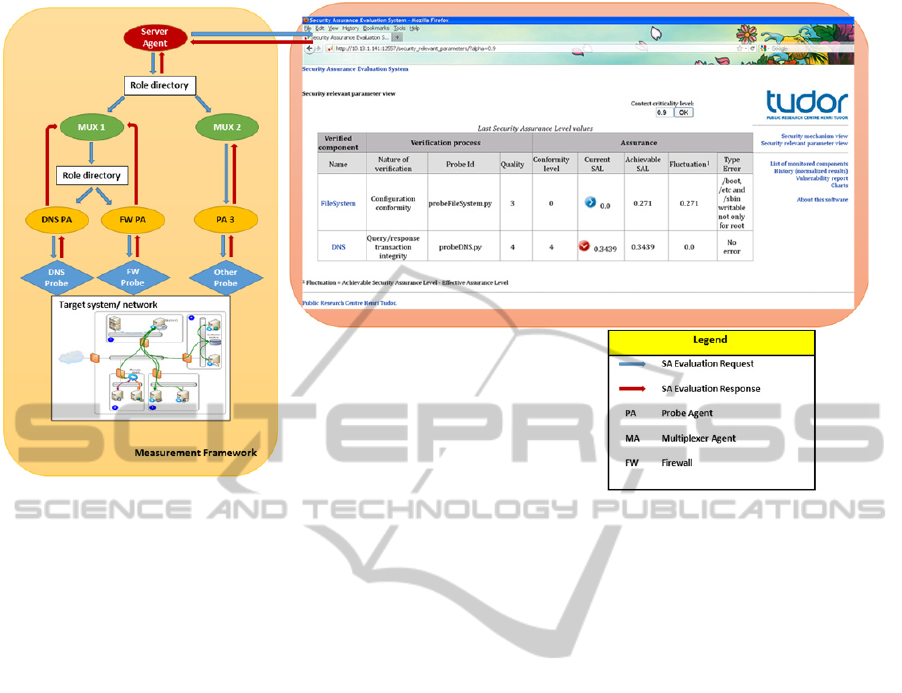

assessment. It also presents an initial SA tool along

with an analysis of requirements for further

improvement.

3 THE CHALLENGES

ASSOCIATED TO ITS

ASSESSMENT

SA is commonly defined as the ground for

confidence that the security mechanisms meet their

objectives. A prerequisite and challenge in seeking to

evaluate the SA of systems is to identify the key

concepts of the security and/or the system as a whole

that ought to be assessed in order to develop

assurance indicators. Only after that can one start to

address how measurements of these concepts can be

integrated and communicated to the stakeholders to

KeepinganEyeonYourSecurityThroughAssuranceIndicators

477

ensure a good understanding of the security posture.

In order to foster any kind of confidence in the

security of a system, there has to be evidence to

support the fact that the security-enforcing

mechanisms identified as necessary for thwarting a

given risk are present (availability) and have been

rightly implemented (correctness); and that (ii) they

are effective enough to meet the stated security

objectives (Effectiveness).

McHugh (Skroch et al., 2000) in the panel

workshop on Information Assurance metrics, reflects

on security metrics that could provide an indication

of the resources or effort required to compromise a

system, i.e. a measure of its security effectiveness.

McHugh asserts that: For such a measure to be

useful, it should be soundly based on demonstrable

assurances of the form If I do X (at cost Y) the cost

of compromising the system will be raised by Z.

Although applicable to security mechanisms such as

properly managed crypto-systems, this sort of metric

are limited by the fact they do not account for the

profile of the adversary, or for the computation

power he/she has at its disposition, which can further

ease the process of cracking encryptions. Penetration

testing, as a means of assessing a network

vulnerability can be valuable when it is carried out in

the actual operational environment. However as real-

world payloads cannot often be used during the

development phases, it is difficult to determine the

direct effect of penetration testing to effectiveness of

the security mechanism. Actually, the testing

environment should be as close as possible to the

actual operational situation of the system, whether it

is a part of an organisation Information System or

used by an end-user

Another approach commonly used to identify the

strength of the security mechanisms is resorting to

security incident records such as log files during a

system audit. The assumption being that the number

of successful attacks is negatively correlated to the

strength of the security mechanisms. Of course, a

system that has experienced a plethora of successful

attacks may simply not be protected up to the

adequate level. However the lack or negligible

number of successful attacks may be related to

“luck” meaning here the system not having been the

target of sophisticated attacks. Since luck remains a

concept that cannot be objectively measured, incident

records cannot be a reliable source for appraising the

strength of one’s security. In a similar vein,

Martinez-Moyano et al. (2008) have looked into the

risk propensity within an organization and how the

occurrence rate of risks may elude system managers

and thus foster a false sense of trust in their security.

The conclusion of their work is that a low level of

malicious activity lowers the organization or

individual’s perceived risk, thereby decreasing its

desired investment in security and culminating in

even lower levels of detection. In such a situation,

the advantage goes to the patient attacker, who can

afford to wait until security becomes so lax that a

well-planned and properly timed attack can be

launched.

4 VALUATION OF SECURITY

ASSURANCE

Arguably, users with security expertise or not, care

more about effectiveness of the security mechanisms.

Therefore, providing them with any indicators on that

specific aspect is what they would understand the

most. However, measurement of effectiveness as we

have discussed in the previous section is not

straightforward, nor is it definitive. Moreover,

effectiveness is hardly achievable without adequate

correctness, which is a focal point in the eyes of the

security expert (and increasingly in the eyes of

auditors and executives). Reasons for this include the

increasingly large demand for techniques for

ensuring compliance, which is driven by the prospect

of drastic implications that may result in a case of a

security breach that can be traced back to a lack of

compliance within big corporations (huge fines and

compensation penalties, prison sentences, etc.). The

lack of correctness alone could be enough for a

security expert to grasp the urgency of a situation

while meaning little to the less savvy user. For

instance, saying to users that their firewalls

configuration is such that it allows all incoming

connections may be less meaningful than telling

them the likelihood of their firewall protecting them

against external attack is nearly null. Indeed, a

security expert can quickly grasp the urgency of a

lack of conformity of a security component for a

given system, compared to the common user who

hardly knows the policy the security mechanisms are

supposedly implementing. In light of this, we

advocate a work around strategy to gaining

effectiveness: using evidence of security correctness

to indirectly appreciate the effectiveness of a security

mechanism. The core assumption is that as long as

the security mechanisms implementation and

deployment conform to up-to-date guidelines or

policies and that there are no known vulnerabilities

associated with them they can be expected to meet

their objective in providing system protection.

SECRYPT2014-InternationalConferenceonSecurityandCryptography

478

In practice, availability of a security mechanism

can be verified through the use of an embedded agent

running on top of the security mechanism to monitor

its operating messages, like sending a beacon packet

to an external checking server to verify the security

mechanism is running. Through this availability

checking method, one could continuously calculate

the Mean Time Between Failures (MTBF) and the

Mean Time To Recovery (MTTR) as two availability

verification indicators of the running security

mechanisms and log the operating event of the

security mechanisms. A high availability security

mechanism will translate into a high MTBF and low

MTTR. Properly combined with information on

incident records, information about the MTBF of a

security mechanism can be used by the security

administrator to further justify investment on the

latter; especially if an incident can be shown to have

occurred while the security mechanism was not

operational. Similarly the comprehensive comparison

between the MTTR value and the attack event

timestamp could help in emphasizing the importance

of an information security issue, and support the

request for more investment on security mechanisms

infrastructure, such as auxiliary redundant systems

for enhancing the organization information security.

However, if such solutions can be easily

implemented on open source security mechanism

software by skilfully integrating the agent module for

sending a beacon packet, challenges may exist on its

implementation on commercial security mechanism

products as the latter would have a customized

operating system and protocols that may raise

compatibility or scalability issues. To solve this

problem, an external sensor can be used instead. The

external sensor will send the request packets (e.g.

ping packet, HTTP request) with an identifiable

message (an identifiable IP, HTTP header, etc.) to

the security mechanisms periodically, and record the

response information for calculating the MTBF and

the MTTR as two availability verification indicators

of the running security mechanisms and log the

operating event of the security mechanisms.

A correctness check relates to measurements that

control the compliance of a security mechanism to a

predefined policy. Two types of correctness can be

distinguished. Deployment correctness, on one hand,

relates to the appropriateness of the security

mechanisms configuration while activity correctness,

on the other hand, concerns the security mechanism

compliance to other procedural policies such as

frequency of updating it. Examples of activity

correctness include: antivirus should be updated

every morning, users password to be changed every

90 days etc. Using a mandatory or recommended

configuration file (in the case of deployment

correctness) or an activity policy specification

file/program (for activity correctness) as reference, a

dedicated probe in the system may carry out a

comparison to inform whether the security

mechanism has a correct posture.

In the event a security mechanism is found to

have a deviant status, which is a sign of anomaly, the

correctness audit frequency could be dynamically

adapted. For instance, the probe auditing activity

may be increased and made less sparse in time, or

other related security checks may be triggered until

the security situation has been resolved. We consider

two alternatives for the value of security correctness.

The first one is to consider only two possible

outcomes for the verification of the security

mechanism that are compliant or non-compliant. In

this case the configuration file of a security

mechanism may be hashed and stored in a dedicated

database. A comparison between the hash of the

current file configuration and the hash of the

reference configuration file stored in the database

will enable the detection of any erroneous or

malicious modification.

The second alternative is based on the idea that

one cannot provide more assurance than its quality.

In such a case, the values range of security

correctness is normalized into discrete values within

[0, QL] with QL a discrete value within [1, 5] as

advocated by Ouedraogo et al. (2013). Assignment of

a security correctness value to a value within 0 and

QL depends on the gravity of the mismatch. Thus we

assign the value QL to the verification of the

correctness of a deployed security mechanism if the

security mechanism posture is found to be fully

compliant with the security requirements

specification, while value zero 0 will be used to

signify either that the compliance is at the lowest

possible level or that the mismatch detected is critical

for the system. Intermediate states will be assigned a

discrete value within ]0, QL[ and classified

depending on their gravity for the system. In addition

to availability and correctness, the ultimate aim of

the vulnerability monitoring is to ensure best

practices in terms of deployment and implementation

of a security mechanism are continuously applied.

Users may elect to use a system with a set of

predefined security mechanisms for its protection.

However once the system is deployed, previously

unknown errors or vulnerabilities may surface for a

given security entity, or environmental assumptions

may need to be revised. Furthermore, the

effectiveness of most security mechanisms is limited

KeepinganEyeonYourSecurityThroughAssuranceIndicators

479

in time. Today’s state-of-the-art protection may be

by-passed with relative ease tomorrow as attackers

techniques are becoming more and more

sophisticated. As a result of operation, feedback

could be given that would require the operator to

correct the system security model, or redefine its

security requirements or environmental assumptions

with regards to strengthening the security of the

system. To handle that eventuality, the vulnerability

check, which is associated to each evaluated security

entity, uses a known vulnerability database such as

the National Vulnerability Database (NVD,

http://nvd.nist.gov/cvss.cfm?version=2), to verify

whether any vulnerability has been identified for a

specific version of an evaluated protection measure

or security relevant parameter. Recommendations on

how to overcome such an issue are then taken into

account by the operator and will help constitute the

new reference against which any future conformity

evaluation will be undertaken. This is illustrated in

Figure 1 through the adaption of the existing policy.

By doing so, the system security requirements are

permanently updated and will henceforth present

enough quality to face up to potential threats to the

system.

5 ARCHITECTURE OF THE SA

EVALUATION TOOL

We have developed a prototype for appraising and

monitoring SA of IT systems. The overall security

assurance system is composed of two main

components: the measurement framework and the SA

monitoring cockpit, architecturally structured as

shown in Figure 2. The assurance monitoring cockpit

enables the operator to visualize assurance

fluctuation, as well as providing him with relevant

information explaining the reasons for the eventual

drop in the assurance level. This later aspect can be

seen as the assistance part of the system as it supports

the assurance evaluator in diagnosing security

concerns and eventually in decision making. The

cockpit also has a functionality that helps document

the assurance levels of components of concern over

time. The vulnerability report of the security

assurance cockpit, fed by vulnerability databases

such as the NVD, enable the security practitioner to

visualize information related to possible emerging

vulnerability for a component, along with guidelines

on how to address them. The measurement

framework is concerned with coordinating and

gathering information from probes deployed in the

system to verify the compliance of a component

security measure with respect to a security policy.

Given the highly distributed nature of most current

systems, we resort to agent technology for the SA

assessment. The implementation was conducted on

SPADE platform using open source and free

software: Python v.2.7 (http://www.python.org/) as

programming language, Cherrypy

(http://www.cherrypy.org/) for the web service and

SQLite (http://www.sqlite.org) for the database.

The agents organisation involves a hierarchy of four

types of autonomous and collaborative agents, as

illustrated in Figure 2: the Security Assurance

evaluation manager or Server agents, Security

mechanism verification manager or multiplexer

agents (referred to as MUX-agents), and the security

mechanism verification performer or probe agents.

The first level of agents is on the server side;

essentially it is a single agent that is embedded

within the server. When the server receives a request

to perform a Security Assurance evaluation, the

server agent handles the request and identifies the

appropriate MUX agents (using a role directory).

Figure 1: Security assurance strategy.

SECRYPT2014-InternationalConferenceonSecurityandCryptography

480

Figure 2: Security assurance evaluation system and architecture.

Upon reception of the request, the MUX agent is

responsible for dispatching the verification to

perform to the dedicated probe agents that they

control. Alternatively, when a verification has been

performed and the results are being sent back to the

server through MUX-agents, the server agent is the

one that processes the information, and aggregates

them before they are displayed in a more meaningful

form for the system operator. The second type or

MUX agents play the role of intermediary between

the server agent and probe agents. They supervise

the activities of a group of probe agents. MUX

agents are meant to forward measurement request

from the server agent to the right probe agents using

a role directory.

They also collect the results of the measurements

coming from the probes. Finally, probe agents

trigger their associated probe in the event of

receiving a measurement request from a MUX

agent. They also collect the measurements result

from probes and transmit them to MUX agents. The

message format between agents is not unique. In fact

an XML based format is used between Server agent

and MUX-agents. However the message format

between a probe agent and a probe is specific to the

probe. Thus the message from the probe agent has to

be transformed in a format understandable by the

probe.

6 RELATIONSHIP WITH

EXISTING EFFORTS AND

FUTURE FOR THE SOFTWARE

PROTOTYPE

Computational needs for our model depend on (i)

the time of use (the database will grow gradually as

the probes will return the information) and (ii) the

number of probes that will return the information

(bigger network, more probes, and more information

in the database). Nonetheless, given the type of data

stored (essentially floats and strings) the growth in

the database size is slow. Moreover SQLite can

enable storage of 14124 articles (long string) using

32 Mb. In all, the model uses very low memory and

CPU usage, and can run normally on a computer of

4GB of RAM and a 2GHz processor. Nevertheless,

our experience with the prototypes operational

validation has hinted some issues and areas for

future research. In fact it is desirable that the

evaluation system is not too intrusive and overloads

the system, it is meant to probe and induce a

degradation of its Quality of Service (QoS).

Therefore any usage of the Security Assurance

evaluation system should be conducted in a context

that minimises its interference with the evaluated

system. Another important consideration is that the

transport link between the evaluation framework and

KeepinganEyeonYourSecurityThroughAssuranceIndicators

481

the user/operators monitor should be secured and

resilient. Similarly, access to the Security Assurance

evaluation system should be controlled. A lack of

stringent security could in fact result in a malicious

individual gaining information related to the systems

security and enable him/her

to wait for an auspicious time to launch an attack.

Alternatively the communication links between a

user/operators monitor and the evaluation system on

the one hand, or between entities within the

evaluation framework itself on the other hand, may

accidentally break leading to security information

black outs.

On top of probing the deployed security, work

relating the systematic verification of security

policies as another facet of the broader SA

assessment initiative is highly important and

requires the attention of researchers. In fact the

current indicators provided by the SA tool remains

as reliable as the security policy since the

verifications are conducted taking the later as

reference. Thus, because a policy can also be the

source of security compromise and a vector for

further propagation of a risk within a network,

considering it as appropriate without further checks

can only provide partial assurance to the system’s

stakeholders. One way of accounting for the

adequacy of policy, which we are currently

exploring includes the use of satisfiability tests with

conducted by a logic reasoner that will verify

whether known attack patterns can be deduced from

the policy specification. Finally by providing

indicator on the status of a security matter that is

often devolved to the provider as it is the case in the

cloud, the SA tool can be used as a means of

fostering better security transparency between a

cloud provider and client.

Our SA assurance tool has a Security Content

and Automation Protocol or SCAP capability though

currently our checklist related to the security

mechanisms is based on instructions and check list

derived from reference documents such as security

policies that are subsequently put in an XML-based

format. The adoption of the XCCDF format is

therefore planned to allow it being more compatible

with other SCAP tools and thus leading to a standard

information interchange, document generation,

automated compliance testing, and scoring.

7 CONCLUSION AND FUTURE

WORK

In this article we have discussed the challenges

relating the evaluation of SA and presented the

features of our SA evaluation tool. We have also

advocated the use of such a system to better manage

security of IT systems. Certainly, addressing SA at

the level of operational systems is only one facet of

security management. Other important aspects

include: the selection of the security mechanisms;

their strength and that of the security policy.

Nonetheless, without adoption of a rigorous and

continuous Security Assurance activity it is hardly

possible to guarantee and maintain security

regardless of the security level aimed at.

ACKNOWLEDGEMENTS

This work has been conducted in the context of the

SAINTS project, financed by the national fund of

research of the Grand Duchy of Luxembourg (FNR)

under grant number C12/IS/3988336.

REFERENCES

Arbaugh W.A. and Frincke, D.A, 2011. Living with

insecurity.” IEEE Security & Privacy, vol. 9, no. 6, pp.

12–13.

Chew, E, Swanson, M ,Stine, K., Bartol, N., Brown A.,

and Robinson, W, 2008. Security metrics guide for

information technology systems rev.1, Nist special

publication 800-55: National Institute of Standards

and Technology, Tech. Rep., 2008.

Contreras J. L, DeNardis, L. and Teplinsky, M, 2013.

Mapping today’s cybersecurity landscape,” American

University Law Review, vol. 62, no. 5, p. 1117.

DHS, 2014. National cyber security awareness month.

[Online]. Available:https://www.dhs.gov/national-

cyber-security- awareness-month

ENISA, 2014. European cyber security month. [Online].

Available: https://cybersecuritymonth.eu/

ISO/IEC (2009 ), ISO/IEC 15408-1:2009, International

Organization for Standardization and the International

Electrotechnical Commission, Geneva.

Furnell S.M. (2009) ‘The irreversible march of

technology’, Information Security Technical Report

14(4)pp.176-180, Elsevier.

Hecker A. and Riguidel, M. 2009. On the operational

security assurance evaluation of networked it

systems,” in Smart Spaces and Next Generation

Wired/Wireless Networking. Springer, pp. 266–278.

Kanstren, T., Savola R. , Evesti, A., Pentikäinen, H.,

Hecker, A., Ouedraogo, M. , Hatonen, K., Halonen

P., Blad, C., Lopez O. 2010. Towards an abstraction

layer for security assurance measurements, in

Proceedings of the Fourth European Conference on

Software Architecture: Companion Volume. ACM,

2010, pp. 189–196.

SECRYPT2014-InternationalConferenceonSecurityandCryptography

482

Loske A, Widjaja T, and Buxmann, P. 2013. Cloud

computing providers’ unrealistic optimism regarding it

security risks: A threat to users?” in Thirty Fourth

International Conference on Information Systems

(ICIS), [Online]. Available: http://aisel.aisnet.org/

cgi/viewcontent.cgi?article=1200&context=icis2013

Manadhata P.K. and Wing, J.M., 2008. An attack surface

metric, IEEE Transactions on Software Engineering,

vol. 37, no. 3, pp. 371–386, 2011.

Martinez-Moyano, I, J, Samsa, M,E, Burke, J, F, Akcam

B. K. 2008. Toward a generic model of security in an

organizational context: Exploring insider threats to

information infrastructure, in Hawaii International

Conference on System Sciences (HICSS).

Ouedraogo, M, Khadraoui,D., Mouratidis H., and Dubois,

E. 2012, “Appraisal and reporting of security

assurance at operational systems level”, Journal of

Systems and Software, vol. 85, no. 1, pp. 193–208.

Ouedraogo, M, Savola, R, M, Mouratidis, H. Preston, D.

Khadraoui, D and Dubois, E, 2013. Taxonomy of

quality metrics for assessing assurance of security

correctness, Software Quality Journal, vol. 21, no. 1,

pp.67–97.

Payne, S, 2006. A guide to security metrics,” SANS

Institute, InfoSec Reading Room.

Savola R.M, Pentikainen, H and Ouedraogo, M. 2010.

Towards security effectiveness measurement utilizing

risk-based security assurance”, in Information Security

for South Africa (ISSA), IEEE.

Skroch, M. McHugh, J. and Williams, J. 2000.

Information assurance metrics: Prophecy, process r

pipedream,” in Panel Workshop, National Information

Systems Security Conference (NISSC 2000),

Baltimore.

Vaughn R. B., Henning, R. and Siraj, A. 2003.

Information assurance measures and metrics-state of

practice and proposed taxonomy,” in System Sciences.

Proceedings of the 36th Annual Hawaii International

Conference on. IEEE.

Waltermire, D. Quinn, S. Scarfone, K. Halbardier, A.

2009. The Technical Specification for the Security

Content Automation Protocol (SCAP): SCAP Version

1.2., Special Publication 800-126, NIST.

KeepinganEyeonYourSecurityThroughAssuranceIndicators

483
