Towards a Wake-up and Synchronization Mechanism

for Multiscreen Applications using iBeacon

Louay Bassbouss, G¨orkem G¨uc¸l¨u and Stephan Steglich

Fraunhofer FOKUS, Kaiserin-Augusta-Allee 31, 10589 Berlin, Germany

Keywords:

Multiscreen, Companion Screen, Application Wake-up, Synchronization, iBeacon, Bluetooth Low Energy.

Abstract:

TV sets and companion devices (Smartphones, Tablets, etc.) have outgrown their original purpose and are now

playing together an important role to offer the best user experience on multiple screens. However, the collab-

oration between TV and companion applications faces challenges that go beyond traditional single screen

applications. These range from discovery, wake-up and pairing of devices, to application launch, communi-

cation, synchronization and adaptation to target device and screen size. In this position paper, we will limit

ourselves to two of these aspects and introduce an idea for a new wake-up and synchronization mechanism for

Multiscreen applications using iBeacon technology.

1 INTRODUCTION

Almost every modern connected TV can be controlled

with a smartphone app provided by the manufacturer.

These apps range from simple remote control replace-

ments, to fully featured media centers including PVR

programming, interactive EPGs and video streaming

from the TV to the smartphone. Furthermore, new

generation of companion devices provide connectiv-

ity to large displays and give mobile applications the

ability to mirror or extend the small screen of the mo-

bile device.

However, today’s standard application models are

focused on single devices and screens. Multiscreen

applications face new challenges such as discovery

of devices and services, launch of applications on

remote devices, synchronization of application state

across devices as well as timeline synchronization

of multiple media streams, application to application

communication, etc. New application development

paradigms, concepts, protocols and technologies ad-

dressing these challenges are getting mature. How-

ever,there are still interoperability issues between dif-

ferent devices and platforms: Android (Google - An-

droid, 2014) provides native support for screen mir-

roring using Miracast (Wi-Fi Alliance, 2014) protocol

to any Miracast compliant receiver compared to iOS

(Apple - iOS, 2014) that offers the same functionality

using AirPlay (Apple - AirPlay, 2014) only on Air-

Play licensed devices, such as AppleTV (Apple - Ap-

ple TV, 2014). There are also different limitations

for applications running on different platforms: An-

droid applications are able to run services in the back-

ground compared to iOS where this feature is limited

to speciﬁc applications like Music, Navigation, etc. It

is easier to interact with applications running in the

background on Android systems than on iOS. The

question is, why we need to interact with background

applications on companion devices? To answer this

question, let us consider the following scenario:

Alice and Bob are watching a Formula 1 race on

their TV. The broadcaster offers a service which al-

lows users watch the race from different camera per-

spectives, where the TV displays the perspective of the

main camera and a companion device may be used to

display the perspective of the on-board camera of a

selected driver (user can select which driver). During

commercial breaks, the broadcast stream on the TV

shows advertisements for a certain brand of footwear.

At the same time, the on-board camera stream will be

interrupted on each companion device and a compan-

ion app related to the advertisement displayed on the

TV will be launched. Through this app, the user can

for example chose to bookmark products displayed in

the commercial break that he is interested in buying

later and may even get a discount. After the commer-

cial break ends, the main perspective of the Formula

1 race continues on the TV and the on-board camera

perspective continues on the companion devices.

The different steps of the use case are highlighted

in ﬁgure 1. There are of course other relevant scenar-

ios that require collaboration between TV and com-

Bassbouss L., Güçlü G. and Steglich S..

Towards a Wake-up and Synchronization Mechanism for Multiscreen Applications using iBeacon.

DOI: 10.5220/0005121800670072

In Proceedings of the 11th International Conference on Signal Processing and Multimedia Applications (SIGMAP-2014), pages 67-72

ISBN: 978-989-758-046-8

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

panion devices, but we will consider this scenario to

examine the problem statement and identify the re-

quirements on TV and companion devices.

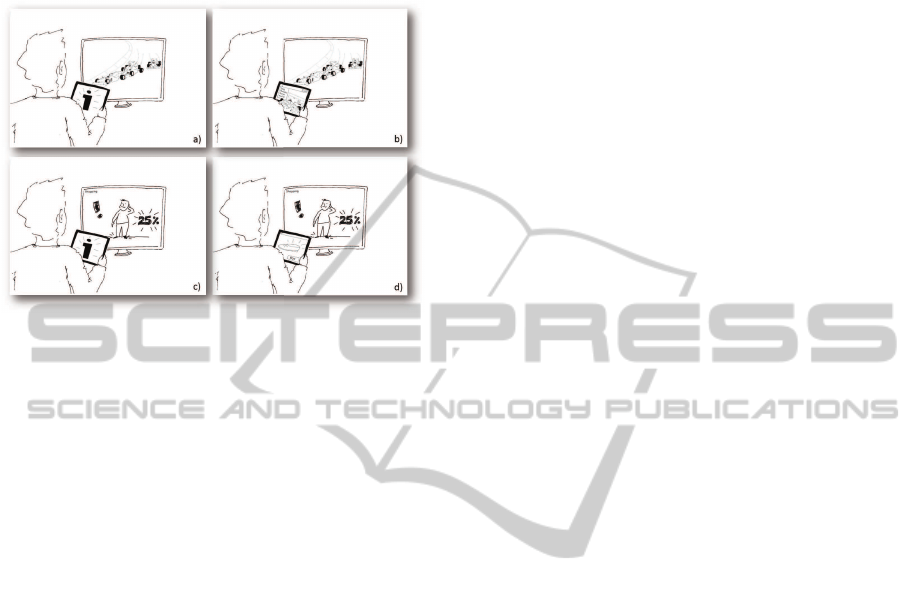

Figure 1: Use Case.

We can identify two main requirements from

the scenario described above: (REQ1) wake-up and

launch of companion applications related to broadcast

services on the TV and (REQ2) Synchronization of

content between TV and companion devices. There

are other important multiscreen requirements that can

be identiﬁed for this use case but in this paper we

limit ourselves to the wake-up and synchronization

aspects. The rest of this paper is structured as fol-

lows: Section 2 provides a short introduction to the

fundamental state of the art technologies and related

works required to understand the discussion of the

proposed approach in this work. In section 3 we will

introduce the concept of a new approach for wake-up

and synchronization of companion applications using

iBeacon technology. Section 4 summarizes the work

with a conclusion and future prospects for a prof-of-

concept implementation.

2 TECHNICAL DISCUSSION AND

STATE OF THE ART

This section collects and weights prior work related

to the concept we will introduce in this paper. This

includes works which has been established during

standardization efforts, as well as proprietary tech-

nology currently found in products on the end-user

market. We will differ between application Wake-up

and Launch on TV and on companion devices. The

traditional way for launching applications on smart

TVs is by using the TV remote control or a special

mobile application provided by TV manufacturer. To

launch a TV application that collaborates with an ap-

plication running on companion device, e.g. YouTube

application on TV for playing videos and YouTube

mobile application to search and control videos, ad-

ditional steps are needed. Both applications need to

be connected to the same session in order to know

about each other and establish a communication chan-

nel. PIN or QR code technologies can help here. The

application running on the TV displays a PIN or QR

code. The user of the companion device can either

scan the QR Code using a QR scanner App or en-

ter the PIN code manually in the companion appli-

cation and join the session. To reduce the number

of steps needed to connect both apps to each other,

Network Service Discovery (NSD) technologies like

SSDP (Contributing Members of the UPnP Forum,

2008) or Bonjour (Apple - Bonjour, 2014) can help.

The Discovery and Launch Protocol DIAL (Netﬂix,

2014) is especially made for this purpose. TV sets

that support this protocol implement the DIAL server

functionality and advertise a DIAL service in the local

network using SSDP. Companion devices implement

the DIAL client functionality and discover DIAL de-

vices available in the network. Once a DIAL device is

found, the companion device connects to it and uses

its service interface to launch a speciﬁc app. Dur-

ing Launch, the companion application can pass some

parameters to the TV application such as session ID,

video URL, etc.

In recent years, Hybrid TV technologies like Hy-

brid Broadband Broadcast TV (HbbTV) (HbbTV as-

sociation, 2014), a major new pan-European initia-

tive aimed at harmonizing the broadcast and broad-

band delivery of entertainment to the end consumer

through connected TVs and set-top boxes, and Hy-

bridcast (IPTV Forum Japan, 2014), a Japanese Hy-

brid TV standard that enables the provision of ﬂexi-

ble and extensible new services that take advantage of

the characteristics of broadcasting and telecommuni-

cations, are emerging. Involving companion screens

within Hybrid TV sessions opens the door to a new

kind of use cases such as the once described in the

previous section and offers a replacement of tradi-

tional remote control that is not suitable for the in-

teraction with such smart TV services. The key to

successful integration of TV services and companion

devices is the seamless and user friendly wake-up and

synchronization of companion applications. Many

Hybrid TV services are using the PIN or QR code

technology for this purpose to ensure cross-platform

support since these technologies are not dependent

from platform speciﬁc APIs. On the other side, stud-

ies showed that these technologies are more suitable

for printed material and not for the digital domain

from user experience perspective (eMarketer, 2014).

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

Technically, The DIAL technology can be used for

launching companion applications by implementing

the DIAL server functionality on companion devices

and client functionality on TV, but this will raise ad-

ditional security and battery lifetime issues on com-

panion devices. Furthermore, this requires compan-

ion devices to run services in the background which

is not possible on some mobile platforms like iOS as

we discussed in the previous section. In addition, the

ﬂow for remotely launching companion applications

is not the same as for launching TV applications from

the end-user perspective. Bringing an application on

a companion device to the foreground without asking

the user while he interacts with another application is

a bad user experience. Most mobile platforms allow

this feature only in relation with a user interaction e.g.

the user starts a new application by clicking on a but-

ton in the current application or by clicking on a noti-

ﬁcation. On iOS, there are two types of notiﬁcations:

local and remote notiﬁcations. The end-user don’t see

any difference between them, they differ only in the

way how they are triggered: local notiﬁcations are

triggered by applications running in the background

on the same device while remote notiﬁcations are trig-

gered and sent by Apple Push Servers. This means, if

an application is not running at all (neither in the fore-

ground nor in the background), the user can be noti-

ﬁed only through remote notiﬁcations. One option to

wake-up and launch a not running iOS application in

the background is by using iBeacon (Apple - iBea-

con, 2014), a new technology that extends Location

Services in iOS7. iBeacon uses a Bluetooth Low En-

ergy (BLE) (Bluetooth SIG, 2014) signal which iOS

devices detect. Any device supporting BLE can be

turned into an iBeacon transmitter and alert applica-

tions on iOS devices nearby. iBeacon transmitters are

in general tiny and cheap sensors that can run up to

2+ years with a single coin battery depending on how

frequent they broadcast information around. Main us-

age area of iBeacon are location based services: iOS

devices alert apps when the user approaches or leaves

a region with an iBeacon. While a beacon is in range

of an iOS device, apps can also monitor for the rel-

ative distance to the beacon. If the application was

not running while the user crosses (enters or leaves)

a Beacon region, the iOS device wakes up the appli-

cation and launches it in the background only for 10

seconds. In this time frame the application can react

to the changes in the user position and may request to

show a local notiﬁcation, through which the user can

bring the application to the foreground.

3 CONCEPT

Based on the technical discussion in previous section,

we will propose some ideas for a user friendly remote

launch mechanism of TV companion applications us-

ing iBeacon and Notiﬁcation technologies. We will

limit ourselves in this work to the iOS platform and

follow its application development guidelines to en-

sure best user experience, nevertheless the concept

can be easily adapted to companion devices with BLE

support running other platforms like Android. Unlike

on iOS, the only platform that provides native iBea-

con support, the iBeacon functionality needs to be

implemented on application level for the other plat-

forms.

As mentioned in previous section, the iBeacon

protocol uses BLE signals to transmit information in

a speciﬁc frequency e.g. each second. An iBeacon

message consists besides the BLE packet headers and

Apple’s static preﬁx of the following values (Apple -

iBeacon for Developers, 2014):

Proximity UUID: A 128-bit value that uniquely

identiﬁes one or more beacons as a certain type

or from a certain organization.

Major: A 16-bit unsigned integer that can be used to

group related beacons that have the same proxim-

ity UUID.

Minor: A 16-bit unsigned integer that differentiates

beacons with the same proximity UUID and major

value.

iOS applications can use the iBeacon API available in

iOS7 for registering a Beacon region using the prox-

imity UUID, major and minor parameters described

above. If a device crosses the boundaries of a reg-

istered beacon region, the application will be noti-

ﬁed on entering or leaving that region. The proxim-

ity UUID is mandatory for registering a Beacon re-

gion while major and minor are optional. Application

Provider needs to choose a value for the proximity

UUID and use it in all beacons as well as in the iOS

application. This means, the proximity UUID is in

general a ﬁx value in the context of a speciﬁc appli-

cation or organization. Major and minor values can

be used to differ between different locations or places

for the same application or organization.

iBeacon seems to be a compromising technol-

ogy not only for location based services, but also for

launching companion applications in a multiscreen

environment if new generation of TV sets (also set-

top-boxes, TV dongles, etc.) are equipped with BLE

sensors and act as beacon transmitters. Main advan-

tage of this approach is that the TV will able to wake-

up companion applications only on devices belonging

TowardsaWake-upandSynchronizationMechanismforMultiscreenApplicationsusingiBeacon

to users sitting in front of the TV, it doesn’t matter

if they are connected to local or mobile carrier net-

work. Unlike the traditional usage of iBeacon where

the proximity UUID is ﬁx and known for a speciﬁc

application, a more dynamic behavior by using differ-

ent values for proximity UUID on different TV sets is

required in the multiscreen domain: If the TV manu-

facturer uses a unique proximity UUID, the compan-

ion application will be always notiﬁed when the user

crosses the beacon region of any TV from the same

manufacturer. In case TV sets transmit different prox-

imity UUIDs, it will be possible to notify compan-

ion applications associated with a speciﬁc TV. Fur-

thermore, it is possible for a companion application

to subscribe to TV’s different beacon regions at the

same time and therefore to get notiﬁed by different

TV sets, e.g. if the user has more than one TV at

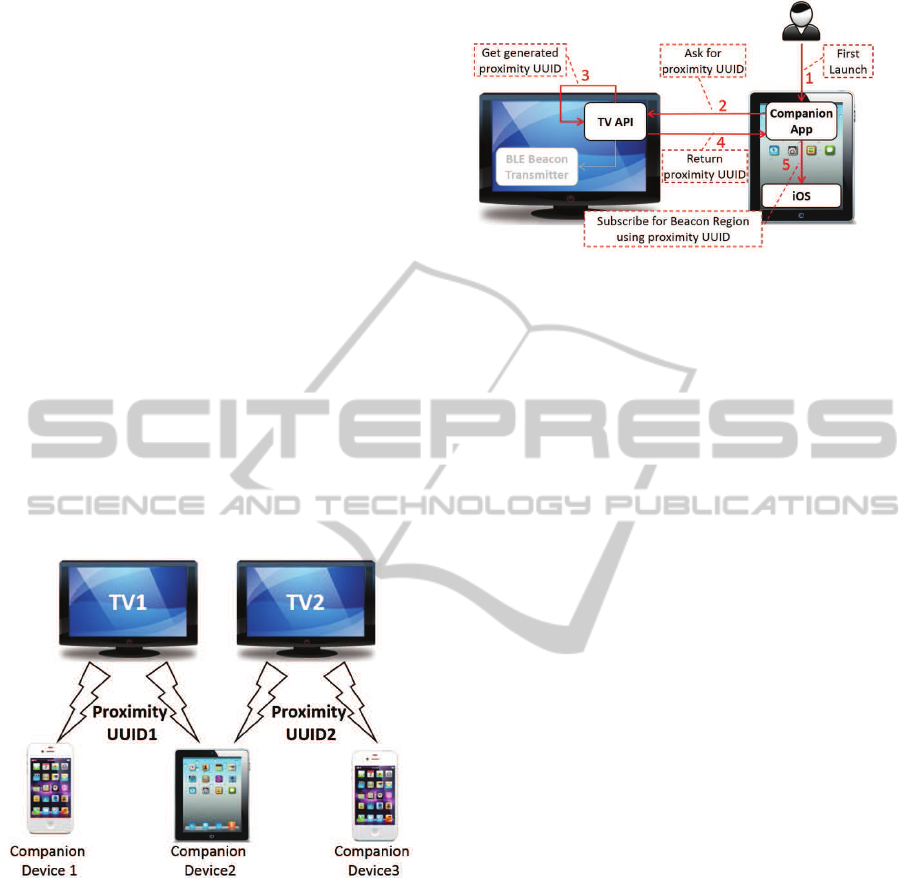

home. Figure 2 shows an example with two TV sets

that transmit different proximity UUIDs. Companion

Device2 is registered for both proximity UUID1 and

proximity UUID2 and can be notiﬁed from both TV1

and TV2. The other two companion devices can be

only notiﬁed from one TV set.

Figure 2: Example with two TV sets and three companion

devices.

Since there is no unique and known proximity

UUID to be used in the TV companion application,

we need a mechanism to generate and exchange prox-

imity UUIDs between the TV and the companion ap-

plication. UUIDs can be randomly generated and

stored on the TV without any user interaction. The

probability of collision with UUIDs used in other ap-

plications is almost zero since proximity UUIDs are

128-bit long. The best way to exchange the gener-

ated UUID is during ﬁrst connection (Setup phase) of

the companion application with the TV. Figure 3 il-

lustrates the steps needed for creation and exchange

of proximity UUID between TV and companion ap-

Figure 3: Creation and Exchange of proximity UUID.

plication.

From now on, each time the user turns on the TV

or enters the TV’s beacon region (e.g. living room)

while the TV is on, the companion application will be

woken up and launched in the background for around

10 seconds (iOS limitation). Same applies if the user

turns off the TV or leaves the TV’s beacon region. In

both cases, the companion application connects to a

signaling server (e.g. maintained by the TV manufac-

turer) when running in the background and requests

to update its availability in the TV’s beacon region

by sending the proximity UUID and the device token

(we suppose that the companion application already

requested a device token from Apple Push Notiﬁca-

tion Service). As depicted in ﬁgure 4, the signaling

server maintains a table for device availability and of-

fers a lookup function to ﬁnd devices (identiﬁed by

the device token) in range of a speciﬁc beacon (iden-

tiﬁed by the proximity UUID). On the other side, If

a TV Application (Hybrid or Smart Application) pro-

vides multiscreen support and needs to launch a com-

panion application, it uses a special TV API for that

purpose (Figure 4 - step 2). The TV sends its prox-

imity UUID and other application speciﬁc informa-

tion to the Signaling Server (Figure 4 - step 3). The

signaling Server looks into the table for all devices in

range of the beacon with the received UUID (Figure 4

- step 4) and sends a request to the Apple Push Notiﬁ-

cation Service (APNs) (Apple Developer - Local and

Push Notiﬁcations for Developers, 2014) using the to-

kens of devices in range from the previous step. The

APNs sends push notiﬁcations containing all informa-

tion necessary to launch the companion application

to each found device (Figure 4 - step 6). If the user

clicks on the Push notiﬁcation, the companion appli-

cation will be launched into the foreground and the

notiﬁcation data will be passed to it (Figure 4 - step

7). Apple’s Push Notiﬁcation Service for remote push

notiﬁcations is necessary in this scenario, because lo-

cal notiﬁcations are only possible, when the app is

running in the background at that moment. Though,

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

apps are woken up through iBeacons, they are only

running for ten seconds and get terminated by the OS

afterwards. Moreover, the OS will only wake up apps

for entering and exiting a region of a beacon. As a re-

sult, we can not assume the companion app is running

at that moment and is available to send a local notiﬁ-

cation. Therefore, it is necessary to use Apple’s Push

Notiﬁcation Service for remote push notiﬁcations.

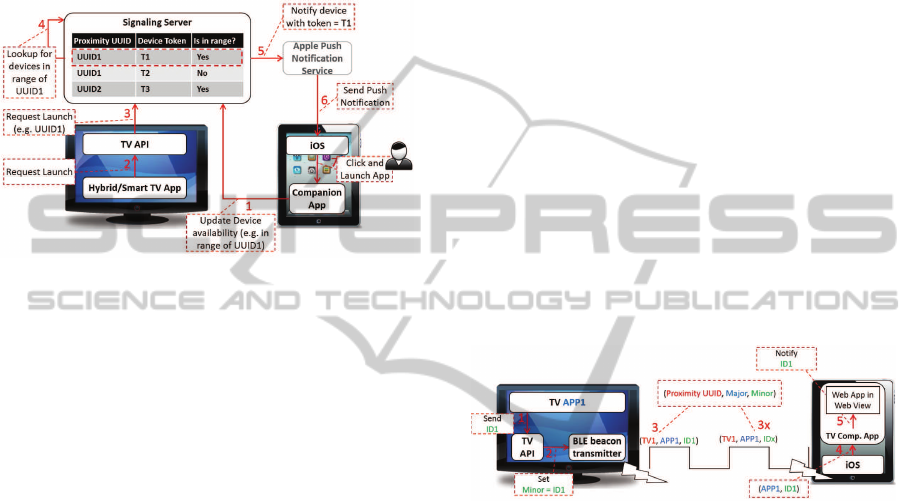

Figure 4: Launch a Companion Application from a TV Ap-

plication.

Figure 4 shows the ﬂow for notifying and launch-

ing the companion application provided by the TV

manufacturer from a hybrid or smart TV application

provided by a broadcaster or a third party provider.

However, our goal is to launch the companion ap-

plication related to the TV application and not the

manufacturer companion application. There are dif-

ferent options to achieve this goal depending from

the kind of the companion application to launch, if

it is a hosted web application or a native iOS applica-

tion. We will focus in this work on hosted web appli-

cations and consider native iOS companion applica-

tions in future works. As mentioned above, The TV

application passes in the Request Launch step (Fig-

ure 4 - step 2) information about the application to

launch on the companion device. This information

could include a URL of the hosted web application

to launch and will be passed to the companion de-

vice through all steps depicted in ﬁgure 4 until the

user clicks on the push notiﬁcation: The TV com-

panion application will be launched in the foreground

and can retrieve the URL of the hosted companion

web application from the launch information passed

to it. Finally, the TV companion application opens the

hosted companion application in a Web View (UIWe-

bView), a kind integrated web browser for displaying

web content in iOS applications. The TV application

and the hosted companion web application can col-

laborate and synchronize content with each others by

using an application to application (App2App) com-

munication mechanism which is not in scope of this

work (A widespread mechanism for communication

in the multiscreen domain is to connect the TV and

companion web application to a messaging server that

proxies the communication between entities in same

session. Session ID could be passed to the compan-

ion web application during launch as a URL query

parameter).

Besides application wake-up and launch, iBea-

cons could also help in synchronizing playback of

multiple media streams as in the use case described

in ﬁrst section for synchronizing streams from dif-

ferent camera angles on TV and companion device.

The major and minor values can be used for this pur-

pose e.g. major value to group beacons related to the

same application on TV and companion device and

minor value can be controlled by the TV application

e.g. to send identiﬁers indicating the current position

in the TV stream. While the TV companion applica-

tion runs a hosted companion web application in the

foreground, it listens for beacons with the same major

value as for the related TV application and passes mi-

nor valuesto the application using an API provided by

the Web View. Figure 5 summarizes the synchroniza-

tion steps between TV and companion application.

Figure 5: Synchronization between TV and Companion

Web Application using beacon’s major and minor values.

4 CONCLUSION

We introduced in this paper a Wake-up and Synchro-

nization Mechanism for Multiscreen Applications on

TV and companion devices using iBeacon technol-

ogy. We already started with a proof-of-concept

implementation using iPad as replacement for TV

and any iOS device supporting iBeacon as compan-

ion device. The prototype was demonstrated at the

4th Media Web Symposium organized by Fraunhofer

FOKUS in Berlin (Fraunhofer FOKUS Media Web

Symposium , 2014). In next steps we will take into

consideration other important aspects that could in-

ﬂuence the success of work introduced in this pa-

per especially usability, privacy, security and perfor-

mance. On prototyping level we plan to implement

the TV part on an Android HDMI Dongle with BLE

and DVB-T/S/C support in order to proof our concept

with real Hybrid TV (HbbTV) applications.

TowardsaWake-upandSynchronizationMechanismforMultiscreenApplicationsusingiBeacon

REFERENCES

Apple - AirPlay (2014). Apple - airplay. [Online; accessed

4-June-2014].

Apple - Apple TV (2014). Apple - apple tv - hd itunes

content and more on your tv. [Online; accessed 4-

June-2014].

Apple - Bonjour (2014). Bonjour - apple support. [Online;

accessed 4-June-2014].

Apple - iBeacon (2014). ios: Understanding ibeacon. [On-

line; accessed 4-June-2014].

Apple - iBeacon for Developers (2014). ibeacon for de-

velopers - apple developer. [Online; accessed 4-June-

2014].

Apple - iOS (2014). Apple - ios7. [Online; accessed 4-

June-2014].

Apple Developer - Local and Push Notiﬁcations for Devel-

opers (2014). Local and push notiﬁcations. [Online;

accessed 4-June-2014].

Bluetooth SIG (2014). Bluetooth smart technology: Pow-

ering the internet of things. [Online; accessed 4-June-

2014].

Contributing Members of the UPnP Forum (2008). Upnp

device architecture 1.1. [Section 1].

eMarketer (2014). Us ahead of western europe in qr code

usage. consumers most familiar with qr codes on mag-

azines, printed materials. [Online; accessed 4-June-

2014].

Fraunhofer FOKUS Media Web Symposium (2014). 4th

fokus media web symposium. [Online; accessed 4-

June-2014].

Google - Android (2014). Android. [Online; accessed 4-

June-2014].

HbbTV association (2014). Hbbtv. [Online; accessed 4-

June-2014].

IPTV Forum Japan (2014). Hybridcast. [Online; accessed

4-June-2014].

Netﬂix (2014). Discovery and launch protocol speciﬁcation,

version 1.7.

Wi-Fi Alliance (2014). Wi-ﬁ certiﬁed miracast. [Online;

accessed 4-June-2014].

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications
