Improved Secure Neighbor Discovery Protocol (ISEND) for
New Wireless Networks Generations
Imen El Bouabidi
1
, Salima Smaoui
1
, Faouzi Zarai
1
, Mohammad S. Obaidat
2
and Lotfi Kamoun
1
LETI laboratory, University of Sfax, Sfax, Tunisia
2
Computer Science and Software Engineering Department, Monmouth University, NJ 07764, Monmouth, U.S.A.
Keywords: Wireless Network, NDP Protocol, Send, Incompatibility, Delegation.
Abstract: In charge of several critical functionalities, the Neighbor Discovery Protocol (NDP) is used by IPv6 nodes
to find out nodes on the link, to learn their link-layer addresses to discover routers, and to preserve
reachability information about the paths to active neighbors. Given its important and multifaceted role,
security and efficiency must be ensured. However, NDP is vulnerable to critical attacks such as spoofing
address, denial-of-service (DoS) and reply attack. Thus, in order to protect the NDP protocol, the Secure
Neighbor Discovery (SEND) was designed. Nevertheless, SEND’s protection still suffers from numerous
threats and it is currently incompatible with the context of mobility and especially with the proxy Neighbor
Discovery function used in Mobile IPv6. To overcome these limitations, this paper defines a new protocol
named Improved Secure Neighbor Discovery (ISEND) which adapt SEND protocol to the context of
mobility and extend it to new functionalities. The proposed protocol (ISEND) has been modeled and
verified using the Security Protocol ANimator software (SPAN) for the Automated Validation of Internet
Security Protocols and Applications (AVISPA) which have proved that authentication goals are achieved.
Hence, the scheme is safe and efficient when an intruder is present.
1 INTRODUCTION
Internet Protocol version 6 (IPv6) is a solution to the
problem of the shortage of public IPv4 addresses that
faces Internet. IPv6 adds many improvements to IPv4
in areas such as quality of service, routing and
network auto-configuration. The introduction of IPv6
brings a set of new network protocols. One of these
new protocols is the Neighbor Discovery Protocol
(NDP) (Narten et al., 2007) which is part of the
Internet Control Message Protocol Version
(ICMPv6).
NDP operates in the network layer of the Internet
network architecture. It is heavily used for several
critical functionalities, such as determining link
layer addresses, discovering other existing nodes on
the same link, providing address auto-configuration
of nodes, detecting duplicate addresses, finding
routers and maintaining reachability information
about paths to active neighbors and forward data.
However, NDP presents many security problems.
It is vulnerable to many attacks (Nikander et al.,
2004), for that reason the Internet Engineering Task
Force (IETF) defined a secure version of that
protocol, called Secure Neighbor Discovery (SEND)
which is based on Cryptographically Generated
Addresses (CGA). With SEND extensions, the node
can prove CGA address ownership by signing
messages with its private key, as well, SEND
prevents functions that require a third party node to
modify or emit NDP message. The Proxy Neighbor
Discovery (Proxy ND), of the IPv6, can emit packets
on behalf of the Mobile Node (MN), which enables
the incompatibilities between the SEND protocol and
the Proxy ND. In this context, our contribution
consists to solve the problem of incompatibility
between the Proxy ND and the SEND protocol.
The remainder of this paper is organized as
follows: Section 2, presents NDP protocol. In the
third section, the NDP vulnerabilities are cited, In
Section 4, we present SEND and its limits for
supporting mobility and in particular the
incompatibility problem between SEND and Proxy
ND
Related work is summarized in Section 5.
In Section 6 we detail the proposed solution to
resolve the above mentioned incompatibility
problem. Section 7 describes a simulation method of
71
El Bouabidi I., Smaoui S., Zarai F., Obaidat M. and Kamoun L..
Improved Secure Neighbor Discovery Protocol (ISEND) for New Wireless Networks Generations.
DOI: 10.5220/0005123300710077
In Proceedings of the 11th International Conference on Wireless Information Networks and Systems (WINSYS-2014), pages 71-77
ISBN: 978-989-758-047-5
Copyright
c
2014 SCITEPRESS (Science and Technology Publications, Lda.)
our scheme by a model checking tool called
AVISPA. Finally, we conclude the paper in Section
8.
2 NEIGHBOR DISCOVERY
PROTOCOL
NDP solves a set of problems related to the nodes
that are located on a same link, prefix discovery,
router discovery, address auto-configuration,
Duplicate Address Detection (DAD), Neighbor
Unreachability Detection (NUD), and redirect.
It uses five messages provided by ICMPv6 such
as:
Router Solicitation (RS): messages issued by
a host to cause local routers to transmit
information.
Router Advertisement (RA): RA is sent
periodically by IPv6 routers or in response to
a RS message.
Neighbor Solicitation (NS): NS messages are
originated by the nodes to ask
the link layer address of another node, also it
used for DAD and neighbor unreachability
detection.
Neighbor Advertisement (NA): NA
messages are always sent in response to a NS
message from a node, it can be sent by a
node when its link layer address is changed.
Redirect: Redirect messages are always
sent by the router to a host asking “it”
the host to update its routing
information. The router can send
Redirect message back to the host when
a router knows that the best path for that
host to reach the destination is another.

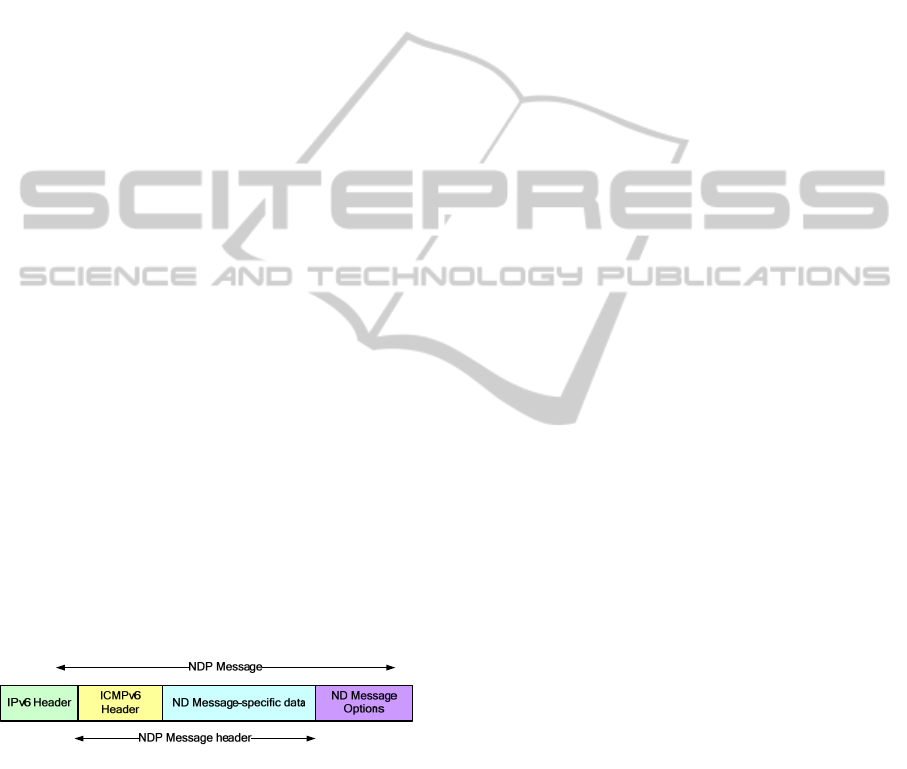

Figure 1: The NDP Message Format.
3 VULNERABILITIES OF NDP
NDP uses simple mechanisms to secure messages by
accepting messages from the same local link, or
nodes with either unspecified or link local IPv6
addresses and with hop limit, but this is not enough
security and makes NDP vulnerable to several
attacks such as:
Spoofing: In a spoofing attack a malicious
node uses another node’s address or identity.
Attackers can send a fake message in the aim
to associate its Medium Access Control
(MAC) address with the IP address of
another host falsify data and thereby gaining
an illegitimate…, so attackers can use spoofs
to leverage man-in-the-middle (MITM)
attacks, create DoS (Denial of Service)
attacks.
DoS: This attack prevents communication
between the legitimate node and other nodes.
Attackers can be practiced to prevent a node
to get a new IPv6 address by generation DoS
en DAD (when the legitimate node is
currently checking whether an address is
already in use or not)
Indeed, DAD allows duplicate address
detection, however an attacker can always
responding to each DAD massage “I have
this address”. Thus, the legitimate node
won’t be able to configure an IPv6 address to
access the network.
Redirect: type of attacks in which an attacker
redirects packets away from the legitimate
receiver to another node on the link.
Attacker can intercept a message NS and
changes the source link layer address option,
acting as an MITM between the two nodes.
Replay: In replay attacks, attackers capture
and change messages from a different
context into the intended context, thereby
fooling the legitimate participant(s) into
thinking they have successfully completed
the protocol run.
4 SECURE NEIGHBOR
DISCOVERY (SEND)
SEND is a security extension of the ND protocol. It
provides the address ownership and ensures message
authenticity, integrity and freshness. Its protection is
twofold: it protects the node from address spoofing
and provides to the host a mechanism to authenticate
its Access Router (AR).
To achieve these enhancements, SEND
introduces four new options: CGA, RSA Signature,
Nonce and Timestamp options, and two ICMPv6
messages for identifying the router authorization
process
CGA Option: It encapsulates the CGA
Parameters in a NDP message. CGAs are
WINSYS2014-InternationalConferenceonWirelessInformationNetworksandSystems
72
used to make sure that the sender of a
neighbor discovery message is the owner of
the claimed address. A public-private key
pair is generated by all nodes before they can
claim an address. The CGA option is used to
carry the public key and associated
parameters. The messages are signed with
the corresponding private key. Only if the
source address and the public key are known
can the verifier authenticate the message
from that corresponding sender.
RSA option: The RSA Signature option is
used to authenticate the identity of the sender
and to protect all messages relating to
Neighbor and Router Discovery. The
message which is sent from CGA address is
signed with the address owner private key
and the public key is used to verify the
signature.
Nonce Option: This option provides anti-
replay protection, and ensures that an
advertisement is a fresh response to a
solicitation which is sent earlier by the node.
Timestamp option: the Timestamp make sure
that redirects and unsolicited advertisements
have not been replayed.
Certificate Path Solicitation (CPS): is sent
by hosts during the Authorization Delegation
Discovery (ADD) process to request a
certification path between a router and one of
the host’s trust anchors.
Certificate Path Advertisement (CPA): the
CPA message contains the router certificate,
it is sent in reply to the CPS message.
Although, SEND was designed to enhance the
security of the NDP protocol, it still suffers from
numerous vulnerabilities. On one hand, there is an
incompatibility between Anycast addresses and
SEND. Indeed, in the case of NDP signaling SEND
authorizes only the owner of the address. On the
other hand, the procedure of the CGA verification
used in SEND can launch DoS attack (Gelogo et al.,
2011). Finally, SEND (Arkko et al., 2005) ensures
that only the owner of the address is enabled to send
message with its source address. Therefore, the
message’s integrity is valid through the CGA
verification and the RSA Signature option
protection.
As well, the proxy ND can intercept and modifies
messages on behalf of the mobile nodes. As such,
Proxy ND and SEND are incompatible. This context
presents our interest.
5 RELATED WORK
Although the literature carries a multitude of ND
security protocols addressing a number of problems
related to security and mobility, there are no
lightweight, robust solutions ND Proxy that can
operate autonomously in an open environment
without use an incompatibilities problems between
ND proxy and SEND. This section details some
related work focused to resolves incompatibilities
between SEND and Proxy ND. Among them,
Krishnan et al. present in (Krishnan et al., 2012) a
certificate based solution. The router’s certificate is
extended to support a new Extended Key Usage
(EKU) field that indicates whether the router assumes
a proxy role. Then, whenever it issues or modifies
ND messages and signs with its public key.
Neighboring nodes learn, during the Authorization
Delegation Discovery, that the router is also
authorized to act as a proxy for this subnet prefix or
not, therefore they will trust all messages coming
from this proxy.
In document (Combes et al., 2010) and
(Nikander et al., 2002), Nikander and Arkko,
propose a solution which empowers the nodes to
determine if a router is trusted enough to be a proxy
and to issue a certificate to authorize it to act as
such. But, this solution fails to identify the real
overhead due to the certificate exchange mechanism.
In (Cheneau et al., 2011), the author’s claim their
solution is especially important to resolve
incompatibilities between SEND and Proxy ND,
which is based on Signature Algorithm Agility. In
this paper, the author’s propose modifications to the
CGA addresses and the SEND protocol to support
Signature Algorithm Agility and present the MCGA
addresses. Then they extend the MCGA addresses to
store public keys of different nodes, therefore
enabling a secure address sharing and to solve
incompatibilities between the Proxy ND and the
SEND protocol. With the novel solution-based
certification mechanism, and the introduction of new
addresses, the proposed solution achieves defending
against many attacks successfully and efficient.
6 IMPROVED SECURE
NEIGHBOR DISCOVERY
PROTOCOL
The principle operation of NDP is the neighbor
discovery. Indeed, when a mobile sends an NS
requesting some information to another neighbor
ImprovedSecureNeighborDiscoveryProtocol(ISEND)forNewWirelessNetworksGenerations
73
node in the same network, it will respond with an
NA. But the problem is when the MN leaves its
home network as illustrated in the Figure 2.

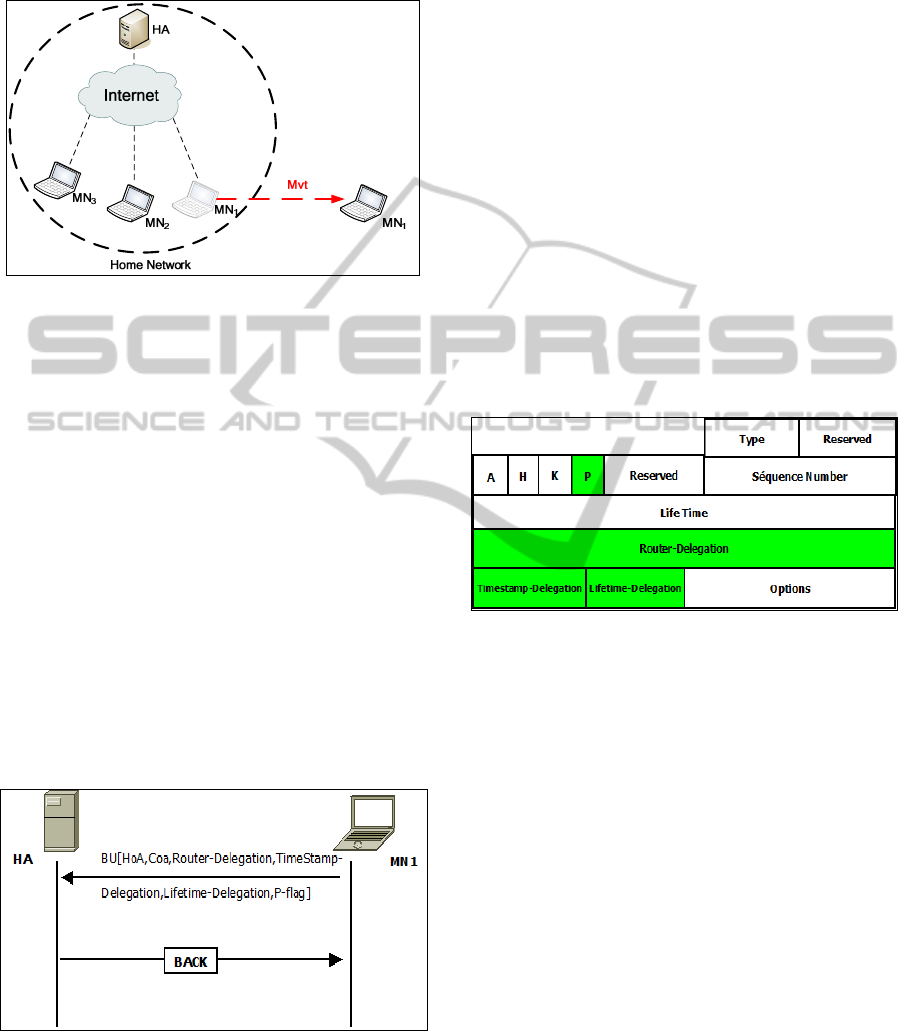

Figure 2: Network architecture.
Our contribution is an improvement of the SEND
protocol to solve the problem of incompatibilities
between the Proxy ND and the SEND protocol.
Indeed our solution consists of three steps:
6.1 Router- Delegation
The first step of our proposed scheme named
Router- Delegation. When the MN
1
leaves its home
network (regardless it is still transmitting or not), it
delegates its NDP responsibilities to the Home
Agent (HA). With this delegation, the latter acts as a
proxy and can sign and send the secured NA
messages.
The delegation is sent to the HA in the Binding
Update (BU) message. Once the router receives this
message, it responds with a Binding Update
Acknowledgment (BACK) affirming the acceptance
of this delegation.
Figure 3: Router-Delegation
To achieve this goal, we are served of the format of
the BU message (as shown Figure 4) which contains
an extension field that we have used to include the
R-delegation parameters. The MN
1
sends a
combined Binding Update message with the router
delegation. The R- delegation corresponds to a
signature with the private key of MN
1
of a HA MAC
address that the HA gives it to the MN
1
since its
initial access. This signature of the MAC Address
(16 bytes) is inserted later in the BU with the
“TimeStamp-Delegation” and “Lifetime-
Delegation”.
TimeStamp-Delegation: This field specifies
the start time of delegation.
nguish a simple and a modified BU, a new
flag P is added to the header of theLifetime-
Delegation: This field indicates the lifetime
of MAC-Address-Delegation starting from
timestamp-delegation.
To enable the HA to disti BU message (see Figure
4). The HA receiving the modified BU with the flag
set, will be notified that the BU request corresponds
to a registration with router delegation sent by the
MN
1
.
Figure 4: Modified BU format.
6.2 Router- Delegation Checking
The second step is called Router-Delegation
Checking. After receiving the modified BU message
from MN
1
, the HA registers the delegation in the
database registration. When the HA receives the NS
message from other node (MN
2
) (to request the link
layer address of another node) whose destination is
MN
1
, it consults its registration database to find a
delegation for the MN
1
. If it finds an appropriate
delegation, it generates and signs the NA instead of
MN
1
then sends it to the MN
2
. If it does not find an
appropriate registration, it drops or treats with
unsecured manner the packet NS. The NA messages
can also be sent by HA when it receives the BU
message with the P flag set; link-layer address is
changed.
Upon receiving a NA message in response to an NS
message from a HA with the P flag set, MN
2
checks
the NA message. If the router delegation verification
is successful, the neighbor cache should be updated.
WINSYS2014-InternationalConferenceonWirelessInformationNetworksandSystems
74
With these options, the router proves that he is
delegated from MN
1
and it can answer to all NS
messages through the modified NA message.

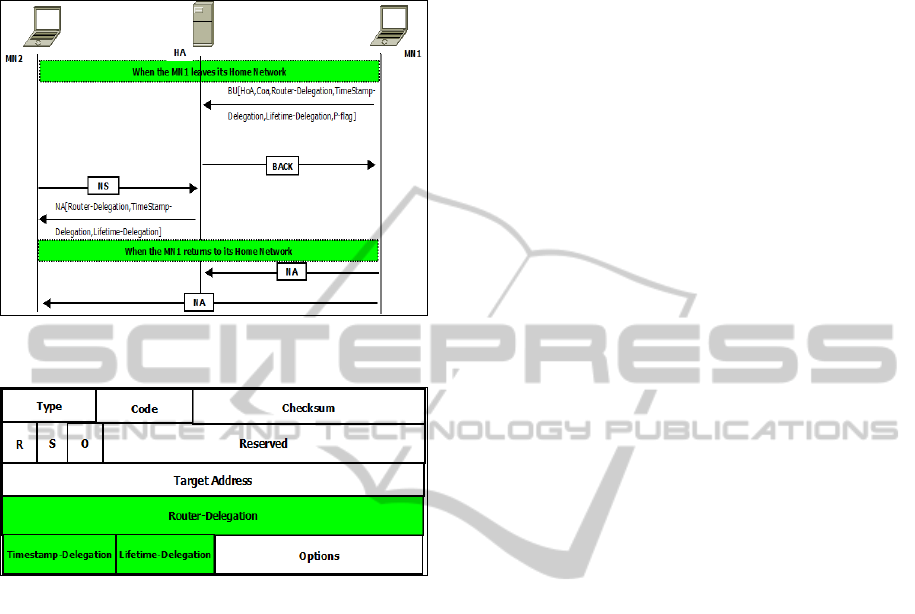

Figure 5: Improved Secure Neighbor Discovery message
flow.
Figure 6: Modified NA message format.
6.3 Router-Delegation Revocation
The third step named Router-Delegation Revocation
is dedicated when the MN
1
returns to its home
network. Therefore, it sends a NA message to all
network nodes (Destination address FF02::1) with
the following falgs:
- R and S flags are not set.
- O flag is set.
The override flag (o) is set to indicate that the
information in this NA should override any existing
neighbor cache entry and update the link layer
address.
7 ANALYSIS AND
VERIFICATION OF THE
PROPOSED SCHEME
7.1 Security Analysis
Our objective is to overcome the limitation of the
incompatibility of SEND protocol with the context of
mobility and especially with the proxy Neighbor
Discovery in a secure way. In this subsection, we will
enumerate the covered security requirements by our
proposed scheme.
1) Authentication
In order to minimize spoofing attack, our
proposed scheme guarantees authentication between:
HA and MN1: When the MN1 leaves its
home network, authentication is done
through the modified BU message.
MN2 and HA: When the HA emit NA
message on behalf of MN1, the
authentication is effected through the
modified NA message
HA/MN2 and MN1: When the MN1 returns
to its home network, this authentication is
done through the NA message.
2) Anti Replay Attack:
To prevent reply attack, we add the following
fields:
TimeStamp-Delegation: When
communication node receives message, it
will further deal with the message only if the
TimeStamp-Delegation is in a reasonable
range.
Lifetime-Delegation: is used to eliminate a
long term Router-Delegation.
7.2 Automated Formal Security
Analysis
To verify the security of ISEND protocol, we have
used the Security Protocol Animator Software
(SPAN) for the Automated Validation of Internet
Security Protocols and Applications (AVISPA
project).
SPAN integrates four automatic security analysis
and verification back-end: “On-the-Fly Model-
Checker” (OFMC), “Constraint Logic-based Attack
Searcher” (Cl-AtSe), SAT-based Model-Checker
(SATMC) and Tree Automata based Automatic
Approximations for the Analysis of Security
Protocols (TA4SP).
The first step of the verification consists of
modeling our solution using HLPSL formal language
of AVISPA. Generally, any HLPSL code in AVISPA
consists of role, session, environment and goal
sections. In our HLPSL specification, we defined
three basic roles: the MN
1
, HA and MN
2.
Each of
these roles implements its related part of Secure
ISEND.
ImprovedSecureNeighborDiscoveryProtocol(ISEND)forNewWirelessNetworksGenerations
75
SPAN can only deal with the authentication and
confidentiality properties. So, we can verify
authentication of agents on certain parameters. An
authentication security goal consists of witness and
request events used to check this property. The first
authentication to be checked is between the HA and
MN
1
. We specify this goal as follow:
The HA authenticates the MN1with
{Mac'}_inv(K)
In the transition of HA, we add the following
line:
request(HA, MN
1
auth_1, {Mac'}_inv(K))
And in the transition of MN1, we add the
following line
witness(MN
1
,HA,auth_1, {Mac'}_inv(K))
The second authentication to be checked is
between the HA and MN
2
. We specify this goal as
follow:
The MN2 authenticates the HA with
{Mac'}_inv(K)
In the transition of MN2, we add the
following line:
request(MN
2
,HA,auth_2, {Mac'}_inv(K))
And in the transition of HA, we add the
following line
witness(HA, MN
2
,auth_2, {Mac'}_inv(K))
The other authentication should be checked
when the MN1 returns to its home network.
This authentication is done through the NA
message transmit by MN1 to all neighbors
nodes.
In the transition of HA, we add the following
line:
request(HA,MN
1
,auth_3,na({{Mac’}
_inv(K).tmp.lifetime_inv(k)))
In the transition of MN
2
, we add this line:
request(MN2,MN
1,
auth_4,na({{Mac’}
_inv(K).tmp.lifetime_inv(k)))
And in the transition of MN1, we add these
following lines
witness(MN
1
,HA,auth_3,na({{Mac’}
_inv(K).tmp.lifetime_inv(k)))
witness(MN1,MN2,auth_4,na({{Mac’}
_inv(K).tmp.lifetime_inv(k)))
Finally, in the goal section, we add the following
line:
authentication on
auth_1,auth_2,auth_3,auth_4
When auth_1, auth_2, auth_3 and auth_4 are
declared as protocol_id.
The animation of the HLPSL specification with
SPAN is illustrated in the figure 7.

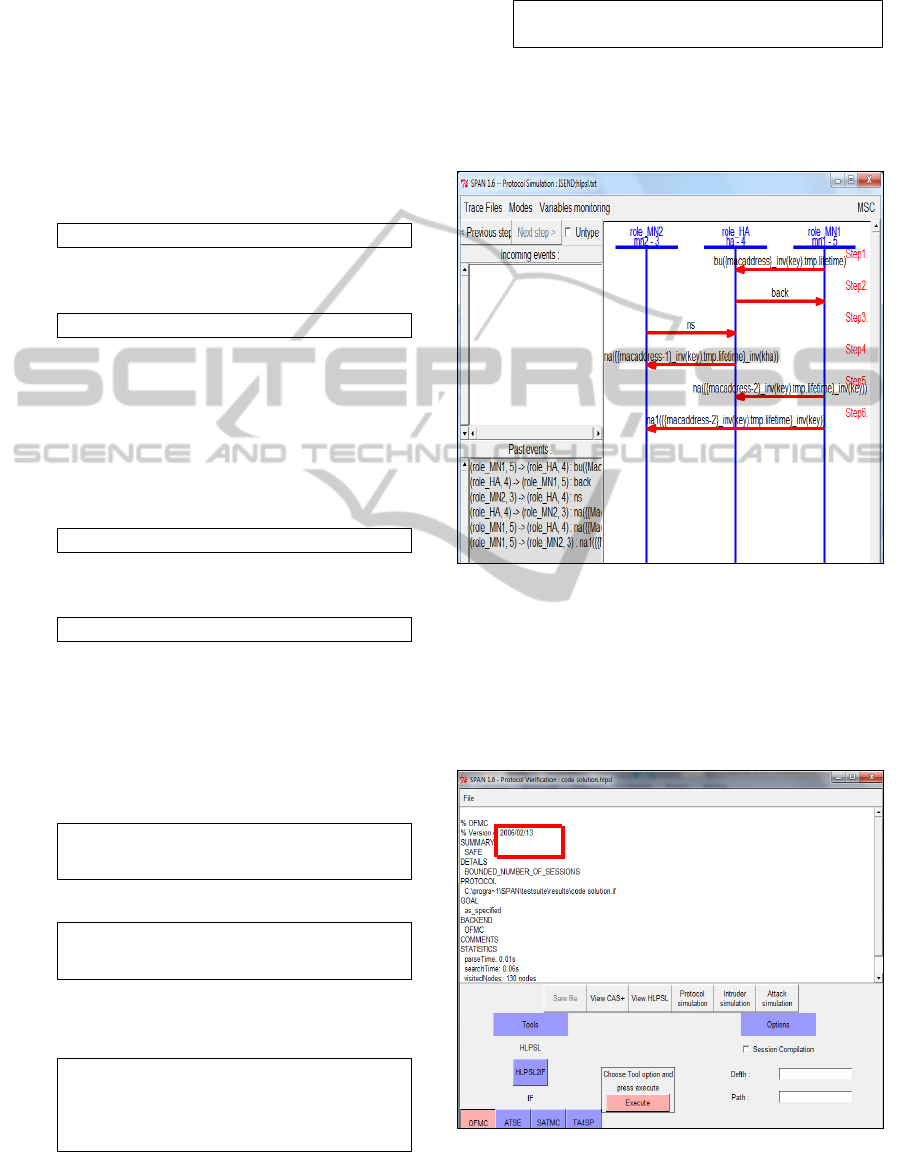

Figure 7: Exchange messages of ISEND with SPAN.
The result of the simulation of ISEND using
SPAN has proved that defined goals are achieved,
and it found to be a safe scheme. Figures 8 and 9
show the messages returned by OFMC and Cl-AtSe
respectively. No discovered attacks were found, and
the security goals are reached.
Figure 8: OFMC performance analysis results.
WINSYS2014-InternationalConferenceonWirelessInformationNetworksandSystems
76

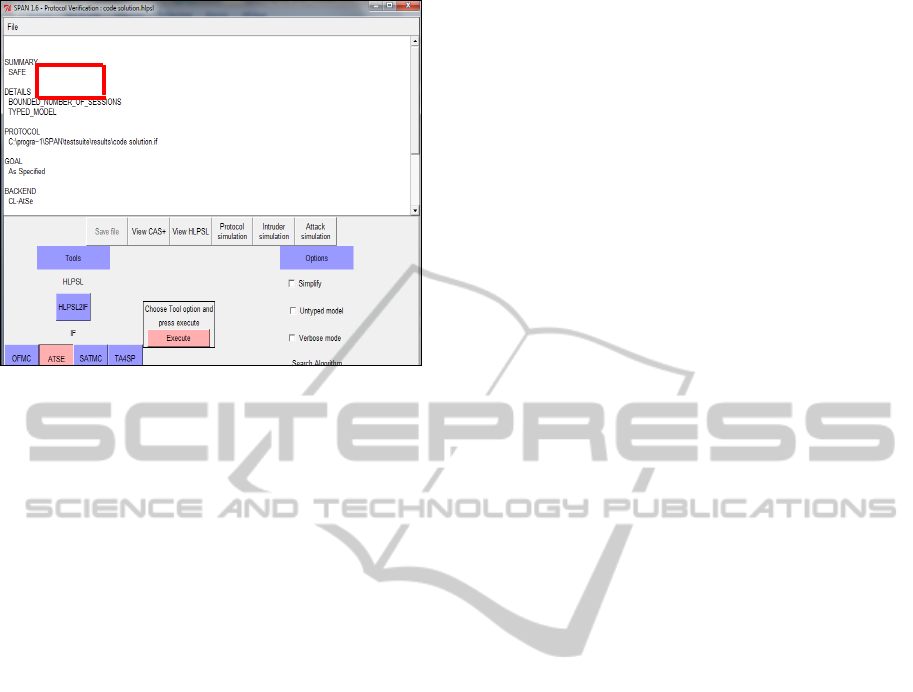

Figure 9: Cl-ATSE performance analysis results.
8 CONCLUSION
Due to the rapid growth of wireless networks, it is
necessary to deal with new requirements and
challenges of security. Among the most interesting
protocols in the IPv6 suite, which are prone to
various threats in case of mobility events, we
investigate the NDP protocol suffering from spoofing
address and Denial of service attacks. These
limitations lead to the appearance of the SEND
protocol. Although, it was designed to enhance the
security of the NDP protocol, SEND still suffers
from numerous vulnerabilities. Therefore, to enhance
security of SEND and to overcome these limitations,
we investigate in this paper the problem of
incompatibility with the proxy Neighbor Discovery
function used in Mobile IPv6. Towards this
objective, this paper describes the proposed protocol
named Improved Secure Neighbor Discovery
(ISEND) which adapts SEND protocol to the context
of mobility and extends it to new functionalities.
ISEND has been modeled and verified using SPAN
which has proved that authentication goals are
achieved. Hence, the scheme is safe and efficient
when an intruder is present.
Future works will be focused on resolving the
incompatibilities between Anycast addresses and
SEND, as well as problems related to the
Cryptographically Generated Addresses.
REFERENCES
T. Narten et al., “Neighbor Discovery for IP Version
6 (IPv6),” RFC 4861, Sept. 2007;
http://tools.ietf.org/html/rfc4861.
P. Nikander, ed., J. Kempf, and E. Nordmark, “IPv6
Neighbor Discovery (ND) Trust Models and Threats”,
IETF, RFC 3756, May 2004. http://tools.ietf.
org/html/rfc3765.
YE. Gelogo, RD. Caytiles, and B. Park, “Threats and
Security Analysis for Enhanced Secure Neighbor
Discovery Protocol (SEND) of IPv6 NDP Security”
International Journal of Control and Automation Vol.
4, No. 4, December, 2011.
J. Arkko, J. Kempf, B. Zill, and P. Nikander, “SEcure
Neighbor Discovery (SEND),” IETF, RFC 3971,
March 2005. http://tools.ietf.org/html/rfc3971.
S. Krishnan, J. Laganier, M. Bonola, and A. Garcia-
Martinez, “Secure Proxy ND Support for SEND”,
IETF, RFC 6496, February 2012.
http://tools.ietf.org/html/rfc6496.
J.-M. Combes, S. Krishnan, and G. Daley, “Securing
Neighbor Discovery Proxy: Problem Statement,”
IETF, RFC 5909, July 2010.
http://tools.ietf.org/html/rfc5909
P. Nikander and J. Arkko, “Delegation of Signalling
Rights”, In Proceeding of the Security Protocols, 10th
International Workshop, Cambridge, UK, April 16-19,
2002, LNCS 2845, pp. 203-212, Springer, 2003.
T. Cheneau, M. Laurent Network, “Using SEND
Signature Algorithm Agility and Multiple-Key CGA
to Secure Proxy Neighbor Discovery and Anycast
Addressing”, In 6th Conference on Network
Architectures and Information Systems Security
(SAR-SSI), 2011, pp. 1 – 7
The avispa project. http://www.avispaproject.org/
ImprovedSecureNeighborDiscoveryProtocol(ISEND)forNewWirelessNetworksGenerations
77
