A SCTP-based Authentication Protocol: SCTPAP

Malek Rekik

, Amel Meddeb-Makhlouf

, Faouzi Zarai

, Mohammad S. Obaidat

and K.F. Hsiao

LETI laboratory,University of Sfax, Tunisia

Computer Science and Software Engineering Department, Monmouth University, NJ 07764, USA

Dep. of Information Management, Ming-Chuan University, Taoyuan County 333, Taiwan

Keywords: Multihoming, SCTP, Security, Authentication, AVISPA, SPAN.

Abstract: Multihoming is among the features of SCTP (Stream Control Transmission Protocol), which makes it more

robust and efficient than TCP(Transmission Control Protocol)but more vulnerable under attack.

Nevertheless, a strong security can degrade the QoS(Quality of Service) by adding additional delay.

Therefore, we propose in this paper, a secure authentication protocol that supports the establishment of

multiple connections to protect multihoming networks with the least number of messages, number of

parameters in each message and number of communicating nodes. The proposed scheme provides lower

delay of authentication and protects against several attacks. Our devised protocol is analyzed using SPAN

(Security Protocol Animator) for AVISPA (Automated Validation of Internet Security Protocols and

Applications) tool. The obtained validation results show that the scheme is safe.

1 INTRODUCTION

Multihomed protocol is a mechanism that makes the

host able to connect several networks under different

IP (Internet Protocol) addresses by using different

network interfaces. With traditional TCP, multiple

connections are required to provide multihoming

services, which involves the use of multiple ports.

This makes the network management difficult and

the communication during the change of address

may be interrupted. Nevertheless, SCTP (Cano,

2011), which is a recent IETF transport layer

protocol, supports multihoming. Indeed, it ties one

connection called association in SCTP to several

network interfaces at each communicating node.

Transport addresses are exchanged during the

initialization phase of an SCTP association. This

phase

consists of four-way handshake to protect

against denial-of-service attacks. Even though,

SCTP is more robust against network failures or

congestion by dynamically selecting a path. Its

features make it more vulnerable to the man-in-the-

middle and hacking attacks. Among the related

security solutions proposed by researchers are:

SCTP over IPsec (Internet Protocol Security)

(Bellovin et al., 2003), SCTP-under-TLS (Transport

Layer Security) (Jungmaier et al., 2002), Secure

SCTP (Hohendorf et al., 2006), and the extension

AUTH-SCTP (Tuexen et al., 2007).

In this paper, we will introduce the proposed

protocol, called secure optimized authentication for

SCTP (SCTPAP) scheme. Our goal is to secure

SCTP communication considering the following

requirements in the design of SCTP AP:

- Integrity

- Confidentiality

- Mutual authentication

- Mutual belief on the session key

- Delay of authentication and re-authentication

We will use AVISPA tool for validation and

security analysis of the proposed protocol.

The rest of this paper is organized as follows:

Section II presents some existing security solutions,

where their limitations are highlighted. Section III

describes our SCTPAP scheme. Section IV contains

the validation and analysis of the proposed algorithm

using the AVISPA tool. Finally, conclusion and

future works are provided in section V.

2 RELATED WORK

2.1 SCTP over IPsec

The feature of SCTP is not well supported by IPsec.

The ref (Cano, 2011) identifies the problem of SCTP

Rekik M., Meddeb-Makhlouf A., Zarai F., Obaidat M. and Hsiao K..

A SCTP-based Authentication Protocol: SCTPAP.

DOI: 10.5220/0005123400470053

In Proceedings of the 5th International Conference on Data Communication Networking (DCNET-2014), pages 47-53

ISBN: 978-989-758-042-0

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

over IPsec: the SCTP sessions combine a group of

senders at a group of receivers.

This has two impacts on the tunnel establishment

procedure of IPsec, (Cano, 2011) where:

- The SPD must find a unique SA from a new

type of triplet ({destination address group},

SPI (Security Parameters Index), AH / ESP

(Authentication Headers / Encapsulating

Security Payloads)). So, it is recommended that

the SPD (Security Policy Database) entries are

generalized in the form of groups address

- The protocols of keys exchange/generation of

security associations must assume the

complexity of SCTP. Thus, the work proposed

in (Cano, 2011)

recommends the construction

of a new type ID for ISAKMP: ID_LIST, which

represents a set of identities. However,

using these lists of identities has its own

drawbacks. For example, for IKEv1, a signature

must be linked to a unique identity along all the

same phase. But in the context of SCTP, the

signer is not necessarily the same for each

message. Accordingly, the signatory groups

must share the same key, which involves

security weaknesses in these practices on a

large scale. Moreover, this work proposes an

encoding multiple identities within a single

certificate (for a single public key), but the

support of this feature in the implementation of

certification systems is dubious.

Another disadvantage of the use of SCTP with

IPsec is that each SCTP packet is secured separately

by IPsec. Hence, it increases the overhead when we

have long messages that must be fragmented by

SCTP,because several SCTP packets per message

have to be secured.

Moreovere, there is a lack of efficiency in this

security method that can decrease throughput and

performance of the communication

2.2 SCTP-under-TLS

The use of TLS over SCTP is described in (Bellovin

et al., 2003). TLS is currently mainly used on top of

the TCP. But for TLS over SCTP, one TLS session

must be established per stream. This leads to

performance problems when many streams need to

be secured. Every message is secured separately by

TLS. Then, it is sent over SCTP. In case of sending

many small messages, there will be an increased

overhead compared to a solution that secures a

complete SCTP packet containing several bundled

messages.

2.3 Secure SCTP

To overcome the different problems of using TLS or

IPsec to secure , Secure SCTP integrates

cryptographic functions into SCTP (Jungmaier, A.,

Rescorlaand, E., Tuexen, M., 2002). Like TLS and

IPsec, itprovides authentication, integrity and

conﬁdentiality since it uses the same standard cipher

and HMAC algorithms as these standardized security

solutions.

Nevertheless, SSCTP has a disadvantage

compared to TLS over SCTP. Indeed, when long

messages have to be fragmented at the SCTP layer,

TLS secured ﬁrstly the whole message before

fragmenting it. However, SSCTP has to secure each

packet fragmented separately, which adds overhead.

Moreover, SSCTP has to complete a secure session

with messages and news chunks before securing data

transmission, which causes more communication

delay.

2.4 AUTH-SCTP

The extension presented in [4] provides a

mechanism for deriving shared keys for each

association. It defines a new chunk type, several

parameters, and procedures for (SCTP).

Authentication Chunk (AUTH) is the new chunk

type added by this extention, which is used to

authenticate SCTP. Random Parameter (RANDOM),

Chunk List Parameter (CHUNKS)and Requested

HMAC Algorithm Parameter (HMAC-ALGO)are the

new parameters that are used to negotiate the

authentication during association setup and establish

the shared keys. However,authors in this work

didnot definehow shared keys are exchanged.

Another disadvantage of this extention is the

increasing of the complexity of SCTP by adding new

parameters, new chunk and proceduresthat add delay

or degrad the quality of service.

3 SCTPAP SCHEME

In this paper, we propose the secure optimized

authentication for SCTP (SCTPAP) scheme, which

approaches the problem of the security during a

node’s authentication to connect for a first time to

the network. The proposed algorithm uses an

initialization phase to generate and exchange keys

and public parameters recorded when the node wants

access to the network for the first time. When the

node obtains, at the end of this step, a secret key

shared with the authentication server AS, it can

DCNET2014-InternationalConferenceonDataCommunicationNetworking

connect with any legitimate node. If the connection

is interrupted and the mobile node wants to re-

connect with the same node, the procedure of re-

authentication will be triggered.

In the proposed scheme, we assume that the

network layer is secured by a tunnel IPsec and we

protect the transport layer by the authentication

procedure. The considered scenarios are between

two nodes that should support symmetric and

asymmetric encryption mechanisms. The proposed

scheme uses the authentication server AS to achieve

authentication procedure.

3.1 Initialization Phase: Node’s

Recording

The node must subscribe to the AS directly to gain

access to the wireless network. We present the

recording process as follows:

The node A computes its identity “IDA” by

applying the hash functions on the concatenation of

all its addresses. IDA is a unique identity of the node

A. Node A generates a random number x. To send the

two parameters x and IDA to AS server for recording,

node A follows the following steps:

 It generates a random key KS

 It computes and sends m1, which is the

encryption of key KS by the AS ' public key

serv-n

m1= {KS}

serv-n

(1)

 Then, it sends m2 which is the encryption of x

and IDA by this key KS.

After receiving m1 and m2, AS decrypts m1 by

its private key to get the key KS and decrypts m2 by

KS to get x and IDA. Then, AS selects randomly a

number y and calculates D, which is the encryption

(AS-ID || y) by the key x, as follows: D = Ex (AS-ID

|| y) (2).

AS calculates the master key K = (IDA || AS-ID ||

x || y) (3) and sends the D to node A. This one

decrypted D to get AS-ID and y and hence it can

calculate the key K.

3.2 Initial Authentication

After the recording phase, the node A, wishing to

connect with a node B, executes the initial

authentication process, illustrated by Figure 1.

As illustrated in this figure, after the

establishment of a IPsec tunnel between the two

nodes (step 1) and after the initialization phase of the

SCTP-AUTH connection establishment in step 2 and

step 3, node A follows these steps:

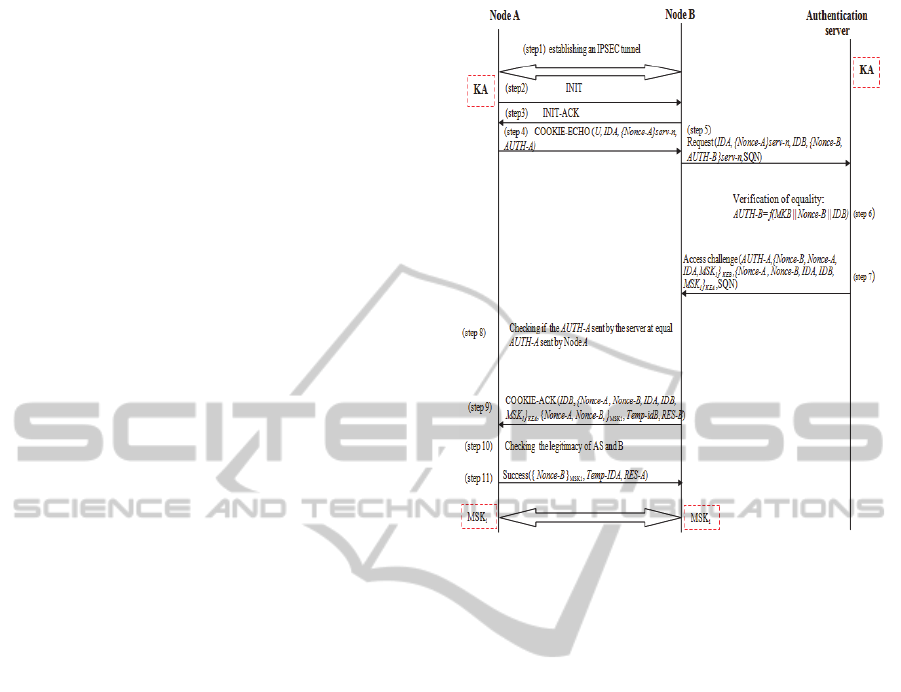

Figure 1: Initial authentication.

 It generates Nonce-A: a random number,

 It calculates MKA = f (KA || Nonce-A) where f

is a hash function

 It calculates the challenge Auth-A = f(MKA ||

Nonce-A || IDA)

 It sends to node B a COOKIE-ECHO, which

contains an U bit set to 0 informing that it is

the initial authentication, its identity IDA, the

random number Nonce-A encrypted by the

server’s public keyserv-n and the challenge

AUTH-A (step 4).

Node B sends a Request to AS (step 5) which

contains (IDB, {Nonce-B, AUTH-B }serv-n) to prove

its legitimacy to AS and (IDA, {Nonce-A}serv-n to

compute Auth-A and send it to node B. After

receiving these parameters, (step 6) AS calculates and

verifies the equality Auth-B = f (MKB || Nonce-B

||IDB) to ensure the legitimacy of the node B. If the

Auth-B calculated locally is equal to Auth-B received

by the node B, AS generates the followings:

 MKA= f(KA || Nonce-A)

 Auth-A = f(MKA || Nonce-A || IDA)

 MSK

= f (MKA || MKB|| NonceA || NonceB)

which is a session key for encrypting data

that will be transmitted between node A and

node B after the initial authentication phase.

ASCTP-basedAuthenticationProtocol:SCTPAP

In Step 7, the server sends an Access-

Challenge to node B, which contains Auth-A,

the set {Nonce-A, Nonce-B, IDA, IDB, MSK1}

encrypted by the A’s cipher key KEA and the

set {Nonce-B, Nonce-A, IDA, MSK1}

encrypted by the B’s cipher key KEB. In Step 8,

Node B compares Auth-A sent by the server

with Auth-A sent by node A. If they are equal

(Step 9), it sends a COOKIE-ACK containing

the parameters (IDB, {Nonce-A, Nonce-B, IDA,

IDB, MSK1}KEA, {Nonce-A, Nonce-B}MSK1,

Temp-idB, RES-B)) to node A. On receiving this

message, (Step 10) node A finds the temporal

ID of B which is Temp-idB with its digest RES-

B=f(Temp-id-B||MSK1), then deciphers the

encrypted parameters by its cipher key KEA.

Finding the recent Nonce-A and IDA, it ensures

the legitimacy of AS and finds the new session

key MSK1 with the Nonce-B. It will prove more

its legitimacy to node B and that it has received

MSK1 by sending a success containing the

Nonce-B encrypted by MSK1 and a temp-IDA

with its RES-A for this new communication

(Step 11). Decrypting the second set received

from B {Nonce-A, Nonce-B, Temp-idB}

MSK1

node A verifies the legitimacy of B and that it

has received MSK1. Both nodes calculate their

temporary identities (Temp-idA and Temp-idB)

that they will use during this session.

 Temp-idA= f(IDA||SPI)

 Temp-idB= f(IDB||SPI)

If node A changes its current address, it

sends a status-chunk that contains the bit U set

to 1 to inform B that its address has changed and

consequently node B will change the destination

address of the association between node A and

node B in different databases IPsec to not

establish a new IPsec association.

3.3 Re-Authentication between the

Same Nodes

When a node A that is already connected to a node B

is suddenly disconnected due a failure for example

and then tries to connect again to the same node B, it

must be re-authenticated. The re-authentication

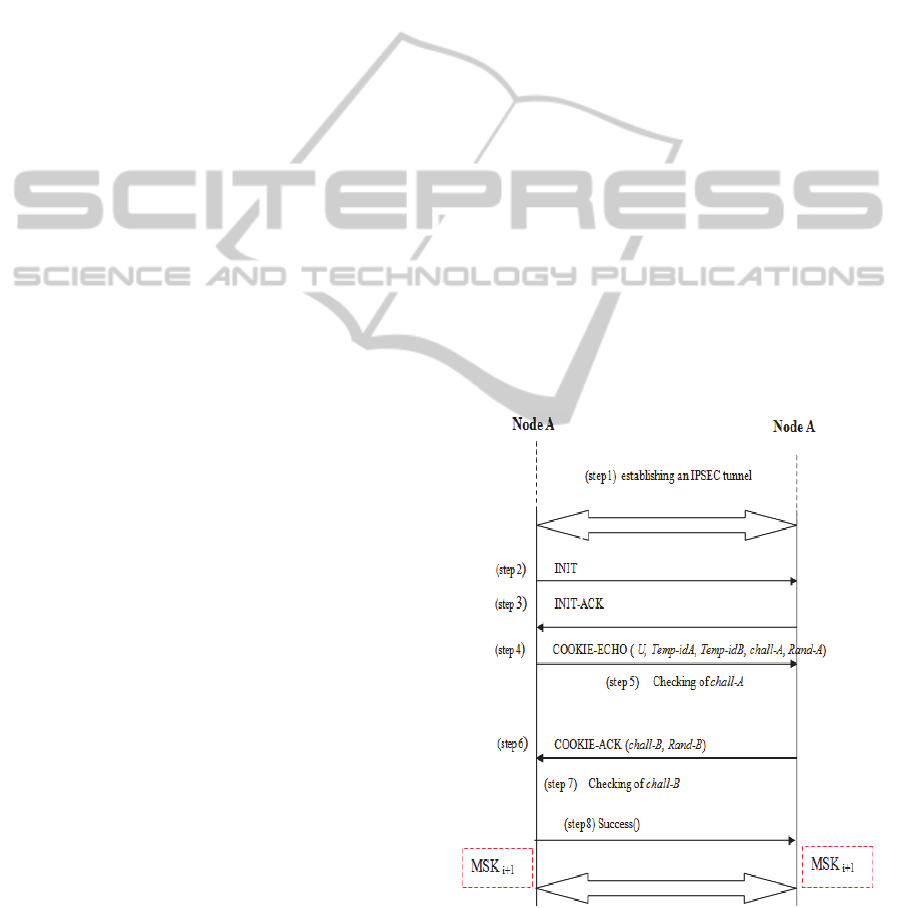

procedure is shown by Figure 2.

After establishing a channel IPsec tunnel

between the two nodes and the initialization of the

connection SCTP-AUTH (step 2), (step 3), and (step

4), node A sends the U bit set to 1 to inform that it is

re-authenticating its previous temporary identity, the

previous temporary identity of node B, a new Nonce-

A and Auth-A. On receiving these parameters, node

B notices that this is a re-authentication by

examining the U bit. Then, the procedure of re-

authentication begins by verifying the previous

temporary identity of nodeA in its database. If it

exists, it checks its temporary identity claimed by

node A. If it is equal to its temporary identity that

exists in its database associated with the previous

association between it and node A, it calculates the

Auth-A = f (MSKi||Rand-A) and (step 5) compares

Auth-A locally computed with the one sent by node

A. If they are equal, node B sends a COOKIE-ACK,

which contains (Auth-B, Nonce-B) to authenticate

node A. Node A calculates and verifies the chall-B.

If the computed one is equal to that sent, then it

sends a success message to allow a new association

between these two nodes. Finally, the two nodes

compute the new temporary identity (Temp-idA+1 et

Temp-idB+1) that they will use during this session,

where:

 Temp-idA+1= f(Temp-idA||SPI)

 Temp-idB= f(Temp-idB||SPI)

and compute MSKi +1 = f (MSKi||Rand-A||Rand-

B).The database in each node is updated at the end

of re-authentication process, where the updated

parameters are SPI, Temp-idA, Temp-idB and MSK

Figure 2: Re-authentication procedure between the same

nodes.

DCNET2014-InternationalConferenceonDataCommunicationNetworking

4 ANALYSIS AND VALIDATION

OF THE PROPOSED SCTPAP

Our authentication protocol is a deliberate

compromise between security and QoS. Indeed, the

stronger the security is the higher delay of

authentication is. However, increasing

authentication’s delay can interrupt the connection

or degrades the QoS. Therefore, our scheme uses the

most necessary parameters to protect against

different attacks with lower delay of authentication.

This section presents security analyze of the

proposed

SCTPAP with the AVISPA (Automated

Validation of Internet Security Protocols and

Applications) tool (www.avispa project.org) without

modeling tunnel IPsec in network layer. The tool

attempts to detect attacks against protocols tested

and tries to prove the validity of these protocols.

High Level Protocol Specification Language

(HLPSL) is a modeling language that AVISPA uses

to write specifications for security protocols. We

define three roles in our HLPSL specification of

SCTPAP: NodeA, NodeB and HAAA. In each role,

we specify its public and local parameters in

addition to the messages sent and received by this

role. We use the software SPAN (Security Protocol

Animator) for AVISPA to verify the security of our

protocol.

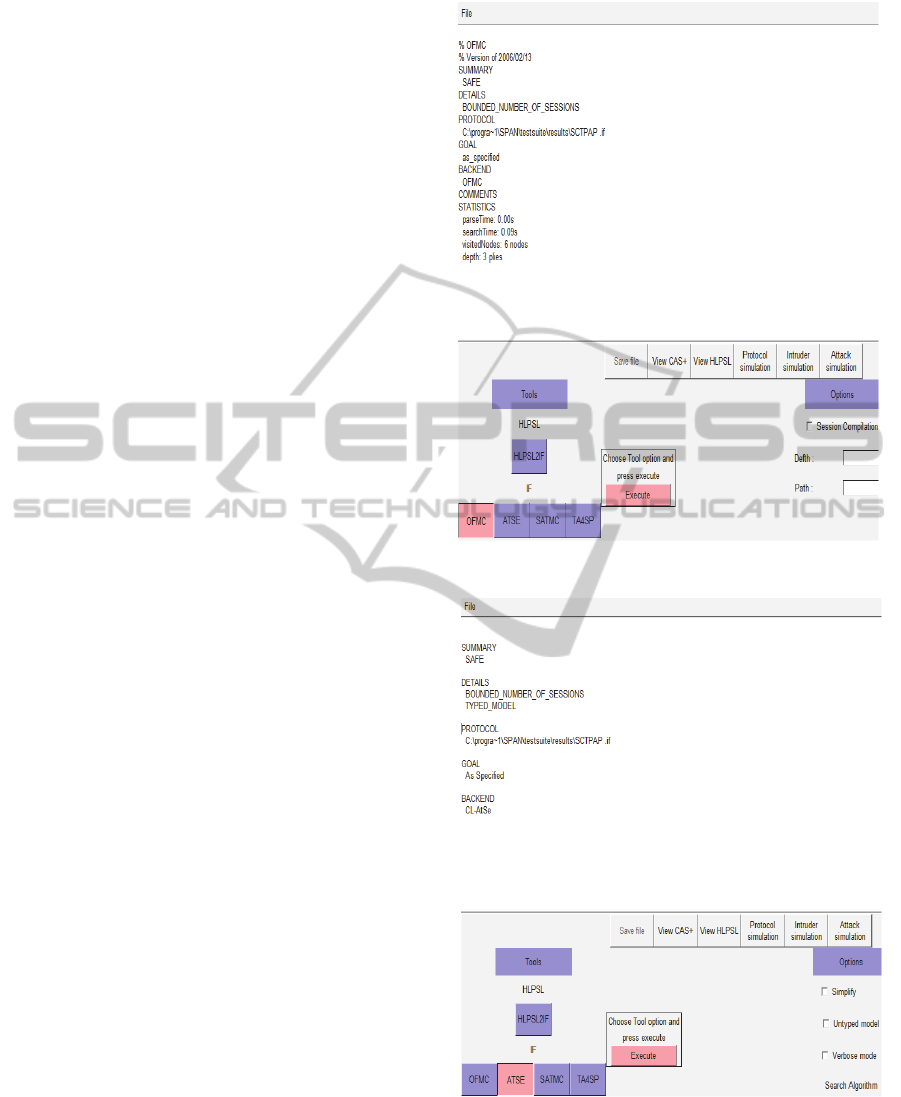

We can see the results of this verification by the

OFMC (On-the-Fly Model-Checker) in figure 3 and

CL-ATSE (Constraint-Logic-based Attack Searcher)

in figure 4. Both of these AVISPA backends show

that our protocol is safe as it is shown in figures 3

and 4.

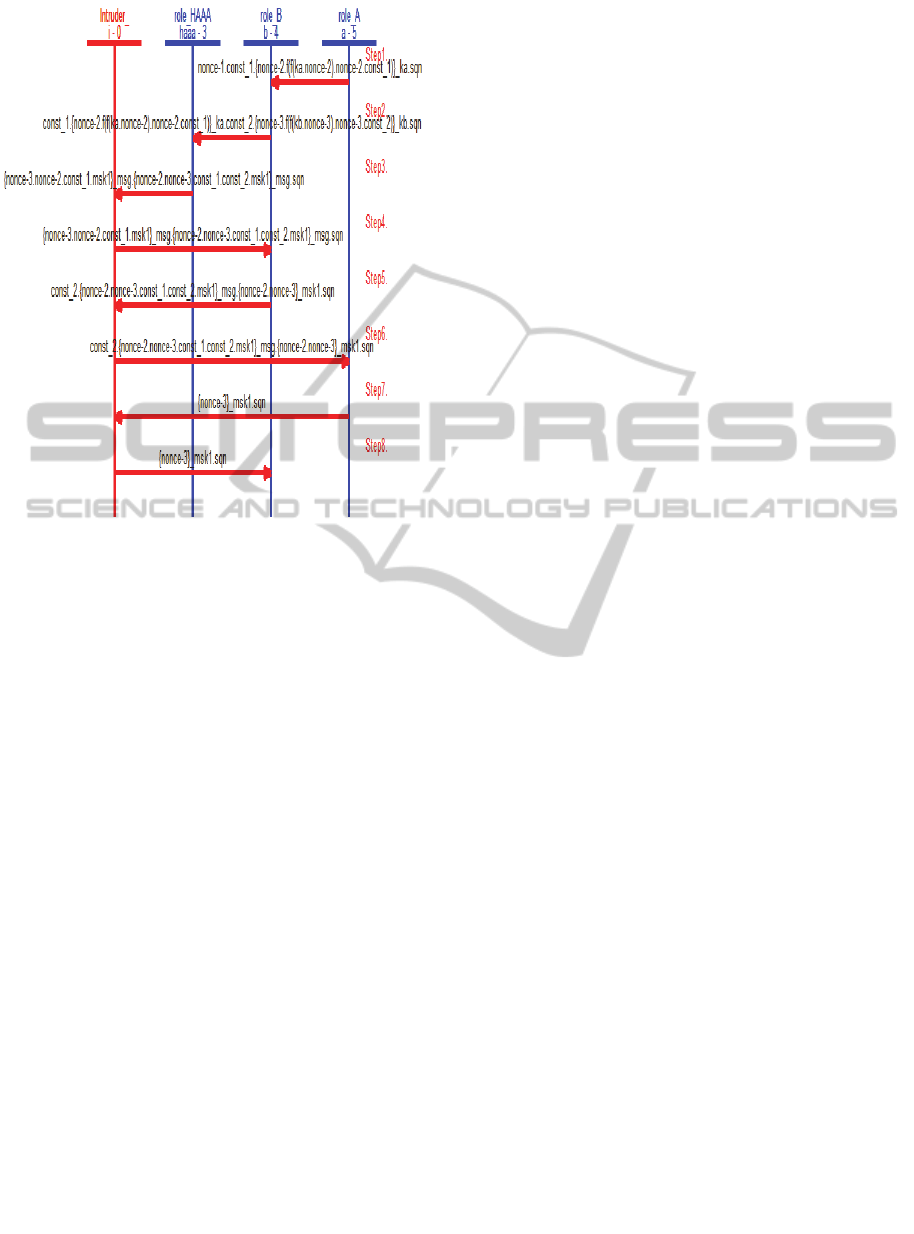

Span uses multiple attack scenarios to verify the

security of the implemented protocol. Figure 5

shows the worst scenarios where the attacker

captures wholes messages sent between the two

nodes. However, we can see that all the messages

captured by the attacker are neither modified nor

exploited. Hence, our scheme is safe even against

the worst attack scenarios. Indeed, all the parameters

in each message captured are the same in the

message, sent to the appropriate node. So the

attacker can’t:

 see the confidential parameters because

they are encrypted,

 usurp (grab) the identity of any node or

server, and

 modify the exchanged messages between

the two nodes and the server AS.

Figure 3: OFMC results.

Figure 4: ATSE results.

ASCTP-basedAuthenticationProtocol:SCTPAP

Figure 5: Attack scenario.

Not only SCTPAP is protected against different

attacks according to the SPAN (safe), but also it has

several strengths of security which are:

 Mutual Authentication: Nodes are mutually

authenticated via the AS and each node is

mutually authenticated with AS.

 Confidentiality: Not only the channel of

communication is secured with tunnel IPsec,

the confidential parameters are also encrypted

by a dynamic cipher key and the Nonce of

each node is sent ciphered to the AS by its

public key.

 Integrity: The contents of the Auth-A and

Auth-B with its Nonce-A and Nonce-B can’t

be modified by any malicious node.

 Degrees authentication: Mutual belief on the

MSK key between A and B.

5 CONCLUSIONS

In this paper, we have performed an authentication

protocol to secure a multi-homing connection

between two nodes by keeping the same association

IPsec when changing multi-homing IP addresses of

these two nodes and by encrypting their

communication with a dynamic session key. The

proposed scheme, called SCTPAP, offers a

compromise between security and QoS. In fact, with

a minimum of messages and parameters, it protects

the communicating nodes against attacks, where we

used the SPAN tool to simulate the authentication

procedure without the tunnel IPsec and we found it

is safe.

The next step in the development of SCTPAP is

to make it mobile suitable for heterogeneous

wireless networks. Then, we will simulate the whole

mechanism and qualitatively compare it with the

other existing security solutions described in this

paper. Moreover, the QoS evaluation will be more

considered in future work.

REFERENCES

Cano, M.D., 2011. “On the Use of SCTP in Wireless

Networks, Recent Advances in Wireless

Communications and Networks”. Jia-Chin Lin (Ed .),

ISBN: 978-953-307-274-6.

Bellovin, S., Ioannidis, J., Keromytis, A., Stewart, R.,

2003. RFC3554: “On the Use of Stream Control

Transmission Protocol (SCTP) with IPsec”,July 2003.

http://tools.ietf.org/html/rfc3554

Jungmaier, A., Rescorlaand, E., Tuexen, M., 2002. RFC

3436: “Transport Layer Security over Stream Control

Transmission Protocol”, December 2002.

http://tools.ietf.org/html/rfc3436

Hohendorf, C., Unurkhaan, E., Dreibholz, T., 2006.

“Secure SCTP draft-hohendorf-secure-sctp-02.txt”,

August 2006. http://tools.ietf.org/html/draft-hohendorf

-secure-sctp-02

Tuexen, M., Stewart, R., Leiand, P., Rescorla, E., 2007.

RFC 4895: “Authenticated Chunks for the Stream

Control transmission Protocol (SCTP)”, August 2007.

http://www.ietf.org/rfc/rfc4895.txt

The avispa project. http://www.avispa project.org/

El Bouabidi, I., Zarai, F., Obaidat, M. S., Kamoun, L.,

2014. “An efficient design and validation technique

for secure handover between 3GPP LTE and WLANs

systems” , Journal of Systems and Software (JSS),

“Elsevier”, Vol. 91, pp. 163-173, (Impact Factor =

1.135).

Samoui, S., El Bouabidi, I., Obaidat, M. S., Zarai, F.,

2014. “Improved IPsec tunnel establishment for

3GPP–WLAN interworking”, International Journal of

Communication Systems (IJCS), “Wiley”, Vol. 27, No.

2 (Impact Factor = 0.712)

El Bouabidi, I., Zarai, F., Obaidat, M. S., Kamoun, L.,

2012. “Secure Host-based Mobility Protocol for

Wireless Heterogeneous Networks” Proceedings of the

IEEE International Conference on Scalable

Computing and Communications (ScalCom 2012),

Changzhoun, Chine, 17-19.

DCNET2014-InternationalConferenceonDataCommunicationNetworking

Smaoui, S., Zarai, F., Obaidat, M. S., Kamoun, L., 2012.

''Authentication Optimization for Vertical Handover in

Heterogeneous Wireless Networks,” Proceedings of

the 2012 International Conference on Wireless

Information Networks and Systems, WINSYS 2012-

Part of ICETE 2012, 2012, pp. 249-254.

ASCTP-basedAuthenticationProtocol:SCTPAP
