Wrapper Induction by XPath Alignment

Joachim Nielandt, Robin de Mol, Antoon Bronselaer and Guy de Tr

Department of Telecommunications and Information Processing, Ghent University,

St-Pietersnieuwstraat 41, B-9000 Gent, Belgium

Keywords:

Wrapper Induction, XPath, Alignment, Data Extraction, DOM.

Abstract:

Dealing with a huge quantity of semi-structured documents and the extraction of information therefrom is an

important topic that is getting a lot of attention. Methods that allow to accurately deﬁne where the data can

be found are then pivotal in constructing a robust solution, allowing for imperfections and structural changes

in the source material. In this paper we investigate a wrapper induction method that revolves around aligning

XPath elements (steps), allowing a user to generalise upon training examples he gives to the data extraction

system. The alignment is based on a modiﬁcation of the well known Levenshtein edit distance. When the

training example XPaths have been aligned with each other they are subsequently merged into the path that

generalises, as precise as possible, the examples, so it can be used to accurately fetch the required data from

the given source material.

1 INTRODUCTION

Wrapper induction has been studied since the late

nineties and has been an important topic ever since. It

concerns creating a translation step between the semi-

structured document and a data structure of choice,

using manually annotated examples. The case we are

focusing on is the extraction of information from web

pages so it can be approached in a relational format.

There have already been numerous proposals as

to how to approach this problem, ranging from semi-

autonomous algorithms to completely manual ap-

proaches. In this paper we elaborate on a way to cre-

ate an XPath-based, generalised wrapper based on ex-

amples given by the user, giving the user the advan-

tage of having a transparent process (the model is un-

derstandable and legible) and an intuitive workﬂow.

The generated XPaths, describing the locations of

the desired data, can not be too broad or too restric-

tive. On the one hand, we want to describe the exam-

ples given by the user with the resulting XPath. On

the other hand we want to exploit the commonalities

between the examples so we can retrieve a lot of data

with just a few examples given. This also implies that

we need to take imperfections in the document and

annotation process into account.

Our focus on a semi-supervised approach has a

number of reasons: it provides more control over

the extracted data, eventual problems in source doc-

uments can be highlighted to the user before extrac-

tion occurs and we still get the advantage of applying

a wrapper to a large amount of documents.

Practically, we investigate a solution to the gener-

ation of the wrapper, which revolves around aligning

the steps within the XPaths (see XPath syntax (xpa,

1999) and Section 3). Sample XPaths are aligned with

each other, where the algorithm bases itself on the

XPath speciﬁcation as close as possible. Axis names,

node tests and basic predicates are taken into account.

Impurities in the source documents are properly dealt

with, e.g., typo’s in the structure tags, structural dif-

ferences ...

In this paper we limit our investigation to the child

axis (with some exceptions for the introduction of,

e.g., wildcards), basic node tests and one optional in-

teger predicate, but as our approach is built around

the actual XPath speciﬁcation and not on the derived

string based form, it will be expanded to accomodate

more detailed and complex situations. After align-

ing the sample XPaths, they are merged with each

other, leaving the user with a single merged XPath

that encompasses the samples and generalises them

in a meaningful way. This methodology was already

put into practice in a solution which is currently used

to crawl a large amount of websites comprising thou-

sands of separate pageloads, resulting in a clean and

comprehensible database.

The remainder of the paper is structured as fol-

492

Nielandt J., de Mol R., Bronselaer A. and de Tré G..

Wrapper Induction by XPath Alignment.

DOI: 10.5220/0005124504920500

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2014), pages 492-500

ISBN: 978-989-758-048-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

lows. In Section 2, a brief overview is given of re-

lated work. Section 3 deals with some preliminary

concepts that are utilised in the following sections.

Our proposed technique is detailed in Section 4 and

some results are given in Section 5, with future work

listed in Section 6. Finishing the paper, conclusions

are given in Section 7.

2 RELATED WORK

Wrapper generation can be categorised in two big

trains of thought: the supervised algorithms (wrapper

induction) that take user input to build the wrappers,

and the unsupervised algorithms that do (mostly) ev-

erything on their own (automated approaches). Both

have their merit, depending on the context, types

of concerned documents and goals that need to be

achieved.

(Semi-)automated approaches try to ﬁgure out the

location of the data themselves, which makes them li-

able to make mistakes in the process. There are paths

of research that focus on the analysis of visual fea-

tures (Hao et al., 2011; Cai et al., 2004), try to identify

repetitive patterns (Chang and Lui, 2001; Liu et al.,

2003; Zhai and Liu, 2005) or take a set of pages out

of which a template is distilled (Crescenzi et al., 2001;

Arasu and Garcia-Molina, 2003). Some focus on spe-

ciﬁc features such as the HTML tag table (Wang and

Hu, 2002) and table- and form-related tags (Liu et al.,

2003). A further overview of automated extraction

can be found in (Zhai and Liu, 2005) and others, as

this is outside the scope of this paper.

The wrapper induction approach (Wong and Lam,

2010; Hsu and Dung, 1998; Kushmerick et al., 1997;

Han et al., 2001; Sahuguet and Azavant, 1999; Myl-

lymaki and Jackson, 2002; Anton, 2005; Cohen

et al., 2002; Kushmerick, 2000; Muslea et al., 1999;

Wang and Hu, 2002) is as well extensively stud-

ied, with methods ranging from conditional random

ﬁelds (Pinto et al., 2003) to tree-edit models (Hao

et al., 2011).

Wrapper induction work that focuses especially

on the use of item alignment techniques in the context

of XPaths has been very sparse though, to our knowl-

edge. A short reference to aligning XPaths by string

alignment is given by (Sugibuchi and Tanaka, 2005),

where it is used in a basic setting and does not take

full advantage of what the XPath syntax has to of-

fer. This reference was as well used by (Varun, 2011)

in the system Siloseer, again without any reﬁnement

added.

3 PRELIMINARIES

A couple of concepts need to be clear to be able to

proceed to the core of the problem and our proposed

solution. First of all, we brieﬂy explain the string edit

distance algorithm we base our alignment on, and sec-

ondly, we touch on the aspects of the XPath speciﬁca-

tion (xpa, 1999) that are used.

3.1 String Edit Distance & Alignment

Our method was originally inspired by the Leven-

shtein edit distance algorithm (Levenshtein, 1966)

that allows calculating the minimal amount of oper-

ations (delete, insert, modiﬁcation) that are needed

to morph string s

into string s

. Other algorithms

that closely following the reasoning of Levenshtein

exist, but for the sake of clarity and historical rea-

sons we base our approach on Levenshtein. Brieﬂy

explained, the algorithm builds an edit distance ma-

trix d in which, at cell d(i, j), the cost of transforming

substring s

[1, i] into substring s

[1, j] is given.

For the base algorithm we refer to (Levenshtein,

1966). The cost of an insertion, deletion and substitu-

tion of a character are all set to 1. Jumps in the matrix

can be seen as an edit operation: a vertical jump is

inserting a character from s

, a horizontal jump is an

insertion of the corresponding character of s

and a

diagonal jump is the substitution of a character of s

into a character of s

. Each cell is calculated as the

maximum of the cells above and aside of it, with the

added cost of the corresponding edit operation.

A traceback can be calculated, based on d, indi-

cating the path that leads to the calculated minimal

edit distance. Multiple options are possible, it is up to

the user to choose which he prefers.

Example 1 is given to illustrate the use of the edit

distance matrix, as well as how a traceback might be

constructed.

Example 1. To illustrate the Levenshtein edit dis-

tance calculation we use the following strings for s

and s

• s

:= wrapor

• s

:= raptor

An example edit distance matrix d is given below, with

a basic cost 1 for each operation. In this case, the

edit distance between s

and s

is two, as seen in the

bottom-right cell (6, 6) of the matrix. The example

traceback (in bold font) indicates the insertion of the

“w” of s

in the beginning and the removal of “t” of

, as is evident in the highlighted traceback.

WrapperInductionbyXPathAlignment

493

w r a p o r

0 1 2 3 4 5 6

r 1 1 1 2 3 4 5

a 2 2 2 1 2 3 4

p 3 3 3 2 1 2 3

t 4 4 4 3 2 2 3

o 5 5 5 4 3 2 3

r 6 6 5 5 4 3 2

The alignment of s

and s

is shown below, using “*”

as an alignment character.

w r a p * o r

* r a p t o r

3.2 XPath

XPath is a query language, deﬁned as a standard

by W3C, that allows to deﬁne expressions that look

up data (text, atomic value, list of nodes ...) in an

XML document. XPath 2.0 (xpa, 2010) is a su-

perset of XPath 1.0 (xpa, 1999) (with some excep-

tions) and both give the user a powerful set of tools,

some of which are necessary within the context of the

paper and will be highlighted brieﬂy in the follow-

ing. XPath is widely spread and provides a solid tool

for structured document investigation. We limit our-

selves to examples to illustrate the language, for an

in-depth explanation we refer to the W3C recommen-

dation (xpa, 1999).

Model. An XPath expression consists of a num-

ber of steps, separated by a “/” character. Each

expression can be evaluated within a given con-

text (element of the document). If the expression

starts with a “/” it indicates that it needs to be ex-

ecuted in the context of the root node of the XML

document. A step consist of the axis it operates

on, a node test and a number of predicates (e.g.,

axisname::nodetest[predicate

][predicate

]).

With regards to the axis, for our purposes, it suf-

ﬁces to know that it can be, amongst others, “child”,

“self” and “descendant-or-self”.

The node test indicates what is selected accord-

ing to the indicated axis. In our context this can be

limited to node() (meaning: everything, because ev-

erything is a node) or the name of an HTML tag. In

practice, we added additional predicates whenever a

nodetest equalled to node(), to ﬁlter out text and other

unwanted nodes, as we want to focus on the retrieval

of elements.

Examples. It is easier to explain XPath expressions

at a glance according to examples. The following

should be sufﬁcient to highlight some features of

XPath that are useful to us and to make the rest of

the paper clear as to what XPath is concerned.

• / selects the root node.

• /child::div selects all direct div children of the

root node.

• /child::node() selects all children of the root

node (node() acts as a nodetest wildcard), in-

cluding comments, text nodes and processing-

instructions.

• /child::node()[1] selects the ﬁrst child of the root

node.

• /descendant-or-self::div selects all div elements

that are descendants of the root.

• /descendant-or-self::tr/td[2] selects every sec-

ond td of every tr descendant of the root.

It is also possible to write abbreviations of the above

syntax, which is what most people are familiar with.

Again, we give some examples to show what is possi-

ble with abbreviations:

• /* is equivalent to /child::node() (with regards to

our purposes anyway, the latter also selects com-

ment and other nodes, but we remove those with

additional predicates).

• /descendant-or-self::node()/div is equivalent to

//div.

• . indicates the current node, equivalent to

self::node().

As a ﬁnal example for abbreviations we give both

forms for the same XPath:

• /html/body//div/table//tr/td[2]

• /child::html/child::body/descendant-or-

self::node()/child::div/child::table/descendant-

or-self::node()/child::tr/child::td[2]

In this example the second td is selected that has a tr

as a parent which has, as an ancestor, a table. That

table is contained within a div that has, as an ancestor,

a body which is contained in an html tag. That tag is

contained within the root of the document (the XPath

starts with /). Any td that is corresponding to these

restrictions will be present in the resultset when the

xpath is executed within a document.

4 PROPOSAL

We propose a method that takes a number of XPath

examples that are manually annotated on a web page

as input. These XPaths are then aligned, according to

their steps, and merged with each other, resulting in a

KDIR2014-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

494

single, generalised XPath. The main advantage of the

step alignment approach is that we can handle errors

and various structural differences in a ﬂexible way,

while staying within the syntax of the XPath standard.

For now we focus our attention on merging abso-

lute paths and relative paths containing steps on the

child axis, making it most useful for identifying re-

curring items on a web page (or, as said before, any

other structured document fulﬁlling our requirements,

but our recurring example use case remains a web

page). This is typically useful for record detection

(see, e.g., (Zhai and Liu, 2005; Zhu et al., 2005; Zhu

et al., 2006)) and extraction of data from list pages in

general: it can serve to extract the identiﬁer for each

record on a web page, but also to annotate recurring

items within a record (subrecord).

4.1 Use Case

In Example 2 a list of people is shown on a web

page. A typical use case would then be to high-

light John and Frank, to serve as record identiﬁers.

The XPaths of these elements (/div[1]/div[1]/div[1]

and /div[1]/div[2]/div[1]) are subsequently aligned

and merged (in this case, a trivial operation):

/div/div/div[1]. Executing this XPath would retrieve

John and Frank, but also the names of other persons

deﬁned in the div persons.

Example 2. In this example a snippet HTML struc-

ture is given for illustration purposes. It is a con-

tainer with id persons, which encompasses a div for

each person (record) that, in their turn, contain div

elements (attributes of the record) with textual infor-

mation.

<div>Running</div>

<div>Walking</div>

</div>

<div class="name">Frank</div>

<div>Snooker</div>

<div>Climbing</div>

</div>

</div>

As can be seen in Example 2, it is also possi-

ble for records to contain lists of items, or other

records in general. In this example, a list of hob-

bies is given for every person. When contained

within a record, the XPaths of the annotations are

created relative to the surrounding record’s identi-

ﬁer, in this case, the person’s name. The user

could highlight two hobbies for John, resulting in the

following XPaths: /div[1]/div[1]/div[3]/div[1] and

/div[1]/div[1]/div[3]/div[2]. Merging them results in

/div[1]/div[1]/div[3]/div which can be viewed in the

context of the record’s identiﬁer (name), creating a

relative path ../div[3]/div. That path can be executed

within the context of the identiﬁer of Frank to re-

trieve his hobbies. We leave distilling the relative path

(however trivial in this example) for another discus-

sion, as this is heavily impacted by which elements of

the XPath speciﬁcation are allowed in the path.

In this instance we focus on merging absolute

paths. If these paths should be made relative to an-

other path (such as is the case with subrecords), the

path is made relative after the merge.

4.2 Approach

Generalising XPaths can be used to describe the

same elements as the example XPaths on which they

are based, plus any element that exhibits the same

structural similarities shared by the example XPaths.

Dealing with the problem of generalising XPaths us-

ing alignment of steps allows for intuitive adjust-

ments, according to the target use case. First of all,

the XPaths are handled internally in non-abbreviated

form, making the method robust, ﬂexible and future-

proof (other elements of the syntax can be considered

analogously). In the following paragraphs the entire

process is detailed, starting from the input XPaths to

the result of the merged XPath.

4.2.1 Input XPaths

The input of the process is a set of n XPaths. These

XPaths point to single examples (they resolve to one

node) that need to be generalised. They are formed

in an absolute way (they start at the root) and contain

only child axis nodes (an assumption, as mentioned in

Section 3.2, with exceptions to accomodate wildcards

and alignment elements (see Section 4.2.2)). Each

restriction as to which parts of the XPath syntax are

used is put in place with the intention of investigating

the process in a modular way, enabling us to focus on

the basis.

4.2.2 Align Two XPaths

At the basis of the algorithm is the alignment of two

XPaths (which is later generalised to n XPaths in

WrapperInductionbyXPathAlignment

495

Section 4.2.3). Analogous to the Levenshtein algo-

rithm (Levenshtein, 1966) (see Section 3), an edit dis-

tance matrix is built. A string character in the Leven-

shtein algorithm is being made equivalent to an XPath

step. Custom costs for every operation are assigned,

inﬂuencing the way the two XPaths are compared

with each other.

As mentioned in the introduction, we consider ba-

sic steps (the XPath speciﬁcation supports more com-

plex elements) that contain axis name, node tests and

optional single integer predicates. We limit this work

to the child and descendant-or-self axis. The nodetest

is typically a node name (e.g., div, table ...), where we

also consider the nodetest node(), playing the role of

a wildcard.

Building edit distance matrix d for XPaths x

(with s

steps) and x

(with s

steps) is done, anal-

ogously to Levenshtein, by initialising the matrix by

setting the values in the ﬁrst row and column to 0.

d(i, 0) = 0, 0 ≤ i ≤ s

d(0, j) = 0,0 ≤ j ≤ s

The rest of the indices is calculated using the follow-

ing rule, for 0 < i < s

and 0 < j < s

d(i, j) = min











d(i − 1, j)

+tc(x

1,i−1

, x

2, j

)

d(i − 1, j − 1)

+tc(x

1,i−1

, x

2, j−1

)

d(i, j − 1)

+tc(x

1,i

, x

2, j−1

)

(1)

where tc(y, z) is the transform cost of morphing step y

into step z, and x

i, j

is the j

step of the i

XPath. This

morph step is done according to the following set of

rules, keeping in mind the restrictions we have built

in ourselves, where the costs (shown as cost

) can be

chosen according to the application:

• If both steps are equal (equal axis, nodetest and

predicate), use cost

• Else, if only the nodetest differs, use cost

• Else, if only the integer predicate differs, use

cost

• Else use cost

, the two steps are treated as un-

equal.

After building d, the traceback path through the ma-

trix shows which operations led to the optimal result.

Choices can be made in this step, whenever equivalent

moves are encountered, that result in different merged

XPaths. Currently, we make a naive assumption with

regards to this choice: a diagonal, left and upwards

moves in the matrix are preferred to each other respec-

tively. In any case, all elements of the XPaths stay

preserved: the traceback only serves to insert align-

ment elements to facilitate the alignment (the equiva-

lent of the alignment character “*” described in Sec-

tion 3). This ensures that both XPaths that served

as input can be described, at minimum, by the even-

tual merged path. Inserted elements are neutral steps

(self::node() or . in abbreviated form), making sure

the XPaths keep their semantic meaning after align-

ment.

4.2.3 Aligning n XPaths

In Section 3, the Levenshtein edit distance was brieﬂy

explained. This method is used to calculate the edit

distance between two strings, whereas we need to be

able to combine more than two. Typically (Gusﬁeld,

1997), this is done in an iterative fashion, because of

the exponential complexity of an n-dimensional im-

plementation of the edit distance matrix. We employ,

as well, an iterative approach.

For n XPaths as input, edit distances are calcu-

lated for each pair. The closest pair is aligned. Next,

the on-average closest XPath to the aligned pair is

taken and aligned in its turn. Alignment steps (in-

sertions, deletions, substitutions) are performed for

each of the XPaths simultaneously, resulting in three

XPaths that have the same length and are aligned to

each other. This process proceeds iteratively until all

XPaths are aligned (see Example 3). Note that the al-

gorithm manages to cope with a reasonable amount of

error.

Example 3. In this example, the following three

XPaths serve as input for the alignment algorithm:

//body/div[1]/table[1]/td[1]

//body/table[2]/tr[2]/td[1]/a

//body/div[1]/table[1]/tr[2]/t[1]/a

They were subsequently aligned with each other:

//body /div[1] /table[1] /. /td[1] /.

//body /. /table[2] /tr[2] /td[1] /a

//body /div[1] /table[1] /tr[2] /t[1] /a

Missing and incorrectly named tags have been ac-

counted for and steps for which only the predicates

differ have been aligned with each other. These

aligned XPaths are now ready to be merged into each

other. All XPaths are shown in abbreviated form due

to space constraints, although it should sufﬁce for il-

lustration purposes.

KDIR2014-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

496

4.2.4 Merging XPaths

Merging aligned XPaths (that are, by deﬁnition, of

equal length) in a coherent way can become a difﬁ-

cult process according to which items are allowed in

the XPaths. In our case, we limited ourselves to child

(regular elements), descendant-or-self (for wildcards

resulting from inserted steps) and self (inserted steps)

axis steps, allowing us to implement a naive approach.

As the aligned XPaths are of equal length n we can

say that, for step index i, 0 ≤ i ≤ n, all i

steps can

be considered together and merged into one step, ac-

cording to the following rules:

• Axis Name

– If all axes are the same, keep the axis-name.

– Else, if at least one of the steps is // or if there is

a mixture of neutral (.) and non-neutral steps,

use descendant-or-self.

– Else use descendant-or-self (a fallback, which

is for the moment not being used, as each case

falls within the top two cases due to assump-

tions made, but is mentioned for completeness).

• Node Test

– If all node tests are equal, keep the same in the

merged step.

– Else, if at least one of the steps is // or if there is

a mixture of neutral (.) and non-neutral steps,

use node().

– Else use node test node() in the merged step.

This case handles unequal node tests and make

sure that future, less naive, implementations

have a fallback.

• Predicate

– If all predicates for all steps are equal to

each other, keep the original predicates in the

merged step. This entails the most basic case:

that each step has exactly one predicate and that

those predicates are all integers. If those inte-

gers are equal, they are kept.

– Else, if one of the steps has zero or more than

one predicate, set no predicates in the merged

step. Advanced predicate handling is kept for

future work and is no trivial task.

– Else, remove the predicates, which effectively

introduces a predicate wildcard.

In Example 4, a couple of XPaths are merged with

each other and the result is given as illustration. The

example was kept as short as possible without losing

accuracy and was chosen to illustrate the different er-

rors that can occur when dealing with HTML source

material.

Example 4. In this example, the aligned XPaths

shown in Example 3, repeated below for convenience;

//body /div[1] /table[1] /. /td[1] /.

//body /. /table[2] /tr[2] /td[1] /a

//body /div[1] /table[1] /tr[2] /t[1] /a

are merged with each other, using the rules set out in

Section 4.2.4, resulting in the following XPath:

//body//table//*//

Missing steps have been replaced by descendant

wilcard steps, tag typo’s have been corrected by intro-

ducing node test wildcards and changes in predicates

have also been adequately corrected.

4.2.5 Fine-tuning

There are a number of things that can be ﬁnetuned to

inﬂuence the execution of the algorithm and the way

the XPaths are aligned and merged. In this paper we

focus ourselves on what seems to be the most impor-

tant of choices: the weights (or costs) that are used

when building the edit distance matrix. We refer to

Section 5 for tests that investigate these parameters.

5 RESULTS

In this section we brieﬂy talk about the method we

used to construct a rudimentary dataset to test our

framework, after which we explain the methodology

of the tests themselves. We conclude with some re-

sults pertaining to various properties of the algorithm.

5.1 Test Data

As our main use case revolves around extracting

HTML data we focus our attention on the underlying

data structure of HTML web pages: the DOM tree.

A method was devised that generates random DOM

documents. These DOM documents all have target

elements (annotated in the DOM with an attribute),

representing the ground truth that we wish to extract

from the document.

There are two possible wrappers for these ele-

ments: either they are wrapped in a single element,

or they are part of a list. We deﬁned a couple of pos-

sibilities to list items: a div containing a number of

divs, a table containing rows and columns of data and

ul elements that represent unordered lists of li items.

Contents. The contents of the DOM tree are deter-

mined in a random fashion. The tree is created by

WrapperInductionbyXPathAlignment

497

generating a list e of items and lists, as described

above, where items have a higher chance of being

generated (80%). An item is simply a container to

contain the next element in e, whereas a list expands

into multiple containers, thus branching the DOM

tree, where each container contains the next element

in e. The result of these operations is a DOM tree

of varying depth, containing at least one list (this is

enforced, otherwise the tree is a simple and singular

path), with substeps represented by regular items. The

leaf elements will be the targets (annotated by the at-

tribute mentioned above), containing a text node.

Impurities. Impurities are introduced by chance.

So far, two types have been used. Firstly, there is a

certain chance (20% for each item, for the reported

results) that, whenever an item is added to the DOM

document, another element is wrapped around it. This

makes the depth of each tree variable with regards to

each separate leaf. Secondly, there is a certain chance

(5% per character, for the reported results) that char-

acters of each tag are morphed into another, charac-

terizing typo-like errors.

About the Test Data. The way this test data is ran-

domly generated represents a number of errors that

can occur in real-life test sets. Due to the fact that a

lot of possibilities are encountered it allows testing for

combinations that would occur only rarely in real life,

making the test a rather extensive one. The test data

generation will be expanded in the future, for now it

sufﬁces for our purpose, which is highlighting the vi-

ability of our algorithm.

5.2 Methodology

For testing, we followed a couple of steps to inves-

tigate which settings had which effect. First of all, a

random DOM document doc was generated. This doc

contains target elements, whose XPaths were taken as

ground truth. Following this, a large number of com-

binations of those XPaths were taken (combinations

of 2, 3, 4 ... XPaths). Each of these combination was

aligned and merged into an XPath which was evalu-

ated against doc, resulting in a number of elements.

In a perfect world, these elements should correspond

exactly to the target elements, but as there are impu-

rities in the dataset this was usually not the case: the

more XPaths we merge into each other, the better the

result we would expect to be.

5.3 Properties

Input XPath Amount. For the edit distance matrix,

Table 1: Results for default settings (see Section 5.3), illus-

trating impact of amount of input XPaths

# of input XPaths Precision Recall

2 100% 37%

3 100% 61%

4 100% 73%

5 100% 80%

6 100% 85%

7 100% 88%

8 100% 91%

9 100% 93%

10 100% 94%

the following default costs (see Section 4.2.2) were

used:

• cost

= 0

• cost

= 2

• cost

= 1

• cost

= 1

Random DOM documents were generated and com-

binations of size n, 2 ≤ n ≤ 10 were allowed (2 is the

lower limit for obvious reasons, and 10 seemed to be a

reasonable upper limit out of experience with a prac-

tical application (mentioned in Section 1). Results for

default settings are shown in Table 1, which show a

rise in average recall when we increase the combina-

tion amount, which was to be expected as explained

above. Precision remains stable at ±100%, indicat-

ing we do not introduce erroneous elements in our

parse. It is clear that the amount of input XPaths has

an appreciable impact on the quality of the resulting

merged XPath.

Optimizing the recall remains a question of which

settings give the best result for which type of doc-

ument, which is investigated in the following para-

graph.

Edit Distance Matrix Parameters. For the four

costs (cost

, cost

) deﬁned for the edit

distance matrix (see Section 4.2.2) a new test was

devised. With a high amount of repetition, random

DOM documents were generated, as was the case in

the previous paragraph. cost

was kept at 0 (for obvi-

ous semantic reasons and to reduce test complexity)

and the other three parameters were varied between 0

and 4. For these settings, the latter three accounted

for 54% of all variation in the recall value, when con-

sidering test cases of three example XPaths.

Best results were achieved with the following hier-

archy between the three varied costs (and cost

= 0):

cost

> cost

KDIR2014-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

498

2 4

Combination amount

XPath length

·10

−2

·10

−2

Average merge time in ms

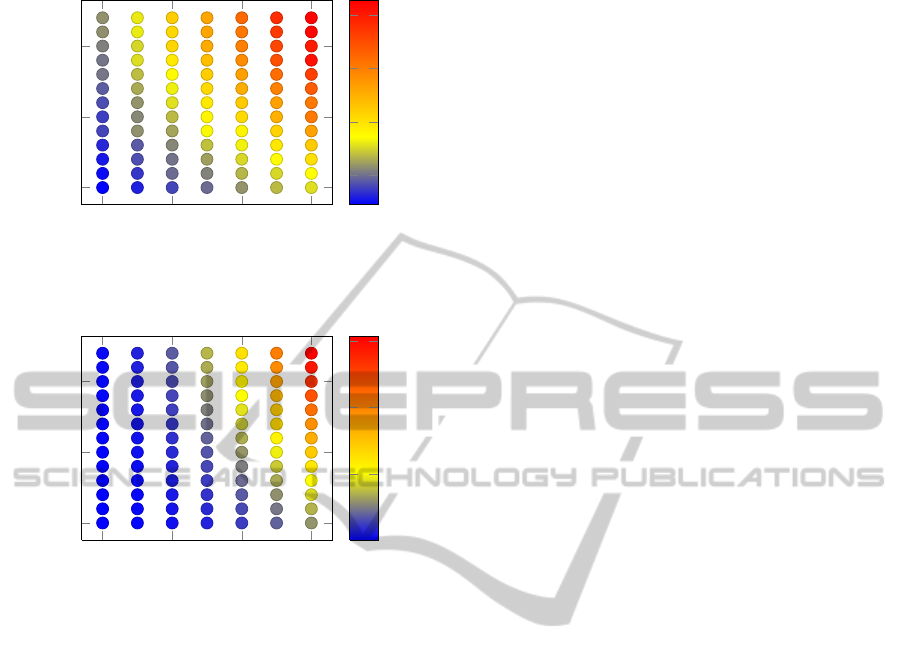

Figure 1: Merge times for a given amount of example

XPaths and merged path lengths (in steps).

2 4

Combination amount

XPath length

Average align time in ms

Figure 2: Align times for a given amount of example XPaths

and merged path lengths (in steps).

The spread between the best and the worst result in

these tests was between 63% and 85%, for a ﬁxed

amount of example XPaths of 3, highlighting the im-

portance of the edit distance matrix settings.

5.4 Performance

For this paper, there was no heavy focus on the per-

formance of the algorithm. However, in this section,

a couple of metrics can be found that illustrate the

speed of the algorithm with regards to the different

steps that need to be taken.

Figure 1 shows the average merge time taken, for

different amounts of XPaths merged, and different

lengths of resulting merged XPaths. In Figure 2 the

average align time is shown. The merge operation

takes appreciably less time than the align operation,

which is to be expected. Each operation still com-

pletes under 3ms, a maximum only attained when

dealing with 8 examples and a large XPath. Note that

these tests were performed by a Java implementation

on laptop hardware.

6 FUTURE WORK

A large amount of questions still arise when dealing

with the use of XPath step alignment for wrapper in-

duction. For one, the edit distance matrix can offer

a lot more ﬂexibility when considering other types of

XPath syntax elements. Costs can be tweaked and

expanded upon. The generated dataset that was used

needs to be improved to more accurately reﬂect real-

life situations, also with the goal in mind to make it

freely available and to use this method to objectively

compare with others. Other elements of the XPath

syntax need to be incorporated, allowing for more

complex align and merge operations, beyond what

was introduced here.

7 CONCLUSIONS

In this paper we investigated how an in-depth appli-

cation of XPath step alignment techniques could be

used in the context of wrapper induction. A frame-

work was constructed to facilitate testing (which was

also used in production systems with satisfactory re-

sults). A couple of preliminary tests were run, show-

ing dependencies of the correctness of the results on

some of the parameters that are possible, as well as the

amount of training examples (which was excpected).

We have shown that aligning XPaths on a semanti-

cal level with the goal of generalising examples is

feasible and worthwhile, and we have introduced a

rudimentary system that generates DOM documents

to serve in algorithm testing environments, which is

bound to be useful as a comparison tool in the nearby

future.

REFERENCES

(1999). Xpath 1.0. http://www.w3.org/TR/xpath/. W3C

Recommendation: 16 November 1999.

(2010). Xpath 2.0. http://www.w3.org/TR/xpath20/. W3C

Recommendation: 14 December 2010.

Anton, T. (2005). Xpath-wrapper induction by generalizing

tree traversal patterns. Number 3, pages 126–133. GI-

Fachgruppen ABIS, AKKD, FGML.

Arasu, A. and Garcia-Molina, H. (2003). Extracting struc-

tured data from web pages. pages 337–348, New

York, New York, USA. ACM Press.

Cai, D., Yu, S., Wen, J.-R., and Ma, W.-Y. (2004). Block-

based web search. In Proceedings of the 27th An-

nual International ACM SIGIR Conference on Re-

search and Development in Information Retrieval, SI-

GIR ’04, pages 456–463, New York, New York, USA.

ACM.

WrapperInductionbyXPathAlignment

499

Chang, C.-H. and Lui, S.-C. (2001). Iepad: Information

extraction based on pattern discovery. In Proceed-

ings of the 10th International Conference on World

Wide Web, WWW ’01, pages 681–688, New York,

NY, USA. ACM.

Cohen, W. W., Hurst, M., and Jensen, L. S. (2002). A ﬂex-

ible learning system for wrapping tables and lists in

html documents. In WWW, WWW ’02, pages 232–

241, New York, NY, USA. ACM.

Crescenzi, V., Mecca, G., and Merialdo, P. (2001). Road-

runner: Towards automatic data extraction from large

web sites. In Proceedings of the 27th International

Conference on Very Large Data Bases, VLDB ’01,

pages 109–118, San Francisco, CA, USA. Morgan

Kaufmann Publishers Inc.

Gusﬁeld, D. (1997). Algorithms on strings, trees, and se-

quences: computer science and computational biol-

ogy. Cambridge University Press, New York, NY,

USA.

Han, W., Buttler, D., and Pu, C. (2001). Wrapping web data

into xml. SIGMOD Rec., 30(3):33–38.

Hao, Q., Cai, R., Pang, Y., and Zhang, L. (2011). From one

tree to a forest: A uniﬁed solution for structured web

data extraction. In Proceedings of the 34th Interna-

tional ACM SIGIR Conference on Research and De-

velopment in Information Retrieval, SIGIR ’11, pages

775–784, New York, NY, USA. ACM.

Hsu, C.-N. and Dung, M.-T. (1998). Generating ﬁnite-state

transducers for semi-structured data extraction from

the web. Information Systems, 23(8):521–538.

Kushmerick, N. (2000). Wrapper induction: Efﬁciency and

expressiveness. Artiﬁcial Intelligence, 118(1-2):15–

68.

Kushmerick, N., Weld, D. S., and Doorenbos, R. B. (1997).

Wrapper induction for information extraction. In Pro-

ceedings of the 15th International Joint Conference on

Artiﬁcial Intelligence (IJCAI ’97), pages 729 – 737.

Levenshtein, V. I. (1966). Binary codes capable of correct-

ing deletions, insertions and reversals. Soviet Physics

Doklady, 10(8):707–710.

Liu, B., Grossman, R., and Zhai, Y. (2003). Mining data

records in web pages. In Proceedings of the Ninth

ACM SIGKDD International Conference on Knowl-

edge Discovery and Data Mining, KDD ’03, pages

601–606, New York, NY, USA. ACM.

Muslea, I., Minton, S., and Knoblock, C. (1999). A hier-

archical approach to wrapper induction. In Proceed-

ings of the Third Annual Conference on Autonomous

Agents, AGENTS ’99, pages 190–197, New York, NY,

USA. ACM.

Myllymaki, J. and Jackson, J. (2002). Robust web data ex-

traction with xml path expressions. Technical Report

May.

Pinto, D., McCallum, A., Wei, X., and Croft, W. B. (2003).

Table extraction using conditional random ﬁelds. In

Proceedings of the 26th Annual International ACM SI-

GIR Conference on Research and Development in In-

formation Retrieval, SIGIR ’03, pages 235–242, New

York, New York, USA. ACM Press.

Sahuguet, A. and Azavant, F. (1999). Building light-weight

wrappers for legacy web data-sources using w4f. In

Proceedings of the 25th International Conference on

Very Large Data Bases, VLDB ’99, pages 738–741,

San Francisco, CA, USA. Morgan Kaufmann Publish-

ers Inc.

Sugibuchi, T. and Tanaka, Y. (2005). Interactive web-

wrapper construction for extracting relational infor-

mation from web documents. In Special Interest

Tracks and Posters of the 14th International Confer-

ence on World Wide Web, WWW ’05, pages 968–969,

New York, New York, USA. ACM Press.

Varun, S. (2011). Siloseer : A visual content extraction

system.

Wang, Y. and Hu, J. (2002). A machine learning based ap-

proach for table detection on the web. Proceedings of

the eleventh international conference on World Wide

Web, 9.

Wong, T.-L. and Lam, W. (2010). Learning to adapt web in-

formation extraction knowledge and discovering new

attributes via a bayesian approach. IEEE Transactions

on Knowledge and Data Engineering, 22(4):523–536.

Zhai, Y. and Liu, B. (2005). Web data extraction based on

partial tree alignment. In Proceedings of the 14th In-

ternational Conference on World Wide Web, WWW

’05, pages 76–85, New York, NY, USA. ACM.

Zhu, J., Nie, Z., Wen, J.-R., Zhang, B., and Ma, W.-Y.

(2005). 2d conditional random ﬁelds for web infor-

mation extraction. ICML ’05, pages 1044–1051, New

York, New York, USA. ACM Press.

Zhu, J., Nie, Z., Wen, J.-R., Zhang, B., and Ma, W.-Y.

(2006). Simultaneous record detection and attribute

labeling in web data extraction. In Proceedings of

the 12th ACM SIGKDD International Conference on

Knowledge Discovery and Data Mining, KDD ’06,

pages 494–503, New York, New York, USA. ACM

Press.

KDIR2014-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

500
