Abstract: This paper presents an overview of the MOSAIC architecture and the validated Demonstrator resulting from

an EU-co-funded research project concerned with the development of an advanced system for the use and

integration of multimodal analytics for the protection of critical assets. The paper motivates the MOSAIC

vision and describes the major components of the integrated solution; including the ontological framework,

the data representation, text mining, data mining, video analytics, social network analysis and decision

support. In the descriptions of these components, it is illustrated how MOSAIC can be used to improve the

protection of critical assets without necessitating data gathering that goes beyond what is already currently

being gathered by relevant security organisations such as police forces by improving data analytics

techniques, integration of analysis outputs and decision support mechanisms.

1 INTRODUCTION

Gathering and analysing available data is the critical

process that is necessary in order to protect critical

assets as well as in many other tasks that are carried

out by security organisations such as police forces.

The EU-co-funded research project MOSAIC

provides such organisations with the means to

improve situational awareness when protecting

critical assets, which may include diverse types of

assets such as security-relevant buildings and large

gatherings of persons that need to be protected.

MOSAIC applies automated multimodal analytics

techniques over data that is currently available

within police forces, including database data such as

conviction records, unstructured text data such as

police notes and reports and video data from CCTV

camera systems. The goal of MOSAIC is to reduce

the need for labour-intensive and time-consuming

manual data gathering and processing that is still

common practice in police organisations around

Europe. It is expected that this will enable, in

particular, intelligence analysts and CCTV system

operators, two key target user groups of MOSAIC,

to focus on tasks that cannot or should not be

automated.

This paper gives a high-level overview over the

MOSAIC system as a whole and the constituent

components of which it is composed. Sections 2 and

8 are concerned with introducing and summarising

the contribution of MOSAIC as an overall system.

Sections 3, 4 and 5 introduce text and data mining,

311

Badii A., Tiemann M., Adderley R., Seidler P., Heras Evangelio R., Senst T., Sikora T., Panattoni L., Raffaelli M., Cappel-Porter M., L. Husz Z., Hecker T.

and Peters I..

MOSAIC - Multimodal Analytics for the Protection of Critical Assets.

DOI: 10.5220/0005126503110320

In Proceedings of the 11th International Conference on Signal Processing and Multimedia Applications (MUSESUAN-2014), pages 311-320

ISBN: 978-989-758-046-8

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

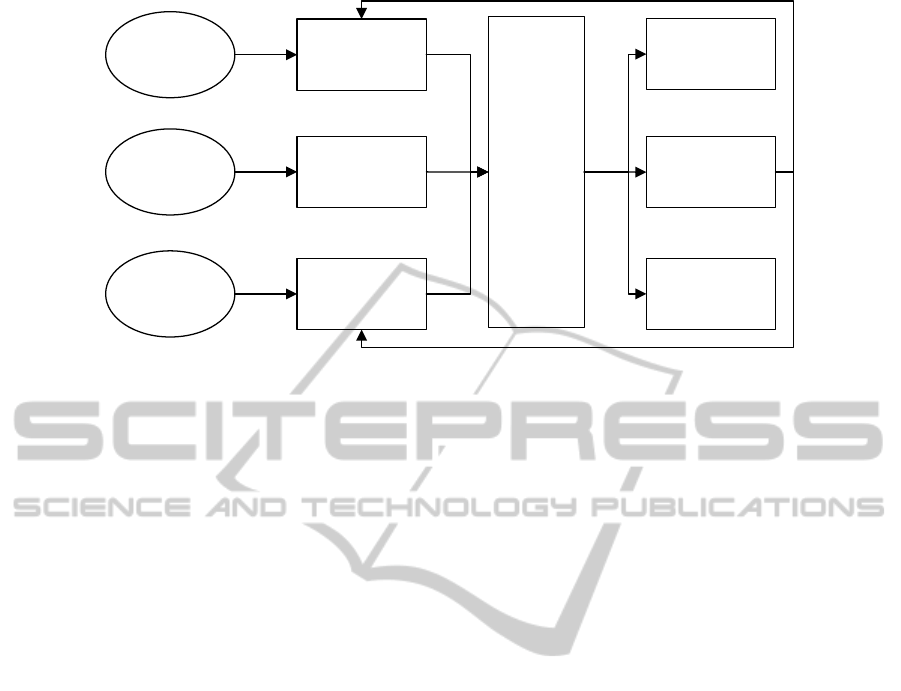

Figure 1: Overview of main MOSAIC system components.

video analytics and data representation components

of the system that assist with the tasks of analysing

available raw text and video data and making the

analysis results available in a unified system.

Sections 6 and 7 describe the criminal network

analysis and decision support system functionalities

that use the available and integrated data in order to

assist analysts and CCTV system operators with

analysis and visualisation functionalities.

2 MOSAIC VISION AND

ARCHITECTURE

2.1 Vision

The vision for the MOSAIC system addresses

several complementary goals.

First, it sets out to support end users that are

tasked with evaluating a large amount of available

and/or incoming data that are currently not

accessible via a unified system infrastructure in

carrying out their work more efficiently.

Second, it aims to enable organisations to

automatically analyse incoming data in order to

reduce end user cognitive load and in order to reduce

the volume of network traffic required in particular

for CCTV video surveillance involving high-

definition video content transmission.

Third, it aims to support end users in carrying out

data analyses without creating a fully automated

process of decision making in order to retain human

control, supervision and accountability while

improving the effectiveness of operations supported

by MOSAIC.

The vision described above is motivated by the

current state of the market observed in organisations

that are tasked with protecting critical assets – in

particular policing organisations. Data available to

such organisations is often fragmented, poorly

indexed and analysed as well as not accessible in a

way that facilitates efficient usage of individual data

sources and in particularly not the timely discovery

of relevant information across data from different

data sources. MOSAIC aims to demonstrate how

these issues can be overcome using data sources and

infrastructure as they are available to these

organisations today and taking account of realistic

requirements concerning legal frameworks and

conditions for data collection, retention, access and

usage.

Existing and proposed solutions in the domain of

concern for MOSAIC generally focus on a specific

modality of input data such as video only (e.g. in

Francisco et al., 2007; Bocchetti et al., 2009). These

systems do not focus on integrated multimodal

solutions, nor are open to data input in a simplified

text format from heterogeneous sources independent

(e.g. in Li, 2011). A system that provides somewhat

similar functionalities as the MOSAIC system is the

“Domain Awareness System” announced by

Microsoft and the New York Police Department in

late 2012 (Microsoft, 2012). Exact capabilities of

the system as well as the deployment status of the

system are however not publicly known at the time

of writing.

2.2 Architecture

MOSAIC consists of components that address three

main areas:

CCTVVideo

Data

Structured

Databases

Document

Databases

VideoAnalytics

DataMining

TextMining

Data

Repre‐

sentation

Geospatial

Visualisation

Decision

Support

SocialNetwork

Analysis

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

312

 Efficient processing and data analysis, using

video analytics, text mining, data mining and

distributed “smart edge” video processing;

 Unified data representation, storage and access,

using Semantic Web technologies for unified

representation and access;

 CCTV operator and intelligence analyst

decision support, using data visualisation and

geo-localisation, data analytics and production

rule engines.

Components in each of the three areas are

implemented as independent software systems. The

system components are loosely coupled and

communicate using SOAP and RESTful Web

Services depending on suitability and security

requirements. The architecture, design and

validation of the MOSAIC system is supported by

the UI-REF Framework which has provides the basis

for methodologically-guided holistic requirements

elicitation and prioritisation including the resolution

of socio-ethical, legal and security requirements

(Badii, 2008). This has underpinned the design of all

use-cases as well as data representation, modelling

and validation of system performance. Figure 1

depicts a summary overview of the individual

components of the MOSAIC system.

MOSAIC uses text and data mining to integrate

realistic example police information databases

containing structured information (e.g. databases of

criminal convictions) as well as ones containing

unstructured information (e.g. full-text police officer

notes describing observations made), and MOSAIC

uses video analytics to identify trajectories and

events in CCTV security video camera footage. A

central data storage component represents data

extracted using all of these methods using Semantic

Web standards. A criminal social network analysis

tool, an advanced geospatial visualisation system

and data-driven decision support functionalities

support system users and can be used to suggest

specific actions to the system users where

appropriate.

3 TEXT AND DATA MINING

3.1 Text Mining

The Text Mining (TM) component identifies

relevant knowledge from sanitised Police reports

and from sanitised free text fields in crime-related

databases, by detecting entities and entity

relationships. Named Entity Recognition (NER) and

TM are applied through a pipeline of linguistic and

semantic processors that share a common knowledge

base with crime patterns, abbreviations, police

terminology, acronyms and jargon. The shared

knowledge base guarantees a uniform interpretation

layer for the diverse information from different

sources.

The automatic linguistic analysis of textual

documents is based on morpho-syntactic, semantic,

Semantic Role Labelling (SRL) and NER criteria.

At the heart of the TM system is McCord’s theory of

Slot Grammar (McCord, 1980; McCord, 1990). The

system analyses each sentence, cycling through all

its possible constructions and trying to assign the

context-appropriate meaning – the “right” sense – to

each word. Each slot structure can be partially or

fully instantiated and can be filled with

representations from one or more statements to

incrementally build the meaning of a statement.

This includes most of the treatment of coordination,

which uses a method of “factoring out” unfilled slots

from elliptical coordinated phrases. The parser – a

bottom-up chart parser – employs a parse evaluation

scheme for pruning away unlikely analyses during

parsing, as well as for ranking final analyses, which

incrementally builds a syntactical tree. By including

the semantic information directly in dependency

grammar structures, the system relies on semantic

information combined with semantic role

relationships (agent, object, where, when, how,

cause, etc.). The Word Sense Disambiguation

(WSD) algorithm also considers possible super-

subordinate-related concepts in order to find the

appropriate senses in lemmas being analysed.

Appropriate heuristics have been implemented

for MOSAIC in order to identify specific

pre/suffixes, linguistic patterns and data formats for

the English language so as to recognise key entities

in text: dates, addresses, person names, locations,

licence plate numbers, brands and manufacturer

names, web entities, bank accounts and phone

numbers. Once entities and semantic roles have

been retrieved, the TM component then extracts

entity relationships from the text. Two entities that

are linked by a direct relationship such as agent-

object/agent will have a very strong bond. Entities

that have a relationship of proximity are also

extracted. This type of approach allows police

analysts to discover important relationships between

entities, even though these are not linked by a

syntactic dependency, for instance a person’s name

followed by a phone number in parentheses –

proximity in the sentence – or a date and the author

MOSAIC-MultimodalAnalyticsfortheProtectionofCriticalAssets

313

at the beginning and the end of a document

respectively – proximity in the document.

3.2 Data Mining

The purpose of the Data Mining (DM) component is

to elevate typical tasks in the elicitation and

preparation of data from disparate data sets and to

implement algorithms for data analysis and the

provision of results that are immediately and easily

applicable in the intelligence analysis cycle.

On the data level, poor data quality is a constant

issue in policing systems, resulting in suboptimal

decisions. An entity resolution module has been

developed in order to attend to those issues by

determining whether records on persons refer to the

same individual. This engine with predefined

probability levels for matches on specific database

field types is used to calculate a final match

probability through a Bayes function. Optionally,

fuzzy string matching is available through

Metaphone (Philips, 1990) and Soundex (Odell,

1956) implementations. Preliminary results on the

performance and accuracy of the algorithm in

correctly matching entities show a minimum

accuracy of 65% for 90% of test runs, whereas

several combinations show an accuracy of up to

88% when compared to a Gold Standard test dataset.

For comparison, compilation of the Gold Standard

took the analyst 1½ days, involving handcrafting

1002 offender records into sets containing the same

individual.

Data can be imported into the DM workbench

which integrates DM algorithms for the access,

preparation and analysis of data. As current

intelligence models do not provide a structured

approach to DM tasks, analysts can use data search

and linking, exploration, modelling and visualisation

capabilities through a process of interconnected

nodes, following the formalisation of the Cross-

Industry Standard Process for Data Mining (CRISP-

DM; Shearer, 2000) model in conjunction with the

intelligence cycle. The approach taken

accommodates the various possible working

environments and data requirements in which the

final system could be applied. The resulting DM

processes are reusable and can be re-run any time

taking into account newly arrived data.

Together with police analysts, workbench

functionalities have been tailored to the specific

domain needs, resulting in three data mining

processes:

 Offender mining and automatic assignment of

priorities to offenders: tracking of prioritised

criminal behaviour to enable law enforcement

to allocate responsive actions in order to meet

police priorities.

 Identification of crime series and mapping of

known offenders to unsolved crimes:

application of self-organising maps to link

spatial, temporal, modus operandi and overlay

of offender data onto clusters of similar crimes,

thereby suggesting possible involvement in

crimes.

 Identification of criminal roles: offence based

roles, group offenders by their role and apply a

k-means clustering algorithm to determine the

most prominent groups for all offenders.

These data mining processes can be accessed and

configured by intelligence analysts using the DM

workbench.

4 VIDEO ANALYTICS

The increasing number of cameras installed in large-

area CCTV networks leads to a load problem in the

respective CCTV networks. Even with modern

highly efficient video compression algorithms, a

high number of cameras (typically >100 cameras in,

for example, a middle-sized train station) sending

their video data to a central server means inherently

a high data load on the network. The MOSAIC

project offers a change of paradigm in video

processing methodologies: instead of streaming raw

images to a powerful, central processing unit, each

network node of a distributed network of smart

cameras and video analysis units employs local

processing and storage capabilities to translate the

observed data into features and attributes. The

major advantages of distributed processing are hence

improved scalability and reliability of the network

and better bandwidth utilisation. This network

architecture has been implemented by adhering to

the ONVIF specification (ONVIF, 2014). Following

Senst et al. (2011), the video analytics sub-system

consists of four classes of devices: (1) Network

Video Transmitter (NVT) devices, which provide

the video streams; (2) Network Video Analytic

(NVA) devices, which analyse video, audio or

metadata and provide the results in the form of

metadata; (3) Network Video Display (NVD)

devices, which represent media streams and the

gathered information to human operators;

(4) Network Video Storage (NVS) devices, which

record the streamed video and its associated

metadata. This network architecture is depicted in

Figure 2.

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

314

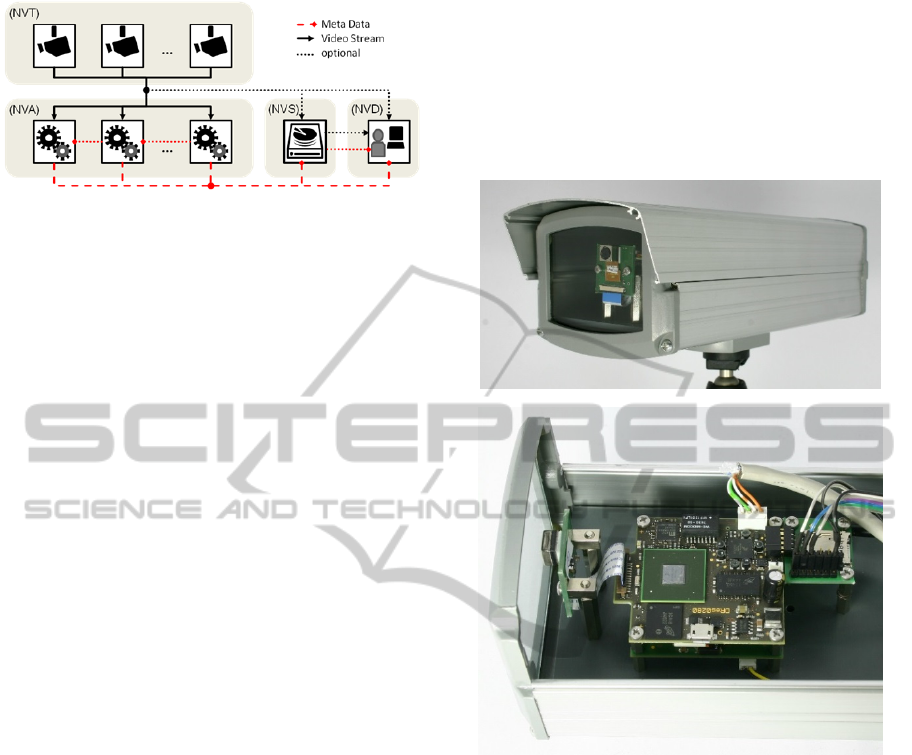

Figure 2: ONVIF-based network architecture.

Video analytics functionalities are provided by

NVAs, which can accept video, audio or metadata

information generated by other NVAs as input. This

allows for a modularisation of the video analysis

software. Three levels of video analysis are

considered: (1) at the low level, features such as

those provided by the detection of change

(Evangelio et al., 2014) or the computation of

optical flow between consecutive video frames

(Senst et al., 2013), are computed; these features are

used at the (2) mid-level in order to compute tracks

of the objects of interest (Eiselein et al, 2012), i.e.,

persons (also across multiple cameras); (3) at the

high-level, information gathered at the low and mid-

level is used in order to extract semantic information

such as crowd behaviour (Kuhn et al., 2012), multi-

movement identification, human activities of interest

(Acar et al., 2012), mugging detection, etc. The

information extracted by each of the NVA entities is

sent to the network as ONVIF messages, which can

contain events and/or scene descriptions. Events are

specific actions detected by ONVIF devices, usually

having a semantic interpretation, to which a client

can subscribe. Scene descriptions are XML-based

abstractions of a scene in terms of predefined

objects. The information provided by the whole set

of NVAs is collected by the decision support and

control sub-system for processing and display at

different levels of abstraction. Furthermore,

feedback and control information can be sent to the

NVAs using Web Services.

Edge processing requires devices with suitable

capabilities, in particular in terms of processing.

This explains why until now only very simple

algorithms have been ported to smart cameras - the

performance of the smart cameras available on the

market has so far not been sufficient for complex

algorithms and procedures. These deficits are

addressed in the MOSAIC project by developing

hardware and firmware for multi-board intelligent IP

cameras which feature sufficient computational

power to facilitate on-board processing of state-of-

the-art video analytics. The modular design of the

MOSAIC smart camera comprises three boards

which are connected by standard connectors: The

System Board with internal and external interfaces

and application specific auxiliaries, the Processor

Board with the i.MX 6Quad processor, and the

Sensor Board with the OV5640 system-on-a-chip

(SOC) image sensor. This flexible design facilitates

adaptation and exploitation.

Figure 3: MOSAIC Smart Camera. © DResearch, 2014.

One example of this is hardware-based detection of

camera tampering events using the 3-axis

accelerometer features of the MPU-9150

MotionTracking sensor on the system board.

Among video analytics functionalities considered in

MOSAIC, the detection of left-behind objects is a

clear example of a video analytics algorithm which

can be brought to the edge of the CCTV network.

The algorithm chosen for its implementation is

presented by Evangelio et al in their paper

(Evangelio et al., 2011). Modern foreground-

background separation is implemented as well as

multi-level modelling. Because long-duration

scenes have to be modelled, high demands on local

memory management arise. The adaption of these

scenes to the complex lighting conditions results in

considerable demands on parallel computing and

floating point operations. Therefore, left-behind

object detection algorithms have been chosen as

MOSAIC-MultimodalAnalyticsfortheProtectionofCriticalAssets

315

reference video analytics implementation which has

been successfully ported to the MOSAIC smart

camera.

5 DATA REPRESENTATION

The MOSAIC data representation component

provides a central point of access for data available

in the MOSAIC system. It encompasses a specific

data format and data representation model and a

software component that provides necessary

functionalities to offer data store functionalities to

other system components.

The MOSAIC data representation system

represents output created by MOSAIC data analysis

components using an ontological data representation

model defined in the ontology representation format

OWL-Lite (McGuinness and van Harmelen, 2004).

The MOSAIC ontology represents relevant abstract

concepts and their relations in a model. Data

provided by the data extraction and analysis

components is added to this abstract data model as

instances that are realisations of concepts defined in

the ontology model. All data is represented as

‘triples’ of entities and relations which form a

directed acyclic graph. The embedding of the data

instances into an ontological data model allows

processing and reasoning that takes into

consideration the entity properties and relations that

are expressed in the ontology ‘world model’. Figure

4 illustrates a basic benefit of using an ontology

model for data representation.

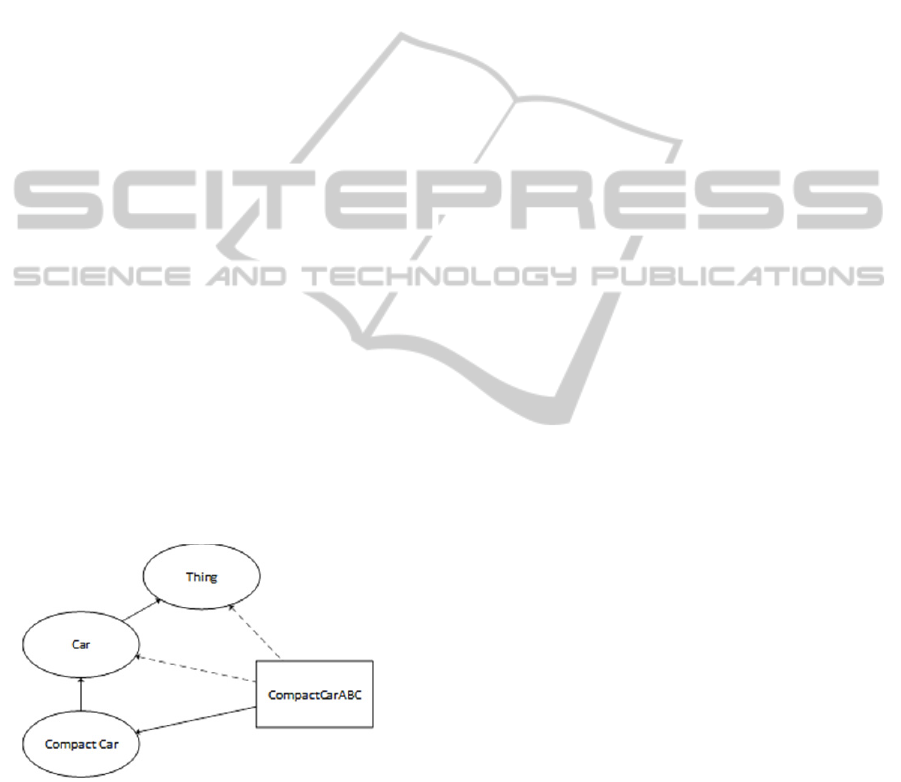

Figure 4: Example for implicit assertions through ontology

modelling. The instance “CompactCarABC” is only

explicitly declared to be of entity type “Compact Car”, but

since “Compact Car” is part of an ontological relation with

“Car”, “CompactCarABC” is also implicitly characterised

as instance of “Car” (and of “Thing”).

MOSAIC uses RDF to formally represent the data

model internally as well as for communication with

external components. RDF/XML is used for

communication between components when

exchanging data using the MOSAIC data model and

format.

The MOSAIC data store provides users with

functionalities to

 make the MOSAIC ontology and MOSAIC

data accessible;

 create, read, update and delete data;

 query for data including queries involving

implicit assertions as described above;

 subscribe to queries so that they receive

notifications when new data lead to new results

for the query they have subscribed to.

The MOSAIC data store is based on the Apache

Fuseki system (Apache Fuseki, 2014) that itself uses

the Apache Jena Semantic Web stack (Apache Jena,

2014) for data storage and representation. The

MOSAIC data store extends Apache Fuseki with

import/export functionalities, publish-subscribe

functionalities and reasoning capabilities for

ontology inferencing and making implicit assertions

exploitable in queries. The MOSAIC data store uses

the SPARQL query language for interacting with the

stored RDF and OWL data. System functionalities

are generally accessible via RESTful Web Services.

6 SOCIAL AND CRIMINAL

NETWORK ANALYSIS

A criminal network generation, visualisation and

analysis tool (Figure 5) enables the user to conduct

social network analysis modified for the application

onto criminal networks from data accumulated

through the data and text mining components,

facilitated by the semantically enabled data

representation. The outlined techniques support

analysts in hypothesis testing, which can be

evaluated for accuracy within a domain specific,

safe environment, and resulting operationalisation of

its outcomes when data is turned into actionable

intelligence. For generating co-offender networks,

the method presented in Adderley et al., (2008) is

applied. A multi-graph is established linking

offenders associated with each other through one or

more events (e.g. a crime) and this offender is also

involved in events with other offenders. This process

identifies many candidate networks which require

prioritisation, i.e. edge, node and overall network

weighting, to ensure that those who are causing the

most harm are targeted first and that policing

resources are allocated most effectively.

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

316

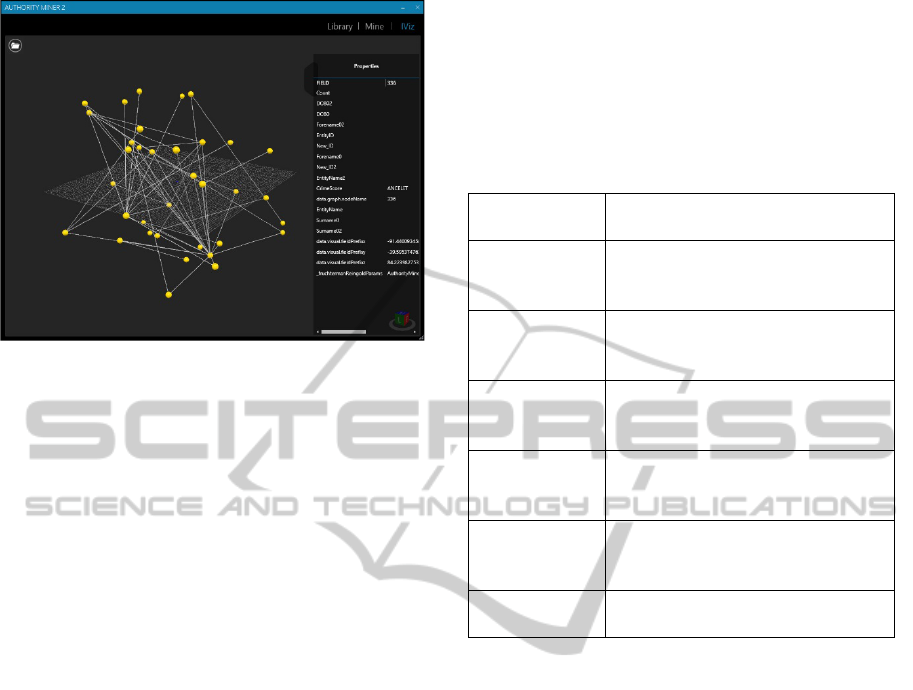

Figure 5: Sample network visualisation.

Weights are retrieved from social and human capital

features. Social capital is estimated from the

networks’ centrality measures from the field of

social network analysis, calculated, categorised and

scored depending on the investigative context.

Human capital comprises the individual contribution

to the network. These include the individual’s

criminal role, travel distance to crime, and a domain

based harm score. To retrieve criminal roles, high-

level groups of crimes are created from aggregated

crime types. If the frequency of a single crime type

is above an adjustable threshold in the entire

offender’s crime set then it is labelled as a

Significant Crime which is the role of that offender

in the network. The harm score is based on its

priority to the law enforcement agency to reflect

current operational priorities. A weight is allocated

to the age of a crime and is calculated by placing the

crimes into date segments. Each segment is

allocated a real number value between one and ten

and used as a multiplier in conjunction with the

crime score to assign a harm significance value to

the crime as a prioritisation criterion. The distance

that an offender travels is used to identify whether

the person offends close to home (a known and

familiar area) or commits crimes through a wider

area (less known possible meaning a different type

of person). Merging that distance with the main

offences that the offenders commit and assessing the

average and standard deviations for every crime

committed by an offender we can assign an

offender’s significance given the specific context of

the investigation.

All significant attributes for the definition of

capital in the network can be combined into a

definition of a criminal profile as presented in Table

1. Prioritised profiling is achieved by combining all

scores into a final score that can now be allocated to

each offender and thus a prioritised list of offenders

is retrieved (see Table 2 for sample) which

facilitates decision making in targeting the

appropriate person(s) based on their effective final

score(s).

Table 1: Criminal profile definition.

Profile attribute

Definition

Criminal Role Criminal’s crime type preference

from an aggregate of her/his

recorded crimes

Travel

Distance

Average over the Euclidean

distances between offender home

address and crime location

Harm score Crime score weighting: sum of

scores of all crimes the offender

has been involved in

Criminal

activity

Indicated by the degree centrality,

i.e. the number of links a vertex

has

Information

control

Indicated by the between-ness

centrality, also known as

gatekeeper function

Access Indicated by the closeness

centrality

To further evaluate network dynamics, analysts are

provided with possibilities to investigate visually the

evolution of a network. A sliding window filter

combined with a sampling period (Kaza et al., 2007)

is used to capture the network at significant states of

its evolution, an evolutionary modelling approach

superior to random sampling. Moreover, simulation

techniques can be applied to investigate potential

intervention strategies for the disruption of a

criminal network and evaluate their effectiveness

through both the structural and strategic damage to

the network.

7 DECISION SUPPORT

Beyond the support for data analysts provided by the

data store and the social and criminal network

analysis component, the MOSAIC decision support

components provide functionalities that can be used

by intelligence analysts as well as CCTV operators

and functionalities specifically targeting situational

awareness in real-world environments which can be

expected to be particularly beneficial to CCTV

operators.

MOSAIC-MultimodalAnalyticsfortheProtectionofCriticalAssets

317

Table 2: Example for Top 3 Criminals by Force-prioritised profile scores.

Role Har

Distance Inform. Access Activity Score

Burglar

600 Compact Controlle

Bes

Active 30.49

Burglar

600 Compact

one Bes

one 27.49

Violence 360 Compact

one Average

one 17.91

The relevant decision support functionalities can be

grouped into the categories of Decision Support

Engines and Information Visualisation. Both are

described in the following subsections.

Two Decision Support Engines have been

implemented as part of the MOSAIC system: a

Template Matching Decision Support (TMDS) tool,

developed by BAE Systems, and an Ontology-Based

Production Rule (OBPR) system, developed by the

University of Reading.

The TMDS tool allows low-level events to be

grouped together into higher-level events to help

predict when a crime is about to happen. The tool

responds to real-time events generated by the

Networked Video Analytics and matches patterns

amongst the newly formed combination of these

events and those already known. The TMDS

focuses on analysing data events received from the

Networked Video Analytics components, but can

also integrate input from other data sources via the

MOSAIC data store. The TMDS is configured with

easy-to-write user-defined templates of occurrences

of information and/or observed events. Templates

can be constrained by metadata such as geographic

area, time window, or other event properties (e.g. the

detected vehicle registration number). For each

scheduled rule, the TMDS automatically carries out

user-specified actions, such as generation of new

MOSAIC system events and automatic tasking of

CCTV cameras. Higher-level events that are

generated as an output of the matching process feed-

back to the TMDS and the MOSAIC data store can

be used as the input of another template that allows

for further “meta-level” matching and processing.

The OBPR component generally carries out the

same tasks as the TMDS tool, but works directly on

the MOSAIC data store and offers different features

and constraints. The OBPR component uses the

mature JBoss Drools rule engine (JBoss Group,

2014) for production rule processing and the

associated powerful JBoss Drools Rule Language

for the formulation of decision support rules. In

addition, the rule engine has been integrated with the

data store so that it can directly use the MOSAIC

ontology model in formulated rules. This enables

the OBPR component to formulate complex rule

types involving for instance the temporal order of

events observed, or to evaluate rules that use the

world model described in the MOSAIC ontology.

The system can also support a wide range of actions

to be taken when a rule ‘fires’, such as submitting

control commands to an ONVIF CCTV network for

approval by an operator, dispatching different types

of notification messages or amending the MOSAIC

data model with additional derived instances.

In addition to relational graph data visualisation,

MOSAIC incorporates an advanced geospatial

visualisation system. The VIKI (View It, Know It)

visual situation awareness tool (Figure 6) provides

an interactive mixed reality environment which

displays live or recorded data, including live video

feeds. These are projected into a synthetics 3D

world representative of an observed area. The

technology has been developed by BAE Systems,

based on CAST Ltd. Viewers' Situational Awareness

for Applied Risk and Reasoning (VSAR) toolkit.

In the MOSAIC system, VIKI acts as a CCTV

Command and Control system in which the CCTV

operator can “fly to the” areas of interest of the 3D

visualisation or can perform a virtual patrol. CCTV

video feeds are projected from virtual cameras so the

operator assesses the feed seamlessly against the 3D

model, other video streams and geo-located events.

The operator gains visual feedback on camera

positions, and can control pan-tilt-zoom CCTV

cameras. The events from the video analytics

(section 4) and decision support engines (section

7.2) are presented at their geo-location as soon as

they are detected. The operator is able to view the

low level events that led to this event, but also to

view recorded video footage of these events.

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

318

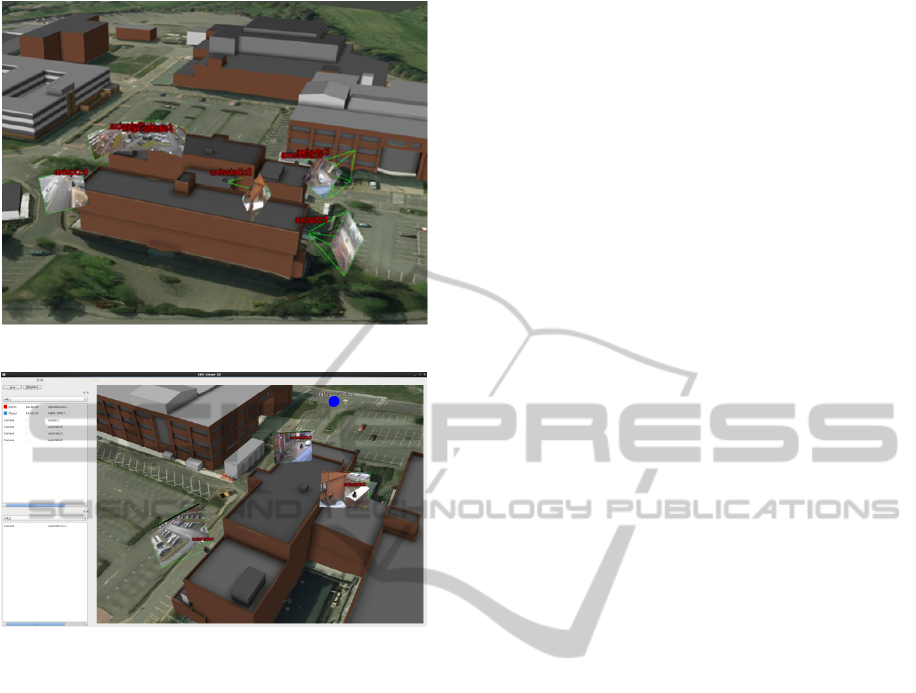

Figure 6: View It Know It (VIKI) system. a. Model of the

MOSAIC site in VIKI b. List of geo-localized events and

car watch list event marked by the blue sphere.

8 CONCLUSION

This contribution provides an overview of the

system its components developed in the MOSAIC

project in order to improve the protection of critical

assets. MOSAIC in particular showcases the

benefits of automated data processing in

combination with a unified and integrated data

representation. Advanced functionalities for data

analysis and decision support show how these data

can be employed with the aim of improving the

speed and quality of information analyses and the

situational awareness of system operators dealing

with real-time data flows as well as with

combinations of real-time and historical data.

MOSAIC shows how a complex end-to-end

solution for the protection of critical assets can be

created that can integrate the heterogeneous data that

systems such as MOSAIC will be confronted with in

real-world deployment situations. MOSAIC focuses

on a limited set of key data sources, in particular

selected police databases, written text reports and

statements and CCTV video sources. The use and

development of standard representation formats in

MOSAIC facilitates the integration of similar as well

as of different types of input data.

While an extension of the MOSAIC system with

additional data sources is a potential area for future

work, it is also important to investigate the impact of

integrating available data, as carried out in

MOSAIC, on the potential need for more, other, or

less data sources. It may well be possible that

improvements in the integration of available data

may reduce the number of data sources needed in

order to provide adequate protection. In turn this

may minimise the amount of data collected in order

to reduce the impact of data gathering on the privacy

rights of persons who are potentially processed with

a system such as MOSAIC.

ACKNOWLEDGEMENTS

The research leading to these results has received

funding from the European Union’s Seventh

Framework Programme (FP7/2007-2013) under

grant agreement no. 261776.

REFERENCES

Acar, E., Senst, T., Kuhn, A., Keller, I., Theisel, H.,

Albayrak, S., Sikora, T., 2012. Human Action

Recognition using Lagrangian Descriptors. In: IEEE

MMSP.

Adderley, R., Badii, A., Wu, C., 2008. “The Automatic

Identification and Prioritisation of Criminal Networks

from Police Crime Data,” in Intelligence and Security

Informatics, vol. 5376, D. Ortiz-Arroyo, H. Larsen, D.

Zeng, D. Hicks, and G. Wagner, Eds. Springer Berlin /

Heidelberg, pp. 5–14.

Apache Fuseki, 2014

http://jena.apache.org/documentation/ serving_data/.

Apache Jena, 2014. http://jena.apache.org/.

Badii, A., 2008. User-intimate requirements hierarchy

resolution framework (UI-REF). in: AmI-08: Second

European Conference on Ambient Intelligence,

Nuremberg, Germany.

Boccetti, G., Fammini, F., Pragliola, C., Pappalardo, A.,

2009. Dependable Integrated Surveillance Systems for the

Physical Security of Metro Railways. Proceedings of

the Third ACM/IEEE International Conference on

Distributed Smart Cameras, Como, Italy, 30.8. -

2.9.2009.

Eiselein, V., Arp, D., Paetzold, M., Sikora, T., 2012. Real-

time Multi-human Tracking using a Probability

MOSAIC-MultimodalAnalyticsfortheProtectionofCriticalAssets

319

Hypothesis Density Filter and Multiple Detectors. In:

IEEE AVSS.

Evangelio, R.H., Paetzold, M., Keller, I., Sikora, T., 2014.

Adaptively Splitted GMM with Feedback

Improvement for the Task of Background Subtraction.

IEEE Transactions on Information Forensics &

Security, vol. 9, no. 5, May 2014, pp. 863-874.

Evangelio, R.H., Sikora, T. (2011). Complementary

Background Models for the Detection of Static and

Moving Objects in Crowded Environments in:

Proceedings of the IEEE International Conference

AVSS.

Francisco, G., Tillman, J., Hanna, K., Heubusch, J., Ayers,

R., 2007. Integrated Homeland Security System with

Passive Thermal Imaging and Advanced Video

Analytics. Proceedings of the SPIE Conference on

Infrared Technology and Applications, Orlando,

Florida, 9.3.2007.

Kaza, S., Hu, D., Chen, H., 2007. Dynamic social network

analysis of a dark network: Identifying significant

facilitators. Intelligence and Security Information,

2007 IEEE. Pp. 40-46. IEEE.

Kuhn, A., Senst, T., Keller, I., Sikora, T., Theisel, H.,

2012. A Lagrangian Framework for Video Analytics.

In: IEEE Workshop on Multimedia Signal Processing.

Li, X., 2011. Design and Implement of Decision Support

System for Police Emergency Response. Proceedings

of the 3

International Conference on Computer

Research and Development, Shanghai, China, 11-13

March 2011.

McCord, M.C., 1980. Slot Grammars. American Journal

of Computer Linguistics. 6, 31–43.

McCord, M.C., 1990. Slot Grammar: A System for

Simpler Construction of Practical Natural Language

Grammars. Proceedings of the International

Symposium on Natural Language and Logic. pp. 118–

145. Springer-Verlag, London, UK.

McGuiness, D., van Harmelen, F. (2004): OWL Web

Ontology Language Overview. W3C

Recommendation 10 February 2004.

http://www.w3.org/TR/owl-features/

Microsoft, 2012. Microsoft and MYPD Announce

Partnership Providing Real-Time Counterterrorism

Solution Globally, Press release.

Odell, M. K., 1956. The profit in records management.

Systems, 20, 20.

Open Network Video Interface Forum, 2014.

http://www.onvif.org.

Philips, L., 1990. Hanging on the Metaphone. Computer

Language, 7, 12, 39-43.

Senst, T., Geistert, J., Keller, I., Sikora, T., 2013. Robust

Local Optical Flow Estimation using Bilinear

Equations for Sparse Motion Estimation. In: 20th

IEEE International Conference on Image Processing.

Senst, T., Paetzold, M., Evangelio, R.H., Eiselein, V.,

Keller, I., Sikora: T., 2011. On building decentralized

wide-area surveillance networks based on ONVIF. In:

Proceedings of the IEEE Conference AVSS.

Shearer, C., 2000. The CRISP-DM Model: The New

Blueprint for Data Mining. Journal of Data

Warehousing, 5, 4, 13–22.

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

320
