Data Integration, Semantic Data Representation and Decision
Support for Situational Awareness in Protection of Critical Assets
Atta Badii, Marco Tiemann and Daniel Thiemert
University of Reading, Whiteknights, Reading, RG6 6AH, U.K.
Keywords: Data Representation, Semantic Web, Decision Support, Security.
Abstract: This paper presents the design and development of a system for data integration, data representation,
situational awareness and decision support that has been developed in the EC-co-funded research project
MOSAIC. The paper motivates the architecture and describes the data representation model and the
developed system components. It discusses the approach for improved situational awareness and decision
support as a novel integration of systems developed under the MOSAIC project as deployed for the
protection of critical assets as a demonstrator.
1 INTRODUCTION
The protection of critical assets is an important area
of concern for public and private bodies that are
responsible for this task. Critical assets may include
fixed assets such as specific sites or buildings but
also events of a temporary nature that increase the
criticality of a location, for example, when large
public gatherings need to be protected. While
relevant organisations such as police forces
fundamentally have a range of data sources with
relevant information available, such data sources are
in practice often not exploited in terms of the data
that can be extracted from unstructured text or video
data and are rarely connected with each other, so
that users may need to access dozens of different
systems manually in order to gather potentially
relevant data on their personal desktops and then
proceed to manually analyse the gathered data
(similarly described in Smith et al., 2012).
The EU-co-funded MOSAIC project investigates
and implements a system designed to support
relevant bodies, primarily police organisations, in
protecting critical assets. The focus of the project is
on the analysis, integration and use of data collected
from heterogeneous data sources such as existing
databases, manually written intelligence reports and
notes and Closed-Circuit TV (CCTV) video footage.
Figure 1 depicts the main components of the
MOSAIC system.
This short contribution describes the data
representation, data storage, import and access and
decision support components of the MOSAIC
system. Data representation in MOSAIC provides a
unifying semantic framework for the representation
of all data available through the MOSAIC system by
means of domain ontology. The Data storage and
access system component comprise the technical
infrastructure that manage the data provided to the
individual system components. This infrastructure
handles the integration of data that arrive in
proprietary formats of individual data analytics
components (e.g. ONVIF format video event data
coming from video analytics components; ONVIF,
2014).
The decision support component evaluates
available and newly incoming data in order to
determine whether any action needs to be taken
based on the latest operational picture as represented
by the overall data model available at each point in
time and to initiate actions in coordination with
relevant staff such as intelligence analysts or CCTV
system operators and supervisors.
2 DATA REPRESENTATION
Since the data to be represented in the MOSAIC data
model should be accessible via a single point of
access and should be accessible using a single
mechanism or language, it is necessary to formulate
341
Badii A., Tiemann M. and Thiemert D..
Data Integration, Semantic Data Representation and Decision Support for Situational Awareness in Protection of Critical Assets.
DOI: 10.5220/0005126603410345
In Proceedings of the 11th International Conference on Signal Processing and Multimedia Applications (MUSESUAN-2014), pages 341-345
ISBN: 978-989-758-046-8
Copyright
c
2014 SCITEPRESS (Science and Technology Publications, Lda.)

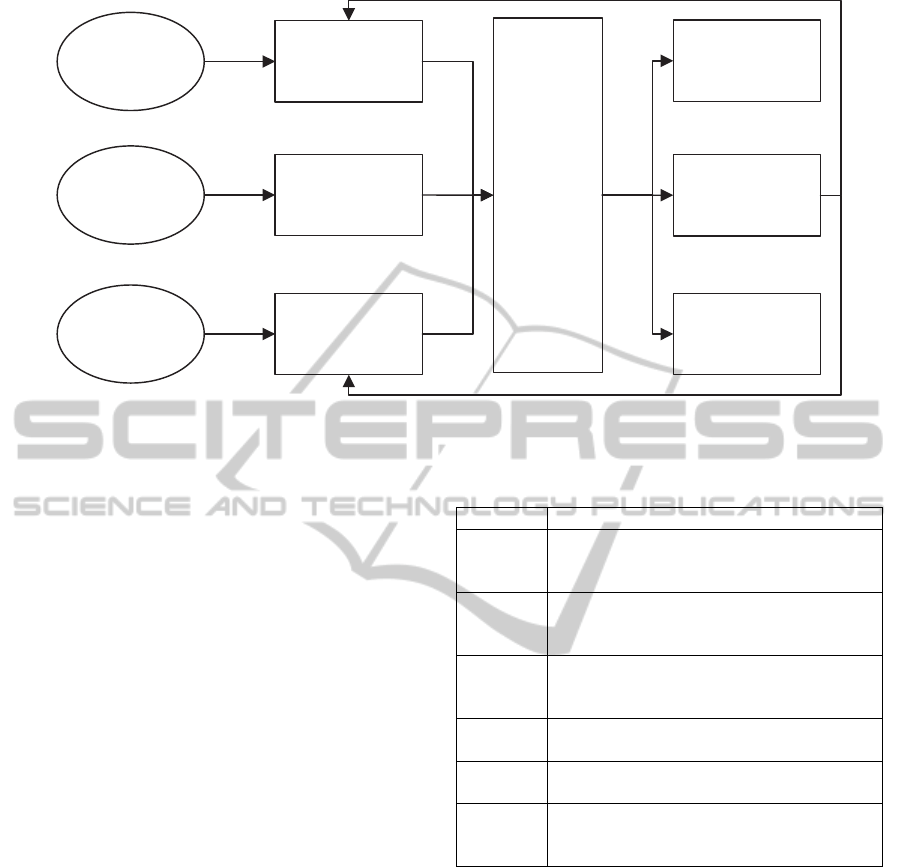

Figure 1: Overview of MOSAIC system components. Components considered in this paper are highlighted bold.
a single data representation format and a single
overall data model to be used for this. While two of
the data analysis components in the MOSAIC
system use clearly specified textual description
formats to formally describe their analysis outputs,
neither of the two are suitable for representing data
from all data sources relevant to MOSAIC, and the
formats are not formalised suitably for advanced
reasoning and decision support functionalities.
Hence, a dedicated data representation model has
been developed in order to support the
aforementioned requirements. This MOSAIC data
model represents the domain using an ontology
representation based on a primarily hierarchical
domain description. This ontological model
represents classes of prototypical entities in the
model; observed data that fit into the ontology
model are then added to the model as individuals.
Table 1 lists the top-level entity types that are used
in the MOSAIC data model ontology. A similar, but
not event-oriented modelling approach has been
described by Lee, (2007); an approach that focuses
exclusively on event-based representation has been
described by Snidaro et al., (2007).
Each of the top-level entity types in the model is
further defined via distinctive entity types.
Figure 2
shows the two hierarchical layers below the “Event”
entity type as an illustration. The “is-a” relationships
indicate hierarchical subordination.
In addition to the primarily hierarchical main
entity types, general and entity-type-specific
property models are also part of the domain model
and establish relationships across hierarchies, in
particular at the subcategory entity level.
Table 1: Top-Level elements of the MOSAIC hierarchical
ontology model.
Name Description
Actor
An actor can be a person or group that may
potentially carry out actions relevant to the
system data model
Object
An object can be any object or passive entity
that is expected to never carry out any action
(to be classified as an actor if it is)
Event
A specific occurrence that can be related to
actor(s), place(s) and time(s) and may
involve object(s)
Place
A physical or virtual location organised in a
strictly hierarchical model where possible
Time
A representation of a time instants or time
intervals, generally used to specific events
Metadata
Data concerning authorship, data
provenance and access rights for data
instances in the data mode
The MOSAIC domain model is formally
structured and represented as an OWL-Lite ontology
(McGuiness and van Harmelen, 2004) and
predominantly uses the Resource Description
Framework (RDF) data format in XML notation
(RDF/XML) for data exchange. The selection of
OWL-Lite and RDF/XML has been motivated by
the widespread availability of suitable tools for
development and data storage (see the following
section) and the usage of the Web Ontology
Language (OWL) as part of many Semantic Web
applications, (van Ossenbruggen et al., 2004; Nack
et al., 2005) because of which developers familiar
with the latter should be able to connect to and
CCTVVideo
Data
Structured
Databases
Document
Databases
VideoAnalytics
DataMining
TextMining
Data
Repre‐
sentation
Geospatial
Visualisation
Decision
Support
SocialNetwork
Analysis
SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications
342

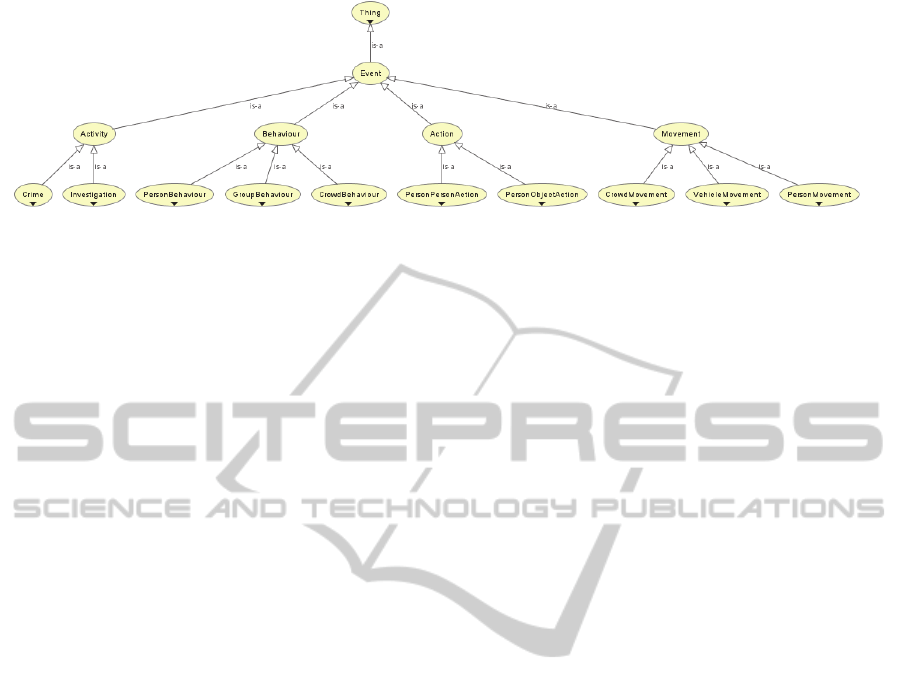

Figure 2: Simplified subset of event types used in MOSAIC, used for system demonstrations. The figure shows the middle
layer of children of the event class, which are further specified with additional child nodes (not depicted due to space
constraints).
develop based on MOSAIC-based systems with little
additional learning effort.
3 DATA STORAGE, ACCESS AND
INTEGRATION
The MOSAIC system requires a data store that as a
minimum acts as a facade providing a single point of
access to all data available to a user in the system.
In order to facilitate this, a dedicated data store
component has been implemented as part of the
project. This data store acts as a facade for access to
source data such as text data or analysis output that
does not conform to the MOSAIC data model
format, and stores all relevant data provided to it
natively as data triples, so that the data model is
represented via entities and relationships as a
directed acyclic graph of subject – relationship –
object.
The implemented system is based on the Apache
Fuseki server system (Apache Fuseki, 2014), which
itself contains an instance of the Apache Jena
Semantic Web stack with an integrated triple store
database system (Apache Jena, 2014). As a native
Semantic Web stack, Apache Jena directly supports
the use of the MOSAIC data model and uses the
SPARQL data manipulation language for create,
read, update, delete (CRUD) operations.
The system has been extended with specific
functionalities required for use in the MOSAIC
project, for example storing persistent queries in the
system which then sends a notification when new
data that matches the query is found. All
functionalities of the MOSAIC data store are
exposed via Web Services; Web Services are also
used for data integration.
In terms of data integration, the data store needs
to be able to process input from the MOSAIC data
analysis components in so far as they do not
communicate using the MOSAIC data model format.
This is the case for Text Mining and Video
Analytics components. Both communicate using
specified XML document formats which do not
conform to RDF; both formats use a limited
vocabulary. The data integration (or semantic
mediation) is carried out using an Extensible
Stylesheet Language (XSL) transformation that
converts the input formats into MOSAIC data model
RDF input suitable for the data store.
4 SITUATIONAL AWARENESS
AND DECISION SUPPORT
One of the main use cases for which a unified data
representation is required is to enable automated
data processing for decision support. In this
contribution, the consideration of decision support
functionalities focuses on reasoning systems for
exploiting the expressiveness of the MOSAIC data
model and for defining and processing production
rules that are used to react to specific constellations
of data that may be of interest to intelligence
analysts or CCTV system operators. MOSAIC
provides further decision support components which
are not discussed in this paper.
Reasoner-based decision support in MOSAIC
can be differentiated into two main tasks. First, a
reasoner is needed in order to identify implicit and
derived relations and properties within the MOSAIC
domain model so that they can be used in standard
queries and for decision support. MOSAIC uses a
rule engine integrated into the Apache Jena
Semantic Web stack to achieve this. Figure 3 shows
a simple example of how the output of this reasoning
process links entity instances that are part of an
entity type hierarchy.
DataIntegration,SemanticDataRepresentationandDecisionSupportforSituationalAwarenessinProtectionofCritical
Assets
343

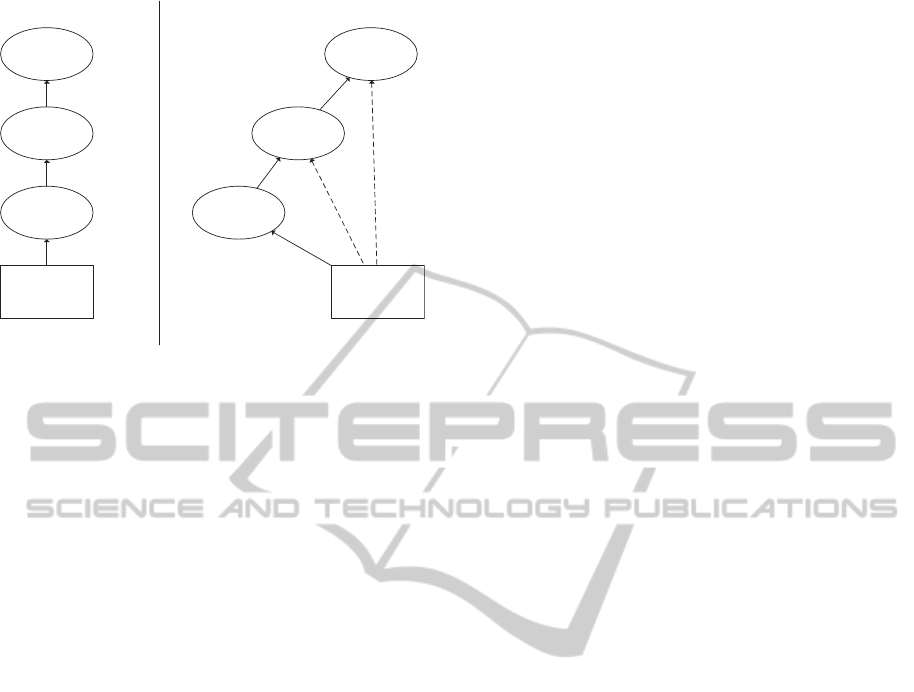

Figure 3: Comparison of relations that can be used in
queries prior to applying an ontology reasoner (left) and
after having applied an ontology reasoner (right). Oval
elements indicate concepts, the rectangular element is an
instance of the entity “CompactCar”, all directed arrows
indicate “is-a” subsumption relations, fully drawn lines
indicate explicit relations and dotted lines indicate
relations that have been made explicit through an ontology
reasoner.
The reasoning functionality described above is
essential for making the full power of the ontology
model available to users of the data store (see Ulicny
et al., 2008 for benefits and problems to be
addressed in this context). However the production
rule system implemented as part of the MOSAIC
system allows users to automatically analyse data in
the data store as these become available and to
perform specific actions within the system when the
left-hand-side “if” conditions of a production rule
are satisfied.
To achieve this, the well-known JBoss Drools
(JBoss, 2014) production rule engine has been
integrated with the MOSAIC data store via a
connector that allows it to access the data of the
MOSAIC ontology data model and a custom data
model representation of the MOSAIC data model for
use with JBoss Drools has been implemented.
Drools is an efficient production rule processing
engine for which the powerful Drools Rule
Language has been developed. This language
facilitates complex event processing such as rules
with temporal order or other complex event
conditions, which sets the functionalities of the rule
engine apart from simpler custom production rule
engines and from query languages such as SPARQL.
The Drools Rule Language divides rules into
left-hand-side “if” and right-hand-side “then” parts;
actions for the right-hand-side of a rule can be
defined in the Java programming language and can
include calls of custom methods, so that in principle
any functionality that can be implemented in Java
can be triggered via a Drools rule once implemented.
In MOSAIC, different notification functions that
alert analysts or operators to interact with CCTV
cameras (e.g. to turn a camera to a new position) and
functionalities that add new information derived
from reasoner output to the MOSAIC data store
have been implemented. The code snippet given in
Figure 4 shows the formulation for a simple example
Drools rule that would fire and send an email once a
specific vehicle has been spotted at a specific
location.
Rules can be evaluated every time additional
data is made available in the data store or be
configured with cool down periods or number of
times to fire in order to avoid excessive numbers of
rule activations.
In combination with MOSAIC user interface
components and map-based visualisation systems,
the decision support system allows the combination
of various complex situations that may be of interest
to intelligence analysts or CCTV operators. In
particular in combination with geospatial
visualisation as described in another contribution
submitted to this event (Badii et al., 2014), the
decision support system can be a powerful aid when
dealing with large amounts of simultaneously
incoming data as is the case for instance for CCTV
operators.
5 CONCLUSION
The work described in this paper describes the
components of the MOSAIC system that are
concerned with integrating data from heterogeneous
data sources so that they can be accessed in a unified
manner and with empowering users to define rules
that reflect complex information needs as they may
arise when protecting critical assets from a wide
range of possible threats.
The solution described in this contribution
furthermore shows how the currently prevalent
problems of segregation of data in data silos and the
subsequent need for large amounts of manual labour
in navigating, collating and evaluating the gathered
data can be supported and made more efficient for
intelligence analysts and how personnel such as
CCTV operators can be supported by intelligent
integrated systems.
The work presented here is a foundation that is
used in the MOSAIC system and it is anticipated
that it may be used for future research on new
Th ing
Car
CompactCar
CompactCarABC
Th ing
Car
CompactCar
CompactCarABC
SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications
344
Figure 4: Example rule that notifies a user when a van sighting is reported in a geographical area.
advanced techniques for data analysis for the
protection of critical assets.
ACKNOWLEDGEMENTS
The research leading to these results has received
funding from the European Union Seventh
Framework Programme (FP7/2007-2013) under
grant agreement no. 261776.
REFERENCES
Apache Fuseki, 2014. http://jena.apache.org/
documentation/serving_data/.
Apache Jena, 2014. http://jena.apache.org.
Badii, A., Tiemann, M., Adderley, R., Seidler, R.,
Evangelio, R., Senst, T., Sikora, T., Panattoni, L.,
Raffaelli, M., Cappel-Porter, M., Husz, Z., Hecker, T.,
Peters, I. (2014). Proceedings of the SIGMAP 2014
11
th
International Conference on Signal Processing
and Multimedia Applications, Vienna, Austria, 28-30
August, 2014.
JBoss Drools, 2014. http://drools.jboss.org.
Lee, R., 2007. The Use of Ontologies to Support
Intelligence Analysis. In: Ontology for the Intelligence
Community (OIC-2007), November 28-29, 2007,
Columbia, Maryland, USA.
McGuiness, D., van Harmelen, F., 2004. OWL Web
Ontology Language Overview. W3C
Recommendation 10 February 2004. http:/
/www.w3.org/TR/owl-features/.
Nack, F., van Ossenbruggen, J., Hardman, L., 2005. That
Obscure Object of Desire: Multimedia Metadata on
the Web, Part 2. IEEE Multimedia, vol. 12, no. 1.
Open Network Video Interface Forum, 2014.
http://www.onvif.org.
Smith, B., Malyute. T., Salmen, D., Mandrick, W., Parent,
K., Bardhan, S., 2012. Ontology for the Intelligence
Analyist. CrossTalk, November/December 2012, pp.
18-25.
Snidaro, L, Belluz, M., Foresti, G., 2007. Domain
Knowledge for Surveillance Applications. In: Proc.
10
th
International Conference on Information Fusion,
9-12 July 2007, Quebec, Canada.
van Ossenbruggen, J., Nack, F., Hardman, L., 2004. That
Obscure Object of Desire: Multimedia Metadata on
the Web, Part 1. IEEE Multimedia, vol. 11, no. 4.
Ulicny, B., Matheus, C., Kokar, M., Powell, G. (2008).
Problems and Prospects for Formally Representing
and Reasoning about Enemy Courses of Action.
FUSION, p. 1-8.
rule "Van sighted in Exampleville"
when
statement1:
ModelStatement(predicate == "moscor:isEventConnectedToPlace",
object == " moscor:County_Exampleville")
statement2:
ModelStatement(subject == statement1.getSubject(),
predicate == "moscor:isEventConnectedToObject",
object == "moscor:Van_AB12AAA_Ford_Escort")
then
mail.Email.send("Van sighted alert: " statement2.getObject()
+ " was sighted in " + statement1.getObject());
end
DataIntegration,SemanticDataRepresentationandDecisionSupportforSituationalAwarenessinProtectionofCritical
Assets
345
