Data Analytics for Power Utility Storm Planning

Lan Lin

, Aldo Dagnino

, Derek Doran

and Swapna Gokhale

ABB Corporate Research, Raleigh, NC, 27606, U.S.A.

Department of Computer Science & Engineering, Kno.e.sis Research Center,

Wright State University, Dayton, OH, 45431, U.S.A.

Department of Computer Science and Engineering, University of Connecticut, Storrs, CT, 06269, U.S.A.

Keywords: Machine Learning, Storm Damage Projection, Smart Grid, Data Analytics, On-line Social Media.

Abstract: As the world population grows, recent climatic changes seem to bring powerful storms to populated areas.

The impact of these storms on utility services is devastating. Hurricane Sandy is a recent example of the

enormous damages that storms can inflict on infrastructure, society, and the economy. Quick response to

these emergencies represents a big challenge to electric power utilities. Traditionally utilities develop

preparedness plans for storm emergency situations based on the experience of utility experts and with

limited use of historical data. With the advent of the Smart Grid, utilities are incorporating automation and

sensing technologies in their grids and operation systems. This greatly increases the amount of data

collected during normal and storm conditions. These data, when complemented with data from weather

stations, storm forecasting systems, and online social media, can be used in analyses for enhancing storm

preparedness for utilities. This paper presents a data analytics approach that uses real-world historical data

to help utilities in storm damage projection. Preliminary results from the analysis are also included.

1 INTRODUCTION

A 2012 Edison Electric Institute reliability report

(Wang, 2012) shows that bad weather contributed to

67% of power outages time and that most damage

after a big storm is in the power distribution lines

and equipment. Hurricanes, tropical storms, and

summer storms cause the majority of power outages.

The report identifies that winter storms tend to have

durations equal or greater than many of the summer

storm events. Overhead power lines are typically the

most vulnerable to storms. Although it seems that

underground facilities may be less prone to major

outage events, many underground facilities are also

affected by major storms, since most existing

underground facilities are supplied from overhead

sections of the grid. Therefore, any event causing an

overhead outage will also cause outages on sections

of underground facilities. In the case of flooding,

underground facilities are prone to severe damages.

Power utilities in the US face enormous

challenges when responding to storms. Utilities have

storm planning procedures that address different

stages of storm preparedness. These stages include

cyclic storm planning, storm damage projection, in-

storm analysis, post-storm assessment, post-storm

restoration, and grid hardening. Utilities have outage

management personnel who often have worked for

years in these areas. Decisions on storms are

typically made based on experts’ heuristic

knowledge. Although utilities are using technologies

such as outage management systems (OMS),

geographic information systems (GIS), supervisory

control data acquisition (SCADA) systems, and

automated metering reading systems, there is still a

wealth of data generated by these systems and other

sources that utilities can use to be more proactive in

addressing each of the stages of storm damage

preparedness. This paper presents two examples of

how data analytics can be used by utilities to become

more proactive in the storm damage projection and

in-storm analysis stages. The examples presented

here represent just a “foretaste” of what is possible

to achieve in this field. Section 2 discusses some of

the data sources available today that can be used to

develop models for storm planning. Section 3 and 4

present data sources and a machine learning

approach and initial results that address the storm

damage projection. Section 5 presents initial results

and a machine learning approach that utilizes on-line

social media to follow the evolution of a storm.

308

Lin L., Dagnino A., Doran D. and Gokhale S..

Data Analytics for Power Utility Storm Planning.

DOI: 10.5220/0005128203080314

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2014), pages 308-314

ISBN: 978-989-758-048-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Section 6 presents conclusions and future work that

authors are pursuing in this field.

2 DATA ANALYSIS APPROACH

Utilities face difficult challenges regarding how to

use available data for storm planning. First, the

current available data are used primarily for tracking

purposes and not for proactive storm planning.

Second, the sources of data and data are

heterogeneous in nature. Third, relying on data

collected on past storms is challenging as no two

storms are the same. These present a challenge when

comparing storm-restoration performance of the past

and present (Johnson, 2004). Another major data

challenge is that utilities do not have a standardized

method for collecting data on storm-restoration.

In spite of these challenges the authors believe it

is possible to demonstrate the potential predictive

capabilities that machine learning models can

provide with current data sources, imperfect as they

may be. These data originates from heterogeneous

sources and geographically dispersed environments.

Primary data types available can be classified as

static structured and unstructured historical data and

dynamic real-time structured and unstructured data.

Static data can be used to develop machine learning

models while dynamic data can be used by trained

models to analyse storm situations in near real-time.

Static structured historical data includes GIS and

grid topology, storm data, grid damage, OMS data,

work management systems, work flow management

with power restoration actions, grid intelligent

electronic device (IED) data, vegetation and terrain,

and transmission and generation data. Static

unstructured historical data includes on-line social

networks historical data, historical multi-media

storm damage data, and unstructured damage

reports. Dynamic real-time structured data includes

weather feeds, grid sensor feeds, real-time OMS

data, emergency response data, SCADA data, phasor

measurement unit data, 61850 GOOSE data,

network management and fault data, meter data, and

IED data. Dynamic real-time unstructured data

includes real-time OMS data, drones or robotic

systems data, multi-media data, and repair crew

report.

3 THE DATA

Storm damage projection refers to the use of

prediction methods to project the severity and

locations of damages, resource needs and time for

power restoration after a storm has hit the power

grid. Storm damage measurements include peak

number of customers without power, outage

duration, peak number of line restoration personnel,

and equipment damage. Based on the projection,

plans are made for positioning restoration resources,

prioritizing repairs, and minimizing disruptions.

3.1 Data Sources

To develop machine learning models for storm

damage projection we looked into several data

sources public, proprietary, structured, unstructured,

and acquired historical data related from an

electrical Utility in the US, referred as Public Utility

due to proprietary constraints. The sections below

provide some details on the data used.

3.1.1 Weather Data

As a big source of public data, National Weather

Service (NWS) has a large collection of historical

weather data that can be downloaded through its

website. The following two weather data sets are

used in this study.

Severe weather event database for the United

States from 1950 to 2011. A severe weather event is

identified by timestamps of event type, begin date

and time and end date time, begin and end locations

of latitude and longitude, and a magnitude of

severity. Typical events for the selected region

include hail, thunderstorm wind, flash flood, and

tornado. The database contains over 900,000 records

with a total of 1.1 GB. This data is used to identify

severe storms in this study.

Hourly weather data from over 10,000 weather

stations all over the world from 2000 to 2012. The

hourly weather include location of observing

weather station in latitude and longitude, observation

time, wind direction, wind speed, air temperature,

sea level pressure, precipitation time and

accumulation, etc. The total amount of data is over

220 GB. In this study we used some of the weather

conditions as inputs to the predictive models. The

weather stations are selected within half a degree

from the boundaries of a Public Utility. Although the

number of stations is increased over the years, it is

still very small if we want to have one station every

few square miles. In this project we relied on data

interpolation to derive weather condition for

locations at fine granularity.

DataAnalyticsforPowerUtilityStormPlanning

309

3.1.2 Power Outage Data

The Public Utility has a total of 24,000 miles of

distribution lines, 18,000 miles of which are

overhead. It serves 830,000 customers, 600,000 of

which are urban. OMS data related to historical

storms in the geographic region of the Public Utility

is over 2 GB and contains: (1) outage events

identified by start time and end time, location in

latitude and longitude, and the particular asset

caused the event; (2) asset information including

asset location; (3) customer information and priority

level; and (4) crew information containing the crew

type and contact information.

3.1.3 Social Media Data

Social media plays an increasingly important role in

many aspects of our society. Data generated by

utility’s customers using social media provides more

insights into outages and their locations faster. We

explored social media data as unstructured public

data from Twitter. Sample data of 10,000 tweets was

downloaded using the Twitter API. An important

consideration is that over 90% of messages do not

contain geo-location information. Hence, our

research is focused on determining the geo-location

based on the contents of the message.

3.2 Data Preparation

We use several software tools in this project for data

processing, modelling, and visualization. These tools

include: (a) R is chosen as the main data analytics

tool for data pre-processing and data mining

algorithms. Visualization is also conducted using R’s

map and plot functions; (b) Google Earth is used for

visualizing weather information as shown in Figure

1; (c) Visual Studio is used to write C++ program for

processing the weather data; (d) Oracle SQL

Developer is used to write queries for extracting data

from the OMS system into files.

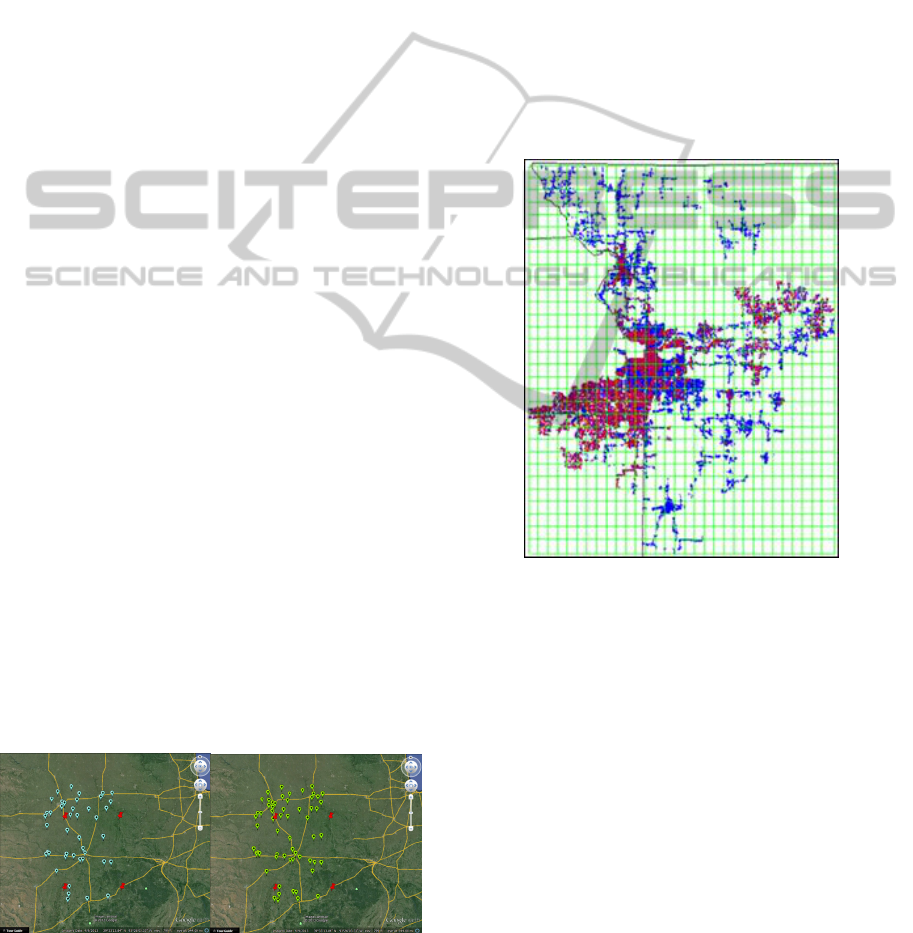

Figure 1: Weather station locations in Google Earth.

3.3 Data Selection

We use the tools described above to select the

datasets for building machine learning models. Our

selection criteria are largely based on the availability

and quality of the data.

The OMS dataset contains outage data from

March 2003 to September 2010. The plot in R of all

outages between 2003 and 2010 overlaying on the

total equipment in the Public Utility service territory

is shown in Figure 2. The blue points denote

equipment and the red points denote outages.

According to a Public Utility expert, the three

months of June, July, and August each year are the

summer storm season, when utilities need to be

ready for storm restoration activities.

Figure 2: Locations of outages from 2003 to 2010 in the

Public Utility service territory.

In the storm database, the number of weather

events per month confirms that summer months are

usually the time where severe weather events occur

in the Public Utility territory. Storms include hail,

thunderstorm wind, flash flood, flood, and tornado,

where thunderstorms are the top event although hail

occurs more frequently.

3.4 Data Pre-Processing

OMS data is processed in Oracle database using

SQL queries and working with domain experts.

The pre-processing of the hourly weather data

from NWS is built from scratch. The original hourly

weather data is formatted as flat files of records in

ASCII characters. We parse the files to extract

weather measurements into columns and save as

KDIR2014-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

310

comma-separated values. We also collect the

associated weather station locations in latitude and

longitude. Then we select weather stations within at

most 0.5 degree in latitude and longitude away from

the boundaries of the Public Utility’s service

territory. Only the weather measurements from those

stations are selected for further use. There were 20-

40 weather stations from 2003 to 2012 that meet this

criterion, varied by year.

The bounding box of the Public Utility’s territory

is roughly 220 by 160 square miles. We divide it

into a grid of 1.5 by 1 mile cells which give us 160

by 160 cells. The cell size is small enough to be

useful for location identification of outages. We also

need weather measurements for each cell but since

there are more cells than weather stations, we need

to extrapolate weather information for the cells.

Kriging is the most widely used technique in

geo-statistics to interpolate data and it is a very good

interpolation method that can capture the true spatial

variability of temperature variation (Holdaway,

1996). Kriging can handle the situations inherent in

a precipitation field and produce the best results for

interpolating precipitation (Earls and Dixon, 2007).

Kriging is a form of linear interpolation where the

value of a field f

in a position r

is interpolated from

N neighboring values f

), i = 1 … N in its region

of influence is given by





iia

rfrf

)()(



where



are a set of weights.

To determine the weights, we use a variogram to

write the cost function in terms of the mean square

error. The weights used in Kriging are the ones that

minimize the cost function under certain constraints.

We use a library provided in R that contains Kriging

method. In this study we are only interested in

severe storms that cause big damages to the utility.

To identify severe storms, we manually go through

all the outages in the three months of summer for

years 2005 to 2010 and identify severe storms date

and time based on the following criteria: (1) number

of outages in the hour; (2) number of customers lost

electricity in the hour; (3) average number of

customers per outage in the hour; and (4)

accumulated number of customers in the next 24

hours. The top 42 storms are selected. For each

storm, we select the hour that is the peak for most of

the criteria.

4 DATA ANALYTICS MODEL

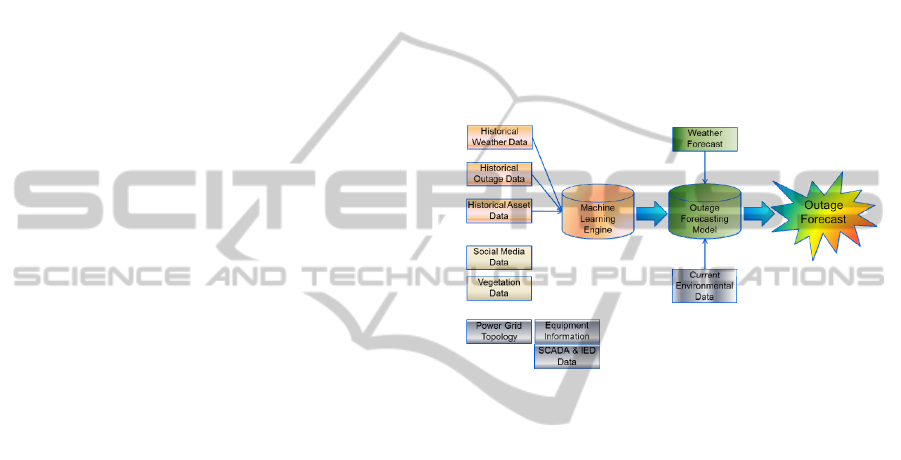

Figure 3 shows the storm damage projection data

analytic model developed in this research. We use

historical weather, outage data, and asset data as

primary inputs to the machine learning engine. The

outage projection model created by the machine

learning engine takes in weather forecast and

generates outage projections as output. In the future,

other environmental data may be incorporated as

inputs to the model.

4.1 Models and Model Variables

The target of the outage projection model is to

predict outage locations in terms of the grid cells and

outage scale in terms of the number of outages

occurred in the next 24 hours for each cell.

Figure 3: Outage forecasting framework.

The selection of variables for the model is to find

the subset of all the input variables to build the

model that will perform with the best accuracy

against the test data. The four variables used as

inputs to the model are: (1) wind speed; (2) wind

direction; (3) precipitation amount; and (4) air

temperature. To model the nonlinearities in the data,

we add the 20th, 40th, 60th, and 80th quintiles of

measurements of wind speed, precipitation amount,

and air temperature. For this, we use a B-spline

function called ns in R.

For each of the 42 severe storms selected, we

build analytical models to predict number of outages

for each grid cell. We use data from 2005 to 2010 to

build the models. First, we partition the data into two

sets, one for training, the other one for test. Data

used for training are records from 2005 to 2009; data

for test is the 2010 data. Test data is dedicated to test

alone and not used in any way for fine-tuning the

trained models. We build models using generalized

linear models (GLM) and neural networks (NN).

Neural network models outperform generalized

linear models in accuracy of predicting the location

and scale.

DataAnalyticsforPowerUtilityStormPlanning

311

4.2 Results

The performance and accuracy/precision of the

GLM and NN models are presented and compared in

this section. NN models outperform the GLM

models in all the error metrics, but the computing

time of the NN is greater than GLM. We use the

following metrics to evaluate the performance. For

the outage locations, we use the Absolute Error (AE)

of all the cells, defined as the following.

|Pr|

ageedictedOutOutageTrueAE 





where TrueOutage

is the number of outages

occurred in cell i, PredictedOutage

is the number of

predicted outages in cell i, and n is the number of

cells.

For the outage scale, we use the Root Mean

Square Error (RMSE) for all the cells, defined as the

following.

ageedictedOutTrueOutage

RMSE

)Pr( 







where TrueOutage

, PredictedOutage

, and n are the

same as defined above.

The outputs of the models are predicted number

of outages for all the cells. We plot them in R on a

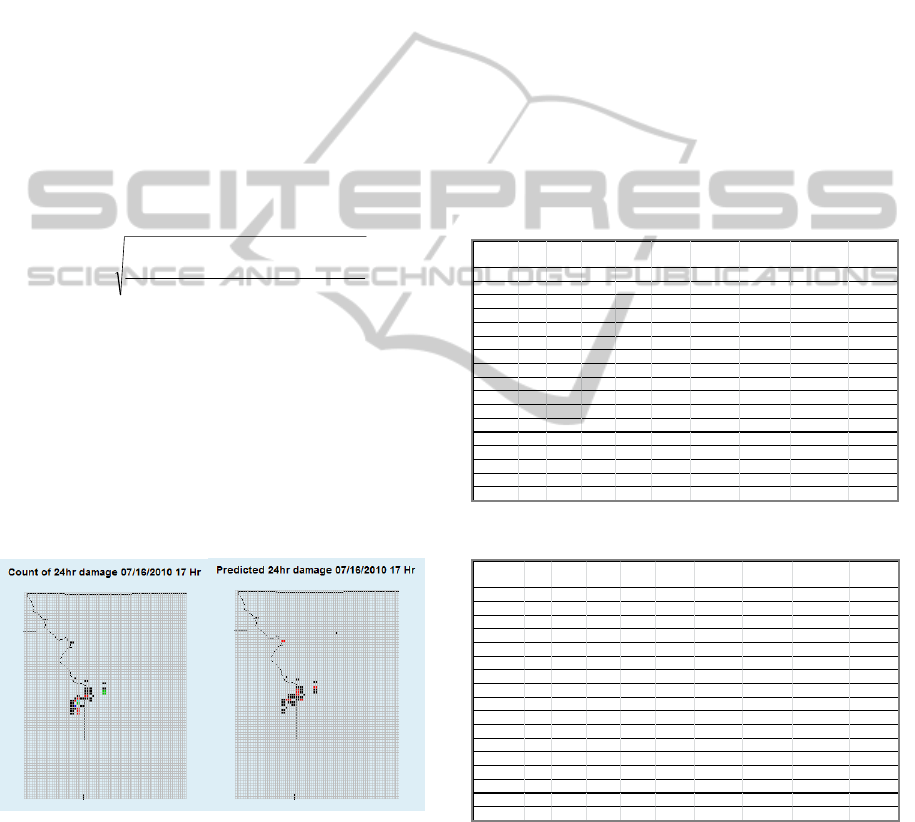

map of the Public Utility territory. An example is

shown in Figure 4. The color associated with each

cell denotes the number of outages in the following

way: Black=1, Red=2, Green=3, Blue=4, Cyan=5,

Magenta=6, Yellow=7, and Gray=8. The showed

results are from an NN model.

Figure 4: Plots of true and predicted outages.

The results of GLM and NN are shown in Tables

1 and 2 respectively. For the NN models, the

predicted numbers better resembled the true outages.

The models captured the characteristics of individual

storms better.

The columns in the tables include: Storm Date;

Num outages (occurred in time period); Num Pred

Outages; Num Outage Locs (the total number of

predicted outages); Num Pred Locs (the total

number of cells predicted to have outage > 0); Num

Pred Locs>0.5 (the total number of cells predicted to

have outage > 0.5); Num True|Pred Locs: (total

number of cells that outages occurred or were

predicted); Num True&Pred Locs (total number of

cells that outages both occurred and were predicted);

RMSE of True Locations (measures how the

prediction deviates from the true); RMSE of

True&Pred Locs (measures how the models perform

for the cells that are predicted and happened).

Comparison of the performance of GLM and NN

shows that NN outperform GLM in all metrics. This

agrees with what we have discussed previously, that

NN tends to have better accuracy than other

regression models.

Table 1: Prediction results of GLM.

StormDate

Num

Outages

NumPred

Outages

Num

Outage

Locs

NumPred

Locs

NumPred

Locs>0.5

NumTrue|Pred

Locs

NumTrue&Pred

Locs

RMSEofTrue

Locations

RMSE of

True&PredLocs

06‐02‐2010_5hr 121 157.659 107 652 98 668 91 1.19482 0.4781964

06‐08‐2010_7hr 90 148.3046 77 649 94 660 66 1.341822 0.4583193

06‐12‐2010_9hr 127 162.8983 112 732 102 736 108 0.9677328 0.3775075

6‐13‐2010_23h

262 185.5746 193 715 122 731 177 1.226589 0.6302588

6‐16‐2010_18h

133 176.9472 114 754 113 759 109 1.092211 0.4232899

6‐18‐2010_20h

271 168.5292 193 672 99 719 146 1.449487 0.7509803

6‐19‐2010_11h

308 153.1811 213 680 87 721 172 1.559368 0.8475605

6‐20‐2010_23h

145 166.6354 111 692 95 709 94 1.51938 0.6011804

6‐23‐2010_16h

63 161.1181 59 663 94 671 51 1.34572 0.3990428

07‐11‐2010_9hr 325 166.4136 161 701 101 715 147 3.169998 1.504246

7‐14‐2010_22h

134 164.476 104 676 101 702 78 1.469797 0.5657253

7‐16‐2010_17h

151 160.0669 112 697 96 709 100 1.489612 0.592051

07‐20‐2010_4hr 164 183.739 129 762 108 774 117 1.181355 0.4822863

7‐24‐2010_17h

120 149.4541 97 617 101 636 78 1.404506 0.5485054

8‐13‐2010_19h

196 173.0979 151 707 109 729 129 1.282013 0.583468

8‐20‐2010_13h

451 175.9459 305 776 111 817 264 1.490663 0.91079

8‐31‐2010_19h

164 167.0613 135 661 105 689 107 1.292527 0.5721327

Table 2: Prediction results of NN.

StormDate

Num

Outages

NumPred

Outages

Num

Outage

Locs

NumPred

Locs

NumPred

Locs>0.5

NumTrue|Pred

Locs

NumTrue&Pred

Locs

RMSEofTrue

Locations

RMSEof

True&Pred Locs

06‐02‐2010_5hr 121 136.5601 107 609 96 614 102 0.6609009 0.2758951

06‐08‐2010_7hr 90 113.75 77 633 70 636 74 0.7681333 0.267272

06‐12‐2010_9hr 127 148.5843 112 628 107 630 110 0.5620699 0.2369895

06‐13‐2010_23hr 262 285.1845 193 742 188 747 188 0.8584513 0.436349

06‐16‐2010_18hr 133 185.6865 114 640 111 642 112 1.074938 0.4529689

06‐18‐2010_20hr 271 255.0522 193 645 178 647 191 0.9646558 0.5268644

06‐19‐2010_11hr 308 206.2307 213 553 184 554 212 1.018775 0.6317031

06‐20‐2010_23hr 145 146.7086 111 621 90 630 102 1.107528 0.4648856

06‐23‐2010_16hr 63 81.94394 59 505 57 506 58 0.6240312 0.213087

07‐11‐2010_9hr 325 195.1761 161 676 152 680 157 2.853286 1.388365

07‐14‐2010_22hr 134 141.7851 104 606 86 613 97 1.055211 0.434636

07‐16‐2010_17hr 151 166.6915 112 649 109 651 110 1.160479 0.4813444

07‐20‐2010_4hr 164 155.2223 129 592 115 598 123 0.8200834 0.3808924

07‐24‐2010_17hr 120 93.92097 97 443 86 447 93 0.8842315 0.411906

08‐13‐2010_19hr 196 182.8227 151 629 137 636 144 0.873698 0.4257172

08‐20‐2010_13hr 451 279.8458 305 620 242 646 279 1.166685 0.8016547

08‐31‐2010_19hr 164 173.6378 135 657 117 668 124 0.916504 0.412015

5 ANALYSING SOCIAL MEDIA

This section presents preliminary results on the

development of machine learning algorithms that

can be used to analyse social media postings as a

storm hits a geographic region of interest. People’s

KDIR2014-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

312

perceptions about events they encounter are often

embodied in words, terms, and phrases that form

their spoken language as the ones found in social

media posts. These perceptions may be influenced

by inherent regional characteristics and they are

further modulated by specific local features or a

situation surrounding a person. Doran et al. (2013)

developed a methodology, based on a probabilistic

language model that extracts perceptions from

online social media postings that may be relevant to

assist utilities in near real-time identifying specific

locations where power outages have occurred.

Authors suggest that the analyses of these

perceptions will be a useful add-on to physical

sensors deployed in the smart grid and current

analytic methods that utilities have at their

disposition. On-the-ground perceptions from humans

as they experience a storm can provide insights

which may allow utilities to quickly evolve their

response plan. New York City faced two major

storms during our data collection period: hurricane

force winds during a January rain storm, and a snow

storm that piled on over a foot of heavy, wet snow.

Both these storms caused scattered citywide power

outages due to heavy winds (Johnson, 2004) and the

weight of melting snow on trees and power lines

over subsequent days. Since outage maps during

these events are unavailable, regions with the

perception “power outage” are identified utilizing

the data analytics method presented in Doran et al.

(2013) in Figure 5a. The locations of these

perceptions reflect the scattered nature of the

reported outages. Physical sensors in the smart grid

can identify locations of outages, but they cannot

explain their cause. A possible hypothesis is that

heavy winds and wet snow led to downed trees and

branches causing power outages. To confirm this

hypothesis, the language models developed in Doran

et al. (2013) were queried with the phrase “damaged

tree”. The heat map in Figure 5b shows that people

discuss damaged trees in sub-regions that either



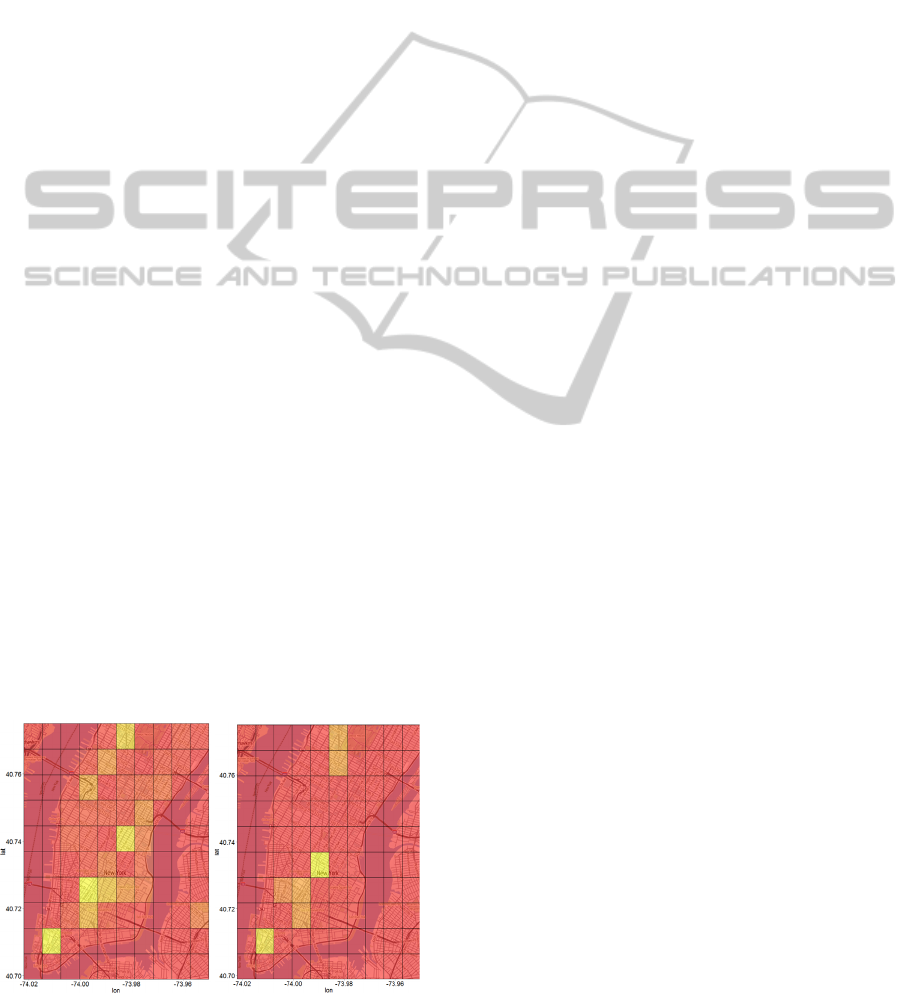

Figures 5a and 5b: Storm response perceptions.

overlap or are adjacent to those where power has

been lost. For example, the perceptions of power

outage and damaged trees are strongly exhibited

near SoHo and close to Sara Roosevelt Park. With

this supplementary information at hand, a city can

adjust its storm response to position workers and

machines to clear branches and other debris caused

by damaged trees.

6 CONCLUSIONS

As power transmission and distribution grids

expand, a larger number of equipment and power

lines are exposed to strong storm conditions and

potentially to catastrophic damages. Utilities have

limited tools to proactively address the damages that

storms such as hurricanes and ice storms can cause

to the grid. With the advent of the smart grid,

predictive storm damage models can be developed

using a rich variety and quantity of data generated

by cheap and accurate sensing technologies, geo-

spatial databases, and on-line social media. This

paper presents a data analytics framework and two

experiments on how utilities can use these data to

become more proactive in storm planning.

REFERENCES

Bahl, L. R., Jelinek, F., and Mercer, R. L. 1983. A

maximum likelihood approach to continuous speech

recognition. In IEEE Transactions on Pattern Analysis

and Machine Intelligence. pp. 179–190.

Batty, M., K. Axhausen, F. Giannotti, A. Pozdnoukhov,

Bazzani, A., Wachowicz, M., Ouzounis, G., and

Portugali, Y. 2012. Smart cities of the future. The

European Physical Journal, vol. 214, pp. 481–518.

Caragliu, A., Bo, C. D., and Nijkamp, P. 2009. Smart

cities in Europe. Vrije Universiteit, Faculty of

Economics and Business Administration.

Cerruti B. and Decker S. 2012. A Statistical Forecast

Model of Weather-Related Damage to a Major

Electric Utility. Journal of Applied Meteorology and

Climatology, Vol. 51. (February 2012).

Doran, D., Gokhale, S., and Dagnino, A. 2013. Human

Sensors for Smart Cities. Workshop on Social Network

Analysis in Applications (SNAA 2013), co–located

with the 2013 International Conference on Advances

in Social Networks Analysis and Mining, August 25-

28, Niagara Falls, Canada.

Johnson, B. 2004. Utility storm restoration response.

Edison Electric Institute (January 2004).

Klein, K. Springer, P., and W. Black, W. 2010. Real-Time

Ampacity and Ground Clearance Software for

Integration Into Smart Grid Technology. In IEEE

DataAnalyticsforPowerUtilityStormPlanning

313

Transactions on Power Delivery.

Holdaway, M.R. 1996. Spatial modelling and interpolation

of monthly temperature using kriging. Climate

Research, 6, 215–225.

Earls, J. and Dixon B. 2007. Spatial Interpolation of

Rainfall Data Using ArcGIS: A Comparitive Study.

http://gis.esri.com/library/userconf/proc07/papers/pap

ers/pap_1451.pdf.

IBM whitepaper. 2010. Electric Utility gets ahead of the

weather with new forecasting models. IBM.

Porter, C., Baranowsky, B. C., Clarke, B., and Shaw B.

2012. The Polarimetric Radar Identification System

(POLARIS): Leveraging Dual Polarized Radar data

for real Time Operational Applications. Extended

Abstracts, 28th Conference on Interactive Information

Processing Systems (IIPS), American Meteorological

Society.

McManus, G. et al. 2008. Development and Testing of an

Ice Accumulation Algorithm. Extended Abstracts,

17th Conference on Applied Meteorology, American

Meteorological Society.

Wang, U.2012. A New Weapon for Storm Responders:

Send in the Drones. EPRI Journal. Summer issue.

KDIR2014-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

314
