Support for Motor Learning by Visualizing the Similarity of Sports Form

Examining Effective Image Features in Back Hip Circle Videos of Children

Ayumi Matsumoto

, Dan Mikami

, Harumi Kawamura

, Akifumi Kijima

and Akira Kojima

NTT Media Intelligence Laboratories, Nippon Telegraph and Telephone Corporation, Kanagawa, Japan

Graduate School of Education, University of Yamanashi, Yamanashi, Japan

1 OBJECTIVES

Video feedback is an effective tool in the ﬁeld of mo-

tor learning. Video motion analysis software such

as the Dartﬁsh software (Dartﬁsh, 1997) has been

introduced into athletes training programs as well

as school physical education and rehabilitation pro-

grams. Dartﬁsh aims to support coaching and learn-

ing by enabling coaches and athletes to view the mo-

tion ﬂow in sports videos and to superimpose multiple

forms on it. This software is very useful as a means of

incorporating image viewing into coaching and prac-

tice methods, but it requires specialized knowledge of

the sport to which it is being applied.

The goal of our study is to propose systems that

can support motor learning and coaching for users

(or teachers) without requiring any detailed knowl-

edge of sports. We propose a system that can vi-

sualize similarities in ”form” as the term applies to

sports (e.g., batting form, hurdling form) and an in-

struction method that will automatically be suitable

for the person using it. As a step toward this goal,

in this paper we propose a framework for the similar-

ity visualization that is based on similarities in form

and optimal image features for classifying similarities

in target forms in sports actions that require different

lengths of time to perform.

We expect that visualizing similarities in form in

this manner will be effective in two ways. First,

through a form classiﬁcation process it will provide

instruction methods that are suitable for the groups

that use it. Second, it will allow individual users to

assess and evaluate their own form by comparing it

with others in the same group.

2 METHODS

2.1 Framework

Figure 1 shows an example of the visualizing of sim-

ilarities in form we assume. The video is mapped in

2D (or 3D) on the basis of image features, and put

into a certain class involving the use of a supervised or

unsupervised method. This type of similarity visual-

ization may be able to help teachers determine teach-

ing methods for classes in advance and provide guid-

ance that will suit individual users. Figure 2 shows

the work ﬂow of the proposed similarity visualiza-

tion process. First, it gets the image features from

the video. Then, it uses the features to calculate sim-

ilarities. Finally, it classiﬁes the similarities into any

number of classes and displays the classiﬁcation re-

sults and the instruction method that is suitable for

the group.

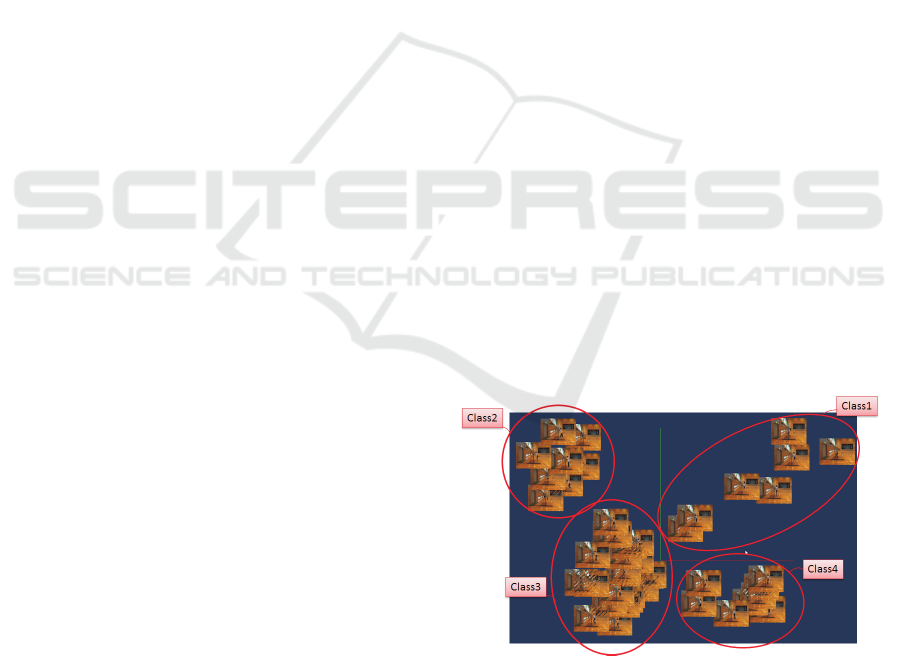

Figure 1: Example of visualizing similarities in sports form.

2.2 Image Features

Appropriate image features have not been studied yet

when performing sports form classiﬁcation. Accord-

ingly, we examined image features that could be ef-

fectively applied to form similarity visualization. In

this paper, we classify forms using image features that

are often used in motion recognition, and describe the

improvements we have achieved.

Figure 3(a) shows an image obtained with MHI

(Motion History Image), which is one of the image

representation methods in which past images are in-

corporated into a single image (Davis and Bobick,

1997). Figure 3(b) shows one obtained with Bag of

Matsumoto A., Mikami D., Kawamura H., Kijima A. and Kojima A..

Support for Motor Learning by Visualizing the Similarity of Sports Form - Examining Effective Image Features in Back Hip Circle Videos of Children.

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Video data

Imagefeature

extraction

Similarity

calculation

Classification

Visualization

Figure 2: Work ﬂow of proposed similarity visualization

process. First, image features are obtained from the video.

Then, the features are used to calculate similarities. Finally,

the similarities are classiﬁed into any number of classes and

the classiﬁcation results and the instruction method that is

suitable for the group are displayed.

Video Words (BoVW), which is an image descriptor

vector-quantized for time-spatial local features called

”cuboids” (Dollar et al., 2005).

We extended the BoVW concept to include the se-

quence order information for form, i.e., whether the

feature is in the ﬁrst or second half of the motion

sequence. We obtain the new feature by processing

using two types of time windows (split window and

sliding window) for BoVW . For a video of N frames,

a split window divides videos into N/4 frames with-

out overlapping, calculates every BoVW window, and

then joins them. A sliding window divides videos into

N/4 frames with N/8 overlapping frames.

2.3 Experimental Setting

In this experiment, we classiﬁed forms for back hip

circle videos of primary schoolchildren. To determine

how many effective image features would be needed

for form classiﬁcation, we compared the classiﬁcation

results with four kinds of image features.

The classiﬁcation targets were back hip circle

videos of 178 children in the six grades of elemen-

tary school. Video resolution was 1440 x 1080 pixels,

the frame capture rate was 30 fps, and each video had

length from 150 to 250 frames. An expert assessed the

video performances by assigning one of four classes

to them: form0false (suspension form in which arm

power is used to rotate the body, failure), form1false

(warp form in which the person leans back to rotate

(a) Motion History Image (MHI).

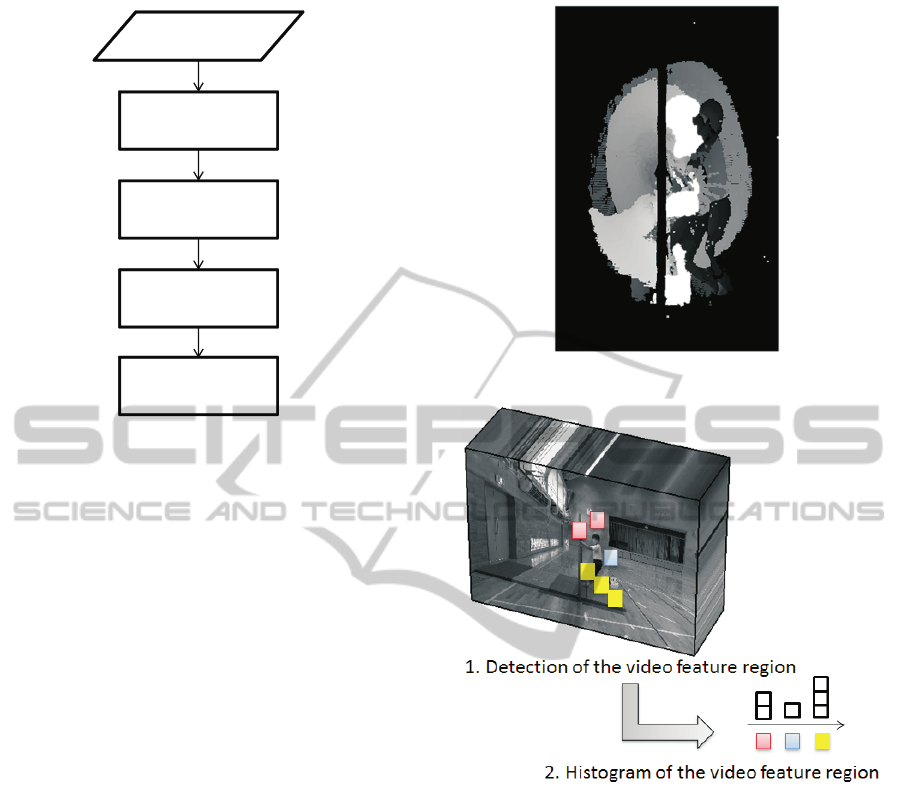

(b) Bag of Video Words (BoVWs).

Figure 3: Video feature.

the body by retroaction, failure), form0true (suspen-

sion form, success), and form1true (warp form, suc-

cess). LDA (Linear Discriminant Analysis) which is

the supervised learning technique were used to clas-

siﬁed. Classiﬁcation accuracy of the four image fea-

tures was determined by dividing the data obtained

into test data and learning data.

3 RESULTS

Figure 4 shows a confusion matrix of classiﬁcation

accuracy for back hip circle videos. A confusion

matrix is a table summarizing classiﬁcation results.

Rows show the actual classes and columns show the

classes that had been predicted. The classiﬁcation ac-

curacy is higher the closer the number is to 1. In the

(a) MHI (Davis and Bobick, 1997). (b) BoVWs (Dollar et al., 2005).

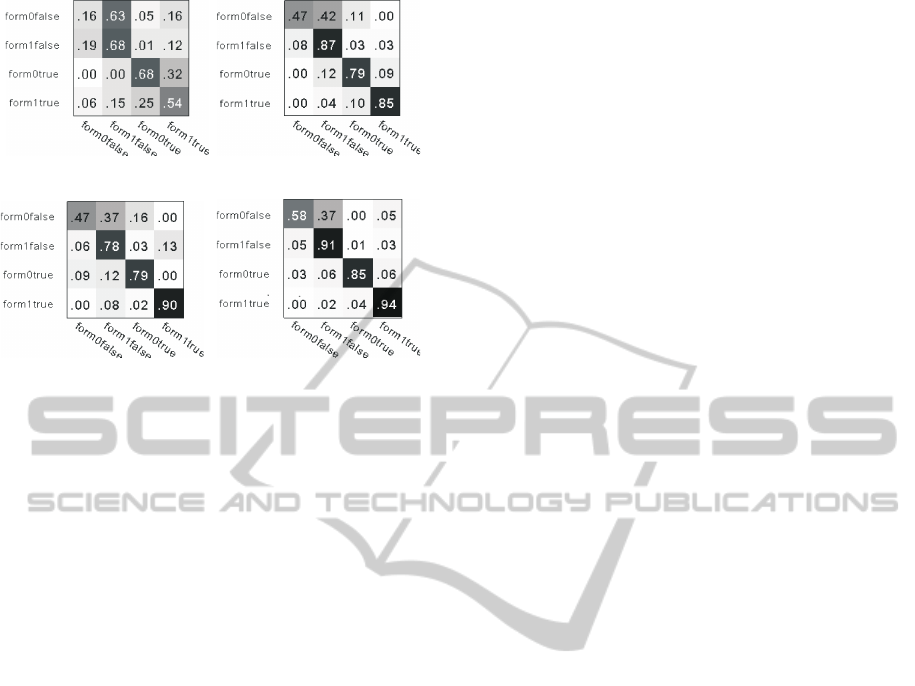

Figure 4: Confusion matrix of classiﬁcation accuracy. This

is a table summarizing the classiﬁcation results. Rows show

actual classes and columns show classes that had been pre-

dicted. The classiﬁcation accuracy is higher the closer the

number is to 1.

ﬁgure, 4(a) shows the classiﬁcation accuracy of MHI,

which was the lowest of the methods compared. It

is assumed that the reason for the low accuracy is

that the history had been overwritten. For the BoVW

shown in Fig. 4(b)-4(d), the highest recognition rates

were obtained with the sliding window (Fig. 4(d)).

For general classiﬁcation problems (walking, run-

ning, waving, etc.), good classiﬁcation results may be

obtained even if BoVW ignores the order information.

However, the results shown in the ﬁgure suggest the

order information is important in a more detailed dif-

ferentiation form classiﬁcation. The classiﬁcation ac-

curacy we obtained with the split window (Fig. 4(c))

was not very much better than that of conventional

BoVW (Fig. 4(b)). We consider that the reason for

this is the variation in length of the personal back hip

circle videos.

4 CONCLUSION

We proposed a framework for similarity visualization

that is based on similarities in form and optimal im-

age features for classifying similarities in target forms

in sports actions that require different lengths of time

to perform. We performed form classiﬁcation exper-

iments with the aim of determining appropriate im-

age features in order to visualize form similarities.

The highest classiﬁcation precision was obtained with

BoVW by applying a sliding window to back hip cir-

cle videos. In future work, we will aim to develop

a method that will improve classiﬁcation accuracy by

enabling classiﬁcation results that reﬂect users’ inten-

tions to be re-learned. Another task would be to eval-

uate our method’s effectiveness in sports training in

actual sports applications.
