Simulation Models for the Evaluation of Detection and Defense

Protocols against Cyber Attacks

Preparation of Doctoral Consortium Contributions

Lorena Molina Valdiviezo

University of Calabria, Department of Computer Engineering, Modelling, Electronics and Systems (DIMES),

Vía P. Bucci, Rende, Italy

National University of Chimborazo, Faculty of Engineering, Riobamba, Ecuador

Keywords: DDoS Attack, Network Security, Network Simulation, Application-Level Simulation.

Abstract: Issues related to Cyber Security aspects, mainly focused on the security of computer systems and the

services they offer, have gained considerable importance. The companies and even national governments,

are incessantly affected by these issues to ensure the integrity of information systems and data managed

through occurring in networked environments. Distributed Denial of Service (DDoS) flooding attack is one

of the most diffused and effective threat against services and applications running over the Internet, in this

sense, the research is primarily aimed at the study (assessment and validation) of hybrid models for

detection, defense and response (R) for DDoS attacks, especially in the application layer, and the

identification of new strategies. This research is based on modelling and simulating different scenarios using

NeSSi2 and ns-3 as network simulation tools.

1 STAGE OF THE RESEARCH

In modern society, the exchange of information by

means of equipment and computer systems and the

parallel specialization of hackers has reached levels

that make crucial the issues related to information

security (Cyber Security).

Security is a continuous process in the

protection, detection and defense against cyber

attacks. Security is not a one-time single-points fix,

but a rather a cycle, so in this sense, it is

fundamentally a modeling and simulation approach

against cyber attacks. This research will focus

especially on Distributed Denial of Service (DDoS)

flooding attacks occurring in networked

environments. (Zargar et al. 2013

)

Denial of Service attack is an attempt by an

attacker to exhaust the resources available to a

network, so that users cannot gain access

application or service. Distributed Denial of

Service (DDoS) attack takes place when many

compromised machines infected by the malicious

code simultaneously and are coordinated under the

control of a single attacker in order to break into the

victim's system, exhaust its resources, and force it to

deny service to its customers. (Patrikakis et al.

2004).

There are two categories of DDoS attacks,

typical DDoS attack and DRDoS attacks. A DDoS

attack, consists of master zombies and slave

zombies. The hosts are compromised machines that

have arisen during the scanning process and are

infected. The attacker sends an attack command to

master zombies and activates all attack processes on

those machines, which are in hibernation, waiting

for the appropriate command to wake up and start

attacking. The zombies network commands them

mount a DDoS attack against the victim, send attack

commands to slave zombies through the processes.

The slave zombies begin to send a large volume of

packets to the victim, flooding its system with

useless load and exhausting its resources, (see

Fig.1). An attacker prefers to use source IP

addresses for two major reasons: first, the attackers

want to hide the identity of the zombies network so

that the victim cannot trace the attack, and the

second reason concerns the performance of the

attack (Yu et al. 2010).

DDoS attacks continue to grow in size,

frequency and complexity, forcing network-

dependent companies to implement a plan for

Valdiviezo L..

Simulation Models for the Evaluation of Detection and Defense Protocols against Cyber Attacks - Preparation of Doctoral Consortium Contributions.

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Figure 1: DDoS Attack.

protection, detection and defense, so in this sense,

we have developed and implemented some basic

models of DDoS attack scenarios using the NeSSi2

(Schmidt et al, 2008) and ns3 (nsnam, Carneiro et al.

2011) network simulators. We are investigating the

behavior of an extension (Furfaro et al. 2014) of the

Stop-It (Liu et al. 2008) defense protocol in order to

develop an improved hybrid protocol and evaluate it

under different scenarios.

The operation of the StopIt mechanism (see Fig. 2)

applied to a general communication architecture

consisting of more Autonomous Systems (AS)

connected throughout secure connections in order to

avoid the address spoofing; each server who wants

to activate the StopIt has to be equipped with an

algorithm to detect an attack. Each AS owns a StopIt

server within its domain and all the StopIt servers

use IGP to exchange data with their AS and BGP to

learn the presence of other StopIt servers in the

neighbourhood. (Furfaro, et al. 2014)

Figure 2: StopIt operation.

We validated the integration of the DiffServ

model within the StopIt mechanism to overcome the

main limitation of this standard filter-based

technique with the aim of facing both direct and

indirect DDoS attacks.

In the section 5.2 is simulated network and the

results.

2 OUTLINE OF OBJECTIVES

The main goal of this research is to develop

simulation models for the evaluation of mechanisms

for the detection and defense against cyber attacks

occurring in networked environments. The

experience matured during the analysis of existing

solutions will allow to acquire expertise in devising

innovative defense and response strategies. The

investigation will be initially focused on Distributed

Denial of Service, which represents one of the most

diffused and effective type of cyber attack.

Furthermore, this research work aims to make

available to the community a benchmark that will

allow to evaluate detection and defense mechanisms

in computer networks so that it can ensure the

quality of service.

The sub goals of this research are:

 Studying literature on Cyber Security and

Network Simulation.

 Learning how to use existing Network

Simulators.

 Studying literature on DDOS detection and

response algorithms.

 Performing Comparative evaluation of Hybrid

DDOS detection and response algorithms.

3 RESEARCH PROBLEM

Due to the advancement of technology and the

excessive growth of the network, cybernauts are

exposed to frequent attacks. That is why we are

required to do an investigation to determine or

establish defense mechanisms, using a simulation

tool to simulate attacks and defenses.

Data networks are used to any human activity,

this has given rise to individuals, organizations,

nations, and governments depend on communication

infrastructure to make their activities, this leads to

the need to protect information.

A few years ago, the US-CERT (United States

Computer Emergency Readiness Team) has received

reports of users and administrators to network

services on the anomalies and attacks on their

systems; 73.4% were searches for access to

resources, identification of ports, protocols, services

or any combination to exploit vulnerabilities teams

(Duarte, 2012).

The problem is to ensure that the tools

(authentication protocols, encryption algorithms of

information, digital signatures, attack detection

algorithms, etc.), are placed to ensure the secure

(1)

(2)

(3)

(4)

(5)

SimulationModelsfortheEvaluationofDetectionandDefenseProtocolsagainstCyberAttacks-PreparationofDoctoral

ConsortiumContributions

exchange of information through the network and to

provide the systems operating on it, the capability of

defense and reaction to the attacks so that they work

properly and are robust, it means able to respond

appropriately even to anomalous situations

compared to scenarios for which they were

designed. The validation of the behavior of a

software system is a complex engineering problem

of crucial importance: it is known that the costs

associated with the presence of a malfunctioning are

higher if this is found late during the life cycle of the

system. In the case of software for the secure

exchange of information and for the defense against

cyber attacks the problem is even more acute

because the cost of corrective maintenance are added

together, in the worst case, those related to illegal

access by third parties to sensitive information

exchanged on the network and / or inoperability of

the system under attack. For these reasons it is

essential to ensure the correct operation of the

security software before it is used, possibly already

in the planning stage. Where the complexity of the

software does not allow to verify the correctness,

appropriate validation tools should be used, which

achieve good levels of confidence about the

operation of it.

Several attacks are directed against service

availability. These attacks impede the normal

operation of the target systems. DDoS flooding

attacks work by sending a large amount of messages

to a destination, which is the victim of the attack, in

order to consume its resources, e.g. by issuing

requests that require a large processing time, by

exhausting the available communication bandwidth

or by exhausting its memory. Once a resource is

exhausted, the legitimate clients can not use the

service. Attackers can send a variety of packets,

which could be similar to legitimate traffic and

adopt, to a certain extent, the structure and arbitrary

statistic, which greatly facilitates the concealment of

the attack.

This leads to study and develop strategies to

identify and face DDoS attacks in real time.

4 STATE OF THE ART

The most widely used techniques to study the

behavior of software systems in the design phase,

based on the definition, by means of formal

specification languages, models, to an adequate level

of abstraction such as to be capable of verification

compared to formal requirements. In the case of

complex systems, these techniques are not

practically applicable and are often used to prototype

by means of simulation tools.

There are different tools for information security

such as firewalls and intrusion detection and defense

system able to cope with a variety of cyber attacks,

such as viruses, worms and other cyber attacks.

With regard to the DDoS attacks, there are

several models of identification that are classified

according to where the detection takes place and the

response to the attack: at the source, at the

destination or hybrid strategies. These are the ones

that turn out to be more effective but also more

difficult to implement and put in place.

In recent years the major threats to the Internet

and data networks have been the attacks by worms

and distributed denial of service (DDoS), identifying

several models have been developed since 2000 and

continue research to find mechanisms detection and

defense in the network. (Duarte, 2012).

The author cites the need to insert devices in

network intrusion detection systems (NIDS) in order

to conduct an audit and a forensic analysis by

reviewing the records (Nehinbe, 2010).

The research of (Zargar et al. 2013) exposed the

need of a comprehensive, collaborative and

distributed defense mechanism approach after they

categorized the different DDoS flooding attacks and

classified according to the ability to prevent,

protect, detect, and respond to DDoS flooding

attacks in real-time and as close to the attacks

sources.

In this sense, the research is primarily aimed at

the study (assessment and validation) of hybrid

models for detection, defense and response (R) for

DDoS attacks, especially in the application layer,

and the identification of new strategies.

5 METHODOLOGY

The adopted methodology is based on the following

steps:

1. Study of simple attack scenarios. At this stage,

techniques used to execute DDoS attacks are

studied and analyzed.

2. Modelling and Simulation. This phase is

devoted to the development of basic

simulation models of networked systems that

allow to evaluate the behaviour of the

involved nodes under various DDoS attack

scenario.

3. Defense strategy design and implementation.

During this stage, suitable defense strategies

SIMULTECH2014-DoctoralConsortium

are developed, e.g. by proposing

enhancements to existing techniques.

4. Evaluation. During this phase, the devised

strategies are evaluated by exploiting the

developed simulation models in order to

identify existing issues and to fix them by

making the appropriate adjustments to

improve the defense mechanism.

The above methodology exploits NeSSi2 and ns-

3 as the network simulation tools.

The description of the modelling and simulation

performed under different scenarios is described in

the following sections.

5.1 Modelling with NeSSi2

We developed a simulation model of DDoS attack

scenarios directed to a DNS server by using the

NeSSi2 simulation environment.

NeSSi2, is an agent-based simulation

environment, providing telecommunication network

simulation capabilities with an extensive support to

evaluate security solutions such as IDS. Special

common attack scenarios can be simulated in

NeSSi2. Worm-spread scenarios and botnet-based

Distributed Denial of Service (DDoS) attacks are

only two of the supported example attacks.

(Grunewald et al. 2010)

NeSSi2 is built upon the JIAC (Hirsch et al.,

2009) framework, a service centric agent-

framework. The network entities, i.e. routers,

clients, servers, or IDS (nodes in the following) are

simulated with the aid of JIAC agents. Relying on

configuration parameters and hardware

characteristics, each agent simulates one or more

nodes.

The application directs the malicious attack

carried out by means of a certain number of hosts

(zombies) of which has previously obtained control

(botnets). The considered DDOS attack occurs in

flood mode, or does in a way of inundating of

packets the receiver in order to saturate its tail of

arrival and the band at his disposal. This is achieved

by ensuring that the hosts in the botnet to send to the

appropriate DNS server as a response to queries that

involve generating large packets. To generate these

responses, the server is forced to employ a greater

amount of bandwidth and computational resources at

its disposal.

In this scenario, the attacker generates the

establishment of several UDP streams towards the

victim using a service port that is already active, so

as to be more transparent to the machine on which it

is hosted in the meantime will continue to carry out

their tasks unaware. The attacker controls the

zombie machines on which installs a simple service

"echo" which generally uses a well-known port.

When the attacker will have made its botnet send

UDP packet through a specific port on a control

signal that will interpret the zombie to start the

bombardment.

The statistics obtained on NeSSi2 show that:

 The Server after a first initial period, is in

crisis, beginning to deny the offer and

blocking packets.

 The denial of packets leads to a degradation of

service in terms of dropped packets divided

according to demands of regular type:

 Of the incoming packets are

distinguished.

 Packets that require a regular service

 The packages targeted only to destroy

the service.

5.2 Modelling with ns-3

The ns-3 is a discrete-event network simulator for

Internet systems. It is free software, licensed under

the GNU GPLv2 license, and is publicly available

for research, development, and use. The ns-3

project, started in 2006, is an open-source project

developing ns-3. (ns-3 Manual).

In the ns-3 simulator, we developed

components by introducing suitable classes, that

inherit from the ns-3 Application base class, which

respectively act as a DNS server (victim), StopIt

servers, routers supporting packet filtering and DNS

clients as shown in Fig. 3. The behavior of the DNS

Server is represented by the finite state automaton

(see Fig. 4), is modelled by the DNSServer class

which is able to process up to n requests in parallel.

If the DNS server is in the Available state, it handles

requests as soon as they arrive; in the case contrary,

when there are no more available processing

resources, the server switches to the Busy state and

stores the incoming requests into a limited buffer. If

the buffer gets filled, requests are dropped. (Furfaro

et al. 2014).

We had simulated a network (see Fig 5), that onsists

of three parts as in (Kumar and Selvakumar 2009).

The first part contains ten ASs, each made up of 50

hosts, where the traffic sources are located in. The

50% of such ASs is corrupted and belongs to the

botnet. The second part is the intermediate network

and the third part contains only the victim’s AS.

SimulationModelsfortheEvaluationofDetectionandDefenseProtocolsagainstCyberAttacks-PreparationofDoctoral

ConsortiumContributions

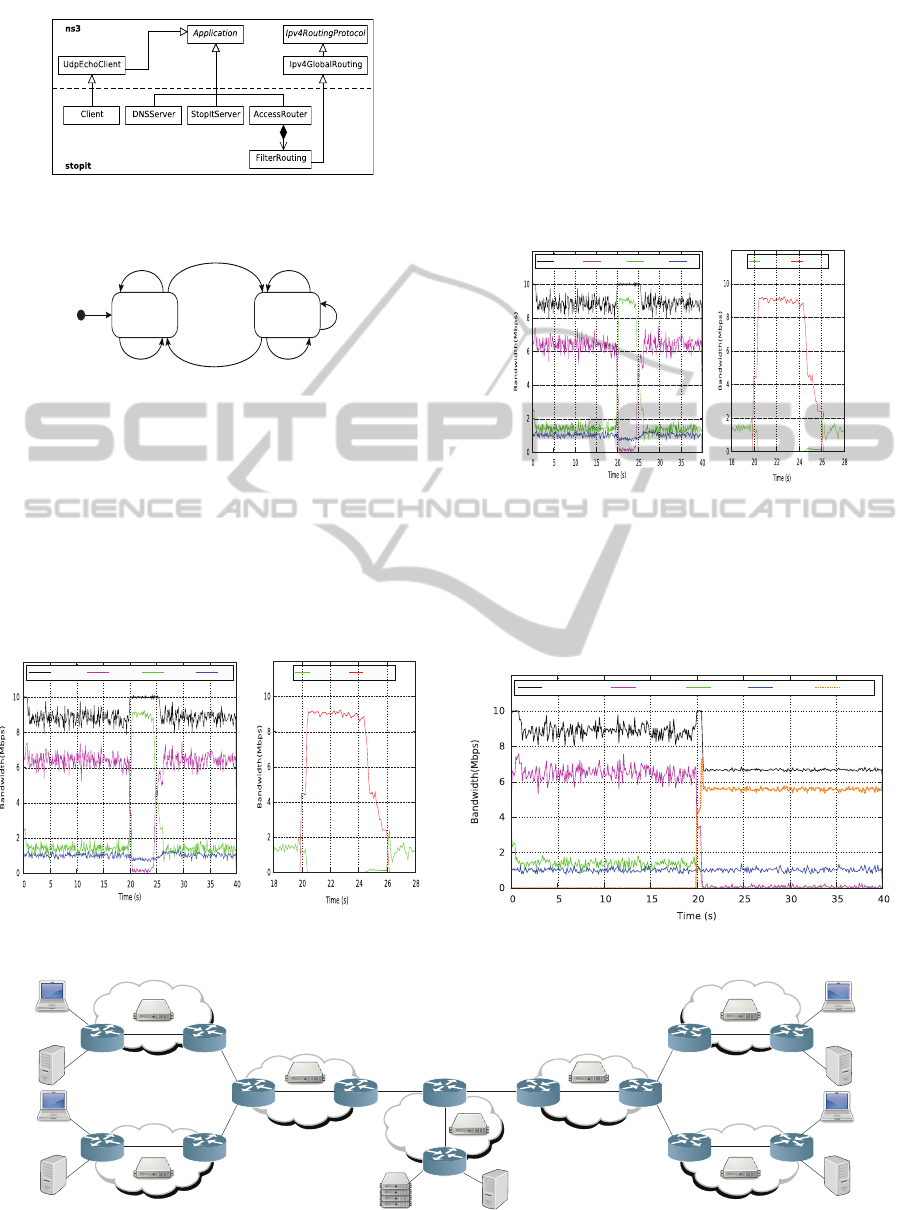

Figure 3: StopIt class hierarchy.

Figure 4: Finite State Automaton.

We included 24 VoIP sources (using the

ilbc_mode_30 codec at 13.33kbps), 230 HTTP

sources and 230 DNS sources. DiffServ handles

both DNS and HTTP sources as Best Effort traffic

and VoIP sources as Assured Forwarding. In the

other case, DiffServ to face an indirect DDoS attack,

DNS traffic is handled as coming from high priority

sources. We measured its bandwidth occupation in

the simulated attacks. (Furfaro et al. 2014).

Figure 6: Direct DNS DDoS Attack.

As show in Fig 6, the black curve is the total

used bandwidth, the purple line represents the HTTP

traffic, the blue line is the VoIP traffic and the green

one the DNS traffic. In the simulated scenario, the

attack begins at t = 20 s and it is detected after 3s.

During the time interval between the begin of the

attack and the StopIt response, the DNS traffic

increases and saturates the available bandwidth at

expense of the HTTP packets, as show in Figure 7.

Figure 7: Detail of legal and malicious DNS Traffic.

Figure 8 depicts a scenario where the attack is

achieved indirectly by flooding a host that belongs

to the same AS of the victim with the aim of exhaust

the available bandwidth of a shared link.

Figure 8: Indirect DDoS Attack (StopIt).

Figure 5: Simulated Network Topology.

Available Busy

DNSRequest [av==1] /

av--; process(request)

DNSRequest [av>1] /

av--; process(request)

DNSRequest[!bufferFull] /

enqueue(request)

endProcess / av++

endProcess [bufferEmpty] /

av++

endProcess [!bufferEmpty] /

process(dequeue())

DNSRequest[bufferFull]

drop(request)

av=RN

DNS VoIPHTTPtotal traffic

DDoS trafficlegal requests

(a) (b)

DNS VoIPHTTPtotal traffic

DDoS trafficlegal requests

(a) (b)

DNS

VoIP

HTTPtotal traffic

DDoS

ASs

...

SIMULTECH2014-DoctoralConsortium

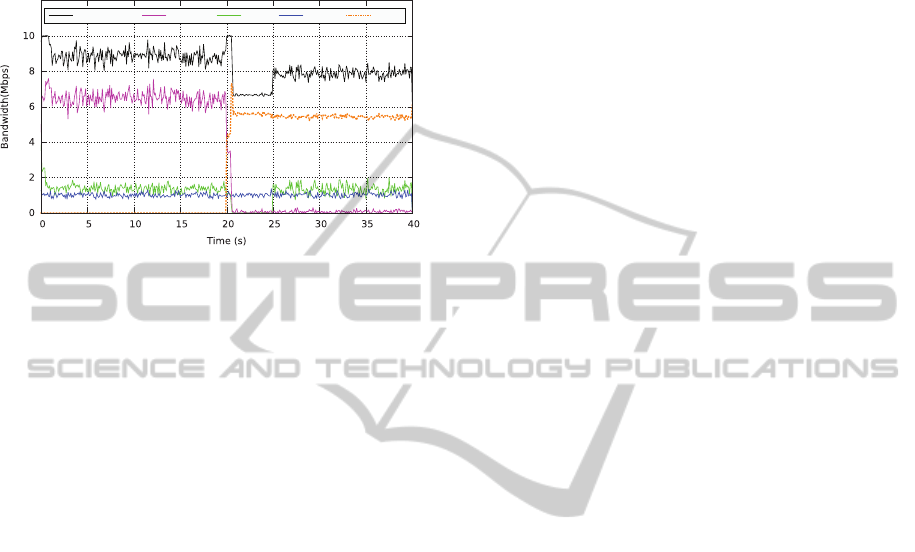

Figure 9 shows how the proposed defense strategy,

by exploiting the cooperation of StopIt and DiffServ,

re-insures the necessary bandwidth to the DNS

server after the time needed to detect the anomalous

behavior and to dispatch the StopIt requests.

Figure 9: Indirect DDoS Attack (Stopit + Diffserv).

6 EXPECTED OUTCOME

As a result of the research we aim to define the

appropriate simulation models for the prototyping

and validation of software tools for the prevention,

detection, defense and response to attacks on the

security of computer systems. In particular, we will

experiment with the definition of software models

for computer security specified mediating formal

languages, derived from finite state automata at a

level of abstraction that allows formal verification,

for example by means of model-checking

techniques, properties expected from such systems.

An attempt will also use the same models in the

context of existing tools for simulation of network

systems (such as ns-3, NeSSi2) in order to validate

and predict the behavior in more realistic operational

scenarios.

As future work we plan to extend our research by

designing suitable detection algorithms that may

directly run on edge network devices and exploit

StopIt features to block illegal sources also in the

case of indirect attacks. (Furfaro et al. 2014).

REFERENCES

Carneiro, G., H. Fontes, M. Ricardo. 2011. Fast

prototyping of network protocols through ns-3

simulation model reuse. Simulation Modelling

Practice and Theory 19 (9): 2063 – 2075.

Duarte, José. 2012. Identificación de Ataques Informáticos

a través de Redes Bayesianas. Editorial académica

española. ISBN:978-3-659-00652-4

Furfaro, A., Pace, P., Parise, A., Molina, L. 2014, July.

Modelling and Simulation of a defense strategy to face

indirect DDoS flooding attacks. 7

International

Conference on Internet and Distributed Computing

Systems.

Grunewald, D., Lützenberger, M., Chinnow, J., Bye, R.,

Bsufka, K., Albayrak, S.2011. Agent-based Network

Security Simulation (Demonstration). DAI-Labor |

TU Berlin | Ernst-Reuter-Platz 7 | 10587 Berlin,

Germany.

Hirsch B., Konnerth, T., Heßler A. 2009. Merging agents

and services — the JIAC agent platform. In Multi-Agent

Programming: Languages, Tools and Applications,

pages 159–185. Springer.

Kumar, P., S. Selvakumar. 2009, March. Distributed

Denial-of-Service (DDoS) Threat in Collaborative

Environment - A Survey on DDoS Attack Tools and

Traceback Mechanisms. In Advance Computing

Conference, 2009. IACC 2009. IEEE International,

1275–1280.

Liu, Xin., Yang, Xiaowei, Lu Yanbin. 2008. To Filter or

to Authorize: Network-Layer DoS Defense against

Multimillion-node Botnets. ACM SIGCOMM’08,

Seattle, Washington, USA.

Ns-3 Manual. 2014. Release ns-3.20. http://www.nsnam.

org/docs/release/3.20/manual/ns-3-manual.pdf.

Neinbe, J. 2010. Log Analyzer for Network Forensics and

Incident Reporting. International Conference on

Intelligent System, Modeling and Simulation. IEEE

Computer Society 978-0-7695-3973-7/10, p356-361.

Patrikakis, C., Masikos, M., Zouraraki O. 2004.

Distributed Denial of Service Attacks. The Internal

Protocol Journal. Volume 7, Number 4, p13-35..

Peng, T., C. Leckie, K. Ramamohanarao. 2007, April.

Survey of Network-based Defense Mechanisms

Countering the DoS and DDoS Problems. ACM

Comput. Surv. 39 (1).

Ramroop S. 2011. A DiffServ model for the NS-3

simulator. http://www.eng.uwi.tt/depts/elec/staff/

rvadams/sramroop/index.htm.

Schmidt, Stephan., Bye, Rainer., Chinnow, Joël. 2008.

Application-level simulation for network security.

DAI-Labor, Berlin Institute of Technology.

Yu, S., Zhou W. 2010. Entropy-Based Collaborative

Detection of DDOS Attacks on Community Networks.

Sixth Annual IEEE International Conference on

Pervasive Computing and Communications.

Zargar, S. T., J. Joshi, D. Tipper. 2013. A Survey of

Defense Mechanisms Against Distributed Denial of

Service (DDoS) Flooding Attacks. IEEE

Communications Surveys & Tutorials 15 (4): 2046–

2069.

DNS

VoIP

HTTPtotal traffic

DDoS

SimulationModelsfortheEvaluationofDetectionandDefenseProtocolsagainstCyberAttacks-PreparationofDoctoral

ConsortiumContributions
