Computational Intelligence in a Classification of Audio Recordings of

Nature

Krzysztof Tyburek, Piotr Prokopowicz and Piotr Kotlarz

Institute of Mechanics and Applied Computer Science Kazimierz Wielki University, Bydgoszcz, Poland

Keywords: Fuzzy System, Linguistic Modelling, MPEG-7, Audio Descriptors, Fuzzy Classification of Audio Signals,

Neural Networks.

Abstract: This paper presents different ways for a classification of sounds of birds using linguistic approach with a

fuzzy system, neural network and WEKA system. Features of sounds of birds species are coded by the

selected MPEG-7 descriptors. The models of classification system are based on the audio descriptors for a

some chosen species of birds like: Corn Crake, Hawk, Blackbird, Cuckoo, Lesser Whitethroat, Chiffchaff,

Eurasian Pygmy Owl, Meadow Pipit, House Sparrow, Firecrest. The paper proposes fuzzy models that

definitely bases on the linguistic description. Moreover neural network for classification was proposed. As

reference results WEKA system is used.

1 INTRODUCTION

The ability to identify individual species of animals

(including birds) just by the voice has a number of

practical aspects. The most important of these is the

automation of identification of species present in a

given area on the basis of only audio recordings.

The researches proposed in this publication have

a preliminary nature. They serve a preliminary

analysis and preparation for further work on more

complex topics related to the application of

computational intelligence in description of audio

signals.

The solutions of searching of multimedia data

basing on the label technique do not always give

expecting results. It means that sending queries are

not always in accordance with demanding of person

or computer system. Correct interpretation of sound

source is the main issue which occurs during

recognition process. This paper show two separate

conceptions of the classification of sounds of birds,

based on different computational intelligence

methods: fuzzy system, artificial neural network.

First one strictly bases on linguistic approach and

second one is typical iterative procedure of

adaptation. As reference values standard algorithms

classifying provided by WEKA system will be used.

The data for classification comes from 10 different

kind of birds: Corn Crake, Hawk, Blackbird,

Cuckoo, Lesser Whitethroat, Chiffchaff, Eurasian

Pygmy Owl, Meadow Pipit, House Sparrow,

Firecrest.

Researching of sound of bird can be useful for

high level of recognizably each other. This problem

can be solved by means of the MPEG 7 standard

which gives a lot of descriptors for the physical

features of sound. These descriptors are defined on

the base of analysis of digital signals and index of

most important their factors. The MPEG 7 Audio

standard contains descriptors and description

schemes that can be divided (Manjunath et al.,

202;Martnez, 2002; Lindsay et al. 2002) into two

classes: generic low-level tools and application-

specific tools. The generic tools, referred to in the

standard as the audio description framework apply to

any audio signal and include the scalable series, low-

level descriptors (LLDs) and the un form silence

segment. The application specific tools restrict their

application domain as a means to afford more

descriptive power and include general sound

recognition and indexing tools and description tools.

The low-level audio descriptors have very general

applicability in describing audio. There are

seventeen temporal and spectral descriptors (Lindsay

et al. 2002) that can be divided into six groups. A

typical LLD may be instantiated either as a single

value for a segment or a sampled series. Then two

names for those descriptors are used, as the

application requires: AudioLLDScalarType and

AudioLLDVectorType, the first type is inherited for

187

Tyburek K., Prokopowicz P. and Kotlarz P..

Computational Intelligence in a Classiﬁcation of Audio Recordings of Nature.

DOI: 10.5220/0005153801870192

In Proceedings of the International Conference on Fuzzy Computation Theory and Applications (FCTA-2014), pages 187-192

ISBN: 978-989-758-053-6

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

scalar values and describing a segment with a single

summary, such as power or fundamental frequency,

the second one is inherited for vector types

describing a series of sampled valued, such spectra.

This paper deals with LLDs as well as application

specific tools to recognize audio signal coming from

a group of 10 different kind of birds. In order to find

a feature vector of the group of birds the analysis has

been performed in the temporal as well as in

frequency domains.

2 TIME DOMAIN AND

FREQUENCY DESCRIPTION

For the purpose of right describing of waveform of

sound it is necessary to define descriptor. The

descriptor is represented as a fraction of time of

separating phases to time of all phases.

1. Log - time of the ending transient l

, which is

given by:

ltk = log (tpk - tmax) (1)

where: tmax is the time at which the maximal

amplitude has been reached, tpk is the time at which

the level of 10 % of maximal value has been reached

in the decay stage.

2. The Log-Attack-Time Descriptor characterizes

the “attack” of a sound, the time it takes for the

signal to rise from silence to the maximum

amplitude. This feature signifies the difference

between a sudden and a smooth sound. The Log-

Attack-Time is given by:

ltp = log (tmax - tpp) (2)

where: tmax is the time at which the maximal

amplitude has been reached, tpp is the begin of rise

of signal.

3. ZC – (zero crossing) which describes the number

of crossing the X axis in the analyzed window in the

time domain. In these experiments the length of

window was n = 1000 samples. The onset of the

window was in the begin of rise of signal. The

length of the window was sufficiently long for all

samples in experiments.

Since the frequency domain may contain

important information concerning features of the

sound it is worthwhile to introduce its

parametrization. The base of parametrization of

sound spectrum are Fourier transform, wavelet

analysis, cepstrum or Wigner-Ville'a transform. The

following parameters describing frequency domain

of signal were applied:

4. Brightness









iiA

)(

(3)

where: A(i) is amplitude of the i-th partial

(harmonic) i - the frequency of the i-th partial

5. Irregularity of spectrum







log20log

)+A(iA(i))A(i

A(i)

|(=Ir

(4)

where: A(i) is amplitude of the i-th partial

(harmonic), N - number of available harmonic

3 RESEARCH METHODOLOGY

The purpose of experiment is searching of vector of

features which allow to automatic classification of

sound of bird. For parametrization of frequency

domain state window length was proposed (Tyburek,

2006; Tyburek et al.2008). It was applied for all

samples in experiment. State window length is the

fragment of signal (in time domain) which was taken

in the same point of time. State window length

contains constant amount of samples. The beginning

of this window was taken when the level of 10 % of

maximal value has been reached. The length of

window is determined by resolution of spectrum,

according to the formula:

(5)

where: fr is the spectrum resolution, fs - sampling

frequency (44100 Hz), n - number of samples.

In this paper fr equal to 10Hz was assumed. It means

that number of samples which are assigned to

experiment is equal 4410. If testing sound is shorter

then length of window (n=4410) then absent values

should be supplemented with zeros to n=4410

(Tyburek, 2006; Tyburek et al.2008). Selecting

fragment of signals in time domain were treated

DFT and this spectrum was analyzed. Moreover for

this study, Blackman window has been used.

4 RESULTS FROM WEKA

To properly conduct an experiment we need

reference values. Well known and popular system

WEKA can be used at this point. For the further

study and compare the cross-validation method and

FCTA2014-InternationalConferenceonFuzzyComputationTheoryandApplications

188

algorithms: k-Nearest Neighbors, Random forest,

Jrip were chosen. The tables 1 to 3 shows a Weka

results for mentioned methods.

Table 1: Error matrix for classification of sound of 10 kind

of bird. Used k-NN, cross-validation method (k=10).

General recognition 95,45%.

a b c d e f g h i j

Classified

93 0 0 0 0 0 0 0 7,3 0 a = Corn Crake

0 98 1,8 0 0 0 0 0 0 0 b = Hawk

0 1,8 85 3,6 0 0 7,3 0 1,8 0 c = Blackbird

0 0 0

0 0 0 0 0 0

d = Cuckoo

0 0 0 0

0 0 0 0 0

e = Lesser

Whitethroat

0 0 0 0 0

0 0 0 0

f = Chiffchaff

0 0 1,8 0 0 0 98 0 0 0

g = Eurasian

Pygmy Owl

0 0 0 0 0 1,8 0 98 0 0

h = Meadow

Pipit

18 0 0 0 0 0 0 0 82 0

i = House

Sparrow

0 0 0 0 0 0 0 0 0

j =Firecrest

Table 2: Error matrix for classification of sound of 10 kind

of bird. Used Random forest, cross-validation method

(k=10). General recognition 97,1%.

a b c d e f g h i j Classified

93 0 0 0 0 0 0 0 7,3 0 a = Corn Crake

0 98 1,8 0 0 0 0 0 0 0 b = Hawk

0 1,8 95 0 0 0 1,8 0 1,8 0 c = Blackbird

0 0 1,8 96 0 0 1,8 0 0 0 d = Cuckoo

0 0 0 0

0 0 0 0 0

e = Lesser

Whitethroat

0 0 0 0 0 98 0 0 1,8 0 f = Chiffchaff

0 0 0 0 0 0

0 0 0

g = Eurasian

Pygmy Owl

0 0 0 0 0 0 0 98 0 1,8

h = Meadow

Pipit

5,5 0 0 0 0 0 0 0 95 0

i = House

Sparrow

0 0 0 0 0 0 0 1,8 0 98 j =Firecrest

5 LINGUISTIC MODELLING OF

FUZZY CLASSIFIER

Although the research described in this publication

relate to other descriptors and other birds species,

the idea of a classifier is based on the concept

presented in (Tyburek et al.,2014) as proposition 2.

Table 3: Error matrix for classification of sound of 10 kind

of bird. Used JRip, cross-validation method (k=10).

General recognition 90,2%.

a b c d e f g h i j Classified

82 0 0 3,6 0 1,8 0 0 13 0 a = Corn Crake

0 89 3,6 0 1,8 3,6 0 0 0 1,8 b = Hawk

0 7,3 85 0 1,8 1,8 0 1,8 1,8 0 c = Blackbird

0 0 1,8 96 0 0 1,8 0 0 0 d = Cuckoo

0 0 0 0 93 3,6 0 0 3,6 0

e = Lesser

Whitethroat

5,5 0 0 0 0 95 0 0 0 0 f = Chiffchaff

0 1,8 1,8 1,8 0 0 93 0 0 1,8

g = Eurasian

Pygmy Owl

0 0 0 0 1,8 1,8 0 96 0 0

h = Meadow

Pipit

7,3 0 3,6 0 0 3,6 0 0 84 1,8

i = House

Sparrow

0 0 0 0 1,8 0 0 9,1 0 89 j =Firecrest

5.1 Defining Linguistic Variables

We define fuzzy sets for input variable as

characteristic values for each species. Similar

solution to another problem - the classification of

flowers (irises) - was presented in (Siler and

Buckley, 2005) . In this way, we have a linguistic

values which clearly indicates the considered species

i.e.: “Hawk”, “Blackbird”, “Cuckoo”, etc. Each of

them is a triangular fuzzy set (see LR fuzzy sets

notation in

(Dubois and Prade, 1980) and is

determined with the use of the available data.

The method for construction an input variable

fuzzy set indicating a given specie is presented by

formula:





imeanLmean

Bird = Λ x; x Δ ;x + Δ

∆

mean

−

min

∆

max

−

mean

(6)

where i – number of bird species,

xmin,xmax,xmean- the minimum/maximum/mean

value of the descriptor for the given species.

In this way we construct all the fuzzy sets for the

every input linguistic variables, which represents the

audio descriptors. It may be surprising, but we

ignore the properties usually expected from the

fuzzy model such as the completeness or the

continuity (see Driankov et al., 1996). We also do

not expect that the values of the fuzzy membership

functions sum to unity within a linguistic variable.

The outputs are simplified to the two valued

linguistic variables which recognize or reject given

species..

ComputationalIntelligenceinaClassificationofAudioRecordingsofNature

189

5.2 Rule Base

For such linguistic variables the rule base is very

intuitive, and is composed of the rules, each of

which is intended to recognize one particular

species. Model for the defining rules can be

expressed linguistically as follows:

11 21 1

IFi isB i isB …i isB

THENB isrec B isrej …B isrej



(7)

ik - input number k, Bl - bird (species) number i rec

– fuzzy set for the recognition and rej – for the

rejection.

Such modeling of fuzzy systems has one basic

advantage, related above all, to the simplicity of

expansion defined classifier. Adding the next species

of birds does not violate existing structure. It needs

just adding the next fuzzy sets characteristic for the

new species, and add a rule that recognizes a new

class of data. Similarly, if we want to introduce

another descriptor to the model, the changes also

will be simply and intuitive.

5.3 Testing the Linguistic Classification

Testing of efficiency presented proposition in

general will be realized as follows:

- divide all data for two sets: Training and Testing.

- creating fuzzy classifier basing on the Training

data set,

- applying created fuzzy classifier for the Testing

set, and calculating wrong recognitions.

Such procedure should be done repeatedly with

random dividing data.

5.4 Fuzzy Numbers in Signal

Description

Choosing descriptors of sound signal play a key role

in a classification proposed in this work. The authors

plan in future work with descriptors based on

computational intelligence, especially fuzzy

numbers.

Usually MPEG-7 descriptors are mathematical

formulas operating on the exact parameters of the

signals. One of the directions of future work is the

use of fuzzy numbers represented by model Ordered

Fuzzy Numbers (OFN) to define a signal

descriptors.

OFNs (Kosiński et al., 2003,

Kosiński and

Prokopowicz, 2007, Kosiński et al., 2013, Prokopowicz

and Malek, 2014) are

a quite recent proposition for

modelling the calculations on imprecise values in

similar way as the fuzzy numbers. Most important

property of OFNs is that they allow for calculations

as flexibly as real numbers (

Prokopowicz, 2013), so

they can be applied in different mathematical

formulas, as for example MPEG-7 descriptors.

6 NEURAL NETWORK FOR

CLASSIFICATION

The second method of classification we are

intending to employ in the planned research is

utilization of a neural network classifier. It is meant

as a support for the results obtained via the fuzzy

logic with the purpose of acquiring possibly good

classification results. The first preliminary step of

the research, which has already been carried out, is

determining whether the existing set of bird sound

samples actually comprises separate classes

(species). At the outset, a single-layer network was

examined. The network consists of the same neurons

as the model shown below:

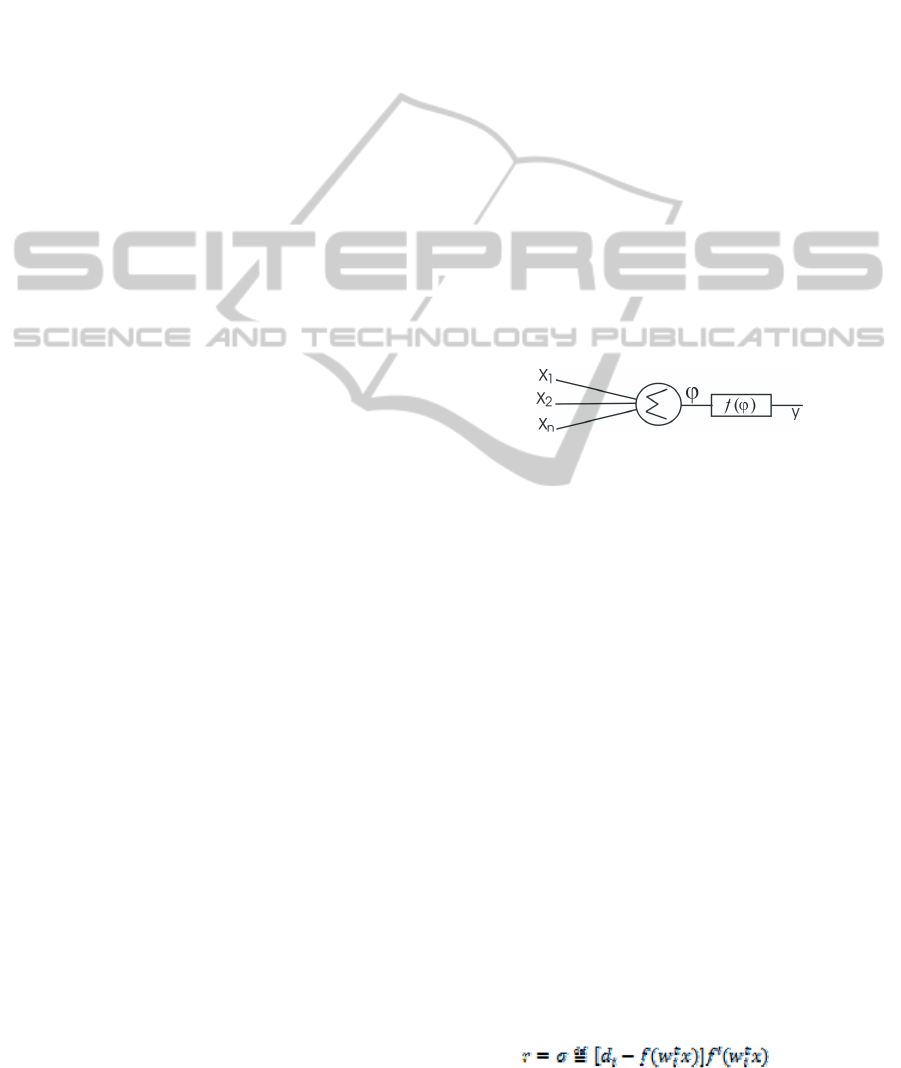

Figure 1: Used in this paper a model neuron.

Model of this neural network is presented by

formula:







wxwx











5,0

{

(8)

where: n - index of input neuron (n=5),

membrane potential, w- matrix of weights

w=[w

, ...w

]

, ...

]

where: x - matrix inputs

f- active function, p - threshold (p=0).

The choice of the p-value as well as the neural

response via the function f was selected by

numerical experiments, which are associated with

the selection of proper parameters of the training

process. The process of neural network training

employed a continuous activation function; a

threshold function is applied in the process of

testing. The delta rule in the version for the linear

activation function was used in the training process.

The general form delta rule for permanent active

function (f(φ)) (see Hannagan T., 2013) :

(9)

FCTA2014-InternationalConferenceonFuzzyComputationTheoryandApplications

190

Adjustment of neuron weights:

(10)

where: r - signal learner,

σw - correction weights

c - constant learning process, d - error learning, y -

matrix outputs, active function, x - matrix inputs

The target of mentioned research is to confirm that

learning set is composed of signal, which are

separate class and to confirm that mentioned classes

are connected with different bird species. The

learning session were in three main phases: learning

set was testing set in the same time, the learning set

and testing set were composed from twenty five

different signals. The third case – learning set fifteen

and testing set thirty five signals. Below presented

result of tests:

Table 4: The learning and testing set used the same fifty

signals.

The amount of class

The best result of

learning (figures of

proper recognized)

Testing

5(Eurasian Pygmy

Owl, Meadow Pipit,

Hawk, Cuckoo, Lesser

Whitethroat)

a) 88%

b) 78%

c) 73%

a) 88%

b) 71%

c) 71%

6(Eurasian Pygmy

Owl, Meadow Pipit,

Hawk, Cuckoo, Lesser

Whitethroat, Chiffchaff)

a) 82%

b) 74%

c) 69%

a) 82%

b) 73%

c) 65%

7(Eurasian Pygmy

Owl, Meadow Pipit,

Hawk, Cuckoo, Lesser

Whitethroat, Chiffchaff,

House Sparrow)

a) 55%

b) 55%

c) 50%

a) 55%

b) 53%

c) 48%

8(Eurasian Pygmy

Owl, Meadow Pipit,

Hawk, Cuckoo, Lesser

Whitethroat, Corn

Crake, Blackbird,

Chiffchaff)

a) 43%

b) 41%

c) 35%

a) 43%

b) 34%

c) 29%

a - The learning and testing set used the same fifty signals, b -

The learning and testing set using 25 signals, c - The 15 learning

set tested 35 different signals

As a result of the research, it is concluded that the

examined set of signals contains separate classes.

Although the classification results obtained are not

very good, they provide a basis for further research

work. In the essential part of the planned research,

the possibilities of classification with the usage of

different neural network models will be tested. The

results obtained at the preliminary stage confirm the

legitimacy of the adopted concept of research. The

results warrant further research work, whose purpose

is to develop a hybrid tool based on the methods of

computational intelligence for the classification of

audio signals using low-level descriptors.

7 CONCLUSIONS

The proposals presented in this work are a

preliminary step for further research related to the

application of computational intelligence in the

analysis of the audio signal described by MPEG-7.

Choosing descriptors of sound signal play a key role

in a classification, so descriptors based on

computational intelligence are also important part of

future research.

REFERENCES

Driankov D, Hellendoorn H., Reinfrank M., (1996),An

Introduction to fuzzy control, Springer-Verlag, Berlin,

Heidelberg, 1996.

Dubois, D., Prade, H. M. (1980), Fuzzy sets and systems:

Theory and applications, New York: Academic Press,

1980.

Hannagan T., 2013 The delta rule does Bubbles, Journal of

Vision 13(8):17, 1–11.

Kosiński W., Prokopowicz P., Ślęzak D., 2003. Ordered

fuzzy numbers. Bulletin of the Polish Academy of

Sciences, Ser. Sci. Math., 51(3): 327–338.

Kosiński W., Prokopowicz P., 2007. Fuzziness -

Representation of Dynamic Changes, Using Ordered

Fuzzy Numbers Arithmetic, New Dimensions in

Fuzzy Logic and Related Technologies. In: Martin

Stepnicka, Vilem Nova, Ulrich Bodenhofer (eds.)

Proc. of the 5th EUSFLAT Conference, vol I,

Ostrava, Czech Republic, September 11-14, 2007, pp.

449-456.

Kosiński W., Prokopowicz P., Rosa A., 2013,.

Defuzzification Functionals of Ordered Fuzzy

Numbers. IEEE Transactions on Fuzzy Systems,

21(6): 1163-1169.

Lindsay, A. T., Burnett, I., Quackenbush, S., Jackson, M.

(April 2002): Fundamentals of audio descriptions. In:

Manjunath, B.S., Salembier, P., Sikora, T. (eds.)

Introduction to MPEG-7: Multimedia Content

Description Interface, pp. 283 298. John Wiley and

Sons, Ltd.

Martnez, J. M. (July 2002): MPEG-7 Overview,

Klangenfurt Descriptors, In: Rutkowski, L.,

Korytkowski, M., Scherer, R., Tadeusiewicz, R.,

Zadeh, L.A., Zurada, J.M. (eds.) Proc. of ICAISC

2014, Part II. LNCS (LNAI), vol. 8468, pp. 700-709.

Pathak K. K., Panthi S., and Ramakrishnan N., April 2005

Application of Neural Network in Sheet Metal

Bending Process , Defence Science Journal, Vol. 55,

No. 2,, pp. 125-131.

Prokopowicz P., 2013. Flexible and Simple Methods of

Calculations on Fuzzy Numbers with the Ordered

ComputationalIntelligenceinaClassificationofAudioRecordingsofNature

191

Fuzzy Numbers Model. In: Rutkowski L.,

Korytkowski, M., Scherer R., Tadeusiewicz R., Zadeh

L. A., Zurada J. M. (eds.) Proc. of ICAISC 2013, Part

I. LNCS (LNAI), vol. 7894, pp. 365–375. Heidelberg:

Springer.

Prokopowicz P., Malek S., 2014. Aggregation Operator

for Ordered Fuzzy Numbers Concerning the Direction,

In: Rutkowski, L., Korytkowski, M., Scherer, R.,

Tadeusiewicz, R., Zadeh, L.A., Zurada, J.M. (eds.)

Proc. of ICAISC 2014, Part I. LNCS (LNAI), vol.

8467, pp. 267-278.

Siler W., Buckley J.J., (2005), Fuzzy Expert Systems and

Fuzzy Reasoning, Wiley, 2005.

Tyburek, K., Cudny, W., Kosiński, W. 2006: Pizzicato

sound analysis of selected instruments In the

freguency domain. Image Processing &

Communications 11(1), 53–57.

Tyburek, K. (November 2008): Classification of string

instruments in multimedia database especially for

pizzicato articulation, Ph. D. thesis. Institute of

Fundamental Technological Research Polish Academy

of Sciences, Warsaw (in Polish).

Tyburek K., Prokopowicz P., Kotlarz P.,The Fuzzy

Classification of Sounds Based on the Audio.

Artificial Intelligence and Soft Computing Lecture

Notes in Computer Science Volume 8468, 2014, pp

700-709.

FCTA2014-InternationalConferenceonFuzzyComputationTheoryandApplications

192
