An Operational Semantics for XML Fuzzy Queries

Alessandro Campi

, Sam Guinea

and Paola Spoletini

Politecnico di Milano, DEIB, p.zza Leonardo da Vinci 32, 20133, Milano, Italy

Universit dell’Insubria, DSTA, Via Mazzini 5, 21100 Varese, Italy

Keywords:

Fuzzy, XML.

Abstract:

XML has become a widespread format for data exchange over the Internet. The current state of the art in

querying XML data is represented by XPath and XQuery, both of which deﬁne binary predicates. In this

paper, we advocate that binary selection can at times be restrictive due to very nature of XML, and to the

uses that are made of it. We therefore suggest a querying framework, called FXPath, based on fuzzy logics.

In particular, we propose the use of fuzzy predicates for the deﬁnition of “vaguer” and “softer” queries. We

also introduce a function called “deep-similar”, which aims at substituting XPath’s typical “deep-equal”. Its

goal is to provide a degree of similarity between two XML trees, assessing whether they are similar both

structure-wise and content-wise. In this paper we present the formal syntax and semantics of FXPath, and

discuss implementation issues.

1 INTRODUCTION

The principal proposals for querying XML docu-

ments have been XPath and XQuery. Both XPath and

XQuery divide data into those which fully satisfy the

selection conditions, and those which do not. How-

ever, binary conditions can be —in some scenarios—

a limited approach to effective querying of XML data.

The reasons behind such a statement lie in the very

nature of XML. Even though a standard for deﬁning

how data must be structured within an XML ﬁle ex-

ists, namely the XML Schema, it is often the case that

end users have to work with data that does not have

a schema, or for which a schema is not known at the

moment of the query.

A few considerations can be made to justify this

claim. First of all, even when XML schemas do exist,

data producers do not always follow them precisely.

Second, users often end up deﬁning blind queries, ei-

ther because they do not know the XML schema in

detail, or because they do not know exactly what they

are looking for.

In this paper, we give a formal semantics and an

implementation to a framework (Campi et al., 2006;

Braga et al., 2002) for querying XML data that goes

beyond binary selection, and that allows the user

to deﬁne “vaguer” and “softer” selection conditions.

The main idea is that the constraint evaluation pro-

duces a fuzzy subset, and associates a numeric value

to each information item (i.e., the membership de-

gree). The extensions introduced to XPath can be

divided into three main strains: fuzzy axis naviga-

tion, fuzzy predicate evaluation, and the fuzzy func-

tion “deep-similar”.

In this paper we use a simple library-based case

study for the evaluation of FXPath shown in Figure 1.

For example, a simple fuzzy query on such a data set

could be used to ﬁnd all the books that were published

near to the year 2000. To do so we state a predicate

on a book’s “year” attribute. Since the attribute is a

number we use the fuzzy comparator “=”. We might

retrieve books published in the year 2000, 2001, 2002,

etc.

</Book>

</Book>

Notice the presence of a ranking directive in-

serted as a comment that contains each result’s rank-

ing value, i.e., a value from the set [0,1]. The closer

it is to 1, the better the returned item satisﬁes the con-

dition (i.e. having been published in a year near the

year 2000).

205

Campi A., Guinea S. and Spoletini P..

An Operational Semantics for XML Fuzzy Queries.

DOI: 10.5220/0005155502050210

In Proceedings of the International Conference on Fuzzy Computation Theory and Applications (FCTA-2014), pages 205-210

ISBN: 978-989-758-053-6

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

<title>TCP/IP Illustrated</title>

<author><last>Stevens</last><first>W.</first></author>

<publisher>Addison-Wesley</publisher>

<title>Introduction</title>

<section> <title>Audience</title>

<title>Web Data and the Two Cultures</title>

<title>Client/server architecture</title>

</figure>

</section>

</book>

...

</bib>

Figure 1: Running example.

2 RELATED WORK

Fuzzy sets have been shown to be a convenient way

to model ﬂexible queries in (Bosc et al., 1994). Many

attempts to extend SQL with fuzzy capabilities have

been undertaken in recent years. (Bosc et al., 1995)

describes SQLf, a language that extends SQL by in-

troducing fuzzy predicates that are processed on crisp

information.

Several approaches have been proposed to intro-

duce ﬂexibility in semi-structured information pro-

cessing. An early technique (Damiani and Tanca,

2000) was based on fuzzy encoding of XML data

trees. A later paper (Amer-Yahia et al., 2002) pro-

posed an approach based on XML query rewriting,

supporting renaming and deletion of nodes in the

query. Hybrid techniques (Schlieder, 2002) have also

been proposed, where XML data are encoded and

queries are rewritten. A recent approach to this prob-

lem (Li et al., 2006) proposes a dynamic summariza-

tion and indexing method called FLUX.

In (Bosc et al., 2006) the authors propose to re-

lax failing queries, based on a notion of proximity. In

(Sanz et al., 2006) the authors tackle the problem of

highly heterogenous XML collections, in which data

pertaining to a certain domain are collected within

documents that are highly diverse in structure. In

(Sanz et al., 2008) the authors reﬁne these concepts

and formally deﬁne them, they improve the algo-

rithms used for the matching, and analyze their com-

plexity.

Finally, we illustrate two cases in which fuzzy in-

formation retrieval is used within speciﬁc domains.

In (Bordogna et al., 2006) the authors present a news

ﬁltering model based on fuzzy hierarchical catego-

rization. In (Bandini et al., 2006) the authors de-

scribe the architecture of a query answering system

for the domain of motor racing using fuzzy logic and

domain-speciﬁc knowledge.

(Amer-Yahia et al., 2004) presents FlexPath, an

attempt to integrate database-style query languages

such as XPath and XQuery and full-text search on tex-

tual content. FlexPath considers queries on structure

as a template, and looks for answers that best match

this template and the full-text search. Recently, in

(HadjAli and Pivert, 2008), a fuzzy technique to re-

duce the number of views that are satisfactory w.r.t.

the query is present.

3 FXPATH

3.1 Formal Semantics

The XML Path Language (XPath) uses a declara-

tive notation: each expression developed from this

notation describes the types of nodes that need to

be matched, based on the hierarchical relationships

existing between the nodes. We propose to extend

the XPath language deﬁnition with constructs for the

speciﬁcation of fuzzy predicates and fuzzy subsets.

The effect is an increase and improvement of the re-

sults produced by the query evaluation. Figure 2

shows the syntax extensions over XPath.

The operational semantics of FXPATH, that can

be use straightforward to evaluate a query, are deﬁned

over a “forest” F = {T

,...,T

|F|

} of couples

= (XMLTree,evaluation).

Given a couple T (or a sequence of cou-

ples), we use function tree(T

,...,T

) to obtain its

XMLTree (or the sequence of X MLTrees), and func-

tion value(T

,...,T

) to obtain an evaluation (or the

sequence of evaluations), i.e., a value (or a sequence

of values) in the set [0, 1]. The execution of a generic

query q on a forest F results in the union of the execu-

tion of the query on all the “trees” in F. It can be ex-

pressed as: eval(q,F) = order cut(

|F|

i=1

eval(q,T

))

where order cut sorts the set of execution results, and

eliminates those that do not reach a certain threshold.

FXPath queries are executed recursively, in accor-

dance with the intrinsic recursiveness of their struc-

ture. The entrance point is function eval query, which

takes a syntactically correct FXPATH query and a

couple (XMLTree,evaluation), and returns a (possi-

bly empty) sequence of couples

(XMLTree,evaluation).

FCTA2014-InternationalConferenceonFuzzyComputationTheoryandApplications

206

[1] LocationPath ::= RelativePath | AbsolutePath

[2] AbsolutePath ::= ’/’ RelativePath? | ’//’ RelativePath

[3] RelativePath ::= Step | Step ’/’ RelativePath | Step ’//’ RelativePath

[4] Step ::= AxisSpecifier NodeTest ( ’[’ Predicate ’]’ )? | ’.’ | ’..’

[5] AxisSpecifier ::= AxisName ’::’ | ’@’ | ’{’ AxisName ’::’ ’}’ | ’{@}’ |

[9] Predicate ::= Predicate ’and’ Predicate | Predicate ’or’ Predicate | ’(’Predicate’)’ | ’not(’ Predicate ’)’ | CompExpr

[9bis] Predicate ::= ’{’ CompExpr ’}’

[10] CompExpr ::= Expr ( ’=’ | ’!=’ | ’<’ | ’>’ | ’<=’ | ’>=’ ) Expr | Expr

[14] Expr ::= (’-’)? Expr | Expr ( ’+’ | ’-’ | ’*’ | ’div’ | ’mod’ ) Expr | ’(’ Expr ’)’

| PrimaryExpr | LocationPath | Expr ’near’ Expr | ’{’ Expr ’}’

[15] PrimaryExpr ::= VariableReference | Literal | Number | FunctionCall

[16] FunctionCall ::= FunctionName ’(’ ( Expr ( ’,’ Expr )* )? ’)’

[35] FunctionName ::= Function names defined in XPath

[35bis] FunctionName ::= ’deep-similar’

[7] NodeTest ::= NameTest | NodeType ’(’ ’)’ | ’processing-instruction’ ’(’ Literal ’)’

[29] Literal ::= ’"’ [ˆ"]* ’"’ | "’" [ˆ’]* "’"

[30] Number ::= ( [0-9]* (’.’ [0-9]*)? )

Figure 2: EBNF speciﬁcation of Fuzzy XPath.

(a)

(b)

(c)

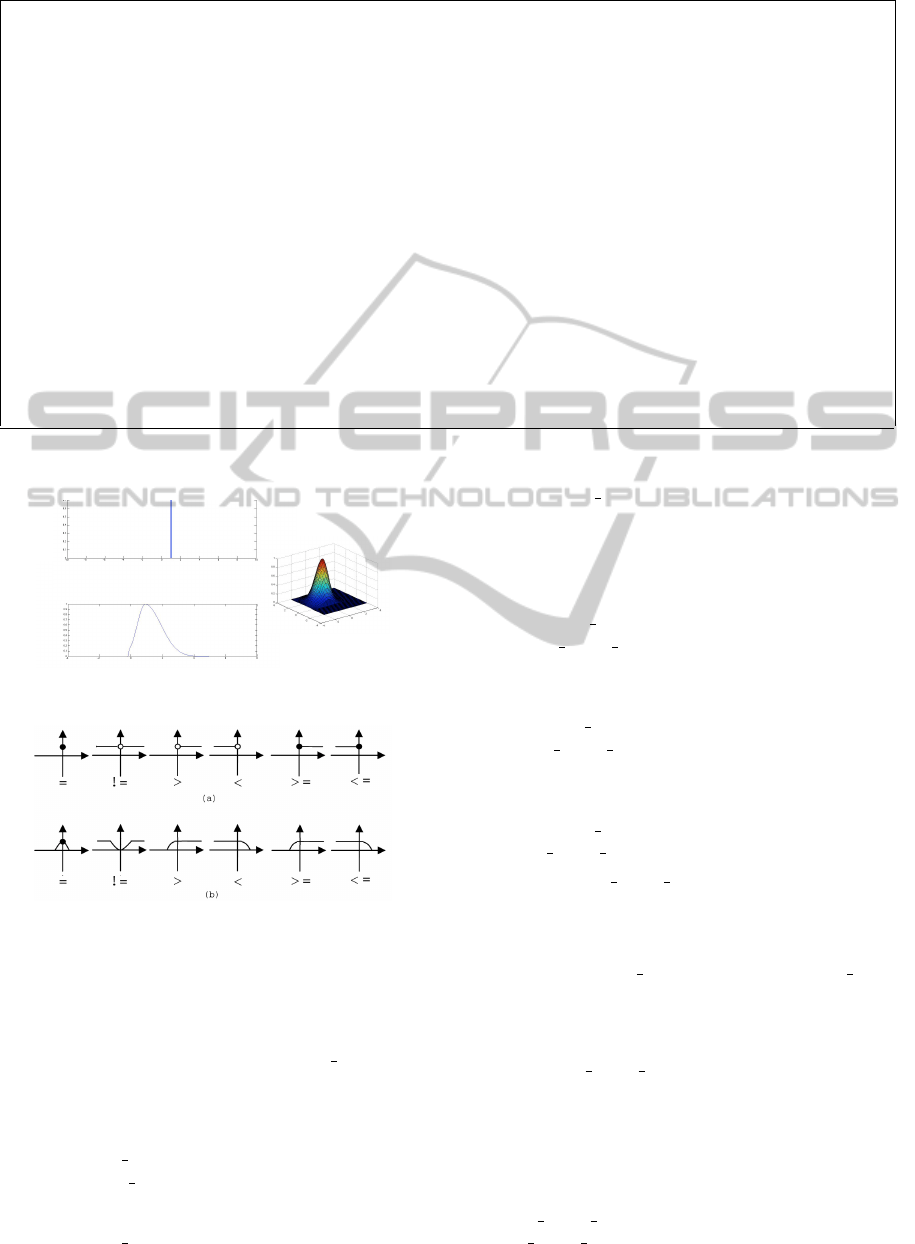

Figure 3: Crisp and Fuzzy Membership Functions.

Figure 4: Crisp and Fuzzy Comparators.

The XML data on which the query is evaluated

are seen as global variables and the tree component of

the parameter T is the pointer to one of the nodes of

the XML tree. Notice that if the cardinality of the se-

quence is greater than one, function order cut is used.

Now we describe the evaluation of a generic

query. By deﬁnition an AbsolutePath is either

/RelativePath or //RelativePath. Therefore,

eval query(AbsolutePath, T ) =

eval query(/RelativePath, T )

eval query(AbsolutePath, T ) =

eval query(//RelativePath, T )

These two evaluations, on the other hand, are equiva-

lent to the evaluation of the query’s components start-

ing from the root node of the tree pointed by T (given

by root(tree(T ))), i.e.,

eval query(/RelativePath, T ) =

eval query components(/RelativePath,

(root(tree(T )), value(T )))

and

eval query(//RelativePath, T ) =

eval query components(//RelativePath,

(root(tree(T )), value(T )))

and

eval query(RelativePath, T ) =

eval query components(/RelativePath,T )

Function eval query components takes as input a

query and a couple (XMLTree,evaluation), and re-

turns zero or more couples (XMLTree,evaluation).

Once again, if a sequence is returned, the behavior is

as in the case of eval query (i.e, function order cut is

used). Query components are evaluated recursively,

and the recursive step depends on the structure of the

query. Our base case is the empty query, for which

eval query components(,T ) = T

The evaluation of a query structured as /RelativePath

(or //RelativePath) can be substituted with the evalu-

ation of /stepAbsolutePath (or //stepAbsolutePath).

This is a direct consequence of how the syntax is de-

ﬁned. Therefore

eval query components(/RelativePath,T ) =

eval query components(/stepAbsolutePath,T )

AnOperationalSemanticsforXMLFuzzyQueries

207

For the same reason it is also true that

eval query components(RelativePath,T ) =

eval query components(stepAbsolutePath,T )

Likewise, since an AbsolutePath is either a

/RelativePath (or a //RelativePath), the substitution

can also take place the other way around. Therefore,

it is also true that

eval query components(AbsolutePath,T ) =

eval query components(/RelativePath,T )

At this point the evaluation of a query of the form

stepAbsolutePath

can be achieved evaluating a query of the form

AxisSpecNodeText[Pred]AbsolutePath

This is due to the fact that a single XPath step is made

up of a axis speciﬁcation, a node text, and a predicate.

The evaluation of such a query is achieved by using

the axis speciﬁcation and the node text to select a set

of nodes from the current tree, and then applying the

predicate to this set. This is why

eval query components

(AxisSpecNodeText[Pred]AbsolutePath, T ) =

eval query components([Pred]AbsolutePath,

eval on tree(/AxisSpecNodeText,T ))

where function eval on tree takes a navigation in-

struction and performs it on a tree. Similarly,

eval query components

(/AxisSpecNodeText[Pred]AbsolutePath, T ) =

eval query components([Pred]AbsolutePath,

eval on tree(/AxisSpecNodeText,T ))

and

eval query components

(//AxisSpecNodeText[Pred]AbsolutePath, T ) =

eval query components([Pred]AbsolutePath,

eval on tree(//AxisSpecNodeText,T ))

More details regarding function eval on tree will be

given shortly. In the meanwhile, once the navigation

step has been completed, the predicate is evaluated,

and after this evaluation the next step in the query is

taken. Indeed,

eval query components([Pred]AbsolutePath, T ) =

eval query components(AbsolutePath,

eval

query components(Pred,T ))

The evaluation of the predicate on a tree returns zero

or more of couples (XMLTree,evaluation), and is

given by

eval query components(pred,T ) =

(tree(T ), min(value(T ), eval predicate(pred,tree(T ))))

It is calculated as the minimum between the value as-

sociated with the tree and the evaluation of the predi-

cate on that tree, as given by function eval predicate.

The three functions

eval on tree(AxisSpecNodeText,T )

eval on tree(/AxisSpecNodeText,T )

eval

on tree(//AxisSpecNodeText,T )

use the appropriate crisp navigation functions to

choose a ﬁnite set of nodes from the current tree. In-

deed, it is not limited to nodes that satisfy the axis

relationship in a crisp sense, but extends the set with

nodes that satisfy the relationship in a “fuzzy” sense.

The function eval returns the evaluation (i.e., a

value in the set [0,1]) of a predicate on a given tree

K. The evaluation of the disjunction (or) of two pred-

icates is the highest evaluation amongst the two, the

evaluation of the conjunction (and) of two predicates

corresponds to the minimum evaluation amongst the

two, and negation follows the typical fuzzy deﬁnition.

If the predicate is a path expression p of any kind (ab-

solute or relative),

eval predicate(p,K) =

max(value(eval query component(p,(K,1))))

where function max returns the maximum evalua-

tion. Regarding the evaluation of comparators, we

distinguish between crisp version and fuzzy ver-

sion. The crisp version returns 1 if the compara-

tor is satisﬁed, and 0 if it is not. Fuzzy com-

paratorsreturn a value in the set [0,1] depending on

the comparator’s membership function (deﬁned by

µ). Chosen an expression (e.g., expr

), µ is cali-

brated using the expression’s evaluation (in this case

eval

expr(expr

,K)), and evaluated against the other

expression (in this case eval expr(expr

,K)). For

example, if eval expr(expr

,K) returns a numerical

value 3, and we are dealing with the fuzzy compara-

tor {>}, membership function µ may be deﬁned in or-

der to return 1 if eval expr(expr

,K) is greater than

3, and a value in the set [0, 1] if it is lesser than 3, de-

pending on how far eval expr(expr

,K) is from that

value (see Figure 4).

Function eval expr takes as input two parameters:

an expression, as deﬁned by the grammar and a tree

K and returns a tree (more often just a leaf). The dif-

ferent cases are deﬁned as follows:

eval expr(expr1 op expr2),K) =

eval expr(expr1,K)op eval expr(expr2,K)

eval expr((expr),K) = eval expr(expr,K)

eval expr(−expr,K) = −eval expr(expr,K)

eval expr(variableRe f erence,K) =

val(variableRe f erence)

where the function val returns the content of its argu-

ment.

eval expr(Literal,K) = val(Literal)

FCTA2014-InternationalConferenceonFuzzyComputationTheoryandApplications

208

eval expr(Number,K) = Number

eval expr(FunctionCall,K) =

eval expr(FunctionName(expr

,..., expr

),K) =

f unction(eval expr(expr

,K), ...)

where f unction is the XPath function being called.

If the expression is a path p of any kind (absolute or

relative)

eval expr(path,K) =

tree(max value(eval query

omponent(p,(K,1))

where function max value returns the couple

(XMLTree,evalution)

with the maximum evaluation.

Notice that when pred is a number, it must be

treated differently. Indeed, its semantics requires that

we select the n −th child of the current node.

3.2 Function Deep-similar

In FXPath we have added a new function called

deep − similar. It is a fuzzy version of the classical

XPath function deep − equals. A formal deﬁnition

follows.

Deﬁnition 1 (Deep-similar). Given two XML trees T

and T

, deep-similar(T

, T

) is the function that re-

turns their degree of similarity as a value contained

in the set [0,1]. This degree of similarity is given as 1

- (the cost of transforming T

into T

using Tree Edit

Operations). Therefore, if two trees are completely

different, their degree of similarity is 0; if they are

exactly the same —both structure-wise and content-

wise— their degree of similarity is 1.

The tree operations that can be used to transform

the tree are deﬁned as follows:

Deﬁnition 2 (Insert). Given an XML tree T, an XML

node n, a location loc (deﬁned through a path expres-

sion that selects a single node p in T), and an integer

i, Insert(T, n, loc, i) transforms T into a new tree T

which node n is added to the ﬁrst level children nodes

of p in position i. The cost of the Insert edit operation

corresponds to the weight that the node being inserted

has in the destination tree.

Deﬁnition 3 (Delete). Given an XML tree T, and a

location loc (deﬁned through a path expression that

selects a single node n in T), Delete(T, loc) transforms

T into a new tree T

in which node n is removed. The

cost of the Delete edit operation corresponds to the

weight of the node being deleted from the source tree.

Deﬁnition 4 (Modify). Given an XML tree T, a lo-

cation loc, and a new value v, Modify(t, loc, v) trans-

forms T into a new tree T

in which the content of node

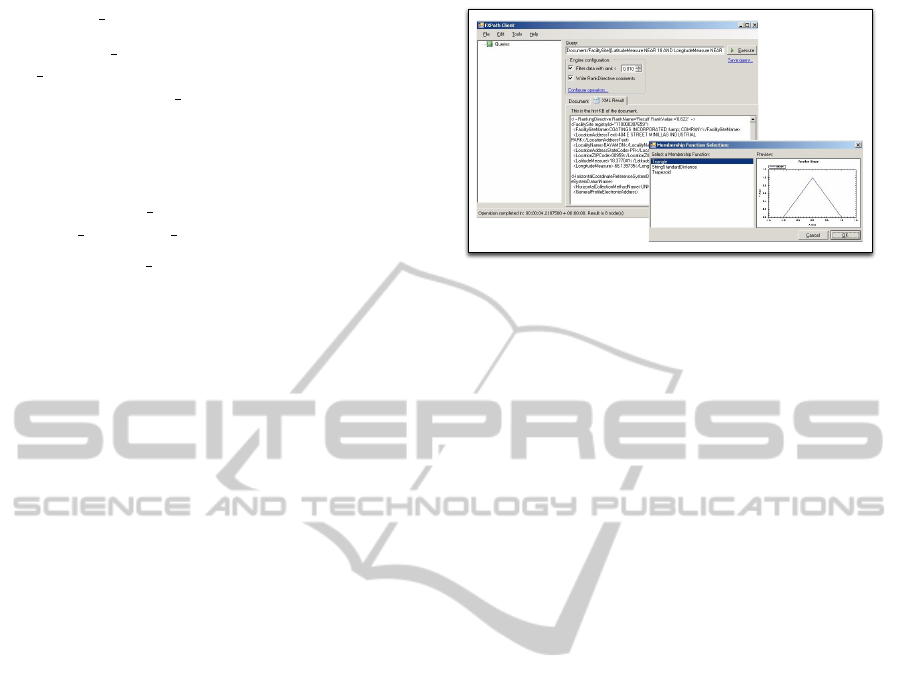

Figure 5: Fuzzy XPath client interface.

n is replaced by v. The cost of the Modify edit oper-

ation can be seen as the deletion of a node from the

source tree, and its subsequent substitution by means

of an insertion of a new node containing the new

value. This operation only modiﬁes the node content,

so it is necessary to consider the similarity existing

between the node’s old and new term. This is achieved

using Wordnet’s system of hypernymys. The cost

is therefore k ∗ w(n) ∗ (1 − Sim(n,destinationNode)),

where w(n) is the weight the node being modiﬁed has

in the source tree, the function Sim gives the degree of

similarity between node n and the destination value,

and k is a constant (0.9).

Deﬁnition 5 (Permute). Given an XML tree T, a lo-

cation loc

(deﬁned through a path expression that

selects a single node n

in T), and a location loc

(deﬁned through a path expression that selects a sin-

gle node n

in T), Permute(T, loc

, loc

) transforms

T into a new tree T

in which the locations of nodes

and n

are exchanged. The Permute edit opera-

tion does not modify the tree’s structure. It only mod-

iﬁes the semantics that are intrinsically held in the

order the nodes are placed in. Therefore, its cost is

h ∗ [w(a) + w(b)], where w(...) is the weight of a node

and h is a constant (0.36).

4 TOOL

FXPath is fully implemented within a graphical en-

vironment shown in Figure 5 whose goal is to sim-

plify the deﬁnition of queries, making the designer’s

job less error prone. Figure 6 shows how the execu-

tion proceeds. A query is sent to the engine, where

it goes through multiple steps before returning the re-

sult set. First of all, the query is parsed and translated

into a set of crisp queries that can be managed by a

standard XPath engine. Since new fuzzy predicates

can be added to the tool at any time, each predicate

is associated with a set of rules for performing the

AnOperationalSemanticsforXMLFuzzyQueries

209

Query

Parser

Crisp

Query Parser

XPath Engine

XML

Result

Fuzzy

Predicate

Evaluator

Result Sorter

and Filterer

Final

XML

Result

Fuzzy

Rules

GUI for Query

Creation

XML

Data

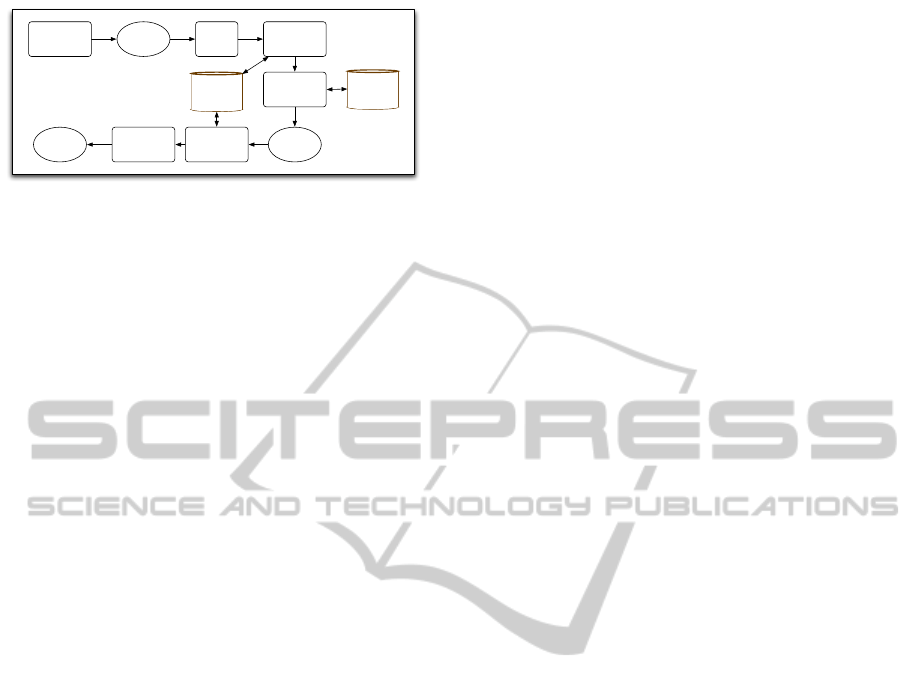

Figure 6: Fuzzy XPath client architecture.

translation. The results of the crisp queries are then

passed to a fuzzy predicate evaluator. The informa-

tion needed by this component is also contained in an

extensible set of fuzzy rules. Once the fuzzy predi-

cates have been evaluated, the results are sorted and

ﬁltered to produce the end results.

5 CONCLUSION

We have presented a framework for querying semi-

structured XML data based on key aspects of fuzzy

logics. Its main advantage is the minimization of the

silent queries that can be caused by (1) data not fol-

lowing an appropriate schema faithfully, (2) the user

providing a blind query in which he does not know the

schema or exactly what he is looking for, and (3) data

being presented with slightly diverse schemas. This

is achieved through the use of fuzzy predicates, and

fuzzy tree matching. In our future work, we are in-

terested in extending the approach to the XQuery lan-

guage, in order to achieve a fully-ﬂedged fuzzy query-

ing language for XML data sets.

REFERENCES

Amer-Yahia, S., Cho, S., and Srivastava, D. (2002). Tree

pattern relaxation. In Springer, editor, Proceedings of

EDBT.

Amer-Yahia, S., Lakshmanan, L. V. S., and Pandit, S.

(2004). Flexpath: ﬂexible structure and full-text

querying for xml. In SIGMOD ’04: Proceedings of

the 2004 ACM SIGMOD international conference on

Management of data, pages 83–94, New York, NY,

USA. ACM Press.

Bandini, S., Mereghetti, P., and Radaelli, P. (2006). Fuzzy

query answering in motor racing domain. In (Larsen

et al., 2006), pages 295–306.

Bordogna, G., Pagani, M., Pasi, G., and Villa, R. (2006). A

ﬂexible news ﬁltering model exploiting a hierarchical

fuzzy categorization. In (Larsen et al., 2006), pages

170–184.

Bosc, P., HadjAli, A., and Pivert, O. (2006). Relaxation

paradigm in a ﬂexible querying context. In (Larsen

et al., 2006), pages 39–50.

Bosc, P., Lietard, L., and Pivert, O. (1994). Soft querying,

a new feature for database management systems. In

DEXA, pages 631–640.

Bosc, P., Lietard, L., and Pivert, O. (1995). Quantiﬁed state-

ments in a ﬂexible relational query language. In SAC

’95: Proceedings of the 1995 ACM symposium on

Applied computing, pages 488–492, New York, NY,

USA. ACM Press.

Braga, D., Campi, A., Damiani, E., Pasi, G., and Lanzi, P. L.

(2002). FXPath: Flexible querying of xml documents.

In Proc. of EuroFuse.

Campi, A., Guinea, S., and Spoletini, P. (2006). A fuzzy ex-

tension for the xpath query language. In FQAS, pages

210–221.

Damiani, E. and Tanca, L. (2000). Blind queries to xml

data. In DEXA LNCS 1873, pages 345–356.

HadjAli, A. and Pivert, O. (2008). Towards fuzzy query

answering using fuzzy views - a graded-subsumption-

based approach. In ISMIS, pages 268–277.

Larsen, H. L., Pasi, G., Arroyo, D. O., Andreasen, T., and

Christiansen, H., editors (2006). FQAS 2006, Mi-

lan, Italy, June 7-10, 2006, volume 4027 of LNCS.

Springer.

Li, H.-G., Aghili, S. A., Agrawal, D., and Abbadi, A. E.

(2006). FLUX: Fuzzy content and structure matching

of XML range queries. In Proceedings of WWW 2006,

May 23-26, 2006, Edinburgh, Scotland.

Sanz, I., Mesiti, M., Guerrini, G., and Berlanga, R. (2008).

Fragment-based approximate retrieval in highly het-

erogeneous xml collections. Data Knowl. Eng.,

64(1):266–293.

Sanz, I., Mesiti, M., Guerrini, G., and Llavori, R. B. (2006).

Highly heterogeneous xml collections: How to re-

trieve precise results?. In (Larsen et al., 2006), pages

232–244.

Schlieder, T. (2002). Schema-driven evaluation of approx-

imate tree-pattern queries. In Springer, editor, Pro-

ceedings of EDBT.

FCTA2014-InternationalConferenceonFuzzyComputationTheoryandApplications

210
