A Vision Architecture

Christoph von der Malsburg

Frankfurt Institute for Advanced Studies, Frankfurt, Germany

Keywords: Vision, Architecture, Perception, Memory.

Abstract: We are offering a particular interpretation (well within the range of experimentally and theoretically

accepted notions) of neural connectivity and dynamics and discuss it as the data-and-process architecture of

the visual system. In this interpretation the permanent connectivity of cortex is an overlay of well-structured

networks, “nets”, which are formed on the slow time-scale of learning by self-interaction of the network

under the influence of sensory input, and which are selectively activated on the fast perceptual time-scale.

Nets serve as an explicit, hierarchical representation of visual structure in the various sub-modalities, as

constraint networks favouring mutually consistent sets of latent variables and as projection mappings to deal

with invariance.

1 INTRODUCTION

The performance of human visual perception is far

superior to that of any computer vision system and

we evidently still have much to learn from biology.

Paradoxically, however, the functionality of neural

vision models is worse, much worse, than that of

computer vision systems. We blame this shortfall on

the commonly accepted neural data structure, which

is based on the single neuron hypothesis (Barlow,

1972). We propose here a radically new

interpretation of neural tissue as data structure, in

which the central role is played by structured neural

nets, which are formed in a slow process based on

synaptic plasticity and which can be activated on the

fast psychological time-scale. This data structure

and the attendant dynamic processes make it

possible to formulate a vision architecture into

which, we argue, many of the algorithmic processes

developed in decades of computer vision can be

adapted.

2 STRUCTURED NETS

Although we live in a three-dimensional world,

biological vision is, to all we know, based on "2.5-

dimensional" representations, that is, two-

dimensional views enriched with local depth

information. The vision modality has many sub-

modalities – texture, colour, depth, surface

curvature, motion, segmentation, contours,

illumination and more. All of these can naturally be

represented in terms of local features tied together

into two-dimensional “nets” by active links. Nets are

naturally embedded in two-dimensional manifolds

and have short-range links between neurons. Neural

sheets, especially also the primary visual cortex, can

support a very large number of nets by sparse local

selection of neurons, which are then linked up in a

structured fashion (see Fig. 1). Given the cell-

number redundancy in primary visual cortex

(exceeding geniculate numbers by estimated factors

of 30 or 50) there is much combinatorial space to

define many nets. These nets are formed by

statistical learning from input and by dynamic self-

interaction. In this way a distributed memory for

local texture in the various modalities can be stored

already in retinal coordinates, that is, in primary

visual cortex. We would like to stress here the

contrast of this mode of representation to the current

paradigm. To cope with the structure of the visual

world, a vision system has to represent a hierarchy

of sub-patterns, “features”. In standard multi-layer

perceptrons (for an early reference see Fukushima,

1980) all features of the hierarchy are represented by

neurons. What we are proposing here amounts to

replacing units as representatives of complex

features by local pieces of net structure tying

together low-level feature neurons (or “texture

elements”, neurons representing the elementary

features that are found in neurophysiological

experiments in primary visual cortex). This has a

345

von der Malsburg C..

A Vision Architecture.

DOI: 10.5220/0005158103450350

In Proceedings of the International Conference on Neural Computation Theory and Applications (NCTA-2014), pages 345-350

ISBN: 978-989-758-054-3

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

number of decisive advantages. First, structured

nets represent visual patterns explicitly, as a two-

dimensional arrangement of local texture elements.

Second, as alluded to above, large numbers of nets

can be implemented on a comparatively narrow

neural basis in a combinatorial fashion. Third,

partial identities of different patterns are taken care

of by partial identity of the representing pieces of net

structure. Fourth, a whole hierarchy of features can

be represented in a flat structure already in primary

visual cortex (a shade of neurophysiological

evidence for the lateral connections between neurons

surfaces in the form of non-classical receptive fields,

see Allman et al. 1985). Fifth, nets that are

homeomorphic to each other (i.e., can be put into

neuron-to-neuron correspondence such that

connected neurons in one net correspond to

connected neurons in the other) can activate each

other directly, without this interaction having to be

taught, see below.

3 ACTIVATION OF NETS

Once local net structure has been established by

learning and self-interaction, the activation by visual

input takes the following form (see Fig. 1). The

sensory input selects local feature types. Each

feature type is (at least in a certain idealization)

represented redundantly by a number of neurons

with identical receptive fields. Sets of such input-

identical redundant neurons form “units”. Within a

unit there is an inhibitory system inducing winner-

take-all (WTA) dynamics (only one or a few of the

redundant neurons surviving after a short time). The

winners in this process are those neurons that form

part of a net, that is, whose activity is supported by

lateral, recurrent input.

This process of selection of the input-activated

neurons that happen to be laterally connected as a

net is an important type of implementation of

dynamic links: although the connections are actually

static, nets are dynamically activated by selection of

net-bearing neurons. For another type see below.

Local pieces of net structure can be connected

like a continuous mosaic into a larger net. This may

be compared to the image-compression scheme in

which the texture within local blocks of an image is

identified with a code-book entry (only the

identifying number of the code-book entry being

transmitted), the code-book entries tiling the image.

4 GENERATION OF NETS

Net structure in primary visual cortex is shaped by

two influences, input statistics and self-interaction.

One may assume that the genetically generated

initial structure has random short-range lateral

connections. In a first bout of organization receptive

fields of neurons are shaped by image statistics,

presumably under the influence of a sparsity

constraint (Olshausen and Field, 1996). In this

period the WTA inhibition may not yet be active,

letting neurons in a unit develop the same receptive

field. Then the network becomes sensitive to the

statistics of visual input within somewhat larger

patches (the scale being set by the range of lateral

connections) and pieces of net structure are formed

by synaptic plasticity strengthening connections

between neurons that are often co-activated and

WTA-selected, while net structure is optimized by

the interplay between (spontaneous or induced)

signal generation and Hebbian modification of

synaptic strengths under the influence of a synaptic

sparsity constraint.

5 MODALITIES

Different sub-modalities (texture, colour, depth,

motion, ..) form their own systems of net structure,

that is, representations of local patterns that are

statistically dominant in the sensory input. Each

modality is invariant to the others and has its own

local feature space structure with its own

dimensionality, three for colour, two for in-plane

motion, one for (stereo-)depth, perhaps 40 for grey-

level texture and so on. Different values along a

given feature dimension are represented by different

neurons, or rather units containing a number of

value-identical neurons. Different value-units of the

same feature dimension, forming a “column”, inhibit

each other, again in WTA fashion.

6 LATENT VARIABLES

Several units standing for different values of a sub-

modality feature may be simultaneously active to

varying degree. They may be seen as representing

different hypotheses as to the actual value of the

feature dimension. These activities thus represent

heuristic uncertainty, which during the perceptual

process needs to be reduced to certainty. In

distinction to computer graphics, realized as a

NCTA2014-InternationalConferenceonNeuralComputationTheoryandApplications

346

deterministic process proceeding from definite

values of all involved variables determining a scene,

vision is an inverse problem, in which these values

first have to be found in a heuristic process that is

inherently non-deterministic. The initially unknown

quantities are called latent variables. The task of the

perceptual process is the iterative reduction of the

heuristic uncertainty of latent variables (“perceptual

collapse”), which is possible by the application of

consistency constraints and known memory patterns.

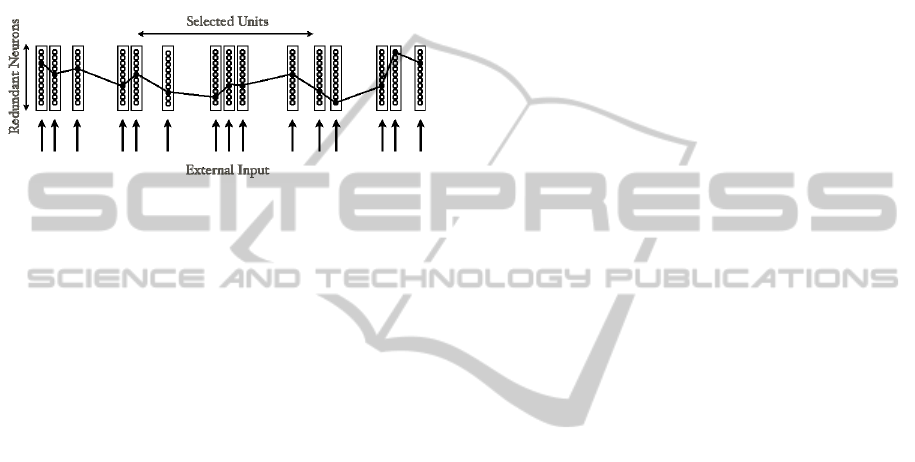

Figure 1: Combinatorially many nets co-exist within a

cortical structure (schematic). Units (vertical boxes) are

sets of neurons with identical receptive field. Visual input

selects a sparse subset of units (vertical arrows from

below). Neurons within units have WTA dynamics. The

winner neurons are those that are supported by lateral

connections from neurons in other selected units. Lateral

connections have net structure. A neuron can be part of

several nets, thus, many nets can co-exist.

7 CONSISTENCY CONSTRAINTS

Whereas the winner neurons within units are

selected by the patten-representing lateral

connections (which may be called “horizontal nets”),

thus factoring in memory patterns, the winner unit

inside feature columns are selected by another kind

of net structure, “vertical nets”,

which are formed by

connections running between value units in different

sub-modalities. A vertical net ties together feature

value units that are consistent with each other,

consistency meaning that signals that arrive at a unit

over alternate pathways within the net as well as

sensory signals agree with each other. Like the net

structures representing memory for local feature

distribution, consistency nets are established by a

combination of learning from sensory input and self-

interaction.

8 INTRINSIC COORDINATE

DOMAIN

So far, we have spoken of structure in primary visual

cortex, which is dominated by retinal coordinates,

that is, image locations change with eye movements.

All local texture representation must therefore be

repeated for all positions. (This is possible only for

a limited number of local texture patches,

comparable to the sizes of codebooks in image-

compression schemes). In order to store and

represent larger chunks of visual structure, such as

for recurring patterns like familiar objects or abstract

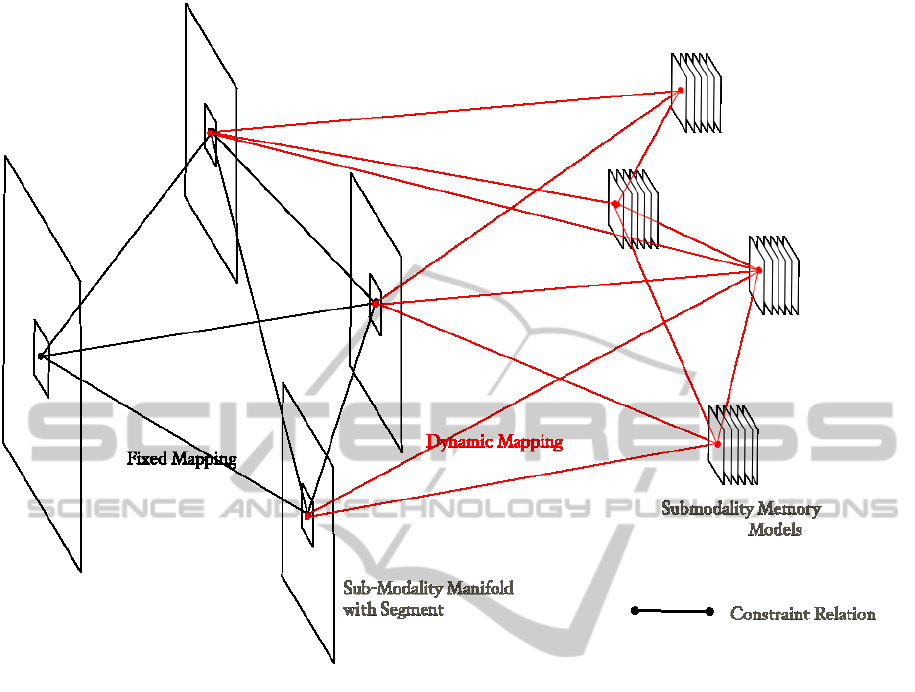

whole-scene lay-outs, there is another domain, see

Figure 2, presumably infero-temporal cortex, in

which neurons, units and columns refer to pattern-

fixed, intrinsic coordinates. (For the structure of

fibre projections between the retinal-coordinate and

the intrinsic-coordinate domains see below.) The

intrinsic domain can be much more parsimonious

than the retinal one in not needing to repeat net

structures over the whole visual field, so that it can

afford to spend more redundancy in each intrinsic

location, so as to be able to store a very large

number of pattern-spanning nets.

Also the intrinsic domain contains sub-structures

for the representation of sub-modalities, and again

there are nets for the representation of mutual

constraints between the sub-modalities. Thus, the

two domains are qualitatively the same but

quantitatively very different.

9 DYNAMIC MAPPINGS

The two domains with retinal and intrinsic

coordinates are connected by dynamic point-to-point

and feature-to-feature fibre projections that can be

switched as quickly as retinal images move, so that

correspondence between homeomorphic structures is

maintained. This switching is achieved with the

help of “control units” (Anderson and VanEssen,

1987). These can be realized as neurons whose

outgoing synapses are co-localized with the

synapses of the projection fibres they control at

dendritic patches of the target neurons. If those

patches have threshold properties, the projection

fibres can transmit signals only if also the

controlling fibre is active. The hypothesis that

dendritic patches with non-linear response properties

are act as decision units has been proposed long ago,

see for instance (Polsky et al., 2004).

A control neuron may, like any other neuron,

receive synaptic inputs (e.g., by re-afferent signals

that can in this way switch projection fibres such as

to compensate an intended eye movement), but they

also may get excited through their control fibres.

AVisionArchitecture

347

Figure 2: Overview of the Architecture. Each plane corresponds to one sub-modality, on the left side in retinal coordinates

(primary visual cortex), on the right side in pattern-intrinsic coordinates (infero-temporal cortex). A segment in the retinal-

coordinate domain is projected by dynamical mappings to the intrinsic-coordinate domain. Constraint interactions that help

to single out mutually latent variable values run between corresponding points (which refer to the same point on a surface

within the visual scene).

We assume that these carry signals that are

proportional to the similarity of the signal pattern in

the controlled projection fibres on the one hand and

the signal pattern in the target neurons on the other.

(Processes of control neurons would thus transmit

and receive signals and should correspondingly be

called neurites.)

Different control units stand for different

transformation parameters (relative position, size or

orientation of connected sets of neurons in the two

domains) and may be responsible for connecting a

local patch in one domain to a local patch in the

other. The set of control units for different

transformation parameters for a given patch in the

target domain form a column with WTA dynamic

and represents transformation parameters as latent

variables. In order to cover deformation,

transformation parameters may change slowly from

point to point in the target domain, and an entire

coherent mapping is represented by a net of laterally

connected control units (again, units contain a

number of redundant neurons to give leeway for

many nets to be stored side-by-side without mutual

interference).

10 SEGMENTATION

Vision is organized as a sequence of attention

flashes. During each such flash, analysis of sensory

input is restricted to a segment – a coherent chunk of

structure – e.g., to the region in retinal space that is

occupied by the image of an object. Like perception

in general, segmentation is a hen-and-egg problem,

segmentation needing recognition, recognition

needing segmentation. Certain patterns indicative of

a coherent structure are already available in primary

cortex, such as the presence of coherent fields of

NCTA2014-InternationalConferenceonNeuralComputationTheoryandApplications

348

motion, depth or colour, or familiar contour shapes.

Others, however, need reference to patterns stored in

the intrinsic coordinate domain. For this to happen,

two types of latent variables have to be made to

converge first, the transformation parameters

identifying the segment's location and size in the

retinal-coordinate domain, and a fitting model in

memory. We have modelled this process for the

purpose of object recognition, which we tested

successfully on a benchmark, observing rather fast

convergence (Wolfrum et al., 2008) . In general, the

intrinsic representation of the segment cannot be

found in memory but needs to be assembled from

partial patterns (just as the extended texture in

primary cortex is assembled from local texture

patches). Conceiving of objects as composites of

known elementary shapes is a well-established

concept (Biederman, 1987). This process of

assembly takes place in a coordinated fashion in the

different sub-modality modules. The de-

composition and re-composition of sensory patterns

is the basis for a very parsimonious system of

representing a large combinatorial universe of

surfaces of different shape, colouring texture under a

range of illumination conditions and in different

states of motion.

11 RECOGNITION

The actual recognition process of a pattern in the

retinal coordinate domain against a pattern in the

intrinsic domain may be seen as a process of finding

a homeomorphic projection, or of graph matching,

performed by many control neurons simultaneously

checking for patterns similarity while competing

with alternate control neurons and cooperating with

compatible ones (compatible in the sense of forming

together a net structure), see (Wolfrum et al., 2008).

Recognition by graph matching has a long tradition,

see for instance (Kree and Zippelius, 1988) or

(Lades et al., 1993). A related approach is

(Arathorn, 2002), who has pointed out the value of

the information inherent in the shape of the

mapping, which is produced as a by-product.

12 PREDICTION

Once this process has converged for a moving

pattern and its motion parameters have also been

determined, the system can set the fibre projection

system in motion to track the object and send short-

term predictions of sensory input from the model in

the intrinsic domain down to the primary cortex.

Successful prediction of sensory input on the basis

of a constructed dynamic model is the ultimate basis

for our confidence in perceptual interpretations of

the environment, and is very important for the

adjustment of constraint interactions.

13 ONGOING WORK AND NEXT

STEPS

We are at present working on a simple version of the

architecture, implementing the modalities grey-level

(the input signal), surface reflectance, illumination,

depth, surface orientation and shading, all realized in

image coordinates. We are manually creating

constraint interactions between them and a small

number of lateral connectivity nets. The goal is to

model the perceptual collapse on simple sample

images. To suppress the tendency of the system to

break up spontaneously into local domains

(generating spurious latent-variable discontinuities)

we are working with coarse-to-fine strategies. As

we are embedded in the lab of the Bernstein Focus

Neurotechnology Frankfurt, which is engaged in an

effort to build a computer vision system by methods

of systems engineering, we plan to adapt more and

more known vision algorithms into the architecture.

14 CONCLUSIONS

All we are proposing is to re-interpret neural tissue

and dynamics such as to see them as the natural

basis for the structures and processes that are

required for vision. The essential point is the

assumption that neural tissue is an overlay of well-

structured “nets”, which are characterized by

sparsity (in terms of connections per neuron) and

consistency of different pathways between pairs of

neurons. Particular supporting assumptions are

exploitation of cell-number redundancy and winner-

take-all dynamics to disentangle different nets and to

represent latent variables, and co-localization and

non-linear interaction of synapses on dendritic

patches. Nets are activated on the perceptual

timescale and are generated by self-interaction and

Hebbian plasticity on the learning timescale. Nets

act as data structure for the representation of

memory patterns, as networks of constraints between

latent variables in different sub-modalities and as

projection fibre mappings between retinal and

AVisionArchitecture

349

intrinsic coordinate systems. The coherent

architecture that is shaped by these assumptions

promises to decisively expand the functional

repertoire of neural models. This architecture may

even help to unify the as yet very heterogeneous

array of algorithms and data structures that has

arisen in computer vision, an urgent precondition for

progress in that field.

There is an important type of experimental

prediction flowing from our proposal concerning the

detailed wiring diagram of cortical tissue.

Analogous to the network of molecular interactions,

which is dominated by “motifs” (Shen-Orr et al.,

2002), connectivity should be dominated by closed

loops or “diamond motifs” , short alternate pathways

starting in one neuron and ending in another, or even

on the same dendritic patch of another neuron. This

may turn out to be a very important type of results in

the upcoming era of connectomics.

REFERENCES

Allman, J., Mieyin, F. and McGuinness, E., 1985.

Stimulus specific responses from beyond the classical

receptive field: neurophysiological mechanisms for

local-global comparisons in visual neurons. Annu Rev

Neurosci 8:407-30

Anderson, C. H. and Van Essen, D. C., 1987). Shifter

circuits: a computational strategy for dynamic aspects

of visual processing. PNAS 84, 6297—6301.

D.W. Arathorn D.W., 2002. Map-Seeking circuits in

Visual Cognition -- A Computational Mechanism for

Biological and Machine Vision. Standford Univ.

Press, Stanford, California.

Barlow, H.B., 1972. Single Units and Sensation: A

Neuron Doctrine for Perceptual Psychology.

Perception 1, 371-394.

Biederman, I., 1987. Recognition-by-components: a

theory of human image understanding. Psychol Rev.

94 115-147.

Fukushima, K., 1980. Neocognitron: A Self-Organizing

Neural Network Model for a Mechanism of Pattern

Recognition Unaffected by a Shift in Position.

Kree, R. and Zippelius, A., 1988. Recognition of

Topological Features of Graphs and Images in Neural

Networks. J. Phys. A 21, 813-818.

Lades, M., Vorbrüggen, J.C., Buhmann, J.. Lange, J., von

der Malsburg, C., Würtz, R.P. Würtz and Konen, W.,

1993. Distortion invariant object recognition in the

dynamic link architecture. IEEE Transactions on

Computers, 42:300-311.

Olshausen, B.A. and Field, D.J., 1996. Emergence of

simple-cell receptive fields properties by learning a

sparse code for natural images. Nature 381, 607—609.

Polsky, A. and Mel, B.W. And Schiller, J., 2004.

Computational subunits in thin dendrites of pyramidal

cells. Nature Neuroscience 7, 621-627.

Shen-Orr, S.S., Milo, R., Mangan, S. and Alon, U., 2002.

Network motifs in the transcriptional regulation

network of Escherichia coli. Nature Genetics 31, 64-

68.

P. Wolfrum, C. Wolff, J. Lücke, and C. von der Malsburg.

A recurrent dynamic model for correspondence-based

face recognition. Journal of Vision 8, 1--18.

doi:10.1167/8.7.34, 2008.

NCTA2014-InternationalConferenceonNeuralComputationTheoryandApplications

350
