Si elegans

Computational Modelling of C. elegans Nematode Nervous System using FPGAs

Pedro Machado

, John Wade

and T. M. McGinnity

1,2

Intelligent Systems Research Centre (ISRC), University of Ulster, Magee Campus, Derry, Northern Ireland

School of Science and Technology, Nottingham Trent University, Nottingham, U.K.

Keywords: Si elegans, Field Programmable Gate Array (FPGA), Hardware Neural Network (HNN), C. elegans,

Wireless Networks, Zigbee.

Abstract: It has long been the goal of computational neuroscientists to understand and harness the parallel

computational power of the mammalian nervous system. However, the vast complexity of such a nervous

system has made it very difficult to fully understand even the most basic of functions such as movement and

learning and accordingly there has been increasing attention paid to the development of emulations of

simpler systems. One such system is the C. elegans nematode, which has been widely studied in recent

years and there now exists a vast wealth of biological knowledge about its nervous structure, function and

connectivity. The Si elegans EU FP7 project aims to develop a Hardware Neural Network (HNN) to

accurately replicate the C. elegans nervous system behaviour to enable neuroscientists to better understand

these basic functions. To fully replicate the C. elegans biological system requires powerful computing

technologies, based on parallel processing, for real-time computation and therefore will use Field

Programmable Gate Arrays (FPGAs) to achieve this. In this paper an overview of the complete hardware

system required to fully realise Si elegans is presented along with an early small scale implementation of the

hardware system.

1 INTRODUCTION

The Si elegans project aims to develop a high

performance computational system for accurate

emulation of the C. elegans worm’s nervous system

behaviour. The objective is to achieve a better

understanding of biological signal processing in the

C. elegans worm, and by doing so translate such

knowledge into improved understanding of how the

human brain processes information, in both a

healthy and diseased state. Such knowledge will

advance our understanding of human cognitive

processing and lead to major advances in

computational architectures.

A replication of the C. elegans biological system

requires powerful computing technologies, based on

parallel processing, for real-time computation. To

achieve this, Si elegans will use Field Programmable

Gate Arrays (FPGAs), due to their advanced

programmable features that allow reconfigurability,

emulation of biological plasticity, high performance

parallel processing and relatively low price per

programmable logic element.

FPGA devices consist of a substantial amount of

uncommitted hardware resources, which can be

reprogrammed after manufacture. Basically any

circuit implemented on an FPGA can be seen as a

hardware simulation of a corresponding hard-wired

circuit. Furthermore, FPGA-based circuits have the

following characteristics: reprogrammable, mainly

parallel, low power consumption and easy to

integrate. Because of these characteristics, FPGAs

have evolved substantially in recent years, making

FPGAs extremely powerful computational devices.

Modern FPGAs have increased speed, lower power

consumption, Intellectual Property (IP) blocks for

Digital Signal Processing (DSP), increased built-in

memory and large numbers of I/Os. These features

are fundamental in allowing Si elegans to achieve a

unique emulation framework where users can

perform their complex neural simulations.

To mimic the parallel computational power of a

nervous system, the Si elegans project will harness

the large number of FPGA Inputs/Outputs (I/Os) to

keep neural communications completely parallel.

Therefore the connections between FPGAs can be

made through a wired or a wireless connection. In

169

Machado P., Wade J. and M. Mcginnity T..

Si elegans - Computational Modelling of C. elegans Nematode Nervous System using FPGAs.

DOI: 10.5220/0005169301690176

In Proceedings of the 2nd International Congress on Neurotechnology, Electronics and Informatics (-2014), pages 169-176

ISBN:

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

this paper possible synaptic connectivity solutions

based on wired connections and ZigBee mesh

wireless connections are explored.

In section 2 a brief review of current wireless

network (WN) technology is presented and is

followed by a background review of Hardware

Neural Networks using FPGAs in section 3. An

overview of the Si elegans hardware framework is

described in section 4. The Si elegans project is

currently at an early stage and in section 5 a small

scale prototype of the Si elegans project is described

and some preliminary results are presented in section

6. Finally, section 7 draws conclusion to the paper

and describes future work.

2 WIRELESS NETWORKS

In this section we focus briefly on wireless network

technologies, specifically, wireless local area

networks (WLANs) IEEE 802.11, and wireless

personal area networks (WPANs) IEEE 802.15. Due

to the evolution of distributed computation,

medicine, robotics, defence, aerospace technology,

automation and other demanding applications new

requirements related to speed, costs, power

consumption and range have arisen. Wireless Mesh

Networks (WMNs) are specified by IEEE 802.11s

and IEEE 802.15.5 standards. WLAN and WPAN

try to implement the majority of these requirements

making the selection of the right wireless network

technology very complex. Several surveys have been

made comparing different WLAN and WPAN types,

highlighting the positive and negative aspects of

each (Seth, Gankotiya, and Jindal, 2010), (Kaur and

Sharma, 2013), (Abdul Ghayum, 2010), (Lee, Su,

and Shen, 2007). From these surveys the most

relevant WN can be seen in Table 1.

In our small scale system 17 wireless devices are

required (see section 5 for further details). The ultra-

wideband (UWB) and the Bluetooth WN were not

considered as they only support up to 8 nodes. The

selection between Wi-Fi and Zigbee devices relies

on the data rate, price per device, transmission speed

and connectivity protocol. The two candidates were

the WiFly (WiFi protocol) wireless module by

Rovers Networks and the XBee (Zigbee protocol)

series 2 by Digi. Both devices have Universal

Asynchronous Receiver-Transmitter (UART)-to-

wireless bridges that facilitate data transmission with

abstraction from the wireless layer. The XBee

module was selected because an XBee network

configuration is much simpler than WiFly and the

price of each XBee modules is almost half of the

price of each WiFly modules.

Table 1: Comparison of Bluetooth, UWB, Zigbee and Wi-

Fi networks (Kaur & Sharma, 2013) (Lee et al., 2007).

Blue

tooth

UWB Zigbee Wi-Fi

IEEE spec 802.15.1 802.15.3a 802.15.4 802.11a/b/g

Frequency

band

2.4 GHz

3,1 to 10.6

GHz

868/915

MHZ;

2.4GHz

2.4/5 GHz

Nominal TX

power

0 – 10

dBm

-41.3

dBm/MHz

-25 – 0

dBm

15 – 20 dBm

Max signal

rate

1 Mbps 110 Mbps

250

Kbps

54 Mbps

Number of

cell nodes

8 8 >65000 2007

Indoor range 10 m 10m 100m 100m

3 FPGA NEURAL NETWORK

BACKGROUND

Hardware neural networks (HNNs) take advantage

of the truly parallel and distributed processing

capabilities of a biological nervous system. Over the

last 2 decades FPGAs have being used for many

intelligent applications, including the emulation of

neural processing, but also in pattern recognition and

robotics (Misra and Saha, 2010).

Most HNN implementations to date emulate

multiple-neurons on a single FPGA device (Glackin,

McGinnity, Maguire, Wu, and Belatreche, 2005),

(Ang, McEwan, van Schaik, Jin, and Leong, 2012),

(Iakymchuk, Rosado, Frances, and Batallre, 2012)

and (Pande, et al., 2013). However, some

implementations of a single neuron per FPGA

device exist (Mohamad, Mahmud, Adnan, and

Abdullah, 2012), (Salapura, Gschwind, and

Maischberger, 1994). Similar to these approaches, it

is proposed that the Si elegans system utilise a single

FPGA per neuron topology allowing for greater

biophysically realistic neuron and synaptic

descriptions. Si elegans is different from previous

single FPGA per neuron systems in that users can

select neuron models from a neuron model library

and freely parameterise these models. All library

models are represented in VHDL format and

currently consists of 2 simple neuron models,

namely the Integrate and Fire (IF) given by

(Gerstner and Kistler, 2002):

CtI

)(

(1)

and the LIF given by (Gerstner and Kistler, 2002):

NEUROTECHNIX2014-InternationalCongressonNeurotechnology,ElectronicsandInformatics

170

)()( tIRtv





(2)

where v is the membrane potential, R

is the

membrane resistance, I(t) is the sum of all synaptic

currents at time t, C

is the membrane capacitance

and τ

is the membrane time constant. Ongoing

work is focused on VHDL translations of more

biophysical realistic neural models such as the

Hodgkin and Huxley Model (Hodgkin & Huxley,

1952), FitzHugh-Nagumo Model (FitzHugh, 1961),

(Nagumo, Arimoto, & Yoshizawa, 1962), Morris-

Lecar Model (Morris & Lecar, 1981) and the

Izhikevich Model (Izhikevich, 2003).

4 Si elegans OVERVIEW

The Si elegans project commenced in April 2013

and is thus currently at an early developmental stage.

In this section an overview of the full Si elegans

framework is presented.

The project aims to develop a powerful

framework capable of performing realistic

simulations of the C. elegans nervous system. An

overview of the full Si elegans framework

architecture is depicted in Figure 1.

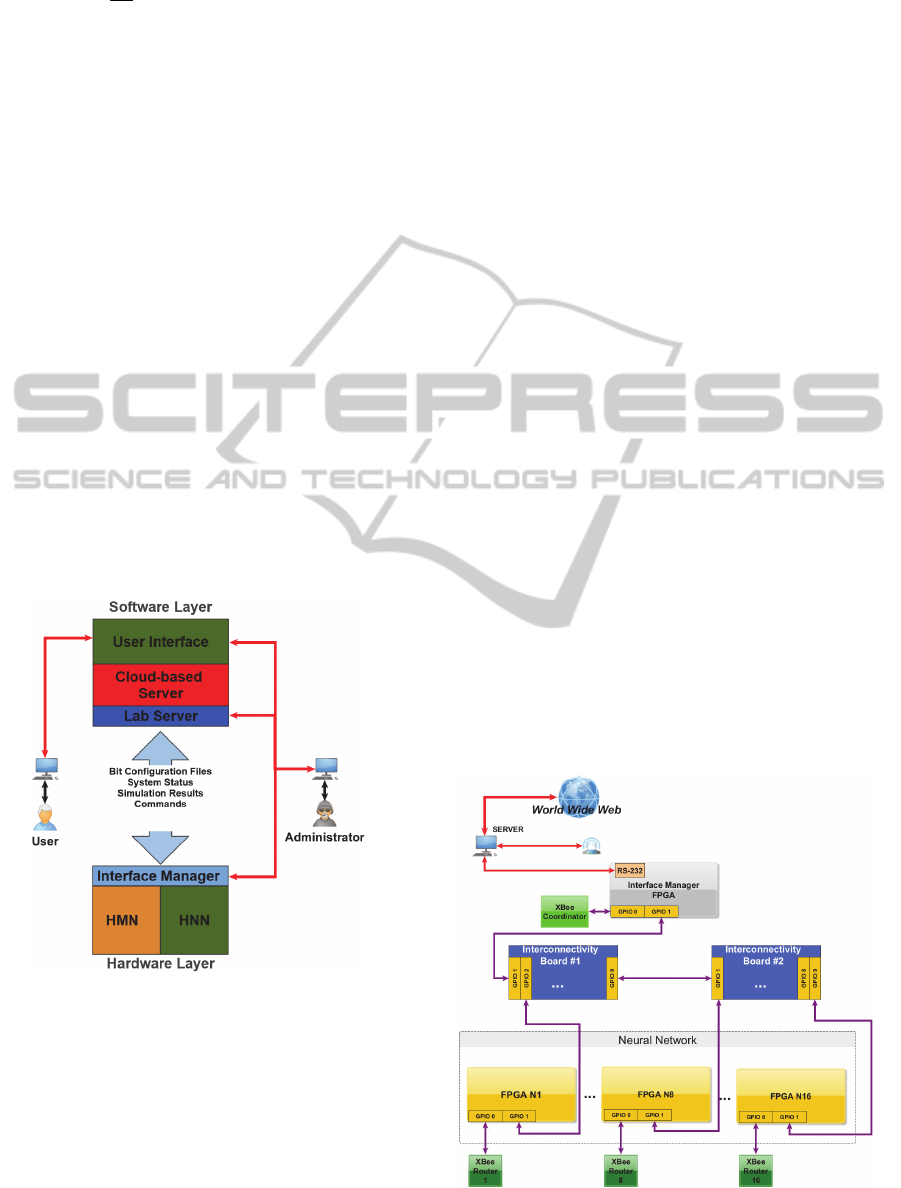

Figure 1: Si elegans framework architecture.

Users are assumed to include neuroscientists,

biologists, computational intelligence and intelligent

systems researchers interested in studying the C.

elegans’ BNS.

It is anticipated that users connect to Si elegans

platform via a Web Portal using a variety of

computational devices. Users can activate Si elegans

using the User Interface (UI). The UI provides an

advanced graphical Hardware Neuron Network

(HNN) and Hardware Muscle Network (HMN)

definition environment where users can define

simulations using predefined neural

models/parameters or create their own and then run

their simulation on the dedicated hardware.

The UI will also provide a dynamic environment

(Virtual Arena) both for emulating the worm’s

physical sensory input interactions with the world,

and for observing the resulting behaviour of the

nematode in a 3D cinematic virtual environment.

The main aim of the work presented in this paper

is related to the development of the hardware layer,

which is composed of 330 tightly coupled FPGA

boards, arranged in a set of conventional racks.

These correspond to the C.elegans 302 neurons and

95 muscles. The focus of the paper is an exploration

of non-wired connectivity schemes, in this case a

wireless network based synaptic connectivity

scheme.

5 SMALL SCALE Si elegans HNN

In this section a small scale prototype system

composed of 16 neuron FPGAs and one Interface

Manager (IM) FPGA is implemented for concept

validation. All FPGAs are Terasic Altera-based DE4

boards.

An XBee module was installed on each of the17

FPGA boards via custom built XBee shields

connected to one of the two 40-pin general purpose

inputs outputs (GPIO). The second 40-pin GPIO was

used to interconnect the 17 FPGAs using a

Figure 2: 16 HNN architecture.

Sielegans-ComputationalModellingofC.elegansNematodeNervousSystemusingFPGAs

171

specifically designed interconnect board to provide

wired synaptic connections. These latter wired

connections allow for a comparison between the two

connection schemes and are not used during XBee

simulations.

The Interface Manager (IM) is connected to a

Server through an RS-232 cable that is used to

receive simulation parameters from the Server and to

send the simulation results back to the Server. Figure

2 represents the 16 HNN architecture.

5.1 Hardware Layer

The hardware layer of the small scale 16 HNN is

composed of:

 Interface Manager (IM): this programs the

neuron FPGAs and ensures that all the neurons

are on the same biological clock cycle. Collates

the simulation results and sends back to the

Server.

 Server: sends simulation parameters, receives

and visualizes simulation results;

 Hardware Neural Network (HNN): performs

computations;

 XBee modules: transmits/receives spikes

across the Zigbee mesh network (ZMN).

 Interconnectivity Board: wired intercom-

nectivity of neurons and interface manager for

comparison with the wireless connectivity

scheme.

5.1.1 Interface Manager

The IM shares 5 channels that are used to exchange

data and for synchronization with the neuron

FPGAs. Each channel is used to transmit/receive the

following data type:

 Biological Clock Pulse (BCP): transmits one

pulse per timestamp. These pulses are used to

inform the neurons that a new timestamp has

started;

 Transmit data (BTx): broadcasts data from the

IM across all the neurons;

 Receive data (BRx): receives neuron

computation ended confirmation from all the

neurons.

 Master Clock: 1.8432 MHz;

 UART Clock: 115.200 KHz.

The Server sends the simulation parameters to the

IM, and the IM stores the simulation parameters

while broadcasting the parameters through the BTx

channel using the same UART protocol that is used

between the Server and the IM. If at least one spike

was generated during that Biological Clock Cycle

(BCC) then the IM sends those spikes back to the

Server and broadcasts that information through the

ZMN or the wired connections.

The IM Biological Clock controller generates

pulses that are used to ensure that all the neurons are

at the same biological clock cycle even if different

types of neuron models, with different computation

times, are running in different FPGAs.

5.1.2 Server

The Server is used to generate and send simulation

parameters as well as receive and visualize the

simulation results. It is connected to the IM through

the COM port (RS-232). The COM port is

configured with a baudrate of 115.2 kHz, 1 stop bit,

8 bits and no parity.

5.1.3 HNN

The HNN is composed of 16 neuron FPGAs. Each

neuron FPGA has two neuron models that were

described in VHDL. The IM broadcasts the

configuration parameters sent by the Server to all

neuron FPGAs.

During the simulation period the neuron FPGAs

receive BCPs. When a new BCP is received the

neuron controller provides the buffered synaptic

inputs states to the neuron model and the new

membrane potential is calculated. If the membrane

potential reaches the threshold then a spike is

generated and sent to the neuron controller. The

neuron controller sends the neuron ID and the spike

through the ZMN to the IM and if the computation is

finished the neuron sends a neuron computation

ended confirmation through the BRx using a SPI

protocol.

When the simulation finishes the IM sends the

simulation data for that BCP and stops the

simulation.

5.1.4 Zigbee Mesh Network (ZMN)

Each XBee module was configured using the Digi

X-CTU software. The XBee modules used on the

neuron FPGAs were programmed as Routers and the

XBee module used on the IM was configured as

coordinator. Each router was programmed to

send/receive data to/from the coordinator XBee (see

Figure 3).

NEUROTECHNIX2014-InternationalCongressonNeurotechnology,ElectronicsandInformatics

172

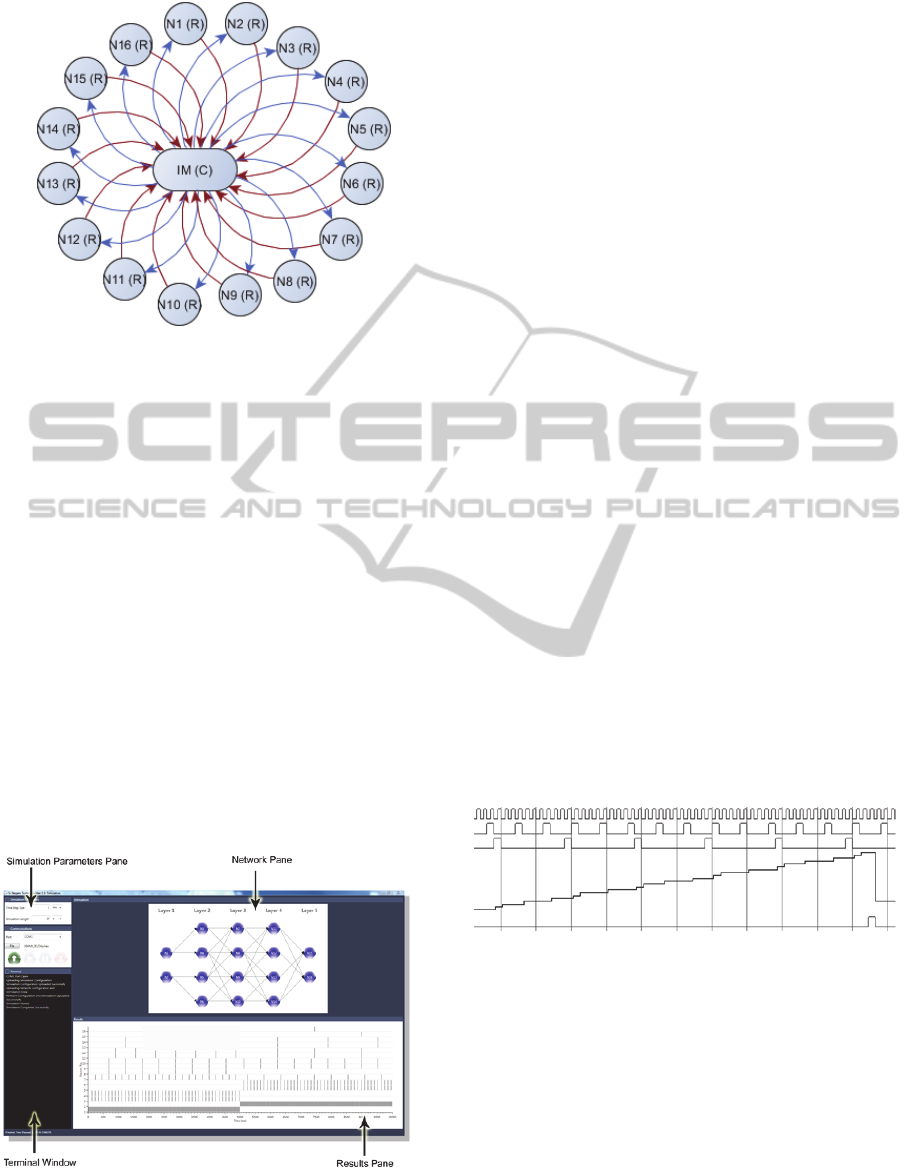

Figure 3: Zigbee mesh topology.

5.2 Software Layer

A simple software test bed was developed (Si

elegans System Builder) which allows the user to

describe and configure the desired network

configuration to be carried out on the FPGAs. The

software is presented in a simple “wizard” format

which asks the user a series of questions about their

configuration requirements. These requirements

comprise of information about network topology and

the neural models/parameters used throughout the

network. This test bed enabled testing of the

described 16 HNN.

Currently the user can implement a network with

a maximum of 16 neurons chosen from a pre-

defined library of neural models (at present,

Integrate and Fire or Leaky Integrate and Fire).

Furthermore, the user can change any of the

available model parameters and can implement the

desired network interconnection.

Figure 4: Screen shot of the Si elegans System Builder

Wizard.

Once the Si elegans System Builder creates the

necessary files the user can upload the configuration

to the FPGAs and start a simulation via a simulation

tool provided by the Si elegans System Builder

software (see Figure 4).

This tool allows the user to interact with the

hardware in several ways. Firstly, in the Simulation

Parameters Pane the user can specify the time step of

the simulation, the required simulation length, the

COM port used to connect to the hardware and the

file to be uploaded. Below this the Terminal

Window, which informs the user about the upload

success and simulation progress. The Network

Stimulation Pane displays a graphical representation

of the configuration network. Finally, the Results

Pane displays simulation results to the user in real

time. The main aim of this software is to provide the

ISRC with a simple to use, full software test bed for

testing the developed FPGA neural emulation

platform. It is not intended to replace the full virtual

arena being developed by partner Vicomtech.

6 RESULTS

The 16 neuron small scale system consists of two

well-known neural models were developed:

 Integrate and Fire (Gerstner and Kistler, 2002)

 Leaky Integrate and Fire (Gerstner and Kistler,

2002)

Simulation results of these neural models can be

seen in Figure 5 and Figure 6 where each model has

been tested individually using the Mentor Graphics

Questa Sim 10.1d.

Figure 5: Simulation results of the Integrate and Fire

neuron model on Mentor Graphics Questa Sim 10.1d.

Note: the first row is the biological clock, rows 2 and 3

represent synaptic inputs, row 4 represents the neuron

membrane voltage and row 5 represents the output spikes

of the neuron.

In each test case 2 synaptic input spike trains

with a frequency of 250Hz and 100Hz respectively

were generated to stimulate the neuron.

Furthermore, the following parameters were used:

Cm = 1nF; Rm = 40MΩ; vth = 10mV; vreset =

2mV; vref = 5ms; weight = 1.

Sielegans-ComputationalModellingofC.elegansNematodeNervousSystemusingFPGAs

173

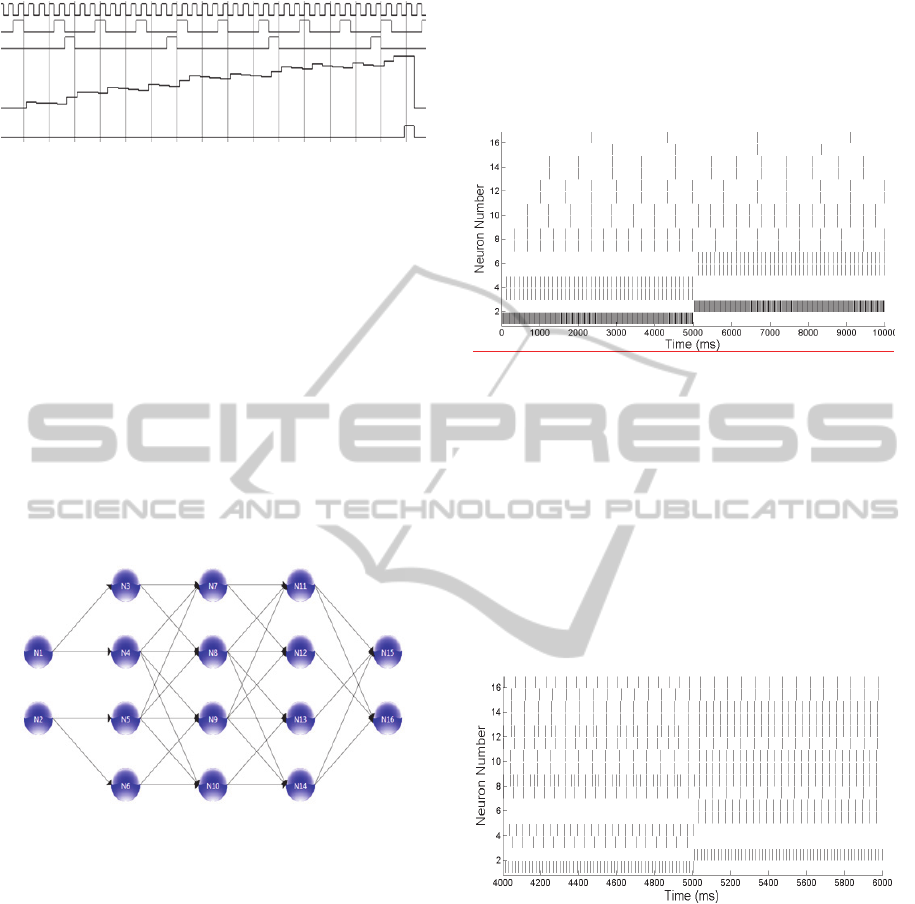

Figure 6: Simulation results of the Leaky Integrate and

Fire model on Mentor Graphics Questa Sim 10.1d. Note:

the first row is the biological clock, rows 2 and 3 represent

synaptic inputs, row 4 is the neuron membrane voltage and

row 5 represents the output spikes of the neuron.

A series of experiments was then performed on

the 16 neuron small scale FPGA hardware using the

feed-forward, partially connected neural network

configuration described in Figure 7, which was

developed in the Si elegans System Builder. These

experiments were first carried out with XBee

wireless synaptic transmission and then with

hardwired synaptic connections, thus allowing a

comparison of both methods. A number of different

network configurations with neurons models/

parameters were examined, to ensure that the system

could handle different models at the same time.

Figure 7: Neural network topology.

When a simulation is started, the configuration

hex stream is uploaded through the COM port to the

interface manager which relays the configuration

setup to the neuron boards. After uploading the

configuration hex streams the Interface Manager

starts the simulation. The simulations ran for 10000

Biological Clock Cycles (BCC) with a time step of

1ms; total simulation time = 10s.

During the simulations a constant current was

applied to neuron 1 for the first 5s and then a

constant current was applied to neuron 2 for the

remainder of the simulation. If a neuron spikes as a

result of stimulation or synaptic activity during a

BCC the information is sent back to the Interface

manager. All spikes during a BCC are collated and

then broadcast by the Interface Manager to all

neurons. Each neuron then listens for spikes that

were emitted by pre synaptic neurons and a new

BCC starts. Furthermore the Interface Manger relays

this spike information back to the Server. Typical

results generated by a simulation can be seen in

Figure 8 and Figure 9.

Figure 8: Typical simulation results 1s – 10s (all IF

neurons).

Figure 8 presents a network comprised only of IF

neurons with each synapse given a weight of 2. Note

that when neuron 1 and 2 are stimulated with a

constant current injection they fire the fastest and

cause all other spiking activity throughout the

network. As expected, as the information propagates

through the network each successive layer’s firing

rate decreases. Furthermore as the stimulus changes

from neuron 1 to neuron 2 the firing patterns

throughout the network also change.

Figure 9: Typical simulation results 4s -10 s (all LIF

neurons).

Figure 9 describes results from a network

comprising of LIF neurons. In this case the weights

were randomly initialised between 4 and 9. It is

again clear that as network stimulation changes the

firing patterns also change. Although these results

have no biophysical meaning, they do enable testing

of the small scale hardware architecture and neural

model functionality.

Results from both wired and wireless connection

schemes were analysed for differences; both

methods provided exactly the same results therefore

no packet loss occurred during wireless simulation.

NEUROTECHNIX2014-InternationalCongressonNeurotechnology,ElectronicsandInformatics

174

However, there was a dramatic increase in

simulation run time during wireless experiments.

Wireless simulations required ~15 times more time

to complete. This was a result of the 100ms delay

necessary between XBee communication

transmissions.

Finally, the 16 neurons HNN was also used to

develop the communications protocol that will be

used in the final system. Furthermore, the use of the

COM port helped the authors to validate the data

payload protocol that is exchanged between devices,

however this type of communication is slower when

compared with an Ethernet connection. In the near

future the COM port will be substituted by an

Ethernet connection which will result in a

communications speed increase.

7 CONCLUSIONS AND FUTURE

WORK

Currently simulation of neural networks comprised

of biophysical realistic models of neurons requires

prohibitively long simulation times. Therefore large

scale simulations generally utilise phenomenological

models which do not capture the rich dynamics of

biophysical models. The Si elegans project is a

multi- platform environment which aims to emulate

faithfully the small yet extremely complex nervous

system of the C. elegans nematode. Furthermore the

platform will be freely accessible to neuroscientists,

enabling them to easily explore the different neural

behaviours and functions of the C. elegans worm.

The hardware framework will also be scalable,

allowing neuroscientists to define new neural

models and connectomes. This will ultimately lead

to a better understanding of how neural systems

function.

In this paper early evaluation work on the

hardware architecture of the Si elegans framework

was described, where both wired and wireless

synaptic connectivity were configured and

compared. The XBee solution resulted in longer run

times when compared to wired connected synapses.

This was due to the extra information broadcast by

the XBee protocol for each spike and the required

delays between transmissions, whereas the wired

connection protocol only has to send a single bit for

each spike. Therefore, a wireless synaptic

transmission of spikes must be reduced to a single

bit to achieve the fastest possible simulation times.

This will be achieved via optical based synaptic

interconnect boards currently under development by

our partners in Istituto Italiano di Technologia (IIT).

The next stage of this work will be to integrate

the optical based synaptic interconnect boards.

During this stage all wired connectivity will be

removed and the system will be retested by re-

running all simulations previously carried out. This

will ensure that developed system is capable of

driving and communicating correctly with the new

synaptic interconnect boards. The RS-232

transmission protocol which allows communication

with the Server will also be changed to Ethernet

which will increase information throughput and

decrease simulation run times.

Work is also currently underway to increase the

neuronal model library to include more detailed

neural models such as Hodgkin and Huxely, as well

as including synaptic models and STDP learing.

Finally, the small scale system will be developed

to full scale with custom made FPGA boards and

integrated into the complete Si elegans system with

other system components developed by our project

partners National University Ireland Galway

(NUIG), IIT and Vicomtech. NUIG are currently

focussed on implementing a module which allows

users to define new neural models using various

neural modelling languages which are then

automatically translated to HDL for use with the Si

elegans hardware. The software layer UI and virtual

arena which grants the user access to the framework

and provides simulation analysis tools to the user is

currently uder development by Vicomtech.

ACKNOWLEDGEMENTS

The research leading to these results has been

partially supported by the Si elegans project, which

has received funding from the European

Community’s 7th Framework Programme under the

Neuro BioInspired Systems Project Grant agreement

601215. We also wish to thank Altera University

Program for FPGA board donations.

REFERENCES

Abdul Ghayum, M. S. (2010). Thesis on Comparative

study of wireless protocols : wi-fi, bluetooth, ZigBee,

WirelessHART and ISA SP100, and their effectiveness

in industrial automation. Texas: The University of

Texas at Austin.

Ang, C., McEwan, A., van Schaik, A., Jin, C., and Leong,

P. (2012). FPGA implementation of biologically-

Sielegans-ComputationalModellingofC.elegansNematodeNervousSystemusingFPGAs

175

inspired auto-associative memory. Electronics Letters,

48(3), 148 - 149 .

FitzHugh, R. (1961). Impulses and physiological states in

theoretical models of nerve membrane. Biophysical

Journal, Volume 1(6);, 445-466.

Gerstner, W., and Kistler, W. M. (2002). Spiking Neuron

Models . Cambridge: Cambridge University Press.

Glackin, B., McGinnity, T. M., Maguire, L. P., Wu, Q. X.,

and Belatreche, A. (2005). A Novel Approach for the

Implementation of Large Scale Spiking Neural

Networks on FPGA Hardware. Computational

Intelligence and Bioinspired Systems, 3512, 552-563.

Hodgkin, A. L., and Huxley, A. F. (1952). A quantitative

description of membrane current and its application to

conduction and excitation in nerve. The Journal of

Physiology Volume 117(4);, 500–544.

Iakymchuk, T., Rosado, A., Frances, J., and Batallre, M.

(2012). Fast spiking neural network architecture for

low-cost FPGA devices. 7th International Workshop

on Reconfigurable Communication-centric Systems-

on-Chip (ReCoSoC), 1 - 6 .

Izhikevich, E. (2003). Simple model of spiking neurons.

Neural Networks, IEEE Transactions on, Volume: 14 ,

Issue: 6, 1569 - 1572.

Kaur, H., and Sharma, S. (2013). A Comparative Study of

Wireless Technologies: Zigbee, Bluetooth LE,

Enocean, Wavenis, Insteon and UWB. International

Conference On Recent Trends In Computing And

Communication Engineering - RTCCE 2013 (pp. 273 -

276). Hamirpur, Himachal Pradesh, India :

International Conference On Recent Trends In

Computing And Communication Engineering -

RTCCE 2013.

Lee, J.-S., Su, Y.-W., and Shen, C.-C. (2007). A

Comparative Study of Wireless Protocols: Bluetooth,

UWB, ZigBee, and Wi-Fi. Industrial Electronics

Society, 2007. IECON 2007. 33rd Annual Conference

of the IEEE (pp. 46 - 51 ). Taiwan: IEEE.

Misra, J., and Saha, I. (2010). Artificial neural networks in

hardware: A survey of two decades of progress.

Neurocomputing(74), 239 - 255.

Mohamad, K., Mahmud, M., Adnan, F., and Abdullah, W.

(2012). Design of single neuron on FPGA. 2012 IEEE

Symposium on Humanities, Science and Engineering

Research (SHUSER), 133 - 136 .

Morris, C., and Lecar, H. (1981). Voltage oscillations in

the barnacle giant muscle fiber. Biophysical Journal,

Volume 35(1), 193–213.

Nagumo, J., Arimoto, S., and Yoshizawa, S. (1962). An

Active Pulse Transmission Line Simulating Nerve

Axon. Proceedings of the IRE, Volume: 50 , Issue: 10,

2061 - 2070 .

Pande, S., Morgan, F., Seamus Cawley, T. B., Smit, G.,

McGinley, B., Carrillo, S., McDaid, L. (2013).

Modular Neural Tile Architecture for Compact

Embedded Hardware Spiking Neural Network. Neural

Processing Letters, Volume 38, Issue 2, 131-153.

Salapura, V., Gschwind, M., and Maischberger, O. (1994).

A fast FPGA implementation of a general purpose

neuron. Em R. W. Hartenstein, and M. Z. Servít,

Field-Programmable Logic Architectures, Synthesis

and Applications

(pp. 175-182). Prague, Czech

Republic: Springer Berlin Heidelberg.

Seth, S., Gankotiya, A., and Jindal, A. (2010). A

Comparative Study between Wireless Local Area

Networks and Wireless Mesh Networks. Computer

Engineering and Applications (ICCEA), 2010 Second

International Conference on (pp. 192 - 196 ). Bali

Island: IEEE.

NEUROTECHNIX2014-InternationalCongressonNeurotechnology,ElectronicsandInformatics

176
