SPRing: Iterative Overcoming of Software Misuse

Leah Goldin

and Reuven Gallant

Afeka Tel-Aviv Academic College of Engineering, Tel-Aviv, Israel

JCT Lev Academic Center, POB 16031, 91160, Jerusalem, Israel

Abstract. Software misuse may cause very undesirable and expensive

outcomes. Our work has proposed and we have been developing a priori

preparation techniques of an embedded software system for eventual

extensions that enable overcoming the consequences of its misuse. The center

of gravity of this paper is its iterative aspect. In other words, extensions may be

added, either continuously or after some time discontinuity. This is attained by

means of SPRing, a convenient acronym of Software Proactive Reengineering.

SPRing is based upon domain knowledge to model the system misuse.

Specifically, system behaviors modeled by statechart diagrams, can be

reengineered to suitably extend them, in order to correct diverse misuse

outcomes. The approach is demonstrated by case studies related to Signal

Traffic Lights and their controllers.

Keywords. Software, Misuse, Iterative, Proactive Reengineering, Modeling,

Statechart, Problem Domain Knowledge.

1 Introduction

Software upgrade is generally motivated by revealed previously unknown bugs or by

intended and unintended system misuse.

Misuse is very challenging. Misuse actually means that the system is not being

used according to its originally intended use. We have in previous work [5] dealt with

misuse by means of a combination of two complementary techniques: problem

domain analysis by PFA [9] and corrections in the solution domain – represented by

statechart system modeling.

This work emphasis is on iterative solution of misuse problems. By iterative we

mean a cyclic process. But in fact it is loosely cyclic, i.e. cycles may be continuous or

discontinuous – with non-negligible intermissions between cycles.

Moreover, our metaphor the SPRing – standing for Software Proactive

Reengineering – teaches us that a spring cannot be pulled indefinitely. After some

applied force threshold, the spring ceases to behave elastically and in fact may be

fractured, without possible remedy. In an analogous way, one expects a limit to the

number of misuse correcting cycles. It is an interesting question, whether one can

estimate the realistic number of cycles.

After a review of related work in the next sub-section, the remainder of the paper

introduces definitions of misuse as opposed to misbehavior (section 2), describe the

overall SPRing approach (section 3), deals with an initial iteration of misuse case for

Goldin L. and Gallant R..

SPRing: Iterative Overcoming of Software Misuse.

DOI: 10.5220/0005182100430051

In Proceedings of the 5th International Workshop on Software Knowledge (SKY-2014), pages 43-51

ISBN: 978-989-758-051-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

normal vision pedestrians (section 4), deals with the next iteration of a misuse case for

visually impaired pedestrians (section 5) and concludes with a discussion (section 6).

1.1 Related Work

PFA (Problem Frames Approach) was introduced by M.A. Jackson and is best

understood by reading Jackson’s own publications [8], [9], [10].

Statecharts were developed by D. Harel and his students in a long series of papers.

The semantics of the statecharts presented in this paper is defined in Harel and Kugler

[6].

Misuse has been analyzed in a variety of contexts. Steve and Peterson [12] try to

actually define misuse. Exman [2] rather looks at system misbehavior, to be

contrasted with misues. Alexander [1] deals with hostile misuse. Hope et al. [7]

relates misuse to abuse. Sindre and Opdahl [11] look at misuse from the point of view

of requirements.

2 Misuse as Opposed to Misbehavior

Misuse is caused by user behavior. Misbehavior is a qualification of system behavior.

Their differences are more detailed below.

2.1 Misbehavior

Software system misbehavior means that the system behaves differently from its

specified requirements, i.e. the system design and/or implementation do not comply

with the system requirements.

Misbehavior examples in the context of traffic lights are: a- they never reach the

green light; b- they randomly change colors and/or timing.

2.2 Misuse

Misuse, of a software system by a human user, means that despite the fact that the

system functions as it should – i.e. the system behavior complies with the system

requirements – some of the following may occur:

 The human user does not comply with the usage instructions;

 The human user uses the system for a different purpose than its intended use;

 Too many human users, each one making normal system usage, cause an

overall system performance degradation; the aggregate outcome of multi-

user behaviors is misuse.

Examples of traffic lights misuse are: a- a driver does not stop on red light; b- a

driver makes a U-turn when a U-turn is not allowed.

Of course not all "surprises" are bad. The system may have a heretofore untapped

potential for additional uses not anticipated by the developers. Software developers

themselves are empowered users. As they develop the product they may discover such

uses. To the extent that the product is open-source it may encourage such discovery,

typically occurring during adaptive and preventive maintenance [13].

However, unbridled creativity has a tendency to morph into feature creep, at best,

or compromise of mission-critical or safety critical systems. Eternal vigilance is

indeed the price of freedom.

3 The SPRing Approach

SPRing is a convenient acronym of Software Proactive Reengineering, first

introduced in [4]. SPRing is a combination of two proactive modelling techniques,

based upon domain knowledge, to overcome software system misuse, seen in Fig. 1:

a. Problem Analysis via PFA – this technique that associates new facts in the

problem world with needed system requirements’ changes;

b. Statechart Analysis and Upgrade – modify the system solution, viz. its

statechart, by the changed PFA.

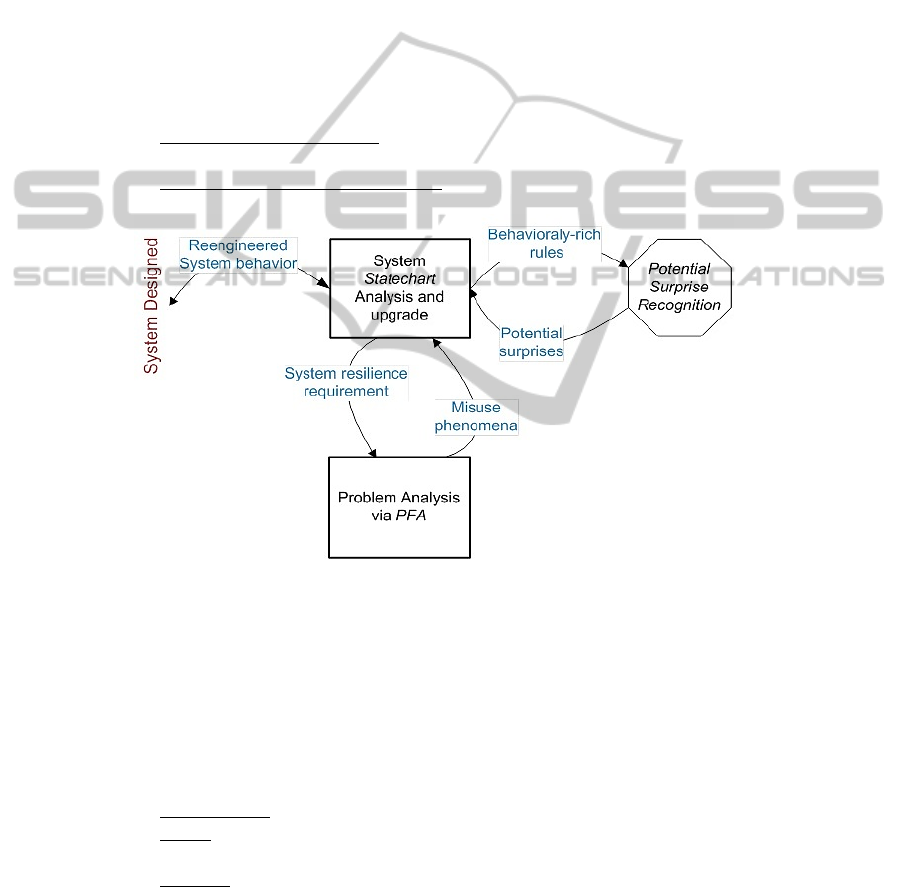

Fig. 1. Overall SPRing schematic diagram – Articulating the interactions between Problem

Analysis via PFA and System Statechart Analysis and Upgrade

Next we describe the two techniques in more detail.

3.1 Problem Analysis via PFA

PFA, Problem Frame Approach, describes the problem frame for a software system

by means of three concepts:

1) Requirements – initially formulated by the stakeholders;

2) World – the concrete problem givens, influencing the system behaviour via

real phenomena in the outside world;

3) Machine – the system control and behavior represented by a statechart.

3.2 System Statechart Analysis and Upgrade

The system statechart is upgraded to overcome the revealed misuse case in each

iteration. It is done modularly, to avoid involving the whole software system. It is

enough to deal only with sub-systems relevant to the current iteration, as pinpointed

by PFA analysis

Modularity implies that the problem requires the decomposition of all its aspects

(world, requirements, and machine) in step. Then, recomposition requires the analysis

of how sub-systems must work together.

4 Traffic Lights – 1

Iteration of Misuse Correction: Normal

Vision Abuse

In this section we first introduce the original Traffic Lights system, without any

misuse, then the 1

misuse correction iteration.

For illustrative purposes, we present a simple road layout and intersection: a single

street with a pedestrian crosswalk. Cars cross the intersection according to the traffic

lights and pedestrians cross according to pedestrian signals. In principle, there would

be cameras that catch drivers that cross on red light. However, as these do not pertain

to the misuse case presented herein, we descope them from the model. The

IntersectionTrafficController is seen in Fig. 2.

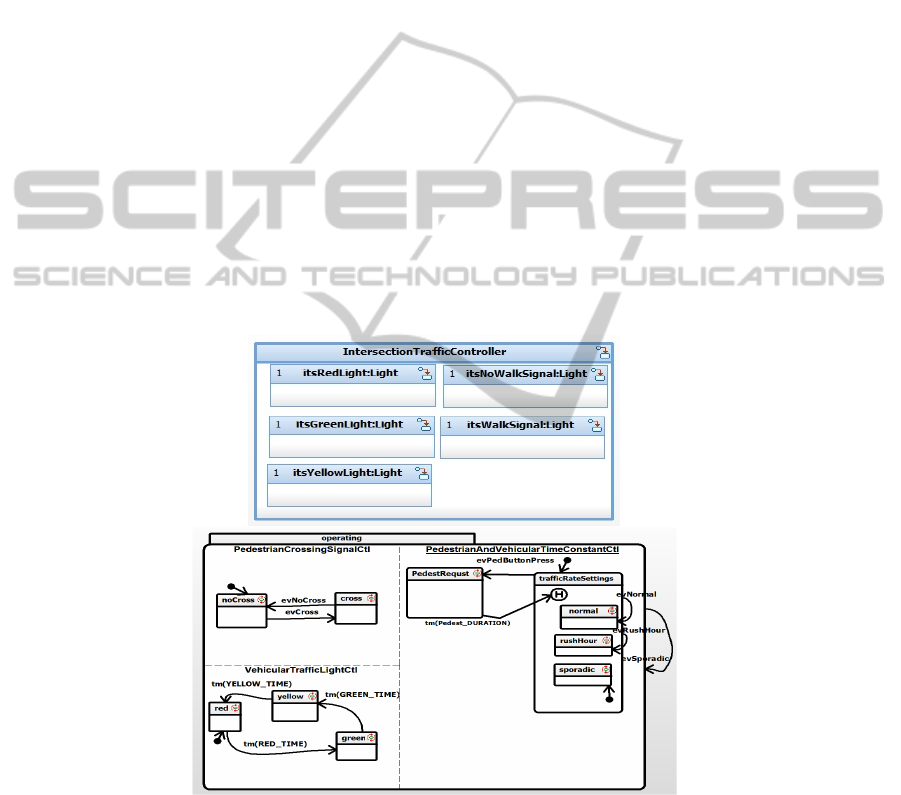

Fig. 2. Intersection Traffic Controller. Above, the composition of the Controller: on the right

hand side, vehicle lights’ three objects: Red, Green and Yellow; on the right, the two objects of

the pedestrian lights: Walk and NoWalk signals. Below, the statechart defining the controller

logic. There are light time constants for different traffic conditions:normal, rushHour, sporadic;

and a

button to assist a visually normal pedestrian in crossing the street, by adjusting the light times.

4.1 1

Correction Iteration: Normal Vision Abuse

The first misuse scenario occurs when a normal pedestrian presses the button

repeatedly (out of nervousness or playfulness), while waiting for the pedestrian

signal to turn to walk.

The correction of this misuse is seen in Fig. 3 (two views: PFA and Statechart).

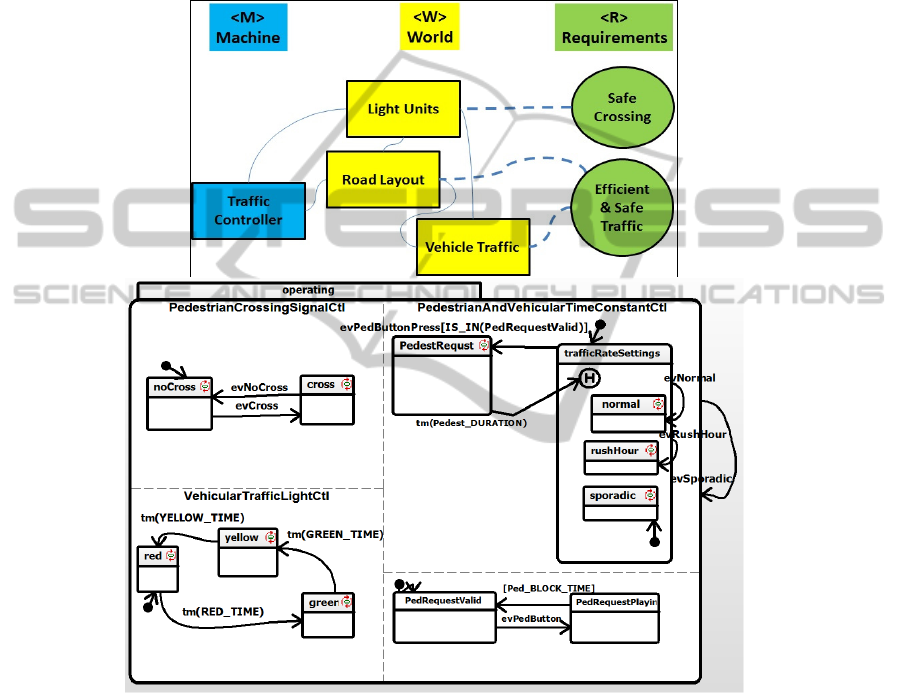

Fig. 3. 1

Correction Iteration – Normal Vision Abuse Correction– Above, the PFA diagram;

Below, the corresponding statechart, with a BLOCK_TIME during which successive pedestrian

button presses are ignored.

One should note that in this iteration the handling of misuse is “hard-coded”, as a

simple blocking of subsequent request received within Ped_BLOCK_TIME. In the

subsequent iterations, this handling will be more flexible via addition of an additional,

handling-mapping orthogonal component.

5 Traffic Lights – 2

Iteration of Misuse Correction: Visually

Impaired Pedestrians

Superimposed on the above iteration, one adds to the Traffic Lights system a button

for Visually Impaired Pedestrians (VIP). It stops the vehicle traffic for a longer time

and also has a voice message telling that the request was accepted. It also emits

different sounds when the “walk” signal is on as opposed to the “noWalk” signal.

The VIP added Traffic Lights is seen in Fig. 4 (two views: PFA and Statechart).

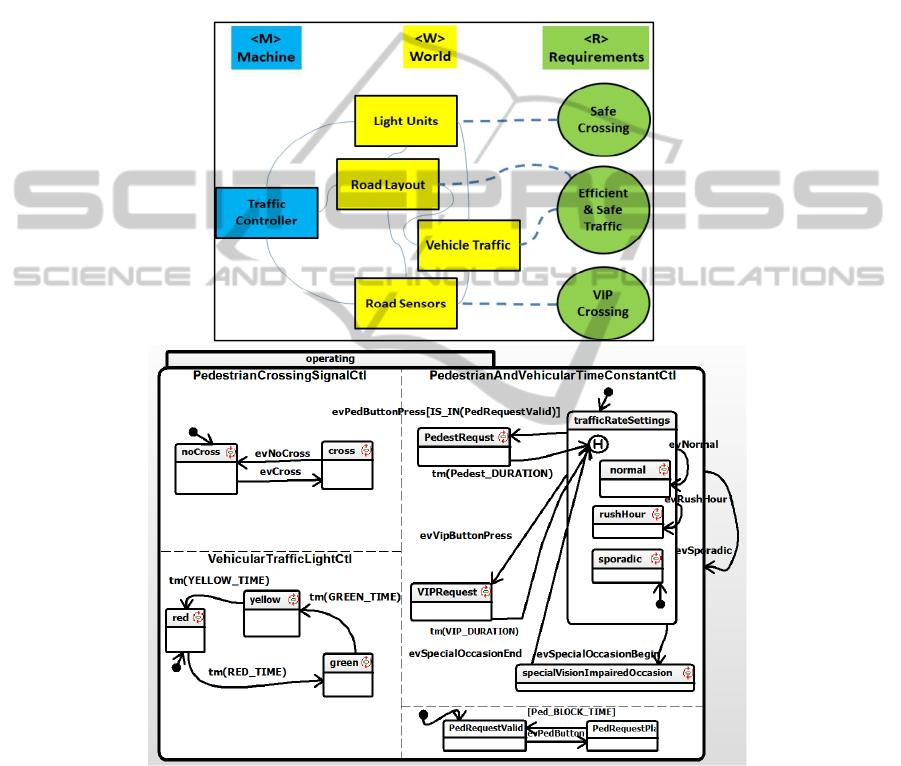

Fig. 4. Traffic Lights with added VIP – No Misuse – Above, the PFA diagram, below the

corresponding statechart.

5.1 2

Correction Iteration: Impaired Vision Misuse

Misuse here is for instance, a normal vision person pressing the VIP button, or

repeated use of this button.

The correction of this misuse is seen in Fig. 5 (Statechart only).

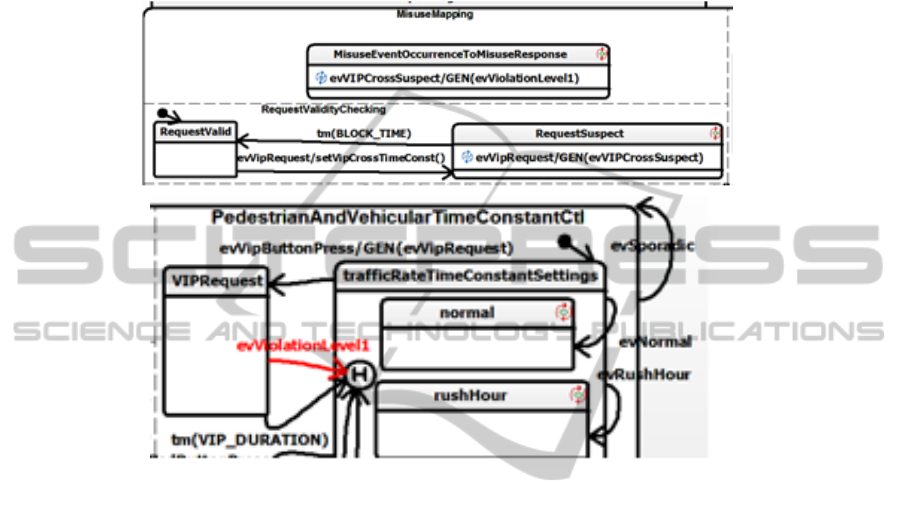

Fig. 5. Traffic Lights with added VIP – Misuse Correction – The corresponding statechart

additions. Above, the blocking of excessively frequent button presses, and mapping of misuse

occurrence to violation level. Below, superposition of violation level handling upon original

controller logic.

Note here that flexible mapping of misuse occurrence to misuse handling response

has been introduced via the introduction of a mapping orthogonal component. Having

deployed this mechanism for the VIP misuse case, it could then be reverse-engineered

into the normal pedestrian misuse case.

6 Discussion

Modularity is essential for the misuse corrections, where behavioral modularity is

achieved by use of orthogonal components in a single statechart. It is more effective

for a software developer to look at two independent behaviors in the same diagram,

i.e. orthogonal components of a single statechart.

As shown in the Impaired Vision Pedestrians Case study, orthogonal components

establish a natural correspondence between misuse cases and their corrective actions.

Thus, decoupling misuse incidents from corrective actions, allows abstraction of both

of them. Changing the mapping of misuse incidents to corrective actions is easily

performed by changing the association between triggering misuse events and the

respective corrective action events.

The important consequence, of the modular reasoning of the previous paragraph

for this paper, is that decoupling is also true and useful for consecutive misuse cases,

solved iteratively.

On the other hand, still in the Impaired Vision Pedestrians Case study, the

orthogonalization of checking for misuse (RequestValidityChecking) and misuse

mapping to misuse response event, is indeed modular, but the corrective action

responding to a violation level may or may not be tightly coupled to original state-

based behavior. An uncoupled response would be a system abort. Slightly more

coupled would be a transition to an added external standby state, with a reset event

to return system to an initial default operational state.

Regarding the iterative process, the number and duration of iterations is difficult

to predict, given the "surprise" emergence of misuse cases. Nevertheless, the heuristic

illustrated herein may be typical: A baseline "well-behaved" system is disrupted by

"surprise" misuse. The misuse is mitigated by a behavioral correction specified in a

statechart. Subsequently, another "surprise" misuse emerges. If there is some degree

of commonality between the two misuse scenarios, this may stimulate thought about

a more general, flexible mechanism to handle an entire class of misuses. This

mechanism is initially applied to the misuse case currently confronted, and then

retro-fitted to the prior on.

6.1 Future Work

Future work for evaluation of the actual limitations of the Software Proactive

Reengineering approach includes:

 Exploration of repeated misuse and corrective actions in a variety of case

studies.

 Generic representations of misuse corrections in a statecharts formalism;

 Matching stakeholder competencies and needs to diagrammatic

representations. Non-technical stakeholders, may eschew the detailed precise

semantics of Harel statecharts in favor of high-level PFA diagrams. But at

the end of the day "the devil is in the details" and everyone involved need to

understand the subtle interactions that allow and remedy misuse. Elsewhere

we have proposed heuristics for utilization of statecharts to elicit behavioral

requirements from such users, and adaptation of this heuristic to the present

work is a desideratum.

6.2 Main Contribution

The main contribution of this work is the recognition that Software Proactive

Reengineering is a loosely cyclic process, with eventual limitations to system

flexibility towards misuse corrections.

References

1. I. Alexander, “Misuse Cases: Use Cases with Hostile Intents”, IEEE Software, pp. 58-66,

(2003).

2. I. Exman, “Misbehavior Discovery through Unified Software-Knowledge Models”, in A.

Fred et al. (eds.), Knowledge Discovery, Knowledge Engineering and Knowledge

Management, 3

Int. Joint Conference, IC3K 2011, Paris, France, October 26-29, Revised

Selected Papers, CCIS Vol. 348, pp. 350-361, Springer-Verlag, Heidelberg, Germany,

(2013).

3. R. Gallant, "Freddy's Dishwasher: Are Statecharts 'Safe' for Stakeholder Evaluation of

Safety-critical Reactive Systems?" Proceedings of the 1

International Conference of The

Israel Society for Quality, 200

4. L. Goldin, R. Gallant, and I. Exman, Software Proactive Reengineering for System

Resilience to Misuse, in Proceedings of Software Summit, SWSTE 2014, Bar Ilan

University, (2014).

5. L. Goldin and R. Gallant, “Reengineered PFA: An Approach for Reinvention of

Behaviorally-Rich Systems”, In Proc. SKY'2012 Int. Workshop on Software Knowledge,

Barcelona, Spain, October 2012, SciTe Press, Portugal, (2012).

6. D. Harel and H. Kugler, “The Rhapsody Semantics of Statecharts (or, On the Executable

Core of the UML)”, Integration of Software Specification Techniques for Applications in

Engineering, (H. Ehrig et al., eds.), Lecture Notes in Computer Science, Vol. 3147,

Springer-Verlag, Berlin, Germany, pp. 325-354, (2004).

7. P. Hope, G. McGraw and A.I. Anton, “Misuse and Abuse Cases: Getting Past the Positive”,

IEEE Security and Privacy, pp. 32-34 May/June (2004).

8. M.A. Jackson, Software Requirements & Specifications, Addison-Wesley, Boston, MA,

USA, (1996).

9. M.A. Jackson, Problem Frames: Analysing and Structuring Software Development

Problems, Addison-Wesley, Boston, MA, USA, (2001).

10. M.A. Jackson, “The Problem Frames Approach to Software Engineering”, in Proc. APSEC

2007, 14

Asia-Pacific Software Engineering Conference, (2007).

11. G. Sindre and A.L. Opdahl, “Eliciting security requirements with misuse cases”,

Requirements Eng. Vol. 10, pp. 34-44, (2005).

12. J. Steven and G. Peterson, “Defining Misuse with The Development Process”, IEEE

Security & Privacy, pp. 81-84, November/December (2006).

13. ISO/IEC 14764:2006, Software Engineering—Software Life Cycle Processes –

Maintenance.
