On MODAClouds’ Approach

for Application Design and Execution on Multi-clouds

Elisabetta Di Nitto

, Arnor Solberg

and Dana Petcu

Politecnico di Milano, Italy

SINTEF, Norway

Institute e-Austria Timis¸oara and West University of Timis¸oara, Romania

Abstract. The design, deployment and control of new applications in Cloud en-

vironments still requires a deep understanding of the underneath technologies.

Moreover, the interfaces and tools that are provided by the resource owners or

third parties are highly coupled to the various exposed services to a level that hin-

ders their easy adoption. Abstraction layers in form of models, semantic reposi-

tories or uniform interfaces are therefore build today. In particular the adoption

of the model-driven engineering concepts has recently been proved to be beneﬁ-

cial for Cloud computing. In this paper we present the latest achievements of an

initiative which has adopted a model-driven oriented approach for the design and

execution of Cloud applications.

1 Introduction

Model-driven development combined with model-driven risk analysis have been re-

cently introduced to Cloud computing application cycle. The vision of the marriage

of model-driven architecture and Cloud computing includes the application developers

that will be able to specify in a vendor agnostic manner the models of Cloud services

in which they are interested, as well as to be able to enrich these models with quality

parameters. Moreover, to close the current gap between the design and run-time stages

of an application, both performing quality predictions, as well as run-time monitoring

and optimization can provide valuable information to the design time environment and

hence help in ﬁlling the gap between design and run-time. To prove that this vision

can be applied in practice is the main aim of a recently started research initiative, the

MODAClouds project

. MOdel-Driven Approach for design and execution of applica-

tions on multiple Clouds (MODAClouds) aims to provide methods, a decision support

system, an open source IDE (Integrated Development Environment) and run-time envi-

ronment for the high-level design, early prototyping, semi-automatic code generation,

and automatic deployment of applications on Multi-Clouds with guaranteed quality of

service (QoS). The project is partially funded by the European Commission during

October 2012 until September 2015 (ten companies and research institutions are partic-

ipating).

MODAClouds concept and a motivating scenario were presented for the ﬁrst time in

[1], while the solution architecture was detailed in [2]. Several recent papers (complete

http://www.modaclouds.eu

Di Nitto E., Solberg A. and Petcu D.

On MODACloudsâ

Z Approach for Application Design and Execution on Multi-clouds.

DOI: 10.5220/0006183100490060

In European Project Space on Information and Communication Systems (EPS Barcelona 2014), pages 49-60

ISBN: 978-989-758-034-5

list available at

) provided details about particular solutions and components. This pa-

per intends to provide an overview of the MODAClouds concept and its implementation

status at the half way through of the project duration.

The paper is organized as follows. Section 2 is describing shortly the state-of-the-

art in model-driven Cloud engineering. Section 3 is describing the MODAClouds’ ap-

proach and the implementation status. Section 4 is providing some hints on the next

steps to be followed.

2 First Steps Towards a Model-driven Cloud Engineering

Cloud computing is a computing model enabling ubiquitous network access to a shared

and virtualised pool of computing capabilities (e.g. network, storage, processing, and

memory) that can be rapidly provisioned. However this conceptual model is imple-

mented by a large number of service providers in very different ways. The current soft-

ware stacks of Cloud services are heterogeneous and the provided features that are often

incompatible between different service providers. This diversity is an obstacle with re-

spect to demands such as promoting interoperability and preventing vendor lock-in.

The model-driven approach, often summarized as model once, generate anywhere,

is particularly relevant when it comes to provisioning and deployment of applications

and services across multiple Clouds, as well as migrating the source code and data from

one service provider to another. The model-driven engineering (MDE) approach allows

the developers to build the system at various level of abstractions. In the Cloud context,

three levels are envisioned: CCIM, the Cloud enabled Computation Independent Model

to describe an application and its data; CPIM, the Cloud-Provider Independent Model

to describe Cloud concerns related to the application in a Cloud agnostic way; and

CSPM, the Provider Speciﬁc Model to describe the Cloud concerns needed to deploy

and provision the application on a speciﬁc Cloud.

CCIM describes Cloud applications at the service level. Hence, for a given appli-

cation it contains the description of the services that compose it, the public interfaces

of each service, the business processes that describe their orchestration and the domain

model of the data exchanged by them through their public interfaces. Services Ori-

ented Architecture related technologies which deﬁne applications as sets of services

that communicate through well-deﬁned interfaces can be used to deﬁne Cloud-enabled

applications without going into the ﬁne details of deployment. The time services are

usually modeled by means of general purpose languages such as UML. Service-speciﬁc

languages have also been designed for SOA (e.g. SoaML

). USDL language [3] goes

even further, by allowing designers to specify, beside services and their interfaces, non-

functional aspects on these services (e.g. pricing, legal, certiﬁcation, documentation),

however not Cloud speciﬁc. Other approaches are related to the speciﬁc concept of Web

Service: WSDL language

which enable the speciﬁcation of a list of services, interfaces,

data types and orchestration processes at a syntactical level, or OWL

as semantic Web

http://www.modaclouds.eu/publications/papers/

http://www.omg.org/spec/SoaML/1.0/Beta2/

http://www.w3.org/TR/wsdl

http://www.w3.org/Submission/2004/SUBM-OWL-S-20041122/

EPS Barcelona 2014 2014 - European Project Space on Information and Communication Systems

language which enable the speciﬁcation of the semantics of the services, besides their

syntax. The main drawback of these approaches is that they do not allow for the descrip-

tion of non-functional requirements and constraints. However, at the modeling level, the

OMG UML proﬁle for QoS, QFTP

, allows a designer to specify QoS requirements and

to connect them to service descriptions. Reusing and extending such language is part of

the scope of MODAClouds.

Modeling concepts and technologies for the provisioning, deployment and adapta-

tion of applications in the Cloud (CPIM/CPSM) has been done until recently using the

uniform interfaces provided by various libraries for application development, deploy-

ment and control at run-time. We can mention here the most successful ones: jclouds

libcloud

, δ-cloud

or fog

. For example the jclouds model includes: description of

node with metadata such as CPU, RAM, security policy; an abstract representation

of a node with parameters such as minCPU, OS type; group of nodes to be managed

together; set of command to be executed on nodes; information about the provider.

Most of these libraries are language-dependent providing a common access to multiple

Clouds. Typlically they provide provide a code-based model of the infrastructure and

do not offer any mechanism for automatic provisioning and deployment of applications

on the Clouds. Moreover, working at the infrastructure-as-a-service level, applications

and services are not modeled.

Recently developed frameworks for managing Multi-Clouds that provide capabili-

ties for the provisioning, deployment, monitoring, and adaptation without being lan-

guage-dependent, have appeared (a survey is evalaible in [4]). We mention here three

of them: Cloudify

, Scalr

and CloudFoundry

. For example, the Cloudify model for

deploying applications includes: a recipe for information like required infrastructure

and how it should be used; the cluster of service instances that make up an application

tier; the conﬁguration (including provisioning and scaling rules) of an application and

the services it is made of; the set of services working together; probes used to monitor

the status of the system. These frameworks are important to optimise performance,

availability, and cost of Multi-Cloud systems. However, they do not come with any

structured approach, and the provided methods and tools are at a technical level, thus,

the developer will typically be left hacking at code level rather than engineering Multi-

Cloud systems following a structured tool supported methodology.

The models@runtime [5] paradigm proposes to leverage models during the exe-

cution of adaptive software systems to monitor and control the way they adapt. This

approach enables the continuous evolution of the system with no strict boundaries be-

tween design-time and runtime activities. Models@runtime provide an abstract repre-

sentation of the running system causally connected to the underlying state of the system

http://www.omg.org/spec/QFTP/

http://jclouds.apache.org

http://libcloud.apache.org

http://deltacloud.apache.org

http://fog.io

http://www.cloudify.org

http://scalr.com

http://www.cloudfoundry.org

On MODACloudsâ

Z Approach for Application Design and Execution on Multi-clouds

which facilitates reasoning, simulation and enactment of adaptation actions. A change

in the running system is automatically reﬂected in a model of the current system. A

modiﬁcation applied to this model can be enacted on the running system on demand.

Thanks to the use of models, well-deﬁned interface are provided to monitor the system

and adapt it. The models also provide a way to measure the importance of changes in the

system and analyse the delay before their enactment on the running system. Note that

the libraries and frameworks described above do not provide such level of abstraction.

The concepts manipulated by the above mentioned solutions are serving as a ba-

sis for the deﬁnition of MODACloudML models and metamodels. The usage of mo-

dels@runtime concept is promoted by MODAClouds in order to tame the complexity

of adaptation and ease the reasoning process for self-adaptation.

3 MODACloud’s Concepts, Approach and Implementation Status

The MODAClouds approach enables users to (a) specify service-independent models

enriched with quality parameters, (b) implement these models, (c) perform quality pre-

diction, (d) monitor applications at runtime, and (e) optimise them based on the feed-

back (ﬁlling the gap between design and runtime). More speciﬁcally, MODAClouds

solution targets system developers and operators by providing them with supporting

tools for the following software system life-cycle phases:

Feasibility Study and Analysis of Alternatives: a special tool enabling developers to a-

nalyze and compare various Cloud solutions.

Design, Implementation and Deployment. MODAClouds IDE supports a Cloud-agnos-

tic design of software systems, the semi-automatic translation of design artefacts

into code, and their deployment on the selected target Clouds.

Runtime Monitoring and Adaptation. The runtime layer (i) enables system operators in

overseeing the execution of the system on multiple Clouds; (ii) automatically trig-

gers some adaptation actions (e.g., migrate some system components from one IaaS

to another that offers better performances at that time); and (iii) provides runtime

information to the design-time environment that can inform the software system

evolution process

The expected stakeholders involved in interaction with the MODAClouds solutions are:

Feasibility Study Engineer: in charge of analysing the high-level requirements for Cloud-

based applications and of identifying an initial set of risks and costs deriving from

the adoption of Cloud technologies;

Application Developer: takes care of deﬁning all functional aspects of the Cloud-based

application;

QoS Engineer: in charge of describing QoS constraints and of analyzing whether and

how these constraints can be fulﬁlled given the available set of potential providers;

Application Provider: given the deﬁnition of the design information concerning the ap-

plication, orchestrates the execution of the application deployment on the selected

Clouds;

Cloud App Admin: oversees the correct operation of the Cloud application.

EPS Barcelona 2014 2014 - European Project Space on Information and Communication Systems

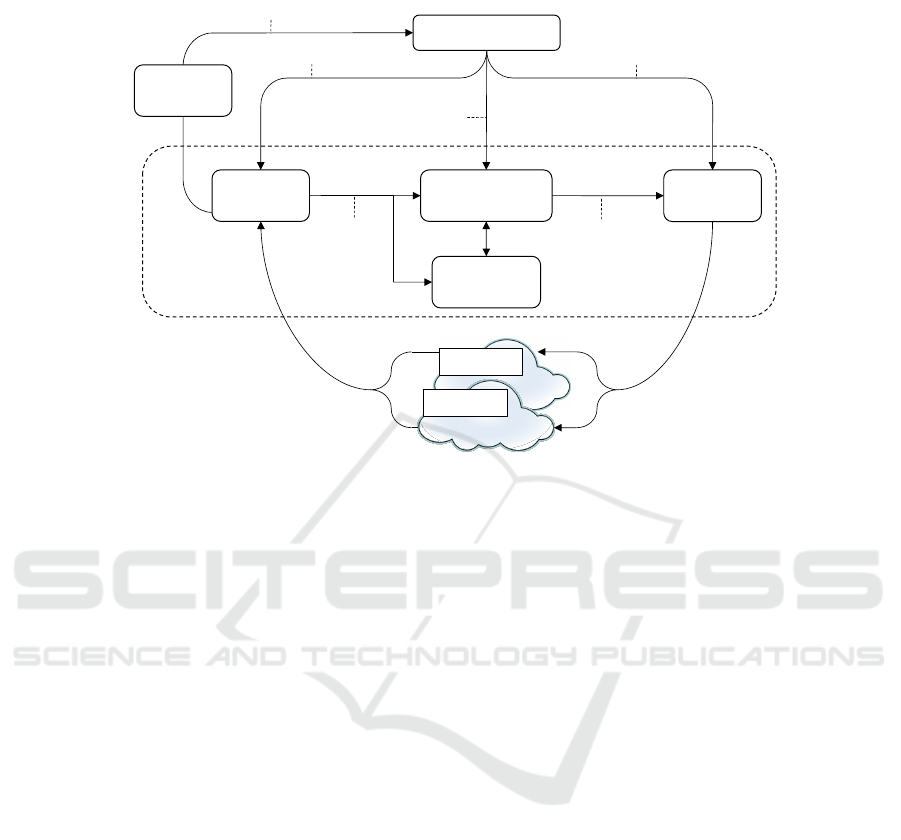

Monitoring

Platform

Execution

Platform

Self-

Adaptation

Reasoner

MODAClouds IDE

Self-adaptation

policies and initial

deployment

Monitoring rules and ontology Deployment artefacts

Relevant monitoring data

Cloud App

Runtime Platform

Models@runtime

Monitored Data

Actions

Filling

the Gap

Fig. 1. High level architecture of MODAClouds.

The high level architecture of MODAClouds consists of two distinct software levels:

the Runtime platform and the MODAClouds IDE (Figure 1).

The main component of the Runtime platform are the Monitoring Platform, the

Self-Adaptation Reasoner, the Models@runtime engine, and the Execution Platform:

Monitoring Platform: is responsible for collecting data from the running application

and from the underlying infrastructure, for analyzing them and for deﬁning sum-

mary measures such as application health, QoS, etc. This platform executes mon-

itoring rules that deﬁne the QoS constraints to be checked (together with some

frequency of the check) and the actions to be executed in case some constraints are

violated. Such actions can either trigger the self-adaptation Reasoner or results in

the activation of additional monitoring rules. Other components subscribe to mon-

itored data generated by the monitoring platform.

Self-adaptation Reasoner: implements the decision-making process responsible for i-

dentifying suitable changes in the current conﬁguration of the Cloud application to

satisfy the QoS constraints. The self-adaptation reasoner is activated by the moni-

toring platform in response to speciﬁc monitorid events and operate on the applica-

tion through the Models@runtime APIs. Note that, the initial deployment decisions,

provided by the MODAClouds IDE, are used to initialize this component.

Models@runtime Engine: is responsible for maintaining an updated version of the ap-

plication model developed at design-time by interacting with the monitoring plat-

form. This model is then used by the Self-adaptation Reasoner to build adaptation

actions and by the execution platform to retrieve new deployment conﬁgurations.

The second important task of this component consists in controlling the underlying

Execution Platform.

On MODACloudsâ

Z Approach for Application Design and Execution on Multi-clouds

Execution Platform: provisions all services that are needed to deploy applications on

Multi-Cloud environment including the supporting services such as the Monitoring

platform. The initial deployment is provided by the IDE through the Models@run-

time component and translated to the target platform. The execution platform also

offers the services and the API, needed to maintain and change the operational

state of the deployment at runtime, typically triggered by of the Self-adaptation

Reasoner.

The MODAClouds IDE offers the functions to support the development life-cycle

of a Cloud-based application, from the early assessment of risks and costs to the actual

deployment. The IDE supports the functional and non-functional design of the applica-

tion at the three levels of abstraction (CCIM, CPIM, CPSM). Moreover, it supports the

identiﬁcation of potential Cloud candidates and the analysis of non-functional charac-

teristics of the application. As a result of the analysis, the IDE is also able to propose

optimized architectural conﬁgurations for the application. The IDE is built out of the

integration among six components:

Decision Support System: supports the Feasibility Study Engineer in identifying the

main risks and advantages in adopting speciﬁc Cloud solutions and in determining

a ﬁrst estimate of costs associated to these solutions. The estimated cost will then

be reﬁned by the QoS modelling and analysis tool.

MODACloudML Functional Modelling Environment: supports the modelling of Cloud

applications and of the data they manipulate. It supports the CCIM, CPIM and

CPSM models and the generation of the deployment artefacts from them.

QoS Modelling and Analysis Tool: allows the QoS Engineer to perform the following

operations: modeling of QoS requirements; quality prediction and analysis of QoS

requirements fulﬁllment; generation of monitoring rules; deﬁnition of the goals and

constraints driving the execution of self-adaptation.

Data Mapping Component: is able to analyze the data that are going to be manipulated

by the applications and the constraints on them (and on their storage and retrieval).

The result of such analysis should allow the user to decide upon the best Cloud spe-

ciﬁc data representation formats and tools that fulﬁll the application requirements.

MODACloudML Deployment and Provisioning Component: supports the model speci-

ﬁcation of deployment and resource provisioning including deployment and provi-

sioning constraints, and interfaces with the MODAClouds runtime components in

order to effectively deploy the Cloud application. The deployment and provisioning

model exploits at runtime to enact adaptation of the application using Models@run-

time technologies [6].

Filling the Gap Design-time Manager: is responsible for retrieving information from

the runtime platform where the Cloud application is deployed. This information is

used for two main purposes: ﬁrst, to update the parameters of the design-time mo-

dels, allowing these to better capture the actual behaviour of the application; and

second, to provide the Cloud App Admin and the QoS Engineer with information

about the behaviour of the application at runtime.

The shared models (between the above six components of the IDE) are organized

in the three abstraction layers (CCIM, CPIM, and CPSM) as shown in Figure 3. We

EPS Barcelona 2014 2014 - European Project Space on Information and Communication Systems

Runtime platform

QoS modelling and

analysis tool

MODACloudML

Functional Modelling

Environment (WP4)

MODACloudML Deployment

and Provisioning Component

Decision Support

System

Data Mapping

Component

Modaclouds IDE

QoS Engineer

Application Developer

Application Provider

Feasibility Study

Engineer

Shared Models

Monitoring Rules

and Ontology

Policies for

self-

adaptation

Initial Deployment

Model & Artifacts

Cost Model

Monitoring Platform

Self Adaptation Reasoner

Models@runtime

Cloud App

Runtime GUI

Cloud App Admin

Runtime

Design-

time

History DB

Execution Platform

jClouds

PaaS Unified

Library

mOSAIC Flexiant

Filling the Gap

Design-Time

Manager

Cloud App Admin

FG Runtime Manager

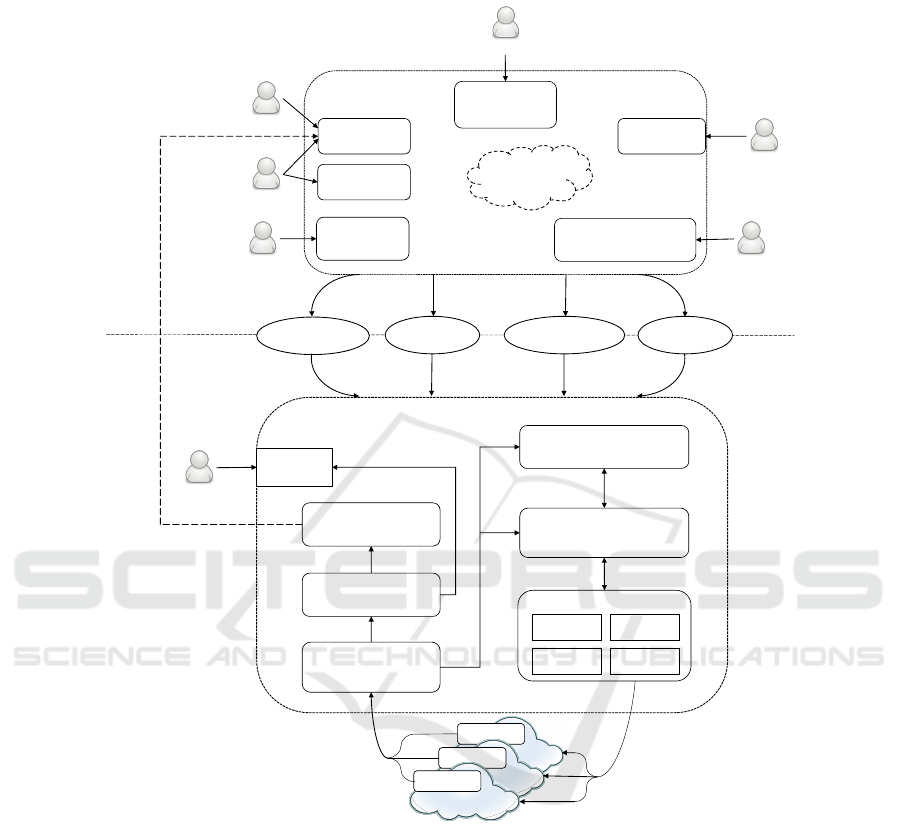

Fig. 2. Detailed architecture of MODAClouds.

take here only the example of data models to ilustrate the differences encountered at the

three abstraction layers:

CCIM Data Model: describes the main data structures associated to the software to be.

It is expressed in terms of a typical Entity Relationship diagram and enriched by a

meta-model that specify functional and non-functional data properties.

CPIM Data Model: describes the data model in terms of models being typically of-

fered by Cloud providers, without referring to a particular one. Since the majority

of available data storage software provides services that include distributed ﬁle

On MODACloudsâ

Z Approach for Application Design and Execution on Multi-clouds

CCIM

CPIM

CPSM

Service

Deﬁnition

CCIM Data

Model

Service

Orchestration

MODAClouds

IDE outcomes

CPIM Design

Alternatives and

Deployment Model

CPIM Data

Model

CPSM Design

Alternatives and

Deployment Model

CPSM

Data Model

Application

Code

Deployable

Artefacts

Self-adaptation

Policies

Data Deﬁnition

Scripts

Business

Requirements

Usage Model

CCIM QoS

Model

Service

Implementation

Monitoring

Rules and

Ontology

CPIM QoS

Model

CPIM Resource

Model

CPIM Monitoring

Rules

CPSM

QoS

Model

CPSM Resource

Model

CPSM Monitoring

Rules

CCIM Monitoring

Rules

Fig. 3. Shared meta-models.

system, NoSQL solutions, and blobs, these three models are considered at the

CPIM level that are suitable to represent these different cases. They are: Graph

Data Model, Hierarchical Data Model and Flat Data Model.

CSPM Data Model: describes data structures implemented in the Cloud providers. The

following families are considered: Relational Data Model family, Hierarchical Data

Model family, Flat Data Model family, Key-Value Data Model, Column-based Data

Model family.

The application development workﬂow based on MODAClouds IDE follows the

approach depicted in Figure 4. Four stakeholders are considered, namely the Feasibi-

lity Study Engineer, the Application Developer, the QoS Engineer and the Application

Provider. These actors play different roles in the development of the application inter-

acting with speciﬁc tools, represented by blue circles, the interactions between the tools

is performed by a set of shared models, represented by white rectangles. The design

phase ends with the generation of some artefacts, represented by gray rectangles, that

can be used to deploy and manage the application.

The development process starts at the CCIM level with the Application Developer

building a functional model of the application using the MODACloudML Functional

Modelling Environment. The Application Developer is also in charge of creating the

data model with the Data Mapping tool. The architectural description of the application

is enriched by the Feasibility Study Engineer deﬁning performing a feasibility study

with the help of the Decision Support System, the result of this action provides guide-

lines to the QoS engineer that adds information useful to predict the performance of the

designed application with the help of the QoS Modelling tool. These actors work in an

agile way by re-iterating over the shared models adding incrementally their contribution

to the model of the application.

EPS Barcelona 2014 2014 - European Project Space on Information and Communication Systems

MODAClouds IDE

CCIM

CPIM

CPSM

Decison

Support

System

Functional

Modelling

Environment

& Data

Mapping

QoS

Modelling

QoS

Modelling

& Analysis

Deployment

Provisioning

Data

Mapping

Feasibility Study Eng.

QoS Engineer

Application Developer

QoS

Modelling

& Analysis

Feasible

Services

Architecture

& Functional

Requirements

QoS

Requirements

& Monitoring

Rules

QoS Engineer Application Developer

Application Provider

QoS

Requirements

& Monitoring

Rules

QoS Engineer

Design

Alternatives &

Deployment

Monitoring

Rules &

Ontology

Data

Definition

Scripts

Deployment

Provisioning

Design

Alternatives &

Deployment

Application Provider

Self-

adaptation

Policies

Application Developer

Application

Code &

Deployable

Artefacts

Code

Generation

Data Model

Cloud App Admin

Filling the

Gap

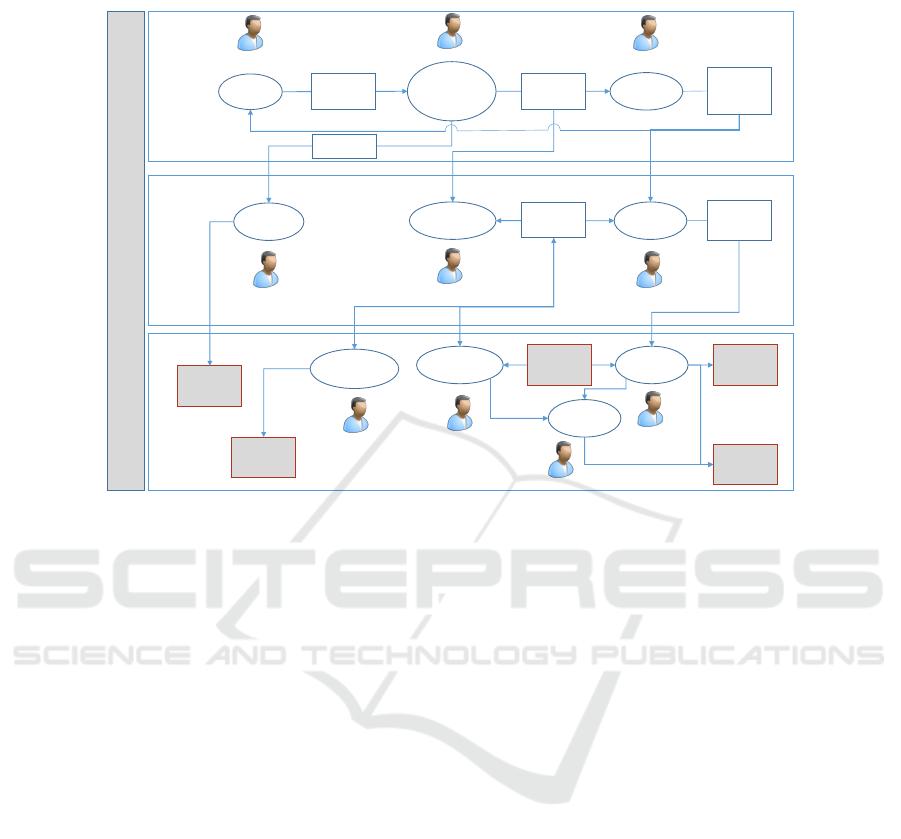

Fig. 4. IDE workﬂow.

The Application Developer and the QoS engineer also add functional and non-

functional requirements related to the architecture and the behaviour of the application,

from these requirements an initial set of monitoring rules can be derived.

This set of initial models is then reﬁned by adding some Cloud-dependent infor-

mation. This process is performed by the Application Developer that reﬁnes the Data

Model and by the cooperation of the QoS engineer and the Application Provider. These

two actors interact with the MODACloudML Deployment and Provisioning Compo-

nent and the QoS Modelling and Analysis tool, respectively. The interactions between

the two actors is aimed at providing an initial deployment model that maps the func-

tional components modelled at the CCIM level to Cloud resources. Note that at this

abstraction level no information on speciﬁc Cloud providers is available. When the

deployment model has been built, the QoS engineer can reﬁne the non-functional con-

straints speciﬁed at the CCIM level or build new ones. The monitoring rules generated

at the previous level can now be reﬁned. The last modeling phase is aimed at adding

Cloud provider speciﬁc information to the previously built models and derive artefacts

used to develop and deploy the application. The Data Mapping component generates

a set of Data Deﬁnition Scripts speciﬁc to the data storage technology and the Cloud

provider. The application developer makes use of the code generation capability of the

MODACloudML functional modeling environment to derive the structure of the appli-

cation code. The Application provider and the QoS engineer continue their interaction

in order to deﬁne the ﬁnal Design Alternatives and Deployment model. This model is

used by the QoS engineer to map the CPIM non-functional requirements and derive the

ﬁnal Self-adaptation Policies. The QoS Engineer and the Cloud Application Adminis-

On MODACloudsâ

Z Approach for Application Design and Execution on Multi-clouds

Table 1. MODAClouds’ components availability at the half time of the project.

Component Status Public deliverables

Monitoring Platform Final release D6.3.2

Self-Adaptation Reasoner Under construction D6.4

Models@runtime engine Proof of concept -

Execution Platform Initial release D6.5.1

Decision Support System Proof of concept D2.3.1

MODACloudML Functional Modeling Env. Proof of concept D4.3.1

QoS modeling and analysis tool Initial release D5.2.1

Data Mapping Component Under construction D6.6

MODACloudML Deployment & Provisioning Proof of concept D4.3.1

Filling the Gap Design-Time Manager Initial release D5.3.1

Integrated solution Proof of concept D3.5.1

trator interact with the Filling the Gap Design-Time Manager to conﬁgure the Filling

the Gap Analysis, which is translated in a set of Monitoring Rules, making use of the

QoS Model and the Deployment Model.

The artefacts generated at design-time by the different tools composing the IDE are

deployed into the runtime platform that takes care of managing the application execu-

tion.

The status of the component implementation is exposed in Table 1. The Dx.y.z from

the last column are refering to user-guides and codes available at

17, 18

). Note that most

components are available already as open-source codes and can be used as stand-alone

tools.

4 Conclusions and Future Steps

The MODAClouds was designed to support application designers in the development

of a Multi-Cloud application and operational personnel in the execution of such appli-

cation.

Compared with other current approaches for the model-driven engineering of Cloud

applications, the following main novel ideas are proved by MODAClouds to be viable:

At Design Time. MODAClouds toolset allows a development team to design and imple-

ment an application in a cloud-agnostic way and supports the deployment of such

application on a multi-cloud environment. Moreover, it allows designers to express

QoS requirements and to run proper analyses to identify the best conﬁguration of

the application on a set of suitable Clouds. Furthermore, the tools are integrated

through the sharing of a set of common metamodels. This integration approach en-

ables an asynchronous interoperability between the various tools and allows for an

easy extension of the toolset. It allows therefore to deliver, promote and adopt each

of the design-time tools belonging to the MODAClouds solution separately from

the others.

http://www.modaclouds.eu/publications/public-deliverables/

http://www.modaclouds.eu/software/

EPS Barcelona 2014 2014 - European Project Space on Information and Communication Systems

At Run Time. At runtime MODAClouds focuses on three main issues: the management

of the execution, intended as the set of operations to instantiate, run, stop services

on the Cloud, the monitoring of the running application and the self-adaptation

of the application to ensure the fulﬁllment of the QoS goals. The corresponding

components interact based on the Models@runtime engine. This engine keeps alive

a model of the system and uses it to control all management operations on the

actual execution platforms. This model is updated according to the results gathered

by the monitoring platform and is modiﬁed as a result of a self-adaptation action.

The innovation points of this runtime platform concern the highly conﬁgurable and

scalable monitoring platform, the live model of the application that is suitable for

supporting the decisions concerning self-adaptation, as well as the sophisticated

optimization approaches to support self-adaptation process.

Moreover, MODAClouds offers the possibility (to be exploited in near future) for

the runtime to provide data back to the design-time (feedback loop) enabling continuous

design of the Cloud application and its deployment conﬁguration and provisioning on

a Multi-Cloud infrastructure. Its main advantage concerns the possibility for the design

time tools to learn from previous execution experiences and to use them both to optimize

the conﬁguration of the currently operated application and to improve the analyses on

applications to be developed in the future.

Acknowledgement

The work reported in this paper is partially funded by the grant EC-FP7-ICT-2011-8-

318484 (MODAClouds). The paper resumes the main concepts and approaches detailed

in public deliverable D3.2.2 of the project.

The list of this paper author do not reﬂect all the contributors to the project and the

above mentioned deliverables. We express our gratitude to all the project members who

have make this paper possible.

References

1. Ardagna D., Di Nitto, E., Casale, G., Petcu, D., Mohagheghi, P., Mosser, S., Matthews, P.,

Gericke, A., Ballagny, C., D’Andria, F., Nechifor, C.S., Sheridan, C.: MODACLOUDS:

A Model-Driven Approach for the Design and Execution of Applications on Multiple

Clouds. In: Procs. 2012 ICSE Workshop on Modeling in Software Engineering (MISE), doi:

10.1109/MISE.2012.6226014, IEEE (2012) 50–56

2. Di Nitto, E., Almeida Da Silva, M.A., Ardagna, D., Casale, G.; Craciun, C.D., Ferry,

N., Muntes, V., Solberg, A.: Supporting the Development and Operation of Multi-

cloud Applications: The MODAClouds Approach, In: Procs. 15th International Sympo-

sium on Symbolic and Numeric Algorithms for Scientiﬁc Computing (SYNASC), doi:

10.1109/SYNASC.2013.61, IEEE (2013) 417–423

3. Cardoso, J., Barros, A.P., May N., Kylau, U.: Towards a Uniﬁed Service Description Lan-

guage for the Internet of Services: Requirements and First Developments. In: 2010 IEEE

International Conference on Services Computing (SCC), doi: 10.1109/SCC.2010.93, IEEE

(2010) 602–609

On MODACloudsâ

Z Approach for Application Design and Execution on Multi-clouds

4. Petcu, D., Consuming Resources and Services from Multiple Clouds Journal of Grid Com-

puting, doi: 10.1007/s10723-013-9290-3, Springer (2014)

5. Blair, G., Bencomo N., France, R.: Models@run.time. Computer 42 (10), doi:

10.1109/MC.2009.326, IEEE (2009), 22–27

6. Ferry, N., Rossini, A., Chauvel, F., Morin, B., Solberg, A.: Towards Model-Driven Provi-

sioning, Deployment, Monitoring, and Adaptation of Multi-cloud Systems. 2013 IEEE Sixth

International Conference on Cloud Computing (CLOUD), doi: 10.1109/CLOUD.2013.133,

IEEE (2013), 887–894.

EPS Barcelona 2014 2014 - European Project Space on Information and Communication Systems
