ZiZo: Modeling, Simulation and Verification of Reconfigurable

Real-time Control Tasks Sharing Adaptive Resources

Application to the Medical Project BROS

Mohamed Oussama Ben Salem

1,2

, Olfa Mosbahi

1,4

, Mohamed Khalgui

1,4

and Georg Frey

LISI laboratory, INSAT, University of Carthage, Tunis, Tunisia

Polytechnic School of Tunisia, University of Carthage, Tunis, Tunisia

Saarland University, Chair of Automation, Saarbrücken, Germany

eHealth Technologies Consortium, eHTC, Tunis, Tunisia

Keywords: Distributed Control System, Reconfiguration, Shared Resource, Simulation, Verification, Model Checking,

Computer-assisted Surgery.

Abstract: This research paper deals with the modeling, simulation and model checking of reconfigurable discrete-

event control systems to be distributed on networked devices. A system is composed of software tasks with

shared resources to control physical processes. A reconfiguration scenario is assumed to be a run-time

automatic operation that modifies the system’s structure by adding or removing tasks or resources according

to user requirements in order to adapt the whole architecture to its environment. Nevertheless, a

reconfiguration can bring the system to a blocking problem that is sometimes unsafe, or violates real-time

properties. We define new Petri Nets-based modeling solutions for both tasks and resources to meet these

constraints. These solutions are applied to a real case study named Browser-based Reconfigurable

Orthopedic Surgery (abbrev. BROS) to illustrate the paper’s contribution. A new Petri Nets-based editor

and random-simulator named ZiZo is developed to model and simulate the BROS reconfigurable

architecture. It is based also on the model checker SESA to apply an exhaustive CTL-based formal

verification of this architecture to ensure safe reconfiguration scenarios of tasks and resources.

1 INTRODUCTION

Robotics is a field that is expanding every day.

Robots have left the controlled environment of

factories and warehouses they were initially

designed for, and are making their way into the

highly dynamic and unconstrained world of humans.

The excellent geometric accuracy of robots,

associated with their ability to integrate several

different sources of information, has led to their

natural implementation in medicine, more

specifically in surgery. The field of robotic surgery

is relatively new. The first clinical application of a

robot was performed to a neurosurgery in 1985

(Kwoh et al., 1988). Since then, many research

centers around the world have developed a multitude

of robotic surgical products, tackling new areas such

as orthopedics, radiology, urology, cardiothoracic

and ophthalmology (Cleary and Nguyen, 2001;

Wang et al., 2006; Gomes, 2011). The more the field

grows, the more demanding become the end-users.

Increasing safety constraints and growing expected

flexibility pushed developers to focus on designing

robots that are able to fit their environment and

shifting users requirements under functional and

temporal constraints. This is what we call

reconfiguration.

It is in this context that BROS project is being

taken. BROS is a reconfigurable robotic platform

dedicated to the treatment of elbow's supracondylar

fracture. It is capable of running under several

operating modes to meet the surgeon's requirements

and well-defined constraints. Given the criticality of

such a system, checking the safety of BROS

becomes crucial. Thus, before starting the

implementation, we choose to model the whole

system using Reconfigurable Timed Net

Condition/Event Systems (R-TNCES) (Zhang et al.,

2013), a new formalism extending Petri nets and

useful to model such adaptive control systems.

Nevertheless, when designing BROS, we face the

issue of concurrent access to shared resources, such

as the patient's arm and the browser, an image

Ben Salem M., Mosbahi O., Khalgui M. and Frey G..

ZiZo: Modeling, Simulation and Veriﬁcation of Reconﬁgurable Real-time Control Tasks Sharing Adaptive Resources - Application to the Medical Project

BROS.

DOI: 10.5220/0005181600200031

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2015), pages 20-31

ISBN: 978-989-758-068-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

guidance system. We choose, then, to use a PCP-

based new solution for R-TNCES to model

reconfigurable shared resources (Salem et al., 2014).

The reconfiguration feature of BROS can bring

the latter to a blocking problem that is sometimes

unsafe or does not respect real-time properties. We

opt, then, for the use of a tool to model and simulate

the whole BROS architecture, and, then, apply on it

several CTL formulas to check whether the system

respects its functional and temporal constraints.

However, no one in our community worked on such

a tool. Thus, the authors in this paper present a new

tool, baptized ZiZo, a R-TNCES modeling and

random-simulating software.

The current paper is organized as follows: the

next section describes useful preliminaries for the

reader to understand our contribution. Section 3

introduces the BROS as project. We expose, in

Section 4, the modeling and verification of our

robotic platform. Section 5 presents the new tool

ZiZo, before finishing the paper in Section 6 with a

conclusion and an exposition of our future works.

2 BACKGROUND

We start, in this section, by presenting the

formalisms TNCES (Hanisch et al., 1997) and R-

TNCES (Zhang et al., 2013), which extend Petri nets

for the modeling of adaptive control systems, and

the existing tools to model them. We expose,

thereafter, two well-known protocols, PIP and PCP,

and a PCP-based solution for the management of

resource sharing in R-TNCES.

2.1 Modeling Formalisms and Tools

We introduce in this section two formalisms

extending Petri nets and which are useful to model

distributed reconfigurable control systems. We

provide, then, an overview of the existing tools to

model Petri Nets.

2.1.1 Timed Net Condition/Event System

A Timed Net Condition/Event System (TNCES)

(Hanisch et al., 1997) has a modular structure which

may be basic or composite. A basic TNCES is an

elementary module extending Petri nets by

proposing the new concepts of event and condition

signals. A composite TNCES can be composed of

basic/composite interconnected modules in a

hierarchical form. A TNCES, as shown in Figure 1,

is formalized as a tuple in (Zhang et al., 2013) as

follows:

TNCES = {PTN; CN; WCN; I; WI; EN; em} (1)

where: (i) PTN = (P; T; F; K; WF) is a classic

Place/Transition Net, (ii) CN

⊆

(P × T) is a set of

condition arcs, (iii) WCN: CN → N

defines a

weight for each condition arc, (iv) I

⊆

(P × T) is a

set of inhibitor arcs, (v) WI: I → N

defines a weight

for each inhibitor arc, (vi) EN

⊆

(T × T) is a set of

event arcs free of circles, (vii) em : T → {∨,∧} is an

event mode for every transition (i.e. if ∧ then the

corresponding events have to occur simultaneously

before the transition firing, else if ∨ then one of

them is enough).

Time intervals are assigned to the pre-transition

flow arcs, which imposes time constrains to the

firing of the transition. They are formalized as

follows:

DC={DR, DL, D

} (2)

where: (i) DR is a set of delay time that represents

the set of minimum times that the token should

spend at a particular place before the transition can

be fired, (ii) DL is the final set of limitation time that

defines the maximum time that a place may hold a

token (if all the other conditions for transition firing

are met), (iii) D

is the initial set of the clocks

associated with the places.

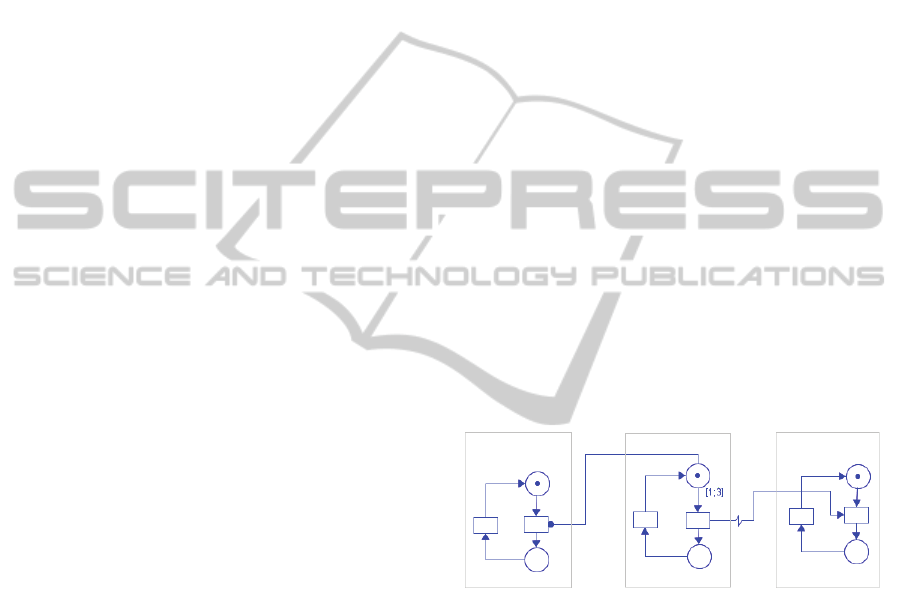

Figure 1: Example of a TNCES.

2.1.2 Reconfigurable Timed Net

Condition/Event System

An R-TNCES, as defined in (Zhang et al., 2013), is

a structure RTN =(B, R), where R is the control

module consisting of a set of reconfiguration

functions R = {r

,...,r

} and B is the behavior

module that is a union of multi TNCESs, represented

B =(P, T, F, W, CN, EN, DC, V, Z) (3)

where: (i) P (respectively, T) is a superset of places

(respectively, transitions), (ii) F

⊆∪

(P × T) (T ×

P) is a superset of flow arcs, (iii) W: (P × T)

∪

(T ×

P) →{0, 1} maps a weight to a flow arc, W(x, y) > 0

if (x, y)

∈

F, and W(x, y)=0 otherwise, where x, y

∈

∪

T, (iv) CN

⊆

(P × T) (respectively, EN

⊆

(T ×

ZiZo:Modeling,SimulationandVerificationofReconfigurableReal-timeControlTasksSharingAdaptiveResources-

ApplicationtotheMedicalProjectBROS

T)) is a superset of condition signals (respectively,

event signals), (v) DC: F ∩ (P × T) → {[l1,

h1],...,[l

|F ∩ (P × T)|

, h

|F ∩ (P × T)|

]} is a superset of time

constraints on output arcs, where

∀

∈

[1, |F∩(P ×

T)|], l

, h

∈

N, and l

< h

, (vi) V : T

∨∧

→{, } maps

an event-processing mode (AND or OR) for every

transition, (vii) Z

= (M

, D

), where M

: P → {0, 1}

is the initial marking and D

: P →{0} is the initial

clock position.

2.1.3 Existing Tools

Several tools already exist to model and/or simulate

Petri nets and their extensions. For example, CPN

tools is a software for editing, simulating and

analyzing Colored Petri Nets. It features a fast

simulator that efficiently handles both untimed and

timed nets. Full and partial state spaces can be

generated and analyzed, and a standard state space

report contains information such as boundedness

properties and liveness properties (Ratzer et al.,

2003). Petri.NET is another tool which allows

modeling, simulation and real-time implementation

of static and dynamic Petri nets. The results of a

Petri net model simulation are presented to the user

in the form of a token game and in the graphical

form showing diagrams of a state vector (Genter et

al., 2007). Nevertheless, neither CPN tools nor

Petri.NET can support R-TNCES with their

condition and event signals. The VisualVerification

(ViVe) toolset is a tool chain for automatic

verification of distributed control systems. It allows

creation and modification of model components in

modelling language of Net Condition/Event Systems

(NCES) (Suender et al., 2011). But, it does not deal

with the notion of time in NCES and the

reconfiguration feature they may have. The TNCES-

Editor, developed at the Martin Luther University

Halle-Wittenberg, allows the graphical modeling of

all NCES based subtypes, including R-TNCES

(Dubinin et al., 2006). To support interpretation and

reachable state analysis, the TNCES-Editor offers an

optional labeling of transitions. The whole net

structure including the labels will be stored in a

special file format (*.pnt) which can be used as an

import file for the model-checker SESA. However,

TNCES-Editor doesn't feature the simulation of a

built R-TNCES, nor highlights the reconfiguration

aspect of a DRCS.

2.2 Resource Sharing Protocols

This section presents the two protocols PIP and PCP.

It introduced, then, the specification and modeling of

the PCP-based solution for dynamic resource

sharing in R-TNCES.

2.2.1 Priority Inheritance Protocol

Priority Inheritance Protocol (PIP) in real-time

computing is a solution to avoid the problems of

priority inversion. As introduced in (Sha et al.,

1990), the basic PIP prevents any blocking of higher

priority tasks by lower ones. In fact, if a lower

priority task blocks a higher one, then it should

execute its critical section with the priority level of

the higher priority task that it blocks. In this case, we

say that the lower priority task inherits the priority of

the higher priority task. In PIP, the maximum

blocking time (due to a lower priority task) is equal

to the length of one critical section and the blocking

can occur at most one time for each lock.

A PIP operation is summed up in (Sha et al.,

1990) as follows: Let us assume a system to be

composed of a set of tasks {T

,...,T

} such that (i) T

and T

share a resource R (i

∈

(1,n) and k

∈

(1,n)),

(ii) Priority of T

is lower than T

's. Then, if T

blocked on a semaphore that corresponds to a

resource in use by T

, then T

immediately inherits

the priority of T

in order to unblock it as soon as

possible.

2.2.2 Priority Ceiling Protocol

The Priority Ceiling Protocol (PCP) (Goodenough

and Sha, 1988) in real-time computing is a

synchronization protocol for shared resources to

avoid unbounded priority inversion and mutual

deadlock due to wrong nesting of critical sections. In

this protocol, each resource R is assigned a priority

ceiling Cl(R), which is equal to the highest priority

of the tasks that may lock it. A task can acquire a

resource only if the resource is free and has a higher

priority than the priority ceiling of the rest resources

in lock by other tasks.

Let us assume a system to be composed of the

tasks T

, T

and T

(having respectively the

increasing priorities 1, 2, 3 and 4) and two resources

R and Q: R can be used by T

and T

and Q by T

and T

. Then, Cl(R)=2 and Cl(Q)=4. Thus, T

blocked if it tries to block R which is free when Q is

locked. PCP brought improvements from PIP since

it gives guarantees that there is no deadlock and each

task in blocked at most the duration of one critical

section. However, there is a downside when using

PCP; there is more run-time overhead than PIP.

HEALTHINF2015-InternationalConferenceonHealthInformatics

2.2.3 PCP-based Solution for Resource

Sharing in R-TNCES

We aim in this section to check the safety of each

reconfiguration scenario by enriching the

Reconfigurable Timed Net Condition/Event System

(R-TNCES) with the PCP protocol. We propose,

then, to use new patterns introduced in (Salem et al.,

2014) to model reconfigurable discrete event

systems according to R-TNCES by using PCP. This

contribution is original since R-TNCES is an

original formalism for reconfigurable systems, but

lacks of useful mechanisms to manage

reconfigurable shared resources.

a. Formalization

We present in this section the formalization of

Distributed Reconfigurable Control Systems

(DRCS) sharing resources.

DRCS: The authors in (Salem et al., 2014) assume a

DRCS D to be composed of n

networked

reconfigurable sub-systems sharing n

resources.

They extend the formalization of DRCS in (Zhang et

al., 2013) by adding the new set of resources as

follows:

D = ( ∑R-TNCES, ϖ, ∑M, ∑R ) (4)

where: (i) ∑R-TNCES is a set of n

R-TNCES, (ii)

ϖ a virtual coordinator handling ∑M, a set of

Judgment Matrices, (iii) ∑R, a set of n

shared

resources.

Shared Resources: On the basis of PCP's definition

and the flexibility expected from the DRCS, a

resource R is defined as follows :

R = ( Rec, S, Cl ) (5)

where: (i) Rec (Reconfiguration) indicates whether

R is added to the system / Rec

∈

{added, !added},

(ii) S indicates the state of R / S

∈

{free, hold by a

task

}, (iii) Cl is used for the ceiling of R.

Control Tasks: Based on the expected

reconfiguration of the system, the authors in (Salem

et al., 2014) defines a task T by:

T = ( Rec, S ) (6)

where: (i) Rec (Reconfiguration) indicates whether T

is added to the system / R ∈ { added, !added }, (ii) S

indicates the state of T / S ∈ { idle, execute, wait,

P(R

), V(R

) } and P(R

) means locking R

and V(R

)

unlocking it.

b. Modeling

The authors in (Salem et al., 2014) proposes new

solutions to introduce PCP in R-TNCES to avoid

any blocking problem after reconfiguration

scenarios. An R-TNCES model is proposed for each

resource of ∑R and task of ∑R-TNCES.

Shared Resources: Each shared resource is

modeled by a R-TNCES as shown in Figure 2. The

latter is composed of three TNCES modeling the

resource's reconfiguration (Rec), state (S) and

ceiling (Cl). Here is the modeling of a resource R:

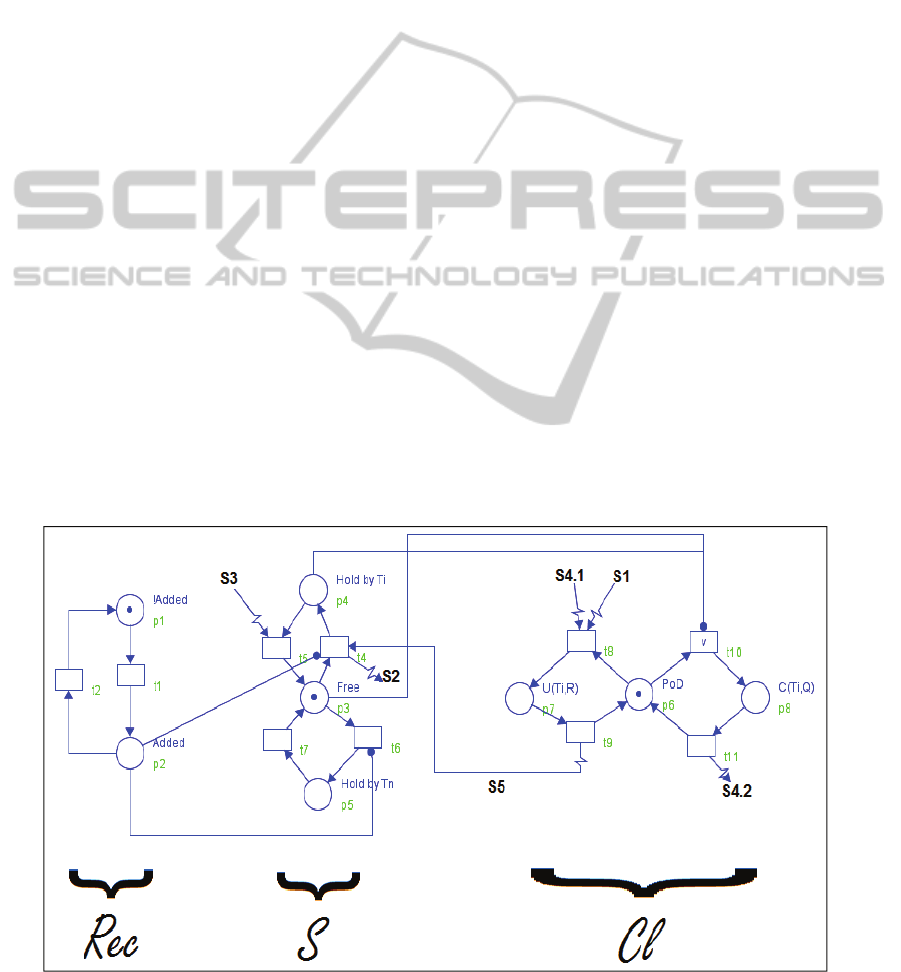

Figure 2: A shared resource's modeling.

ZiZo:Modeling,SimulationandVerificationofReconfigurableReal-timeControlTasksSharingAdaptiveResources-

ApplicationtotheMedicalProjectBROS

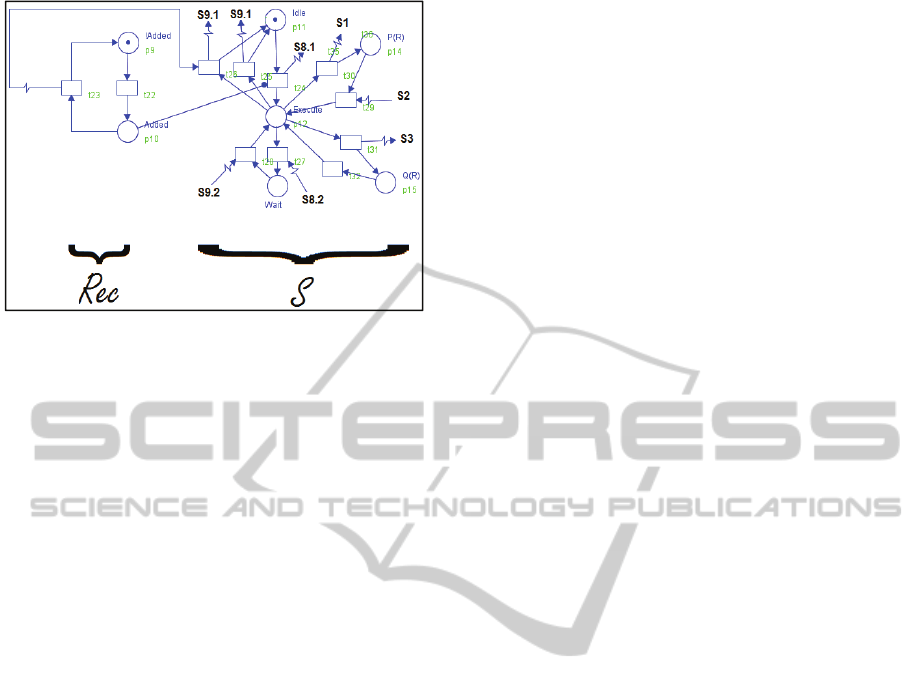

Figure 3: A task's modeling.

Control Tasks: The authors in [6] model each task

T by an R-TNCES to be composed of two TNCESs

as shown in Figure 3: the first one is illustrating its

reconfiguration (Rec), the second its state (S).

3 BROS AS AN ORIGINAL

PROJECT

We present in this section the project's motivations

and BROS's architecture and operating modes. We

expose, thereafter, the problem that may be faced

during running of the platform.

3.1 Motivations

Supracondylar fractures of the humerus (or SCH) are

a common pediatric elbow injury. They account for

18% of all pediatric fractures and 75% of all elbow

fractures ((Brubacher and Dodds, 2008; Cheng et al.,

1999; Landin and Danielsson, 1986). They mainly

occur during the first decade of life and are more

common among boys (Landin, 1983).

The current treatment of SCH fracture may

actually lead to many complications. The

neurological ones consist in damages caused to the

median nerve during the reduction of the fracture or

during the open procedure. For example, there were

in (Gosens and Bongers, 2003) 23 nerve injuries in

189 patients with closed reduction and percutaneous

pinning. 10 of them (9 ulnar nerves and one median

nerve) were caused by the reduction of the fracture

or the percutaneous pinning. The study in (Gosens

and Bongers, 2003) also reports some vascular

complications, mostly consisting in the disruption of

the brachial artery. Some of them happened during

the surgical intervention. Others complications may

also occur, like an inadequate reduction (Baumann’s

angle >10°) of the fracture revealed when reviewing

the postoperative X-ray. Repeated percutaneous

pinning after satisfactory reduction was performed.

All those complications are principally caused by the

"blind" pinning the surgeons perform (Flynn, 1993;

Flynn et al., 1974). Even though they are usually

using an image intensifier, the medical staff can't

guess in advance the trajectory the pin will follow.

Images are actually taken once the pin is inserted,

which may cause the previously mentioned

complications.

Other inconvenient of the current treatment

technique is the recurrent medical staff exposure to

radiations when using the fluoroscopic C-arm

(Livyatan et al., 2002; Clein, 1954). These X-ray

Radiations are harmful, and fluoroscopic

examinations usually involve higher radiation doses

than simple radiography.

Considering these constraints and issues, a new

project, baptized BROS, has been launched to

remedy these problems. This work is carried out

within a MOBIDOC PhD of the PASRI program,

EU-funded and administered by ANPR in Tunisia.

3.2 Architecture

BROS is a robotic platform dedicated to humeral

supracondylar fracture treatment. It is able to reduce

fractures, block the arm and fix the elbow bone's

fragments by pinning. It also offers a navigation

function to follow the pins' progression into the

fractured elbow.

BROS is composed of a Browser (BW), a

Control Unit (UC), a Middleware (MW), 2 Pining

Robotic Arms (P-BROS1 and P-BROS2) and 2

Blocking and Reducing arms (B-BROS1 and B-

BROS2). The said components are detailed

hereafter.

a. Browser

The browser, which is a Medtronics's product and

called FluoroNav, is a combination of specialized

surgical hardware and image guidance software

designed for use with a StealthStation Treatment

Guidance System. Together, these products enable a

surgeon to track the position of a surgical instrument

in the operating room and continuously update this

position within one or more still-frame fluoroscopic

images.

b. Control Unit

The Control Unit (CU) ensures the smooth running

HEALTHINF2015-InternationalConferenceonHealthInformatics

of the surgery and its functional safety. It asks the

supracondylar fracture's type to the middleware, and

then computes, according to it, the different

coordinates necessary to specify the robotic arms'

behaviors concerning the fracture's reduction,

blocking the arm and performing pinning. The

surgeon monitors the intervention progress thanks to

a dashboard installed on the CU.

c. Middleware

The middleware (MW) is a mediator between the

CU and the BW. It is an intelligent component that

provides several features of real-time monitoring

and decision making. The middleware contains

several modules: (i) an image processing module to

determine the fracture's type, (ii) a database

containing a range of supracondylar fracture images

classified according to their type, (iii) a learning

module to enrich the database with new images

acquired during each intervention, (iv) a controller,

(v) a verification module, (vi) a communication

module with the CU.

d. Pining Robotic Arms

The two pining robotic arms, P-BROS1 and P-

BROS2, insert two parallel Kirschner wires

according to Judet technique (Judet, 1953) to fix the

fractured elbow's fragments. To insure an optimal

postoperative stability, BROS respects the formula

=





>0.22, where S is the stability threshold, B

the distance separating the two wires and D the

humeral palette's width (Smida et al., 2007).

e. Blocking and Reducing Robotic Arms

B-BROS1 blocks the arm at the humerus to prepare

it to the fracture reduction. B-BROS2 performs then

a closed reduction to the fractured elbow before

blocking it once the reduction is properly completed.

3.3 Reconfiguration and Operating

Modes

Reconfiguration is an important feature of BROS. It

is designed to be able to operate in different modes.

The surgeon can actually decide to manually do a

task if BROS does not succeed to automatically

perform it, whether it is facture reduction, blocking

the arm or pinning the elbow. Thus, five different

operating modes are designed and detailed below.

Automatic Mode (AM): The whole surgery is

performed by BROS. The surgeon oversees the

operation running.

Semi-Automatic Mode (SAM): The surgeon

reduces the fracture. BROS performs the remaining

tasks.

Degraded Mode for Pinning (DMP): BROS only

realizes the pinning. It's to the surgeon to insure the

rest of the intervention.

Degraded Mode for Blocking (DMB): BROS only

blocks the fractured limb. The remaining tasks are

manually done by the surgeon.

Basic Mode (BM): The whole intervention is

manually performed. BROS provides navigation

function using the middleware that checks in real-

time the smooth running of the operation.

Table 2 summarizes the operating modes

description.

Table 2: BROS's operating modes.

Reduction Blocking Pinning Unblocking

Robotized Robotized Robotized Robotized

Manual Robotized Robotized Robotized

Manual Manual Robotized Robotized

Manual Robotized Manual Robotized

Manual Manual Manual Manual

3.4 Shared Resources and Issues

BROS is a distributed system composed of several

entities: the browser, the control unit, the

middleware, the two blocking and reducing arms

and the two pinning arms. The said entities may be

represented by several sharing resource processes.

The most relevant resources in our system are the

browser and the patient's arm. The first is solicited

by the robotic arms, the MW and the surgeon (when

a manual reduction or pining is performed) to update

the image on the screen. As to the fractured arm, it

may be used by whether the surgeon or the robotic

arms.

Applying a reconfiguration scenario on BROS by

switching from one operating mode to another may

actually lead to a deadlock because of concurrent

access to shared resources and which is usually

unsafe. This is what happens for example when

switching from AM to SAM. To illustrate this

ZiZo:Modeling,SimulationandVerificationofReconfigurableReal-timeControlTasksSharingAdaptiveResources-

ApplicationtotheMedicalProjectBROS

situation, we represent B-BROS1, B-BROS2 and the

surgeon by three processes with increasing priorities

(B-BROS1 < B-BROS2 < the surgeon). This is due

to the fact that human intervention takes precedence

over the robotic one, and B-BROS2 has one more

function than B-BROS1, which is the fracture

reduction.

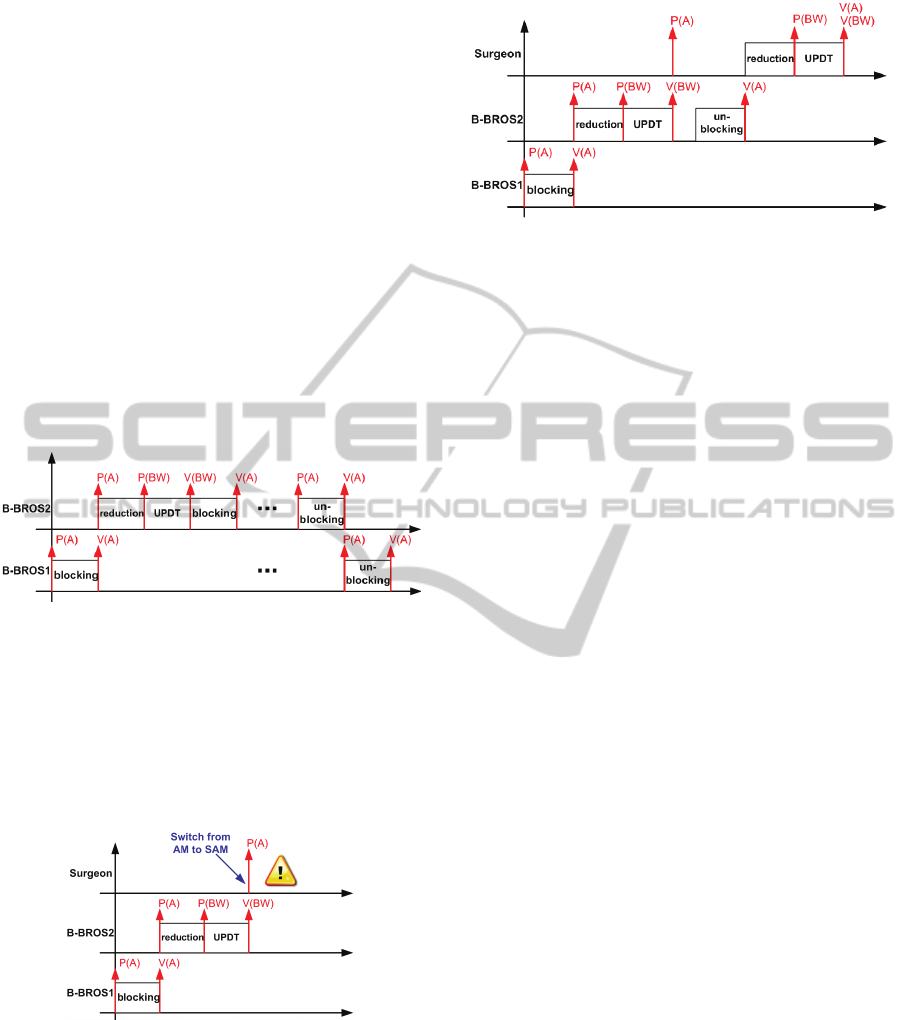

As illustrated in Figure 4, B-BROS1 starts by

locking the patient's arm to block it and frees it once

the blocking is achieved (P(A) and V(A)

respectively stand for locking and freeing the

fractured limb). B-BROS2 locks it to reduce the

fracture, and then locks the browser (P(BW) and

V(BW) respectively stand for locking and freeing

the browser) time to update the image displayed on

the screen. Once the blocking is done, B-BROS2

frees the browser. The two robotic arms will

successively use the patient's arm to unlock it at the

end of the intervention.

Figure 4: Behaviour of B-BROS1 and B-BROS2 in AM.

When the surgeons judges the fracture reduction

performed by B-BROS2 as unsatisfying, he can

decide to manually do it, and, thus, switches the

system from AM to SAM. However, when trying to

use the patient's arm, he finds it already locked by B-

BROS2 and a deadlock occurs as illustrated in

Figure 5.

Figure 5: Behavior of the surgeon, B-BROS1 and B-

BROS2 in SAM.

This kind of problem due to concurrent access to

shared resources after a reconfiguration scenario was

treated and solved in a recently accepted work

(Salem et al., 2014). The solution is to apply PCP to

synchronize sharing resources. Thus, the deadlock in

the system is avoided as illustrated in Figure 6.

Figure 6: Behavior of the surgeon, B-BROS1 and B-

BROS2 in SAM when using PCP.

We see, according to this example, that problems

may be faced in reconfigurable control systems, and

in this case with BROS, when dealing with

concurrent processes that share resources. Thus, we

propose to use the contribution made in (Salem et

al., 2014) and presented in section 2.2.3 to model

and verify reconfigurable tasks and resources to

check the safety of any reconfiguration scenario that

may be applied on the system.

4 MODELING AND

VERIFICATION OF BROS

Since R-TNCES is a useful formalism to model

reconfigurable systems, we aim in this section to

define BROS's modeling in order to check the

system's safety after any reconfiguration scenario.

4.1 Modeling

We continue, in this section, by modeling the BROS

using R-TNCES and tasks and shared resources'

modeling we previously proposed (in section 2.2.3).

Let's remember that, as mentioned in section 3.4, the

Surgeon has a higher priority than B-BROS2

(priority(Surgeon)=3 and priority(B-BROS2)=2) and

B-BROS2 takes precedence over B-BROS1 whose

priority equals to 1. The patient's arm (A) is shared

by the three processes, whereas the browser (BW) is

shared by B-BROS2 and the Surgeon in this case.

Thus, Cl(A)=Cl(BW)=priority(Surgeon)=3. We start

by modeling the three tasks as following in Figure 7.

We model in Figure 8 the two shared resources

BW and A whose ceilings are equal to 3. Let's

remember that BW is shared by two processes

(Surgeon and B-BROS2), whilst A is shared by the

three.

HEALTHINF2015-InternationalConferenceonHealthInformatics

Figure 7: The Surgeon, BROS-1 and BROS2 modeling.

Figure 8: The arm and the browser modeling.

4.2 Verification

Once the R-TNCES model of the DRCS is enriched

with PCP, the next step is to verify whether the

models meet users’ requirements. This means that

any reconfiguration scenario dealing with

adding/removal of resources does not lead to a

blocking situation. Model-checking is a technique

for automatically verifying the correctness properties

of finite-state systems. Model checking for TNCES

and R-TNCES is based on their reachability graphs.

SESA (Starke and Roch, 2002) is an effective

software environment for the analysis of TNCES,

which computes the set of reachable states exactly.

Typical properties which can be verified are

boundedness of places, liveness of transitions, and

reachability of states. In addition, temporal/

functional properties based on Computation Tree

Logic (CTL) specified by users can be checked

manually. Thus, we check, in this section, the safety

of the PCP-based solution to model the concurrent

access to reconfigurable shared resources. First, the

ZiZo:Modeling,SimulationandVerificationofReconfigurableReal-timeControlTasksSharingAdaptiveResources-

ApplicationtotheMedicalProjectBROS

following e-CTL formula is applied to check the

deadlock-freeness of the system's modeling:

AG EX TRUE (7)

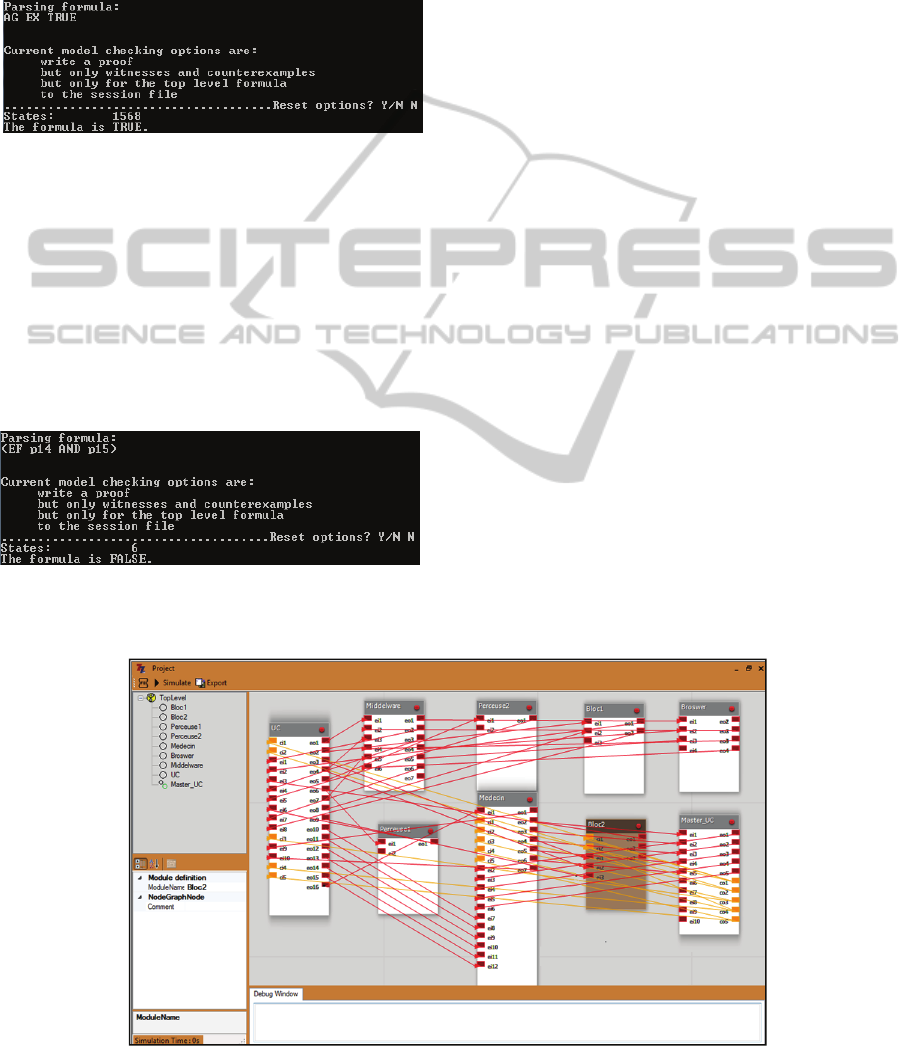

This formula is proven to be true by SESA as

shown in the screenshot in Figure 9, so there is no

deadlocks in our R-TNCES.

Figure 9: Verification of deadlock-freedom.

We also check the safety property by checking if a

given resource may be simultaneously locked by two

different tasks. The following CTL formula is

checked:

EF p14 AND p15 (8)

where: (i) p14 is the place translating that the

resource A is locked by the Surgeon, (ii) p15 means

that B-BROS2 locks A. This formula is proven to be

false as illustrated in Figure 10.

Figure 10: Verification of the concurrency issue on

the patient's arm.

5 NEW ENVIRONMENT: ZIZO

We present in this section the new tool ZiZo and its

usefulness in certifying distributed reconfigurable

control systems. BROS is the case study.

5.1 Motivations and Originality

ZiZo is a R-TNCES modeling and random-

simulating tool written in C# programming language

for the Windows platform and developed in LISI

laboratory of INSAT and eHTC (Tunisia). Its

originality consists in featuring the simulation of a

built R-TNCES and highlighting the reconfiguration

aspect of a DRCS, which are not offered in any other

Petri Nets editor. The main window of ZiZo GUI

shown in Figure 11 comprises five dockable frames:

Menu Bar, Model Arborescence, Place Properties,

the Document Explorer and the Debug Window.

ZiZo is capable of:

 creating several modules within the same

model;

 interconnecting modules by input/output

condition and event signals;

 randomly simulating the created model to

detect any eventual deadlock;

 storing the created model in a special file

format (*.pnt);

 loading a created model to edit it and/or

simulate it;

 exporting the model to the model-checker

SESA.

Since R-TNCES is the more expressive

formalism to model adaptive systems because it

Figure 11: The main window of ZiZo.

HEALTHINF2015-InternationalConferenceonHealthInformatics

addresses all the reconfiguration forms, our

community lacks an environment to edit, simulate

and check models based on this formalism. The

original features of ZiZo are:

 an optimal modeling of reconfigurable

distributed real-time tasks sharing adaptive

resources;

 simulation of distributed R-TNCES models;

 allows to easily call the model checker SESA

for the verification of CTL-based properties.

5.2 Certification of BROS

The purpose of this section is to certify the safety of

BROS by checking whether a deadlock may happen

at runtime and proving the nonexistence of several

potential issues.

a. Simulation

Several researches worked on designing tools to

simulate Petri nets-based subtypes. Nevertheless, no

one in our community worked on simulating the

notion of time and the reconfiguration aspect in Petri

nets which are featured by R-TNCES. This makes

ZiZo the unique tool offering the ability to model

and simulate such formalism. Thus, using ZiZo, we

model the whole architecture of BROS with its

different modules (UC, MW, BW, B-BROS1, B-

BROS2, P-BROS1, P-BROS2 and the surgeon) and

shared resources. We obtain an R-TNCES model of

186 places and 283 transitions. Upon definition of

the model, ZiZo can simulate it. Simulation can be

tracked by selection of a token game. Once

simulation is finished, a report is displayed at the

debug window.

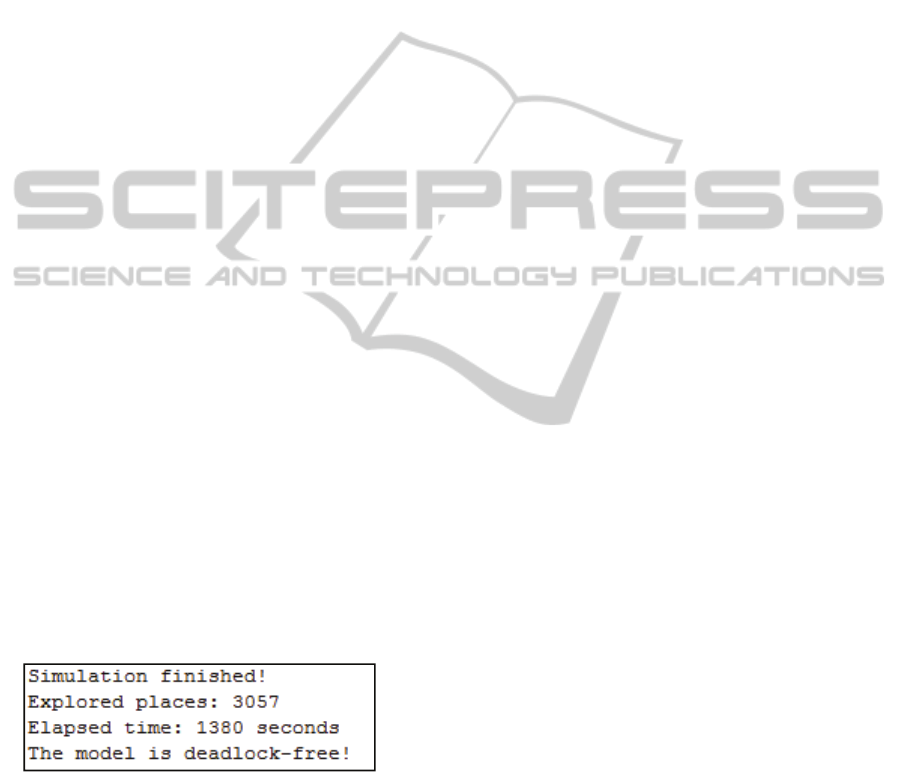

The obtained report displayed in Figure 12

proves that, after exploring 3057 places by ZiZo, our

system is deadlock-free.

Figure 12: BROS's simulation report.

b. Verification

After proving in Section 4.2 the non-existence of

problems related to concurrent access on BROS's

reconfigurable shared resources, we do in this

section an exhaustive CTL-based verification to

check the existence of several problems that may be

faced at BROS's runtime. Thus, we apply several

CTL formulas on the model of the whole BROS

system, built using ZiZo and then exported to SESA.

Simultaneous Blocking and Pinning: Pinning in

the patient's arm while moving it by unblocking it

may lead to dramatic consequences. We check, then,

whether this two actions may be simultaneously

performed by applying the following formula to

BROS's model:

EF p23 AND p43 (9)

where: (i) p23 translates unblocking the arm, (ii) p43

pinning it. The formula is found to be false.

Timeout Issue: We check that the whole surgical

intervention does not last more than a given definite

time. We apply, then, formula 10:

EF [0,301] p23 (10)

This formula is also proven to be false.

Intervention Sequence: We have to be sure that

BROS complies with the specified logic by

performing in order the following actions: reduction,

blocking, pinning 1, pinning 2 and unblocking. We

apply, therefore, the following CTL formula:

AGA t18 X AFE t25 X AFE t40 X AFE t74 X

AFE t111 X TRUE

(11)

where t18, t25, t40, t74 and t111 are respectively the

transitions leading to the places translating

reduction, blocking, pinning 1, pinning 2 and

unblocking. The formula is proved to be true.

6 CONCLUSION AND

PERSPECTIVES

Our work consisted, through this paper, in checking

the safety of the surgical robotic system BROS,

mainly after different scenarios of addition, removal

or update of adaptive shared resources. BROS is a

flexible system since it may run under different

operating modes: it is reconfigurable. Whence, we

chose to model BROS using R-TNCES, the most

suitable formalism to model distributed

reconfigurable control systems. The concurrent

access to shared resources issues were resolved

thanks to the PCP-based solution. We simulated

BROS's model using our new tool ZiZo to prove the

deadlock-freedom and, then, applied several CTL

formulas on it which revealed the nonexistence of

several issues in BROS. We can now certify that

BROS is a safe platform and does not run any risk

after any reconfiguration scenario. The next step is

to proceed to the real implementation of BROS,

using an ABB product, the robotic arm IRB 120

(MIKAELSSON and CURTIS, 2009).

ZiZo:Modeling,SimulationandVerificationofReconfigurableReal-timeControlTasksSharingAdaptiveResources-

ApplicationtotheMedicalProjectBROS

ACKNOWLEDGEMENTS

This research work is carried out within a

MOBIDOC PhD thesis of the PASRI program, EU-

funded and administered by ANPR (Tunisia). The

BROS national project is a collaboration between

Tunis Children Hospital of Béchir Hamza (Tunis),

eHTC and INSAT (LISI Laboratory) in Tunisia. We

thank the medical staff, Prof.Dr.med. Mahmoud

SMIDA (Head of Child and Adolescent Orthopedics

Service) and Dr.med. Zied JLALIA, for their fruitful

collaboration and continuous medical support.

REFERENCES

Kwoh, Y. S., Hou, J., Jonckheere, E. A., and Hayati, S.

(1988). A robot with improved absolute positioning

accuracy for ct guided stereotactic brain surgery.

Biomedical Engineering, IEEE Transactions on,

35(2):153–160.

Cleary, K. and Nguyen, C. (2001). State of the art in

surgical robotics: clinical applications and technology

challenges. Computer Aided Surgery, 6(6):312–328.

Wang, Y., Butner, S. E., and Darzi, A. (2006). The devel-

oping market for medical robotics. PROCEEDINGS-

IEEE, 94(9):1763.

Gomes, P. (2011). Surgical robotics: Reviewing the past,

analysing the present, imagining the future. Robotics

and Computer-Integrated Manufacturing, 27(2):261–

266.

Zhang, J., Khalgui, M., Li, Z., Mosbahi, O., and Al-

Ahmari, A. M. (2013). R-tnces: A novel formalism for

reconfigurable discrete event control systems. Systems,

Man, and Cybernetics: Systems, IEEE Transactions

on, 43(4):757–772.

Salem, M. O. B., Mosbahi, O., and Khalgui, M. (2014).

Pcp-based solution for resource sharing in

reconfigurable timed net condition/event systems. In

ADECS 2014, Proceedings of the 1st International

Workshop on Petri Nets for Adaptive Discrete-Event

Control Systems, co-located with 35th International

Conference on Application and Theory of Petri Nets

and Concurrency (Petri Nets 2014), Tunis, Tunisia,

June 24, 2014., pages 52–67.

Hanisch, H.-M., Thieme, J., Luder, A., and Wienhold, O.

(1997). Modeling of plc behavior by means of timed

net condition/event systems. In Emerging Technolo-

gies and Factory Automation Proceedings, 1997.

ETFA ’97., 1997 6th International Conference on,

pages 391–396.

Ratzer, A. V., Wells, L., Lassen, H. M., Laursen, M.,

Qvortrup, J. F., Stissing, M. S., Westergaard, M.,

Christensen, S., and Jensen, K. (2003). Cpn tools for

editing, simulating, and analysing coloured petri nets.

In Applications and Theory of Petri Nets 2003, pages

450–462. Springer.

Genter, G., Bogdan, S., Kovacic, Z., and Grubisic, I.

(2007). Software tool for modeling, simulation and

real-time implementation of petri net-based

supervisors. In Control Applications, 2007. CCA 2007.

IEEE International Conference on, pages 664–669.

IEEE.

Suender, C., Vyatkin, V., and Zoitl, A. (2011). Formal

validation of downtimeless system evolution in

embedded automation controllers. ACM Transactions

on Embedded Control Systems.

Dubinin, V., Hanisch, H., and Karras, S. Building of

reachability graph extractions using a graph rewriting

system. In proceedings of the 7th International

Conference of Science and Technology, NITis 2006.

Sha, L., Rajkumar, R., and Lehoczky, J. P. (1990). Priority

inheritance protocols: An approach to real-time

synchronization. Computers, IEEE Transactions on,

39(9):1175–1185.

Goodenough, J. B. and Sha, L. (1988). The priority ceiling

protocol: A method for minimizing the blocking of

high priority Ada tasks, volume 8. ACM.

Brubacher, J. W. and Dodds, S. D. (2008). Pediatric

supracondylar fractures of the distal humerus. Current

reviews in musculoskeletal medicine, 1(3-4):190–196.

Cheng, J. C., Ng, B., Ying, S., and Lam, P. (1999). A 10-

year study of the changes in the pattern and treatment

of 6,493 fractures. Journal of Pediatric Orthopaedics,

19(3):344–350.

Landin, L. A. and Danielsson, L. G. (1986). Elbow

fractures in children: an epidemiological analysis of

589 cases. Acta Orthopaedica, 57(4):309–312.

Landin, L. A. (1983). Fracture patterns in children:

Analysis of 8,682 fractures with special reference to

incidence, etiology and secular changes in a swedish

urban population 1950-1979. Acta Orthopaedica,

54(S202):3–109.

Gosens, T. and Bongers, K. J. (2003). Neurovascular

complications and functional outcome in displaced

supracondylar fractures of the humerus in children.

Injury, 34(4):267–273.

Flynn, J. C. (1993). Displaced supracondylar fracture of

the humerus in children: Technique of closed

reduction and percutaneous pinning. Operative

Techniques in Orthopaedics, 3(2):121–127.

Flynn, J. C., Matthews, J. G., Benoit, R. L., et al. (1974).

Blind pinning of displaced supracondylar fractures of

the humerus in children. J Bone Joint Surg Am,

56(2):263–72.

Livyatan, H., Yaniv, Z., and Joskowicz, L. (2002). Robus

automatic c-arm calibration for fluoroscopy-based

navigation: a practical approach. In Medical Image

Computing and Computer-Assisted InterventionMIC-

CAI 2002, pages 60–68. Springer.

Clein, N. W. (1954). How safe is x-ray and fluoroscopy

for the patient andthe doctor? The Journal of

pediatrics, 45(3):310–315.

Judet, J. (1953). Traitement des fractures sus-condyliennes

transversales de l'humérus chez l'enfant. Rev Chir

Orthop, 39:199–212.

HEALTHINF2015-InternationalConferenceonHealthInformatics

Smida, M., Smaoui, H., Ben Jlila, T., Saeid, W., Safi, H.,

Ammar, C., Jalel, C., and Ben Ghachem, M. (2007).

Un index de stabilité pour l'embrochage percutané

latéral parallèle des fractures supracondyliennes du

coude chez l'enfant. Revue de Chirurgie Orthopédique

et Réparatrice de l’Appareil Moteur, 93(4):404.

Starke, P. H. and Roch, S. (2002). Analysing signal-net

systems. Professoren des Inst. für Informatik.

MIKAELSSON, P. and CURTIS, M. (2009). Portrait-

robot d’un petit prodige: Abb présente son nouveau

robot irb 120 et son armoire de commande irc5

compact. Revue ABB, (4):39–41.

ZiZo:Modeling,SimulationandVerificationofReconfigurableReal-timeControlTasksSharingAdaptiveResources-

ApplicationtotheMedicalProjectBROS
