Crutchﬁeld Information Metric for Quantifying the Inter-sequence

Relationship of Multiparametric MRI Data

Jens Kleesiek

1,2,3

, Armin Biller

1,3

and Kai Ueltzh

offer

Division of Neuroradiology, Heidelberg University Hospital, Heidelberg, Germany

HCI/IWR, Heidelberg University, Heidelberg, Germany

Division of Radiology, German Cancer Research Center, Heidelberg, Germany

Keywords:

Multiparametric MRI, Crutchﬁeld Information Metric, MRI Quality Control.

Abstract:

A plethora of different MRI sequences exists. To automatically structure this ’zoo’ of available sequences we

propose the usage of a framework rooted in information theory. In this paper we show that the Crutchﬁeld

information metric is a suitable distance measure for this purpose. It is demonstrated that the physical relation-

ship can be inferred with this metric solely based on the voxel intensities. As future applications we envisage

MRI sequence quality control and standardization.

1 INTRODUCTION

The necessity of multiparametric magnetic resonance

imaging (MRI) for diagnosis and therapy monitoring

of diseases is undoubted. However, in general there

are no standardized protocols speciﬁed (Cornfeld and

Sprenkle, 2013). In the clinical routine workup it is

not feasible to acquire every available sequence de-

posited at the scanner. This would result in an unrea-

sonable long scanning time, very likely making the

patient feel uncomfortable. Secondly, the images ac-

quired at the end of a long scanning session tend to

suffer from motion artifacts which impair their diag-

nostic value. Needless to say that this approach is eco-

nomically unacceptable.

To shed light on the zoo of available MRI se-

quences we try to establish a framework that is rooted

in information theory and allows us to capture and

quantify the relative information content between

MRI sequences. The current work should be seen as

a proof of concept which in the future can be an aid

for standardizing MRI protocols and possibly also be

used to optimize MRI sequence parameters.

Historically, information theory investigated the

transmission between a sender and a receiver (Shan-

non and Weaver, 1949) but it has also been extended

to theoretical measures that capture the information

integration (Tononi et al., 1998) and information dis-

tances of information sources (Kullback, 1968). A

not well known but still very important information

distance was introduced by Crutchﬁeld (Crutchﬁeld,

1990). He showed that a proper metric space (in

a mathematical sense) of information sources can

be deﬁned. Given physically or functionally related

sources, i.e. different MRI sequences, that are acti-

vated by an identical localized stimulus, in our case a

patient that is examined, the information distance be-

tween those sources can be determined using this met-

ric. In turn, due to the fact that it is a proper metric we

can exploit the discovered relationship geometrically.

To the best of our knowledge no comparable ap-

proach has been examined for multiparametric MRI

data previously. We were inspired by robotic exper-

iments were the Crutchﬁeld information metric has

been used to determine the informational topology

of a set of robot sensors, that consecutively was ex-

ploited for simple visually guided movements (Ols-

son et al., 2006) or unsupervised activity classiﬁca-

tion (Kaplan and Hafner, 2006).

2 MATERIALS AND METHODS

2.1 Theory

Each MRI sequence can be interpreted as an infor-

mation source with the voxel intensities as the re-

spective measurements. Given two different informa-

tion sources X and Y , e.g. corresponding T1- and T2-

weighted data sets, it is possible to compute the con-

ditional entropy of the two sources:

Kleesiek J., Biller A. and Ueltzhöffer K..

Crutchﬁeld Information Metric for Quantifying the Inter-sequence Relationship of Multiparametric MRI Data.

DOI: 10.5220/0005181800050012

In Proceedings of the International Conference on Bioimaging (BIOIMAGING-2015), pages 5-12

ISBN: 978-989-758-072-7

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

H(X|Y ) = −

∑

p(x, y) log

p(x|y) . (1)

Consecutively, given H(X |Y ) and the entropy

H(X) allows to determine the joint entropy:

H(X, Y ) = H(X) + H(Y |X)

∑

p(x)log

p(x) + H(Y |X) .

(2)

After calculating these quantities the distance be-

tween the two information sources can be com-

puted in the form of the Crutchﬁeld information met-

ric (Crutchﬁeld, 1990):

(X, Y ) =

H(Y |X) + H(X|Y )

H(X, Y )

. (3)

This metric is related to the mutual information

(MI). However, MI measures what two random vari-

ables have in common, whereas the Crutchﬁeld in-

formation metric quantiﬁes what they do not have in

common (Olsson et al., 2006). In Addition, in con-

trast to the MI the Crutchﬁeld distance is a proper

metric fullﬁlling the properties of:

1. symmetry: d

(X, Y ) = d

(Y, X),

2. equivalence: d

(X, Y ) = 0 iff X and Y

are recoding-equivalent (as deﬁned by Crutch-

ﬁeld (Crutchﬁeld, 1990)), d

(X, Y ) = 1 states that

the two sources are independent,

3. triangle inequality: d

(X, Z) ≤ d

(X, Y ) +

(Y, Z).

Being a metric implies that the information space

has a structure that can be exploited geometrically.

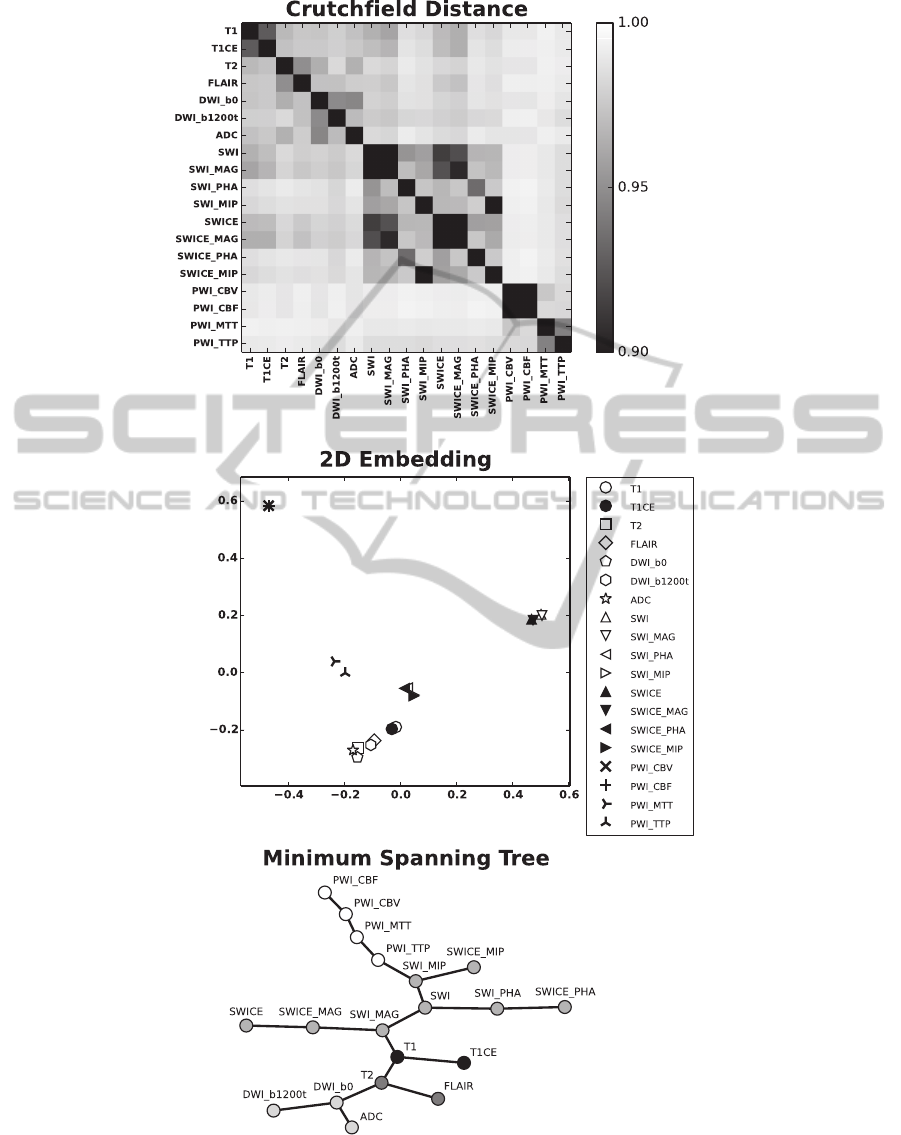

The ﬁrst experiment is a proof of concept. In the

second experiment we computed the metric for all

combinations (D = 171) of sequences within a pri-

vate multiparametric MRI data set (see Sec. 2.2) and

interpreted the resulting matrix as a distance (dis-

similarity) matrix and as a graph adjacency matrix.

In the former case we used non-linear dimensional-

ity reduction methods like Isomap (Tenenbaum et al.,

2000) and local linear embedding (Roweis and Saul,

2000) to embed the data in a 2D geometric space, in

the latter case we used Kruskal’s algorithm (Kruskal,

1956) to obtain the minimum spanning tree (MST). In

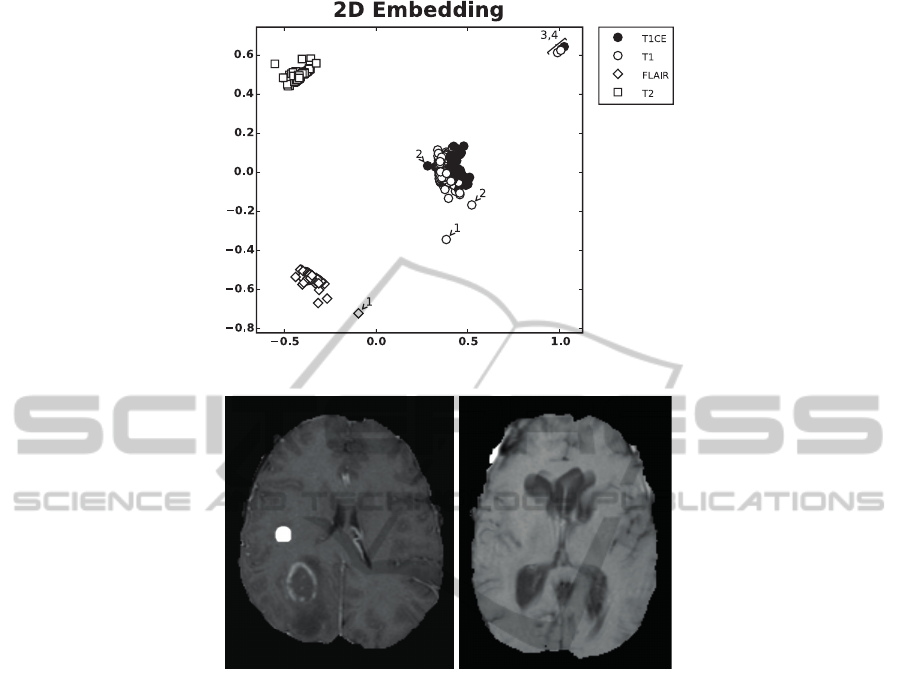

a third experiment we computed the distance matrices

(N = 216, D = 6) for a publicly available multipara-

metric MRI data set (see Sec. 2.2) and used the low

dimensional embedding to identify impaired images.

2.2 Data

2.2.1 Data Set 1

In total N = 17 multiparametric MRI data sets with

C = 19 channels each were acquired in a clinical rou-

tine workup of patients using two different 3 Tesla

MR system from the same manufacturer (Magne-

tom Tim Trio (N = 9) and Magnetom Verio (N = 8),

Siemens Healthcare, Erlangen, Germany).

All patients were suffering from a glioblas-

toma multiforme (WHO grade IV). The data was

anonymized. The reasoning for taken data from

diseased subjects is motivated by the fact that pa-

tients suffering from this disease are scanned with a

more detailed protocol that comprises more MRI se-

quences.

The following MRI images were acquired: na-

tive (T1) and contrast enhanced (T1CE) T1-weighted

images with T E = 4.04 ms and T R = 1710 ms; T2-

weighted TSE imaging (T2) with T E = 85 ms and

T R = 5500 ms; T2-weighted ﬂuid attenuated inver-

sion recovery images (FLAIR) with T E = 135 ms

and T R = 8500 ms; diffusion-weighted images with

T E = 90 ms and T R = 5300 ms comprising a b =

0 (DWI b0), a b = 1200 (DWI b1200t) as well as

an apparent diffusion coefﬁcient (ADC) map; native

(SWI) and contrast enhanced (SWICE) susceptibil-

ity weighted images with T E = 19.7 ms and T R =

27 ms, this set of sequences also includes a mag-

nitude (SWI[CE] MAG) and phase (SWI[CE] PHA)

image as well as a minimum intensity projection

(SWI[CE] MIP); dynamic susceptbility contrast per-

fusion images with T E = 37 ms and T R = 2220 ms

yielding the relative cerebral blood ﬂow (PWI CBF)

and volume (PWI CBV), the mean transit time

(PWI MTT) and the time to peak (PWI TTP).

2.2.2 Data Set 2

For the third experiment we use the publicly available

BraTS 2014 training data set provided via the Vir-

tual Skeleton Database (VSD) (Kistler et al., 2013).

It comprises N = 216 co-registered native and con-

trast enhanced T1-weighted images, as well as T2-

weighted and T2-FLAIR images (C = 4). The data

was acquired with MR scanners of different vendors,

at different ﬁeld strengths and using non-uniform pro-

tocols (i.e. physical parameters). The images contain

low grade as well as high grade tumors.

BIOIMAGING2015-InternationalConferenceonBioimaging

2.3 Preprocessing

2.3.1 Experiment 1 and 2

All sequences of the multiparametric data set 1 were

co-registered intra-individually to the respective na-

tive T1-weighted images. A rigid 6-DOF registration

was preformed using the BRAINSFit (Johnson et al.,

2007) command line interface of 3D-Slicer (3D Slicer

v4.3). The registration accuracy was conﬁrmed by a

board-certiﬁed neuroradiologist. In the next step we

used FMRIB’s brain extraction tool (BET) (Smith,

2002), which is part of FSL (FMRIBs Software Li-

brary FSL v5.0), for deskulling of the T1-weighted

images. The obtained mask was applied to all chan-

nels. Finally, all data was rescaled to be in the range

[0, 1024]. To estimate the probabilities we used a stan-

dard frequency count method, after we conﬁrmed that

histogram equalization methods do not alter the re-

sults.

2.3.2 Experiment 3

Data set 2 was rescaled to be in the range [0, 1024]

and the same standard frequency count method as in

the ﬁrst two experiments was applied.

2.4 Data Manipulation

For the ﬁrst experiment we manipulated the data. We

added increasing levels of noise to the images using a

normal distribution N (µ = 0, σ

) centered at zero but

with varying values of sigma. Further, we generated

an artiﬁcial sequence Z by combining two recorded

sequences X and Y with a weighted sum:

Z = (1 − α)X +αY . (4)

Finally, we applied a 6-DOF rigid transformation T

that allows for separately rotating around an axis or

translating along an axis.

2.5 Implementation

Except the two tools (BRAINSFit (Johnson et al.,

2007) and BET (Smith, 2002)) noted above, all

algorithms were implemented in custom python

scripts (Python v2.7.6). For analyzing the distance

matrices we adapted functions implemented in scikit-

learn (Pedregosa et al., 2011) and NetworkX (Hag-

berg et al., 2008).

3 RESULTS

3.1 Experiment 1 – Proof of Concept

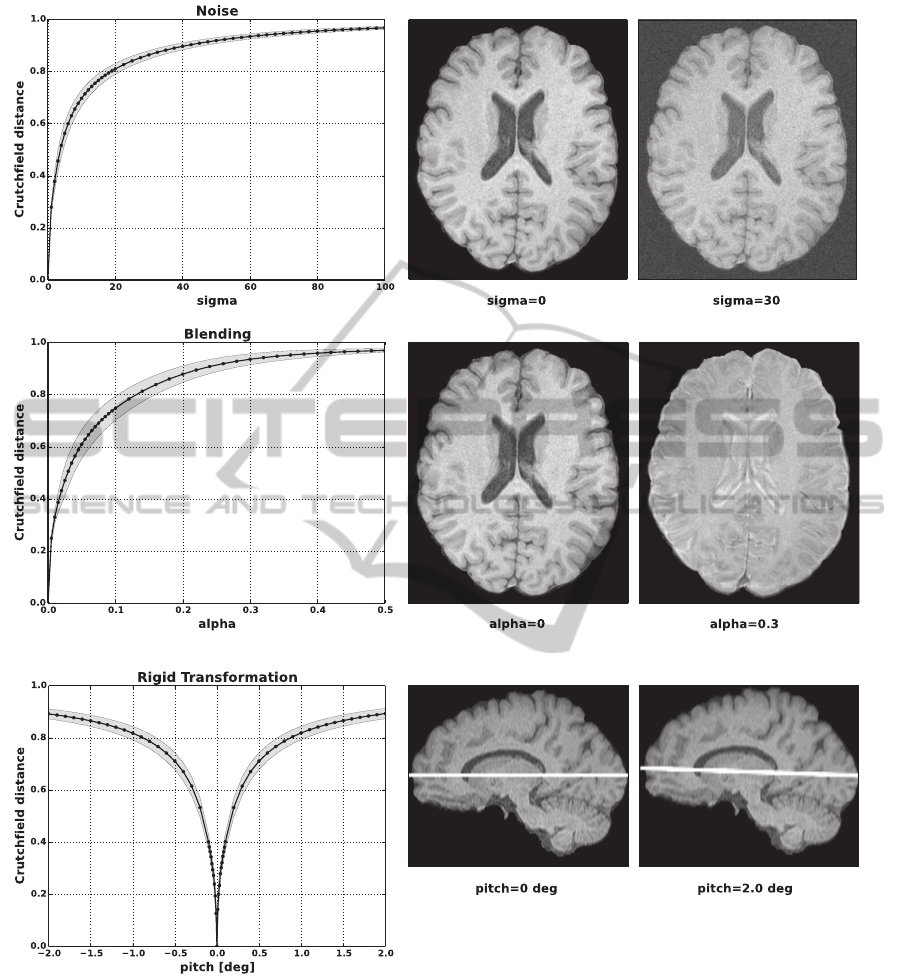

In the ﬁrst experiment (Fig. 1) we conﬁrmed that the

Crutchﬁeld information distance is a valid metric for

our purposes. On this account we manipulated the

MRI image data (data set 1) in several ways. The av-

erage course as well as the standard deviation (gray

shaded area) are plotted for all experiments.

Initially we added an increasing level of gaussian

noise to the data. This manipulation was repeated

for each T1 sequence of MRI data set 1 (N = 17).

In Fig. 1A left it can be seen that the Crutchﬁeld

distance increases monotonically with the amount of

noise added. In Fig. 1A right an exemplary axial T1-

weighted image is shown without noise and with a

noise level corresponding to σ = 30.

Secondly, we generated artiﬁcial MRI data by

blending the T1-weighted and T2-weighted images of

the same, co-registered data set using varying weight-

ing factors (Eq. 4). We then computed the Crutch-

ﬁeld distance between the T1 sequence and the artiﬁ-

cial images. This was repeated for all images of MRI

data set 1. In Fig. 1B left it can be seen that, as ex-

pected, with an increasing T2-fraction of the artiﬁcial

image also the Crutchﬁeld distance to the T1 image

increases. In Fig. 1B right an exemplary axial T1 slice

as well as a mixed T1- and T2-weighted image using

a factor of α = 0.3 are shown.

Next, we used a rigid transformation to selectively

rotate a data set around an axis. We measured the

Crutchﬁeld distance of an unmodiﬁed reference se-

quence to the identical, but rotated data set in the in-

terval of [−2, 2] degrees. This is shown for the pitch

movement in Fig. 1C left. It clearly can be seen that

there is a well deﬁned minimum at 0 degrees with an

almost symmetrically increasing information distance

in both rotation directions. As an example, an unro-

tated sagittal T1-weighted image as well as an image

pitched by 2 degrees is presented in Fig. 1C right.

3.2 Experiment 2 – Application to

Multiparametric MRI Data

Fig. 2A shows the Crutchﬁeld information distance

for all combinations (D = 171) of sequences from

data set 1. Note the symmetry of the matrix. We

depicted the average of all N = 17 multiparametric

MRI data sets. However, the structure that can be

seen is also present at the individual level. This is

also supported by the small standard deviation of the

distances, which is on average 0.0035.

CrutchfieldInformationMetricforQuantifyingtheInter-sequenceRelationshipofMultiparametricMRIData

Figure 1: Data manipulation. A) Increasing levels of gaussian noise were added to a T1-weighted image and the Crutchﬁeld

distance to the original sequence was determined (left). Exemplary axial T1 image with (σ = 30) and without noise (right). B)

Crutchﬁeld distance between a T1-weighted image and artiﬁcially generated images (left). The artiﬁcial images were obtained

by blending co-registered T1- and T2-weighted images. Exemplary axial T1 image as well as a mixed T1- and T2-weighted

image using a factor of α = 0.3 (right). C) Crutchﬁeld distance of an unmodiﬁed reference sequence to the identical, but in

the interval of [−2, 2] degrees rotated data set (left). Unrotated sagittal T1 image as well as an image pitched by 2 degrees

(right). The average course for all data sets N = 17 as well as the standard deviation (gray shaded area) are plotted.

First, we interpreted the distance matrix as a

dis-similarity matrix. We used the Isomap algo-

rithm (Tenenbaum et al., 2000) to perform a 2D em-

bedding of the data (Fig. 2B). Comparable results

were obtained, when we employed local linear em-

bedding (Roweis and Saul, 2000) to reduce the di-

mensionality of the data (not shown). It clearly can

be seen that related sequences cluster in close proxim-

BIOIMAGING2015-InternationalConferenceonBioimaging

Figure 2: Crutchﬁeld Matrix. A) Average Crutchﬁeld information distance between all combinations of the multiparametric

MRI data of data set 1. The scaling ([0.9, 1.0]) was chosen to better emphasize the structure. B) 2D geometric embedding of

the distance matrix depicted in A using the Isomap algorithm. C) MST computed from the distance matrix depicted in A using

Kruskal’s algorithm. For the embedding we used the graphviz “spring model” layout (Graphviz). For the abbreviations of the

MRI sequences please refer to Sec. 2.2.

CrutchfieldInformationMetricforQuantifyingtheInter-sequenceRelationshipofMultiparametricMRIData

ity. In a second approach we used the distance matrix

as an adjacency matrix of a fully connected graph and

applied Kruskal’s algorithm (Kruskal, 1956) to obtain

the MST (Fig. 2C). Also this method allows to dis-

cover physically related sequences by grouping them

at neighboring leaves in the tree.

3.3 Experiment 3 – Automatic Quality

Control

To demonstrate a potential application of the pro-

posed framework we compute the distance matri-

ces for N = 216 data sets from the BraTS 2014

training data (data set 2) and use the Isomap algo-

rithm (Tenenbaum et al., 2000) to perform a 2D em-

bedding (Fig. 3A). Based on the distance to the clus-

ter centers we were able to identify outliers. This is

shown for four cases (numbered 1 to 4 in Fig. 3A). To

conﬁrm our hypothesis that the outliers correspond to

impaired data sets that do not meet quality standards,

we manually inspected them. Case 1 corresponds to

data set brats tcia pat313 1. This data set contains

no native T1 - instead the T2-FLAIR image was en-

closed twice. Case 2 (brats tcia pat216 1) misses

again a native T1 weighted image. Instead a contrast

enhanced image with spherical artifacts was included

(Fig. 3B left). Case 3 (brats tcia pat230 2) displays

severe motion artifacts in T1 (Fig. 3B right). Case 4

corresponds to brats tcia pat250 1 and does not con-

tain a native T1, instead a T1CE was included twice.

Note, even if only one channel is corrupted this

leads to changes of multiple entries in the distance

matrix and thus can affect the position of (all) other

channels in the low dimensional embedding.

4 DISCUSSION

We present an information theoretic framework that

allows to infer the relationship of MRI sequences

purely based on voxel intensities. It is shown that the

Crutchﬁeld information metric (Crutchﬁeld, 1990) is

a suitable distance measure for MRI sequences and

is able to capture the following relationship: the

greater the (physical) distance between two MRI se-

quences, the less information they share. We ma-

nipulated images by adding noise (Fig. 1A), blending

two MRI sequences (Fig. 1B) and purposefully apply-

ing a rigid transform to them (Fig. 1C). In all cases

the Crutchﬁeld distance increased monotonically with

the amount of manipulation and showed only a small

standard deviation across data set 1 (N = 17). If we

measure the information distance between all com-

binations of sequences (D = 171) of data set 1, we

can construct a distance matrix which already shows

a structure that corresponds to the intrinsic physical

relationship of the sequences (Fig. 2A). This relation-

ship becomes more explicit if we perform a low di-

mensional (2D) embedding (Fig. 2B) or compute the

MST (Fig. 2C).

Usually the physical relationship of the MRI se-

quences is known or can be obtained from the DI-

COM header. What is the beneﬁt of the proposed

method? This objection is certainly valid, however,

consider for instance data from a multicenter study

which is designated for an automatic evaluation. Even

if the data sets are acquired with similar parameters

(e.g. TE and TR) they still originate from different

scanners and thus might not be located in the same

informational space. It also is very likely, as known

from clinical routine, that some of the channels are

affected by motion artifacts, which would also al-

ter the informational structure. We demonstrated for

N = 216 data sets that the proposed framework in-

deed can be used as an automated screening method

for impaired images (Fig. 3). Employing the Crutch-

ﬁeld metric for quality control allows to identify data

sets which are not located in the same informational

space, e.g. are affected by motion artifacts (Fig. 3B

right). Admittedly, so far this is a very coarse ap-

proach and it still has to be validated on a ﬁner level

with controlled experiments that determine sensitivity

and speciﬁcity of the method.

Another potential application is to utilize this

method for the assembly of standardized multipara-

metric MRI sequences. The information distance can

be used as guideline for radiologists to select opti-

mal subsets of the available sequences by e.g. prun-

ing the MST to minimize the aquisition of redundant

information. Further applications include MRI se-

quence optimization by choosing parameters of a set

of sequences to maximize the coverage in information

space, i.e. reducing redundancy within the sequences.

Yet, this still requires a thourough study of the depen-

dence of the Crutchﬁeld distance on the differences in

physical parameters of MRI sequences.

5 CONCLUSIONS

We demonstrated that the Crutchﬁeld information

metric in combination with methods for dimension-

ality reduction or from graph theory are suitable for

discovering the physical relationship of various MRI

sequences solely based on their voxel intensities. Ini-

tial experiments conﬁrm that the proposed framework

can be used for automatic MRI sequence quality con-

trol. This has to be validated in future work.

BIOIMAGING2015-InternationalConferenceonBioimaging

Figure 3: 2D Embedding of BraTS 2014 training data. A) Using the Isomap algorithm we embedded all N = 216 data sets

in 2D. This allowed us to identify outliers (e.g. numbered 1 to 4) which indeed corresponded to impaired data sets. The scatter

of the embedded points can be explained by the fact that the data was acquired with MRI scanners of different vendors as well

as with different ﬁeld strengths and protocols. For the abbreviations of the MRI sequences please refer to Sec. 2.2. B) The

left image corresponds to number 2 above and was labeled as a native T1 weighted image. Instead it is a contrast enhanced

T1 image that contains multiple spherical hyperintense artifacts (a neuroradiologist conﬁrmed that these do not correspond to

hemorrhage). The image on the right side exhibits severe motion artifacts and corresponds to number 3 above.

ACKNOWLEDGEMENTS

This work was supported by a postdoctoral fellowship

from the Medical Faculty of the University of Heidel-

berg.

REFERENCES

3D Slicer v4.3. http://www.slicer.org.

Cornfeld, D. and Sprenkle, P. (2013). Multiparametric MRI:

standardizations needed. Oncology (Williston Park),

27(4):277,280.

Crutchﬁeld, J. (1990). Information and its metric. In Non-

linear Structures in Physical Systems – Pattern For-

mation, Chaos and Waves, pages 119–130. Springer

Verlag.

FMRIB’s software Library FSL v5.0.

http://fsl.fmrib.ox.ac.uk.

Graphviz. http://www.graphviz.org.

Hagberg, A. A., Schult, D. A., and Swart, P. J. (2008).

Exploring network structure, dynamics, and function

using NetworkX. In Proceedings of the 7th Python

in Science Conference (SciPy2008), pages 11–15,

Pasadena, CA USA.

Johnson, H., Harris, G., and Williams, K. (2007). BRAINS-

Fit: Mutual Information Registrations of Whole-Brain

3D Images, Using the Insight Toolkit. The Insight

Journal.

Kaplan, F. and Hafner, V. V. (2006). Information-theoretic

framework for unsupervised activity classiﬁcation.

Advanced Robotics, 20(10):1087–1103.

Kistler, M., Bonaretti, S., Pfahrer, M., Niklaus, R., and

uchler, P. (2013). The virtual skeleton database: an

CrutchfieldInformationMetricforQuantifyingtheInter-sequenceRelationshipofMultiparametricMRIData

open access repository for biomedical research and

collaboration. J Med Internet Res, 15(11):e245.

Kruskal, Joseph B., J. (1956). On the shortest spanning

subtree of a graph and the traveling salesman problem.

Proceedings of the American Mathematical Society,

7(1):pp. 48–50.

Kullback, S. (1968). Information Theory and Statistics.

Dover, New York.

Olsson, L. A., Nehaniv, C. L., and Polani, D. (2006). From

unknown sensors and actuators to actions grounded

in sensorimotor perceptions. Connection Science,

18(2):121–144.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer, P.,

Weiss, R., Dubourg, V., Vanderplas, J., Passos, A.,

Cournapeau, D., Brucher, M., Perrot, M., and Duch-

esnay, E. (2011). Scikit-learn: Machine Learning

in Python. Journal of Machine Learning Research,

12:2825–2830.

Python v2.7.6. http://www.python.org.

Roweis, S. T. and Saul, L. K. (2000). Nonlinear dimension-

ality reduction by locally linear embedding. Science,

290(5500):2323–6.

Shannon, C. and Weaver, W. (1949). The Mathemati-

cal Theory of Communication. University of Illinois

Press, Chicago, IL.

Smith, S. M. (2002). Fast robust automated brain extraction.

Human brain mapping, 17(3):143–55.

Tenenbaum, J. B., de Silva, V., and Langford, J. C. (2000).

A global geometric framework for nonlinear dimen-

sionality reduction. Science, 290(5500):2319–23.

Tononi, G., Edelman, G. M., and Sporns, O. (1998). Com-

plexity and coherency: integrating information in the

brain. Trends Cogn Sci, 2(12):474–84.

BIOIMAGING2015-InternationalConferenceonBioimaging
