PERFECTOS-APE

Predicting Regulatory Functional Effect of SNPs by Approximate P-value

Estimation

Ilya E. Vorontsov

, Ivan V. Kulakovskiy

1,2

, Grigory Khimulya

, Daria D. Nikolaeva

and Vsevolod J. Makeev

1,2,4

Department of Computational Systems Biology, Vavilov Institute of General Genetics, Gubkina str. 3, Moscow, Russia

Laboratory of Bioinformatics and Systems Biology, Engelhardt Institute of Molecular Biology,

Vavilova str. 32, Moscow, Russia

Faculty of Bioengineering and Bioinformatics, Lomonosov Moscow State University, Moscow, Russia

Department of Medical and Biological Physics, Moscow Institute of Physics and Technology, Moscow Region, Russia

Keywords:

Single Nucleotide Polymorphism, SNP, Single Nucleotide Variant, SNV, P-value, Transcription Factor

Binding Site, TFBS, Position Weight Matrix, PWM, PSSM, Transcriptional Regulation.

Abstract:

Single nucleotide polymorphisms (SNPs) and variants (SNVs) are often found in regulatory regions of hu-

man genome. Nucleotide substitutions in promoter and enhancer regions may affect transcription factor (TF)

binding and alter gene expression regulation. Nowadays binding patterns are known for hundreds of human

TFs. Thus one can assess possible functional effects of allele variations or mutations in TF binding sites using

sequence analysis.

We present PERFECTOS-APE, the software to PrEdict Regulatory Functional Effect of SNPs by Approxi-

mate P-value Estimation. Using a predeﬁned collection of position weight matrices (PWMs) representing TF

binding patterns, PERFECTOS-APE identiﬁes transcription factors whose binding sites can be signiﬁcantly

affected by given nucleotide substitutions. PERFECTOS-APE supports both classic PWMs under the position

independency assumption, and dinucleotide PWMs accounting for the dinucleotide composition and correla-

tions between nucleotides in adjacent positions within binding sites.

PERFECTOS-APE uses dynamic programming to calculate PWM score distribution and convert the scores

to P-values with an optional binary search mode using a precomputed P-value list to speed-up the com-

putations. Software is written in Java and is freely available as standalone program and online tool:

http://opera.autosome.ru/perfectosape/.

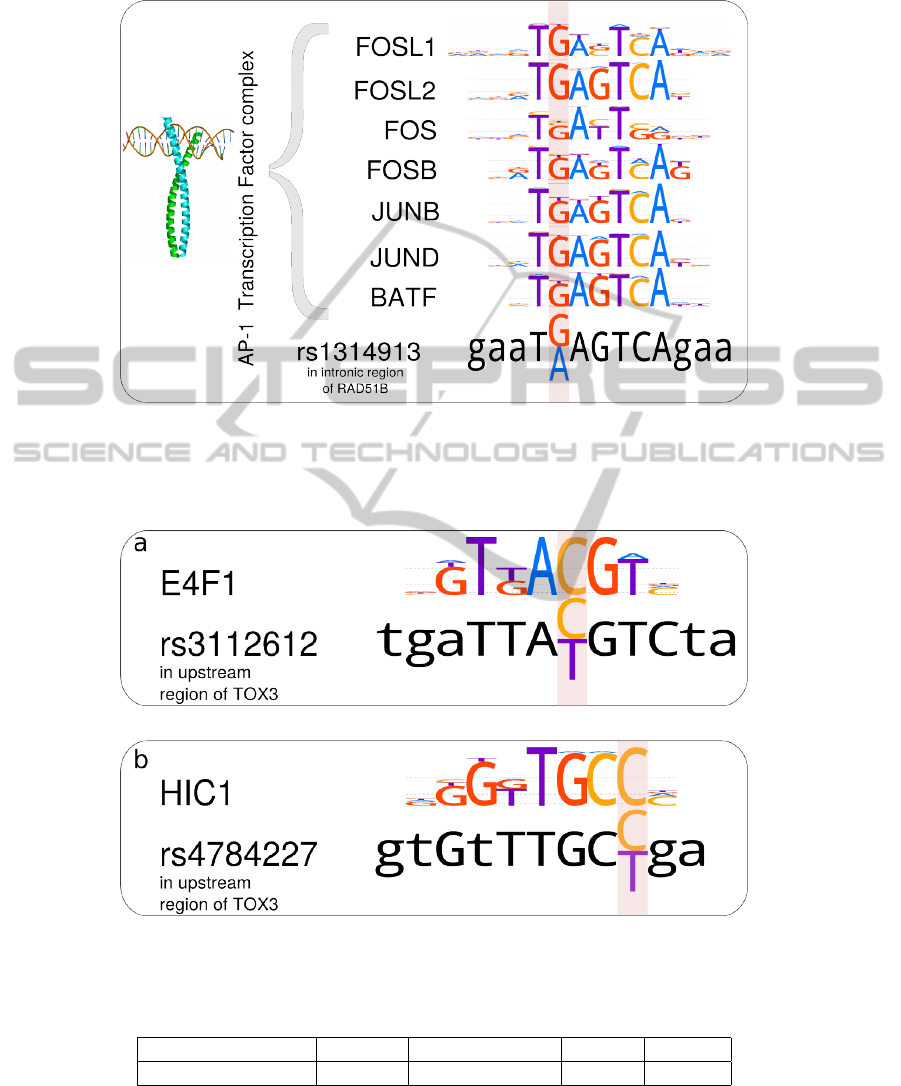

We have tested our algorithm on several disease associated SNVs as well as on a set of cancer somatic muta-

tions occurring in intronic regions of the human genome.

1 INTRODUCTION

Single nucleotide variants (SNVs) are the most stud-

ied variations of the human genome. Modern

genome-wide association studies link different SNV

alleles with different phenotypes, including disease

susceptibility. High-throughput technologies become

cheaper and push forward sequencing of personal

genomes and detection of individual genome variants.

However, proper interpretation of the sequencing data

remains a challenge. Most of the detected SNVs are

located outside of protein coding regions including a

special class of SNVs found in gene regulatory re-

gions. Among those an important subclass is formed

by promoter and enhancer SNVs, which do not al-

ter protein sequence or structure but possibly affect

gene expression. Such SNVs may affect transcrip-

tion through alterations in transcription factor binding

sites.

During the past 10 years a number of tools (Mac-

intyre et al., 2010; Manke et al., 2010; Barenboim

and Manke, 2013; Riva, 2012; Teng et al., 2012; An-

dersen et al., 2008; Khurana et al., 2013) were devel-

oped for computational analysis of regulatory SNVs.

Basic algorithms were simply predicting TFBS over-

lapping an SNV position (Ponomarenko et al., 2001).

More sophisticated tools compare predicted afﬁnitites

of TFs binding to binding sites for different homolo-

102

E. Vorontsov I., V. Kulakovskiy I., Khimulya G., D. Nikolaeva D. and J. Makeev V..

PERFECTOS-APE - Predicting Regulatory Functional Effect of SNPs by Approximate P-value Estimation.

DOI: 10.5220/0005189301020108

In Proceedings of the International Conference on Bioinformatics Models, Methods and Algorithms (BIOINFORMATICS-2015), pages 102-108

ISBN: 978-989-758-070-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

gous alleles (Manke et al., 2010) and estimate statis-

tical signiﬁcance of the difference (Macintyre et al.,

2010). All existing tools use the well-studied but ba-

sic model of transcription factor binding sites, the po-

sition weight matrix. Nowadays high-throughput data

such as ChIP-Seq allows producing advanced mod-

els (Kulakovskiy et al., 2013a; Mathelier and Wasser-

man, 2013), since the volume of data makes it pos-

sible to train models with more parameters without

the risk of overﬁtting (Levitsky et al., 2014; Mathe-

lier and Wasserman, 2013). Here we present a novel

software, PERFECTOS-APE, to predict how differ-

ent alleles of SNVs or SNPs may alter afﬁnity of tran-

scription factor binding sites modelled by basic and

advanced approaches.

2 METHODS

The core idea of our method is similar to that of (Mac-

intyre et al., 2010; Manke et al., 2010): the algorithm

estimates the statistical signiﬁcance (the P-value) of

predicted TF binding sites overlapping an SNV. Then

it checks if TFBS binding P-values calculated for dif-

ferent homologous alleles differ enough. Extremely

small or large ratios of P-values indicate the cases

where the binding site exists only for one of the two

alleles.

2.1 TFBS Models and P-value

Estimation

We use basic and dinucleotide position weight matri-

ces (PWMs) as TFBS models. PWM quantitatively

describes which nucleotides are preferred at which

position. Classic PWM M is a matrix 4 ×k which

deﬁnes a score function on k-mers α

...α

upon nu-

cleotide alphabet V = {A,C, G, T }:

score(M, α

...α

) =

∑

i=1

M(α

,i) (1)

Similarly to PWM, the dinucleotide position

weight matrix (diPWM) D is a matrix 16 ×(k −1)

where each element provides score for a pair of con-

sequent nucleotides, where adjacent nucleotide pairs

overlap:

score(D,α

...α

) =

∑

i=1...k−1

D(α

i+1

,i) (2)

Dinucleotide PWM (diPWM) takes into account

dependent contributions of adjacent nucleotides.

Scoring function with a score threshold deﬁnes

the set of recognized words scoring no less than the

threshold. Higher scores correspond to better TF-

DNA recognition, but it’s not trivial to deﬁne a uni-

ﬁed scale for different PWMs. To this end a P-value

of a given word for a given PWM is deﬁned as the

probability that a random word scores not less than

the given threshold. In other words, the P-value cor-

responds to the area under the right tail of the PWM

score distribution. For example, if a random model

generates any word with equal probability, than the

P-value is the normalized cumulative count of words

with scores passing the threshold.

Let’s assume the words are generated by an i.i.d.

random model with p

frequencies of individual nu-

cleotides for a PWM model or by a Markov(1) model

for a diPWM.

Given a PWM score threshold t, P-value for this

PWM (denoted M) is:

pvalue =

∑

w∈V

score(M,w)≥t

P(w) (3)

Here P(w) is the probability of a word w to be

generated by the background model (either i.i.d. or

Markov(1)).

To convert PWM scores to P-values we uti-

lize a simpliﬁed dynamic programming approach

(ScoreDistribution algorithm) originally presented by

H.Touzet and J.Varr

e (Touzet et al., 2007).

The idea is to discretize PWM elements and pro-

duce overall score distribution in a form of a hash (un-

like the original approach here we use a predeﬁned

discretization level). This allows ﬁnding approximate

P-value for a given score in reasonable time.

Each key in the hash is a score and the correspond-

ing stored value is a probability to obtain this score.

This hash can be constructed through recalculation of

the score distribution gradually increasing the length

of words:

(S) = [S = 0] ·1 (4)

l+1

) =

∑

α∈V

∑

S:M(α,l+1)+S=S

(S)p

(5)

For a dinucleotide position weight matrix

(diPWM) the score distribution can be obtained

by a similar method. For a dinucleotide model D

(score, last-letter) pairs can be used as keys of the

hash:

(S,α) = [S = 0] ·

∑

γ∈V

γα

(6)

l+1

,α

l+1

) =

∑

∈V

∑

S:D(α

l+1

,l)+S=S

(S,α

l+1

|α

(7)

Here p

αβ

is the background probability of the din-

ucleotide αβ and p

β|α

is the background probability

PERFECTOS-APE-PredictingRegulatoryFunctionalEffectofSNPsbyApproximateP-valueEstimation

103

of the nucleotide β under condition that the previous

letter was α:

β|α

αβ

∑

αγ

(8)

At the last step score distributions of words ending

with different nucleotides are summed to obtain the

ﬁnal score distribution:

(S) =

∑

α∈V

(S,α) (9)

2.2 Speeding-up P-value Estimation

In practice it is convenient to analyze multiple SNVs.

Hundreds of thousands or even millions candidate

variants can be subjected to analysis thanks to the per-

sonal genomics data.

In this case P-value estimation can be accelerated

using precomputed score distributions for each TFBS

model in a given collection. The PWM score dis-

tribution is discrete; thus, it’s possible to store the

P-value for each achievable PWM score. The P-value

is a monotonically decreasing function depending on

scores. Thus the list of (score, P-value) pairs can be

sorted with respect to both the P-value and the score.

Given the word score t, binary search can be uti-

lized to ﬁnd a pair of consequent scores t

such that

≤t ≤ t

and thus the P-value p associated with the

score t lies in range p

≥ p ≥ p

A value between p

and p

can be taken as an es-

timate of the true P-value; we use the geometric mean

p ≈

√

Since in practice we don’t need a precise P-value,

but a reasonable approximation, we select admissible

P-value relative error δ to further improve computa-

tion time. From a given score distribution we take

not the whole list of (score, P-value) pairs but only

a subset such that P-values differ in (1 + δ) times:

, p

/(1 + δ), p

/(1 + δ)

,... for any p

. With the

help of this list we can estimate P-value with a given

relative error δ. We use the ﬁxed discretization level

for PWMs at the distribution estimation step. We call

the whole procedure Approximate P-value Estimation

(APE).

To measure possible functional effect of allele

variants we compute fold change of P-values corre-

sponding to the binding sites with these allele vari-

ants (see the next section for details). In turn, the fold

change relative error will be not greater than

1+δ

1−δ

2.3 Predicting Functional Effect of

SNVs

To predict possible functional effect of a given SNV,

PERFECTOS-APE (1) scans the region overlapping

SNV position with (di)PWM model predicting bind-

ing sites for given nucleotide variants; (2) selects the

best (di)PWM prediction for each allele; (3) computes

P-values for the binding sites detected for each al-

lele variant. If any of P-values is small enough (i.e.

there is an allele corresponding to the putative bind-

ing site) and P-values differ signiﬁcantly (i.e. the ratio

passes a fold change threshold t

) we state that the

SNV may play a regulatory role through disruption or

emergence of the transcription factor binding site.

3 ALGORITHM COMPLEXITY

Given a motif of length k, a scanned region around

SNV should contain no less than 2k −1 nucleotides

(the SNV position with the ﬂanking genomic re-

gions). The ﬁrst stage of the algorithm calculates

scores for each site position in both strand orienta-

tions relative to the given DNA sequence. It takes

O(k

) operations to compute the scores (2k score esti-

mations with each score estimation of O(k) complex-

ity).

The second stage computes P-values either by cal-

culating score distribution using dynamic program-

ming or via binary search in a precomputed list.

Dynamic programming involves k steps. At each

step the algorithm updates the hash H of the score dis-

tribution (score to probability mapping). For a PWM

each update has O(|H||V |) complexity. For a diPWM

each update consists of O(|H||V |

) operations and

k −1 updates are to be done. Here |H| is a number of

elements in the hash and |V | is an alphabet size which

is equal to 4. Hash size can be roughly estimated as

|H| ≤ (max score −min score) · discretization rate

for a motif model discretized as:

discretized

(α,i) =

M(α,i) ·discretization rate

(10)

Binary search has only O(log

|S|) complexity

where |S| is the size of the (score; P-value) list. By

default we calculate this list sampling the score dis-

tributions in several points such that P-value differs

by no more than a given relative error δ for adjacent

pairs. The list of P-values is bounded by the minimal

achievable P-value minAchievablePvalue and 1. Thus

|S| = −

ln(minAchievablePvalue)

ln(1 + precision)

(11)

It’s also possible to make threshold to P-value

conversion in O(1) by expanding a P-value list into

an array indexed by discretized thresholds. Such an

algorithm consumes a bit more memory and works

notably faster than binary search. However, practical

proﬁt in total computation time could be limited due

BIOINFORMATICS2015-InternationalConferenceonBioinformaticsModels,MethodsandAlgorithms

104

to the score computation bottleneck. In turn, there is

room for score computation improvements using ad-

vanced methods (Korhonen et al., 2009).

4 RESULTS & DISCUSSION

4.1 Software Implementation

Our implementation of PERFECTOS-APE can be

used to test a set of SNVs against a given collec-

tion of TFBS models. PERFECTOS-APE is imple-

mented in Java and supports both mononucleotide and

dinucleotide PWMs. Console and web-based ver-

sions are available at the PERFECTOS-APE website

http://opera.autosome.ru/perfectosape/. Current im-

plementation is restricted to SNVs with two alter-

native alleles. PERFECTOS-APE web interface al-

lows testing a set of SNVs against publicly available

motif collections: HOCOMOCO (Kulakovskiy et al.,

2013b), JASPAR (Portales-Casamar et al., 2009), HT-

SELEX (Jolma et al., 2010), SwissRegulon (Pachkov

et al., 2007), and HOMER (Heinz et al., 2010).

We performed a basic benchmark with 100 SNPs

and the HOCOMOCO collection of 426 mononu-

cleotide PWMs on a common laptop with a Core

i3 CPU. Precalculation with default settings took ∼

150 Mb RAM and ∼ 30 seconds; the precalculation

step took ∼ 0.5 hour for a comparable amount of

dinucleotide PWMs. In the binary search mode pro-

cessing of 100 SNPs took ∼ 5 min/∼ 0.5 min and ∼

90Mb/∼ 200Mb RAM for basic/binary search mode

respectively. For dinucleotide motifs the running time

was ∼3 hours in basic mode and the same ∼0.5 min

as for the mononucleotide case was necessary in bi-

nary search mode. Thus, PERFECTOS-APE allows

large-scale SNP analysis.

4.2 Case Studies on Real Data

To test whether PERFECTOS-APE is able to produce

meaningful predictions we analysed several disease-

associated SNPs.

For instance, rSNP rs1314913 (Orr et al., 2012)

is located in an intronic region of RAD51B gene that

is signiﬁcantly associated with breast cancer. It was

proposed (Orr et al., 2012) that the minor allele neg-

atively affects the binding site of the AP-1 complex.

PERFECTOS-APE reproduces this prediction (ﬁg.1):

it shows 40× to 280× fold changes for binding site

P-values.

We also checked breast cancer-associated rSNPs,

which currently have no functional annotation (see

ﬁg.2):

• rs3112612 (Fletcher et al., 2011) possibly dam-

ages the E4F1 binding site, and

• rs4784227 (Long et al., 2010) possibly damages

the HIC1 binding site.

Both those SNPs are located in the upstream region of

the TOX3 gene, thus possibly affecting not the protein

product directly, but its expression regulation.

To demonstrate PERFECTOS-APE performance

on genomic scale, we’ve taken data on somatic mu-

tations in 21 breast cancers (Nik-Zainal et al., 2012)

selecting only those in intronic or promoter regions

(76594 SNVs). It is known (Ostrow et al., 2014)

that cancer somatic mutations escape the pressure of

stabilizing selection responsible for maintaining ad-

equate tissue speciﬁc regulation of gene expression,

but fall under strong positive selection responsible

for fast cell division and survival in the tumor envi-

ronment. One of the sources of selection is disrup-

tion/emergence of a TFBS binding site for the mu-

tated allele. Two prevalent types of breast cancer so-

matic mutations, CpG and TpC with nucleotide sub-

stitutions at C, were considered independently.

Using 426 HOCOMOCO PWMs we predicted

TFBS overlapping the set of SNVs and passing

0.0005 P-value threshold for either the reference or

the mutated allele. Using PERFECTOS-APE we cal-

culated the number of cases when a somatic mutation

caused a signiﬁcant negative TFBS afﬁnity change for

the mutant allele (with a P-value cutoff at 5). To gen-

erate control data we shufﬂled 30bp sequences ﬂank-

ing the SNVs (preserving 1bp mutation context) and

repeated TFBS prediction. This procedure was exe-

cuted 8 times aggregating the results obtained for the

same TF in the same mutation context, i.e. only CpG-

and TpC-context variants were considered for shuf-

ﬂed sequences.

To evaluate whether somatic mutations are likely

to occur in the TFBS favoring context we have con-

structed 2x2 contingency tables for the number of

TFBS with a high/low afﬁnity change caused by mu-

tations (as table columns) and genuine/shufﬂed SNV

context (as table rows). Fisher’s exact test was used

to estimate the signiﬁcance of the association between

the signiﬁcant change of TFBS afﬁnity and the intact

SNV context. Since we tested all 426 HOCOMOCO

models for each mutation site, we calculated Holm’s

multiple testing correction for the number of TFBS

models.

We have found that original ”genuine” mutations

were the subject of either emergence or disruption

of TF binding sites signiﬁcantly more often than the

shufﬂed random sequences.

In addition to Fisher’s Test Holm-corrected

P-values passing 0.05 threshold, we selected TFs for

PERFECTOS-APE-PredictingRegulatoryFunctionalEffectofSNPsbyApproximateP-valueEstimation

105

which the rate of TFBS disruption in real somatic mu-

tations was no less than 1.3 times greater than for the

synthetic data. The resulting list of TFs contained

several well-known oncogenes, such as HIF1A, SP2,

MYC for CpG context mutations and HLF, C/EBP-

family, RUNX2 and others for TpC context muta-

tions.

It is also notable, that a simpler approach compar-

ing overall counts of TFBS predictions overlapping

real somatic and ”shufﬂed” mutations was also show-

ing high signiﬁcance (FDR-corrected Fisher’s exact

test P-value < 0.05) for the most of those TFs.

4.3 Comparison to Existing Tools

Existing tools for regulatory SNP annotation are

mostly provided as web services rather than stand-

alone command-line applications; the notable excep-

tions are sTRAP (implemented as R-package) and

FunSeq (a C++ based command line tool). Web-only

realization restricts applicability to large-scale data

sets.

Another limitation comes from predeﬁned sets of

transcription factor binding motifs collections with

most of the web-tools providing only two built-in col-

lections: TRANSFAC and JASPAR. The choice of an

appropriate motif collection plays an important role in

ﬁnding effects of regulatory substitutions. It is desir-

able to have an option to utilize a user-deﬁned motif

collection since the general purpose databases are in-

complete and motifs for new TFs keep emerging.

P-value ratio is a common approximation for bind-

ing afﬁnity change and is used by almost all tools

except RAVEN (Andersen et al., 2008), which cal-

culates score difference. PERFECTOS-APE uses an

approach for P-value calculation very similar to that

used in is-rSNP (Macintyre et al., 2010); it allows

exact calculations of P-value with a given precision.

This differs our approach from RegSNP (Teng et al.,

2012) and sTRAP (Manke et al., 2010) which rely on

approximate techniques.

Most of tools use PWM motif models whereas

PERFECTOS-APE supports both PWM and diPWM.

The other tool that employs motif models more com-

plex than PWMs is rSNP-MAPPER, which uses Hid-

den Markov Models.

RAVEN, ChroMoS (Barenboim and Manke,

2013), RegSNP and FunSeq (Khurana et al., 2013)

are complex integrative tools which provide an-

notation compiling information from different data

sources, while is-rSNP, sTRAP, rSNP-Mapper (Riva,

2012) and PERFECTOS-APE perform solely se-

quence analysis.

PERFECTOS-APE was intentionally designed as

a stand-alone tool accepting raw sequences (not gene

names or dbSNP identiﬁers) and making no prelim-

inary ﬁltering of SNPs according to their location,

functionality etc. (unlike integrative tools).

PERFECTOS-APE does not perform any multi-

ple testing correction, which is left up to downstream

analysis if necessary.

We tested several tools on a veriﬁed

SNP (rs1314913) and gathered ranks of AP-1

complex in the resulting predictions (see table 1).

Our observations show that all methods behave sim-

ilarly, but the results depend on the motif collection.

For instance, is-rSNP fails to recognize rs1314913

as a regulatory SNP using JASPAR motif collection.

For other tools ranks of transcription factors vary

signiﬁcantly depending on selected collection.

4.4 Discussion

PERFECTOS-APE can be improved in many ways,

including direct support for multiallelic SNVs and

more efﬁcient procedure to scan sequences for bind-

ing sites. Also an effective parallelization is possi-

ble since each SNV versus PWM test can be run as

a separate task or thread. Dinucleotide PWMs have

shown better TFBS recognition than classic PWMs

(Kulakovskiy et al., 2013a; Levitsky et al., 2014), yet

the classic PWMs are much more common and are

available for a wider range of transcription factors.

As more data on TF binding becomes available and

advanced models are constructed for a wider range

of TFs, PERFECTOS-APE can be efﬁciently used for

analysis of regulatory SNVs and SNPs.

ACKNOWLEDGMENTS

The authors thank the School for Molecular and The-

oretical Biology of the Dynasty Foundation, and per-

sonally Anya Piotrovskaya and Fyodor Kondrashov.

This work was supported by the Dynasty Foundation

Fellowship; by Russian Scientiﬁc Foundation [14-14-

01140]; by the Program on Molecular and Cell Biol-

ogy from the Presidium of RAS.

REFERENCES

Andersen, M. C., Engstr

om, P. G., Lithwick, S., Arenillas,

D., Eriksson, P., Lenhard, B., Wasserman, W. W., and

Odeberg, J. (2008). In silico detection of sequence

variations modifying transcriptional regulation. PLoS

computational biology, 4(1):e5.

BIOINFORMATICS2015-InternationalConferenceonBioinformaticsModels,MethodsandAlgorithms

106

Barenboim, M. and Manke, T. (2013). Chromos: an in-

tegrated web tool for snp classiﬁcation, prioritiza-

tion and functional interpretation. Bioinformatics,

29(17):2197–2198.

Fletcher, O., Johnson, N., Orr, N., Hosking, F. J., Gib-

son, L. J., Walker, K., Zelenika, D., Gut, I., Heath,

S., Palles, C., et al. (2011). Novel breast cancer sus-

ceptibility locus at 9q31. 2: results of a genome-wide

association study. Journal of the National Cancer In-

stitute.

Heinz, S., Benner, C., Spann, N., Bertolino, E., Lin, Y. C.,

Laslo, P., Cheng, J. X., Murre, C., Singh, H., and

Glass, C. K. (2010). Simple combinations of lineage-

determining transcription factors prime cis-regulatory

elements required for macrophage and b cell identi-

ties. Molecular cell, 38(4):576–589.

Jolma, A., Kivioja, T., Toivonen, J., Cheng, L., Wei, G.,

Enge, M., Taipale, M., Vaquerizas, J. M., Yan, J., Sil-

lanp

a, M. J., et al. (2010). Multiplexed massively

parallel selex for characterization of human transcrip-

tion factor binding speciﬁcities. Genome research,

20(6):861–873.

Khurana, E., Fu, Y., Colonna, V., Mu, X. J., Kang, H. M.,

Lappalainen, T., Sboner, A., Lochovsky, L., Chen, J.,

Harmanci, A., et al. (2013). Integrative annotation of

variants from 1092 humans: Application to cancer ge-

nomics. Science, 342(6154):1235587.

Korhonen, J., Martinm

aki, P., Pizzi, C., Rastas, P., and

Ukkonen, E. (2009). Moods: fast search for position

weight matrix matches in dna sequences. Bioinfor-

matics, 25(23):3181–3182.

Kulakovskiy, I., Levitsky, V., Oshchepkov, D., Bryzgalov,

L., Vorontsov, I., and Makeev, V. (2013a). From bind-

ing motifs in chip-seq data to improved models of

transcription factor binding sites. Journal of bioin-

formatics and computational biology, 11(01).

Kulakovskiy, I. V., Medvedeva, Y. A., Schaefer, U.,

Kasianov, A. S., Vorontsov, I. E., Bajic, V. B., and

Makeev, V. J. (2013b). Hocomoco: a comprehensive

collection of human transcription factor binding sites

models. Nucleic acids research, 41(D1):D195–D202.

Levitsky, V. G., Kulakovskiy, I. V., Ershov, N. I., Os-

chepkov, D. Y., Makeev, V. J., Hodgman, T., and

Merkulova, T. I. (2014). Application of experimen-

tally veriﬁed transcription factor binding sites models

for computational analysis of chip-seq data. BMC ge-

nomics, 15(1):80.

Long, J., Cai, Q., Shu, X.-O., Qu, S., Li, C., Zheng, Y., Gu,

K., Wang, W., Xiang, Y.-B., Cheng, J., et al. (2010).

Identiﬁcation of a functional genetic variant at 16q12.

1 for breast cancer risk: results from the asia breast

cancer consortium. PLoS genetics, 6(6):e1001002.

Macintyre, G., Bailey, J., Haviv, I., and Kowalczyk, A.

(2010). is-rsnp: a novel technique for in silico regula-

tory snp detection. Bioinformatics, 26(18):i524–i530.

Manke, T., Heinig, M., and Vingron, M. (2010). Quan-

tifying the effect of sequence variation on regulatory

interactions. Human mutation, 31(4):477–483.

Mathelier, A. and Wasserman, W. W. (2013). The next gen-

eration of transcription factor binding site prediction.

PLoS computational biology, 9(9):e1003214.

Nik-Zainal, S., Alexandrov, L. B., Wedge, D. C., Van Loo,

P., Greenman, C. D., Raine, K., Jones, D., Hinton,

J., Marshall, J., Stebbings, L. A., et al. (2012). Mu-

tational processes molding the genomes of 21 breast

cancers. Cell, 149(5):979–993.

Orr, N., Lemnrau, A., Cooke, R., Fletcher, O., Tomczyk, K.,

Jones, M., Johnson, N., Lord, C. J., Mitsopoulos, C.,

Zvelebil, M., et al. (2012). Genome-wide association

study identiﬁes a common variant in rad51b associ-

ated with male breast cancer risk. Nature genetics,

44(11):1182–1184.

Ostrow, S. L., Barshir, R., DeGregori, J., Yeger-Lotem, E.,

and Hershberg, R. (2014). Cancer evolution is associ-

ated with pervasive positive selection on globally ex-

pressed genes. PLoS genetics, 10(3):e1004239.

Pachkov, M., Erb, I., Molina, N., and Van Nimwegen, E.

(2007). Swissregulon: a database of genome-wide an-

notations of regulatory sites. Nucleic acids research,

35(suppl 1):D127–D131.

Ponomarenko, J. V., Merkulova, T. I., Vasiliev, G. V., Lev-

ashova, Z. B., Orlova, G. V., Lavryushev, S. V., Fokin,

O. N., Ponomarenko, M. P., Frolov, A. S., and Sarai,

A. (2001). rsnp guide, a database system for analysis

of transcription factor binding to target sequences: ap-

plication to snps and site-directed mutations. Nucleic

acids research, 29(1):312–316.

Portales-Casamar, E., Thongjuea, S., Kwon, A. T., Arenil-

las, D., Zhao, X., Valen, E., Yusuf, D., Lenhard, B.,

Wasserman, W. W., and Sandelin, A. (2009). Jaspar

2010: the greatly expanded open-access database of

transcription factor binding proﬁles. Nucleic acids re-

search, page gkp950.

Riva, A. (2012). Large-scale computational identiﬁcation

of regulatory snps with rsnp-mapper. BMC genomics,

13(Suppl 4):S7.

Teng, M., Ichikawa, S., Padgett, L. R., Wang, Y., Mort, M.,

Cooper, D. N., Koller, D. L., Foroud, T., Edenberg,

H. J., Econs, M. J., et al. (2012). regsnps: a strategy

for prioritizing regulatory single nucleotide substitu-

tions. Bioinformatics, 28(14):1879–1886.

Touzet, H., Varr

e, J.-S., et al. (2007). Efﬁcient and accurate

p-value computation for position weight matrices. Al-

gorithms Mol Biol, 2(1510.1186):1748–7188.

PERFECTOS-APE-PredictingRegulatoryFunctionalEffectofSNPsbyApproximateP-valueEstimation

107

APPENDIX

Figure 1: SNP rs1314913 is located in the intronic region of the breast cancer-associated RAD51B gene that is involved

in DNA recombination and DNA repair. The T(A) allele is associated with about 1.6 times higher odds of breast cancer

in men (Orr et al., 2012). Motif LOGO representations are given for HOCOMOCO PWMs (Kulakovskiy et al., 2013b).

PERFECTOS-APE P-value fold changes are 40× to 280×, TFBS P-value threshold was 0.0005

Figure 2: Breast cancer-associated SNPs in the promoter region of the TOX3 gene (fold-change cutoff 5; TFBS P-value

threshold 0.001). (a) rs3112612, Risk allele (T) damages putative E4F1 binding site. (b) rs4784227, Risk allele (T) damages

putative HIC1 binding site.

Table 1: AP-1 complex ranking in resulting predictions for rs1314913 analyzed by different tools.

PERFECTOS-APE RegSNP rSNP-MAPPER sTRAP is-rSNP

1-7,13 9,10,13 3,5,6,9 1-6 3,8

BIOINFORMATICS2015-InternationalConferenceonBioinformaticsModels,MethodsandAlgorithms

108
